tayco Metro User manual

Metro
installation guide
July 2023

for more information, contact Installation Service
toll free I 1.800.675.4092
Mon - Fri I 8:30 am –5:00 pm EST
www.tayco.com

TableofContents
General Instructions 3|06
Installation Checklist ................................................................................................................ 3
Care and Maintenance ............................................................................................................. 4
Caution ..................................................................................................................................... 5

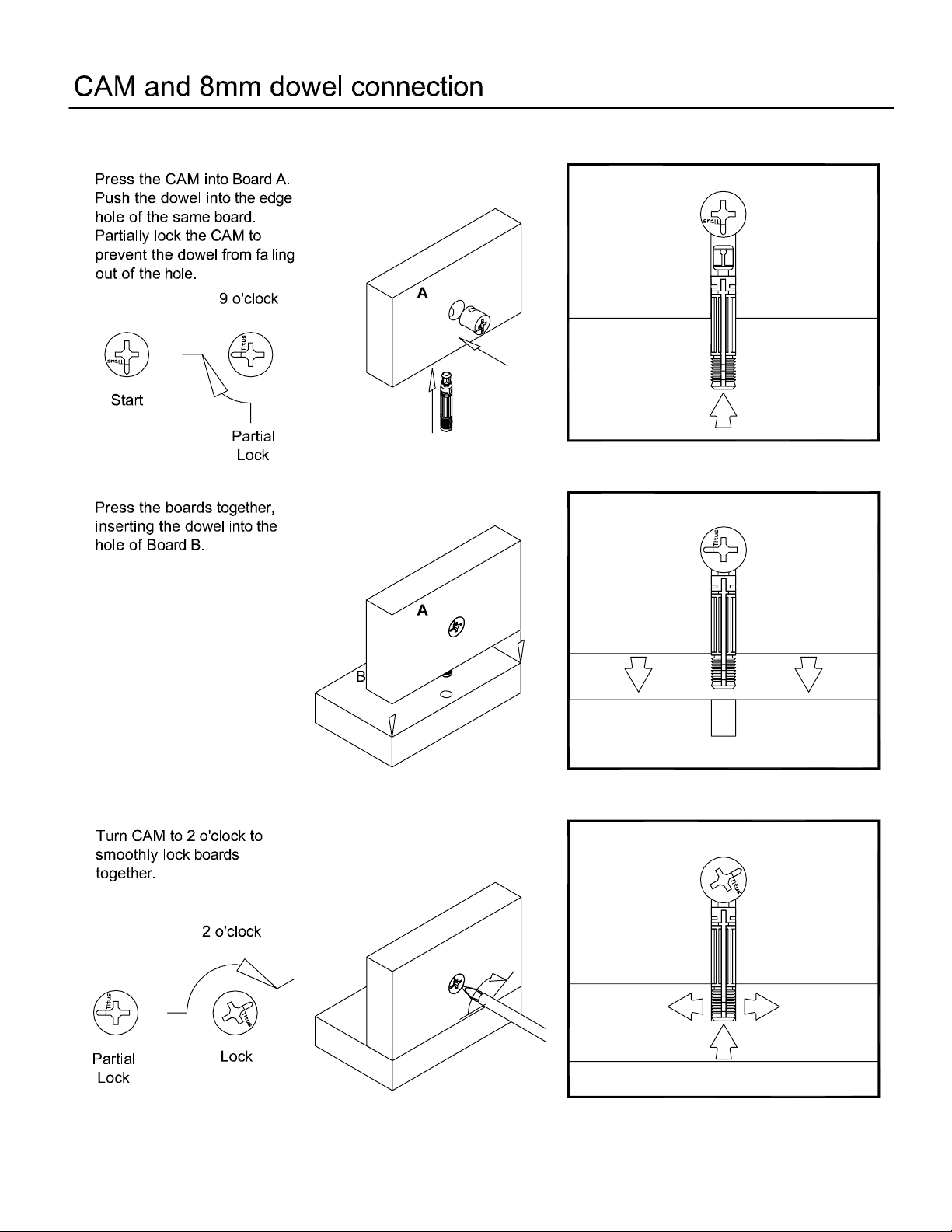

CAM and 8mm dowel connection ............................................................................................ 6
Desks and Tables 7|49

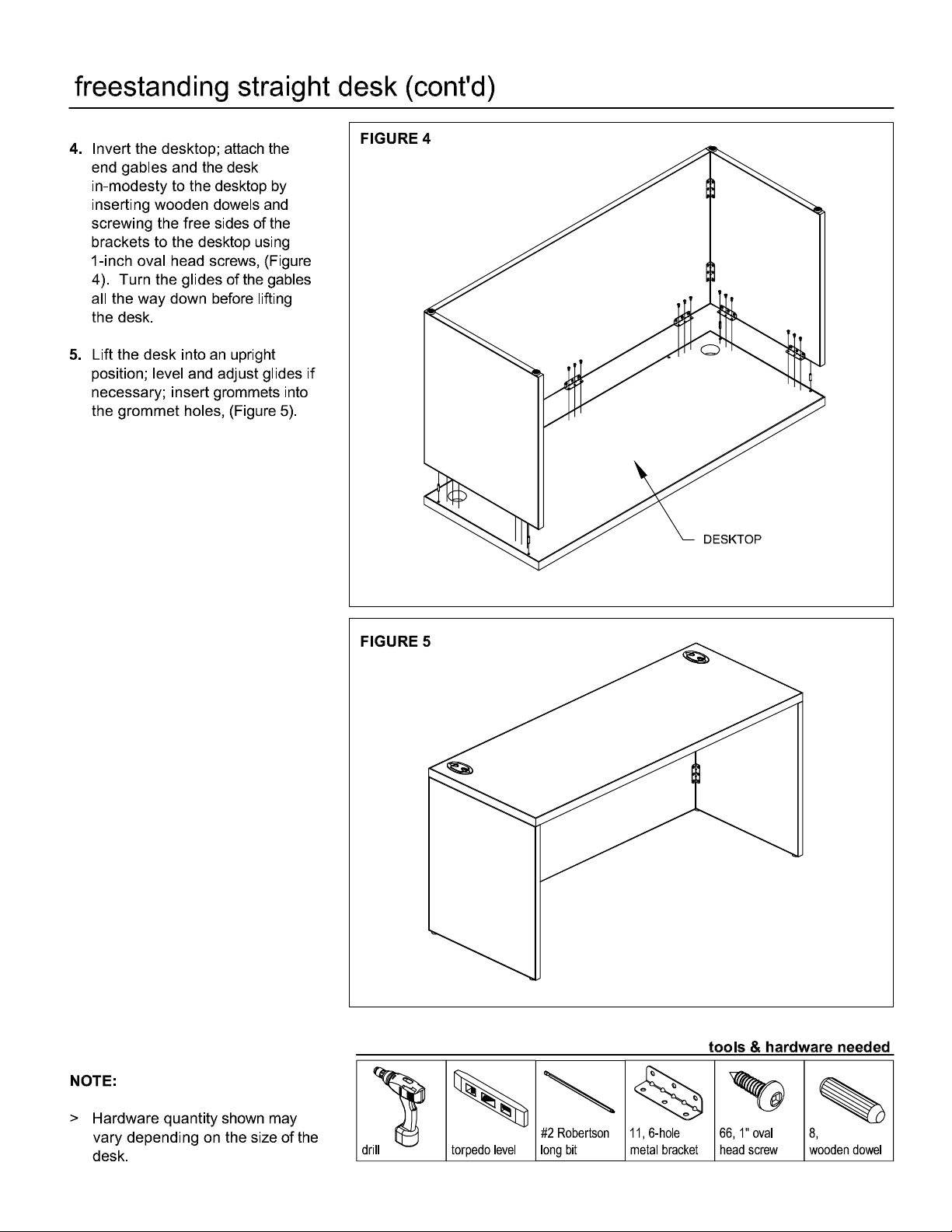

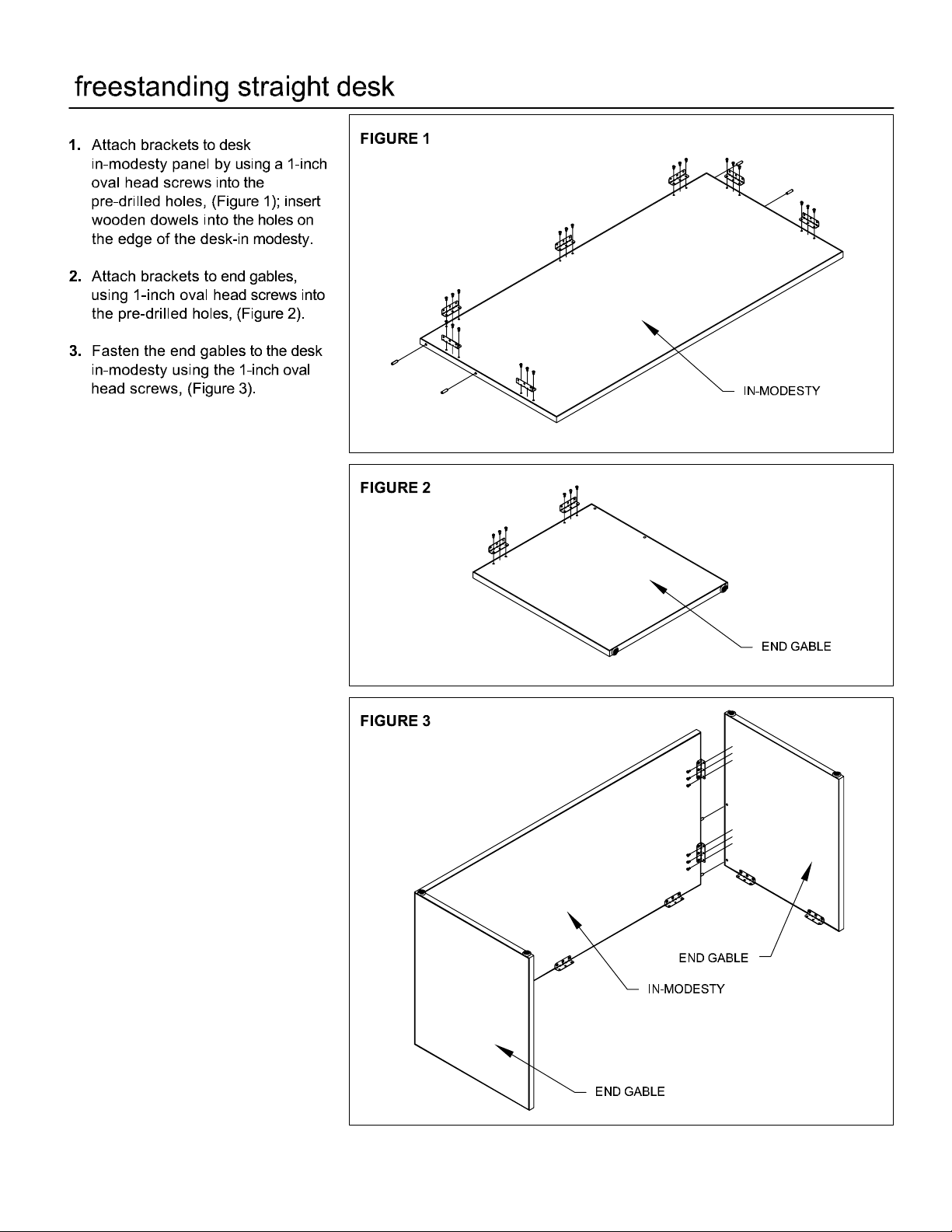

freestanding straight desk........................................................................................................... 7

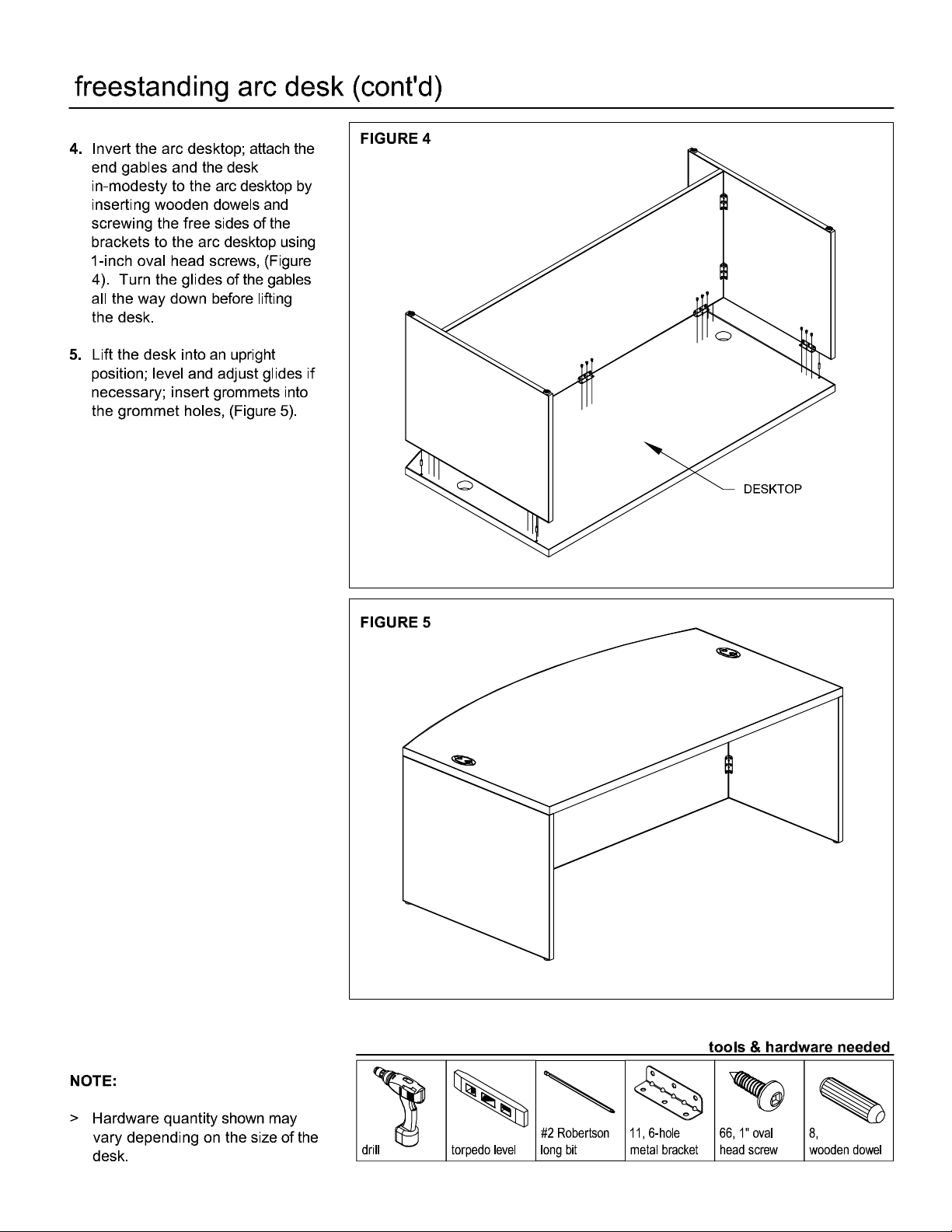

freestanding arc desk.................................................................................................................. 9

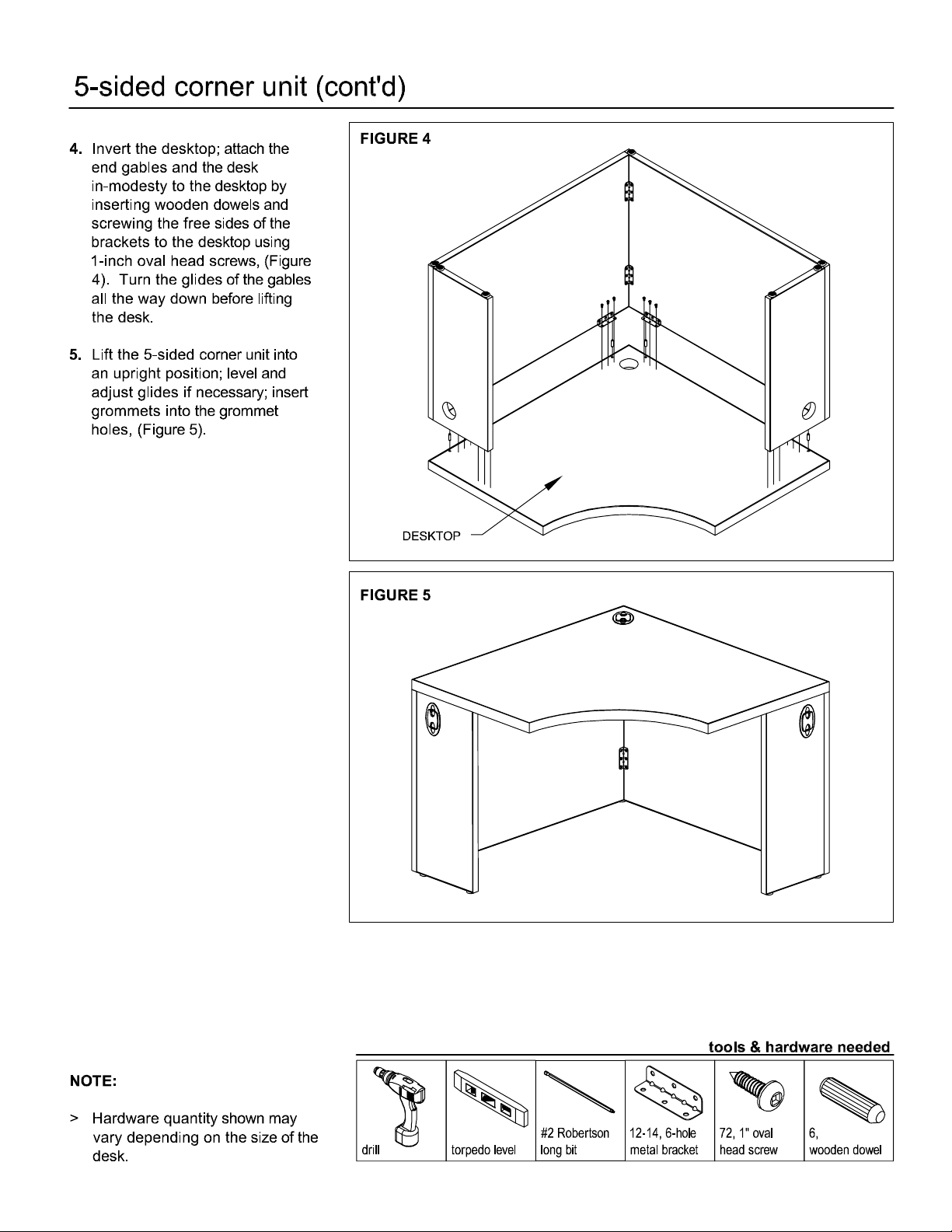

5-sided corner unit.................................................................................................................... 11

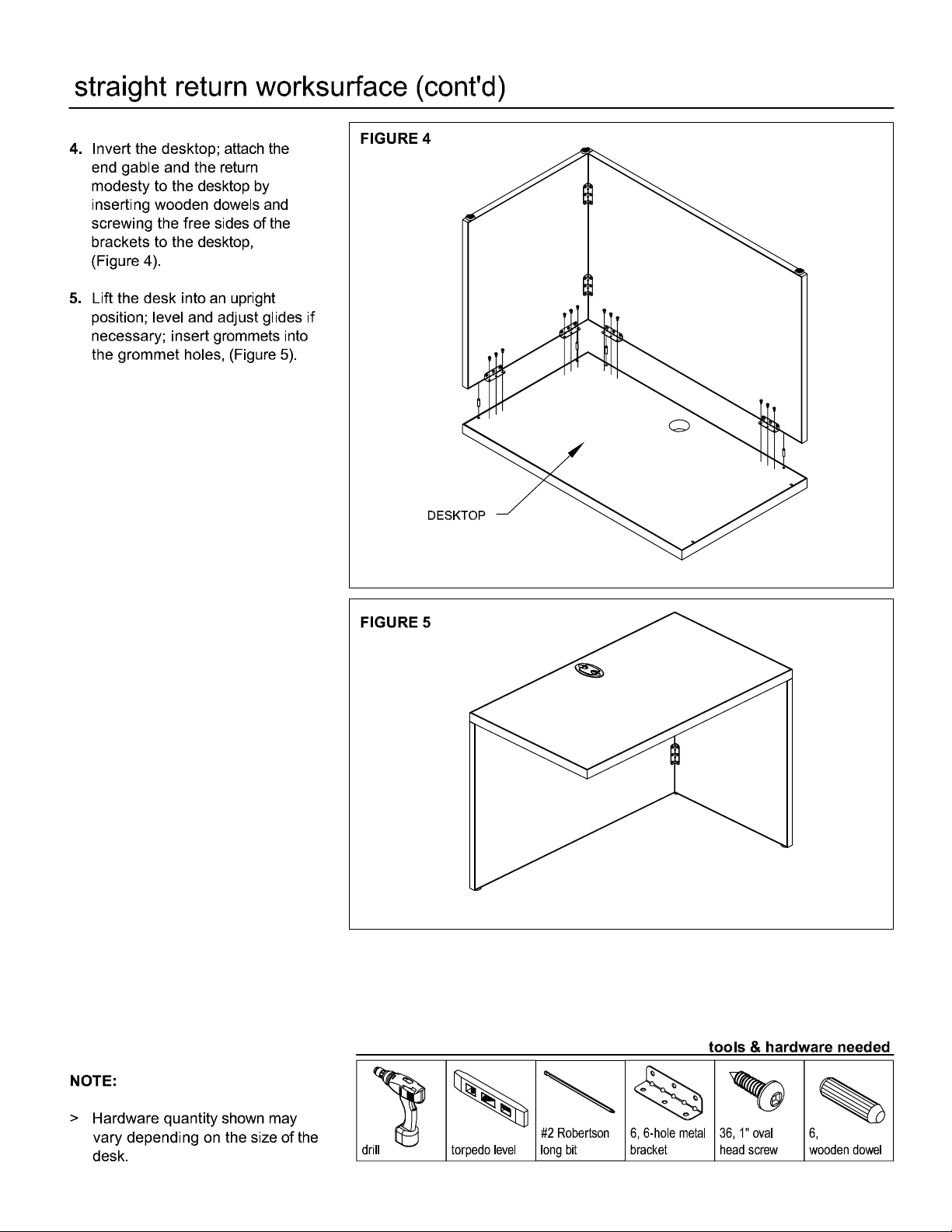

straight return worksurface........................................................................................................ 13

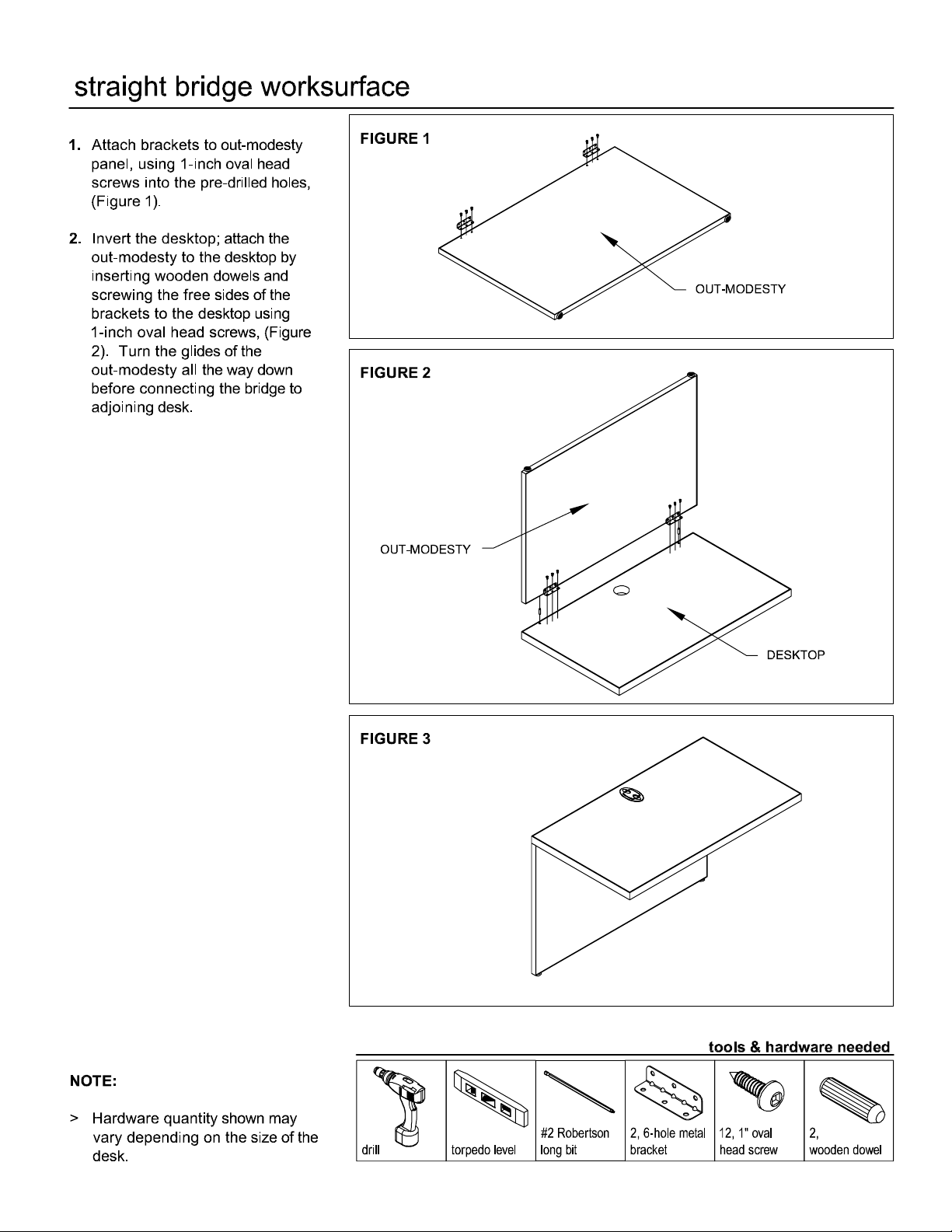

straight bridge worksurface ....................................................................................................... 15

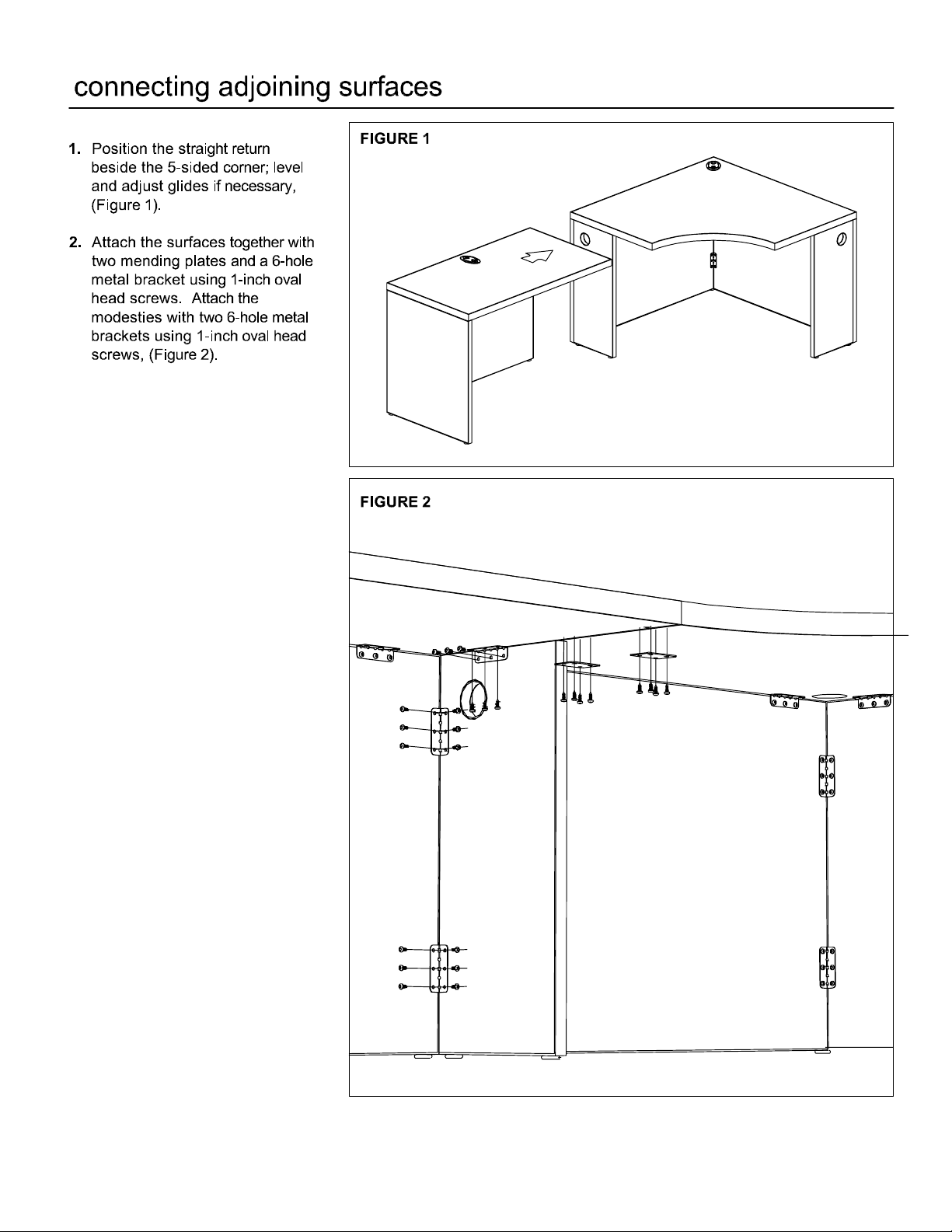

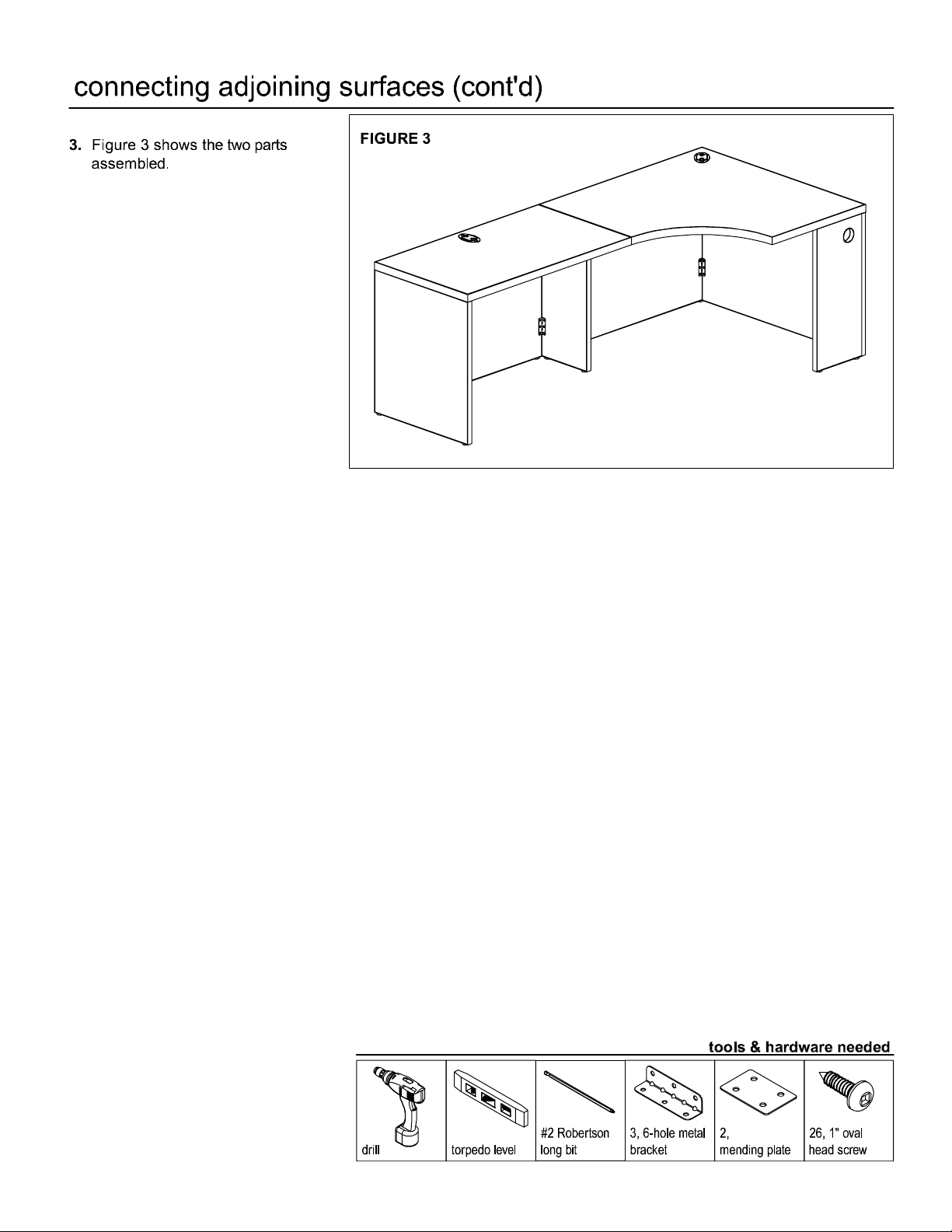

connecting adjoining surfaces ................................................................................................... 16

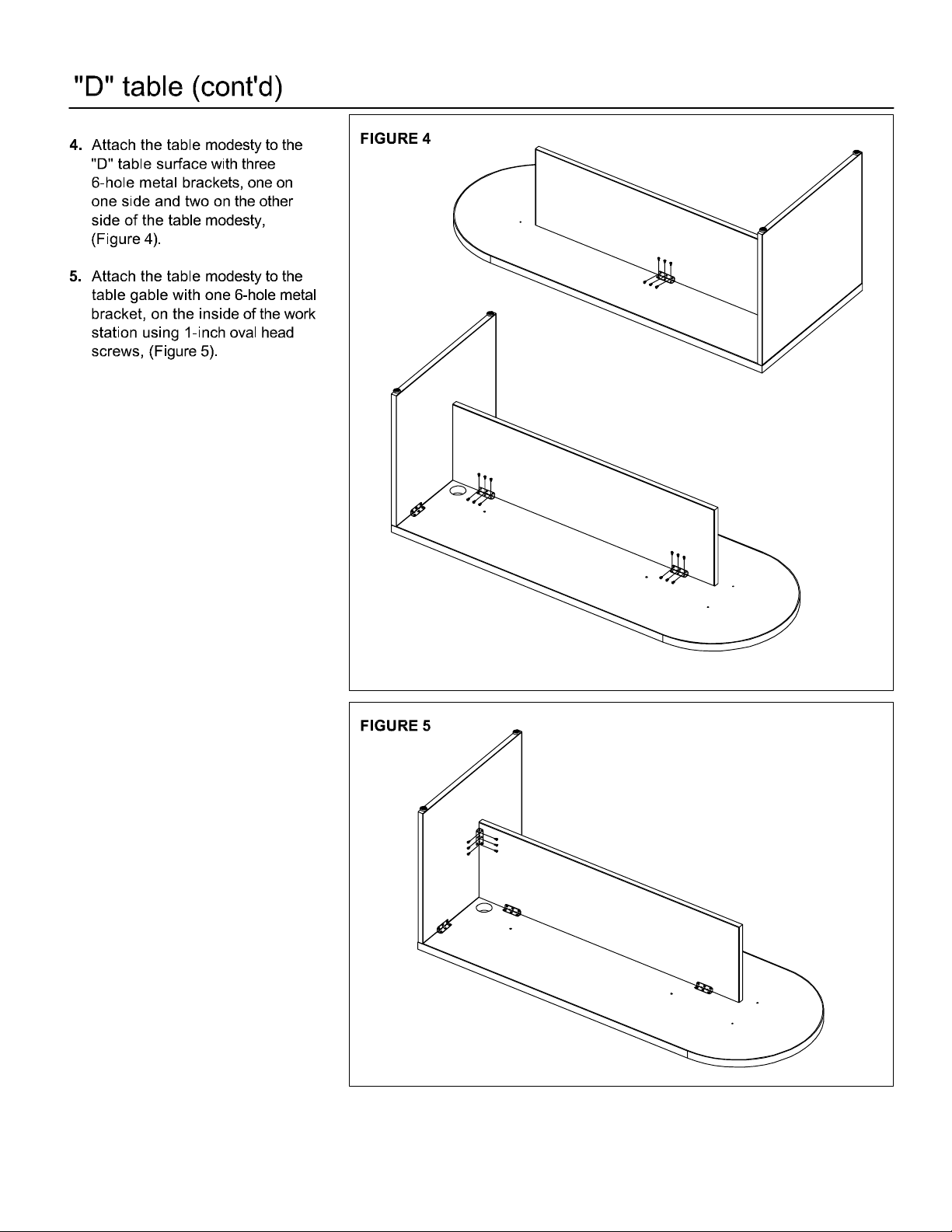

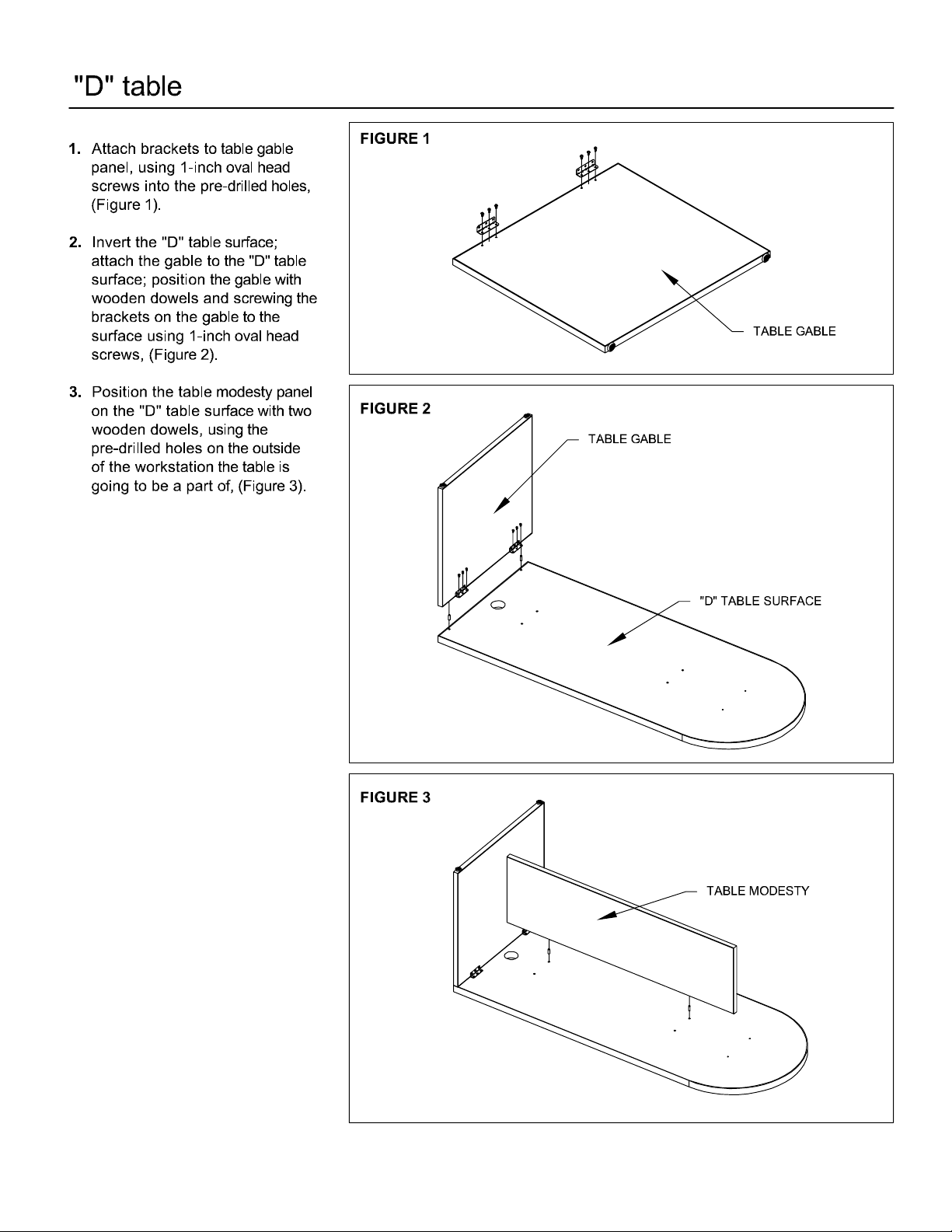

“D” table ................................................................................................................................... 18
“F” table.................................................................................................................................... 21
“J” table .................................................................................................................................... 24
“K” table.................................................................................................................................... 27
“O” table ................................................................................................................................... 30
“P” table.................................................................................................................................... 33
coffee table with shelf................................................................................................................ 36
coffee table without shelf........................................................................................................... 39
unitized desk............................................................................................................................. 42
reception desk .......................................................................................................................... 45
Conference Table 50|61
boat table with post base (1 surface)......................................................................................... 50
straight table with gables (1 surface) ......................................................................................... 51
straight table with elliptical base (1 surface)............................................................................... 53
straight table with elliptical base (2 surface) .............................................................................. 55
straight table with gables (2 surfaces)........................................................................................ 57
boat table with post base (2 surfaces) ....................................................................................... 60
Storage and Accessories 62|77
underdesk pedestal................................................................................................................... 62
suspended pedestal.................................................................................................................. 63
corner bookcase assembly...................................................................................................... 64
68-inches high bookcase assembly........................................................................................... 67
overhead storage attachment to dry wall with wood studs.......................................................... 71
whiteboard –attachment to dry wall with wood studs................................................................. 73
retractable keyboard tray........................................................................................................... 75
articulating keyboard tray .......................................................................................................... 76
Waste & Recycling 78|79
Straight desk disposal disassembly........................................................................................... 78

Installation Checklist
Perform a site inspection prior to the installation date to check existing site conditions and identify constraints and
limitations that could possibly cause delays or problems during the actual installation.
SITE ACCESSIBILITY
1. Verify existing loading facilities and proximity of loading dock to staging area.
2. Verify if receiving area is accessible by trailer.
3. Verify access to service elevators.
4. Reserve service elevators in advance, if necessary.
SITE PREPARATION
1. Clear all obstacles that could interfere with the installation process.
2. When doing a reconfiguration, ensure that all furniture to be re-used are clear of computers, accessories,
books, papers and all personal effects.
3. Ensure that all live wires and data/communications wires are disconnected prior to installation.
FURNITURE PLANS
1. Labeled furniture plans for installation purposes are located in the hardware box. Ensure that drawings are
complete and handy before beginning installation.
STAGING
1. If damages are noticed upon opening the trailer, these must be noted by the receiver on the Bill of Lading.
Also note any imperfections or missing components discovered while unpacking the furniture. This
information is necessary when requesting for product replacement and shipping claims.
2. Unpack products in the general order of installation (refer to Installation Sequence).
WASTE MANAGEMENT
1. Establish a trash removal area separate from the product staging area.
July 2023
metro 3

Care & Maintenance
Fabrics
To remove dust particles, lightly vacuum the fabric surface. Spills and fluid should be immediately blotted. For minor
fabric stains and marks use water-based fabric solvent, applying light pressure, to lift the dirt and stain. Any use of
water and soaps may harm the fabric, causing water stains and damage to the fabric’s contents. Do not scrub the
fabric with bristle or vacuum brushes as the fabric may pill or tear and the appearance may be permanently affected.
Professional steam cleaning is recommended.
Laminates
Dust laminated surfaces for regular maintenance. Clean any dirt or stain with a damp cloth. Do not use an excessive
amount of water, abrasive cleaners, acids or alkalis and do not scratch or scrape surfaces. For persistent stains and
marks use a commercial cleaner, such as Cabinet Magic® or Countertop Magic®, both manufactured by Magic
American Corporation.
Glazed Screens and Cabinet Doors
Dust glazed screen and cabinet doors regularly to keep surfaces free of dust particles. Clean any dirt or stain with a
damp cloth. Dry the area using a dry paper cloth. The use of fiber cloths or rags is not recommended as loose
particles and debris remaining on the cloth may scratch or harm the acrylic surface. Do not use other chemical
cleaners or window cleaners as their chemical compositions may alter and/or permanently affect the surface
appearance.
Painted Metals
Tayco’s painted metal products are powder-paint-coated. To clean these products, use a damp cloth, using only a
small amount of lukewarm water if necessary. Dry with a clean a dry cloth. To avoid scratching and damaging the
painted surface, do not use hard bristled brushes or abrasive.
THE USE OF HARSH CLEANERS AND CHEMICALS MAY PERMANENTLY ALTER THE PRODUCT FINISH APPEARANCE AND
WILL VOID WARANTY.
July 2023
metro 4

Caution
LoadBottomDrawerFirst
•Operateonedraweratatime.
•Unitsmaytipifloadedincorrectly.
•Unitsshouldbeattachedtoawallorotherfurnituretoreducetippinghazards.
•Alwaysloadtheheaviestfilesinthebottomdrawer.
HeavyLoad
•Someproductsmustbeanchoredtothewalltoensurestability&safety.
•Itistheownerandinstaller’sresponsibilitytoensurethatthewalltypeandconstructionareofsufficientstrength
tocarryloadsofanywall‐mountedproductsandtheircontents.
•Failureofthewallandanchorstosupportallimposedloadsmayresultinpropertydamageand/orpersonalinjury.
•Taycocanprovidethesizeandemptyweightofitsproductsonly.Awallblockingisconsideredabuilding
constructionprocess,Taycocannotproviderecommendationsinthisrespectandcannotberesponsiblefordamage
orinjurythatmayoccurasaresultofimproperinstallationand/orblocking.
InstabilityHazard
Mobileitemsoncasterssuchasfliptops,personalandmovabletablesofanytype,andstorageitemsofanytypemay
presentaninstabilityhazardifnotsecuredcorrectlywhileinuseorstorage.Flip‐toptablesortrainingtablesofany
typeareinherentlymoreunstablewhenfolded.Taycoprovidesthefollowingguidelines&warningswhenusing
mobileproducts:
•Lockcastersimmediatelyaftermoving.Donotleavethecastersunlockedwheninuseorstorage.
•Motionmayincreasetheinstabilityofanyitemwithcasters.Ifthewheelshitanobstructionthetable’sforward
momentumoftencausesoverturn,especiallyiftheitemisnotequippedwithwheelextensions.Exercisestrong
cautionwhilemovingtheseitems.
•Usecautionwhenabruptlevelchangesinthefloorarepresent(suchasadoorwayorroomthreshold)ascaster
failureortippingmayresult.
•Donotstand,sitorleanonmobileitemsforsupport.Theyarenotintendedforthisuseandpersonalinjuryor
propertydamagemayresult.
•Mobileunitsthatfeatureheight‐adjustableelementsmustbeloweredtotheminimumcompressedheightwhen
movingtopreventinstability.Itisalsorecommendedtheuserremoveallcomputerequipmentorotheraccessories
topreventpossibleweightimbalanceordamagetoequipment.
•Failuretofollowtheguidelinesabovemayresultinpropertydamageorpersonalinjury.
July 2023
metro 5

July 2023
metro 6

July 2023
metro 7

July 2023
metro 8

July 2023
metro 9

July 2023
metro 10

July 2023
metro 11

July 2023
metro 12

July 2023
metro 13

July 2023
metro 14

July 2023
metro 15

July 2023
metro 16

July 2023
metro 17

July 2023
metro 18

July 2023
metro 19
