Taylor 161 User manual

OPERATOR'S
MANUAL
Model 161
Soft Serve Freezer
Original Operating Instructions
055155-M 8/14/08 (Original Publication)
(Updated 7/8/14)

Complete this page for quick reference when service is required:
Taylor Distributor:
Address:
Phone:
Service:
Parts:
Date of Installation:
Information found on the data label:
Model Number:
Serial Number:
Electrical Specs: Voltage Cycle
Phase
Maximum Fuse Size: A
Minimum Wire Ampacity: A
E2008 Carrier Commercial Refrigeration, Inc.
055155-M
Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this work may be
a violation of Copyright Law of the United States of America and other countries, could result in the awarding of Statutory
Damages of up to $250,000 (17 USC 504) for infringement, and may result in further civil and criminal penalties.
All rights reserved.
Taylor Company
a division of Carrier Commercial Refrigeration, Inc.
750 N. Blackhawk Blvd.
Rockton, IL 61072

Table of Contents Model 161
Table of Contents
Section 1 To the Installer 1............................................
Installer Safety 1........................................................
Site Preparation 1.......................................................
Air Cooled Units 1.......................................................
Water Connections (Water Cooled Units Only) 2............................
Electrical Connections 2.................................................
Electrical Hook- Up Installation
(60 Cycle, 1 Ph, Supplied With Cord and Plug) 3............................
Section 2 To the Operator 4...........................................
Section 3 Safety 5....................................................
Section 4 Operator Parts Identification 7...............................
Model 161 7............................................................

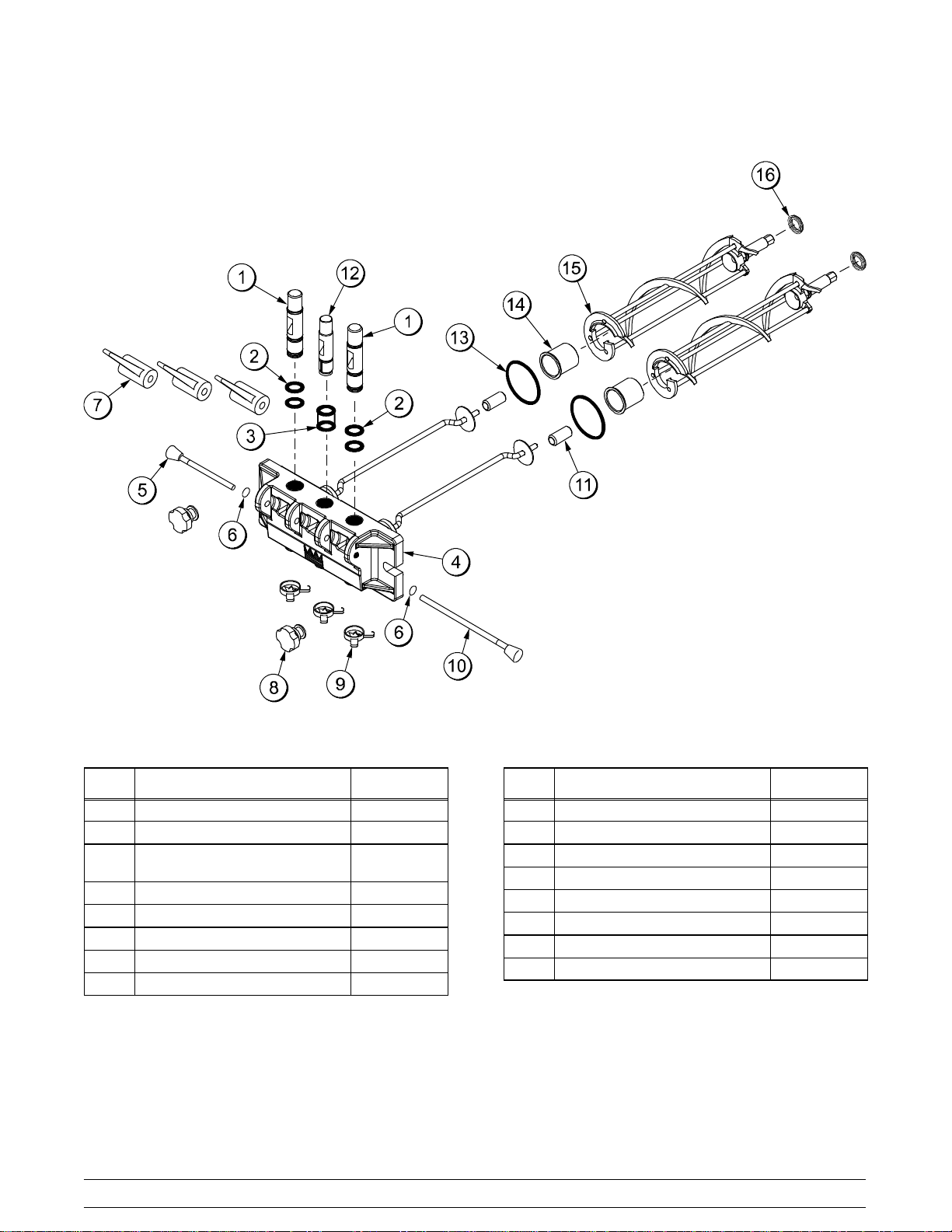

Beater Door Assembly 8.................................................
Accessories 9..........................................................
Section 5 Important: To the Operator 10.................................
Symbol Definitions 10....................................................
Section 6 Operating Procedures 14.....................................
Assembly 14............................................................
Sanitizing 17............................................................
Priming 19..............................................................
Closing Procedure 19....................................................
Draining Product From the Freezing Cylinder 19.............................
Rinsing 20..............................................................
Cleaning 20.............................................................
Disassembly 20..........................................................
Brush Cleaning 20.......................................................

Model 161 Table of Contents
Table of Contents - Page 2
Section 7 Important: Operator Checklist 22..............................
During Cleaning and Sanitizing 22.........................................
Troubleshooting Bacterial Count 22........................................
Regular Maintenance Checks 22...........................................
Winter Storage 23........................................................
Section 8 Troubleshooting Guide 24....................................
Section 9 Parts Replacement Schedule 27...............................
Section 10 Limited Warranty on Equipment 28............................
Section 11 Limited Warranty on Parts 30.................................
Section 12 Parts List 33.................................................
Wiring Diagrams 42......................................................
Note: Continuing research results in steady improvements; therefore, information
in this manual is subject to change without notice.
Note: Only instructions originating from the factory or its authorized translation
representative(s) are considered to be the original set of instructions.
E2008 Carrier Commercial Refrigeration, Inc. (Original Publication)
(Updated July, 2014)
055155- M
Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this work
may be a violation of Copyright Law of the United States of America and other countries, could result in the
awarding of Statutory Damages of up to $250,000 (17 USC 504) for infringement, and may result in further
civil and criminal penalties.
All rights reserved.
Taylor Company
a division of Carrier Commercial Refrigeration, Inc.
750 N. Blackhawk Blvd.
Rockton, IL 61072

1
Model 161 To the Installer
131122
Section 1 To the Installer
The following information has been included in the
manual as safety and regulatory guidelines. For
complete installation instructions, please see the
Installation Checklist.
Installer Safety
In all areas of the world, equipment should be
installed in accordance with existing local codes.
Please contact your local authorities if you have any
questions.
Care should be taken to ensure that all basic safety
practices are followed during the installation and
servicing activities related to the installation and
service of Taylor equipment.
SOnly authorized Taylor service personnel
should perform installation and repairs on the
equipment.
SAuthorized service personnel should consult
OSHA Standard 29CFRI910.147 or the
applicable code of the local area for the
industry standards on lockout/tagout
procedures before beginning any installation
or repairs.
SAuthorized service personnel must ensure
that the proper PPE is available and worn
when required during installation and service.
SAuthorized service personnel must remove all
metal jewelry, rings, and watches before
working on electrical equipment.
The main power supply(s) to the freezer must
be disconnected prior to performing any repairs.
Failure to follow this instruction may result in personal
injury or death from electrical shock or hazardous
moving parts as well as poor performance or damage
to the equipment.
Note:Allrepairsmustbeperformedbyan
authorized Taylor Service Technician.
This unit has many sharp edges that can
cause severe injuries.
Site Preparation
Review the area where the unit will be installed before
uncrating the unit. Make sure that all possible hazards
to the user and the equipment have been addressed.
For Indoor Use Only: This unit is designed to operate
indoors, under normal ambient temperatures of
70_-75_F(21_-24_C). The freezer has successfully
performed in high ambient temperatures of
104_(40_C) at reduced capacities.
This unit must NOT be installed in an area
where a water jet or hose can be used. NEVER use a
water jet or hose to rinse or clean the unit. Failure to
follow this instruction may result in electrocution.
This unit must be installed on a level surface
to avoid the hazard of tipping. Extreme care should be
taken in moving this equipment for any reason. Two or
more persons are required to safely move this unit.
Failure to comply may result in personal injury or
equipment damage.
Uncrate the unit and inspect it for damage. Report any
damage to your Taylor Distributor.
This piece of equipment is made in the USA and has
USA sizes of hardware. All metric conversions are
approximate and vary in size.
Air Cooled Units
DO NOT obstruct air intake and discharge openings:
The Model 161 requires 6” (152 mm) on both sides,
and 0” at the rear. Install the skirt provided on the right
side of the unit. Minimum air clearances must be met
to assure adequate air flow for optimum performance.

2Model 161To the Installer
130319
Water Connections
(Water Cooled Units Only)
An adequate cold water supply must be provided with
a hand shut- off valve. On the underside rear of the
base pan, two 3/8” I.P.S. water connections for inlet
and outlet have been provided for easy hook- up. 1/2”
inside diameter water lines should be connected to the
machine. (Flexible lines are recommended, if local
codes permit.) Depending on local water conditions, it
may be advisable to install a water strainer to prevent
foreign substances from clogging the automatic water
valve. There will be only one water “in” and one water
“out” connection. DO NOT install a hand shut- off valve
on the water “out” line! Water should always flow in this
order: first, through the automatic water valve; second,
through the condenser; and third, through the outlet
fitting to an opentrapdrain.
A back flow prevention device is required
on the incoming water connection side. Please
refer to the applicable National, State, and local codes
for determining the proper configuration.
Electrical Connections
Each unit requires one power supply for each data
label on the unit. Check the data label(s) on the freezer
for branch circuit overcurrent protection or fuse, circuit
ampacity, and other electrical specifications. Refer to
the wiring diagram provided inside of the electrical box
for proper power connections.
In the United States, this equipment is intended to be
installed in accordance with the National Electrical
Code (NEC), ANSI/NFPA 70- 1987. The purpose of
the NEC code is the practical safeguarding of persons
and property from hazards arising from the use of
electricity. This code contains provisions considered
necessary for safety. Compliance therewith and
proper maintenance will result in an installation
essentially free from hazard!
In all other areas of the world, equipment should be
installed in accordance with the existing local codes.
Please contact your local authorities.
FOLLOW YOUR LOCAL ELECTRICAL CODES!
CAUTION: THIS EQUIPMENT MUST BE
PROPERLY GROUNDED! FAILURE TO DO SO
CAN RESULT IN SEVERE PERSONAL INJURY
FROM ELECTRICAL SHOCK!
This unit is provided with an equipotential
grounding lug that is to be properly attached to the rear
of the frame by the authorized installer. The installation
location is marked by the equipotential bonding
symbol (5021 of IEC 60417-1) on both the removable
panel and the equipment’s frame.
SStationary appliances which are not equipped
with a power cord and a plug or another device
to disconnect the appliance from the power
source must have an all-pole disconnecting
device with a contact gap of at least 3 mm
installed in the external installation.
SAppliances that are permanently connected to
fixed wiring and for which leakage currents
may exceed 10 mA, particularly when
disconnected or not used for long periods, or
during initial installation, shall have protective
devices such as a GFI, to protect against the
leakage of current, installed by the authorized
personnel to the local codes.
SSupply cords used with this unit shall be
oil-resistant, sheathed flexible cable not
lighter than ordinary polychloroprene or other
equivalent synthetic elastomer-sheathed cord
(Code designation 60245 IEC 57) installed
with the proper cord anchorage to relieve
conductors from strain, including twisting, at
the terminals and protect the insulation of the
conductors from abrasion.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent, or similarly qualified person, in order to
avoid a hazard.

3
Model 161 To the Installer
120529
Electrical Hook- Up Installation
(60 Cycle, 1 Ph, Supplied With Cord and Plug)
This freezer is supplied with a 3- wire cord and
grounding type plug for connection to a single phase,
60 cycle, branch circuit supply. This unit must be
plugged into a properly grounded receptacle. The cord
and plug provided for 208/230/60/1, is 20A; therefore
the wall outlet must also be 20A. Check the data label,
located on the side panel, for electrical specifications.
Permanent wiring may be employed if required by local
codes. Instructions for conversion to permanent wiring
are as follows:
1. Be sure the freezer is electrically disconnected.
2. Remove the appropriate panel and locate the
small electrical box at the base of the freezer.
3. Remove the factory- installed cord and strain
relief bushing.
4. Route incoming permanent wiring through 7/8”
(22 mm) hole in base pan.
5. Connect two power supply leads. Attach ground
(earth) wire to the grounding lug inside the
electrical box.
6. Be sure the unit is properly grounded before
applying power.
Beater Rotation
Beater rotation must be clockwise as viewed
looking into the freezing cylinder.
Note: The following procedures should be
performed by a trained service technician.
To correct rotation on a three- phase unit, interchange
any two incoming power supply lines at freezer main
terminal block only. To correct rotation on a
single- phase unit, change the leads inside the beater
motor. (Follow diagram printed on motor.)
Electrical connections are made directly to the
terminal block provided in the splice boxes which are
mounted mid- level on the frame channel on the sides
of the freezer.
Refrigerant
In consideration of our environment, Taylor
uses only earth friendly HFC refrigerants. The HFC
refrigerant used in this unit is R404A. This refrigerant
is generally considered non-toxic and non-flammable,
with an Ozone Depleting Potential (ODP) of zero (0).
However, any gas under pressure is potentially
hazardous and must be handled with caution.
NEVER fill any refrigerant cylinder completely with
liquid. Filling the cylinder to approximately 80% will
allow for normal expansion.
Use only R404A refrigerant that conforms to
the AHRI standard 700 specification. The use of any
other refrigerant may expose users and operators to
unexpected safety hazards.
Refrigerant liquid sprayed onto the skin may
cause serious damage to tissue. Keep eyes and skin
protected. If refrigerant burns should occur, flush
immediately with cold water. If burns are severe, apply
ice packs and contact a physician immediately.
Taylor reminds technicians to be cautious of
government laws regarding refrigerant recovery,
recycling, and reclaiming systems. If you have any
questions regarding these laws, please contact the
factory Service Department.
WARNING: R404A refrigerant used in
conjunction with polyolester oils is extremely moisture
absorbent. When opening a refrigeration system, the
maximum time the system is open must not exceed 15
minutes. Cap all open tubing to prevent humid air or
water from being absorbed by the oil.

4Model 161To the Operator
131122
Section 2 To the Operator
The Model 161 soft serve freezer has been carefully
engineered and manufactured to give you dependable
operation.
This unit, when properly operated and cared for, will
produce a consistent quality product. Like all
mechanical products, it will require cleaning and
maintenance. A minimum amount of care and
attention is necessary if the operating procedures
outlined in this manual are followed closely.
This Operator’s Manual should be read
before operating or performing any maintenance on
your equipment.
The Model 161 will NOT eventually compensate and
correct for any errors during the set- up or filling
operations. Thus, the initial assembly and priming
procedures are of extreme importance. It is strongly
recommended that personnel responsible for the
equipment’s operation, both assembly and
disassembly, go through these procedures together in
order to be properly trained and to make sure that no
misunderstandings exist.
In the event you should require technical assistance,
please contact your local authorized Taylor Distributor.
Note: Your Taylor warranty is valid only if the parts are
authorized Taylor parts, purchased from the local
authorized Taylor Distributor, and only if all required
service work is provided by an authorized Taylor
service technician. Taylor reserves the right to deny
warranty claims on units or parts if non- Taylor
approved parts or incorrect refrigerant were installed
in the unit, system modifications were performed
beyond factory recommendations, or it is determined
that the failure was caused by abuse, misuse, neglect,
or failure to follow all operating instructions. For full
details of your Taylor Warranty, please see the Limited
Warranty section in this manual.
If the crossed out wheeled bin symbol is
affixed to this product, it signifies that this product is
compliant with the EU Directive as well as other similar
legislation in effect after August 13, 2005. Therefore,
it must be collected separately after its use is
completed, and cannot be disposed as unsorted
municipal waste. The user is responsible for returning
the product to the appropriate collection facility, as
specified by your local code.
For additional information regarding applicable local
laws, please contact the municipal facility and/or local
distributor.
Compressor Warranty Disclaimer
The refrigeration compressor(s) on this unit are
warranted for the term stated in the Limited Warranty
section in this manual. However, due to the Montreal
Protocol and the U.S. Clean Air Act Amendments of
1990, many new refrigerants are being tested and
developed, thus seeking their way into the service
industry. Some of these new refrigerants are being
advertised as drop- in replacements for numerous
applications. It should be noted that in the event of
ordinary service to this unit’s refrigeration system,
only the refrigerant specified on the affixed data
label should be used. The unauthorized use of
alternate refrigerants will void your Taylor compressor
warranty. It is the unit owner’s responsibility to make
this fact known to any technician he employs.
It should also be noted that Taylor does not warrant the
refrigerant used in its equipment. For example, if the
refrigerant is lost during the course of ordinary service
to this machine, Taylor has no obligation to either
supply or provide its replacement either at billable or
unbillable terms. Taylor does have the obligation to
recommend a suitable replacement if the original
refrigerant is banned, obsoleted, or no longer available
during the five year warranty of the compressor.
The Taylor Company will continue to monitor the
industry and test new alternates as they are being
developed. Should a new alternate prove, through our
testing, that it would be accepted as a drop- in
replacement, then the above disclaimer would
become null and void. To find out the current status of
an alternate refrigerant as it relates to your
compressor warranty, call the local Taylor Distributor
or the Taylor Factory. Be prepared to provide the
Model/Serial Number of the unit in question.

5
Model 161 Safety
130319
Section 3 Safety
We, at Taylor Company, are concerned about the
safety of the operator when he or she comes in contact
with the freezer and its parts. Taylor has gone to
extreme efforts to design and manufacture built- in
safety features to protect both you and the service
technician. As an example, warning labels have been
attached to the freezer to further point out safety
precautions to the operator.
IMPORTANT - Failure to adhere to the
following safety precautions may result in severe
personal injury. Failure to comply with these
warnings may damage the machine and its
components. Component damage will result in
part replacement expense and service repair
expense.
To Operate Safely:
DO NOT operate the freezer without reading
the Operator Manual. Failure to follow this instruction
may result in equipment damage, poor freezer
performance, health hazards, or personal injury.
This appliance is to be used only by trained
personnel. It is not intended for use by children or
people with reduced physical, sensory, or mental
capabilities, or lack of experience and knowledge,
unless given supervision or instruction concerning the
use of the appliance by a person responsible for their
safety. Children should be supervised to ensure that
they do not play with the appliance.
This equipment is provided with a grounding lug
that is to be properly attached to the rear of the frame
by the authorized installer. The installation location is
marked by the equipotential bonding symbol (5021 of
IEC 60417- 1) on the removable panel and the frame.
DO NOT use a water jet to clean or rinse the
freezer. Failure to follow these instructions may result
in serious electrical shock.
SDO NOT operate the freezer unless it is
properly grounded.
SDO NOT operate freezer with larger fuses
than specified on the data label.
SAll repairs must be performed by an
authorized Taylor service technician.
SThe main power supplies to machine must be
disconnected prior to performing repairs.
SFor Cord Connected Units: Only Taylor
authorized service technicians or licensed
electricians may install a plug or replacement
cord on the unit.
SStationary appliances which are not equipped
with a power cord and a plug or another device
to disconnect the appliance from the power
source must have an all-pole disconnecting
device with a contact gap of at least 3 mm
installed in the external installation.
SAppliances that are permanently connected to
fixed wiring and for which leakage currents
may exceed 10 mA, particularly when
disconnected or not used for long periods, or
during initial installation, shall have protective
devices such as a GFI, to protect against the
leakage of current, installed by the authorized
personnel to the local codes.
SSupply cords used with this unit shall be
oil-resistant, sheathed flexible cable not
lighter than ordinary polychloroprene or other
equivalent synthetic elastomer-sheathed cord
(Code designation 60245 IEC 57) installed
with the proper cord anchorage to relieve
conductors from strain, including twisting, at
the terminals and protect the insulation of the
conductors from abrasion.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent, or similarly qualified person, in order to
avoid a hazard.
Failure to follow these instructions may result in
electrocution. Contact your local authorized Taylor
Distributor for service.

6Model 161Safety
130319
SDO NOT allow untrained personnel to operate
this machine.
SDO NOT put objects or fingers in door spout.
SDO NOT operate the freezer unless all service
panels and access doors are restrained with
screws.
SDO NOT remove the freezer door or beater
assembly unless the control switches are in
the “OFF” position.
Failure to follow these instructions may result in severe
personal injury from hazardous moving parts.
This unit has many sharp edges that can
cause severe injuries.
SDO NOT put objects or fingers in fill or
discharge openings. Failure to follow this
instruction may result in contaminated
product or personal injury from blade contact.
SUSE EXTREME CAUTION when removing
the beater assembly. The scraper blades are
very sharp and may cause injury.
Access to the service area of the unit is
restricted to persons having knowledge and practical
experience with the appliance, in particular as far as
safety and hygiene are concerned.
This freezer must be placed on a level
surface. Failure to comply may result in personal injury
or equipment damage.
Cleaning and sanitizing schedules are
governed by your Federal, State, or local regulatory
agencies and must be followed accordingly. Please
refer to the cleaning section of this manual for the
proper procedure to clean this unit.
This machine is designed to maintain product
temperature under 41_F(5_C). Any product being
added to this machine must be below 41_F(5_C).
Failure to follow this instruction may result in health
hazards and poor freezer performance.
DO NOT obstruct air intake and discharge openings:
A minimum of 6” (152 mm) on both sides, and 0” in the
rear is required. Install the skirt provided on the right
side of the unit. Failure to follow this instruction may
cause poor freezer performance and damage to the
machine.
This freezer is designed to operate indoors, under
normal ambient temperatures of 70_-75_F
(21_-24_C). The freezer has successfully performed
in high ambient temperatures of 104_F(40_C) at
reduced capacity.
DO NOT run the machine without product. Failure to
follow this instruction can result in damage to the
machine.
NOISE LEVEL: Airborne noise emission does not
exceed 78 dB(A) when measured at a distance of 1.0
meter from the surface of the machine and at a height
of 1.6 meters from the floor.

7
Model 161 Operator Parts Identification
Section 4 Operator Parts Identification
Model 161
Figure 1
ITEM DESCRIPTION PART NO.
1PAN-DRIP *161* 055206
2PANEL -SIDE LEFT 058491
3GASKET-HOPPER COVER 037042
4COVER A.-HOPPER X37963-SER
4a KNOB-MIX COVER 025429
5TUBE-FEED 030797
6PANEL-REAR 058492
ITEM DESCRIPTION PART NO.
7PANEL A.-SIDE-RIGHT X58490
8GASKET-BASE PAN 055815
9TRAY-DRIP 16-7/8L X 4-5/16 020157-SP
10 SHIELD-SPLASH 022765
11 PANEL-LOWER FRONT 058493
12 PANEL A.-FRONT *161* X58488

8Model 161Operator Parts Identification
140409
Beater Door Assembly
Figure 2
ITEM DESCRIPTION PART NO.
1VALVE-DRAW 024763-SP
2O-RING-7/8 OD X .103W 014402
3SEAL-DRAW VALVE
*SMALL H-RING* 030930
4DOOR A.-3SPT 1.5QT VALOX X56906SER1
5PIN A.-PIVOT *168-SHORT* X38539
6O-RING-5/16 OD X .070W 016272
7HANDLE-DRAW VALVE 030564
8NUT-STUD 056802
ITEM DESCRIPTION PART NO.
9CAP-DESIGN 1.010"ID-6 PT. 014218
10 PIN A.-PIVOT *168-LONG* X38538
11 BEARING-GUIDE 014496
12 VALVE-DRAW-CENTER 031164
13 O-RING-2-3/4 OD X .139W 019998
14 BEARING-FRONT 023262
15 BEATER A.-*150 X24689
16 SEAL-U-CUP 080534

9
Model 161 Operator Parts Identification
110727
Accessories
Figure 3
ITEM DESCRIPTION PART NO.
1PAIL-6·QT. 023348
2BRUSH-REAR BRG 1” D X 2” LG 013071
3BRUSH-DOUBLE·ENDED 013072
4BRUSH-DRAW·VALVE·1” OD X
2” X 17” 013073
ITEM DESCRIPTION PART NO.
5BRUSH-MIX·PUMP·BODY-3”X7”
WHITE 023316
6LUBRICANT-TAYLOR·4·OZ. 047518
7KIT·A.-TUNE·UP X31167
*SANITIZER KAY-5 25 PKTS SEE NOTE
*Not Shown - Note: A sample container of sanitizer is
sent with the unit. For reorders, order Kay-5 part no.
041082 (200 packs) or Stera Sheen part no. 055492
(100 2 oz. packs).

10 Model 161Important: To the Operator
Section 5 Important: To the Operator

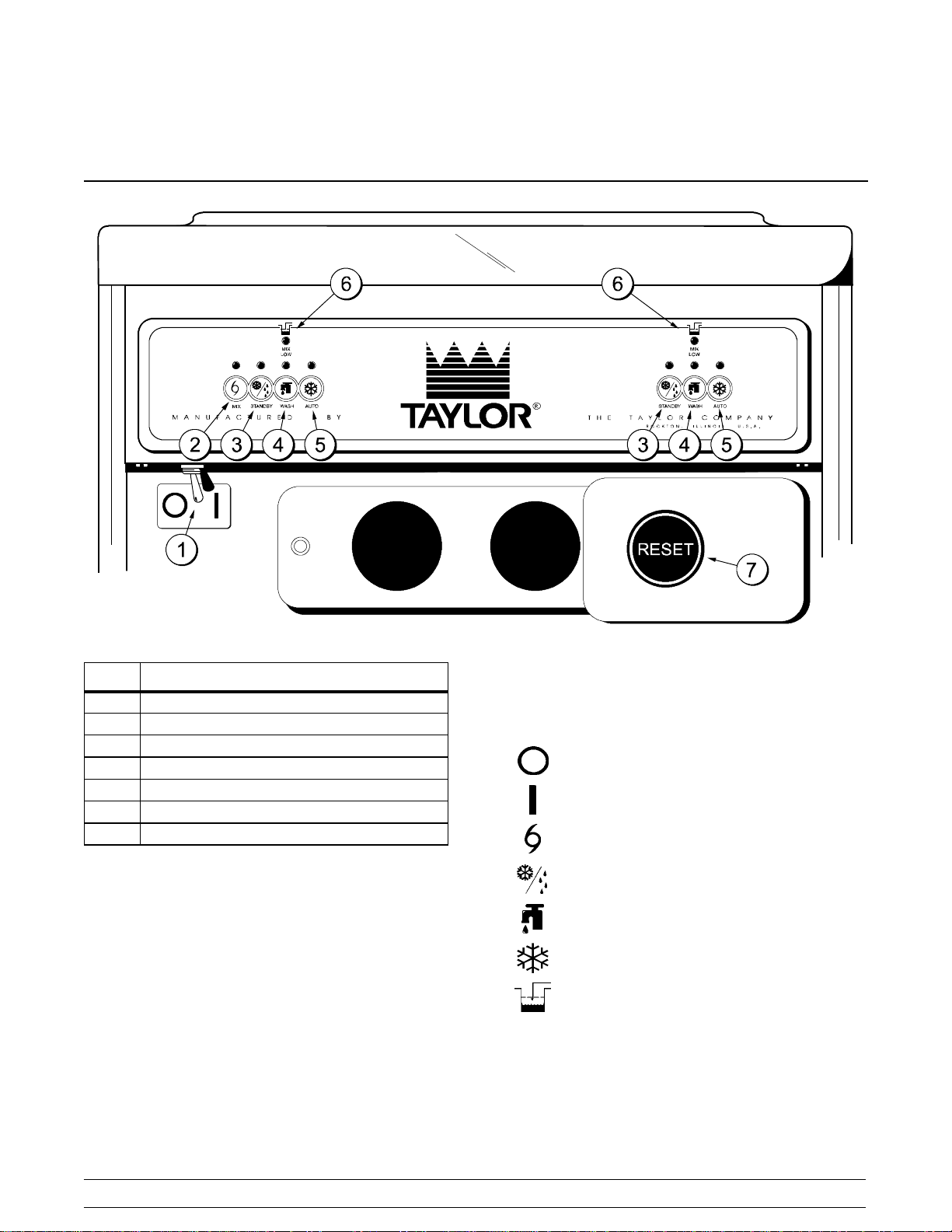

Figure 4
ITEM DESCRIPTION
1POWER SWITCH
2MIX REFRIGERATION KEY
3STANDBY KEY
4WASH KEY
5AUTO KEY
6INDICATOR LIGHT “MIX LOW”
7RESET BUTTON
Symbol Definitions
To better communicate in the International arena, the
words on many of our operator switches and keys have
symbols to indicate their functions. Your Taylor
equipment is designed with these International
symbols.
The following chart identifies the symbol definitions
used on the operator switches.
=OFF
=ON
=MIX
= STANDBY
= WASH
=AUTO
=MIXLOW

11
Model 161 Important: To the Operator
130703
Power Switch
When placed in the ON position, the power switch
allows Softechtcontrol panel operation.
MIX REF Key
When the MIX REF key is pressed, the light comes on
indicating the mix hopper refrigeration system is
operating. MIX REF is controlled by the left side of the
freezer as viewed from the operator end. The MIX REF
function cannot be cancelled unless the AUTO or
STANDBY modes are cancelled first.
STANDBY Key
This unit is equipped with a STANDBY feature. If
product is not dispensed for long periods of time (i.e.;
early morning hours), the STANDBY feature can be
activated to maintain the hopper and freezing cylinder
product at safe temperatures and prevent product
breakdown. In the STANDBY mode, the WASH and
AUTO functions are automatically cancelled.
To use the Standby feature, perform the following
steps:
Note: Be sure your hands are clean and sanitized
before performing the following steps.
Step 1
Invert the mix feed tube so the end with the mix
delivery hole is positioned at the top. Install the end
without the mix delivery hole into the mix inlet hole in
the bottom of the hopper. This will prevent mix from
entering the freezing cylinder.
Feed Tube Position During Standby Operation:
Figure 5
Step 2
Make sure there is at least 3” (76 mm) of mix in the
hopper and that the level of mix is not above the mix
delivery hole on the side of the feed tube.
Note: The level of mix must be below the mix
delivery hole on the side of the feed tube. Failure
to follow this instruction may result in lower product
quality when normal operation is resumed.
Step 3
Press the STANDBY key. The light will illuminate,
indicating that the unit is operating as a refrigerator for
product in the hopper and freezing cylinder.
Step 4
To remove the unit from the STANDBY mode, press
the AUTO key. The STANDBY light will extinguish,
indicating the unit has resumed the normal operating
mode.
Step 5
When the unit cycles off, place the feed tube in its
original position (mix delivery hole end down).
Feed Tube Position During Normal Operation:
Figure 6
IMPORTANT: The STANDBY mode must
not be used in lieu of daily disassembly, cleaning,
and sanitizing.

12 Model 161Important: To the Operator
130703
WASH Key
When the WASH key is pressed, the light comes on.
This indicates beater motor operation. The STANDBY
or AUTO mode must be cancelled first to activate the
WASH mode.
AUTO Key
When the AUTO key is pressed, the light comes on.
This indicates that the main refrigeration system has
been activated. In the AUTO mode, the WASH or
STANDBY functions are automatically cancelled. The
MIX REF function is automatically locked in to
maintain the temperature of the mix in the mix hopper.
Note: An indicating light and an audible tone will
sound whenever a mode of operation has been
pressed. To cancel any function, press the key again.
The light and mode of operation will shut off.
Indicator Light - MIX LOW
Located on the front of the machine is a mix level
indicating light. When the light is flashing, it indicates
that the mix hopper has a low supply of mix and should
be refilled as soon as possible. Always maintain at
least 3” (76 mm) of mix in the hopper. If you neglect to
add mix, a freeze- up may occur. This will cause
eventual damage to the beater, blades, drive shaft,
and freezer door.
Reset Button
The reset button is located on the front of the unit. The
reset protects the beater motor from an overload
condition. If an overload occurs, the reset mechanism
will trip. To properly reset the freezer, press the AUTO
key to cancel the cycle. Turn the power switch to the
OFF position. Wait two or three minutes and then
press the reset button firmly.
Warning: Do not use metal objects to
press the reset button. Failure to comply may
result in severe personal injury or death.
Turn the power switch to the ON position. Press the
WASH key and observe the freezer’s performance. If
the beater motor is turning properly, press the WASH
key to cancel the cycle. Press the AUTO key on both
sides of the unit to resume normal operation. If the
freezer shuts down again, contact an authorized
service technician.
Feed Tube
The feed tube maintains overrun and allows enough
mix to enter the freezing cylinder after a draw. One end
of the tube has a mix delivery hole on the side and the
other end does not.
Figure 7
The feed tube serves two purposes.
1. Normal Operation: After priming the machine,
the end of the feed tube with the mix delivery hole
is placed in the mix inlet hole. Every time the draw
handle is raised, new mix and air from the hopper
will flow down into the freezing cylinder. This will
keep the freezing cylinder properly loaded and
will maintain overrun.
Feed Tube Position During Normal Operation:
Figure 8

13
Model 161 Important: To the Operator
130703
2. Standby Operation: During long “No Sale”
periods, the feed tube is inverted. The end of the
feed tube without the mix delivery hole is placed
in the mix inlet hole to prevent mix from entering
the freezing cylinder.
Feed Tube Position During Standby Operation:
Figure 9
Note: Make sure the level of mix is below the mix
delivery hole in the side of the feed tube. Failure to
follow this instruction may result in lower product
quality when normal operation is resumed.

14 Model 161Operating Procedures
120529
Section 6 Operating Procedures
The Model 161 is a soft serve counter model with a
three spout door. Two individual flavors are available
from the end spouts, and an equal combination of both
is dispensed through the center spout to create a twist
effect. It has a 1.5 quart (1.4 liter) capacity freezing
cylinder. The mix flows by gravity from the hopper to
the freezing cylinder through a feed tube.
Duplicate the procedures where they apply for the
second freezing cylinder.
We begin our instructions at the point where we enter
the store in the morning and find the parts
disassembled and laid out to air dry from the previous
night’s cleaning.
These opening procedures will show you how to
assemble these parts into the machine, sanitize them,
and prime the machine with fresh mix in preparation to
serve your first portion.
Figure 10
If you are disassembling the machine for the first time
or need information to get to the starting point in our
instructions, turn to page 20, “Disassembly”, and start
there.
Assembly
Note: When lubricating parts, use an approved food
grade lubricant (example: Taylor Lube).
Step 1
Lubricate the groove on the beater drive shaft. With the
opening of the cup seal facing away from the hex end,
slide the seal into the groove. Apply an even coat of
lubricant to the seal and the shaft. Do not
lubricate the hex end of the beater drive shaft.
Figure 11
Step 2
Insert the beater assembly through the rear shell
bearing at the back of the freezing cylinder and engage
the hex end firmly into the female socket. When
properly seated, the beater will not protrude beyond
the front of the freezing cylinder.
Figure 12
Repeat Steps 1 through 2 for the other side of the
machine.

15
Model 161 Operating Procedures
120501
Step 3
Place the large o- rings into the grooves on the back of
the machine door and lubricate.
Figure 13
Step 4
Slide the front bearings over the baffle rods so the
flanged edge is against the door. Place the white
plastic guide bearings on the end of the baffle rods.
DO NOT lubricate the front bearings or the guide
bearings.
Figure 14
Step 5
Slide the slotted portion of the handscrews into the
slots in the freezer door.
Step 6
With both hands, hold the sides of the freezer door and
insert the baffle rods into the center of the beater
assemblies. The white guide bearings must fit
securely in the holes of the drive shafts.
Step 7
Finger- tighten the handscrews, making sure they are
tightened equally and that the door is snug. Do not
over- tighten the handscrews.
Figure 15
IMPORTANT! Handscrew and door damage can
result if the handscrews are over- tightened or if
one handscrew is tightened more than the other.
Step 8
Install the valve seal into the grooves on the center
draw valve and lubricate. This special seal will prevent
the mix in one freezing cylinder from traveling into the
second cylinder.
Figure 16

16 Model 161Operating Procedures
Step 9
Slide the two o- rings into the grooves on the remaining
draw valves and lubricate.
Figure 17
Step 10
Lubricate the inside of the freezer door spouts from the
bottom. Insert the draw valves into the freezer door
from the bottom until the slot in the draw valves comes
into view.
Figure 18
Step 11
Slide the o- ring onto each pivot pin and lubricate.
Figure 19
Step 12
Slide the tip of the draw handle into the slot of the draw
valve, starting from the right. Slide the short pivot pin
through the far right draw handle. Slide the long pivot
pin through the far left and middle draw handles.
Figure 20
