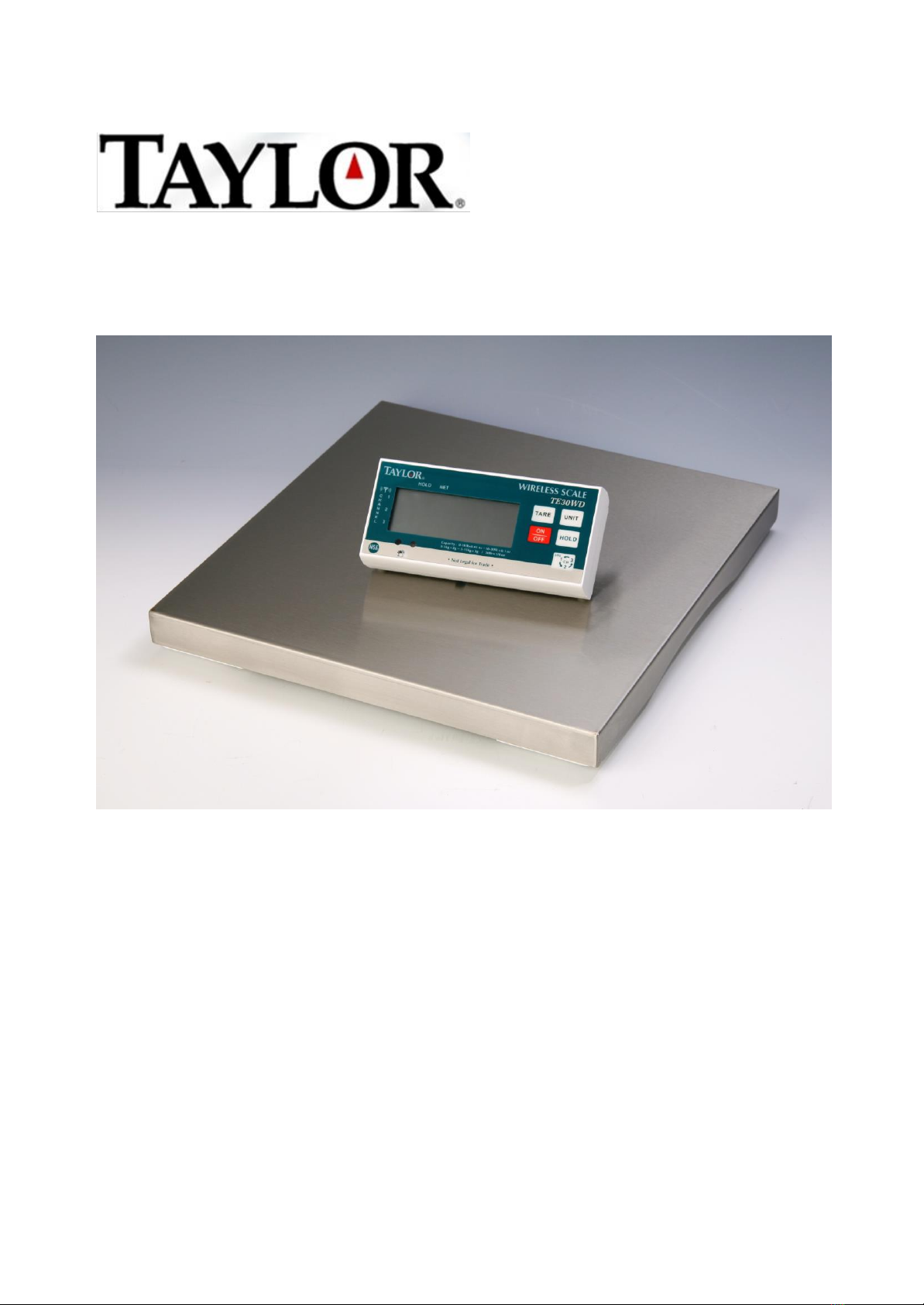

Taylor TE30WD User manual

TE30WD
Wireless Scale
INSTRUCTION MANUAL

1
TABLE OF CONTENTS:
TABLE OF CONTENTS ...................................................................................................................1
SPECIFICATIONS ..........................................................................................................................2
DISPLAY ...........................................................................................................................................3
BUTTON DESCRIPTION.................................................................................................................3
PREPARING SCALE FOR WEIGHING....................................................................................…4
CHANGING THE WIRELESS DISPLAY’S CHANNEL ............................................................ 5
SELECTING SCALE PLATFORM’S CHANNEL ..........................................................................6
USING THE TARE FUNCTION.....................................................................................................7
ACTIVATING/DEACTIVATING TOUCHLESS TARE FEATURE .............................................8
FUNCTION SETTINGS ...................................................................................................................8
TABLE-TOP STAND AND WALL MOUNTS .................................................................................9
POWER SOURCES...........................................................................................................................10
ERROR MESSAGES ....................................................................................................................... 11
FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT ....................................12
PRECAUTIONS………………………………………………………………………………………………………………………………………… 13
WARRANTY AND CUSTOMER SERVICE INFORMATION……………………………………….…………………14

2
SPECIFICATIONS
Model TE30WD
Capacity
0-10 lb x 0.05 oz/10-30 lb x 0.1 oz
0-5 kg x 0.002 kg(2 g)/5-15 kg x 0.005 kg (5 g)
30 lb x 1/8 oz
Weight Unit
lb:oz(decimals)/lb:oz(fractions)/kg
LCD Readout
1”LCD readout
Dimensions
14” x 14” x 1.6”
Buttons
ON/OFF, HOLD, Unit, Tare, Channel
Power
Supply
10-AA batteries (6 for base,4 for wireless
display, not included)
2 120V AC adapters (1 for base,
1 for remote, included)
Operating
Temperature
32°F / 104°F (0℃/ 40℃)

3

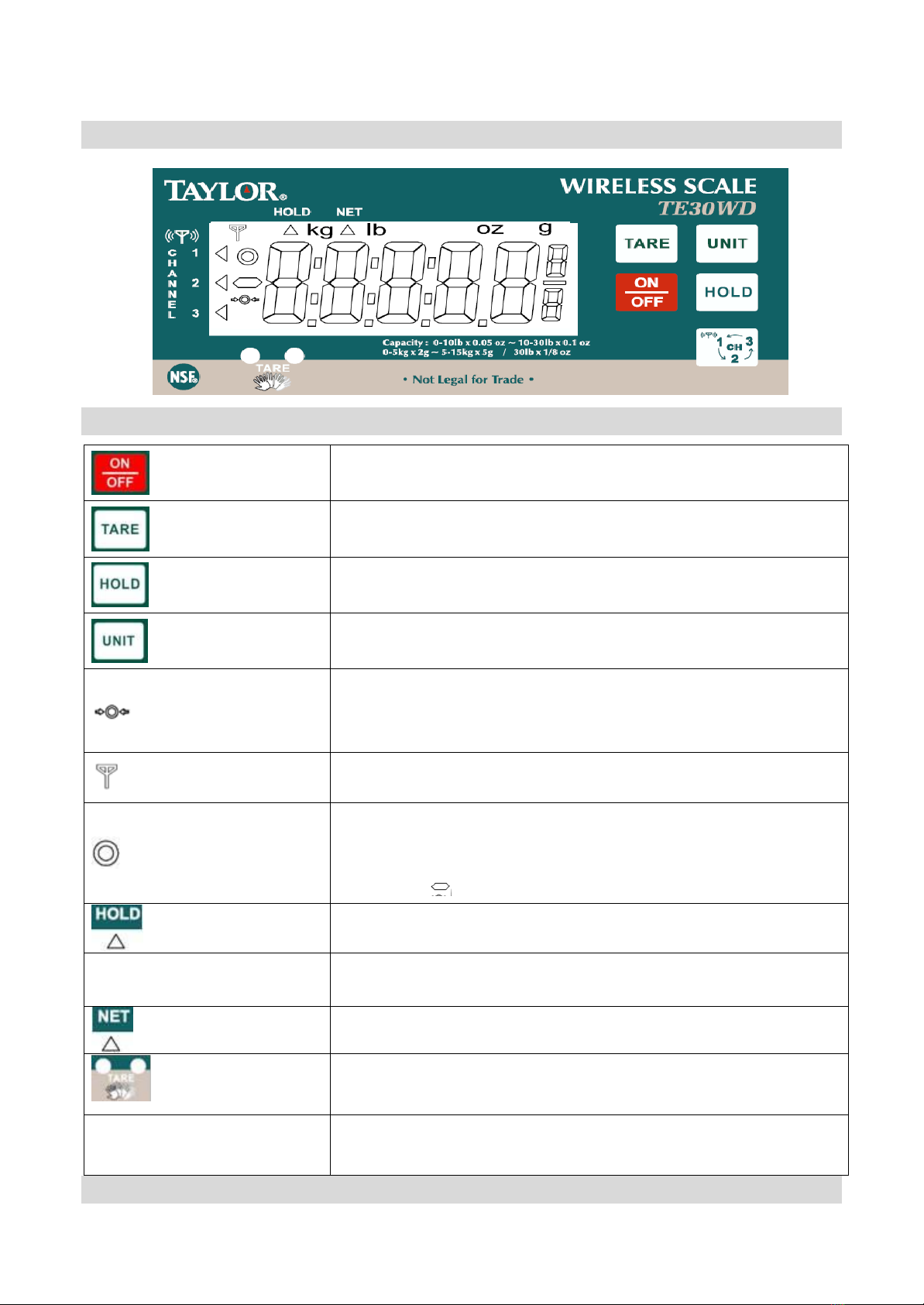

DISPLAY
BUTTON DESCRIPTION
Press to turn the scale ON or OFF.
Press to ‘Tare’ (zero) the weight of
any item while weighing.
Press to ‘Hold’ the weight on the
screen.
Press to switch between lb:oz and kg
units of measurement.
Press to reset the scale to zero(TARE
function)if the scale does not show
zero automatically.
Icon flashes when scale is ready for a
weighing.
Stability display:
If the display shows‘o’,the weight is
stable on the scale. If the display
shows ‘ ’, the weight is unstable.
The ‘Hold’weighing function is
active.
kg ←→ lb:oz
Indicates the Weighing unit [kg ←→
lb:oz].
Stored ‘Tare’ value.
Touch-less taring field.
-/ o on base
On (-) /Off (o) switch for scale
base.

4
PREPARING SCALE FOR WEIGHING
Before Weighing
1. Please select the scale’s channel to match the wireless
display. (The scale’s channel indicator is located on the
scale’s base; please remove the rubber stopper to access
the channel indicator.)For example: If the wireless
display is using Channel-1, select Channel-1 for the
scale.(Please see Page 6 for instructions for selecting
platform channels.)
2. Press the ON/OFF button to turn on the scale.
3. Please make sure that the distance between the scale
base and the wireless display is within 30 feet (10
meters).
Note: If the scale’s channel is not same as the wireless
display, ‘88888’will appear on the display. Set the scale
and wireless display to the same channel.
Weighing
1.Press the ON/OFF button to turn on the scale.
2.‘88888’appears on the screen, then ‘0’and ‘ ’will
flash. The scale is ready for use.
*NOTE- If the “88888” display does not show ‘01, press the
button to change the wireless display’s channel to
match the scale’s channel. For example: If the scale’s
channel is set to Channel-1, please select Channel-1 for
the wireless display also.

5
CHANGING THE WIRELESS DISPLAY’S CHANNEL
Press the button to select the wireless display
channel.
Channel numbers (1, 2, 3) are shown on the left hand side
of the display. When a channel is selected,a triangle icon
points to the selected channel. For example- If Channel-1
is selected, the triangle icon points to ‘1’.
Channel 1
Channel 2
Channel 3

6
SELECTING THE SCALE PLATFORM’S CHANNEL
To select the scale platform’s channel, first turn off the
scale base and wireless display units. Then use the dip switch,
which is located on the bottom of the scale under the rubber
stopper. The dip switch has four pins marked ‘1, 2, 3, 4’
(Pin-4 is not active; only 3 channels are available for use.)
To select a channel, move the pin toward the ‘ON’ mark
(pictured below). For example- To select Channel-1 for the
scale, move Pin-1 towards the ‘ON’mark. Turn on the scale
base first, then the wireless display for use.
The dip switch is on the bottom of the scale platform under
the rubber stopper.
Channel
1
Channel
2
Channel
3

7
USING THE TARE FUNCTION
The Tare Function allows the user to zero the scale to cancel
out the weight of a container, thus giving the weight of the
item being weighed.
Press the ON/OFF button to turn on the scale.
Place the containter on the scale platform.
Press the ‘TARE’button after the weight stabilizes and
stable icon displays.
The display will reset to ‘0’.
Place the item to be weighed on the platform(without
removing the ‘tared’container).
OR
Touch Less Tare Function:This scale is equipped with ‘Photo
eye mechanism’for a touch less ‘TARE’ function. Simply pass
your hand over the ‘Photo eye’ sensor and the scale will tare
the weight.
Place the container to be tared on the scale platform.
Pass your hand over the sign on the indicator.
The display will reset to ‘0’.
Place the next item to be weighed on the scale platform.
To reset the ‘TARE’ to zero, remove the tared container from
the platform and press the ‘TARE’ button, or pass your hand
over the sign.

8
ACTIVATING/ DEACTIVATING TOUCH LESS TARE FEATURE
To enter Set-Up mode, press and hold the TARE button for 3
seconds.
FUNCTION SETTINGS
Function
Description
Default
(Units): lb , kg
Lb
On
(Auto off Time): 120 sec/ 180 sec/ 240
sec/ 300 sec/ OFF
(Hold range): 2d/ 5d/ 10d/ 15d
(Touch less tare feature): on/off
To confirm the settings and end the
procedure
The star icon(*) is
the default value.
Press to move right
or down as shown in
setup flowchart.

9
TABLE-TOP STAND AND WALL MOUNTS
You may stand the scale platform on a table.
Adjust the angle of the wireless display for easy viewing.
Table top display:
Wall display:
The wireless display may be mounted to a wall. Use the
mounting material included.
1.Screw the screws to the
wall as shown.
2.Push the wireless
display onto the well.

10
POWER SOURCES
This scale’s weighing platform and wireless display require
separate electric power. Before using the scale, please make
sure that both the scale base and wireless display have
batteries correctly installed or both adapters correctly
plugged in.
The scale base uses 6 AA batteries and the wireless display
uses 4 AA batteries (batteries not included), or the units use
a 120V AC adapter each (2 adapters included).
If
displays on the LCD, please use the included
Taylor adapters or replace the batteries.
Insert an adapter into the bottom of the wireless display
and the scale base.
Indicator - AC
Jack Connector
Weighing Platform-
AC Jack Connector

11

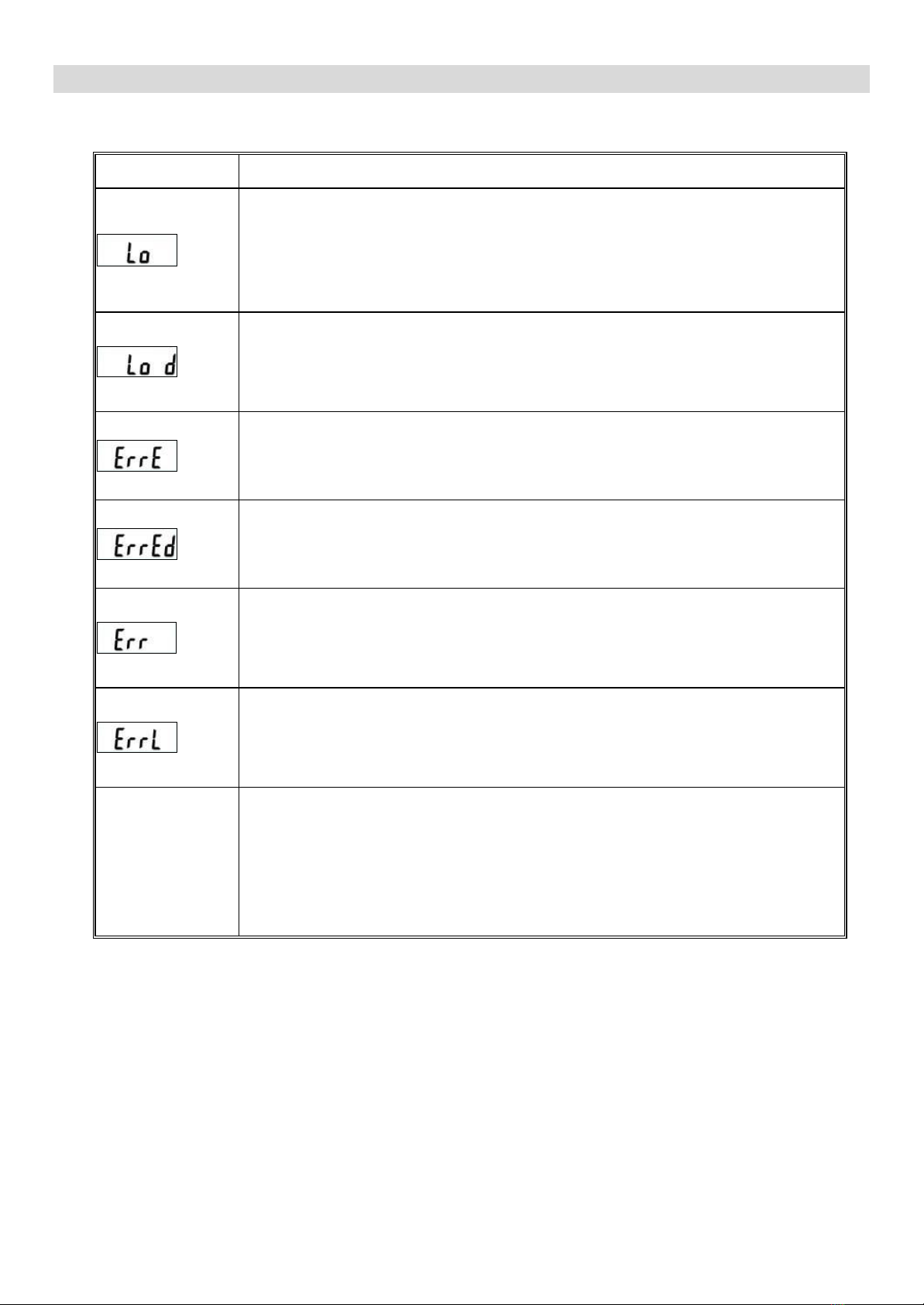

ERROR MESSAGES
Message
Description
Low battery indicator for wireless display:
This warning indicates the batteries for the
wireless display are low. Please replace all
the batteries or use the AC adapter for
operation.
Low battery indicator for scale base:
This warning indicates the batteries for the
scale base are low. Please replace all
batteries or use the AC adapter for operation.
EEPROM error for wireless display:
The programming for the wireless display has
an error.Please contact customer service.
EEPROM error for scale base:
The programming for the scale base has an
error.Please contact customer service.
Overload or counting error (too high):
The weight or count capacity is over the
limit. Please decrease the weight/count and
try again.
Overload or counting error (too low):
The weight or count capacity is under the
limit. Please increase the weight/count
capacity and try again.
“88888”
Indicates the scale’s channel is not same as
the wireless display OR there is no power to
the scale base. Set the scale and wireless
display to the same channel and ensure the
scale base has batteries correctly installed
or the adapter correctly plugged in.

12
FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT
Transmission Collision
Signals from other household devices, such as doorbells, home
security systems and entry controls, may interfere. This is
normal and does not affect the general performance of this
product. The transmission will resume once the interference
recedes.
Caution: Changes or modifications not expressly approved by
the party responsible for compliance could void the user’s
authority to operate the equipment.
Note: This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device
must accept any interference received, including interference
that may cause undesired operation. This equipment has been
tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rules. These
limits are designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for
help.
FCC ID: YKFRF2500

13
PRECAUTIONS
This scale is engineered to give you years of satisfactory
service if you handle it carefully. Here are a few precautions:
1. Always read instructions thoroughly to ensure that you have
the full benefit of all the unit's features.
2. DO NOT immerse units in water, as doing so will cause
damage to internal components and void the warranty. If you
spill liquid on them, dry them immediately with a soft, lint-
free cloth.
3. DO NOT clean the units with an abrasive or corrosive
material. This may scratch the plastic parts and corrode the
electronic circuits.
4. DO NOT subject the units to excessive force, shock, dust,
temperature or humidity. This may result in malfunction,
shorter electronic life span, damaged batteries or adapters
and distorted parts.
5. DO NOT operate or store the scale or display in high
temperature or humidity conditions. The heat or moisture may
interfere with the scale's or display’s internal components.
6. DO NOT tamper with the unit's internal components. Doing so
will invalidate the warranty on the units and may cause damage.
Other than replacing the batteries, the units contains no
user-serviceable parts.
7. This scale is an extremely sensitive weighing device. To
avoid damage to the units or the batteries/adapters, do not
store anything on the scale.
8. This scale operates on 2 A/C adapters (included) or 10 AA
batteries (not included). Do not dispose of this scale or
batteries in fire, as the batteries may explode or leak.
Always replace all batteries at the same time; do not mix old
and new batteries. Do not mix alkaline, standard (carbon-zinc)
or rechargeable (ni-cad, ni-mh, etc.) batteries. Remove the
batteries and adapters if the scale will not be used for a
long period of time.
NOTE: please recycle or dispose of batteries per local
regulations.
WARNING: Batteries may pose a choking hazard. As with all
small items, do not let children handle batteries. If
swallowed, seek medical attention immediately.
PRECAUTION: Do not dispose of batteries in fire. Batteries may
explode or leak. Remove the batteries if the scale will not be
used for a long period of time.

14
WARRANTY AND CUSTOMER SERVICE INFORMATION
Limited Warranty
Taylor warrants this product to be free from defects in
materials or workmanship (excluding batteries)for one (1) year
from date of original purchase for the original purchaser.
The adapter is warranted for 90 days from date of original
purchase for the original purchaser. It does not cover damages
or wear resulting from accident, misuse, abuse, or unauthorized
adjustment and/or repair.
If service is required, do not return to distributor. For
service, call between 8 AM and 5 PM, Mountain Standard Time,
Monday through Friday. To assist us in servicing you, please
have the model number and date of purchase available. Should
this product require service (or replacement at our
option)while under warranty, please pack the item carefully
and return it prepaid, along with receipt showing date of
purchase and a note explaining reason for return to:
Taylor Precision Products, Inc.
2220 Entrada del Sol, Suite A
Las Cruces, New Mexico 88001
Customer Service Phone: [phone]
Customer Service Fax: [phone]
www.taylorusa.com
There are no expressed warranties except as listed above. This
warranty gives you specific legal rights, and you may have
other rights which vary from state to state.
For additional product information, or warranty information
outside the USA, please contact us through www.taylorusa.com.
©2016 Taylor Precision Products, Inc. and its affiliated
companies, all rights reserved. Taylor® is a registered
trademark and Accuracy you can trust™ is a trademark of Taylor
Precision Products, Inc. and its affiliated companies. All
rights reserved.
Made to our exact specifications in China.
Not Legal for Trade.
TE30WD EN 1.16

TE30WD
Balance Sans Fil
MANUEL D’INSTRUCTIONS

1
TABLE DES MATIÈRES:
TABLE DES MATIÈRES.................................................................................................................1
SPÉCIFICATIONS ..........................................................................................................................2
AFFICHAGE ......................................................................................................................................3
DESCRIPTION DES BOUTONS.....................................................................................................3
PRÉPARATION DE LA BALANCE POUR LA PESÉE .........................................................… 4
CHANGER LE CANAL DE LA PLATE-FORME DE LA BALANCE....................................... 5
SÉLECTIONNER LE CANAL DE L’AFFICHAGE SANS FIL................................................6
UTILISER LA FONCTION DE TARAGE....................................................................................7
ACTIVER/DÉSACTIVER LA FONCTION DE TARAGE SANS CONACT ...............................8
RÉGLAGES DE FONCTION............................................................................................................8
SUPPORT POUR POSE SUR TABLE ET MONTURES MURALES ...........................................9
SOURCES D’ALIMENTATION .....................................................................................................10
MESSAGES D'ERREUR .................................................................................................................11
DÉCLARATION DE LA FCC (COMMISSION FÉDÉRALE DES COMMUNICATIONS .......12
PRÉCAUTIONS ...............................................................................................................................10
GARANTIE ET INFORMATIONS RELATIVES AU SERVICE À LA CLIENTÈLE ……14

2
SPÉCIFICATIONS
Modèle TE30WD
Capacité
0-10 lb x 0.05 oz/10-30 lb x 0.1 oz
0-5 kg x 0.002 kg(2 g)/5-15 kg x 0.005 kg (5 g)
30 lb x 1/8 oz
Unité de poids
lb:oz(décimal)/lb:oz(fractions)/kg
Affichage à
ACL
Affichage à ACL de 1 po
Dimensions
14 po x 14 po x 1.6 po
Boutons
ON/OFF (marche/arrêt), HOLD (maintien),Unit
(unité), Tare (tarage), Channel (canal)
Alimentation
10 piles AA (6 pour la base,4 pour l'écran
sans fil, non incluses)
2 120V AC adaptateurs (1 pour la base,
1 pour l'écran sans fil, incluses)
Température de
fonctionnement
32°F / 104°F (0℃/ 40℃)

3
AFFICHAGE
DESCRIPTION DES BOUTONS
Appuyez pour mettre en marche ou
éteindre la balance.
Appuyez pour ajuster la «tare»
(réinitialisation à zéro) de la
balance avec le poids d'un article
pendant la pesée.
Appuyez pour maintenir («hold») le
poids à l'écran.
Appuyez pour passer entre lb:oz et kg
unités de mesure.
Appuyez pour réinitialiser la balance
à zéro (fonction TARE) si la balance
n'indique pas automatiquement zéro.
L'icône clignote lorsque la balance
est prête pour la pesée.
Affichage de stabilité: Si l'affichage
indique «o»,le poids sur la balance
est stable. Si l'affichage indique
«», le poids est instable.
La fonction de pesée «Hold» (maintien)
est activée.
kg ←→ lb:oz
Indique l'unitéde mesure[kg←→lb:oz].
Valeur de la «Tare» sauvegardée.
Champ de tarage sans contact.
-/ o sur base
Interrupteur marche (-) / arrêt (o)
pour la base de la balance.

4
PRÉPARATION DE LA BALANCE POUR LA PESÉE
Avant la pesée
1. Veuillez sélectionner le canal de la balance pour qu'il
corresponde à l'affichage sans fil (l'indicateur de canal
de la balance se situe sur la base de la balance; veuillez
retirer le bouchon en caoutchouc pour accéder à
l'indicateur de canal). Par exemple: si l'affichage sans
fil utilise le canal-1 (Channel-1), sélectionnez le canal-
1 pour la balance (reportez-vous à la page 6 pour des
instructions sur le choix des canaux de la plate-forme).
2. Appuyez sur le bouton «ON/OFF» (marche/arrêt) pour
mettre la balance sous tension.
3. Veuillez vous assurer que la distance entre la base de
la balance et l'affichage sans fil est de 10 mètres au
plus (30 pieds).
Remarque: si le canal de la balance n'est pas le même que
celui de l'affichage sans fil, «88888» apparaîtra à
l'écran. Réglez la balance et l'affichage sans fil sur le
même canal.
Pesage
1.Appuyez sur le bouton «ON/OFF» (marche/arrêt) pour
mettre la balance sous tension.
2.«88888» apparaît à l'écran, puis «0» et « »
clignotera. La balance est prête à utiliser.
*REMARQUE –si l’affichange «88888» n’indique pas «01»,
appuyez sur le bouton pour changer le canal de
l'affichage sans fil, de manière à ce qu'il corresponde au
canal de la balance. Par exemple: si le canal de la
balance est réglé sur Channel-1 (canal-1), veuillez
également sélectionner Channel-1 pour l'affichage sans fil.
