RiiO Sun User Manual
Disclaimer
Unless specially agreed in writing, TBB Power Co.,Ltd
Take no warranty as to the accuracy, sufficiency and suitability of any technical or other
information provided in this manual or other documentation.
Assumes no responsibility or liability for loss or damage, whether direct, indirect,
consequential or incidental, which might arise out of the use of such information.
TBB offer standard warranty with its products, taking no responsibility for direct or indirect loss
due to equipment failure.
About this Manual
This manual describes our product features and provides procedure of installations. This manual
is for anyone intending to install our equipment.
General Instruction
Thanks for choosing our products and this manual are suitable for RiiO Sun All in One Solar
Inverter. This chapter contains important safety and operation instructions. Read and keep this
User Guide well for later reference.
The RiiO Sun All in One Solar Inverter needs to be installed by professionals and please pay
attention to the following points prior to installation:
Please check the input voltage or voltage of battery is the same to the nominal input voltage of
this inverter.
Please connect the positive terminal “+” of the battery to “+” the input of the inverter.
Please connect the negative terminal “-” of the battery to “-” the input of the inverter.
Please use the shortest cable for connection and ensure the secure connection.
While connecting, please secure the connection and avoid the short circuit between the
positive terminal and the negative terminal of the battery, to protect the battery from damage.
The inverter will have high voltage inside. Only authorized electrician can open the case.
The inverter WAS NOT designed to use in any life retaining equipment.

RiiO Sun User Manual
Contents
1. General Safety Instruction............................................................................................................ 1
1.1 Safety Instruction.....................................................................................................1
1.2 General precaution................................................................................................. 1
1.3 Precaution regarding battery operation............................................................... 1
2. Instruction........................................................................................................................................2
1.1 Brief Instruction........................................................................................................2
1.1.1 General Description.........................................................................................2
1.1.2 Naming Rules...................................................................................................2
1.2 Structure................................................................................................................... 3
1.2.1 Front...................................................................................................................3
1.2.2 Control panel.................................................................................................... 4
1.2.3 Connection compartment............................................................................... 4
1.2.4 Dimension.........................................................................................................6
1.3 Function.................................................................................................................... 7
1.3.1 Power Control and Power Assist...................................................................7
1.3.2 Powerful and Reliable Inverter...................................................................... 7
1.3.3 Professional Battery Charger........................................................................ 7
1.3.4 Transfer............................................................................................................. 9
1.3.5 Protect Function...............................................................................................9
1.3.6 Communication..............................................................................................10
1.3.7 ECO Mode......................................................................................................10
3. Installation and Wiring................................................................................................................. 11
2.1 Recommended DC cables...................................................................................11
4. Configuration................................................................................................................................ 12
4.1 Check before Operation.......................................................................................12
4.2 Power ON Test...................................................................................................... 12
4.3 Power OFF.............................................................................................................12
5. Operation.......................................................................................................................................13
5.1 Operation and Display Panel.............................................................................. 13
5.2 LCD Display Icons................................................................................................ 14
5.3 LCD Setting............................................................................................................17
6. FAQ................................................................................................................................................ 26
6.1 Fault code...............................................................................................................26
6.1.1 Inverter Fault.................................................................................................. 26
6.1.2 MPPT Fault.....................................................................................................27
6.2 Warning code.........................................................................................................27
6.2.1 Inverter Warning............................................................................................ 27
6.2.2 MPPT Warning...............................................................................................28
6.2.3 BMS Warning................................................................................................. 29
6.2.4 BGK Warning................................................................................................. 30
7. Specification................................................................................................................................. 31

RiiO Sun User Manual
1
1. General Safety Instruction
1.1 Safety Instruction
As the dangerous voltage and the high temperature exist within the RiiO Sun All in One Solar
Inverter, only the qualified and authorized maintenance personnel is permitted to open and repair
it. Please make sure RiiO Sun All in One Solar Inverter is turned off before opening and repairing
it.
This manual contains information concerning the installation and operation of the RiiO Sun All in
One Solar Inverter. All relevant parts of the manual should be read prior to commencing the
installation. Please follow the local stipulation in the meantime.
Any operation against safety requirement or against the design, manufacture, safety standard are
out of the manufacturer warranty.
1.2 General precaution
DO NOT expose the inverter to the dust, rain, snow or liquids of any type, it is designed for
the indoor use. DO NOT block off ventilation, otherwise the RiiO Sun All in One Solar
Inverter would be overheating.
To avoid the fire and the electric shock, make sure all cables selected with right gauge and
connected well. Smaller diameter and broken cable are not allowed to use.
Please do not put any inflammable goods near to the inverter.
NEVER place the unit directly above batteries, the gases from the battery will corrode and
damage the RiiO Sun All in One Solar Inverter.
DO NOT place battery over RiiO Sun All in One Solar Inverter.
1.3 Precaution regarding battery operation
Use plenty of fresh water to clean in case the battery acid touches the skin, the clothing, or
eyes and consult with doctor as soon as possible.
The battery may generate flammable gas during charging. NEVER smoke or allow a spark
or a flame in the vicinity of the battery.
DO NOT put the metal tool on the battery, a spark and a short circuit might lead to a
explosion.
REMOVE all personal metal items such as rings, bracelets, necklaces, and watches while
working with batteries. Batteries can cause short-circuit current high enough to make metal
melt, and could cause severe burns.

RiiO Sun User Manual
2
2. Instruction
2.1 Brief Instruction
2.1.1 General Description
RiiO Sun is a new generation of all in one solar inverter designed for various type of off grid
system including DC Couple system and generator hybrid system. It can provide UPS class
switching speed.
RiiO Sun delivers high reliability, performance and industry leading efficiency for mission critical
application. Its distinguishing surge capability makes it capable to power most demanding
appliances, such as air conditioner, water pump, washing machine, freezer, etc.
With the function of power assist & power control, it can be used to work with a limited AC source
such as generator or limited grid. RiiO Sun can automatically adjust its charging current avoiding
grid or generator to be overloaded. In case of the temporary peak power appears, it can work as
the supplement source to the generator or the grid.
2.1.2 Naming Rules
figure
explanation
RiiO Sun
series name
2KVA
Represent rate capacity
2000W
3KVA
3000W
4KVA
4000W
5KVA
5000W
6KVA
6000W
-M
Represent rate DC voltage
24VDC
-S
48VDC
--
Represent rate DC voltage
230VAC
-LV
120VAC
Naming example :RiiO Sun 3KVA-S
RiiO Sun All in One Solar Inverter
Rate capacity :3000W
Rate DC voltage :48V

RiiO Sun User Manual
3
2.2 Structure
2.2.1 Front
RiiO Sun 2KVA-M, RiiO Sun 2KVA-S, RiiO Sun 3KVA-M, RiiO Sun 3KVA-S, RiiO Sun 4KVA-S
RiiO Sun 3KVA-M-LV, RiiO Sun 3KVA-S-LV
RiiO Sun 5KVA-S, RiiO Sun 6KVA-S

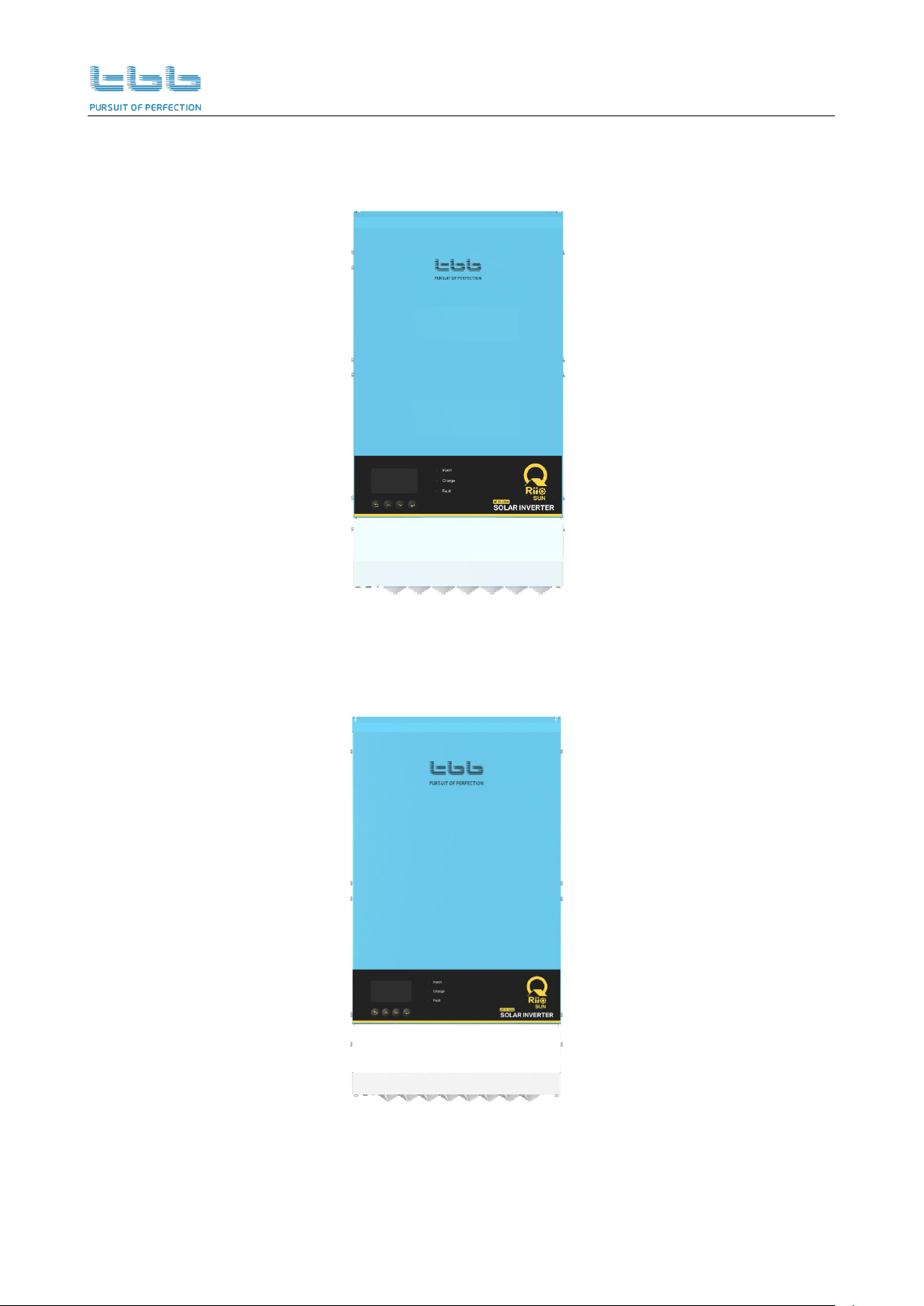

Figure 2-1 Front View of the All in One Solar Inverter Structure

RiiO Sun User Manual
4
2.2.2 Control panel

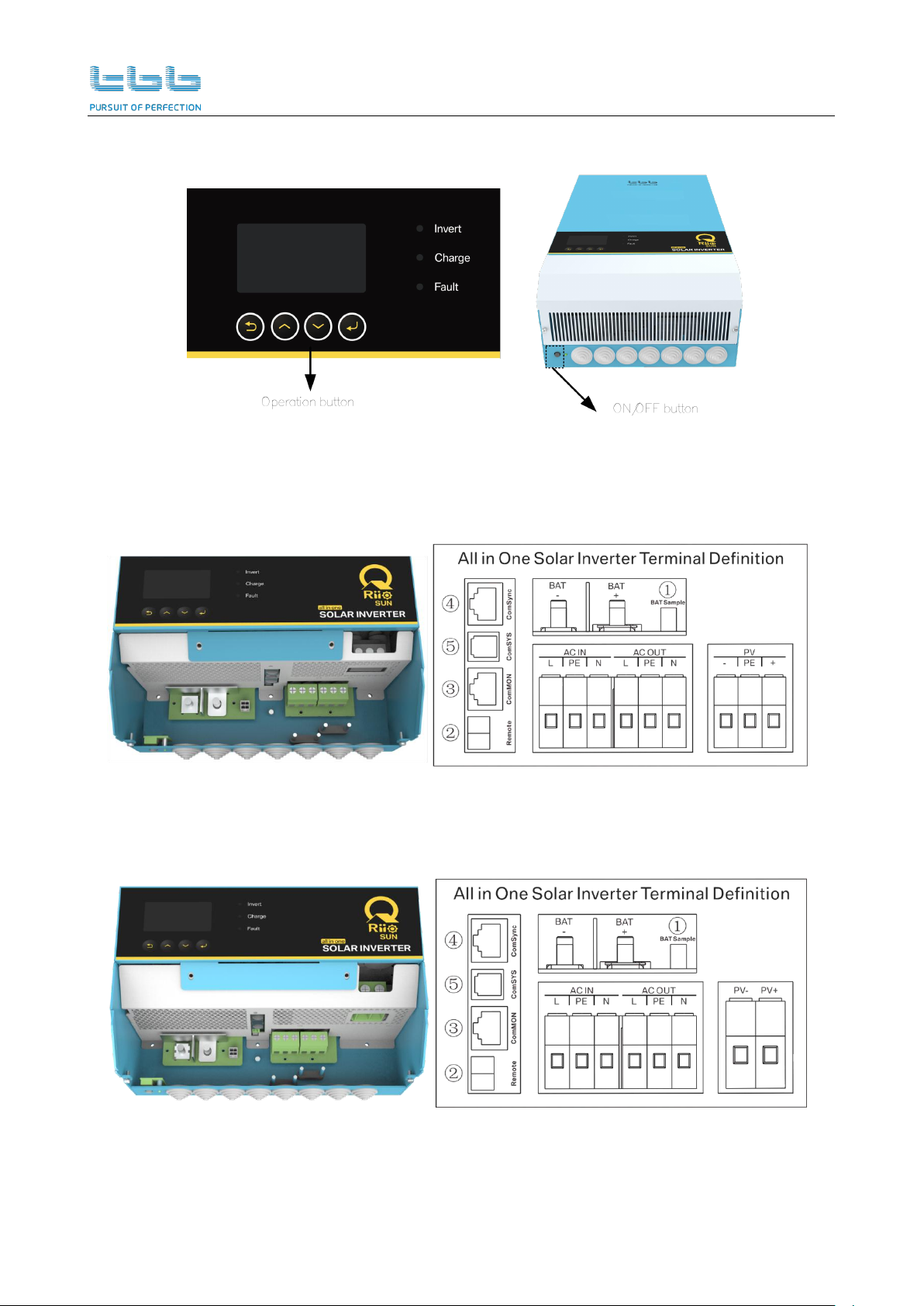

Figure 2-2 All in One Solar Inverter Control Buttons
2.2.3 Connection compartment
RiiO Sun 2KVA-M, RiiO Sun 2KVA-S, RiiO Sun 3KVA-M, RiiO Sun 3KVA-S, RiiO Sun 4KVA-S
RiiO Sun 3KVA-M-LV, RiiO Sun 3KVA-S-LV
RiiO Sun 5KVA-S, RiiO Sun 6KVA-S
Figure 2-3 Signal Terminals

RiiO Sun User Manual
5
Table 2-1 Signal Terminals Introduction
No.
Silk-screen
Definition
①
BAT Sample
Battery temperature and voltage sample.
②
Remote
Dry contact input control, remote ON/OFF control.
③
ComMON
RS485 port for external monitor such as MCK, SNMP, Kinergy,
etc.
④
ComSync
BMS communication (CAN) .
⑤
ComSYS
System communication(RS485), connected to SP or BGK.
RiiO Sun 2KVA-M, RiiO Sun 2KVA-S, RiiO Sun 3KVA-M, RiiO Sun 3KVA-S, RiiO Sun 4KVA-S
RiiO Sun 3KVA-M-LV, RiiO Sun 3KVA-S-LV
RiiO Sun 5KVA-S, RiiO Sun 6KVA-S
Figure 2-4 Power terminal

RiiO Sun User Manual
6
2.2.4 Dimension
RiiO Sun 2KVA-M, RiiO Sun 2KVA-S, RiiO Sun 3KVA-M, RiiO Sun 3KVA-S, RiiO Sun 4KVA-S
RiiO Sun 3KVA-M-LV, RiiO Sun 3KVA-S-LV
RiiO Sun 5KVA-S, RiiO Sun 6KVA-S

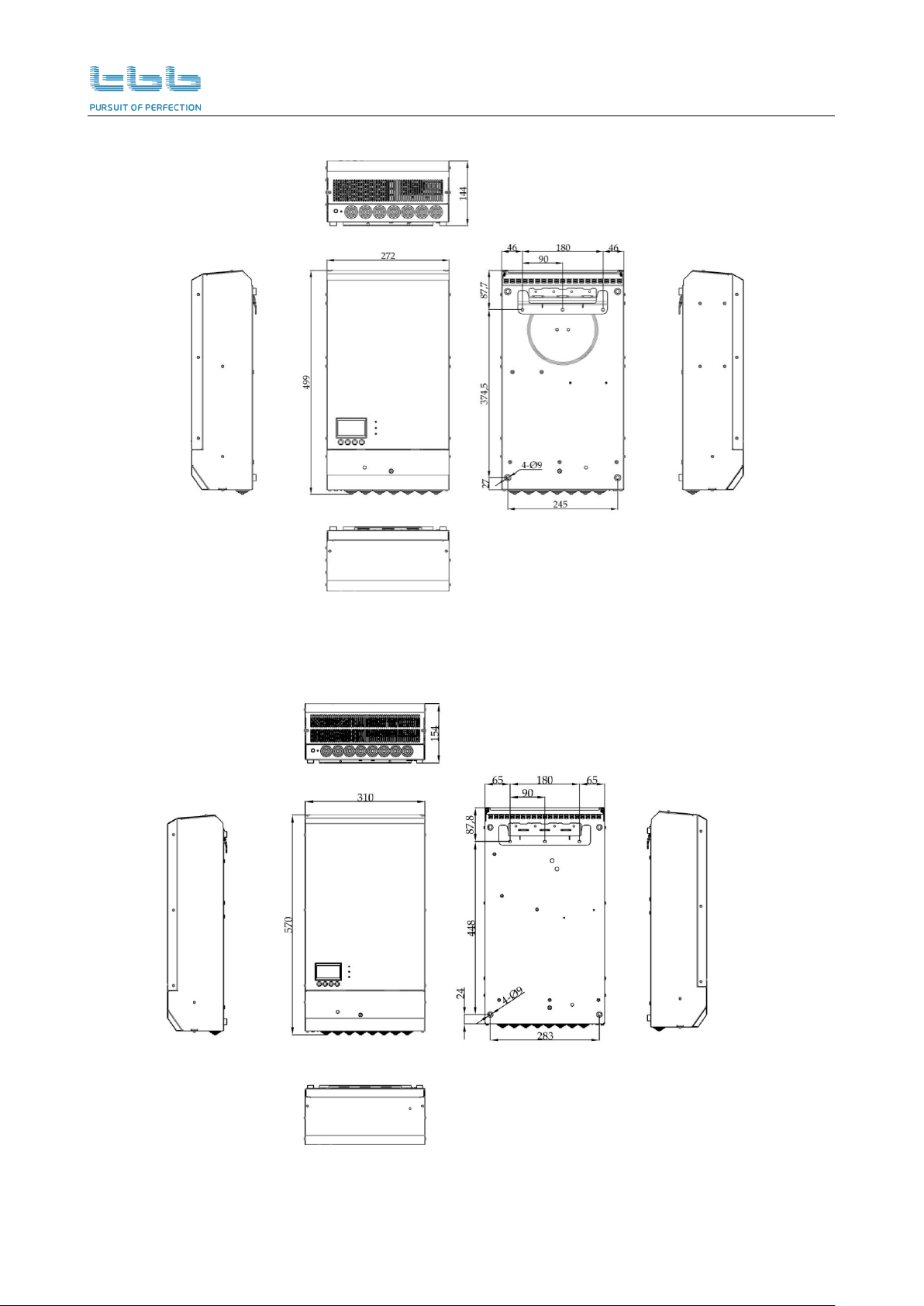

Figure 2-5 Dimension of the All in One Solar Inverter

RiiO Sun User Manual
7
2.3 Function
2.3.1 Power Control and Power Assist
RiiO Sun offers a unique feature of power control & power assist, which is very useful when you
have a limited grid supply or working with the generator. RiiO Sun will take control of energy flow
automatically, using extra power to charge the battery or inverting as the supplement to the grid or
generator. With this feature, you can avoid the air switch trip and do not have to use oversize
generators.
2.3.2 Powerful and Reliable Inverter
High Performance Pure Sine Wave
RiiO Sun is a pure sine wave inverter generating a near perfect sinusoidal AC wave power output
that is very similar or even better to what you can get from your utility grid. Pure sine wave can
guarantee the correct function of the sensitive equipments (computer, laser printer, TV, etc.). Also,
your home appliances such as fridge, microwave and power tools will work more efficiently.
High Surge Power Capability
Provided with outstanding surge power capability and low frequency transformer, RiiO Sun is
suitable for heavy inductive load like fridge, coffee maker, microwave, power tools, air conditioner,
etc.
Battery Low Voltage/SOC Protection
RiiO Sun provides configurable battery low voltage/SOC protection.
2.3.3 Professional Battery Charger
Multi Stage Sophisticated Charging Algorithm for Lead Acid Battery
Fitted with multistage charging algorithm (bulk-absorption-float-recycle), the built-in charger of the
RiiO Sun is designed to charge battery quickly and fully. Microprocessor controlled charging
algorithm with variable absorption charging timer could guarantee the optimal charging for the
batteries of different discharged states.
Figure 2-6 Multi Stage Sophisticated Charging Algorithm for Lead Acid Battery

RiiO Sun User Manual
8
Float charging and recycle charging program guarantee your battery getting proper maintenance
in case of long time connected and less aging in case of long time connected with no use.
Multi Chemical Batteries Available
RiiO Sun offers premium charging algorithm for the common chemical acid batteries including
AGM, GEL, Flooded, lead-carbon and Lithium battery. You can set the battery parameters through
the LCD interface and the TBB Link software.
Lithium Battery Compatible
RiiO Sun has built in communication protocol compatible with for Super L lithium battery from
TBB.
Manual Equalization
It is strongly recommended to read this section carefully before you start the EQ
charging and Don’t leave the battery unattended while performing desulfuration.
Always check if you’re the battery supplier recommend the EQ charging. Only start
when it is suitable.
If the battery type was set at AGM, GEL or Lead-Carbon , this charging profile can’t
be triggered on.
Over a period of time, the cells in a flooded battery can develop uneven chemical states. This will
result in a weak cell which in turn can reduce the overall capacity of the battery. To improve the life
and performance of the flooded battery, RiiO Sun provides a manual equalization program that
can be used. If it is recommended by the battery manufacturer, you can initiate the desulfuration
program manually. Once you trigger on the equalization program, the RiiO Sun will perform
equalization charging.
After 30 minutes, it will quit EQ and enter into float charging.
Check the electrolyte level and refill the battery with the distilled water if necessary.
If you want to come to normal charging, you need to stop equalization charging and switch off
the unit.
Switch on the unit again, then you will have your equipment back to normal charging.
During equalization, the battery generates potentially flammable gases. Follow all
the battery safety precautions listed in this guide. Ventilate the area around the
battery thoroughly and ensure that there are no sources of flame or sparks in the
vicinity.
Turn off or disconnect all loads on the battery during equalization. The voltage
applied to the battery during equalization may be above the safe levels for some
loads.
Frequency:
Maximum once a month, for heavily used battery, you may wish to equalize your battery. For
battery with light service only need to be equalized every 2-3 months.

RiiO Sun User Manual
9
Important:
Equalization may damage your batteries if it is not performed properly. Always check battery
fluid before and after equalization. Fill the batteries only with the distilled water.
Always check the equalization switch is set back to OFF after each time’s equalization.
Follow the battery manufactures’ recommendations on equalization vary. Always follow the
battery manufacturer’s instructions to properly equalize the batteries. According to the guide,
a heavily used battery may require equalization once a month while a battery in light duty
service only needs equalizing once every 2 to 4 months.
Battery type:as a kind of protection, equalization charging can be performed if and only if you
set the battery to be a traction, Flooded /OPzV batteries. If you choose the AGM, GEL or
Lead-Carbon, EQ charging can’t be performed.
2.3.4 Transfer
Uninterrupted AC Power
In case of voltage/frequency/waveform of AC input match the minimum quality, the voltage will be
switched directly to the AC output. The RiiO Sun All in One Solar Inverter will work as a battery
charger and the loads will be powered by AC input. The voltage of the AC output and the AC input
will be the same.
In case of the AC input failure or excessive AC input current set by the user, the RiiO Sun All in
One Solar Inverter will initiate a quick switching to the inverter, which will guarantee an
undisturbed power. Once the AC input resumes or matches the quality, it will switch back again.
Due to its ultra quick transfer design, as quick as 4ms, RiiO Sun All in One Solar Inverter could be
used as an UPS.
2.3.5 Protect Function
The RiiO Sun All in One Solar Inverter is equipped with a series of complete hardware and
software protection functions to ensure its stable and reliable operation.
Overload Protection
When overload protection is triggered on, it will restart automatically after 60s. And after three
consecutive overload shutdown protections, the equipment will not restart automatically. At this
time, the user needs to manually restart.
Over Temperature Protection
When the internal temperature is too high, RiiO Sun will enter into the over-temperature protection.
After the internal temperature returns to normal, it can automatically resume normal operation.
Short Circuit Protection
The equipment will automatically shut down when the AC output is shorted and needs to be
manually activated.
Battery Low Voltage/SOC Protection
To prevent the permanent damage caused by the over discharge of battery, the equipment will
automatically cut off the output according to the low voltage/SOC protection point set by the user.

RiiO Sun User Manual
10
2.3.6 Communication
Dry Contact Input
RiiO Sun is equipped with a dry contact input for remote on/off control.
Note: When the setting item 64 Main switch selection is set as Mobile Only mode, the touch
switch needs to be changed to a rocker switch.
RS485
Equipped with two RS485 interfaces.
ComSYS: System communication(RS485), connected to SP or BGK.
ComMON: RS485 port for external monitor such as MCK, SNMP, Kinergy, etc.
2.3.7 ECO Mode
ECO Mode is to reduce the output power of the inverter while maintaining the normal use. When
the battery capacity is insufficient or the SoC is in a low value, by setting the ECO Mode in the
inverter, the power consumption of some specific loads can be reduced by 45% at max (30% on
average), thereby prolonging the battery life.

RiiO Sun User Manual
11
3. Installation and Wiring
Please refer to "Installation & operation guide for RiiO Sun 2KVA-4KVA " and "Installation &
operation guide for RiiO Sun 5KVA-6KVA".
Keep away from the fire, avoid direct sunlight and rain; do not store
flammable, explosive or corrosive gases or liquids in the working
environment. Don't install in a working environment with the metal
conductive dust.
Please install the equipment in a dry, clean and cool location with good ventilation.
Operating temperature: -20～65℃
Storage temperature: -40～70℃
Cooling: Force fan
Relative humidity in operation: 95% without condensation.
Altitude: 2000m
3.1 Recommended DC cables
Please find the following minimum wire size. If the DC cable is longer than 5m, please increase
the cross section of the cable to reduce the loss.
Use a torque wrench with insulated box spanner in order to avoid
shorting the battery. Avoid shorting the battery cables.
Maximum torque: 12 Nm.
Model
Recommended cross section
φ8 aperture copper terminal
(Length<5m)
RiiO Sun 2KVA-M
35mm²~50mm²
RiiO Sun 2KVA-S
25mm²~50mm²
RiiO Sun 3KVA-M
50mm²
RiiO Sun 3KVA-S
25mm²~50mm²
RiiO Sun 4KVA-S
35mm²~50mm²
RiiO Sun 5KVA-S
50mm²
RiiO Sun 6KVA-S
50mm²
RiiO Sun 3KVA-M-LV
50mm²
RiiO Sun 3KVA-S-LV
25mm²~50mm²

RiiO Sun User Manual
12
4. Configuration
4.1 Check before Operation
Please check before Operation according to the following.
The inverter is installed correctly and steady.
Reasonable cable layout to meet customer requirements.
Make sure the grounding is reliable.
Make sure the ground wire is properly connected and firm and reliable.
Double check the battery breaker is OFF.
Make sure the cables are properly connected and firm and reliable.
Reasonable installation space, clean and tidy environment, no construction residue.
4.2 Power ON Test
Make sure the battery voltage is within the permissible range before turning
ON the breaker.
Please follow the following instructions step by step.
Step 1: Turn on the circuit breaker between the battery and the inverter.
Step 2: Press the On/Off button for 2 seconds to turn on the inverter into the standby mode,
the power LED will light up and the LCD will enter into the self diagnostic mode.
Step 3: Wait in the standby mode for 30 seconds, then press the On/Off button again for 1
second to turn on the inverter into the inverting mode and observe the LCD and invert LED to
make sure the inverter is running normally.
4.3 Power OFF
After the inverter is power OFF, there is still residual power and heat in the
chassis, which may lead to electric shock or burning. Therefore, after the
MPPT charger is powered off for 5 minutes, you should wear protective
gloves before removing the MPPT charger.
Step 1: When the inverter is in the inverting mode or charging mode, press the On/Off button
for 2 seconds to turn off the inverter into the standby mode.
Step 2: When the inverter is in the standby mode, press the On/Off button for 5 seconds to
turn off the inverter into the complete off mode.
Step 3: Turn off the circuit breaker between the battery and the inverter.

RiiO Sun User Manual
13
5. Operation
5.1 Operation and Display Panel
The operation and display includes four buttons and a LCD display, indicating the operating status
and input/output power information.
Button
Function
To exit the setting mode or confirm the fault code.
To go to the previous selection.
To go to the next selection.
To enter the setting mode or confirm the selection.

RiiO Sun User Manual
14
LED Indicator
Function
Invert
Green
Solid on
Inverting mode
Flashing
Power Assist mode
Charge
Green
Solid on
The battery is Charging.
Flashing
The battery is fully Charged.
Fault
Red
Solid on
Fault occurs
Flashing
Warning occurs

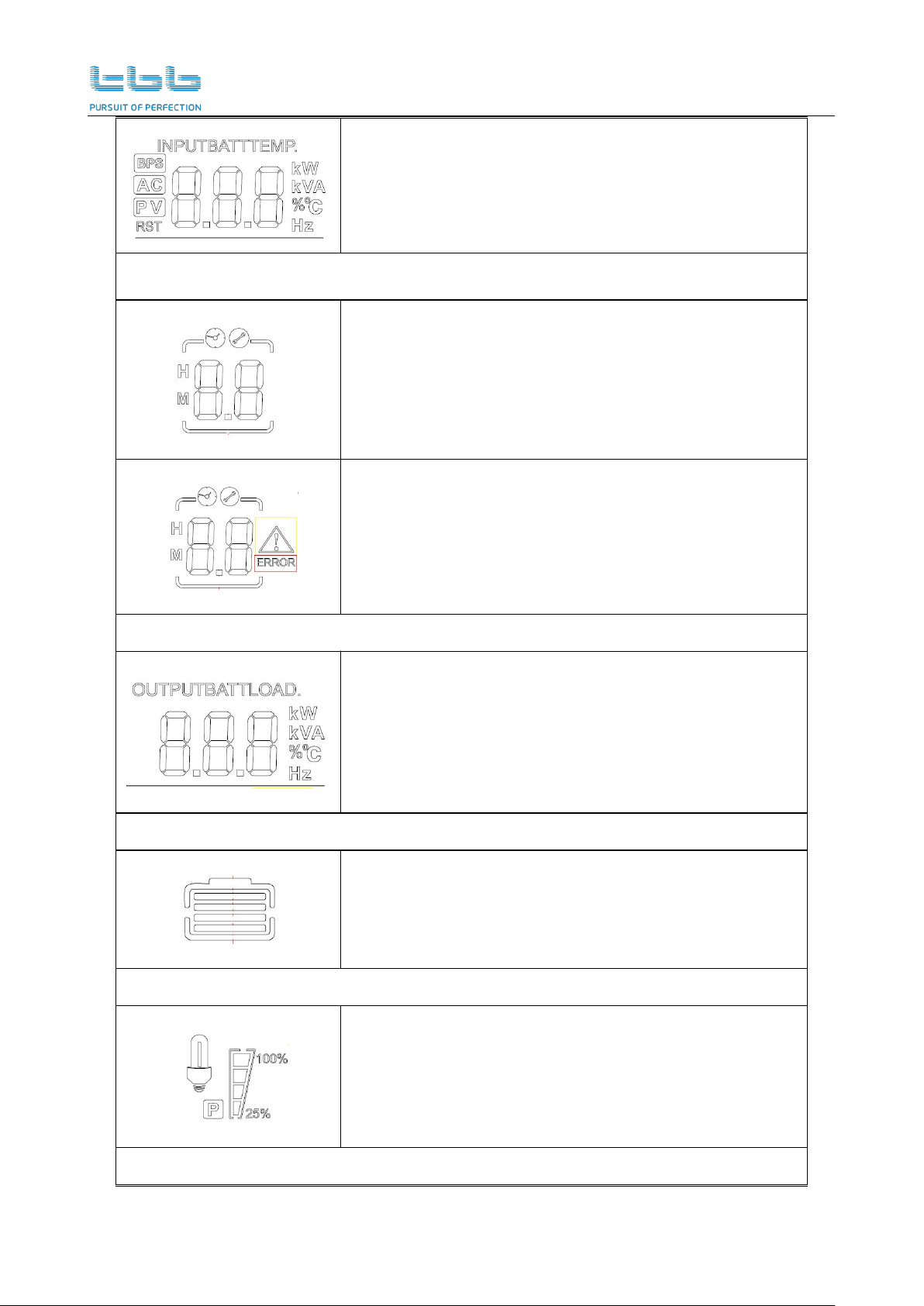

5.2 LCD Display Icons
Icon
Function description
Input Source Information
Indicates the AC input
Indicates the PV input

RiiO Sun User Manual
15
Indicates input voltage, input frequency, PV voltage, charge
current, charge power, battery voltage.
Configuration Program and Fault Information
Indicates the setting programs
Warning: flashing every 2 seconds. Press <ESC> button to
view the warning code.
Fault: flashing every 1 second. Press <ESC> button to view
the warning code.
Output Information
Indicates output voltage, output frequency, load percent,
load in Watt, load in VA, and discharging current.
Battery Information
Indicates the battery level by 0~24%, 25~49%, 50~74%,
75~100% in battery mode and charging status in line mode.
Load Information
Indicates the load level by 0~24%, 25~49%, 50~74%,
75~100%.
Mode Operation Information
