Teac W-600R User manual

WW--660000RR//WW--448888RR
SERVICE MANUAL
Stereo Double Cassette Deck
Effective : October, 1999 D00526500A
NOTES
•PC boards shown are viewed from parts side.
•Parts marked with * require longer delivery time.
•The parts with no reference number or no parts number in the exploded
views are not supplied.
•As regards the resistors and capacitors, refer to the circuit diagrams
contained in this manual.
•£ Parts marked with this sign are safety critical components. They must be
replaced with identical components - refer to the appropriate parts list and
ensure exact replacement.
•Parts of [ ] mark can be used only with the version designated.
[US]:U.S.A.[C]:CANADA[GE]:GENERALEXPORT[E]:EUROPE[UK]:U.K.
[A]:AUSTRALIA

Track System................................ 4-track, 2-channel stereo
Heads
DECK Ⅰ:......................................................Playback x 1
DECK Ⅱ:..........Erase x 1, Record/Playback x 1 (rotating)
Type of Tape ......Cassette tape C-60 and C-90 (Philips type)
Tape Speed ........................................................4.8 cm/sec
Motor ....................................................................DC motor
Frequency Response
Normal ......................................................40 - 14,000 Hz
CrO2..........................................................40 - 15,000 Hz
FF and REW time
................Approximately 100 seconds (C-60 cassette tape)
Wow/Flutter ..................................................0.3% (WRMS)
S/N Ratio
Dolby B NR ON, over 5 kHz......................65 dB (CCIR/ARM)
Dolby NR OFF, 3% THD level, weighted ..56 dB (CCIR/ARM)
Power Consumption ....................................................15 W
Power Supply ..........120V AC, 60Hz (U.S.A./Canada Model)
120/230V AC, 50-60Hz (General Export Model)
230V AC, 50Hz (Europe Model)
Dimensions (WxHxD) ............................435 x 145 x 290 mm
(17-1/8" x 5-11/16" x 11-7/16")
Weight ......................................................3.8 kg (8-3/8 lbs.)
Standard Accessories ..........................Audio signal cord x 2
Remote Control Unit (RC-744) x 1 (W-488R only)
Battery (SUM-3, "AA", "R6" type) x 2 (W-488R only)
●Improvements may result in specification or feature
changes without notice.
W-600R/W-488R
2
1 SPECIFICATIONS
2 ADJUSTMENTS AND CHECKS
Dolby noise reduction manufactured under license from Dolby
Laboratories Licensing Corporation.
"DOLBY" and the double-D symbol ∂are trademarks of
Dolby Laboratories Licensing Corporation.
2-1 MECHANICAL ADJUSTMENT
ITEM TEST TAPE ADJUSTMENTS MEASURING
POINTS, RESULT
1. Wow and
flutter MTT-111N Check Within 0.3%
(JIS WTD)
2. Tape speed
adjustment
R32 PLAYBACK
ⅠⅠ
3000±20Hz
3. Speed
drifting MTT-111N Check Within ±80Hz
4. High speed
dubbing
PLAYBACK
ⅠⅠ
MTT-111N
REC/PLAY
ⅡⅡ
Check 6000±460Hz
Check REC/PLAY
ⅡⅡ
3000±90Hz
MTT-111N
Frequency Counter
Wow & Flutter Meter
W-600R
W-488R
L
R
OUTPUT

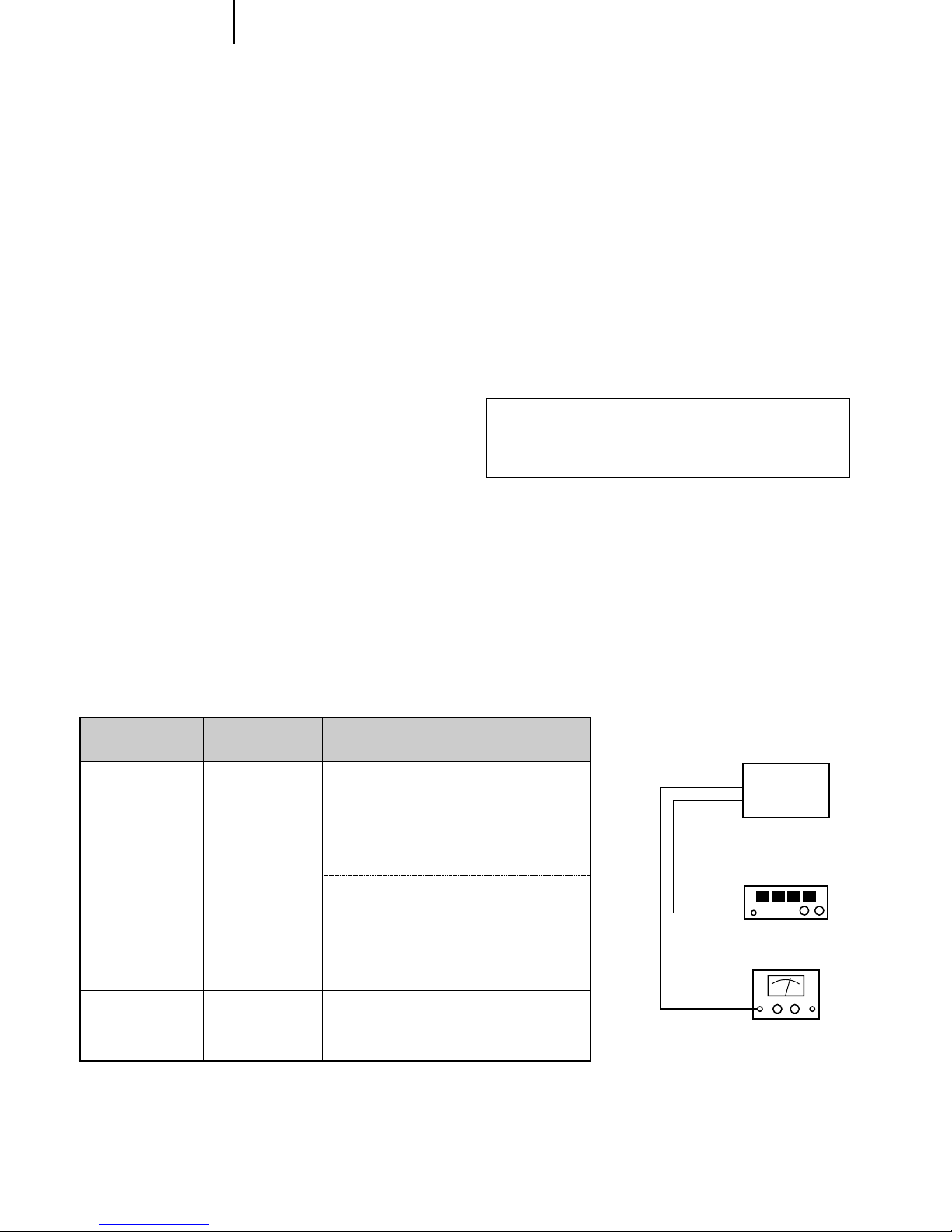

Fig. 2-1

W-600R/W-488R
3
●0dB is referenced to 0.775V.
●The AC voltmeter used in the procedures must have an
input impedance of 1MΩor more.
●Unless specified otherwise, adjustments and checks are
made in FWD direction.
2-2 ELECTRICAL ADJUSTMENT
2-2-1 Precautions
●Before performing adjustments and checks clean and
demagnetize the entire tape path.
●In general, adjustments and checks are made in the order
of Lch then Rch. Double REF. Nos. indicate Lch/Rch.
(Example; R11/R21)
2-2-2 Adjustment locations

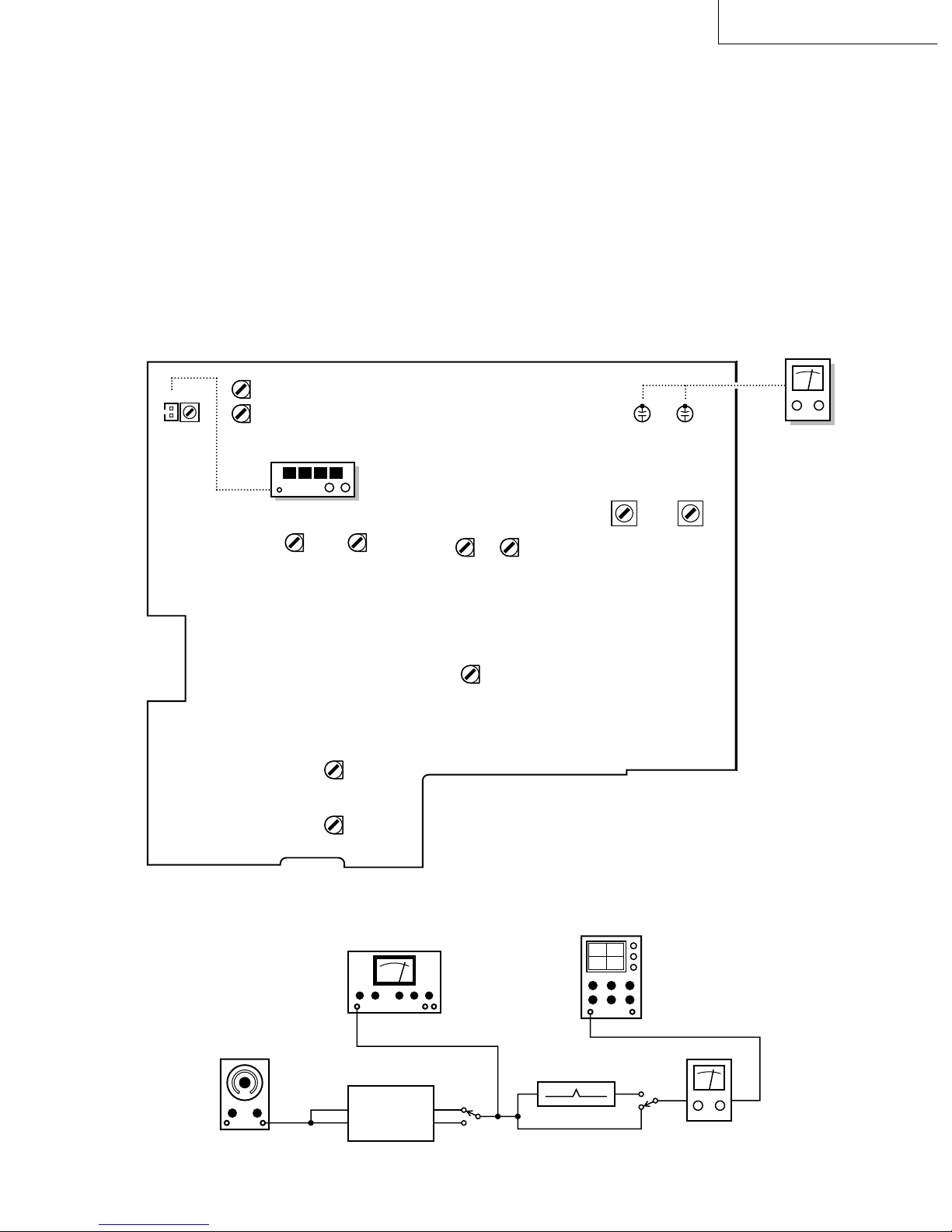

Fig. 2-2
P303
L301
L201L101
R14
R24
R22
R21
R11
R12 R23 R13
R32
1
2
TP1 TP2

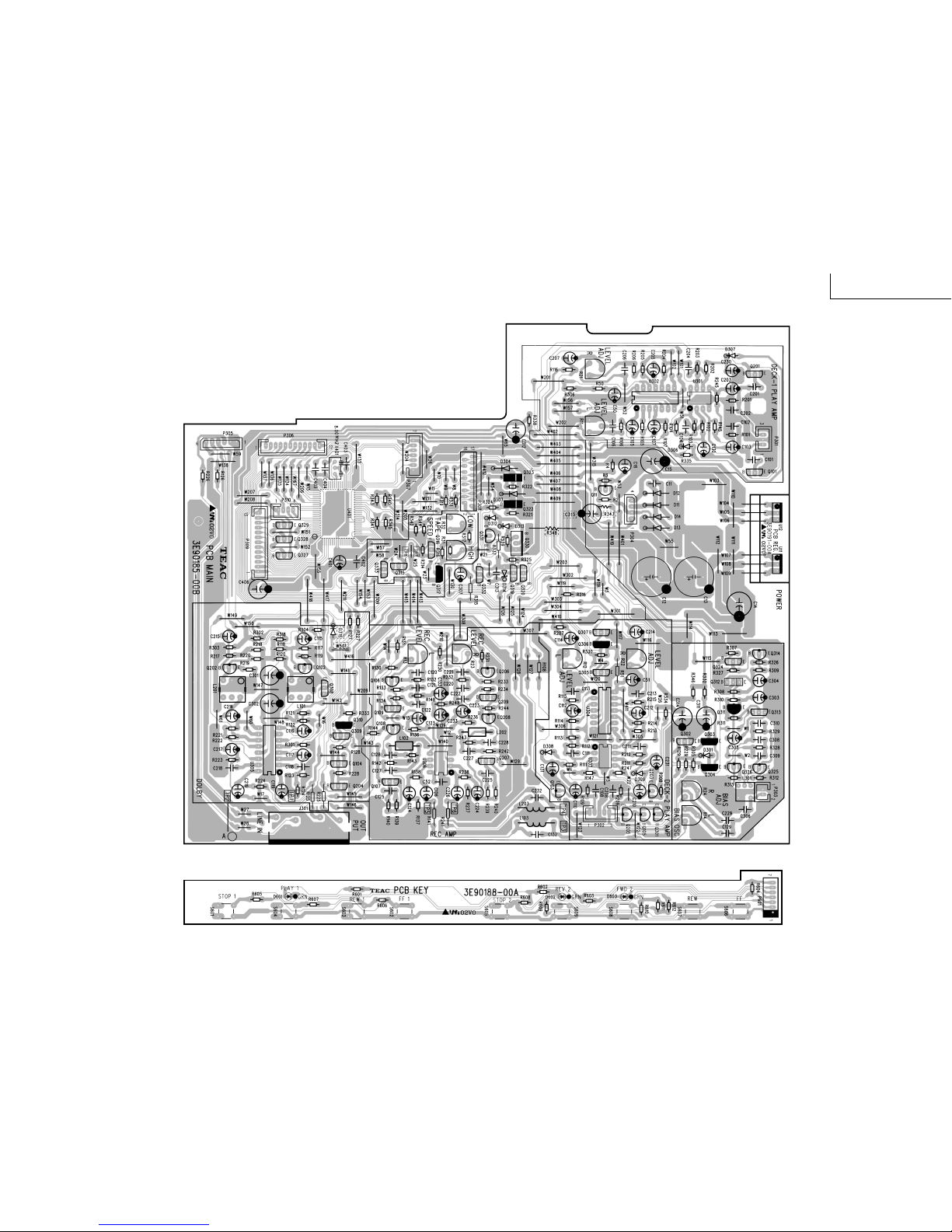

MAIN PCB
Frequency Counter
AC voltmeter
Oscillator
Distortion Analyzer
Oscilloscope
AC voltmeter
W-600R
W-488R
1kHz Filter
LS1
R
L
R
LINE IN OUTPUT
S2
Fig. 2-3

W-600R/W-488R
4
2-2-3 Playback performance
Deck settings: TEAC test tapes:
Mode: PLAY MTT-150C : For Dolby level calibration
DOLBY NR Switch: OFF MTT-25702 : For playback frequency response check NORMAL tape
MTT-5513 : For S/N check NORMAL tape
ITEM SETTING INPUT SIGNAL ADJUSTMENTS MEASURING
POINTS, RESULT REMARKS
1. Head
azimuth
adjustment
Connection: Fig. 2-4
Check and adjust in
FWD, REV
respectively
MTT-150C Check
OUTPUT:
Phase: within 45°
(Fig. 2-5)
2. DOLBY level Connection: Fig. 2-2
FWD PLAY MTT-150C
R11/R21 TP1/TP2
(C119 —/C219 —):
−10dB
PLAYBACK
ⅠⅠ
3. Playback
output level
Connection: Fig. 2-3
FWD/REV PLAY MTT-150C Check OUTPUT:
−3.5±1dB Ref. output level
4. Meter level MTT-150C Check LEVEL METER:
0dB
5. Playback
frequency
response
Connection: Fig. 2-3 MTT-25702 Check
6. Playback S/N
ratio Connection: Fig. 2-3
MTT-5513
Playback the
leader tape
portion
Check 42dB min. Ratio of ref.
level to noise
MTT-25702
(12.5kHz) Azimuth screws
OUTPUT:
Maximum output
level at L & R-ch
R12/R22 REC/PLAY
ⅡⅡ
FWD azimuth
REV azimuth
(illustration for mechaⅡ)
250 1k 10k (Hz)
+4dB
–4dB
Oscilloscope
AC voltmeter
W-600R
W-488R
L
VER
R
OUTPUT
HOR
0°(in phase) 45°90°135°180°(out of phase)
Fig. 2-4 Fig. 2-5

W-600R/W-488R
5
2-2-4 Recording performance
Deck settings: TEAC recording test tapes:
Mode: REC/PLAY MTT-5513 : For NORMAL
DOLBY NR Switch: OFF MTT-5563 : For CrO2
REC LEVEL Control: Specified position (Item 7)
ITEM SETTING INPUT SIGNAL
( LINE IN ) ADJUSTMENTS MEASURING POINTS, RESULT REMARKS
7. Specified
LINE input
level
Connection: Fig. 2-3
Mode: REC 400Hz/−9dB REC LEVEL
OUTPUT:
Lch: −3.5dB
Rch: −3.5±3dB
After adjusting, do
not move
(Specific position)
8. Bias osc
frequency
Connection: Fig. 2-2
TAPE: MTT-5513
Mode: REC
No signal L301 P303 Pin 2:
75±5kHz
15. Erase
efficiency
Connection: Fig. 2-3
TAPE: MTT-5563
1kHz B.P.F in
1kHz/＋1dB Check 65dB min.
Ratio of the 1kHz
recorded portion
to the erased
portion.
9. Record bias Connection: Fig. 2-3
TAPE: MTT-5513
250Hz/10kHz
−42dB R14/R24
OUTPUT:
Nearly equal level
at both frequencies
(±0.5dB)
10. MPX filter Connection: Fig. 2-3
Mode: REC 19kHz/−12dB L101/L201 30dB min. Ratio of ref. level to signal
11. Record level
Connection: Fig. 2-3
TAPE: MTT-5513
400Hz/−12dB
R13/R23 OUTPUT:
−6.5dB
12. Total
harmonic
distortion
Connection: Fig. 2-3
TAPE: MTT-5513
MTT-5563
400Hz/−12dB Check
NORMAL : 2.0% or less
CrO2: 2.5% or less
TAPE: MTT-5563 Check OUTPUT:
−6.5±1dB
13. Overall
frequency
response
Connection: Fig. 2-3
TAPE: MTT-5513
MTT-5563
40Hz−12.5kHz
−42dB Check
14. Overall S/N
ratio
Connection: Fig. 2-3
TAPE: MTT-5513
MTT-5563
No signal Check 40dB min. Ratio of ref.
level to noise
16. Channel
separation
Connection: Fig. 2-3
TAPE: MTT-5563
1kHz B.P.F in
Lch: 1kHz/−9dB
Rch: No signal Check 35dB min.
Ratio of Lch
(1kHz) to Rch (no
signal).
17. Adjacent
track
crosstalk
Connection: Fig. 2-3
TAPE: MTT-5563
Lch: No signal
Rch: 125Hz/
−9dB
Check 40dB min.
Invert tape and
play Rch track.
Check leakage
level against the
output reference
of previously
recorded portion.
40 250 12.5k (Hz)
+6dB
–6dB

W-600R/W-488R
3 EXPLODED VIEWS AND PARTS LIST

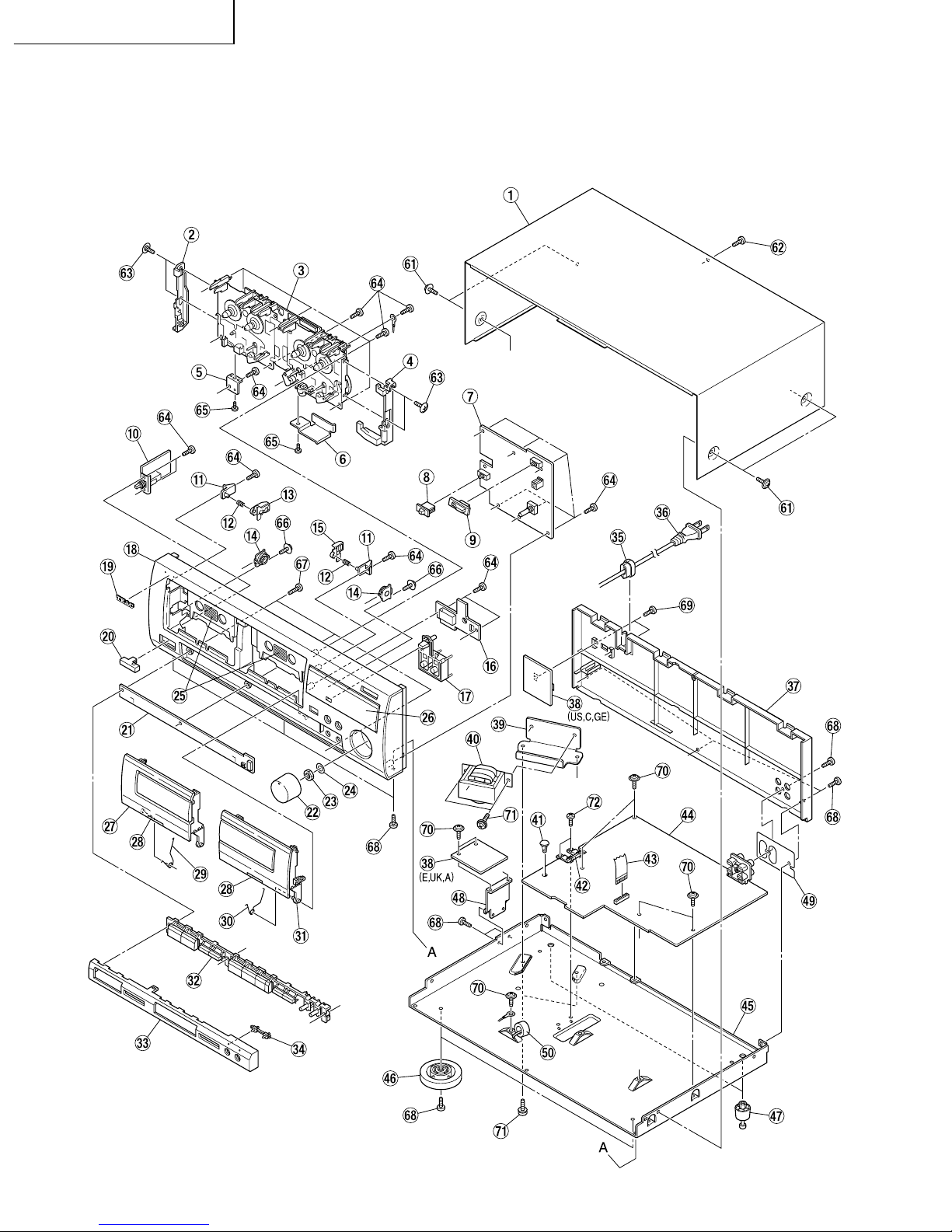

EXPLODED VIEW-1
6

W-600R/W-488R
EXPLODED VIEW-1
REF.NO. PARTSNO. DESCRIPTION
1‑1 3M0011900A BONNET
1‑2 * 3M0072100A LEVER,LOCK(L)
1‑3 * 3M0072800A MECHASSY,CMAT5Z026A
1‑4 3M0072200A LEVER,LOCK(R)
1‑5 * 3M0072300A HOLDER,MECH
1‑6 * 3M0075100A SHIELDPLATE
1‑7 * 3E9518600A PCBASSY,FRONT
1‑8 * 3M0071100A KNOB,SLIDE
1‑9 * 3M0001600A KNOB,DOLBY
1‑10 * 3E9518900A PCBASSY,POWERSW
1‑11 * 3M0072000A HOLDER,LOCK
1‑12 * 3M0072600B CPRSNSPRING,CAM
1‑13 * 3M0071800B CASE,LOCKLEVER(L)
1‑14 * 3M0036700A DAMPER,DP‑223A
1‑15 * 3M0071900B CASE,LOCKLEVER(R)
1‑16 * 3E9518700A PCBASSY,COUNTER
1‑17 * 3M0070900A BUTTON,B
1‑18 * 3M0070400B FRONTPANEL[W‑600R]
*3M0070410B FRONTPANEL[W‑488R]
1‑19 * 3M0051600A TEACEMBLEM(GOLD)
1‑20 3M0071000A BUTTON,POWER
1‑21 * 3E9518800A PCBASSY,KEY
1‑22 3M0001500A KNOB,VR
1‑23 * 3M001340 NUT,VRM9
1‑24 * 3M001350 PLAINWSHR,VRM9.1
1‑25 3M0062400A PLATE,REFLECT
1‑26 * 3M0071400A WINDOW,DISP
1‑27 * 3M0075700B CASELOADING(L)ASSY
1‑28 * 3M0071700A COVER,AZIMUTH
1‑29 * 3M0072400B TRSNSPRING,CASE(L)
1‑30 * 3M0072500B TRSNSPRING,CASE(R)
1‑31 * 3M0075800B CASELOADING(R)ASSY
1‑32 3M0075900A BUTTONAASSY
1‑33 * 3M0070700A PANEL,BUTTON
1‑34 * 3M0071600A LENS,LEDREC
1‑35£*3M000880 BUSHING,#2271
1‑36£3E009230 POWERCORD[US,C,GE]
£3E000340 POWERCORD[E]
£*3E000350 POWERCORD[UK]
£*3E000360 POWERCORD[A]
1‑37 * 3M0010940A REARPANEL[US,C,GE]
*3M0010930A REARPANEL[E,UK,A]
1‑38 * 3E9519010A PCBASSY,POWERSEL[US,C,GE]
*3E9519020A PCBASSY,POWERSEL[E,UK]
*3E9519030A PCBASSY,POWERSEL[A]
1‑39 * 3M0075500B BASE,TRANS
1‑40£3E0111900A TRANS
1‑41 * 3M0075600A PCBSPACER,RSPS‑8L
1‑42 * 3E9519100A PCBASSY,REG
1‑43 * 3E0109500A FFC,CUJ(1.25)‑L‑17‑232
REF.NO. PARTSNO. DESCRIPTION
1‑44 * 3E9518500B PCBASSY,MAIN[US,C,GE,A]
*3E9518510B PCBASSY,MAIN[E,UK]
1‑45 * 3M0010830B MAINCHASSIS
1‑46 3M0009400A FOOTASSY,56(SILVER)
1‑47 3M000440 FOOT,FF‑D25
1‑48 * 3M0078800A BRACKETPCB[E,UK,A]
1‑49 * 3M0078900A SHEET,EARTH[E,UK]
1‑50 * 3E002730 FER.COREK5AT13X7X5[E,UK]
1‑61 * 3B0001806A SCREW,J,SM3X6(BLK)
1‑62 * 3B0004808A SCREW,BPPM3X8(BLK)
1‑63 * 3B0006900A SCREW,PBSM2.6X3.5
1‑64 * 3B0000808A SCREW,BPPM3X8
1‑65 * 3B0003205A SCREW,PPSM2.6X5
1‑66 * 3B0002308A SCREW,JPM3X8(BLK)
1‑67 * 3B0000810A SCREW,BPPM3X10
1‑68 * 3B0005708A SCREW,BPBM3X8(BLK)
1‑69 * 3B0004406A SCREW,BPSM3X6(BLK)
1‑70 * 3B0001306A SCREW,J,SM3X6
1‑71 * 3B0004208A SCREW,BPAWM4X8
1‑72 * 3B0000106A SCREW,BPSM3X6
7

8
W-600R/W-488R
EXPLODED VIEW-2 (CMAT5Z026A)
REF.NO. PARTSNO. DESCRIPTION
2‑1 9A07829200 MTRMAINBLK
2‑2 9A07829800 JOINTBELT
2‑3 9A08028000 CLUTCHASSYBLK
2‑4 3M002940 F/RBELT
2‑5 9A08027900 PCBCONTROLBLK
2‑6 9A07829400 CLUTCHASSYBLK
REF.NO. PARTSNO. DESCRIPTION
2‑7 3M002950 BELTMAIN
2‑8 9A07829600 CLUTCHASSYBLK
2‑9 9A07829100 PLATEHDBLK
2‑10 9A07829700 ROLLERPINCHBLKR
2‑11 9A08028200 ROLLERPINCHBLKL
2‑12 9A08027800 PLATEHDBLK
EXPLODED VIEW-2

9
MAIN PCB / REG PCB
KEY PCB
4 PC BOARDS AND PARTS LIST
W-600R/W-488R

10
MAIN PCB ASSY
REF.NO. PARTSNO. DESCRIPTION
*3E9518500B PCBASSY,MAIN[US,C,GE,A]
*3E9518510B PCBASSY,MAIN[E,UK]
*3E9018500B PCB,MAIN
C12,13£3C009910 CE,25V2200UFGS
D11‑14£3S000031 DIODE,1N4003‑TR
D301 3S000241 DIODE,1SS133
D303,304 3S000031 DIODE,1N4003‑TR
D306‑309 3S000241 DIODE,1SS133
D312,313 3S000241 DIODE,1SS133
D314 3S002351 ZDI,MTZJ13B
J301 3E000010 JACK,RCA4P[US,C,GE,A]
J301 3E010860 JACK,RCA4P[E,UK]
L101,201 3E000040 FILTER,LOWPASSMPX
L102,202 3E004421 COIL,8.2MHEC46‑822J‑T5
L103,203 3E004431 COIL,22MHEC46‑223K‑T5
L301 3E009490 COIL,TAPEOSCM‑8G
P301 3E000670 CONNECTPLUG3P,B3B‑PH‑K
P302 3E000690 CONNECTPLUG5P,B5B‑PH‑K
P303 3E000660 CONNECTPLUG2P,B2B‑PH‑K
P304 3E008590 CONNECTPLUG4P,5267‑04A‑X
P305 3E008610 CONNECTPLUG6P,5267‑06A‑X
P306 3E000760 CONNECTPLUG12P,B12B‑PH‑K
P307 3E000710 CONNECTPLUG7P,B7B‑PH‑K
P308 3E010940 CONNECTOR,FCC17FE‑BT‑VK‑N
P309 3E000770 CONNECTPLUG13P,89400‑1310
P310 3E000680 CONNECTPLUG4P,B4B‑PH‑K
Q11 3S002310 TR,KSC945C‑GTA
Q101,201 3S000291 TR,DTC124ES
Q102,202 3S002310 TR,KSC945C‑GTA
Q103,203 3S002310 TR,KSC945C‑GTA
Q104,204 3S000731 TR,2SD2144S
Q105,205 3S002310 TR,KSC945C‑GTA
Q106,206 3S002310 TR,KSC945C‑GTA
Q107,207 3S000291 TR,DTC124ES
Q108,208 3S002310 TR,KSC945C‑GTA
Q109,209 3S000291 TR,DTC124ES
Q301 3S002310 TR,KSC945C‑GTA
Q302 3S000291 TR,DTC124ES
Q303,304 3S000301 TR,DTA124ES
Q305 3S000291 TR,DTC124ES
Q306 3S000301 TR,DTA124ES
Q307‑309 3S000291 TR,DTC124ES
Q310 3S000301 TR,DTA124ES
Q311 3S002300 TR,KSA733C‑GTA
Q312 3S001550 TR,2SD1859TV2‑Q
Q313 3S000291 TR,DTC124ES
Q314 3S002310 TR,KSC945C‑GTA
Q315,316 3S000291 TR,DTC124ES
Q317 3S000301 TR,DTA124ES
Q319,320 3S000291 TR,DTC124ES
Q322,323 3S000320 TR,2SA1237TV2Q
Q324 3S000291 TR,DTC124ES
Q325,326 3S002310 TR,KSC945C‑GTA
Q327‑329 3S000291 TR,DTC124ES
Q330 3S000400 TR,2SB1015Y
MAIN PCB ASSY
REF.NO. PARTSNO. DESCRIPTION
Q331 3S002310 TR,KSC945C‑GTA
Q332,333 3S000291 TR,DTC124ES
R11,21 3R004590 VR,SEMI‑FIXEDRH0615‑10K
R12,22 3R004590 VR,SEMI‑FIXEDRH0615‑10K
R13,23 3R004590 VR,SEMI‑FIXEDRH0615‑10K
R14,24 3R004600 VR,SEMI‑FIXEDRH0615‑22K
R32 3R004600 VR,SEMI‑FIXEDRH0615‑22K
R337£3R004390 RD,1/2W560OHM
U301 3S000280 IC,UPC4570C
U302 3S000430 IC,BU4066BC
U303 3S000280 IC,UPC4570C
U304 3S000430 IC,BU4066BC
U305 3S002520 IC,KA2271B
U306 3S000260 IC,NJM4558D
U401 3S0024700C IC,CXP84412‑115Q
X401 3E010670 RES,CST8.00MTW
REG PCB ASSY
REF.NO. PARTSNO. DESCRIPTION
*3E9519100A PCBASSY,REG
U11£3S002420 IC,NJM7809FA
U12£3S000650 IC,NJM7805FA
KEY PCB ASSY
REF.NO. PARTSNO. DESCRIPTION
*3E9518800A PCBASSY,KEY
*3E9018800A PCB,KEY
D601‑603 3S002460 LED,GRN(3DIA)LG2041
S601‑609 3E002070 SW,TACTSKQSABHMR‑187
FRONT PCB ASSY
REF.NO. PARTSNO. DESCRIPTION
*3E9518600A PCBASSY,FRONT
*3E9018600A PCB,FRONT
D501‑503 3S000170 LED,YEL(5DIA)LI3331/HO/S1
D504‑506 3S000160 LED,RED(5DIA)LI3331/HO/S1
D513 3S000203 LED,YEL(3DIA)LY2041/F110
D514 3S000193 LED,RED(3DIA)LH2041/F110
D515,516 3S000203 LED,YEL(3DIA)LY2041/F110
D517,518 3S002463 LED,GRN(3DIA)LG2041/F57
Q501,502 3S002450 TR,DTC114ESTP
R501 3R004510 VR,RK14K12D50KAX2
S511‑514 3E002070 SW,TACTSKQSABHMR‑187
S515 3E010700 SW,SLIDE2‑3
S516 3E000110 SW,SLIDE2‑2
S517 3E002070 SW,TACTSKQSABHMR‑187
U501 3S000070 IC,LB1416
U502 3S002200 REMOCONSENSER,TSOP1838RF
W-600R/W-488R
FRONT PCB
POWER SW PCB POWER SEL PCB
COUNTER PCB

W-600R/W-488R
11
POWER SW PCB ASSY
REF.NO. PARTSNO. DESCRIPTION
*3E9518900A PCBASSY,POWERSW
*3E9018900A PCB,POWERSW
S2£3E000370 SW,PUSHSPUL12469A
COUNTER PCB ASSY
REF.NO. PARTSNO. DESCRIPTION
*3E9518700A PCBASSY,COUNTER
*3E9018700A PCB,COUNTER
D701 3S002410 LED,7SEGEL‑T316GWB(GRN)
Q701‑703 3S002440 TR,DTB113EK
Q704,711 3S002430 TR,DTC143EK
POWER SEL PCB ASSY
REF.NO. PARTSNO. DESCRIPTION
*3E9519010A PCBASSY,POWERSEL[US,C,GE]
*3E9519020A PCBASSY,POWERSEL[E,UK]
*3E9519030A PCBASSY,POWERSEL[A]
*3E9019000A PCB,POWERSEL
£3E002110 SW,SLIDESL13B‑022[US,C,GE]
P1 3E002170 TERMINALLAPPING2P[E,UK,A]
INCLUDED ACCESSORIES (W-600R)
REF.NO. PARTSNO. DESCRIPTION
*3D0025600A OWNER'SMANUAL,E/F
[US,C,GE,A]
*3D0025700A OWNER'SMANUAL,E/F/G/I/S/D
[E,UK]
*3E000380 PINCORD
INCLUDED ACCESSORIES (W-488R)
REF.NO. PARTSNO. DESCRIPTION
*3D0025800A OWNER'SMANUAL,E/F
*3E000380 PINCORD
*3E0106900A REMOTECONTROLUNIT,RC‑744
*3E003660 BATTERY,UM‑3(2PXED)

PRINTED IN JAPAN 1099SK 0.52 S-0005A
WW--660000RR//WW--448888RR
TEAC CORPORATION 3-7-3, Nakacho, Musashino-shi, Tokyo 180-8550, Japan Phone: [phone]
TEAC AMERICA, INC. 7733 Telegraph Road, Montebello, California 90640 Phone: [phone]
TEAC CANADA LTD. 5939 Wallace Street, Mississauga, Ontario L4Z 1Z8, Canada Phone: [phone]
TEAC MEXICO, S.A. De C.V Privada De Corina, No.18, Colonia Del Carrmen Coyoacon, Mexico DF 04100 Phone: [phone]
TEAC UK LIMITED 5 Marlin House, Marlins Meadow, The Croxley Centre, Watford, Herts. WD1 8YA, U.K. Phone: [phone]
TEAC DEUTSCHLAND GmbH Bahnstrasse 12, 65205 Wiesbaden-Erbenheim, Germany Phone: [phone]
TEAC FRANCE S. A. 17 Rue Alexis-de-Tocqueville, CE 005 92182 Antony Cedex, France Phone: [phone]
TEAC BELGIUM NV/SA P.A. TEAC Nederland BV, Perkinsbaan 11a, 3439 ND Nieuwegein, Netherlands Phone: [phone]
TEAC NEDERLAND BV Perkinsbaan 11a, 3439 ND Nieuwegein, Netherlands Phone: [phone]
TEAC AUSTRALIA PTY., LTD. 106 Bay Street, Port Melbourne, Victoria 3207, Australia Phone: [phone]
A.C.N. 005 408 462
TEAC ITALIANA S.p.A. Via C. Cantù 11, 20092 Cinisello Balsamo, Milano, Italy Phone: [phone]
