Teac MC-DV250 User manual

PC board shown are viewed from parts side.
The parts with no reference number or no parts number
in the exploded views are not supplied.
As regards the resistors and capacitors, refer to the
circuit diagrams contained in this manual.
Parts marked with this sign are safety critical
components. they must be replaced with identical
ensure exact replacement.
!
components - refer to the appropriate parts list and
1 SPECIFICATIONS 2
3 EXPLODED VIEW AND PARTS LIST
5 INCLUDED ACCESSORIES
2 ADJUSTMENT AND CHECKS 3
9
22
4
MC-DV250
[E]: EUROPE [UK]: U.K. [A]: AUSTRALIA
DVD Home Theater System
[CN]: CHINA [HK]: HONG KONG

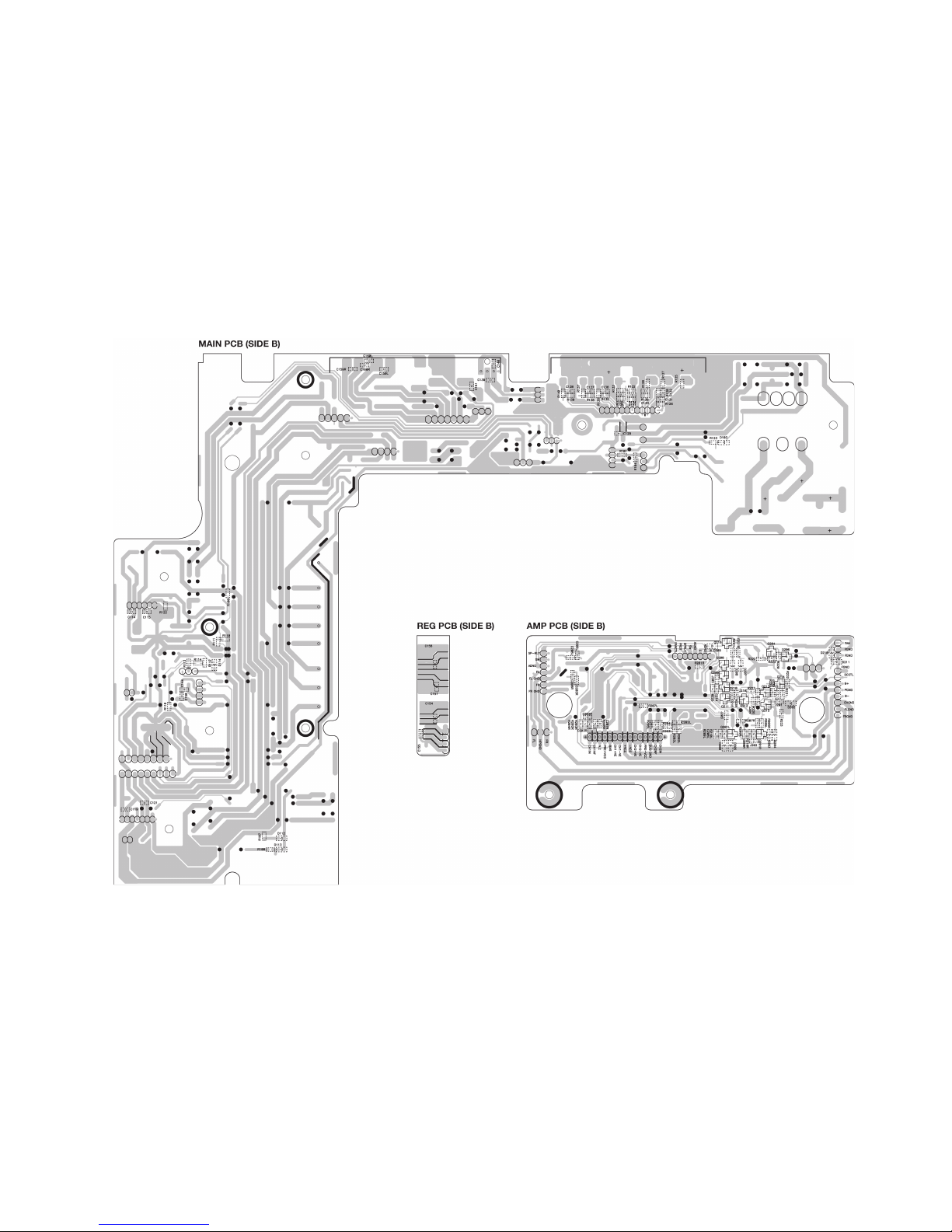

4 PC BOARDS AND PARTS LISTS

MC-DV250
2
1 SPECIFICATIONS
Pickup :
Signal System : NTSC / PAL
Semiconductor laser, wave length 650/790 nm
Video signal horizontal resolution :
More than 50 dB (DVD)
DVD Player
More than 480 lines (DVD)
Dynamic range :
Audio frequency response :
Audio signal-to-noise ratio : 62 dB
80 dB
20 Hz ~ 20 kHz (+1/-3dB)
Video signal-to-noise-ratio :
S-Video output
Y (luminance) - Output level : 1 Vp-p (75 ohm)
C (color) - Output level : 286 mVp-p (75 ohm)
Jack : S-VIDEO jack
Video output
Output level : 1 Vp-p (75 ohm)
Jack : RCA jack
Component video output (Y, PB, PR)
Y-Output level : 1 Vp-p (75 ohm)
0.7 Vp-p (75 ohm)
PB, PR-output level:
Jacks : RCA jacks
AV connector
Jack : SCART
Output Power : 25 W + 25 W
Amplifier
(Stereo, 0.7% THD, 20 Hz TO 20 kHz, 6 ohm)
0.09% (at 25 W, 1kHz, 6 ohm)
Total Harmonic Distortion:
Audio Input sensitivity/impedance:
*LINE: 400mV/47 ohm
Output level/impedance (TAPE REC) 180 mV/ 2.2ohm
Frequency Response : * LINE 20 Hz to 28kHz, +0 /-3 dB
Signal-to-noise Ratio : * LINE 80 dB (IHF-A)
Tone control : BASS: +/- 10dB at 100Hz
TREBLE +/- 10dB at 10 kHz
Tuning Range :
Stereo Separation (1 kHz) :
87.5 ~ 108.0 MHz (50 kHz steps)
Mono: 55 dB
FM Tuner (Without notes 100.1 MHz, 65 dBf)
40 dB
Signal-to-Noise Ratio :
Mono : 0.5%
Total Harmonic Distortion (1 kHz) :
Stereo: 0.8%
Frequency Response : 30 Hz to 15 kHz, +/- 3dB
Stereo: 45 dB
Tuning Range : 522 ~ 1611 kHz (9 kHz steps)
AM Tuner
Usable Sensitivity : 500 uV/m
1.5% at 100 dB/m
Total Harmonic Distortion :
40 dB at 100 dB/m
Signal-to-Noise Ratio :
Speaker Cable x 2
FM T-type Antenna x 1
AM loop Antenna x 1
Owner Manual x 1
Batteries (AAA, R03, UM-4) x 2
Accessories
FM Matching Transformer x 1
Subwoofer cable (RCA) x1
Remote Control Unit x 1 (RC-965)
General (Main unit)
Dimension (W x H x D ):
Weight (net) :
Power requirements : AC 220V 50 Hz (China model)
Power consumption : 95 W (STAND BY: 1W)
5.4 kg
360 x 102 x 275 mm
AC 230V, 50Hz (Europe/U.K/Hong Kong model)
AC 240V, 50Hz (Australia model)
Active Subwoofer
Unit : 16.5 cm cone type
Impedance : 4 ohm
Output Power: 50 W
200 x 297 x 315 mm
Dimension (W x H x D ):
Weight : 7.0 kg
Input Power : 30 W maximun
Speakers System ( L & R)
Impedance :
110 x 220 x 100 mm
Dimension (W x H x D ):
6 ohm
1 kg
Unit : 2.5 cm / 8 cm cone type
Weight (net) :
Design and specifications are subject to change without notice.
Weight and dimensions are approximate.
LINE means: TAPE PLAY, AUX
*

3
MC-DV250
2-1 Adjustments
ITEM
SG GENERATOR SETTING
MODULATION
2.FM Auto Stop Level
1 kHz
3. FM Stereo Separation
400Hz
1. FM Output Level 60 dBu 98.1 MHz Check
4. AM Output Level
OUTPUT
5. AM Auto Stop Level
SETTING
FREQUENCY
POINTS
ADJUSTMENT SPECIFICATION
40 kHz deviation
40 kHz deviation
1 kHz
1 kHz
MAIN: 53.5%
PILOT: 10%
30% modulation
30% modulation
400Hz
60 dBu
74 dBu
98.1 MHz
98.1 MHz
999 kHz
999 kHz
SVR01
SVR02
Check
SVR03
500 +/- 100mV
(47 k ohm load)
20 +/- 6 dBu
30 dB min
165 +/- 55 mV
(47 k ohm load)
55 +/- 15 dBu
2 ADJUSTMENTS AND CHECKS
Fig. 2-2
SVR03
SVR01
SVR02
AM AUTO STOP LEVEL ADJ FM STEREO SEPARATION ADJ
FM AUTO STOP LEVEL ADJ
1
13

1
2
3
4
5
678
10
11
12 13
14
16 15
17
18
19 20
22
24
25
26
27
28
29
30
31
32
33
21
23
9
36
35
34
39
38
37
47
48
49
46
45
43
41
40
42
44
MC-DV250
4
EXPLODED VIEW 1
3. EXPLODED VIEWS AND PARTS LIST

1-2
1-3
1-4
1-5
1-7
1-8
1-9
1-10
1-6
1-12
1-13
1-14
1-15
1-11
REMARKS
REF. NO
EXPLODED VIEW-1
PARTS NO. DESCRIPTION
1-1 CASE, BOTTOM [E, UK,A,HK].
3037210281010
3037210281030 CASE, BOTTOM [CN]
3007210491000 CABINET, TOP [E,UK]
3007210491010
G4062C1111000 JACK, MODULAR
G600000010020 TERMINAL, RCA 1PIN
4147210011000 STAND, VFD
4070210801000 SUPPORTER, LED
4010212026000 BRACKET, VFD
7028063322010 FRONT PCB ASSY
5090212521000Z BUTTON, FUNCTION-L
5077212013000 WINDOW, DISC
4317212101000 COVER, VENTILATION
5077212023000 WINDOW, VFD
G040404204220 SW , PUSH
TERMINAL, RCA 4PIN
3207211506010 CHASSIS, BACK [A]
3207211506000 CHASSIS, BACK [E,UK]
3207211506040 CHASSIS, BACK [CN]
TUNER, KST-ML114MS1-A10 [E,UK]
E903114110010
CHASSIS, BACK [HK]
G600010003020 TERMINAL, RCA1PIN
1-16
1-17
1-18
MC-DV250
5
1-25
1150210017000 NON STEEL, FOIL
G720420100010 FAN, DC
3210210766000 FRAME, MAIN
1150210027000 NON STEEL, FOIL
4050211065000
STOPPER, AC CORD
CUSHION, FLT GUIDE
5047210421000 DOOR, TRAY
8030803000010 DVD LOADING MECHA
1200210069000 SPONGE, BTN
3070210226000 SHIELD, DSP
5200210182000 FILTER, LED
L068040014050
4380210002000
CORD ASSY [E]
L068040350011
CABINET, TOP [A,CN,HK]
DECORATION, POWER
5127210551000Z
TUNER, KST-ML014MS1-A10 [A,CN,HK]
1-19
1-20
MODULE, GP1FA513TZ
TERMINAL, RCA 4PIN
BRACKET, PHONE JACK
HEAT SINK
JACK, D3.5
BRACKET, FAN
1-21
1-22
1-23
1-24
1-26
1-27
1-28
1-29
1-30 !
CORD ASSY [UK,HK]
CORD ASSY [A]
CORD ASSY [CN]
1-31
1-32
1-33
1-34
1-35
1-36
G602404C0600Y
3207211506020
E903114110010
E100151300010
G602405A2040Y
4010212016000
2120210738000
G401323A0000Y
4010212006000
L068040230050
L068020140011
!
!
!
!

REF. NO
EXPLODED VIEW-1
PARTS NO. DESCRIPTION REMARKS
1-37
1-38
7028063311020
7028063321030
7028063324020
7028063311040
7028063321050
1-39
1-40
7028063311010
7028063314010
7028063324010
7028063312010
5090212531000Z BUTTON, FUNCTION-R
8200660700110
7028063323010 KEY PCB ASSY
1200210075000 SPONE
8200660700090 POWER TRANSFORMER 230V [E,UK,HK]
4300210072000 SPACER, PC SHEET
1200210085000
8200660700120
7028063313010 HEADPHONE PCB ASSY
7028063321010 DSP PCB ASSY [E,UK]
F320550001060 POSISTOR, P43T5D100BW500
MC-DV250
6
1-41
SPONE
1-43
1-42
POWER TRANSFORMER 240V [A]
POWER TRANSFORMER 220V [CN]
1-44
1-45
1-46
DSP PCB ASSY [A,HK]
DSP PCB ASSY [CN]
VIDEO PCB ASSY [E,UK]
VIDEO PCB ASSY [A,CN,HK]
MAIN PCB ASSY [E,UK,HK]
MAIN PCB ASSY [A]
MAIN PCB ASSY [CN]
AMP PCB ASSY
REGULATOR PCB ASSY
1-47
1-48
1-49
!
!
!

5
6
6
7
7
7
7
8
8
8
10
10
10
9
9
9
9
13
15
14
17
19
18
9
1
4
12
11 3
2
16
16
16
21
21
20
MC-DV250
EXPLODED VIEW 2
X12
7

REF. NO
EXPLODED VIEW-2
PARTS NO. DESCRIPTION REMARKS
2-1
2-2
2-3
2-4 LENS
DUCT-ABS
DUCT-PAPER
FRONT PANEL
SERIAL NO.LABEL
SCREW 3.5x16MM
VOLUME KNOB
MC-DV250
8
2-5
BOTTOM BOARD
FOOT
RUBBER FOOT
POWER KNOB
WOOFER UNIT
POWER CORD [E]
GASKET EVA /WF
FELT - 180x630x20T
SUBWOOFER - AMP ASSY
SUBWOOFER - FRONT PCB ASSY
2-21
CABINET ASSY
SCREW 3.5x5BMM
2-6
2-7
2-8
2-9
2-10
2-11
2-12
GASKET F/PANEL
SCREW 3x9MM
2-20
2-19
2-18
2-17
2-16
2-15
2-13
2-14
89520DV250010
89520DV250020
89520DV250030
89520DV250050
89520DV250060
89520DV250070
89520DV250080
89520DV250090
89520DV250100
89520DV250110
89520DV250120
89520DV250130
86520DV250140
89520DV250150
89520DV250160
89520DV250170
89520DV250180
89520DV250190
89520DV250200
89520DV250220
89520DV250230
POWER CORD [UK, HK]
POWER CORD [A]
POWER CORD [CN]
!
!
!
!

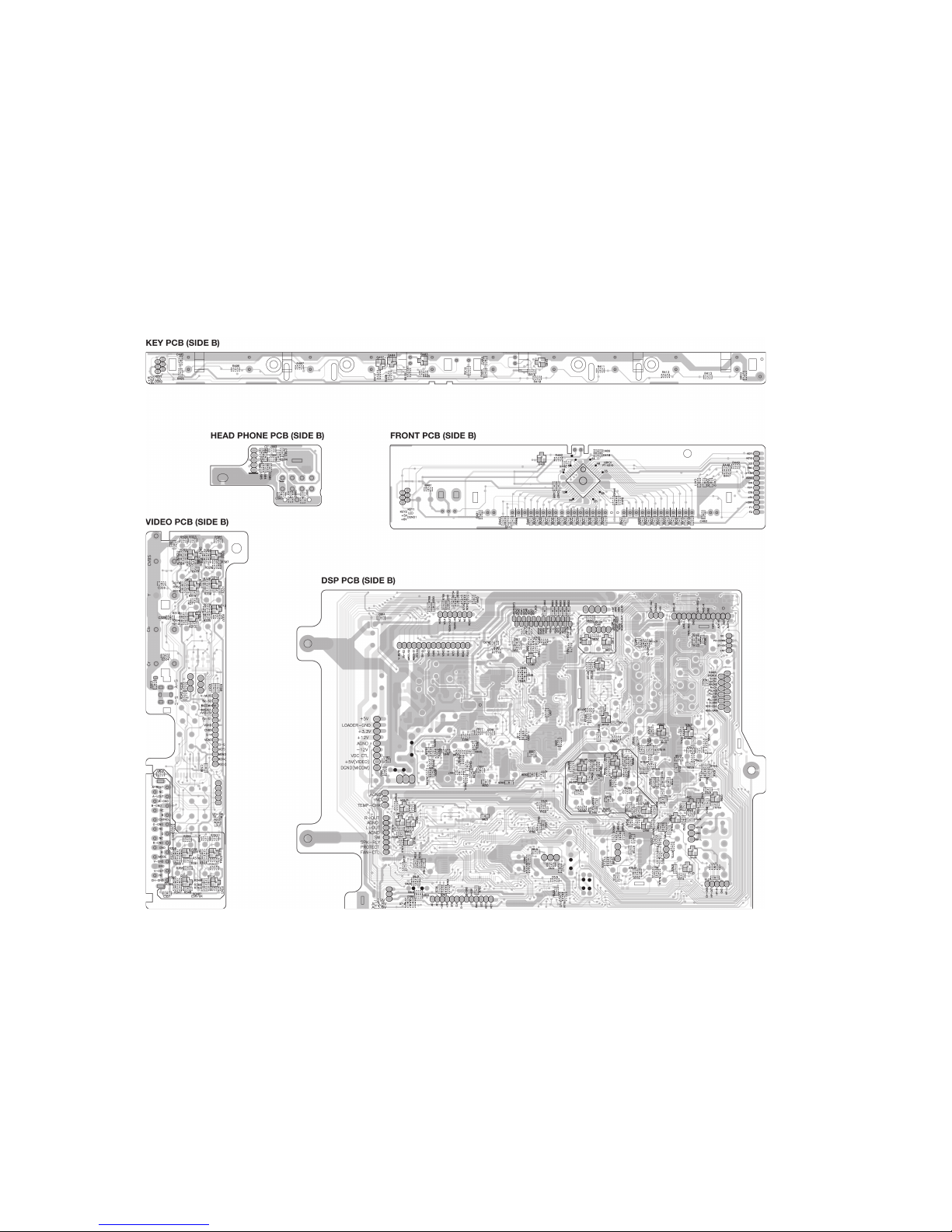

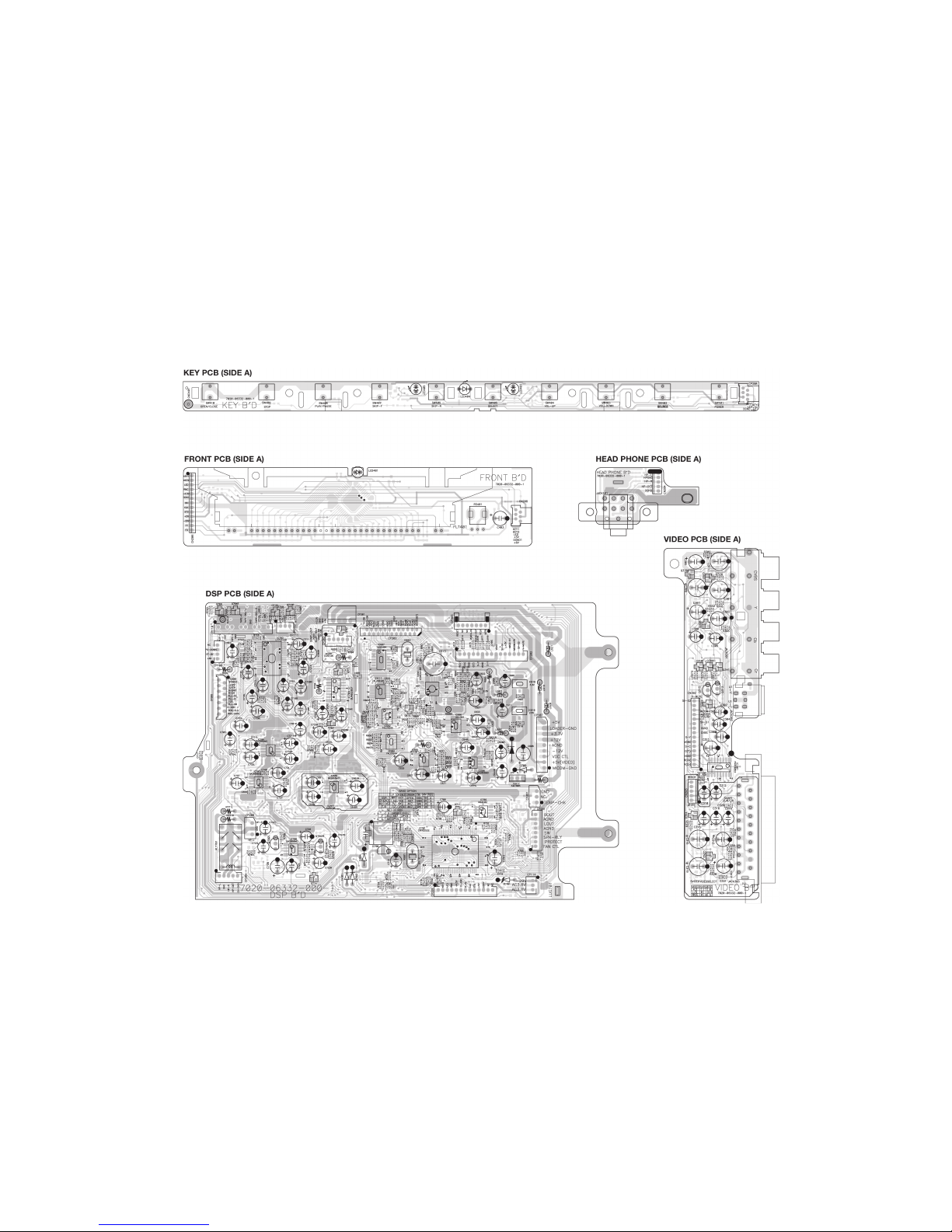

4 PC BOARDS AND PARTS LIST
KEY PCB ASSY
REF. NO REMARKS
PARTS NO.
KEY PCB ASSY
DESCRIPTION
SW401-410 G180040500010 SW, TACT SKHV10910D01
7028063323010
MC-DV250
L130623200620 CN FPC, 6232-06P
K500036000080 LED, HL-30CNBLU (BLUE)
K500033000020
9
CP208
LED403,405
LED404 LED, HL-30CNYUF2T (YEWLOW)
TR - CHIP KRC102S
Q402-405
FRONT PCB ASSY
REF. NO REMARKS
PARTS NO.
L130623200620
FRONT PCB ASSY
DESCRIPTION
LED401 K500036000080 LED, HL-30CNBLU (BLUE)
7028063322010
CN FPC, 6232-06P
4010212026000 BRACKET, VFD
K530127400010 DISPLAY, FIL HNA-12SM74T
J127631500010
FLT401
FLT401
IC401 IC - PT6315
SUPPORTER, LED
LED401
CN208
Q401 TR - CHIP KRC102S
RS401 MODULE, REMOCON NJL23H380A
HEADPHONE PCB ASSY
REF. NO REMARKS
PARTS NO.
4010212016000
HEADPHONE PCB ASSY
DESCRIPTION
7028063313010
BRACKET, PHONE JACK
K005041480020 DIODE CHIP - 1N4148W
G401323A0000Y JACK, D3.5
D340160800060
D501,502
JACK501
L501,503-505 COIL BEAD - MB160808-0120H
VIDEO PCB ASSY
REF. NO REMARKS
PARTS NO.
J040744053040
VIDEO PCB ASSY [E,UK]
DESCRIPTION
7028063324010
IC - MM74HC4053MX
G602404C0600Y TERMINAL, RCA 4PIN
G600000010020
G40621C111000
JACK301
JACK302
JACK303
IC301
TERMINAL, RCA 1PIN
JACK, MODULAR
Q302,304,306,
Q308,310,312,
Q314,316,318,320
TR - CHIP KTA1504Y
Q313 TR - KTA1268BL
Q315 TR - KTC3198Y
Q336-344 TR - CHIP KRA102S
VIDEO PCB ASSY [A,CN,HK]
J522010200210
4070210801000
J522010200210
E940233800010
7028063324020
J5201504Y0210
J5001268B0050
J5023198Y0000
J520010200210

REF. NO PARTS NO. DESCRIPTION REMARKS
3070210226000 SHIELD, DSP
L102526700900
D090473704010 C.CAP 0.047UF/5.5V
7028063321010
L101220040000 CN WAFER,GIL-S-4P-S2T2-EF
7028063321050
7028063321030
L101220120000
IC - LC83210W
L101220030000
MC-DV250
10
DIODE CHIP - 1N4148
DIODE - 1N4007
IC - MM74LCX244
IC - AK5381VT-E2
IC606
DSP PCB ASSY [E,UK]
CP106
CP107
CN110
CP111,114
CP201
CP202
CP203,204
C - AK4384VT-E2
IC605
IC602,604
D707
D705,706,709
CP205
CP206
DSP PCB ASSY
DSP PCB ASSY [A,HK]
DSP PCB ASSY [CN]
C714
CN WAFER,5267-09A 9P
CN WAFER,GIL-S-12P-S2T2-EF
CN WAFER,GIL-S-3P-S2T2-EF
CN WAFER,GIL-S-8P-S2T2-EF
CN WAFER,GIL-S-15P-S2T2-EF
CN WAFER,GIL-S-5P-S2T2-EF
CN FPC,8370-131 13P
CN WAFER,GIL-S-13P-S2T2-EF
CN WAFER,5267-03A 3P
CP209,401
CP301 CN WAFER,5268-04A 4P
D701,702,704,708 DIODE - 1SS133T-72
D710,711,713-716
IC607 IC - MC74HCU04AD
IC608,609,706, IC - NJM2068M
IC611 IC - SN74LV4040APWR
IC617 IC - KIA7805API
IC618 IC - RC1117-3.3
IC619 IC - RC1117-2.5
IC700 IC - KIA7042P
IC701 IC - CPU CXP82540-3360
IC702 IC - M240C02-WMN6T
IC703 IC - LC75343M
IC704 IC - BU4052BCF
IC707,708
L603,607,619-621 COIL BEAD - 3550R2F
L609-618,623-626, COIL BEAD - MB-160808-0120H
Q610,611,701,702 TR - CHIP KRC102S
Q612 TR - CHIP KTC3875Y
Q613,705,708,
Q709,711,715
TR - CHIP KRA107S
Q714
7020063320000 DSP PCB
L101220080000
L101220150000
L101220050000
L131837001300
L101220130000
L102526700300
L102526800400
K000013300520
CP302 L130623202410 CN FPC,6232-24P
CP303 L101220070010 CN WAFER,GIL-S-07P-S2L2-EF
K005041480020
K000400700520
J040742440180
J080832100010
J043538100010
J042438400010
J040740400200
J121206800020
J040744040030
J126780500110
J126111733020
J126111725020
J125704200010
J020825403360
J000240200140
J123753430010
J040405200060
7610035500030
D340160800060
J522010200210
J5223875Y0210
J5200107S0050
IC603
!
!
!
L628,629

REF. NO PARTS NO. DESCRIPTION REMARKS
DSP PCB ASSY
Q619,713 TR - CHIP KRC104S
Q702L,702R FET, 2SK117Y(TYPE)
R606 R, METAL 10 J 1W
R, METAL 22 J 1W
R609
R625,729 R, METAL 120 J 1W
R725 R, METAL 1 J 1W
R, METAL 270 J 1W
R771L,771R
RLY701 RELAY, RSB6 DC6V
CRYSTAL 10.000MHz
X601
ZD701 ZENER DIODE MTZJ6.8B
MC-DV250
11
!
!
!
!
!
Q614L,614R,615L
Q615R,703L,703R,
Q704L,704R,706,
Q707,709L,709R,
Q710L,710R,
Q712L,712R,
TR - CHIP KTC2875B
J5222875B0010
J522104S00210
J5441170Y0050
C060010065050
C060022065050
C060012165060
C06000106506
C060027165060
G680061022010
E800100000070
K06006R844520
CRYSTAL 12.288MHz
X602 E80012R288080
Q716L,716R
!
R607 C060022066050 R, METAL 22 J 2W

MC-DV250
12

MC-DV250
13

MAIN PCB ASSY
REF. NO REMARKS
PARTS NO. DESCRIPTION
7028063311010 MAIN PCB ASSY [E,UK,HK]
7028063311020
7028063311040
CP100 L108039602010 CN WAFER YW396V (03AV)
L104353280200
C143 D00847208K070 C.CERAMIC AC13F472MD0A
C127
D040332085050
C110 D049682084000
C103 D040103083020
2120210738000 HEAT SINK
7020063310000 MAIN PCB
4010212006000 BRACKET, FAN
C102 D040682083000 C.ELECT - 6800UF/16V
C,POLY - 0.01UF/275V
D02010307Z060
C100
MC-DV250
14
MAIN PCB ASSY [A]
MAIN PCB ASSY [CN]
!
!
C.ELECT - 10000UF/16V
!
!C.ELECT - 6800UF/25V
C122,123 !C.ELECT - 3300UF/35V
!C.ELECT - 1000UF/25V
D040102084060
CP101 CN WAFER 35328-0210
L102526700400
CP102 CN WAFER 5267-04A 4P
CP103 L102526700500 CN WAFER 5267-05A 5P
CP104 L104202000400 CN WAFER JE202A1T4
D101,102 K047100600010 DIODE BRIDGE - GBJ1006
D103,112-114 K005041480020 DIODE CHIP - 1N4148W
D106-111,115,
D116,120-124,
K000400700520 DIODE - 1N4007
D127-129
F100 N751221601110 FUSE T1.6A/250V
F100L,100R G645000050010 FUSE HOLDER CLIP
GND100 3790040876010 TERMINAL GND
IC104 J120001500030 IC - ICP-N15
IC105 J126780600140 IC - KIA78DL06PI
IC106 J126780500370 IC - KIA78R05PI
JACK100 G602405A2040Y TERMINAL, RCA 4PIN
JACK101
JACK102
E100151300010 MODULE, GP1FA513TZ
G040404204220 SW, PUSH
JACK103 G600010003020 TERMINAL, RCA 1PIN
JACK104 G602405A2040Y TERMINAL, RCA 4PIN
L100 D3304R7001020 COIL, FILTER-INDUCTOR 4.7UH
LT100 D320010110010 COIL, LINE FILTER 780UH
Q100 J5021740S0010 TR - 2SC1740SR
Q102 J6002202M0010 TR - KRA102M
Q103 J5000916Y0050 TR - KSA916Y
Q104 J6020107M0010 TR - KRC107M
R100,102,103, C060R22065050 R,METAL 0.22 J 1W
RLY101 G680060502010 RELAY, G5PA-1 DC6V
RLY102 G680120528010 RELAY, G5PA-28 12V
TP101 8200280150130 POWER TRANSFORMER,230V [E,UK,HK]
ZD101,103 K06005R144520 ZENER DIODE - MTZJ5.1B
ZD102 K06030R044520 ZENER DIODE - MTZJ30B
!
R105
!
!
!
!
!
!
!
!
D105,117 K000013300520 DIODE - 1SS133T-72
!
8200280150150 POWER TRANSFORMER,240V [A]
!
8200280150210 POWER TRANSFORMER,220V [CN]
!
!

AMP PCB ASSY
REF. NO REMARKS
PARTS NO.
L102526808010
AMP PCB ASSY
DESCRIPTION
IC201 J100402040010 IC - STK402-040
7028063312010
CN WAFER, 5268-08A 8P
L102526800700
L102526803010
K000013300520
CP108
D201 DIODE - 1SS133T-72
DIODE CHIP - 1N4148W
D202-211
L201,202 COIL, INDUCTOR 2UH
Q201L,201R,204,
CP107
CP109
CN WAFER, 5268-07A 7P
CN WAFER, 5268-03A 3P
Q209,210,212-214
TR - CHIP KTC3875Y
Q206,216 TR - CHIP KRC103C
Q207 TR - KTC2026Y
Q208,211,215 TR - CHIP KTA1504Y
R208L,208R R, METAL 0.22 J 2W
R, METAL 10 J 1W
R211L,211R
R212L,212R R, METAL 4.7 J 1W
R224 R, METAL 6.8K J 1W
ZD200 ZENER DIODE MTZJ10B
!
!
!
!
MC-DV250
15
REGULATOR PCB ASSY
REF. NO REMARKS
PARTS NO.
L101220070000
REGULATOR PCB ASSY
DESCRIPTION
7028063314010
CN WAFER, GIL-S-7P-S2T2-EF
L101220060000
CP112
CN WAFER, GIL-S-6P-S2T2-EF
CP113
IC100 IC - KIA7805API
IC101 IC - KIA78R33API
IC102 IC - KIA7812API
IC103 IC - KIA7912PI
K005041480020
D31020000000
J5223875Y0210
J522010300210
J5032026Y0010
J5201504Y0210
C060R22066050
C060010065050
C0604R7065050
C060068265060
K06010R044520
J126780500110
J12678R330010
J126781200040
J126791200060
!
!
!
!

MC-DV250
16

MC-DV250
17

SUB-WOOFER - FRONT PCB ASSY
REF. NO REMARKS
PARTS NO. DESCRIPTION
89520DV250220 SUBWOOFER - FRONT PCB ASSY
PCBDV250F*001
IC3 TICJRC4558001 IC - JRC4558D
IC2 TICTL084CN002 IC - TL084CN
Q2-4 TRNA1015**001
D1 TD1N4148**001
TR - 2SA1015
DIODE - 1N4148
SW1 SW4P2T****001 SWITCH 4P2T
VR1 VRAC2503KB001 VR - C50Kx2 - 15MM
MC-DV250
18
SUBWOOFER - FRONT PCB
Q1 TRNC1815**001 TR - 2SC1815
SWITCH 4P3T
SW4P3T****001
SW2
RCA CONNECTOR
RCA01AA***003
REF. NO DESCRIPTION REMARKS
PARTS NO.
PCBDV250FP001
SUBWOOFER - FP PCB ASSY
ASYMCDV250FP SUBWOOFER - FP PCB ASSY
LED1 TLEC50**0B001 LED 5MM - ORANGE/BLUE
SUBWOOFER - FP PCB
VR2 VRB20KL20*001 VR - B20K L=20MM
SW1 SWTV810A25001 POWER SWITCH - KDC-A04

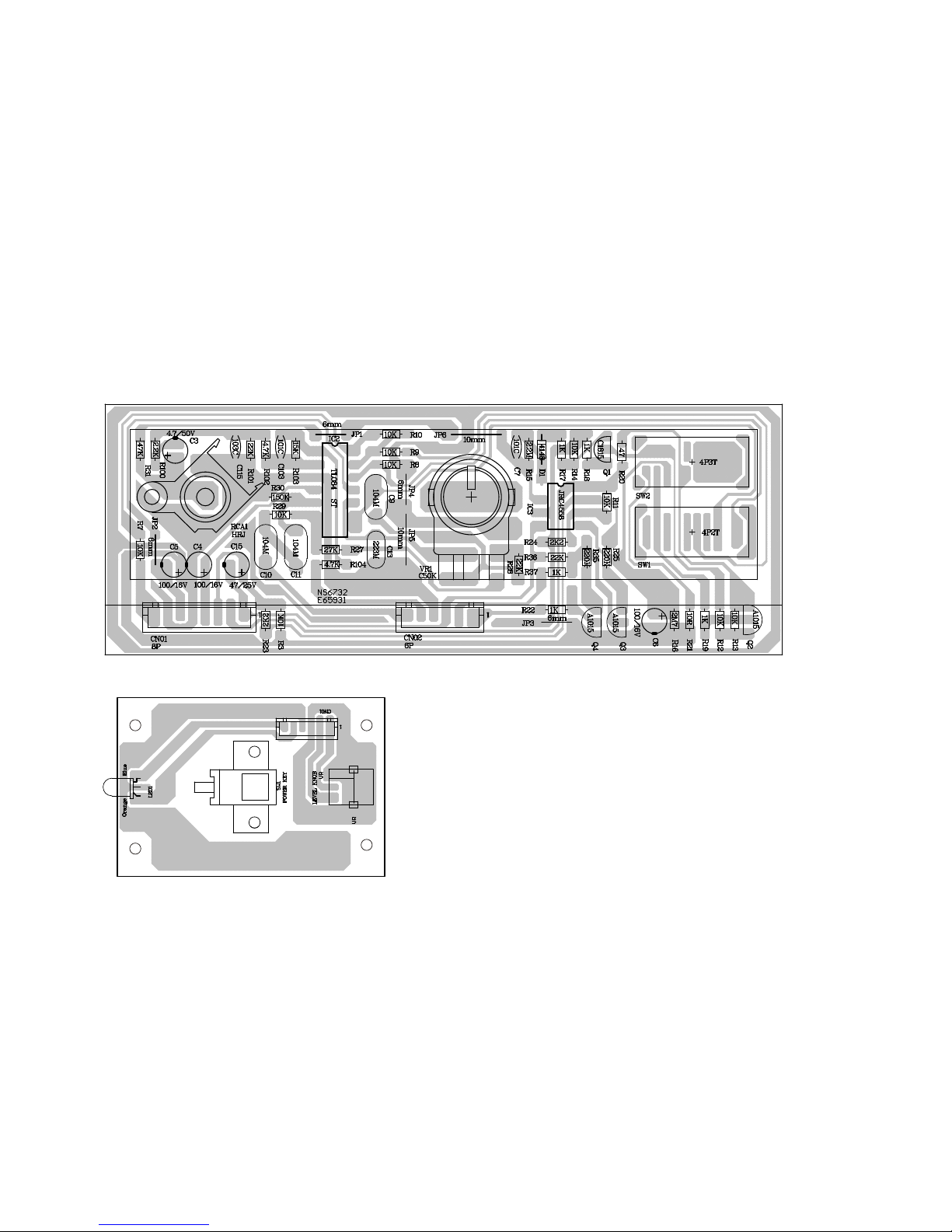

SUBWOOFER FRONT PCB
MC-DV250
MC-DV250-FP.pcb
Rwin@040602
MC-DV250-F.pcb
Rwin@040602
SUBWOOFER FP PCB
19

MC-DV250
20
SUBWOOFER - AMP PCB ASSY
89520DV250200
PCBDV250P*002
C201,202 C.ELECT - 3300UF/35V
SUBWOOFER-AMP PCB ASSY
CAPEE338M*001
REF. NO REMARKS
PARTS NO. DESCRIPTION
SUBWOOFER-AMP PCB
!
ZD223 TDZ51AJ**001 ZENER DIODE - 5V1 1/2W
ZD202,22 TDZ120J**001 ZENER DIODE 12V 1/2W
ZD201,221 TDZ150J**001 ZENER DIODE 15V 1/2W
D206-209 TDRIN4002*001 DIODE - 1N4002
DIODE - 1N4148
TDIN4148**001
D210,211
Q221 TRNA1015**001 TR - 2SA1015
Q201-203 TRNC1815**001 TR - 2SC1815
BD1 KUB404AU**001 BRIDGE DIODE - KBL404
IC103 TICTDA7296001 IC - TDA7296
PWT396MMP3001 JACK 3PIN 3.96MM
PWT396MMP3002 JACK 3PIN 3.96MM
JR1,JR2 RISJS112LM001 RELAY SJ-S-112LM
T2 TRNSUB75ST001 TRANSFORMER EI-28 9.5V
