PPLL--DD22000000
SERVICE MANUAL
AV Digital Home Theater System
Effective : April, 2002 S-0057A
NOTES
●PC boards shown are viewed from parts side.
●The parts with no reference number or no parts number in the
exploded views are not supplied.
●As regards the resistors and capacitors, refer to the circuit diagrams
contained in this manual.
●£Parts marked with this sign are safety critical components. They
must be replaced with identical components - refer to the appropriate
parts list and ensure exact replacement.
●Parts of [ ] mark can be used only with the version designated.
[J]:JAPAN[US]:U.S.A.[C]:CANADA[HK]:HONGKONG
[SG]:SINGAPORE[E]:EUROPE[K]:KOREA[UK]:U.K.
[SAF]:SOUTHAFRICA[NZ]:NEWZEALAND[F]:FRANCE
注 意
●プリント基板図は部品面を示しています。
●分解図に部番のない部品および品番のない部品は供給できま
せん。
●標準の抵抗、コンデンサーは省略してあります。
回路図を参照してください。
●£印は安全重要部品です。
交換する時は必ず指定の部品を使用してください。
●仕向先
[J]:JAPAN[US]:U.S.A.[C]:CANADA[HK]:HONGKONG
[SG]:SINGAPORE[E]:EUROPE[K]:KOREA[UK]:U.K.
[SAF]:SOUTHAFRICA[NZ]:NEWZEALAND[F]:FRANCE

1 SAFETY INFORMATION
−2−
This product has been designed and manufactured according to
FDA regulations "title 21, CFR, chapter 1, subchapter J, based on
the Radiation Control for Health and Safety Act of 1968", and is
classified as a class 1 laser product. There is no hazardous
invisible laser radiation during operation because invisible laser
radiation emitted inside of this product is completely confined in
the protective housings.

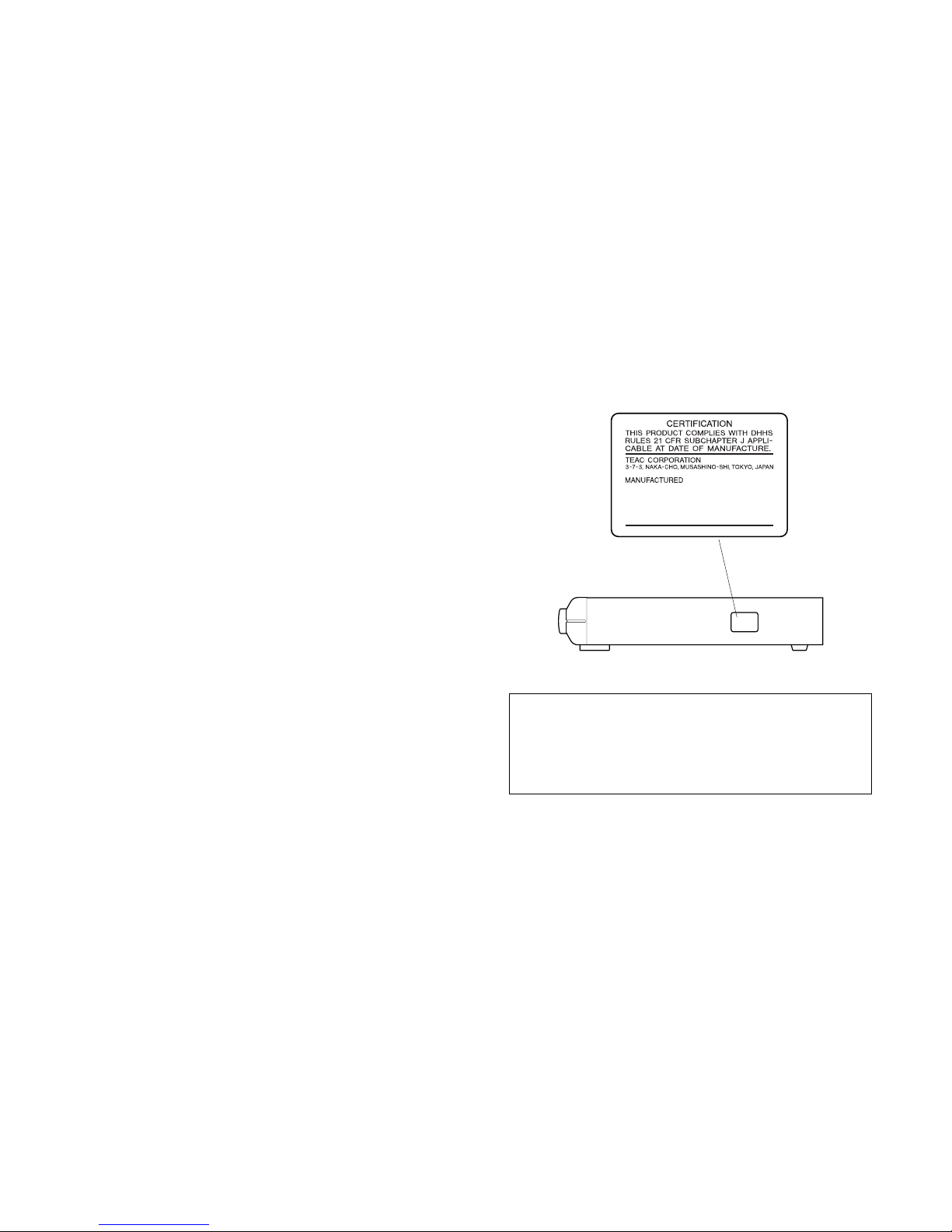

The label required in this regulation is shown 1.
OCAUTION
USE OF CONTROLS OR ADJUSTMENT OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION EXPOSURE.
Optical pickup:
Type : HOP-1000
Manufacturer : Hitachi Media Electronics Co., Ltd.
Laser output : Less than 0.5 mW on the objective lens
Wavelength : 770 - 810 nm (CD), 635 - 665 nm (DVD)
1For U.S.A.
CONTENTS
1 SAFETY INFORMATION ・・・・・・・・・・・・・・・・・・・・・・2
SAFETYINFORMATION
2 SPECIFICATIONS ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・3
仕様
3 ADJUSTMENT AND CHECKS ・・・・・・・・・・・・・・・・5
調整と確認
4 EXPLODED VIEWS AND PARTS LIST ・・・・・・・・8
分解図とパーツリスト
5 PC BOARDS AND PARTS LIST ・・・・・・・・・・・・・・15
基板図とパーツリスト
6 BLOCK DIAGRAM ・・・・・・・・・・・・・・・・・・・・・・・・・・・23
ブロック図
7 WIRING DIAGRAM ・・・・・・・・・・・・・・・・・・・・・・・・・・・24
結線図

2 SPECIFICATIONS
−3−
仕 様
DVD Player
Pickup: Semiconductor laser, Wavelength 650 nm
Signal system: NTSC / PAL
Video signal horizontal resolution: More than 480 lines (DVD)
Video signal-to-noise ratio: More than 60 dB (DVD)
Audio frequency response (at 2 CH stereo mode):
DVD (PCM): 2 Hz ~ 22 kHz (+/- 1.0 dB)
CD: 2 Hz ~ 20 kHz (+/- 1.0 dB)
Audio signal-to-noise ratio: More than 80 dB
Total harmonic distortion: Less than 0.01%
Dynamic range:
DVD (PCM): More than 85 dB (2kHz, -60 dBFS)
CD: More than 85 dB
FM Tuner
System: PLL quartz-locked digital synthesizer system
Tuning range:
87.50 ~ 108.00 MHz (50 kHz step-European Model)
87.50 ~ 108.00 MHz (100 kHz step-General Export Model)
Antenna: FM pigtail antenna
Antenna terminals: 75 ohms, unbalanced
Intermediate frequency: 10.7 MHz
AM Tuner
System: PLL quartz-locked digital synthesizer system
Tuning range:
522 ~ 1620 kHz (9 kHz interval) (European Model)
530 ~ 1710 kHz (10 kHz interval) (General Export Model)
Antenna: AM Loop antenna
Video outputs
CVBS Video: 1 Vp-p 75 ohms
S-video: Y: 1 Vp-p 75 ohms
C: PAL 0.3 Vp-p 75 ohms / NTSC 0.286 Vp-p 75 ohms
Audio line outputs
Audio L/R: 2 Vrms, 1 kilohms
Subwoofer: 5 Vrms maximum (adjustable), 1 kilohms
Audio power outputs
Stereo mode: 20 W + 20 W (4 ohms at 1 kHz, THD 10%)
Surround mode:
Front: 20 W + 20 W (4 ohms at 1 kHz, THD 10%)
Center: 20 W (4 ohms at 1 kHz, THD 10%)
Rear: 20 W + 20 W (4 ohms at 1 kHz, THD 10%)
• Phones: Accepts low- and high-impedance headphones
Speakers
Active Subwoofer:
Power: 50 W (4ohms at 80 Hz, THD 10%)
Speaker system: Bass reflex
Speaker unit: 8 inches, dia. cone type
Rated impedance: 4 ohms
Dimensions: W160 x H333 x D222 mm
Weight: 5.0 kg
Front / Center / Rear speakers:
Power: 20 W maximum
Speaker system: Bass reflex
Speaker unit: 2 7/8 inches, dia. cone type
Rated impedance: 4 ohms
Dimensions: W99 x H105 x D100 mm
Weight: 0.8 kg
General
Power requirements:
120V AC, 60 Hz (General Export Model)
230 V AC, 50 Hz (European Model)
240 V AC, 50 Hz (Australian Model)
Power consumption: 250 W
Dimensions: W417 x H68 x D355 mm
Weight: 8.5 kg
Operating temperature: 5 ˚C ~ 40 ˚C
Operating humidity: 5% ~ 90%
Storage temperature: -20 ˚C ~ 55 ˚C
Supplied accessories:
AM loop antenna x 1
FM antenna x 1
Speaker cable (5m x 3, 10 m x 2)
RCA cable (for Subwoofer) x 1
Stickers to protect speakers x 1
Remote control unit x 1
Batteries (AA, R6, SUM-3) x 2
•Design and specifications are subject to change without notice.
•Weight and dimensions are approximate.

−4−
■フロント/センター/リアスピーカー
ユニット....................................................................................75mm
インピーダンス ..............................................................................4Ω
最大入力 ......................................................................................25W
外形寸法(WxHxD) ..........................................................................
90mmx130mmx100mm(サランネット含む)
質量 ..............................フロント/センター：0.7kg,リア：0.5kg
■サブウーハー
ユニット ................................................................................165mm
最大出力 ..................................................75W(10%THD,80Hz)
電源 ..................................................................100VAC50-60Hz
消費電力 ......................................................................................25W
外形寸法(WxHxD)......................200mmx330mmx320mm
質量 ............................................................................................7.0kg
■付属品
リモコン
リモコン用乾電池(単3)x2本
AMループアンテナ
FMアンテナ
スピーカーケーブル(5m×3本,10m×2本)
サブウーハー用ケーブル(RCA)×1本
スピーカー用滑り止め×1シート
取扱説明書
保証書
仕様及び外観は改善のため予告なく変更することがあります。
■本体
電源 ..................................................................100VAC50-60Hz
消費電力 .................................................................................. 160W
外形寸法(WxHxD)........................ 430mmx78mmx383mm
質量............................................................................................ 8.1kg
許容動作温度 ............................................................＋5℃〜＋40℃
許容動作湿度 ......................................5％〜90％(結露のないこと)
許容保管温度 ..........................................................−20℃〜＋55℃
アンプ部
ステレオ出力(10%THD,1kHz,4Ω)
フロント ..................................................................25W+25W
サラウンド出力(10%THD,1kHz,4Ω)
フロント ..................................................................25W+25W
センター................................................................................25W
リア ..........................................................................25W+25W
音声出力(ライン)
AUDIOOUT ........................................................2Vrms,1kΩ
SUBWOOFER ..................................最大5Vrms(可変),1kΩ
DVDプレーヤー部
レーザー ..................................................セミコンダクターレーザー
信号方式 ..........................................................................NTSC/PAL
周波数特性(2CHSTEREOモード)
DVD(PCM) ....................................20Hz〜22kHz(±1.0dB)
CD....................................................20Hz〜20kHz(±1.0dB)
SN比 ..........................................................................80dB(AUDIO)
60dB(VIDEO)
全高調波歪率....................................................................0.03％以下
ダイナミックレンジ
DVD(PCM) ....................................85dB(2kHz,−60dBFS)
CD ......................................................................................85dB
ビデオ部
映像出力........................................................................1Vp-p,75Ω
S映像出力
Y出力レベル........................................................ 1Vp-p,75Ω
C出力レベル(NTSC)................................ 0.286Vp-p,75Ω
C出力レベル(PAL) ........................................ 0.3Vp-p,75Ω
コンポーネントビデオ出力(Y,CB,CR)
Y出力レベル ....................................................1.0Vp-p,75Ω
CB出力レベル ..................................................0.7Vp-p,75Ω
CR出力レベル ..................................................0.7Vp-p,75Ω
チューナー部
受信周波数
FM ......................76.0MHz〜90.0MHz(100kHzステップ)
AM..............................522kHz〜1,620kHz(9kHzステップ)

−5−
ALIGNMENT INSTRUCTIONS
EQUIPMENT NEEDED:
AM Signal Generator
FM Signal Generator
Oscilloscope
VTVM(AC, DC)
Test loop antenna (AW Adjustment)
Dummy antenna (FM Adjustment)
Stereo signal modulator
Frequency counter
Distortion analyser
IMPORTANT
1. Check power-source voltage.
2. Set the function switch to band aligned.
3. Keep the signal input as low as possible to adjust accurately.
4. Modulation and modulation frequency.
Item Modulation Modulation frequency
Band
AM 30% 400Hz
FM 30%(22.5kHz Dev.) 1kHz
ADJUSTMENT POINT
3 ADJUSTMENTS AND CHECKS
調整と確認

−6−

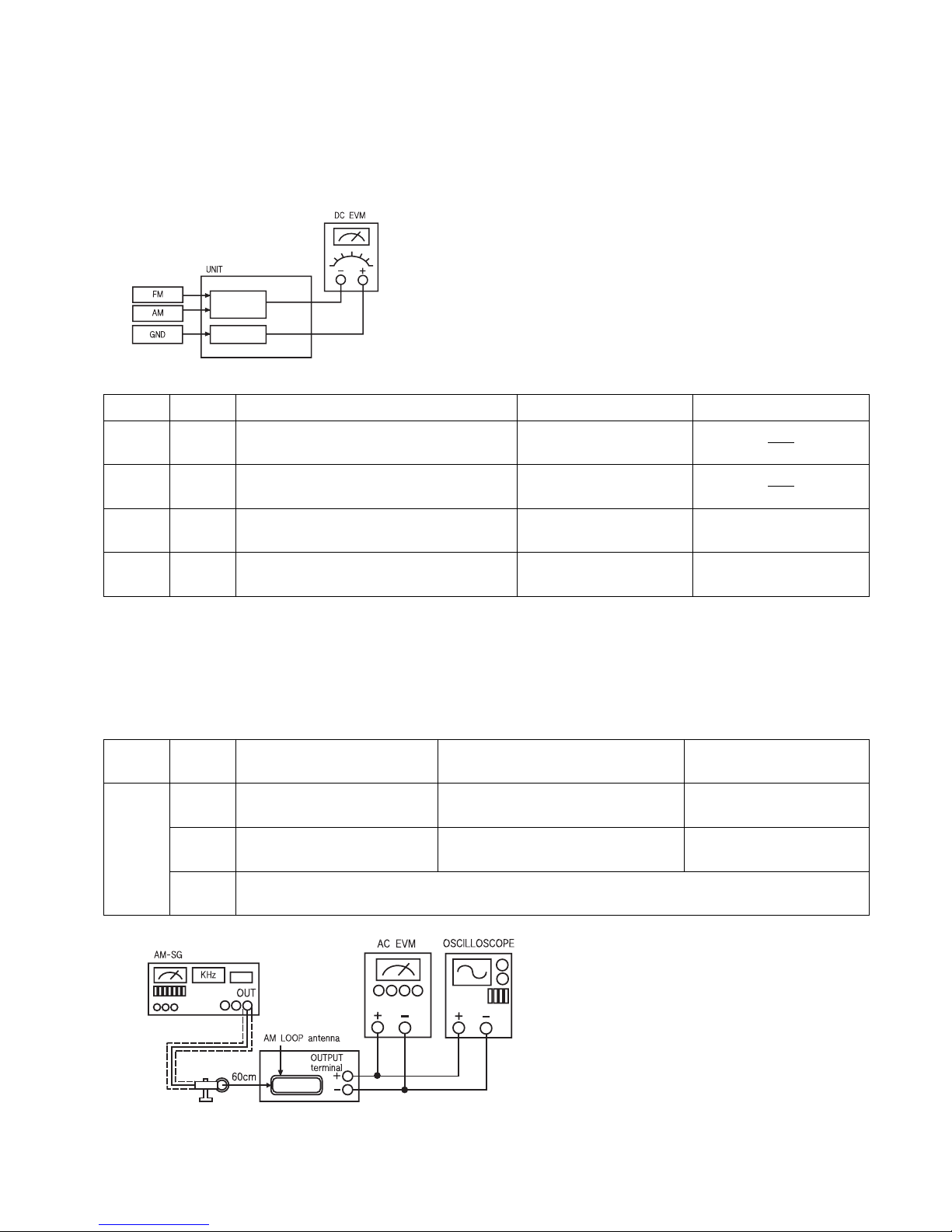

1. FM, AM TRACKING VOLTAGE ADJUSTMENTS FM/AMトラッキング電圧調整
(FM, AM) DC VOLTMETER ........................... CONNECT TO TEST POINT R109 and GND
NO. Band Frequency Adjust for Adjustment
1FM 87.50MHz [EUR,US]
76.00MHz [J] 1.5V
2
AM 522kHz [EUR,J]
530kHz [US] 1.5V T101
2. AM RF ADJUSTMENT AMRF調整
Signal Generator ........................ Connects to the AM ANT. Coil through the loop antenna.
Adjust for the indication of VTVM of the wave form of scope to be maximum.
BAND Step Frequency Adjust for Adjustment
1612kHz [EUR,J]
610kHz [US] Maximum sensitivity L101
21404kHz [EUR,J]
1400kHz [US] Maximum sensitivity TC103
3 Repeat steps 1 and 2 several times.
AM
108.00MHz [EUR,US]
90.00MHz [J] 8.4V
8.3V TC102
FM
AM
3
41620kHz [EUR,J]
1710kHz [US]
R109
GND

−7−

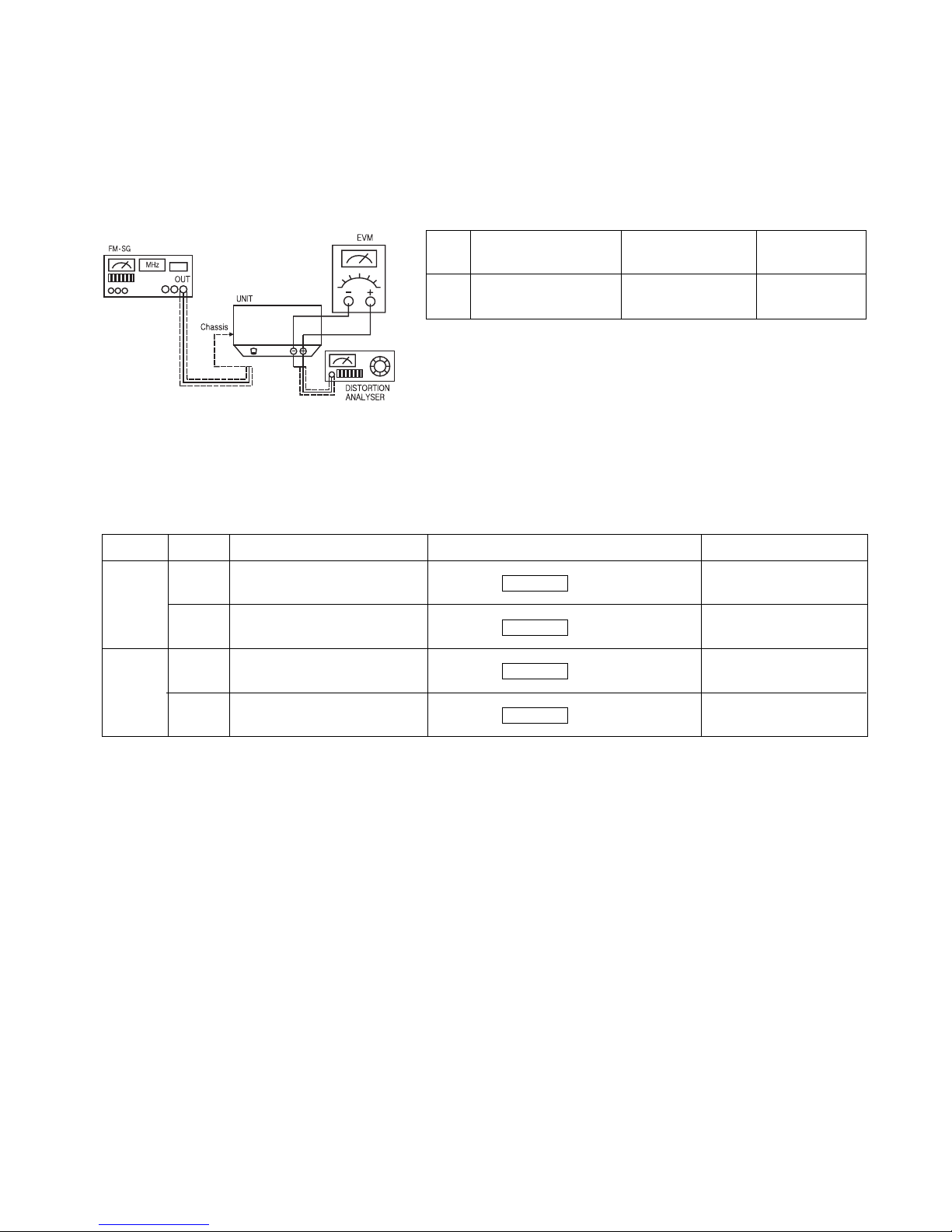

3. FM MONO DISTORTION ADJUSTMENT FMMONO歪率調整
AC VOLT METER ........................Connect to the output.
Signal Generator........................Connect to FM ANT Jack (FM IN) through the dummy.
Distortion Meter .........................Connect to the output.
NO. Frequency Adjust for Adjustment
198.10MHz [EUR,US]
82.00MHz [J] FE001中周
Minimum T.H.D
(<1%)
4. FM/AM AUTO STOP LEVEL CHECK FM/AMオートストップレベル確認
FM SIGNAL GENERATOR ........................Connect to FM ANT Jack (FM IN) through the dummy
AM SIGNAL GENERATOR.........................Connect to AM ANT, Coil through the Loop antenna
BAND STEP SIGNAL GENERATOR Check Result
190.10MHz [EUR,US]
78.00MHz [J] ≦32dB OK/NG
2106.10MHz [EUR,US]
88.00MHz [J] ≦32dB OK/NG
1612kHz [EUR,J]
610kHz [US] ≦84dB OK/NG
21404kHz [EUR,J]
1400kHz [US] ≦84dB OK/NG
AM
FM
TUNED
TUNED
TUNED
TUNED
AC

−8−
4 EXPLODED VIEWS AND PARTS LIST
分解図とパーツリスト

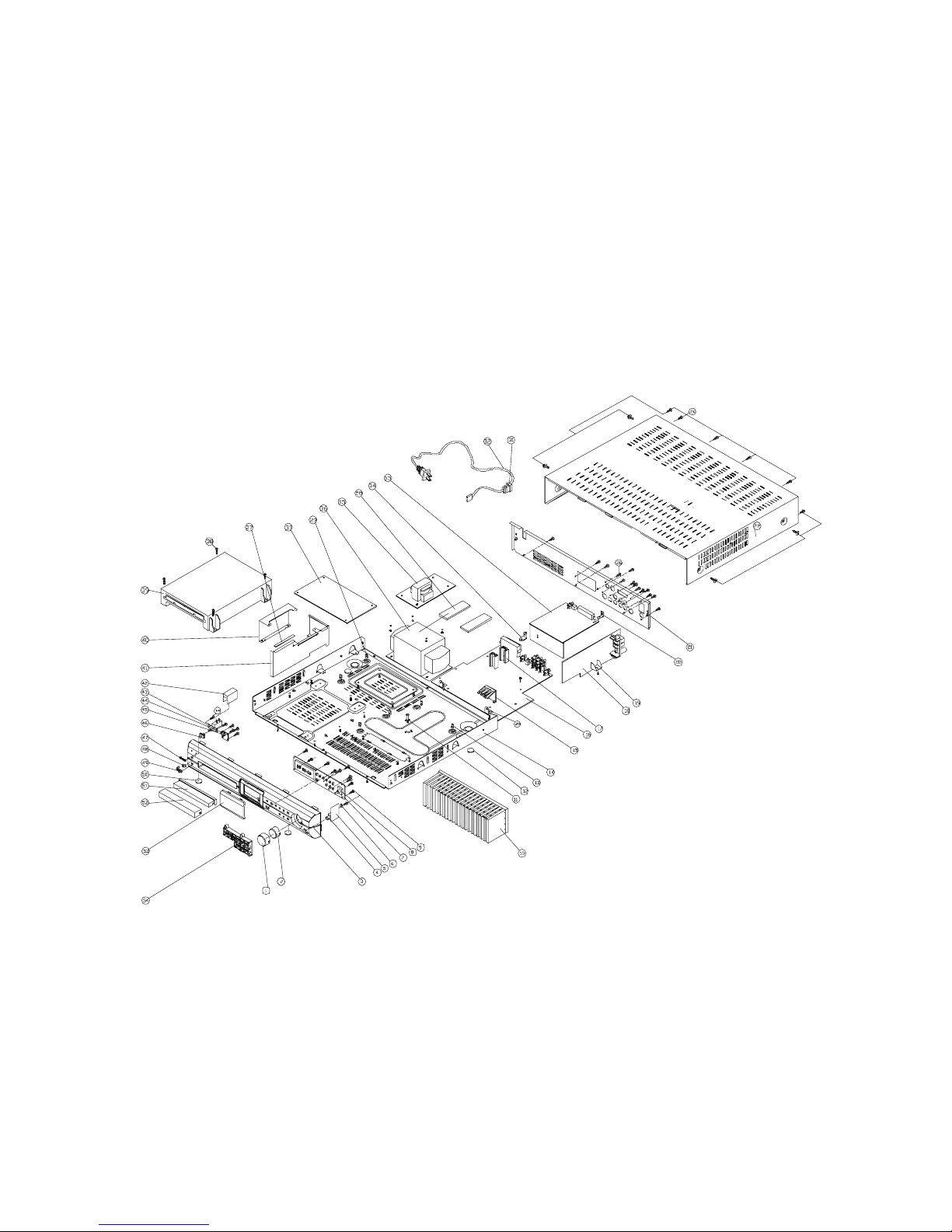

EXPLODED VIEW-1

−9−
EXPLODED VIEW-1
REF.NO. PARTSNO. DESCRIPTION REMARKS
1‑1 9A09114700 TRANSPRENTVOL
1‑2 9A09114000 VOLKNOB
1‑3 9A09113700 FRONTCAB[J,US,C,HK,SG,K,SAF,NZ]
9A09197200 FRONTCAB[E,UK,F]
1‑4 9A07465300 PHONEJACK,BLK
1‑5 9A09137800 PHONEPCBASSY
1‑6 9A09116600 WASHER,OD14XID3.2XT1.0MM
1‑7 9A09137700 KEYPCBASSY
1‑8 9A08320700 R‑ENCODER
1‑9 9A09116300 SCREW,T3.0XL8.0XP1.06MM
1‑10 9A09125300 HEATSINK
1‑11 9A09115300 SPACERSUPPORT,L=18
1‑12 9A09114800 RUBBER,DIA14XT3MMWHITE
1‑13 9A09197900 PCBBKT
1‑14 9A09115400 BOTTOMCAB
1‑15 9A09125400 HEATSINK
1‑16 9A09113100 MAINPCBASSY[J,US,C,HK,SG,K,SAF,NZ]
9A09113140 MAINPCBASSY[E,UK,F]
1‑17 9A09125500 HEATSINK
1‑18 9A09113200 TUNERPCBASSY[J]
9A09113210 TUNERPCBASSY[US,C]
9A09113220 TUNERPCBASSY[HK,SG,K,SAF,NZ]
9A09113240 TUNERPCBASSY[E,UK,F]
1‑19 9A09129500 PCBBKT
1‑20 9A09125600 BRACKET
1‑21 9A09196800 BACKCAB[J]
9A09115600 BACKCAB[US,C]
9A09248800 BACKCAB[HK,SG,K]
9A09248900 BACKCAB[E,UK,SAF,F]
9A09249000 BACKCAB[NZ]
1‑22 9A09115500 TOPCOVER
1‑23 9A09113800 PLASTICBRACKET
1‑24 9A09116000 SCREW,M3X6X0.5P
1‑26 9A09116000 SCREW,M3X6X0.5P
1‑27 9A09111100 SPONGE,L52XW5.5XT1.0MM
1‑28 9A09116800 RUBBERPAD,L54XW20XT3.0MM
1‑29 9A09125600 BRACKET
1‑30 9A09116000 SCREW,M3X6X0.5P
1‑31£9A08289700 ACLINEBUSHING
1‑32£9A09198100 LINECORD[J]
£9A09117200 LINECORD[US,C]
£9A09249700 LINECORD[HK,UK]
£9A09249800 LINECORD[E,SG,SAF,F]
£9A09249900 LINECORD[K]
£9A09250200 LINECORD[NZ]
1‑33 9A09141000 PROLOGIC+SCARTPCBASSY[J,US,C,HK,SG,K,NZ]
9A09141040 PROLOGIC+SCARTPCBASSY[E,UK,SAF,F]
1‑34 9A09141400 PCBBKT
1‑35£9A09198200 PWRTRANSFORMER,100V[J]
£9A09133400 PWRTRANSFORMER,120V[US,C]
£9A09249600 PWRTRANSFORMER,230V[HK,SG,E,K,UK,SAF,NZ,F]

−10−
EXPLODED VIEW-1
REF.NO. PARTSNO. DESCRIPTION REMARKS
1‑36£9A09273500 PWRTRANSFORMER,100V[J]
£9A09117100 PWRTRANSFORMER,120V[US,C]
£9A09197100 PWRTRANSFORMER,230V[HK,SG,E,K,UK,SAF,F]
£9A09273600 PWRTRANSFORMER,240V[NZ]
1‑37 9A09113000 MPEGPCBASSY
1‑38 9A09116100 SCREW,M3X8X0.5P
1‑39 9A09117600 DVDLOADER,DSL‑710ADVSA
1‑40 9A09115700 BRACKET
1‑41 9A09115800 BRACKET
1‑42 9A09113500 POWERSWPROTECTOR
1‑43£9A09117000 SW,PUSHP12
1‑44 9A07465600 LED,RED
1‑45 9A09137900 LEDPCBASSY
1‑46 9A09114100 POWERKNOB
1‑47 9A09114900 LOGOPLATE
1‑48 9A09114400 LEDLENS
1‑49 9A09114200 KNOB,STAND‑BYKEY
1‑50 9A09114800 RUBBER,DIA14XT3MMWHITE
1‑51 9A09113600 DVDDOOR
1‑52 9A09114600 TRANSPRENTDOOR
1‑53 9A09114300 LCDLENS
1‑54 9A09113900 FUN.KNOB
INCLUDED ACCESSORIES
REF.NO. PARTSNO. DESCRIPTION REMARKS
9A09053900 OWNER'SMNL,J[J]
9A09053800 OWNER'SMNL,E/F[US,C]
9A09053700 OWNER'SMNL,E/F/G/I/S[EXCEPTJ]
9A09110000 REMOTECONTROLUNIT,RC829 S/No.10900000andearlier
9A09110001 REMOTECONTROLUNIT,RC829A S/No.10900001andafter
9A09110400 BATTERY
9A09111500 WIRE,5000MM(BLU/BLK)
9A09111600 WIRE,10000MM(GRY/BLK)
9A09111700 WIRE,5000MM(RED/BLK)
9A09111800 CABLE,RCA(BLK)
9A09111900 CABLE,RCA(RED/YEL/WHT)
9A09109900 LOOPANTASSY
9A09112000 TANTENNA75OHM[J,US,C]
9A09205600 TANTENNA[HK,SG,E,K,UK,SAF,NZ,F]

EXPLODED VIEW-2
−11−

−12−
EXPLODED VIEW-2
REF.NO. PARTSNO. DESCRIPTION REMARKS
2‑1£9A09117000 SW,PUSHP12
2‑2 9A09143200 POWERKNOB
2‑3 9A09143700 LOGOPLATE
2‑4 9A09143400 SPKTRIM
2‑5 9A09140200 SWPCBASSY
2‑6 9A09143000 SPK,CAB
2‑7 9A09145200 SCREW,T2.6XP1.07XL8.0MM
2‑8 9A09143900 PORTTUBE,OD65XID55XL155M
2‑9 9A09145600 SPONGE,OD118XID50XT10MM
2‑10 9A09144100 WOODBOX[EXCEPTJ]
9A09197300 WOODBOX[J]
2‑11 9A09144200 SPKDRIVER,100W6.5INCH4OHM
2‑12 9A09144600 SCREW,M3.5X14MMBLK
2‑13 9A09143100 GRILLE
2‑14 9A09145100 SCREW,M3X10BLK
2‑15 9A08755900 SCREW,T3.0XL8.0XP1.06MM
2‑16 9A09146000 COVERSPONGE,L34XW4.5XT3MM
2‑17 9A09142800 REARCOVER
2‑18 9A09144600 SCREW,M3.5X14MMBLK
2‑19 9A09197400 REARPLATE[J]
9A09144400 REARPLATE[US,C]
9A09249100 REARPLATE[HK,SG,E,K,UK,SAF,F]
9A09249200 REARPLATE[NZ]
2‑20 9A09133600 JACKSWITCHPCBASSY
2‑21 9A09145300 FIBER,DIA12XID3.5XT1.6MM
2‑22 9A09134100 AMPPCBASSY
2‑23 9A09142900 FOOT,D25XL25
2‑24 9A09144700 SCREW,T4X20MMBLK[EXCEPTJ]
9A09197600 SCREW,T4X25MMBLK[J]
2‑25 9A09145400 RUBBERPAD,D20XT3MMBLK
2‑26£9A09274700 PWRTRANSFORMER,100V[J]
£9A09146500 PWRTRANSFORMER,120V[US,C]
£9A09274800 PWRTRANSFORMER,230V[HK,SG,E,K,UK,SAF,NZ,F]
2‑27 9A09116500 NUT,M4.0XOD7.0XT3.0MM
2‑28 9A09144300 BRACKET,X'FORMER
2‑29 9A09143500 RUBBERPAD,50X12XT2MM
2‑30 9A09144900 SCREW,M4X25X0.7MMBLK
2‑31£9A09143800 BUSHING
2‑32£9A07441300 LINECORD[J]
£9A09146600 LINECORD[US,C]
£9A09420200 LINECORD[HK,UK]
£9A09420300 LINECORD[SG,E,SAF,F]
£9A09420400 LINECORD[K]
£9A07469800 LINECORD[NZ]
2‑33 9A09143300 LEDLENS

EXPLODED VIEW-3
−13−

−14−
EXPLODED VIEW-3
REF.NO. PARTSNO. DESCRIPTION REMARKS
3‑1 9A09118200 GRILLE
3‑2 9A08755900 SCREW,T3.0XL8.0XP1.06MM
3‑3 9A09118600 SPKDRIVER,25W3INCH4OHM(REAR)
9A09118700 SPKDRIVER,25W3INCH4OHM(FRONT/CENTER)
3‑4 9A09118900 SPONGE,OD79XID70XT3.0MM
3‑5 9A09118000 SPKPANEL(FRONT/REAR)
9A09118100 SPKPANEL(CENTER)
3‑6 9A09119100 SPONGE,L123XW5XT1MM
3‑7 9A09117800 REARCOVER
3‑8 9A08755800 SCREW,T3.0XL10.0XP1.06MM
3‑9 9A09118300 SPKJACK,2PBLK‑RED(FRONT)
9A09118400 SPKJACK,2PBLK‑BLU(CENTER)
9A09118500 SPKJACK,2PBLK‑GRY(REAR)
3‑10 9A09118800 SCREW,T4X12MMBLK

−15−
5 PC BOARDS AND PARTS LIST
MAIN PCB (SIDE A)
基板図とパーツリスト

−16−
MAIN PCB (SIDE B)

−17−

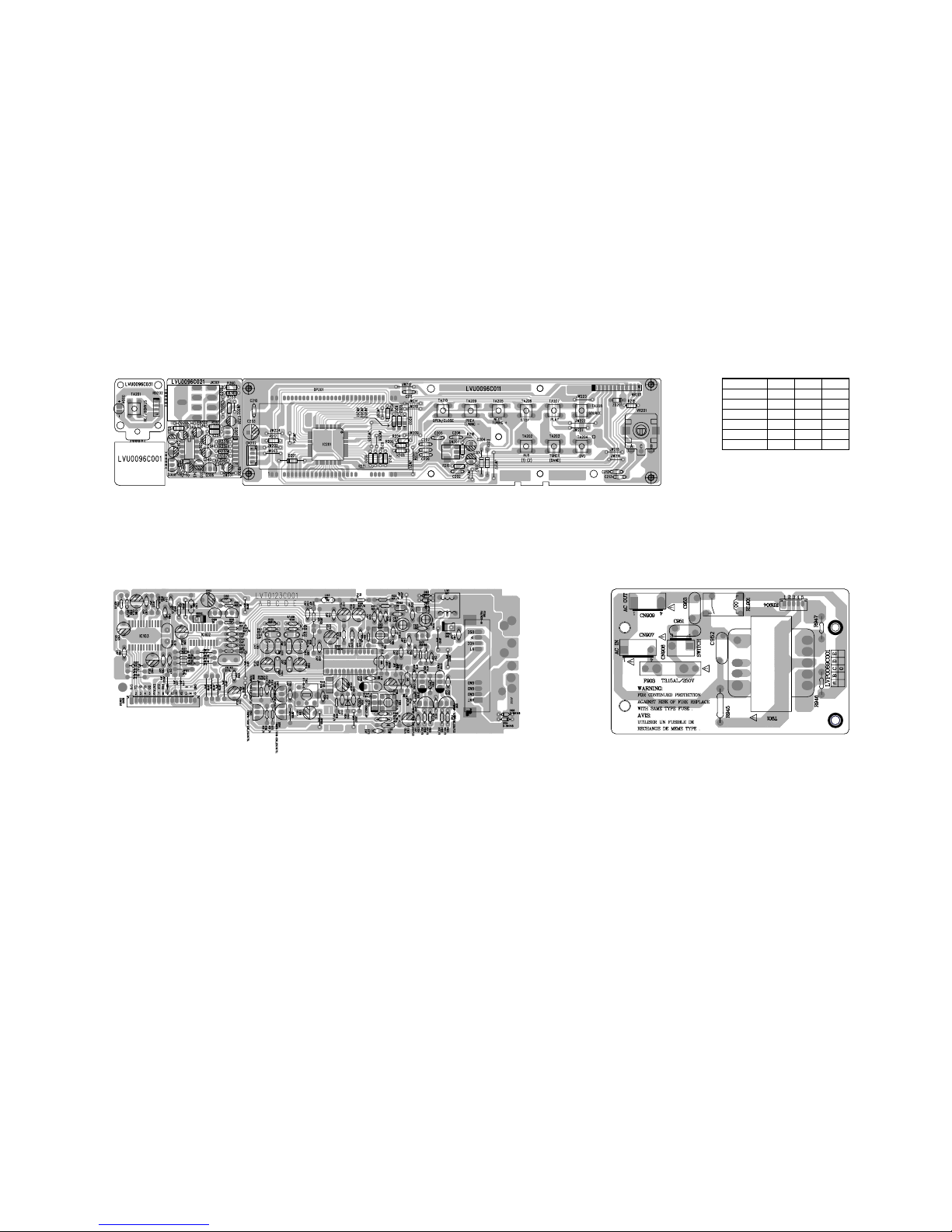

KEY PCB
TUNER PCB POWER PCB
REGIONAL JW281 JW282 JW283
11 1 1
21 1 0
31 0 1
41 0 0
50 1 1
60 1 0
JUMPER WIRE SETUP:
1=INSTALL, 0=NOT INSTALL

−18−
MPEG PCB (SIDE A)
MPEG PCB (SIDE B)

−19−
SCART PCB (SIDE A)
SCART PCB (SIDE B)

MAIN PCB ASSY
REF.NO. PARTSNO. DESCRIPTION
9A09113100 MAINPCBASSY
[J,US,C,HK,SG,K,SAF,NZ]
9A09113140 MAINPCBASSY[E,UK,F]
9A09128400 MAINPCB
9A08773200 WASHER,ID=3OD=6H=2.5MM
9A09125300 HEATSINK
9A08290700 MICA
9A09125600 BRACKET
9A09116000 SCREW,M3X6X0.5P
9A09116300 SCREW,T3.0XL8.0XP1.06MM
C455 9A09125200 SLEEVING,OD2XID1XL5MM
C905,C907£9A08829500 C,ELECT6800UF/25V20%
C926,C945£9A08829400 C,ELECT3300UF/25V20%
C935£9A09126000 C,ELECT,2200UF/25V20%
CN001 9A08299800 CONNECTOR,TUC‑P10P‑B1
CN201 9A09124600 CONNECTOR,12PIN
CN301 9A09124500 CONNECTOR,7PIN
CN601A 9A09027100 CONNECTOR,TUC‑P15P‑B1
CN902 9A09124400 CONNECTOR,B9B‑XH‑A9PIN
CN903 9A07466200 CONNECTOR,CL3962WVO3PIN
CN904 9A08300100 CONNECTOR
D401 9A07449400 DIODE,1N4148
D501‑D504 9A07449400 DIODE,1N4148
D507‑D510 9A07449400 DIODE,1N4148
D901£9A09126700 RECTIFIER,KBU8B
D906,D907 9A07466400 SLEEVING,OD3.0XID2.5XL10
D906,D907£9A07462200 RECTIFIER,1N5401
D908,D909£9A07461600 RECTIFIER,1N4001
D910 9A07466400 SLEEVING,OD3.0XID2.5XL10
D910 9A07462200 RECTIFIER,1N5401
D911,D912£9A07461600 RECTIFIER,1N4001
D913‑D916 9A07461600 RECTIFIER,1N4001
D917 9A09125200 SLEEVING,OD2XID1XL5MM
D917 9A09126600 RECTIFIER,1N5392
F901,F902 9A07451800 FUSECLIP
F901,F902£9A09125800 FUSE,6.3A250VSLOW
F905‑F908 9A07451800 FUSECLIP
F905‑F908£9A09125700 FUSE,1.6A250VSLOW
IC401 9A09046500 IC,TC4052BFN
IC402‑404 9A09123800 IC,JRC4558D
IC405,406 9A08824200 IC,TC4053BFN
IC407 9A09123800 IC,JRC4558D
IC408 9A09046300 IC,M62446FP
IC409‑411 9A09123800 IC,JRC4558D
IC501‑503 9A09126800 IC,TDA7265
IC901£9A08825600 IC,7812
IC901,902 9A09125500 HEATSINK
IC902£9A09127000 IC,7912
IC903 9A09125400 HEATSINK
IC903£9A07463000 IC,MC7806ACT
IC905£9A09126900 IC,BA05T
JK105 9A09125100 RCAJACK,1PBLK
JK106 9A09124900 TOSLINKJACK,TOTX178A
JK401 9A09124700 RCAJACK,6PWHT/RED
JK402 9A09125000 RCKJACK,1PBLK
MAIN PCB ASSY
REF.NO. PARTSNO. DESCRIPTION
JK501 9A09124800 SPKJACK,10P
L501‑L503 9A07464000 RFCOIL,1UH
L505,L506 9A07464000 RFCOIL,1UH
Q401‑Q403 9A07461700 TR,2SC2878
Q404 9A07449500 TR,2SC945P
Q501‑Q503 9A07449500 TR,2SC945P
Q504,Q505 9A07449600 TR,2SA733Q/P
Q506 9A07449500 TR,2SC945P
Q901 9A07450400 TR,2SC2001L
Q905,Q907 9A07463800 TR,2SB772P/Q
Q906,Q908 9A07461700 TR,2SC2878
Q909,Q911 9A07449600 TR,2SA733Q/P
Q910,Q912 9A07449500 TR,2SC945P
Q913 9A07449600 TR,2SA733Q/P
Q914 9A07449500 TR,2SC945P
R26‑R28 9A09125200 SLEEVING,OD2XID1XL5MM
R443,R448 9A09125200 SLEEVING,OD2XID1XL5MM
R516‑R519 9A09125200 SLEEVING,OD2XID1XL5MM
R904,R908 9A09125200 SLEEVING,OD2XID1XL5MM
R922£9A09127500 R,33OHM1/2W5%
R925,R926 9A09125200 SLEEVING,OD2XID1XL5MM
R925,R926£9A09126400 R,1OHM1/2W5%
RB102 9A09124300 CONNECTOR,28PFFC
ZD401,402 9A09045000 DIODE,ZENER6.9‑7.2V0.5W
ZD403,404 9A07461800 DIODE,ZENER6.0‑6.3V0.5W
KEY PCB ASSY (GATHER)
REF.NO. PARTSNO. DESCRIPTION
9A09113400 KEYPCBASSY[J,US,C]
9A09113420 KEYPCBASSY
[HK,SG,E,K,UK,SAF,NZ,F]
KKEEYYPPCCBBAASSSSYY
9A09137700 KEYPCBASSY
9A09139500 KEYPCB
CN202 9A08310300 CONNECTOR,B4B‑PH‑K
D201‑D203 9A07449400 DIODE,1N4148
DP201 9A09138200 VFD
IC201 9A09138600 IC,PT6311
SN201 9A09138700 IRTSENSOR
TA202‑210 9A09138300 SW,TACT
VR201 9A08320700 R‑ENCODER
ZD201 9A09121800 DIODE,ZENER4.1‑4.3V0.5W
PPHHOONNEEPPCCBBAASSSSYY
9A09137800 PHONEPCBASSY
C306,C307 9A07461700 TR,2SC2878
FB302,303 9A09121900 BEADFERIT,3.5DIAX6MM
IC304 9A09139000 IC,TDA2822
JK301 9A07465300 PHONEJACK,BLK
Q308 9A07450400 TR,2SC2001L
ZD301 9A07461800 DIODE,ZENER6.0‑6.3V0.5W
LLEEDDPPCCBBAASSSSYY
9A09137900 LEDPCBASSY
D204 9A07465600 LED,RED
TA201 9A09138300 SW,TACT
−20−
