Teac PL-D2100A User manual
NOTES
DVD Home Theater System
PC board shown are viewed from parts side.
The parts with no reference number or no parts number
in the exploded views are not supplied.
As regards the resistors and capacitors, refer to the
circuit diagrams contained in this manual.
Parts marked with this sign are safety critical
components. they must be replaced with identical
ensure exact replacement.
!
components - refer to the appropriate parts list and
CONTENTS
2 EXPLODED VIEW AND PARTS LIST
3 PC BOARDS AND PARTS LIST
5 INCLUDED ACCESSORIES
2
3
7
18
VIDEO
DIGITAL OUT
DOLBY
DIGITAL
4 WIRING DIAGRAM 17
1 SPECIFICATIONS
Parts of [ ] mark can be used only with the version
designated.
DVD HOME THEATER SYSTEM PL-D2100
TUNING SELECT FUNCTION
PHONES
VOLUME / ADJUST
CD-R/CD-RE COMPATABLE
DVD/VCD/CD/MP3
[SG]: SINGAPORE [HK]: HONG KONG
[E]: EUROPE [SAF]: SOUTH AFRICA
PL-D2100A ( New version for PL-D2100 ) had been
produced since July 2004 from Serial Number 4600001.
There is a circle A mark below the main unit label and
also a circle A mark besides the serial number of the
main unit of PL-D2100A. Circle A mark on the serial
number label is also shown on the Carton Box of
PL-D2100A.
PL-D2100A
PL-D2100A
1 SPECIFICATIONS
2
Pickup :
Signal system : NTSC / PAL
Semiconductor laser, Wavelength 650 nm
Video signal horizontal resolution :
More than 55 dB (DVD)
DVD Player
More than 480 lines (DVD)
Tuning range :
Antenna terminals :
87.5 ~ 108.0 MHz (50 kHz step)
10.7 MHz
FM Tuner
System: PLL quartz-locked digital synthesizer system
Line outputs :
Video outputs
1 Vp-p 75 ohms
AV Connector : SCART x 1
S-video : Y: 1 Vp-p 75 ohms, C:0.3 Vp-p 75 ohms
300mVrms, 2.2 kilo ohms
Total harmonic distortion :
Audio frequency response (at 2 CH stereo mode) :
Audio signal-to-noise ratio : More than 80 dB
Less than 0.01%
20 Hz ~ 20 kHz (+1/-3dB)
Video signal-to-noise-ratio :
75 ohms, unbalanced
Intermediate frequency :
Tuning range : 522 ~ 1620 kHz (9 kHz interval)
AM Tuner
System: PLL quartz-locked digital synthesizer system
Audio outputs
Output Power :
Speaker unit : 16.5 cm, cone type
75 W ( 80 Hz, THD 10%)
Active Subwoofer
Dimension (W x H x D ):
Input Power :
Power consumption :
30 W maximun
70 W
Weight : 7.0 kg
Speakers
Speaker unit : 75 mm (Front/Surround)
Rated impedance : 4 ohms
90 x 130 x 81mm (Front/Rear)
Dimension (W x H x D ):
Weight :
Front/Center speaker cable (5 m x 3)
Surround speaker cable (10 m x 2)
Subwoofer RCA pin cord (1.8 m)
FM antenna x 1
AM loop antenna x 1
Remote control unit x 1
RCA video cable x 1
Batteries (AA, R6, SUM-3) x 2
200 x 300 x 321mm
200 x 77 x 81mm (Center)
CVBS Video :
Output Power :
30W + 30W
Design and specifications are subject to change without notice.
Illustrations may differ slightly from production model.
Weight and dimensions are approximate.
General
Dimension (W x H x D ):
Weight:
Power requirements : 230V AC, 50 Hz (Europe model)
Power consumption : 120 W (STAND BY: less than 0.5W)
4.1 kg
430 x 348 x 48 mm
Operating temperature:
Operating humidity: 5% ~ 90%
Storage temperature:
5 C ~ 35 C (40 F ~ 95 F )
-20 C ~ 55 C (-4 F ~ 131 F)
65 mm x 2 (Center)
Accessories
0.8 kg (Front)/0.6kg (Surround) /1kg (Center)
(Stereo, 0.2% THD, 20Hz to 20kHz, 8 ohm)
(0.7% THD, 1kHz, 8 ohm, only on channel driven)
30W per channel
Surround Output Power :
(;3/2'('9,(:
(;3/2'('9,(:$1'3$576/,67
3/'$
REF. NO

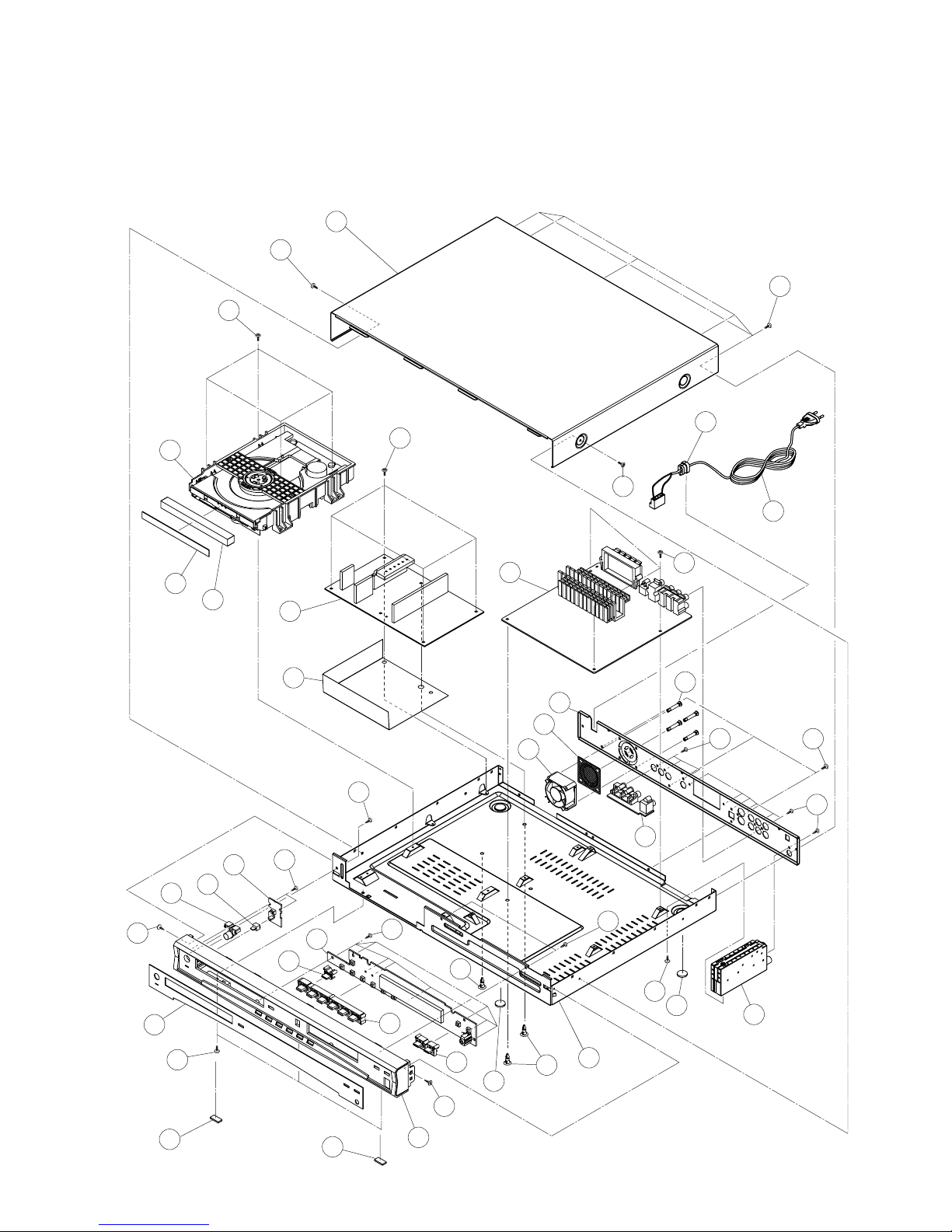

EXPLODED VIEW - 1
PARTS NO. DESCRIPTION REMARKS
4
1-2
FAN021208-0002 DC FAN 12V
1-3
1-4
1-5
1-6
1-7
1-8
1-9
1-10
1-11
1-12
1-13
1-14
1-15
1-16
1-17
1-18
1-19
1-20
1-21
1-22
1-23
1-24
1-25
1-26
1-27
1-28
1-29
1-30
1-31
BPF200023-0001 FRONT PANEL
BPK208017-0001 FUNCTION KNOB
BPK208018-0001 VOLUME KNOB
POWER KNOB
BPK218018-0001
BPK228018-0001 OPEN/CLOSE KNOB
BPD200011-0001 DVD DOOR
LED LENS
BPN200026-0001
BPN200024-0001 FRONT PANEL LENS [E]
BOTTOM CABINET
GSE200064-0101
BACK CABINET [HK, SG]
GSE200080-0006
BPN200025-0001 DOOR LENS
DBU001005-0010 BUSHING AC LINE BUSHING
GSE200059-0009 TOP CABINET
SPACER - A=70 C=1.3-2MM
DSS100019-0001
FAN NET COVER
GSN207001-0001
!
1-1
PL-D2100A
ASL261620-1101 DVD MECH. HRT21+HRL02 ASSY
WPC020160-0005 POWER PCB ASSY
BEP221002-0001 PVC SHEET- 127.8X115.8X25MM
APE200070-0002 MAIN PCB ASSY
VPE003252-0010 LINE CODE 2P - VDE [E, SAF]
VPE1K6253-0020 LINE CORD 3P, BS [HK, SG]
BRB200006-0001 RUBBER 115.6X6.6X2MM
APE200752-0003 STANDBY PCB ASSY
APE200751-0003 CONTROL PCB ASSY
BRB000049-0002 RUBBER - 14X2MM WHITE
WTP000011-0007 TUNER PACK KST-ML104MA1-30
HOT001004-0001 SNAP RIVET 4X20 BLK
APE201540-0001 SCART PCB ASSY [E, SAF]
APE104210-0002 YUV PCB ASSY [HK,SG]
HSF143084-1060 SCREW STEEL M3X6X0.5P
HST143084-1060 SCREW M3X6X0.5P
HSP140054-1080 SCREW T3X8X1.06P
GSE200080-0207 BACK CABINET [E, SAF]
BPN200024-0002 FRONT PANEL PVC TRANSPARENT [SAF,HK,SG]
!
3/'$
(;3/2'('9,(:
PL-D2100A
REF. NO

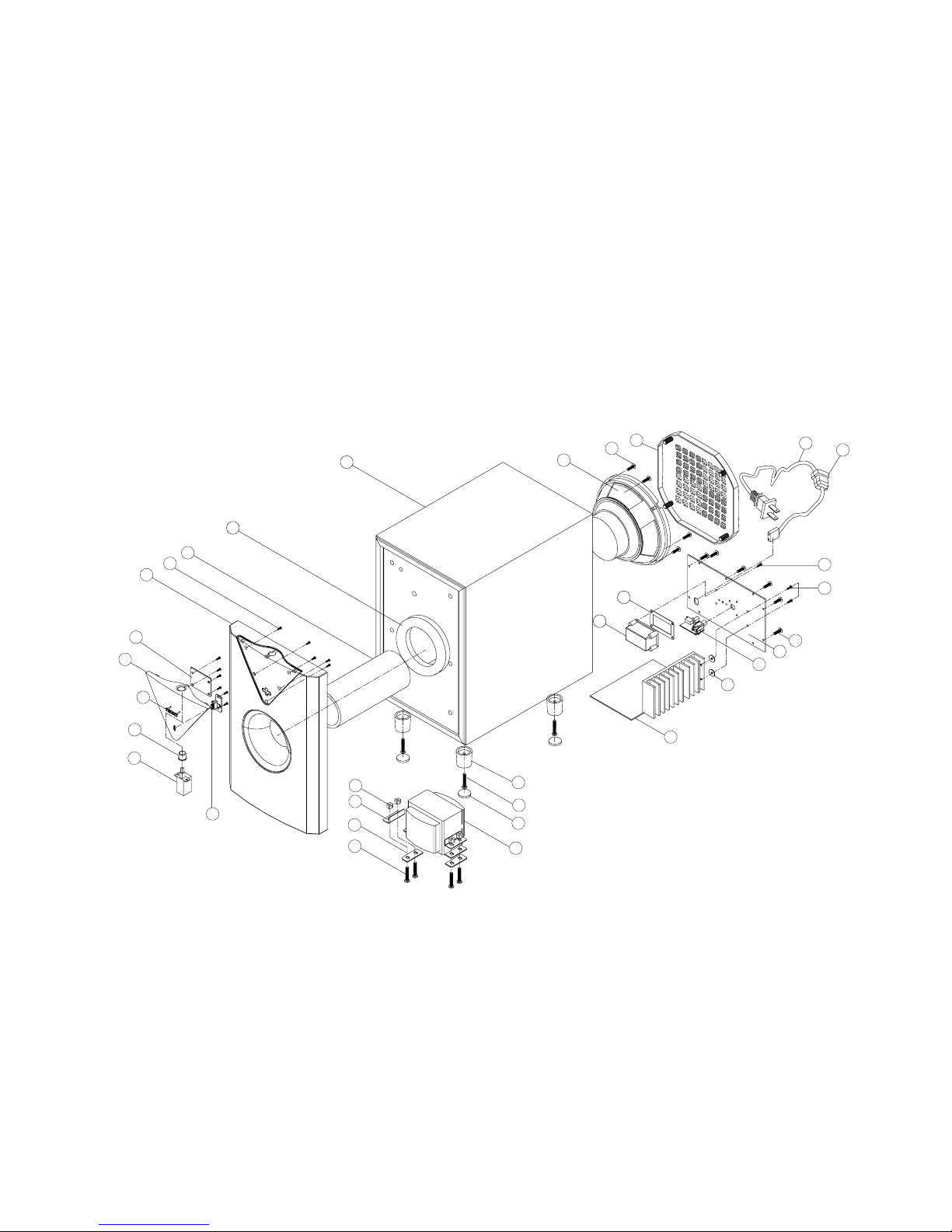

EXPLODED VIEW - 2
PARTS NO. DESCRIPTION REMARKS
MSW003019-0010 SW. PUSH P12
2-1
REF. NO PARTS NO. DESCRIPTION REMARKS
2-2
BRB100028-0002 RUBBER PAD, 50X12XT2MM
2-3
2-4
2-5
2-6
2-7
2-8
2-9
2-10
2-11
2-12
2-13
2-14
2-15
2-16
2-17
2-18
2-19
2-20
2-21
2-22
2-23
2-24
2-25
2-26
2-27
2-28
2-29
2-30
2-31
BPC000021-0001 REAR COVER
HWF11C035-6160 FIBER WASHER DIA12XID3.5XT1.6MM
HSD143103-3250 SCREW, M4X20MM BLK
SCREW, T3.5X14MM BLK
APE100092-0004 AMP PCB ASSY
BPR111001-0001 SPK TRIM
REAR PLATE
GSP000026-0017
HST140063-3081 SCREW, T3.0XL8.0XP1.06MM
NUT, M4XOD7.0XT3.0MM
HNT140700-1300
LINE CORD [E, SAF]
VPE003012-0010
BPL010014-0003 LOGO PLATE
HST140054-3100 SCREW, M3X10 BLK
RUBBER PAD, D20XT3MM BLK
ICH008004-0001
SCREW, T4X25X0.7MM BLK
HSP140091-3250
!
!
!
BPK106012-0003 POWER KNOB
APE100102-0011 SW PCB ASSY
BPF105018-0003 SPK, CAB
IVE100089-0002
PAPER PORT TUBE,OD65XID55XL120MM
EVM100027-0007 WOOD BOX
HST140044-3080 SCREW, T2.5XP0.91XL8.0MM
DPP016555-1201
SPONGE,OD118XID50XT5MM
FSB027565-3110 SPK DRIVER, 6.5 INCH 4OHM
HST140071-3140 SCREW, T3.5X14MM BLK
BPG001046-0001 GRILLE
IVE000095-0001 COVER SPONGE, L55XW36XT2MM
APE100089-0001 JACK SWITCH PCB ASSY
BPE00005-0002 FOOT, D25XL25
TTI123001-0040 PWR TRANSFORMER, 230V
GSE000110-0004 BRACKET, TRANSFORMER
DBU001002-0011 BUSHING
BPN100040-0001 LED LENS
2-32
2-33
6
LINE CODE [SG, HK]
HST140071-3140
VPE0K6013-0050
REF. NO
MAIN PCB ASSY
PARTS NO. DESCRIPTION
APE200700-0002 MAIN PCB ASSY
REMARKS

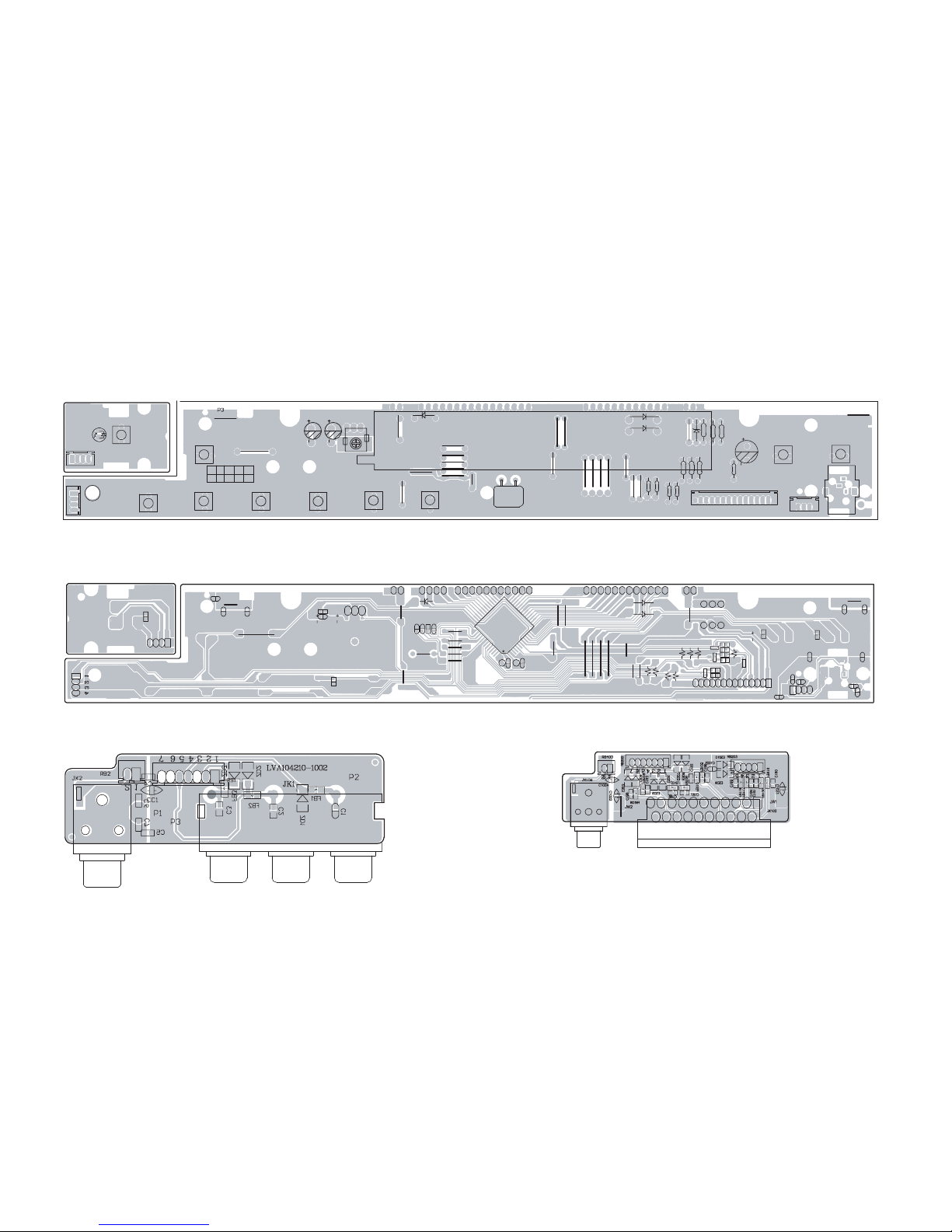

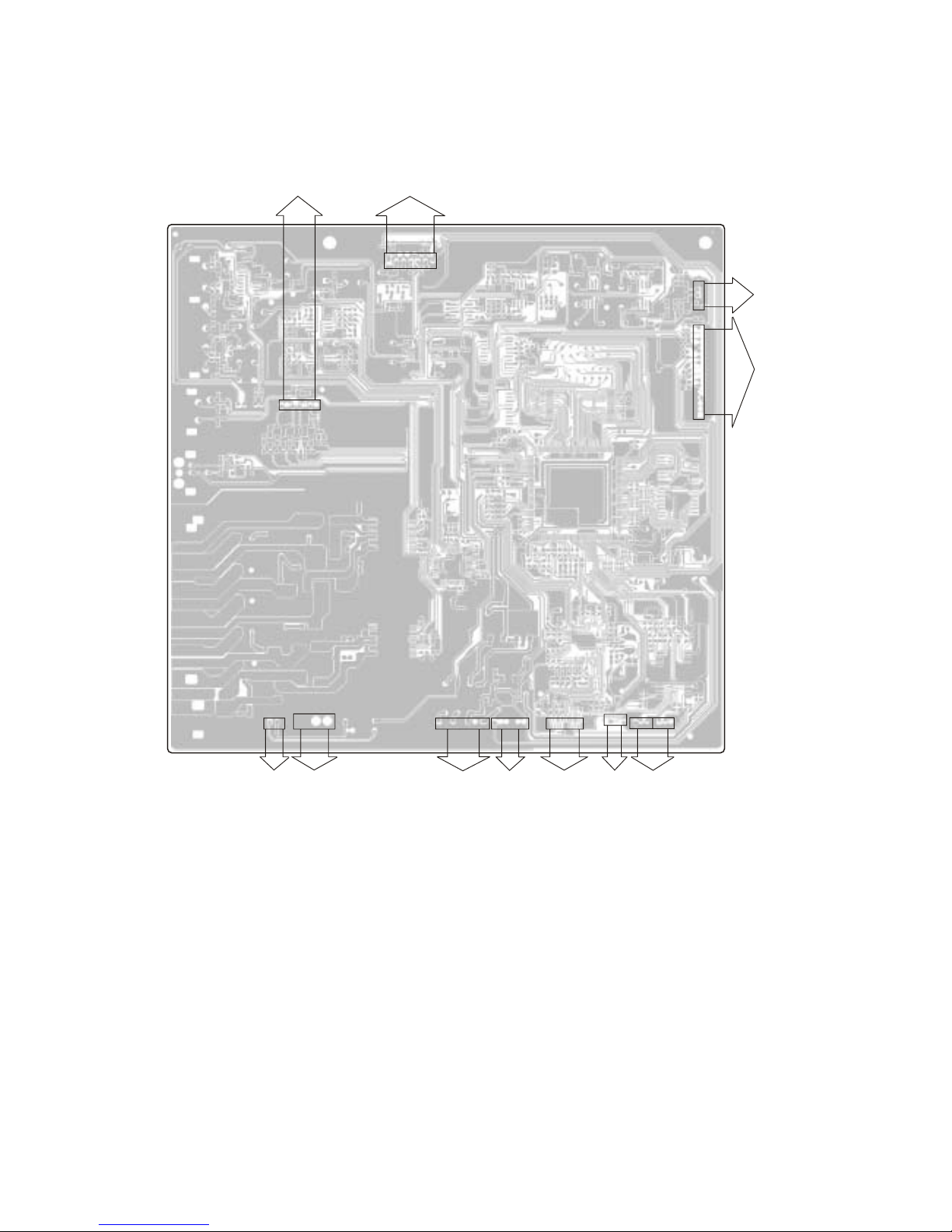

3 PC BOARDS AND PART LISTS
LFM200070-0001 MAIN PCB
CN501 CCN250000-0102 CONNECTOR B2B-XH-A 2PIN
CN600 CCN200000-0114 CONNECTOR 14PIN
CN104,300 CCN200000-0102 CONNECTOR 2PIN
CN202 CCN200000-0107 CONNECTOR 7PIN
CN101 CHC050050-0824 CONNECTOR 24PIN
EF001 WTP000011-0007 TUNER PACK KST-ML104MA1-30
CN302 CCN250000-0107 CONNECTOR B7B-XH-A 7PIN
CN306 CCH125030-2213 CONNECTOR 13PIN
FB303,305,317,319,
FB320,321
CHIP BEAD 100 OHM
SCB008050-1010
D101-103,301,302,
D303,304,601
RCD114148-0011
C566,567 PDE039570-1020 CE.1000UF/50V
CN102,303 CCN200000-0104 CONNECTOR 4PIN
CN103,203 CCN200000-0105 CONNECTOR 5PIN
CN304 CCN396020-0104 CONNECTOR 4PIN
CN608 CCN200000-0106 CONNECTOR 6PIN
CHIP DIODE 1N4148W
IC502,503 RCI000505-0001 IC - STA505
IC107 RCI390080-0001 IC - SST39VF080
IC102 RCI006603-0001 IC - ES6603S
IC310,311 RCI916433-0001 IC - RT9164-33CLR
IC303,305,306,601 RCI004558-0003 IC - RC4558D
IC302 RCI005333-0001 IC - CS5333
IC105 RCI003403-0001 IC - CM3403-29ST
IC501 RCI000308-0002 IC - STA308A
IC312 RCI111700-0101 IC - CP1117EA
IC104 RCI641620-0001 IC - HY57V641620HGT-6
IC307 RCI003541-0001 IC - APA3541
IC101 RCI005868-0002 IC - AM5868S
IC103 RCI024002-0003 IC - M24C02
IC108,109 RCI740374-0003 IC - 74F374D
IC106 RCI006629-0001 IC - ES6629FD
IC308 RCI004052-0002 IC - CD4052BM
FB111-113,115-118,
FB301,302,304.306,
SCB008050-6010 CHIP BEAD 600 OHM
FB308,441,501,502
!
FB305,310,314,315,
FB316,318
SFB001001-0030 BEAD FERIT 100 OHM
C561-565 PFN226380-8240 COND METAL 0.82uF/63V
!
JK303 CJR006301-0040
JK101 CJC010004-3030 RCA+4PIN 1RCA+4PIN DIN
JK105
RCA JACK 6PIN
JK500 CJS010101-0020
CJT100001-0010 TRANSMITTER MODULE JST1111
SPK JACK W/SPRING
L301,302 SCN023600-1000 CHIP INDUCTOR 10 uH
L102-112 SCN023500-2490 CHIP INDUCTOR 2.4UH
L503-507 SIN002002-3000 INDUCTOR 30uH
L101 SCN023600-3A30 CHIP INDUCTORS 3.3uH
7
PL-D2100A
REF. NO
MAIN PCB ASSY
PARTS NO. DESCRIPTION REMARKS
8
PL-D2100A
ZD101-106,110,111, RCZ005007-0021 CHIP ZENER 7.5V
RCZ005006-0011 CHIP ZENER 5.6V
ZD109,301
ZD112 RCZ005011-0010 DIODE ZENER 11V
Q602 RCN008050-0001 TR - MMS8050L
RA105,106,107 QCP015081-1000 CHIP ARRAY 10 OHM
RA101-103,108 QCP015081-3300 RES. ARRAY 4X33 OHM
XL101 JQC158100-2760 CRYSTAL 27MHZ
ZD602
ZD302,303 RAZ005006-0020 DIODE ZENER 5.6-5.9V
ZD603 RAZ005009-0010 DIODE ZENER 8.5-8.9V
TR - 2SB1132
Q103,104,108,109, RCN005783-0001 TR - CM5783GR
Q105,106 RCP201132-0003
Q120,305-308,310,
Q311,312,502,601
Q107,301-304 RCP200733-0001 TR - 2SA812
0$,13&%723
3/'$
3/'$
0$,13&%%27720
REF. NO PARTS NO. DESCRIPTION REMARKS
POWER PCB ASSY
WPC020160-0005 POWER PCB ASSY
C220 31-F7222M16663 CE. 2200UF/16V
C221 31-F7102M10529 CE. 1000UF/10V
CY3,4 31-F1102MD058 C.DIS 1000PF/400V
CX2 31-FE104KB551 C.MEX 0.1UF/275V
D101,104,105,213 33-RIN414814 DIODE 1N4148
D103,106,107,203,
D204,208,209
D201 33-RSTPR1620CT DIODE STPR1620CT
D205 33-RSB56012 DIODE SB560
D207 33-RSB160 DIODE SB160
D301 33-RIN400712 DIODE 1N4007
C204,205,206 31-F7152M5067 CE. 1500UF/50V
CN1 45-M82012CH3 CNTR+H 4P
CN2 45-M82012CH2 CNTR+H 7P
CN3 45-M82012CH1 CNTR+H 6P
CN4 45-M82011WP4 WAFER SP 4P
F1 38-T40A052 FUSE 250V 4A
01-M8201211E POWER PCB
L203 37-C8201201 CHOKE 5UH - DR8X10
L205 37-C4330102 INDUCTOR 22UH
LF2 37-C8201202 CHOKE 20MH
Q102 34-FFQPE8N6026 TR - FQPF8N60C
Q201,202,502 34-GC181531 TR - 2SC1815
Q301,302 34-F2N700011 TR - 2N7000T
Q501 34-GA101531 TR - 2SA1015
U1 32-SUC3843BD IC - UC3843BD1
U2 LTV-817-PRC IC - LTV-817-PRC
U3 LTV-817-PRA IC - LTV-817-PRA
U4 32-TOP233Y41 IC - TOP233Y
U5,U6 32-TL431AC IC - TL431ACZ
D401,402 33-SBAS32L18 DIODE BAS32L
LF1 37-C8201203 CHOKE 8.3MH
L201 37-C8201103 CHOKE 5UH - DR5X25
L202,204 37-C8201101 CHOKE 16UH - DR6.5x8
CX1 C.MEX 0.47UF/275V
31-FE474KB550
T1 42-M82012P01 TRANSFORMER ER35
T2 42-M82012P02 TRANSFORMER EE22
ZD101 33-E1N4748A18 ZENER DIODE 19.8-24.2V
ZD201 33-E1N5231B12 ZENER DIODE 5.1V 0.5W
ZD301,302,501 33-ETZX12D24 ZENER DIODE 12.2-12.7V
ZD303 33-SBZX84C518 ZENER DIODE 5.1V 0.25W
11
PL-D2100A
!
!
!
!
!
!
!
33-RBYV-26E DIODE BYV-26E
!
!
!
BR1 33-RGBU40813 BRG GBU408 800V 4A
!
!
!
!
PL-D2100A
12
POWER PCB
REF. NO
CONTROL PCB ASSY - TOP
PARTS NO. DESCRIPTION
CONTROL PCB ASSY
CONTROL PCB
DP301 KLV000016-0020 VFD VA84X9PA
TA302-TA310
DIODE - IN4148
RAD114148-0010
D301-D303
ZD301 DIODE ZENER 6.0V-6.3V
RAZ005006-0030
REMARKS
TACT SW SKHVBE3520
MAW060001-0010
XL301 JRN140001-0010 RESONATOR 2PIN 455KHZ
LVC200751-0302
SN301 RHO000638-2001 SENSOR 2.7-5.5V 38kHZ
JK301 CJM135006-3010 PHONE JACK D3.5MM 5PIN
APE200751-0003
IC301 IC - VDTR6311A
RCI006311-0002
IC302 RCI003403-0001 IC - CM3403-29ST
Q302,303 TR - CM5051
RCP005051-0001
Q301 TR - 2SC1623 (SMT)
RCN201623-0001
REF. NO PARTS NO. DESCRIPTION REMARKS
CONTROL PCB ASSY - BOTTOM
REF. NO PARTS NO. DESCRIPTION
YUV PCB ASSY [HK, SG]
REMARKS
YUV PCB
YUV PCB ASSY
APE104210-0002
FB1-FB3
JK1
JK2
SCB008050-6010 CHIP BEAD 600 OHM
CJR003301-0020 RCA JACK 3PIN
LVA104210-1002
CJR001101-0021 RCA JACK 1PIN
SCART PCB ASSY [ E, SAF]
SCART PCB
SCART PCB ASSY
APE201540-0001
FB105-110,117-120
LVC201540-1601
SCB008050-6010 CHIP BEAD 600 OHM
JK102 CSS021001-1030 SCART SOCK 21PIN
JK106 CJR001101-0021 RCA JACK 1PIN
REF. NO PARTS NO. DESCRIPTION REMARKS
REF. NO PARTS NO. DESCRIPTION REMARKS
STANDBY PCB ASSY
APE200752-0003 STANDBY PCB ASSY
STANDBY PCB
LVC200752-0302
TA301 MAW060001-0010 AI TACT SW SKHVBE3520
LD301 KED300052-0010 LED 2X5MM (ORANGE)
ESD3,5,6,8 RCZ005007-0021 CHIP ZENER 7.5V
13
PL-D2100A
&21752/ 3&% 723
7$ 7$
7$
7$ 7$ 7$
61
& &
7$
'
'3
;/
'
'
5
5
5
='
-:
5
5
5
5
-:
-:
5%
7$
&
5%
7$
-.
3
-3
3
5
5
5
5
5
-:
-:
-:
-:
-:
-:
-:
-:
-:
-:
-:
-:
-:
-:
-:
-:
-:
$%&'(
&1
-3
-:
/9&
67$1'%< 3&%
/'
5%
/9&
3
7$
/9&
&
3
&
&
5
& & &
&
&
5
&
,&
&
&
4
4
5
,&
4
5
5
5
5
5
&
&
&
&
5
5
3
&
&
&
&
& 3
5
&21752/ 3&% %27720
67$1'%< 3&%
/9&
5
3
3/'$
<893&% 6&$573&%
REF. NO PARTS NO. DESCRIPTION
SUBWOOFER - AMP PCB ASSY
AMP PCB ASSY
APE100092-0004
REMARKS
BD901
LVA100092-0001
BRIDGE RS402L 4A
!
C905,906 CE. 4700UF/50V
PVE039570-4720
CN901
D401-404,502, DIODE 1N4148
RAD114148-0010
CONNECTOR 3PIN
CCN396010-0103
RL501 MRL012005-0010 RELAY RPA-12V
IC401 RHI000740-0001 IC - TL074CN
RAN200945-0001
Q401-404,501, TR - 2SC945P
Q509,510,516,517
RAP200733-0001
Q506-508,515,518 TR - 2SA733Q
F901,902 KSA020400-0121 FUSE 4A 250V
SIL001003-1090
L501 RF COIL 1uH
!
RHN202235-0001
Q512 TR - 2SC2235
RHN205198-0001
Q514 TR - 2SC5198
!
AMP PCB
ZD502-504 RAZ005015-0020 DIODE ZENER 14.5-15.1
ZD501 RAZ005012-0010 DIODE ZENER 11.9-12.4V
CN401 CCN250000-0102 CONNECTOR B2B-XH-A
CN301 CCN200000-0103 CONNECTOR 3PIN
RHD204010-0011
D501,505 RAD114001-0010 DIODE RECTIFIER 1N4001
D503,504,506
Q502,504,505,
Q511 RHN200965-0001 TR - 2SA965
Q513 RHP201941-0001 TR - 2SA1941
REF. NO PARTS NO. DESCRIPTION REMARKS
SUBWOOFER - LED PCB ASSY
APE100102-0022 LED PCB ASSY
D920 KED630052-0010 LED 2X5MM BLUE/ORANGE 2PIN
LVA100102-0021 LED PCB
15
PL-D2100A
3/'$
68%:22)(5$033&%
'
68%:22)(5/('3&%
17
PL-D2100A
4 WIRING DIAGRAM
TO YUV PCB TO POWER PCB
RB1 CN1
TO POWER PCB
CN2
TO POWER PCB
CN3
TO DVD MECH. TO DVD MECH.
TO TUNER PACK
TO YUV PCB RB2
TO CONTROL PCB
RB303
TO CONTROL PCB
RB304
CN302 CN808 CN101 CN104 CN102 CN103
CN304
CN501
CN203
CN306 CN303
CN600
MAIN PCB
5 INCLUDED ACCESSORIES
REF. NO PARTS NO. DESCRIPTION
INCLUDED ACCESSORIES
REMARKS
INSTRUCTION BOOK-ENG [E, SAF]
LOOP ANT W/2P 2.5mm x 1
VTA100002-0010
VTA400003-0010 FM ANTENNA 1000mm x 1
RCA CABLE 5000MM
BATTERY (AA, R6, SUM-3) x 2
YOM100271-0Z05
FBY006315-0003
VRC101002-0030
YOM100271-0Z06 INSTRUCTION BOOK - ENG [HK, SG]
VRC101008-1020 RCA CABLE 1500MM
YOM100271-0Z07 INSTRUCTION BOOK - SPANISH/FRENCH/ITALY/GERMANY [E, SAF]
18
PL-D2100A
REMOTE CONTROL
AIR154015-3301
SPEAKER CABLE x 5
VWR333BB-0090
TEAC AUSTRALIA PTY., LTD.
A.B.N. 80 005 408 462
280 William Street, Melbourne, VIC 3000, Australia Phone:(03)9672-2400
TEAC ITALIANA S.p.A.
TEAC BELGIUM NV/SA.
Via C, Cantu 11, 20092 Cinisello Balsamo, Milano, Italy Phone:02-66010550
c/o TEAC NEDERLAND BV, Oeverkruid 15, NL-4941 W Raamsdonksveer, Nederland Phone:+31-162-510860
TEAC CORPORATION 3-7-3 Nakacho, Musashino-shi, Tokyo 180-8550, Japan Phone:(0422)52-5081
TEAC AMERICA, INC.
TEAC CANADA LTD.
TEAC MEXICO, S.A.De C.V.
TEAC UK LIMITED
TEAC DEUTSCHLAND GmbH
TEAC FRANCE S.A.
TEAC NEDERLAND BV
7733 Telegraph Road, Montebello, California 90640 Phone: (323)726-0303
5939 Wallace Street, Mississauga, Ontario L4Z 1Z8, Canada Phone: (905)-890-8008
Campesinos 184,Col. Granjas Esmeraida, 09810, Mexico Phone: (525)-581-5500
5 Marlin House, Croxley Business Park, Watford, Hertfordshire, WD18 8TE, U.K. Phone: 01923-819699
Bahnstrasse 12, 65205 Wlesbaden-Erbenheim, Germany Phone:0611-71580
17, Rue Alexis-de-Tocqueville, CE 005 92182 Antony Cedex, France Phone:(1)42.37.01.02
Oeverkruid 15,NL-4941 W Raamsdonksveer, Nederland Phone:0162-510210
PREPARED IN HONG KONG
Table of contents
Other Teac Home Theater System manuals
