Teac PL-D2100 User manual
NOTES
DVD Home Theater System
PC board shown are viewed from parts side.
The parts with no reference number or no parts number
in the exploded views are not supplied.
As regards the resistors and capacitors, refer to the
circuit diagrams contained in this manual.
Parts marked with this sign are safety critical
components. they must be replaced with identical
ensure exact replacement.
!
components - refer to the appropriate parts list and
CONTENTS
2 EXPLODED VIEW AND PARTS LIST
3 PC BOARDS AND PARTS LIST
5 INCLUDED ACCESSORIES
2
3
7
18
VIDEO
DIGITAL OUT
DOLBY
DIGITAL
4 WIRING DIAGRAM 17
1 SPECIFICATIONS
Parts of [ ] mark can be used only with the version
[E]: EUROPE. [SG]: SINGAPORE [HK]: HONG KONG
[SAF]: SOUTH AFRICA [AUS]: AUSTRALIA
designated.
DVD HOME THEATER SYSTEM PL-D2100
TUNING SELECT FUNCTION
PHONES
VOLUME / ADJUST
CD-R/CD-RE COMPATABLE
DVD/VCD/CD/MP3
[GR]: GREECE
PL-D2100
1 SPECIFICATIONS
2
Pickup :
Signal system : NTSC / PAL
Semiconductor laser, Wavelength 650 nm
Video signal horizontal resolution :
More than 55 dB (DVD)
DVD Player
More than 480 lines (DVD)
Tuning range :
Antenna terminals :
87.5 ~ 108.0 MHz (50 kHz step)
10.7 MHz
FM Tuner
System: PLL quartz-locked digital synthesizer system
Line outputs :
Video outputs
1 Vp-p 75 ohms
AV Connector : SCART x 1
S-video : Y: 1 Vp-p 75 ohms, C:0.3 Vp-p 75 ohms
300mVrms, 2.2 kilo ohms
General
Dimension (W x H x D ):
Weight:
Power requirements : 230V AC, 50 Hz (Europe model)
Power consumption : 120 W (STAND BY: less than 0.5W)
4.1 kg
430 x 348 x 48 mm
Total harmonic distortion :
Audio frequency response (at 2 CH stereo mode) :
Audio signal-to-noise ratio : More than 80 dB
Less than 0.01%
20 Hz ~ 20 kHz (+1/-3dB)
Video signal-to-noise-ratio :
75 ohms, unbalanced
Intermediate frequency :
Tuning range : 522 ~ 1620 kHz (9 kHz interval)
AM Tuner
System: PLL quartz-locked digital synthesizer system
Audio outputs
Operating temperature:
Operating humidity: 5% ~ 90%
Storage temperature:
Output Power :
Speaker unit : 16.5 cm, cone type
75 W ( 80 Hz, THD 10%)
Active Subwoofer
Dimension (W x H x D ):
Design and specifications are subject to change without notice.
Illustrations may differ slightly from production model.
Weight and dimensions are approximate.
Input Power :
Power consumption :
30 W maximun
70 W
Weight : 7.0 kg
Speakers
Speaker unit : 75 mm (Front/Surround)
Rated impedance : 8 ohms
90 x 130 x 81mm (Front/Rear)
Dimension (W x H x D ):
Weight :
Front/Center speaker cable (5 m x 3)
Surround speaker cable (10 m x 2)
Subwoofer RCA pin cord (5 m)
FM antenna x 1
AM loop antenna x 1
Remote control unit x 1
RCA video cable x 1
Batteries (AA, R6, SUM-3) x 2
200 x 300 x 321mm
200 x 77 x 81mm (Center)
CVBS Video :
Output Power (RMS, 1 kHz, 8 ohm, only one channel driven)
30W per channel
240AC, 50Hz (Australia model)
5 C ~ 35 C (40 F ~ 95 F )
-20 C ~ 55 C (-4 F ~ 131 F)
65 mm x 2 (Center)
Accessories
0.8 kg (Front)/0.6kg (Surround) /1kg (Center)
3/'
(;3/2'('9,(:
(;3/2'('9,(:$1'3$576/,67
REF. NO
EXPLODED VIEW - 1
PARTS NO. DESCRIPTION REMARKS
4
1-2
FAN021208-0002 DC FAN 12V
1-3
1-4
1-5
1-6
1-7
1-8
1-9
1-10
1-11
1-12
1-13
1-14
1-15
1-16
1-17
1-18
1-19
1-20
1-21
1-22
1-23
1-24
1-25
1-26
1-27
1-28
1-29
1-30
1-31
BPF200023-0001 FRONT PANEL
BPK208017-0001 FUNCTION KNOB
BPK208018-0001 VOLUME KNOB
POWER KNOB
BPK218018-0001
BPK228018-0001 OPEN/CLOSE KNOB
BPD200011-0001 DVD DOOR
LED LENS
BPN200026-0001
BPN200024-0001 FRONT PANEL LENS
BOTTOM CABINET
GSE200064-0001
BACK CABINET [EUR, GR, SAF]
GSE200080-0001
BPN200025-0001 DOOR LENS
DBU001005-0010 BUSHING AC LINE BUSHING
GSE200059-0002 TOP CABINET
SPACER - A=70 C=1.3-2MM
DSS100019-0001
FAN NET COVER
GSN207001-0001
!
!
!
1-1
PL-D2100
GSE200080-0002 BACK CABINET [AUS]
WVD100008-0002 DVD MECH. KDA898ST
APE200630-0004 POWER PCB ASSY
BEP221002-0001 PVC SHEET- 127.8X115.8X25MM
APE200831-0005
MAIN PCB ASSY [SAF, AUS]
APE200831-0006 MAIN PCB ASSY [HK]
APE200831-0001 MAIN PCB ASSY [E, GR]
APE200831-0002
MAIN PCB ASSY [SG]
VPE003252-0010 LINE CODE 2P - VDE [E, GR, SAF]
VPE001254-0011 LINE CODE 2P - SAA [AUS]
VPE00A25A-0010 LINE CORD 3P - ATSA [HK, SG]
BRB200006-0001 RUBBER 115.6X6.6X2MM
APE200752-0001 STANDBY PCB ASSY
APE200751-0002 CONTROL PCB ASSY
BRB000049-0002 RUBBER - 14X2MM WHITE
WTP000011-0004 TUNER PACK KST-F404HA
HOT001004-0001 SNAP RIVET 4X20 BLK
APE200832-0001 SCART PCB ASSY [E, SAF, GR, SG, AUS]
APE104210-0001 YUV PCB ASSY [HK]
HSF143084-1060 SCREW STEEL M3X6X0.5P
HST143084-1060 SCREW M3X6X0.5P
HSP140054-1080 SCREW T3X8X1.06P
GSE200081-0001 BACK CABINET [HK]
GSE200080-2001 BACK CABINET [SG]
3/'
(;3/2'('9,(:
PL-D2100
6
REF. NO
EXPLODED VIEW - 2
PARTS NO. DESCRIPTION REMARKS
MSW003019-0010 SW. PUSH P12
2-1
REF. NO PARTS NO. DESCRIPTION REMARKS
2-2
BRB100028-0002 RUBBER PAD, 50X12XT2MM
2-3
2-4
2-5
2-6
2-7
2-8
2-9
2-10
2-11
2-12
2-13
2-14
2-15
2-16
2-17
2-18
2-19
2-20
2-21
2-22
2-23
2-24
2-25
2-26
2-27
2-28
2-29
2-30
2-31
BPC000021-0001 REAR COVER
HWF11C035-6160 FIBER WASHER DIA12XID3.5XT1.6MM
HSD143103-3250 SCREW, M4X20MM BLK
SCREW, T3.5X14MM BLK
APE100092-0004 AMP PCB ASSY
BPR111001-0001 SPK TRIM
REAR PLATE
GSP000026-0017
HST140063-3081 SCREW, T3.0XL8.0XP1.06MM
NUT, M4XOD7.0XT3.0MM
HNT140700-1300
LINE CORD [E,SAF,GR]
VPE003012-0010
BPL010014-0003 LOGO PLATE
HST140054-3100 SCREW, M3X10 BLK
RUBBER PAD, D20XT3MM BLK
ICH008004-0001
SCREW, T4X25X0.7MM BLK
HSP140091-3250
!
!
!LINE CORD [AUS]
BPK106012-0003 POWER KNOB
APE100102-0011 SW PCB ASSY
BPF105018-0003 SPK, CAB
IVE100089-0002
PAPER PORT TUBE,OD65XID55XL120MM
EVM100027-0007 WOOD BOX
HST140044-3080 SCREW, T2.5XP0.91XL8.0MM
DPP016555-1201
SPONGE,OD118XID50XT5MM
FSB027565-3110 SPK DRIVER, 6.5 INCH 4OHM
HST140071-3140 SCREW, T3.5X14MM BLK
BPG001046-0001 GRILLE
IVE000095-0001 COVER SPONGE, L55XW36XT2MM
APE100089-0001 JACK SWITCH PCB ASSY
BPE00005-0002 FOOT, D25XL25
TTI123001-0040 PWR TRANSFORMER,230V [E,SAF,GR,HK,SG]
GSE000110-0004 BRACKET, TRANSFORMER
DBU001002-0011 BUSHING
BPN100040-0001 LED LENS
2-32
2-33
LINE CODE [SG, HK]
!
HST140071-3140
VPE001014-0020
VPE00A01A-0010
!TSC200002-0020 PWR TRANSFORMER,230V [AUS]
REF. NO

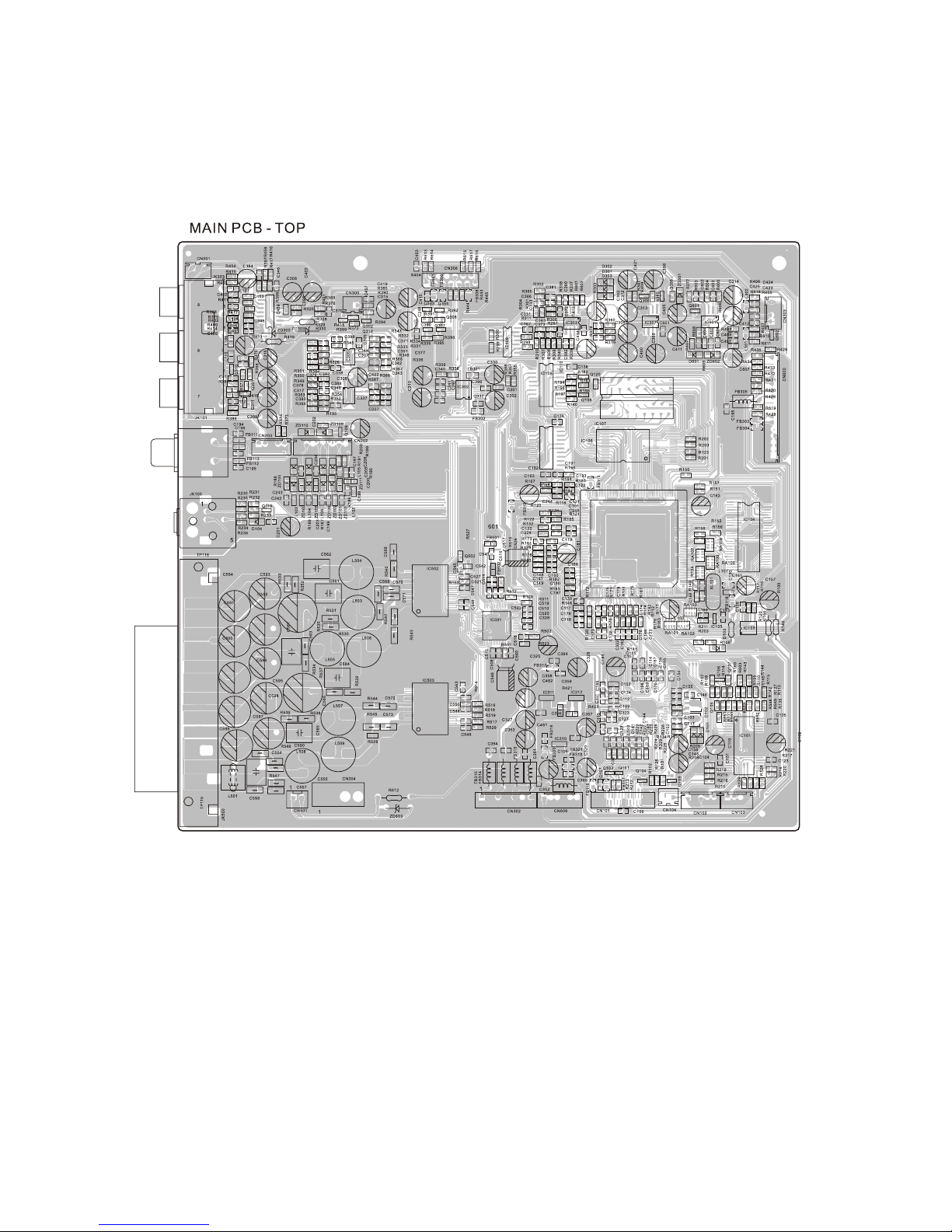

MAIN PCB ASSY
PARTS NO. DESCRIPTION
APE200831-0001 MAIN PCB ASSY [E, GR]
REMARKS
3 PC BOARDS AND PART LISTS
APE200831-0002 MAIN PCB ASSY [SAF, AUS]
APE200831-0005 MAIN PCB ASSY [SG]
APE200831-0006 MAIN PCB ASSY [HK]
LFM200831-0001 MAIN PCB
CN608 CCN200000-0103 CONNECTOR 3PIN
CN606 CCN396020-0104 CONNECTOR 4PIN
CN203,801 CCN200000-0105 CONNECTOR 5PIN
CN602 CCN250000-0108 CONNECTOR B8B-XH-A 8PIN
CN202 CCN200000-0107 CONNECTOR 7PIN
CF002 JFT165003-0020 CER.FILTER10.7MS3
CF003 JFT005001-0030 CER.FILTER 450KHZ
CN001 CCN250000-0502 CONNECTOR S2B-XH-A 2PIN
EF001 WTP000011-0004 TUNER PACK KST-F404HA-2B(EU)
CN609 CCN200000-0104 CONNECTOR 4PIN
CN802 CCH100010-2206 CONNECTOR 6PIN
FB101,102,114,115
FB600,903,904
BEAD FERIT 100 OHM
SFB001001-0030
D001-004,601-603,
D607-612,401,801,
RCD114148-0011
D901,ESD1,2,D100
C562-564 PDE039570-1020 CE.1000UF/50V
CN403 CCN200000-0102 CONNECTOR 2PIN
CN600 CCN200000-0114 CONNECTOR 14PIN
CN803 CHC050050-0824 CHIP CONNECTOR 24PIN
CN601 CCN250000-0102 CONNECTOR 2PIN B2B-XH-A
D005 RAD114148-0010 DIODE - 1N4148
D604 RAD114001-0010 DIODE - IN4001
CHIP DIODE 1N4148W
IC109 RCI400160-0001 IC - 4MX16Y3VTW
IC107 RCI024002-0002 IC - AT24C02N
IC104 RCI740157-0002 IC - SN74F157A
IC405 RCI004052-0001 IC - TC4052BFN
IC401-404,406 RCI004558-0003 IC - RC4558D
IC103,108 RCI740374-0002 IC - 74HC374
IC500-502 RCI000505-0001 IC - STA505
IC106 RCI006028-0001 IC - ES6028
IC114,810 RCI916433-0001 IC - RT9164-33CLR
IC115,605 RCI011170-0001 IC - B1117N
IC101 RCI390080-0001 IC - SST39VF080
IC110 RCI008772-0001 IC - WM8772
IC002 RCI072131-0001 IC - LC7213M
IC003 RCI072720-0002 IC - LC72720NM [E, GR]
IC102 RCI740374-0003 IC - 74F374D
IC105 RCI000809-0003 IC - IMP809SEUR-T
IC001 RCI001837-0001 IC - LA1837
CF001 JFT165003-0010 CER.FILTER LT10.7MA5
FB103,104,111-113,
FB116,121,901,902,
SCB008050-6010 CHIP BEAD 600 OHM
L514,515,801,802
!
IC603,604 RHI007805-0401 IC - BA05T
IC602 RHI007808-0001 IC - L7808
IC503 RCI000308-0001 IC - STA308
7
PL-D2100
REF. NO
MAIN PCB ASSY
PARTS NO. DESCRIPTION REMARKS
IC - SN74LVC32ANS
IC807 RCI740032-0005
IC - IC41LV16256-35T
IC804 RCI411625-0001
ZD101-108 RCZ005007-0021 CHIP ZENER 7.5V
RCZ005006-0011 CHIP ZENER 5.6V
ZD109,401,402,605
ZD602 RAZ005012-0010 DIODE ZENER 11.9-12.4V
L602,603 SCN023600-1000 CHIP INDUCTOR 10 uH
Q004,104,106,111
Q401,601,604
RCP200733-0001 TR - 2SA733 (SMT)
Q108,110,602,603,
TR - 2SC1623 (SMT)
Q402,403 RCN005783-0001 TR - CM5783GR
Q801,802 RCP005051-0001 TR - Cm5051
Q803-806 RCN003875-0001 TR - KTC3875
Q005,006,101-103,
Q105,605-607,903
RCN201623-0001
Q904 RCN000114-0001 TR - DDTC114ECA
L103-106 SCN023500-2490 CHIP INDUCTOR 2.4UH
Q002,003 RCN201009-0001 TR - 2SC1009A
JK101 CJC010004-3030 RCA+DIN JACK - RCA-125
SN601 RNT005005-1030 NTC 10K
JK500 CJS010101-0020 SPEAKER JACK 10PIN
IC - SN74HC14NS
IC - LM358MX
L508-510,512,513 SIL102001-2000 CHOKE COIL 20uH 4PIN
JK401 CJR006301-0040 RCA JACK 6PIN
T002 SIL013009-0011 ANT OSC COIL
T001 SIL013012-0010 OSC FM COIL
T008 SIF010001-0040 AM IFT 455KHZ
T003 SIL013010-0012 OSC COIL 108UH
T007 SIF020001-0050 FM IFT 10.7MHZ
T004 SIL016001-0010 BIAS COIL 78KHZ
T005,006 SIL016001-0020 BIAS COIL 16KHZ
JK001 CJA003002-2010 RF JACK
L500,501,504-507,
L516-519
SIN002002-3000 INDUCTOR 30uH
L002 SIL106003-3930 COIL 39MH
Q001 RAM200192-1001 TR - 2SK192A
L001,003,007 SAN001600-1000 CHOKE 10uH
RA117,118 QCP015081-4720 RES. ARRAY 4X4.7K
RA104-106,801-803 QCP015081-1000 CHIP ARRAY 10 OHM
RA101,102 QCP015081-3300 RES. ARRAY 4X33 OHM
IC808 RCI740014-0006
IC809 RCI003580-0001
R608 QFN105000-5610 RES. 560 OHM 1W
TC001 MVC001001-0010 COND TRIMMER 3-10PF
JK105 CJT100001-0002 TDSK JACK DLT1111
XL101 JQC158100-2760 CRYSTAL 27MHZ
XL801 JQC012000-1661 CRYSTAL 16.9344MHZ
VD001,002 RHV100149-0001 DIODE - ISV149B
XL001 JQC112100-4550 CRYSTAL 4.50MMHZ
XL002 JQC013102-4351 CRYSTAL 4.332MHZ
TC002 MVC001002-0010 COND TRIMMER 4.2-20PF
IC - LA9703W
IC - LA6560
IC802 RCI009703-0001
IC801 RCI006560-0001
IC - LC78663NRW
IC803 RCI078663-0001
IC608 RCI002259-0001 IC - PT2259
IC609 RCI005228-0001 IC - TP5228
!
PL-D2100
8
3/'
3/'

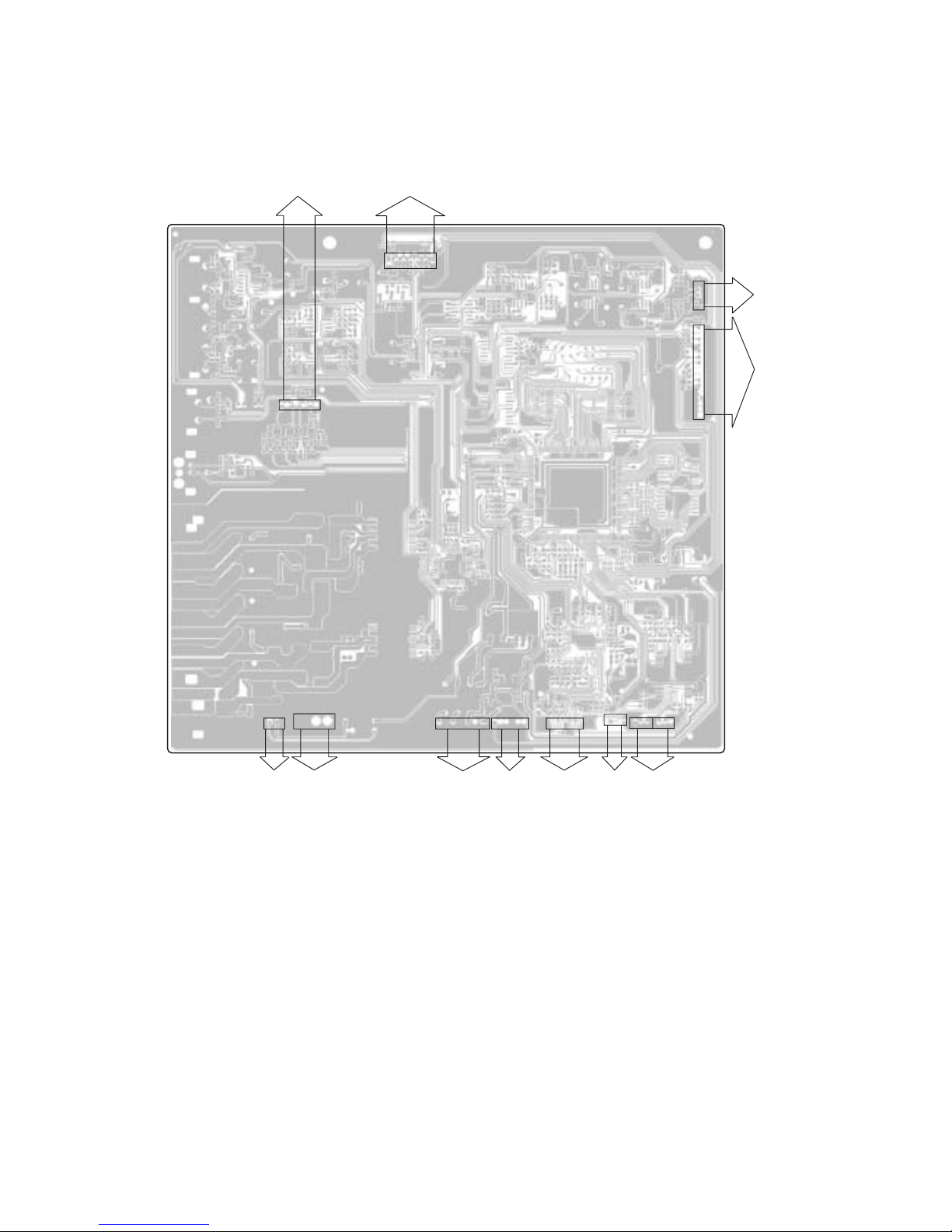

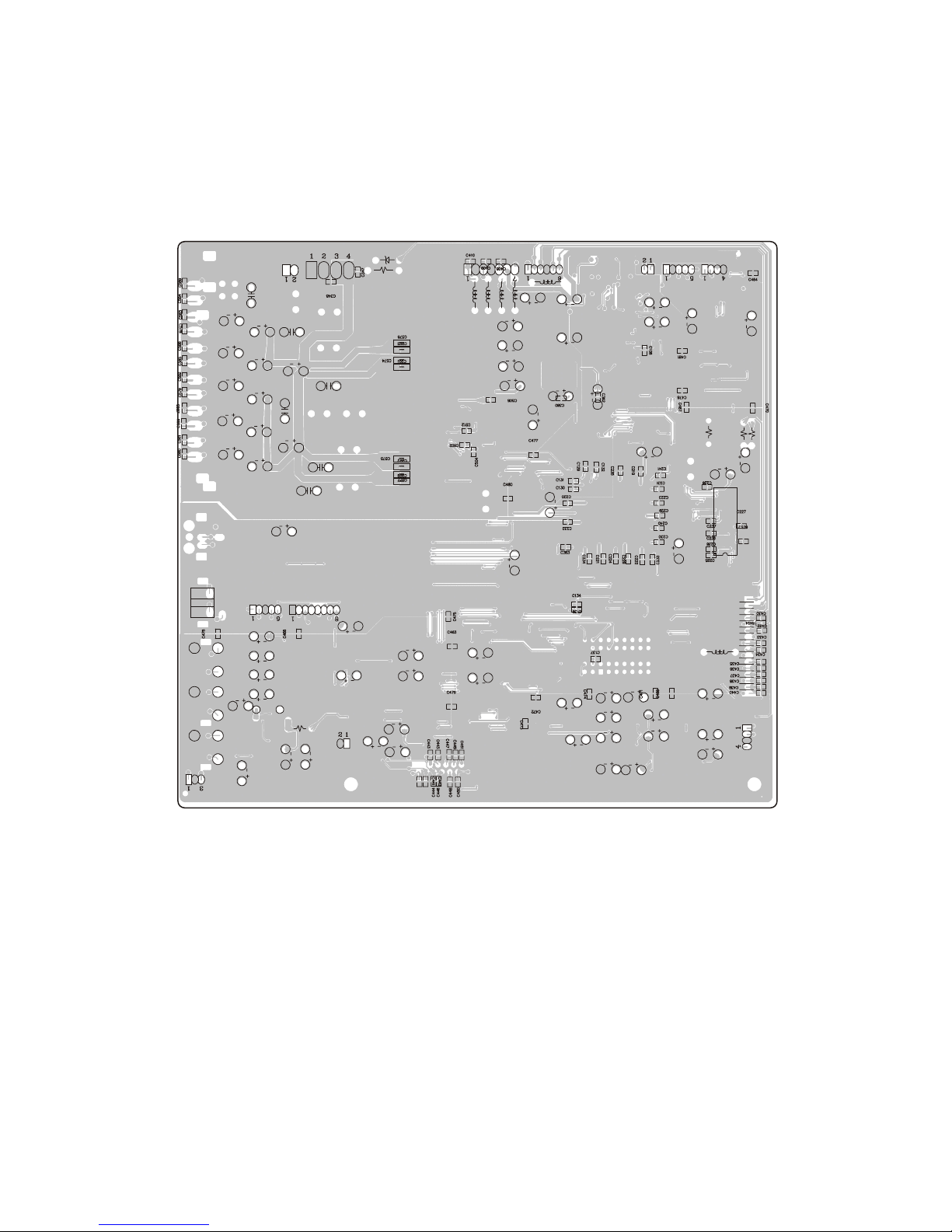

0$,13&%%27720
REF. NO
CONTROL PCB ASSY - TOP
PARTS NO. DESCRIPTION
CONTROL PCB ASSY
CONTROL PCB
DP301 KLV000016-0020 VFD VA84X9PA
TA302-TA310
DIODE - IN4148
RAD114148-0010
D301-D303
ZD301 DIODE ZENER 6.0V-6.3V
RAZ005006-0030
REMARKS
TACT SW SKHVBE3520
MAW060001-0010
XL301 JRN140001-0010 RESONATOP 2PIN 455KHZ
LVC200751-0301
SN301 RHO200038-0001 IRT SENSOR B38F
JK301 CJM135006-1011 PHONE JACK D3.5MM
APE200751-0002
IC301 IC - VDTR6311A
RCI006311-0002
IC302 RCI000809-0003 IC - IMP809SEUR-T
Q302,303 TR - CM5051
RCP005051-0001
Q301 TR - 2SC1623 (SMT)
RCN201623-0001
REF. NO PARTS NO. DESCRIPTION REMARKS
CONTROL PCB ASSY - BOTTOM
REF. NO PARTS NO. DESCRIPTION
YUV PCB ASSY [HK]
REMARKS
YUV PCB
YUV PCB ASSY
APE104210-0001
FB1-FB3
JK1
JK2
SCB008050-6010 CHIP BEAD 600 OHM
CJR003301-0020 RCA JACK 3PIN
LFA104210-1001
CJR001101-0021 RCA JACK 1PIN
SCART PCB ASSY [ E, GREECE, SAF, AUS, SG]
SCART PCB
SCART PCB ASSY
APE200832-0001
FB105-110,117-120
LFM200832-0001
SBC008050-6010 CHIP BEAD 600 OHM
JK102 CSS021001-1030 SCART SOCK 21PIN
JK106 CJR001101-0021 RCA JACK 1PIN
REF. NO PARTS NO. DESCRIPTION REMARKS
REF. NO PARTS NO. DESCRIPTION REMARKS
STANDBY PCB ASSY
APE200752-0001 STANDBY PCB ASSY
STANDBY PCB
LVC200752-0302
TA301 MAW060001-0010 AI TACT SW SKHVBE3520
LD301 KED300052-0010 LED 2X5MM (ORANGE)
11
PL-D2100
&21752/ 3&% 723
7$ 7$
7$
7$ 7$ 7$
61
& &
7$
'
'3
;/
'
'
5
5
5
='
-:
5
5
5
5
-:
-:
5%
7$
&
5%
7$
-.
3
-3
3
5
5
5
5
5
-:
-:
-:
-:
-:
-:
-:
-:
-:
-:
-:
-:
-:
-:
-:
-:
-:
$%&'(
&1
-3
-:
/9&
67$1'%< 3&%
/'
5%
/9&
3
7$
/9&
&
3
&
&
5
& & &
&
&
5
&
,&
&
&
4
4
5
,&
4
5
5
5
5
5
&
&
&
&
5
5
3
&
&
&
&
& 3
5
&21752/ 3&% %27720
67$1'%< 3&%
/9&
5
3
<893&%
5%
5%
5%
-.
6&$573&%
3/'
REF. NO PARTS NO. DESCRIPTION
POWER PCB ASSY
POWER PCB ASSY
APE20063-0004
REMARKS
BR901
LVP200630-0002
BRIDGE KBU808
!
!
C903,904 CE 220UF/200V
PJE0995E0-2210
C901,902 COND SAFETY 0.22UF
PVX2705G0-2240
C905,906,909,924, COND SAFTY 0.0022UF
PVY1705F0-2222
C956,963,964,968
RES, 68K 2W
C929,931
D901
D907
D902
D911-D914
F901 KSA020315-0120 FUSE 3.15A/250V
DIODE 1N4148
RAD114148-0010
DIODE 1N4007
RAD114007-0010
DIODE BYV26D
RAD100026-0010
DIODE HER204
RAD100204-0010
D906
D908 RAD100104-0010
RAD115822-0010 DIODE 1N5822
DIODE HER104
C932,939,940 PME039540-1020 CE 1000UF/16V
C947,948,952 CE 1000UF/50V
PVE039570-1020
CE 1000UF/25V
PVE039550-1020
IC903 RHI000249-0001 IC - TOP249
IC904 RHI004310-0001 IC - TL431
RAN202222-0001
Q903 TR - PN2222A
Q904 RHN000122-0001 TR - TIP122
RAN202001-0001
Q913 TR - 2SC2001L
D905 RHD208020-0010 BRIDGE MUR1620CT
SIL106001-6090
L901 INDUCTOR 6uH 10.5TS
SIL106002-6090
L903 INDUCTOR 6uH 13.5TS
!
!
!
!
!
!
!
!
T901 JFT201001-0010 LINE FILTER ET24
MRL005001-0010
RL901 RELAY GJ-SH-105DM
SN901,SN1 RHO615003-3001 OPT SENSOR SFH615A-3
ZD902 DIODE ZENER 5.6-5.9V
RAZ005006-0020
ZD901 DIODE P6KE200A
RAD160200-0010
ZD903 DIODE ZENER 6.9-7.2V
RAZ005007-0020
T903 TSC200002-0020 PWR TRANS. EE-42/42
!
!
RNT005130-5090
RT901 NTC- 5 OHM
!
!
!
!
!
!
POWER PCB
ZD904 RAZ005004-0020 DIODE ZENER 3.8-4.0V
D916 RAD100103-0020 DIODE FR103
ZD1,2 RAZ005015-0020 DIODE ZENER 14.5-15.1V
ZD907 RAZ005024-0020 DIODE ZENER 23.6-24.7V
D915 RAD114007-0020 DIODE UF4007
CN902 CCN396021-0104 CONNECTOR 4PIN
RHD208100-0010
IC905 RHI001050-0001 IC - NCP1050DIP
L904 SIL206001-1000 COIL 10uH
ZD6 RAD160200-0010 DIODE P6KE200A
ZD5 RAZ005005-0030 DIODE ZENER 5.0-5.2V
D904 RAD114001-0010 DIODE RECTIFIER 1N4001
L902 SIL006015-6090 CHOKE COIL 6uH
T904 TSC200001-0010 PWR TRANS.EE16/14
R905,906 QGN205000-6830
!
!
!
!
!
!
13
PL-D2100
PL-D2100
POWER PCB
R953
F901
CN902
T3.15A L 250V
JW1 WARNING:
LV200630-0001
FOR CONTINUED PROTECTION AGAINST RISK
FIRE REPLACE WITH SAME TYPE
C903
C907
ZD901
R906
D901
R905
CN907
BR901
R903
R901
R902
P902
RT901
C905
C908
C906
T903
IC903
D902
C968
C910
C912
R908
SN901
C913
R921
C919
R907
JW902
C911
C1
R920
ZD907
C920
JW910
C972
R923
R926
ZD3
R925
ZD4 C953
C926
R923
JW909
R919
IC904
ZD902
R949
R924
C929
C971
D909
D910
D908
Q903
C960
R922
C938
L902
C941
L903
C931
JW906
JW908
R945
R952
C932
ZD1
ZD2
Q904
RB906
C930
C925
JW907 C939
C952
C951
C933
C940
ZD903
RB904
R932
L901
RB905
C948
C945
C950
C949
D905
R931
C947
C970
C965
C966
C967
D907
D906
C964
C963
C909
C904
R904
C914
R951
R942
RL901
P1
D904
D916
R944
C937
Q909
Q913
ZD904
SN1
R933
R934
JW905
C936
L904 C962
C924
IC905
T904
RF901
C928
D911
D914
R930
C935
D915
C934
D912
D913
C902
P2
T901
P901
C901
JW2
TP17
ATTENTION : THERE IS A HI-POTAREA
14
REF. NO PARTS NO. DESCRIPTION
SUBWOOFER - AMP PCB ASSY
AMP PCB ASSY
APE100092-0004
REMARKS
BD901
LVA100092-0001
BRIDGE RS402L 4A
!
C905,906 CE. 4700UF/50V
PVE039570-4720
CN901
D401-404,502, DIODE 1N4148
RAD114148-0010
CONNECTOR 3PIN
CCN396010-0103
RL501 MRL012005-0010 RELAY RPA-12V
IC401 RHI000740-0001 IC - TL074CN
RAN200945-0001
Q401-404,501, TR - 2SC945P
Q509,510,516,517
RAP200733-0001
Q506-508,515,518 TR - 2SA733Q
F901,902 KSA020400-0121 FUSE 4A 250V
SIL001003-1090
L501 RF COIL 1uH
!
RHN202235-0001
Q512 TR - 2SC2235
RHN205198-0001
Q514 TR - 2SC5198
!
AMP PCB
ZD502-504 RAZ005015-0020 DIODE ZENER 14.5-15.1
ZD501 RAZ005012-0010 DIODE ZENER 11.9-12.4V
CN401 CCN250000-0102 CONNECTOR B2B-XH-A
CN301 CCN200000-0103 CONNECTOR 3PIN
RHD204010-0011
D501,505 RAD114001-0010 DIODE RECTIFIER 1N4001
15
PL-D2100
D503,504,506
Q502,504,505,
Q511 RHN200965-0001 TR - 2SA965
Q513 RHP201941-0001 TR - 2SA1941
REF. NO PARTS NO. DESCRIPTION REMARKS
SUBWOOFER - LED PCB ASSY
APE100102-0022 LED PCB ASSY
D920 KED630052-0010 LED 2X5MM BLUE/ORANGE 2PIN
LVA100102-0021 LED PCB
3/'
68%:22)(5$033&%
'
68%:22)(5/('3&%
17
PL-D2100
4 WIRING DIAGRAM
TO YUV PCB TO POWER PCB
RB1 CN1
TO POWER PCB
CN2
TO POWER PCB
CN3
TO DVD MECH. TO DVD MECH.
TO TUNER PACK
TO YUV PCB RB2
TO CONTROL PCB
RB303
TO CONTROL PCB
RB304
CN302 CN808 CN101 CN104 CN102 CN103
CN304
CN501
CN203
CN306 CN303
CN600
MAIN PCB
5 INCLUDED ACCESSORIES
REF. NO PARTS NO. DESCRIPTION
INCLUDED ACCESSORIES
REMARKS
INSTRUCTION BOOK-ENG [E, GR,SAF,AUS,SG]
LOOP ANT W/2P 2.5mm x 1
VTA400002-0010
VTA400003-0010 FM ANTENNA 1000mm x 1
RCA CABLE 5000MM
BATTERY (AA, R6, SUM-3) x 2
YOM200008-0001
FBY006315-0003
VRC101002-0030
YOM200008-0005 INSTRUCTION BOOK - GREEK [GR]
VRC101008-1020 RCA CABLE 1500MM
YOM200008-0002 INSTRUCTION BOOK - SPANISH/FRENCH/ITALIAN/GE [E, GR]
YOM200008-0007 INSTRUCTION BOOK - ENG [HK]
PL-D2100
18
SPEAKER CABLE X5
REMOTE CONTROL
AIR-154015-3301
VWR333BB-0090
TEAC AUSTRALIA PTY., LTD.
A.B.N. 80 005 408 462
280 William Street, Melbourne, VIC 3000, Australia Phone:(03)9672-2400
TEAC ITALIANA S.p.A.
TEAC BELGIUM NV/SA.
Via C, Cantu 11, 20092 Cinisello Balsamo, Milano, Italy Phone:02-66010550
c/o TEAC NEDERLAND BV, Oeverkruid 15, NL-4941 W Raamsdonksveer, Nederland Phone:+31-162-510860
TEAC CORPORATION 3-7-3 Nakacho, Musashino-shi, Tokyo 180-8550, Japan Phone:(0422)52-5081
TEAC AMERICA, INC.
TEAC CANADA LTD.
TEAC MEXICO, S.A.De C.V.
TEAC UK LIMITED
TEAC DEUTSCHLAND GmbH
TEAC FRANCE S.A.
TEAC NEDERLAND BV
7733 Telegraph Road, Montebello, California 90640 Phone: (323)726-0303
5939 Wallace Street, Mississauga, Ontario L4Z 1Z8, Canada Phone: (905)-890-8008
Campesinos 184,Col. Granjas Esmeraida, 09810, Mexico Phone: (525)-581-5500
5 Marlin House, Croxley Business Park, Watford, Hertfordshire, WD18 8TE, U.K. Phone: 01923-819699
Bahnstrasse 12, 65205 Wlesbaden-Erbenheim, Germany Phone:0611-71580
17, Rue Alexis-de-Tocqueville, CE 005 92182 Antony Cedex, France Phone:(1)42.37.01.02
Oeverkruid 15,NL-4941 W Raamsdonksveer, Nederland Phone:0162-510210
PREPARED IN HONG KONG
DVD HOME THEATER SYSTEM
PL-D2100
MAIN PCB - TUNER
Other manuals for PL-D2100
2
Table of contents
Other Teac Home Theater System manuals
