Teac AG-620 User manual
TEAC.
=
AM/FM
Stereo
Receiver
OWNER’S
MANUAL................
2
MANUEL
DU
PROPRIETAIRE
.......
22
Thanks
for
buying
a
TEAC.
Read
this
manual
carefully
to
get
the
best
performance
from
this
unit.
Nous
vous
remercions
pour
|’achat
d’un
appareil
TEAC.
Lire
ce
manuel
avec
attention
pour
obtenir
les
meilleures
performances
possibles
de
cet
appareil.
(CAUTION
— |
CAUTION:
TO
REDUCE
THE
RISK
OF
ELECTRIC
SHOCK,
DO
NOT
REMOVE
COVER
Aga
om
4
(OR
BACK).
NO
USER-SERVICEABLE
PARTS
INSIDE.
REFER
SERVICING
TO
QUALIFIED
SERVICE
PERSONNEL
The
lightning
flash
with
arrowhead
symbol,
within
an
equilateral
triangle,
is
intended
to
alert
the
user
A
to
the
presence
of
uninsulated
“dangerous
voltage”
within
the
product's
enclosure
that
may
be
of
sufficient
magnitude
to
constitute
a
risk
of
electric
shock
to
persons.
The
exclamation
point
within
an
equilateral
triangle
is
intended
to
alert
the
user
to
the
presence
of
A
important
operating
and
maintenance
(servicing)
instructions
in
the
literature
accompanying
the
appliance.
U0
a
ped
est
et
thn
WARNING:
TO
PREVENT
FIRE
OR
SHOCK
i—_
HAZARD,
DO
NOT
EXPOSE
THIS
Sel
tuner
APPLIANCE
TO
RAIN
OR
MOISTURE.
0892U:M-0731A

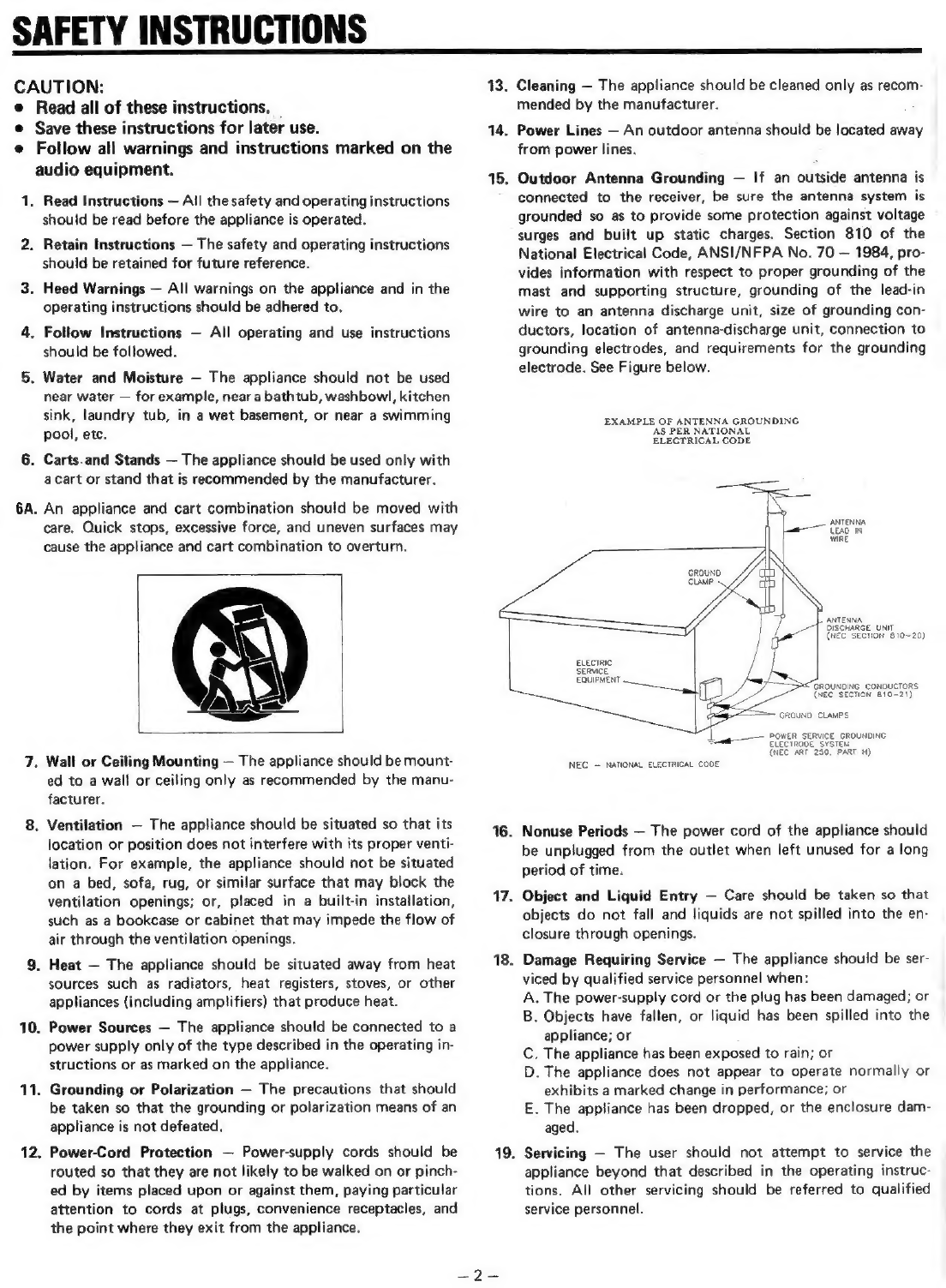

SAFETY
INSTRUCTIONS
CAUTION:
13.
e
Read
all
of
these
instructions.
e
Save
these
instructions
for
later
use.
14.
e
Follow
all
warnings
and
instructions
marked
on
the
audio
equipment.
15
1.
Read
Instructions
—
All
the
safety
and
operating
instructions
should
be
read
before
the
appliance
is
operated.
2.
Retain
Instructions
—
The
safety
and
operating
instructions
should
be
retained
for
future
reference.
3.
Heed
Warnings
—
All
warnings
on
the
appliance
and
in
the
operating
instructions
should
be
adhered
to.
4.
Follow
Instructions
—
All
operating
and
use
instructions
should
be
followed.
5.
Water
and
Moisture
—
The
appliance
should
not
be
used
near
water
—
for
example,
near
a
bathtub,
washbow/l,
kitchen
sink,
laundry
tub,
in
a
wet
basement,
or
near
a
swimming
pool,
etc.
6.
Carts.and
Stands
—
The
appliance
should
be
used
only
with
a
cart
or
stand
that
is
recommended
by
the
manufacturer.
6A.
An
appliance
and
cart
combination
should
be
moved
with
care.
Quick
stops,
excessive
force,
and
uneven
surfaces
may
cause
the
appliance
and
cart
combination
to
overturn.
7.
Wall
or
Ceiling
Mounting
—
The
appliance
should
be
mount-
ed
to
a
wall
or
ceiling
only
as
recommended
by
the
manu-
facturer.
8.
Ventilation
—
The
appliance
should
be
situated
so
that
its
location
or
position
does
not
interfere
with
its
proper
venti-
lation.
For
example,
the
appliance
should
not
be
situated
on
a
bed,
sofa,
rug,
or
similar
surface
that
may
block
the
ventilation
openings;
or,
placed
in
a
built-in
installation,
17.
such
as
a
bookcase
or
cabinet
that
may
impede
the
flow
of
air
through
the
ventilation
openings.
16.
9.
Heat
—
The
appliance
should
be
situated
away
from
heat
18.
sources
such
as
radiators,
heat
registers,
stoves,
or
other
appliances
(including
amplifiers)
that
produce
heat.
10.
Power
Sources
—
The
appliance
should
be
connected
to
a
power
supply
only
of
the
type
described
in
the
operating
in-
structions
or
as
marked
on
the
appliance.
11.
Grounding
or
Polarization
—
The
precautions
that
should
be
taken
so
that
the
grounding
or
polarization
means
of
an
appliance
is
not
defeated.
12.
Power-Cord
Protection
—
Power-supply
cords
should
be
19.
routed
so
that
they
are
not
likely
to
be
walked
on
or
pinch-
ed
by
items
placed
upon
or
against
them,
paying
particular
attention
to
cords
at
plugs,
convenience
receptacles,
and
the
point
where
they
exit
from
the
appliance.
Cleaning
—
The
appliance
should
be
cleaned
only
as
recom-
mended
by
the
manufacturer.
Power
Lines
—
An
outdoor
antenna
should
be
located
away
from
power
lines.
Outdoor Antenna
Grounding
—
If
an
outside
antenna
is
connected
to
the
receiver,
be
sure
the
antenna
system
is
grounded
so
as
to
provide
some
protection
against
voltage
surges
and
built
up
static
charges.
Section
810
of
the
National
Electrical
Code,
ANSI/NFPA
No.
70
—
1984,
pro-
vides
information
with
respect
to
proper
grounding
of
the
mast
and
supporting
structure,
grounding
of
the
lead-in
wire
to
an
antenna
discharge
unit,
size
of
grounding
con-
ductors,
location
of
antenna-discharge
unit,
connection
to
grounding
electrodes,
and
requirements
for the
grounding
electrode.
See
Figure
below.
EXAMPLE
OF
ANTENNA
GROUNDING
AS
PER
NATIONAL
ELECTRICAL
CODE
ANTENNA
[———
LEAD
IN
WIRE
|
ANTENNA,
_-7|
DISCHARGE
UNIT
(NEC
SECTION
810~20)
ELECTRIC
SERVICE
EQUIPMENT
GROUNDING
CONDUCTORS
(NEC
SECTION
810-21)
—
GROUND
CLAMPS
—
POWER
SERVICE
GROUNDING
ELECTRODE
SYSTEM
(NEC
ART
250,
PART
H)
NEC
-
NATIONAL
ELECTRICAL
CODE
Nonuse
Periods
—
The
power
cord
of
the
appliance
should
be
unplugged
from
the
outlet
when
left
unused
for
a
long
period
of
time.
Object
and
Liquid
Entry
—
Care
should
be
taken
so
that
objects
do
not
fall
and
liquids
are
not
spilled
into
the
en-
closure
through
openings.
Damage
Requiring
Service
—
The
appliance
should
be
ser-
viced
by
qualified
service
personnel
when:
A.
The
power-supply
cord
or
the
plug
has
been
damaged;
or
B.
Objects
have
fallen,
or
liquid
has
been
spilled
into
the
appliance;
or
C.
The
appliance
has
been
exposed
to
rain;
or
D.
The
appliance
does
not
appear
to
operate
normally
or
exhibits
a
marked
change
in
performance;
or
E.
The
appliance
has
been
dropped,
or
the
enclosure
dam-
aged.
Servicing
—
The
user
should
not
attempt
to
service
the
appliance
beyond
that
described
in
the
operating
instruc-
tions.
All
other
servicing
should
be
referred
to
qualified
service
personnel.
PRECAUTIONS
Placement
of
the
Unit
As
the
unit
incorporates
a
powerful
amplifier,
heat
is
radiated
from
the
back
and
top
of
the
unit;
the
location
where
the
unit
is
installed
should
be
well
ventilated.
Avoid
installing
where
it
would
be
exposed
to
high
temperatures,
direct
sunlight,
high
humidity
and
dust.
If
the
wiring
is
too
long,
particularly
the
speaker
cables,
it
may
result
in
degraded
sound.
Keep
the
connection
cables
as
short
as
possible.
The
receiver
draws
nominal
non-operating
power
from
the
AC
outlet
with
its
POWER
switch
in
the
STANDBY
position.
Obs!
natstrémstallaren
skiljer
ej
hela
apparaten
fran
natet.
;-For
CANADA
AC
POWER
CORD
CONNECTION
CAUTION:
TO
PREVENT
ELECTRIC
SHOCK,
MATCH
WIDE
BLADE
OF
PLUG
TO
WIDE
SLOT,
FULLY
INSERT.
--For
CANADA:
THIS
DIGITAL
APPARATUS
DOES
NOT
EXCEED
THE
CLASS
B
LIMITS
FOR
RADIO
NOISE
EMISSIONS
FROM
DIGITAL
APPARATUS
AS
SET
OUT
IN
THE
RADIO
INTERFERENCE
REGULATIONS
OF
THE
CANADIAN
DEPART-
MENT
OF
COMMUNICATIONS.
(For
U.S.A
TO
THE
USER
This
equipment
has
been
tested
and
found
to
comply
with
the
limits
for
a
Class
B
digital
device,
pursuant
to
Part
15
of
the
FCC
Rules.
These
limits
are
designed
to
provide
reasonable
protection
against
interference
in
a
residential
area.
This
device
generates
and
uses
radio
frequency
energy
and
if
not
installed
and
used
in
accordance
with
the
instructions,
it
may
cause
interference
to
radio
or
TV
reception.
If
this
unit
does
cause
interference
with
TV
or
radio
reception
you
can
try
to
correct
the
interference
by
one
or
more
of
the
following
measures:
a)
Reorient
or
relocate
the
receiving
antenna.
b)
Increase
the
separation
between
the
equipment
and
the
receiver.
c)
Plug
the
equipment
into
a
different
outlet
so
that
it
is
not
on
the
same
circuit
as
the
receiver.
If
necessary,
consult
the
dealer
or
an
experienced
radio/TV
technician
for
additional
suggestions.
CAUTION
Changes
or
modifications
to
this
equipment
not
expressly
approved
by
TEAC
CORPORATION
for
compliance
could
void
the
user's
authority
to
operate
this
equipment.
--For
the
United
Kingdom
IMPORTANT
The
wires
in
this
mains
lead
are
coloured
in
accordance
with
the
following
code:
BLUE:
NEUTRAL
BROWN:
LIVE
As
the
colours
of
the
wires
in
the
mains
lead
of
this
apparatus
may
not
correspond
with
the
coloured
markings
identifying
the
terminals
in
your
plug,
proceed
as
follows:
The
wire
which
is
coloured
BLUE
must
be
connected
to
the
terminal
which
is
marked
with
the
letter
N
or
coloured
BLACK.
The
wire
which
is
coloured
BROWN
must
be
connected
to
the
terminal
which
is
marked
with
the
letter
L
or
coloured
RED.
In
the
U.K.,
this
unit
is
sold
without
an
AC
plug.
THE
APPLIANCE
CONFORMS
WITH
EEC
DIRECTIVE
87/308/EEC
REGARDING
INTERFERENCE
SUPPRESSION.
CONFORME
AL
D.M.
13
APRILE
1989
DIRETTIVA
CEE/87/308.

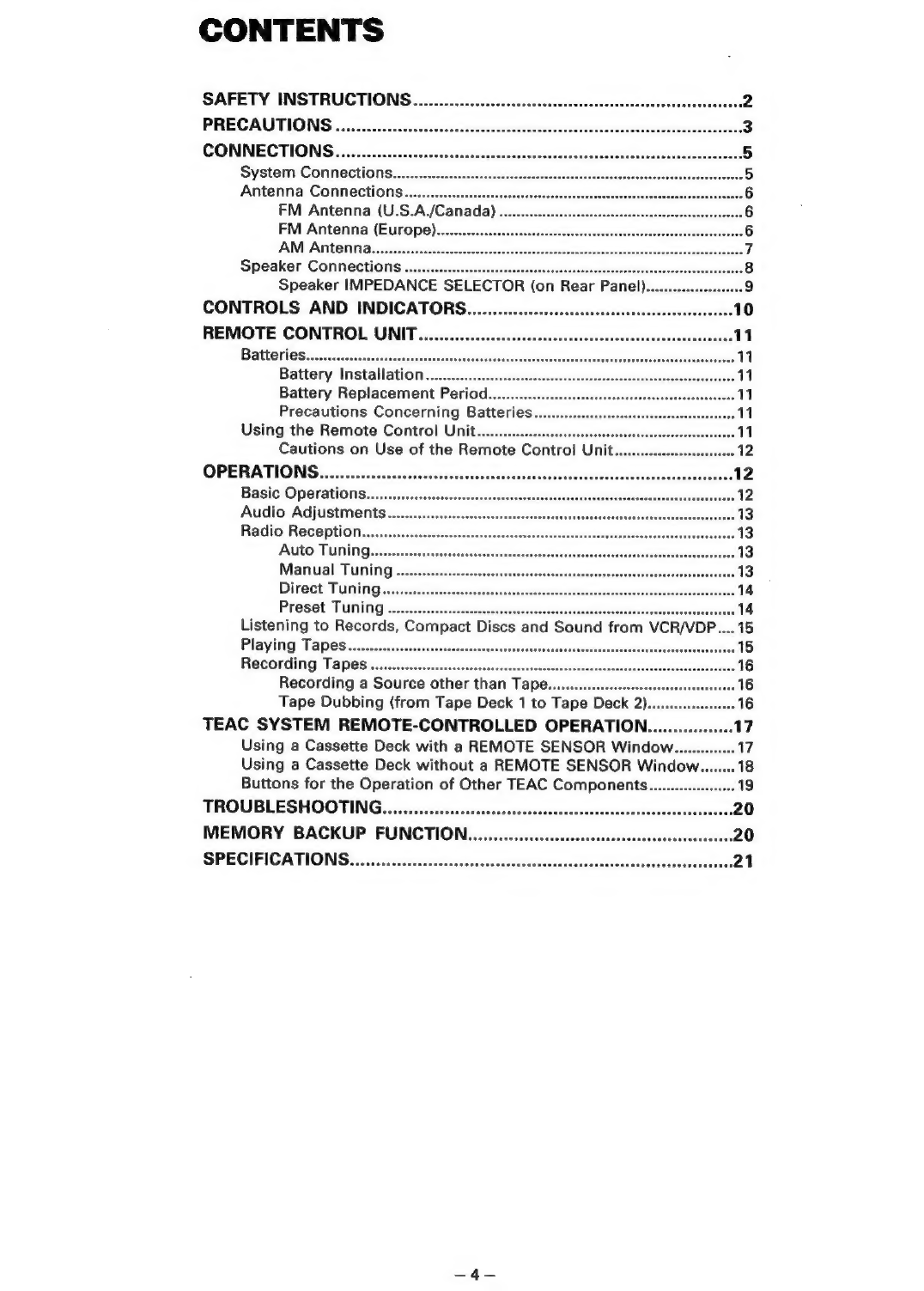

CONTENTS
SAFETY
INSTRUCTIONS.
PRECAUTIONS
CONNECTIONS
System
Connections..
Antenna
Connections
FM
Antenna
(U.S.A./Canada)
.
FM
Antenna
(Europe)..
AM
Antenna...

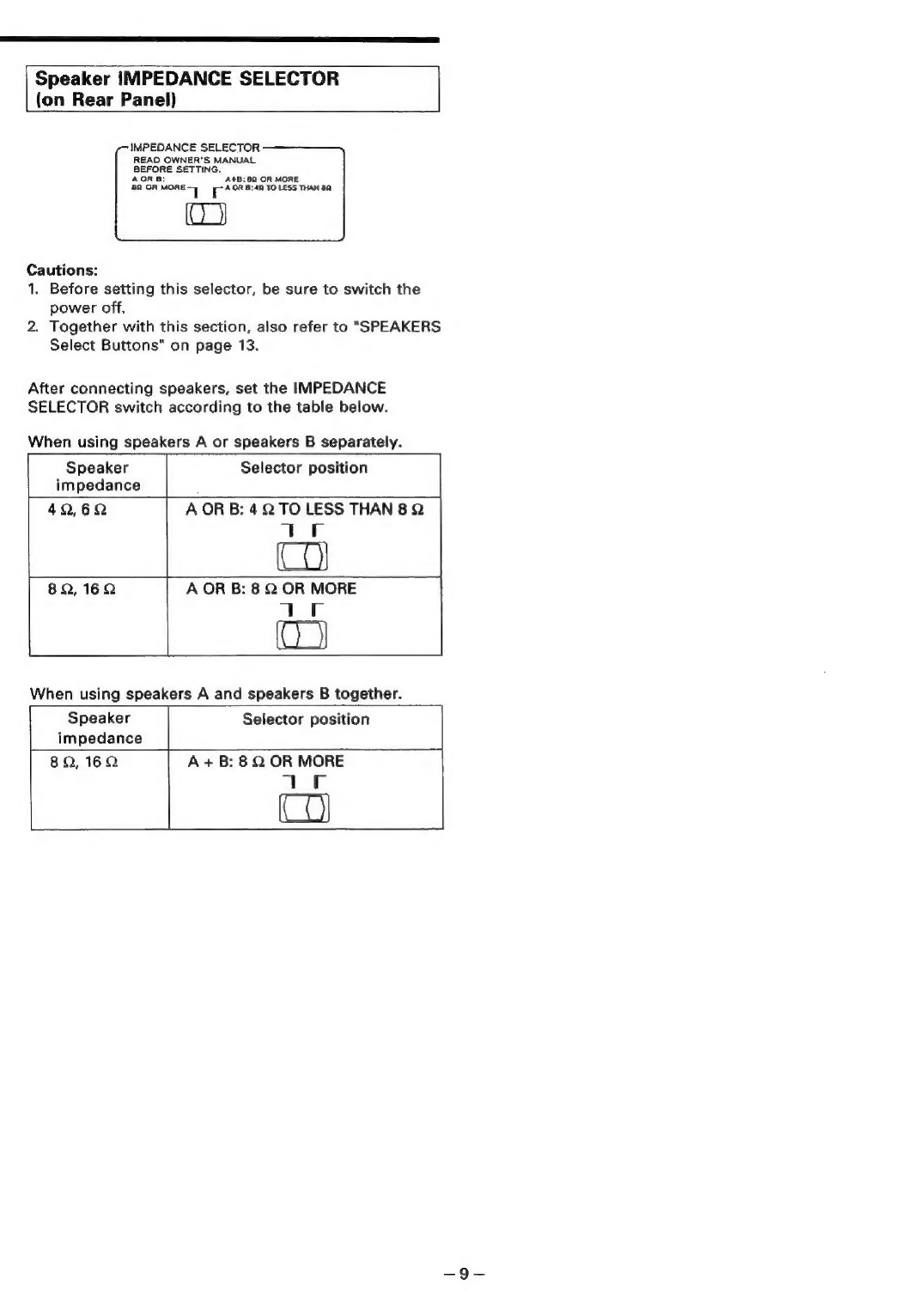

Speaker
Connections
Speaker
IMPEDANCE
SELECTOR
(on
Rear
Panel)...
CONTROLS
AND
INDICATORS..
REMOTE
CONTROL
UNIT
Batteries........sssscscssssesseseses
Battery
Installation.
Battery
Replacement
Period.
Precautions
Concerning
Batteries
Using
the
Remote
Control
Unit.............
Cautions
on
Use
of
the
Remote
Control
Unit..
OPERATIONS
Basic
Operations.
Audio
Adjustments
Radio
Reception..
Auto
Tuning.
Manual
Tuning.
Direct
Tuning.
Preset
Tuning...
fy
Listening
to
Records,
Compact
Discs
and
Sound
from
VCR/VDP....
Playing
Tapes
Recording
Tapes...
Recording
a
Source
other
than
Tape
Tape
Dubbing
(from
Tape
Deck
1
to
Tape
Deck
2).

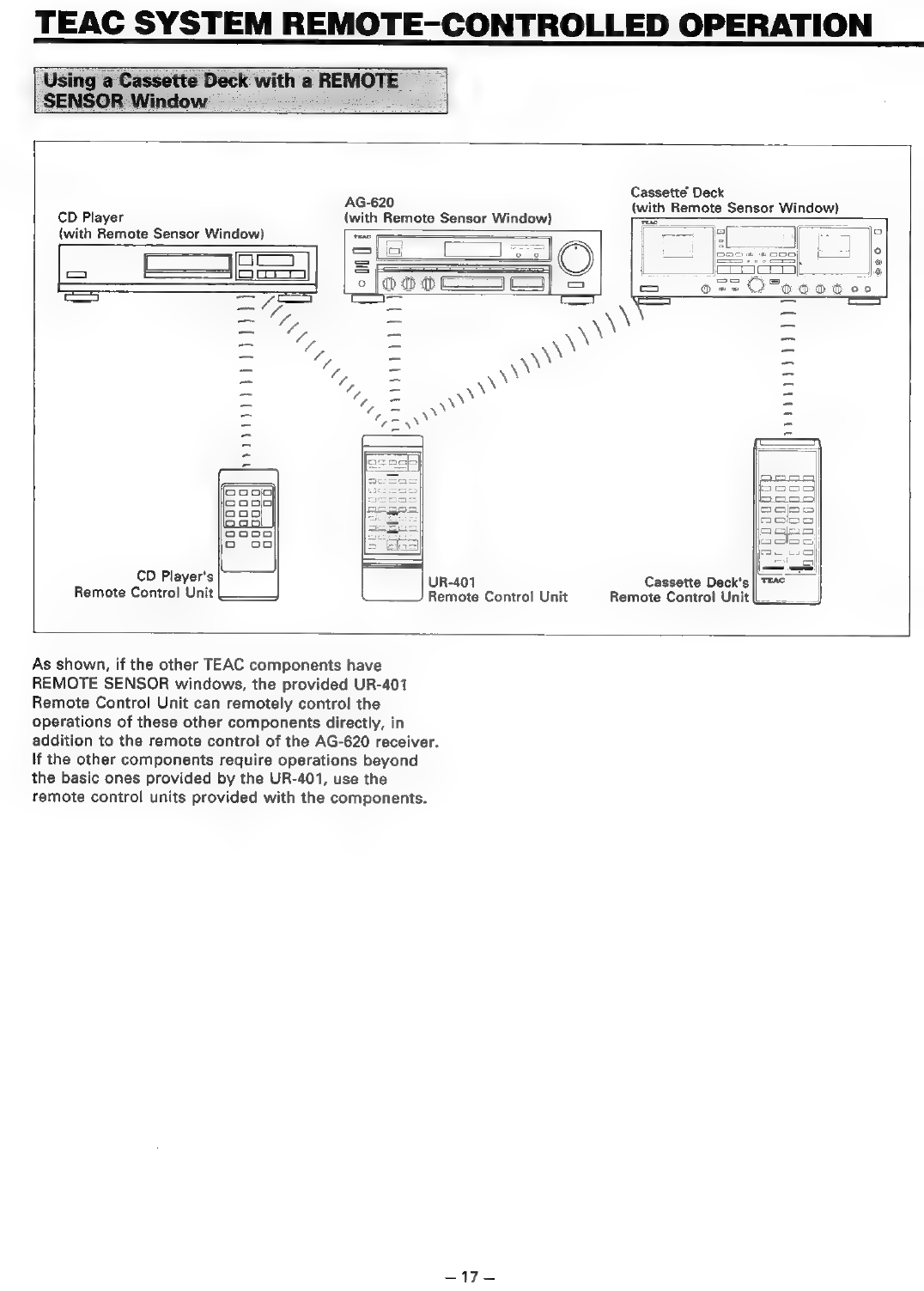

TEAC
SYSTEM
REMOTE-CONTROLLED
OPERATION
Using
a
Cassette
Deck
with
a
REMOTE
SENSOR
Window...
Using
a
Cassette
Deck
without
a
REMOTE
SENSOR
Window
Buttons
for
the
Operation
of
Other
TEAC
Components.

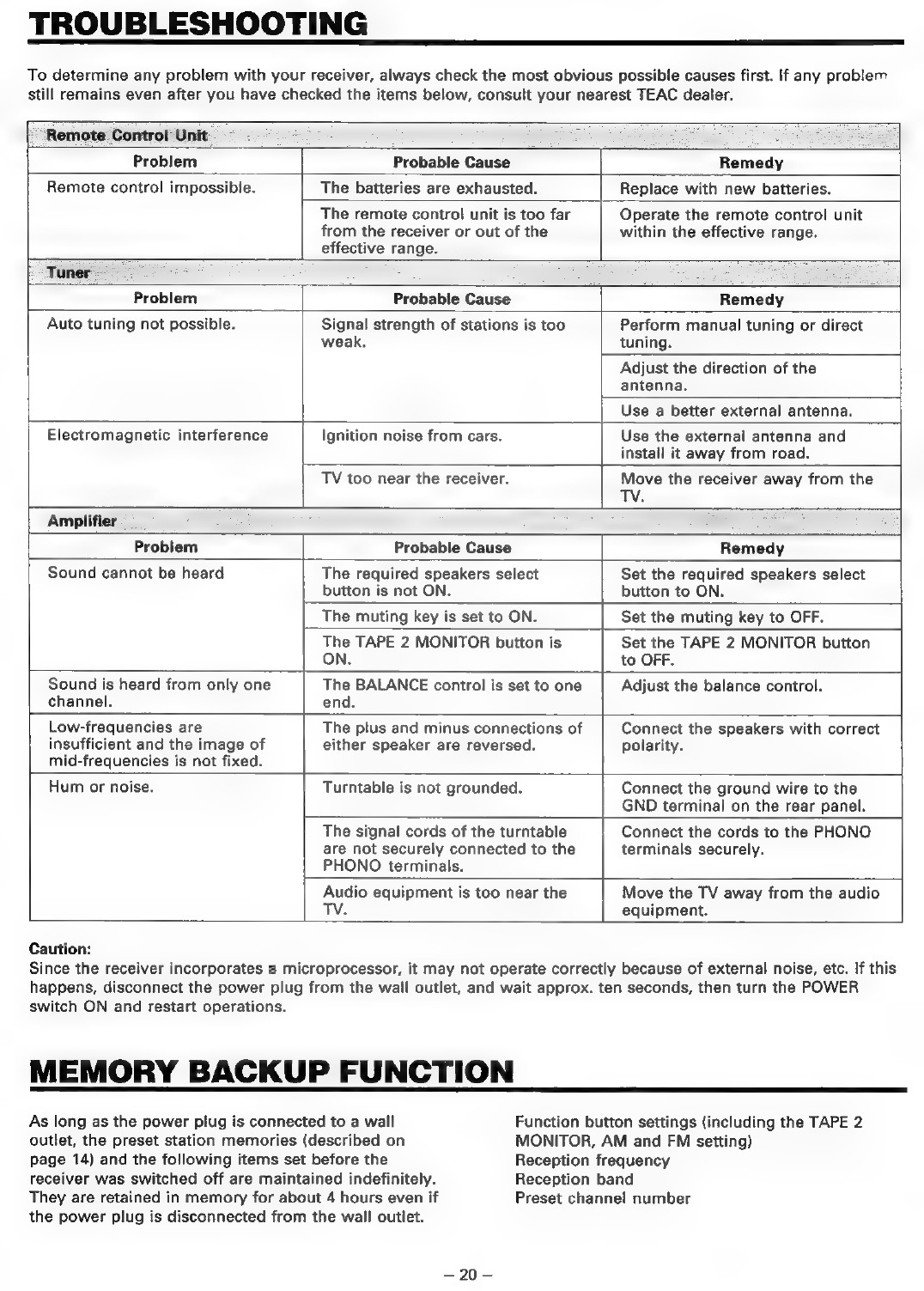

TROUBLESHOOTING
CONNECTIONS
@
Do
not
plug
the
power
cords
of
any
components
into
AC
outlets
and
do
not
turn
their
POWER
switches
on
until
all
connections
have
been
performed.
Refer
to
"Antenna
Connections"
on
Refer
to
“Speaker
IMPEDANCE
AC
Outlets:
AG-620
pages
6
-
8.
SELECTOR
(on
Rear
Panel)"
on
Two
switched,
Total
200W
or
2A
page
9.
(U.S.A./Canada)
One
switched,
200W
(Europe)
Refer
to
"Speaker
Connections"
on
page
8.
Speakers
A
Right
Left
Speakers
B 2
S
Right
Left
Yarunarararan,
IMPEDANCE
SELECTOR
|
ANTENNA
READ
OWNER'S
MANUAL,
Bont
asp:9
08
©
|
iil
I"
0
OD
Bt
1
|
SPEAKERS
(49-140).
vena
BTS
a
wan
PHONO
\
Ny
T
Je
CD—
TAPE
1———
TAPE
2—
ss
=
=
td
ye
iat
=)
:
l]
=
so]
||
sare
co
rere
>|»
SJEIETE||
©
©
©
a
REMOTE
CONTROL
(Our
9
Refer
to
“Using
a
Cassette
Deck
without
a
REMOTE
SENSOR
é
Window"
on
page
18.
3
5]
2
5]
z
w
Ej)
w
Flow
Turntable
z
>)
2
S|
2
=|
oOo}
a
oa
5
me
H
B
|
CD
player/VCR/VDP
Tape
Deck
1
Tape
Deck
2
Audio
connection
cords
ia
White
—
L
~efemae
=>
L
R
jens
=~
©
R
ala
nt
ha

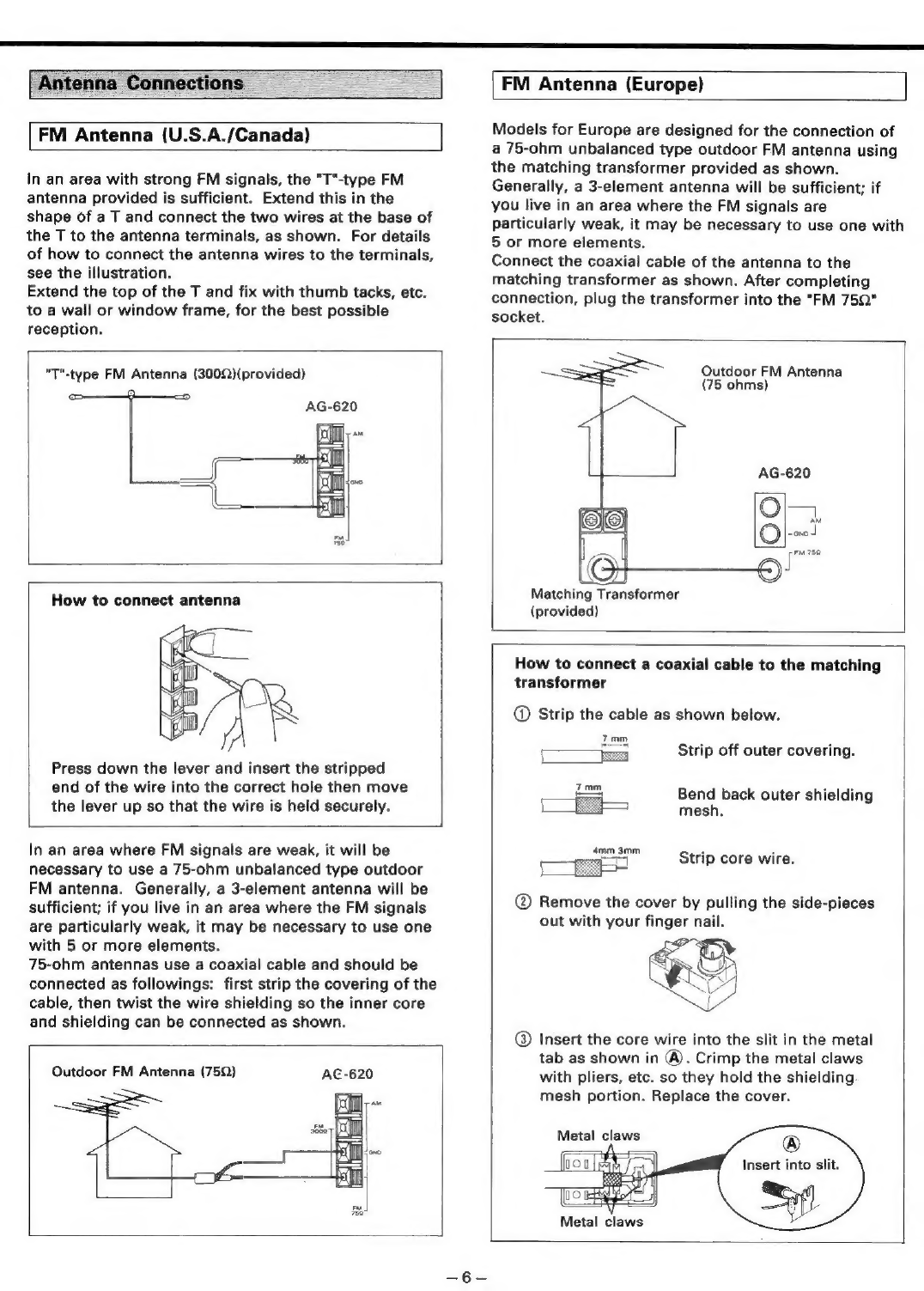

ttenna
Connections
FM
Antenna
(Europe)
FM
Antenna
(U.S.A./Canada)
In
an
area
with
strong
FM
signals,
the
"T"-type
FM
antenna
provided
is
sufficient.
Extend
this
in
the
shape
of
a
T
and
connect
the
two
wires
at
the
base
of
the
T
to
the
antenna
terminals,
as
shown.
For
details
of
how
to
connect
the
antenna
wires
to
the
terminals,
see
the
illustration.
Extend
the
top
of
the
T
and
fix
with
thumb
tacks,
etc.
to
a
wall
or
window
frame,
for
the
best
possible
reception.
"T"-type
FM
Antenna
(3002)(provided)
How
to
connect
antenna
Press
down
the
lever
and
insert
the
stripped
end
of
the
wire
into
the
correct
hole
then
move
the
lever
up
so
that
the
wire
is
held
securely.
In
an
area
where
FM
signals
are
weak,
it
will
be
necessary
to
use
a
75-ohm
unbalanced
type
outdoor
FM
antenna.
Generally,
a
3-element
antenna
will
be
sufficient;
if
you
live
in
an
area
where
the
FM
signals
are
particularly
weak,
it
may
be
necessary
to
use
one
with
5
or
more
elements.
75-ohm
antennas
use
a
coaxial
cable
and
should
be
connected
as
followings:
first
strip
the
covering
of
the
cable,
then
twist
the
wire
shielding
so
the
inner
core
and
shielding
can
be
connected
as
shown.
Outdoor
FM
Antenna
(759)
Models
for
Europe
are
designed
for
the
connection
of
a
75-ohm
unbalanced
type
outdoor
FM
antenna
using
the
matching
transformer
provided
as
shown.
Generally,
a
3-element
antenna
will
be
sufficient;
if
you
live
in
an
area
where
the
FM
signals
are
particularly
weak,
it
may
be
necessary
to
use
one
with
5
or
more
elements.
Connect
the
coaxial
cable
of
the
antenna
to
the
matching
transformer
as
shown.
After
completing
connection,
plug
the
transformer
into
the
"FM
75Q"
socket.
Outdoor
FM
Antenna
(75
ohms)
AG-620
L
LJ
Matching
Transformer
(provided)
How
to
connect
a
coaxial
cable
to
the
matching
transformer
@®
Strip
the
cable
as
shown
below.
Strip
off
outer
covering.
Bend
back
outer
shielding
mesh.
Strip
core
wire.
©
Insert
the
core
wire
into
the
slit
in
the
metal
tab
as
shown
in
@).
Crimp
the
metal
claws
with
pliers,
etc.
so
they
hold
the
shielding
mesh
portion.
Replace
the
cover.
®
Insert
into
slit.
Metal
claws
SD
If
you
live
reasonably
close
to
a
transmitter
and
want
to
use
the
"T“-type
FM
antenna
provided,
you
will
have
to
connect
it
to
the
matching
transformer
provided.
Connect
the
wires
at
the
base
of
the
T
to
the
matching
transformer's
terminals
as
shown.
Plug
the
‘transformer
into
the
"FM
75Q"
socket,
extend
the
top
of
the
T
and
fix
to
a
window
frame
or
wall
with
drawing
pins,
etc.
where
reception
is
best.
“T"-type
FM
Antenna
(300Q)(provided)
AG-620
O
O
€!
-onot
FM
750
Matching
transformer
(provided)
AM
Antenna
@
AM
Loop
Antenna
A
high-performance
AM
loop
antenna
is
provided
with
the
receiver
and
this
is
sufficient
for
good
reception
in
most
areas.
Attach
the
loop
antenna
to
the
snap-in
hinge
on
the
supplied
loop
antenna
stand
then
connect
its
wires
to
the
AM
antenna
terminals
as
shown.
Place
the
antenna
stand
on
a
shelf,
etc.
or
attach
it
to
a
wall,
etc.
with
screws
so
that
it
is
as
far
away
as
possible
from
the
entire
system,
speaker
cords
and
the
power
cord
to
prevent
noise.
As
shown,
turn
the
loop
antenna
for
the
best
reception.
There
is
a
hole
in
the
loop
antenna
and
this
can
be
used
to
suspend
the
antenna
from
a
screw
in
a
window
frame,
etc.
AG-620
U.S.A./Canada
Model
AM
Loop
Antenna
(provided)
Hole
Europe
Model
Wrap
the
stripped
end
of
the
wire
around
the
terminal,
then
tighten
the
knurled
knob
Setting
up
AM
Loop
Antenna
On
a
shelf,
etc.
On
a
wall,
etc.
Fix
with
screws.
4f
Loop
Antenna
Stand
wr
\
el
Find
the
direction
in
which
reception
is
best.
Find
the
direction
in
which
reception.
is
best.
@

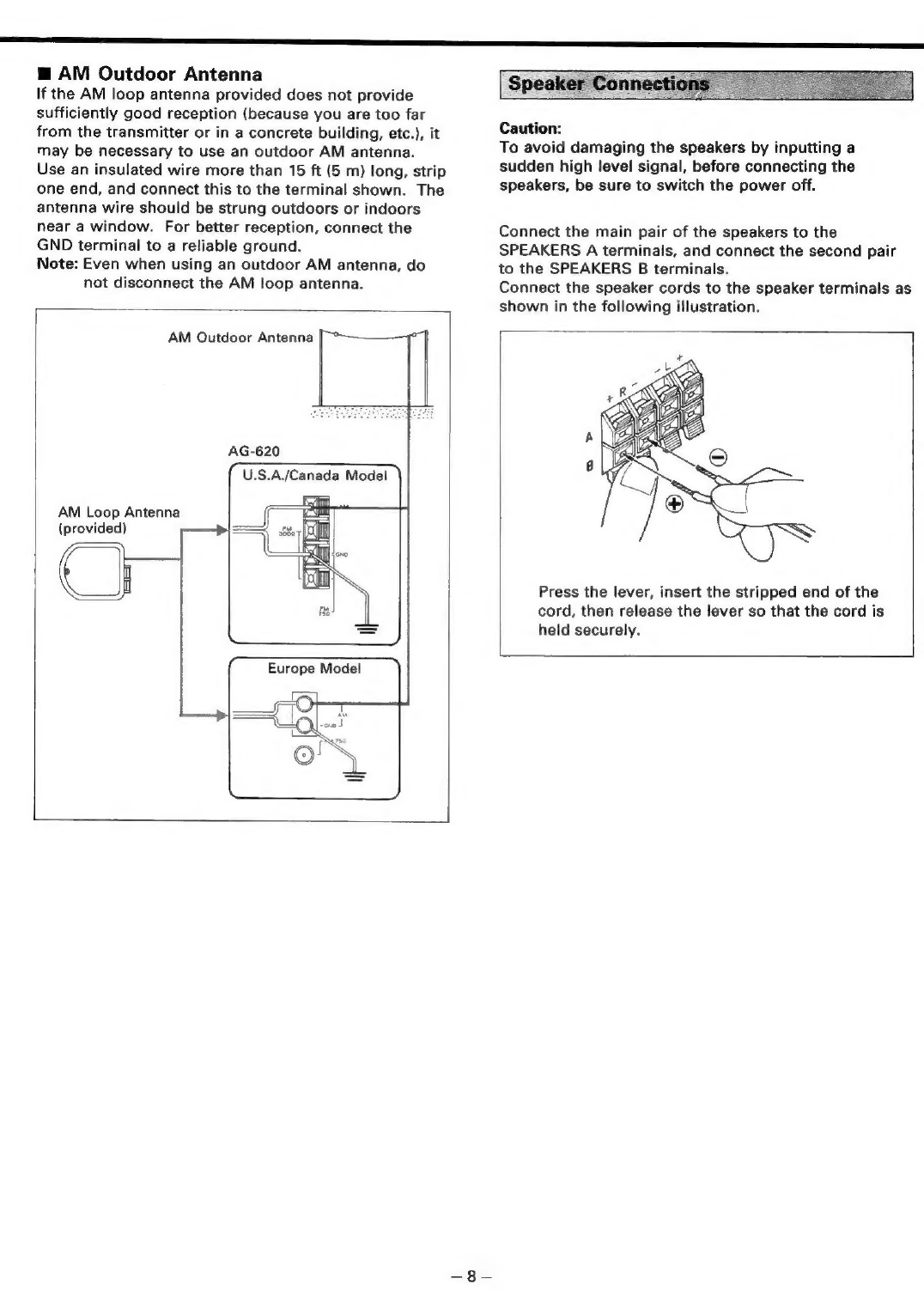

AM
Outdoor
Antenna
If
the
AM
loop
antenna
provided
does
not
provide
sufficiently
good
reception
(because
you
are
too
far
from
the
transmitter
or
in
a
concrete
building,
etc.),
it
may
be
necessary
to
use
an
outdoor
AM
antenna.
Use
an
insulated
wire
more
than
15
ft
(5
m)
long,
strip
one
end,
and
connect
this
to
the
terminal
shown.
The
antenna
wire
should
be
strung
outdoors
or
indoors
near
a
window.
For
better
reception,
connect
the
GND
terminal
to
a
reliable
ground.
Note:
Even
when
using
an
outdoor
AM
antenna,
do
not
disconnect
the
AM
loop
antenna.
AM
Outdoor
Antenna
AM
Loop
Antenna
(provided)
SSS
Caution:
To
avoid
damaging
the
speakers
by
inputting
a
sudden
high
level
signal,
before
connecting
the
speakers,
be
sure
to
switch
the
power
off.
Connect
the
main
pair
of
the
speakers
to
the
SPEAKERS
A
terminals,
and
connect
the
second
pair
to
the
SPEAKERS
B
terminals.
Connect
the
speaker
cords
to
the
speaker
terminals
as
shown
in
the
following
illustration.
Press
the
lever,
insert
the
stripped
end
of
the
cord,
then
release
the
lever
so
that
the
cord
is
held
securely.
Speaker
IMPEDANCE
SELECTOR
(on
Rear
Panel)
IMPEDANCE
SELECTOR
READ
OWNER'S
MANUAL
BEFORE
SETTING.
AOR
B:
A+B:89
OR
MORE
SRORMORE—|
[-AORB:40
TO
LESS
THAN
8a
(om)
Cautions:
1.
Before
setting
this
selector,
be
sure
to
switch
the
power
off.
2.
Together
with
this
section,
also
refer
to
"SPEAKERS
Select
Buttons"
on
page
13.
After
connecting
speakers,
set
the
IMPEDANCE
SELECTOR
switch
according
to
the
table
below.
When
using
speakers
A
or
speakers
B
separately.
Speaker
Selector
position
impedance
42,62
A
OR
B:
4Q
TO
LESS
THAN
8
Q
Te
82,162
A
OR
B:
8
Q
OR
MORE
or
(om)
When
using
speakers
A
and
speakers
B
together.
Speaker
Selector
position
impedance
82,162
A+B:
8 Q
OR
MORE
Te
CO)

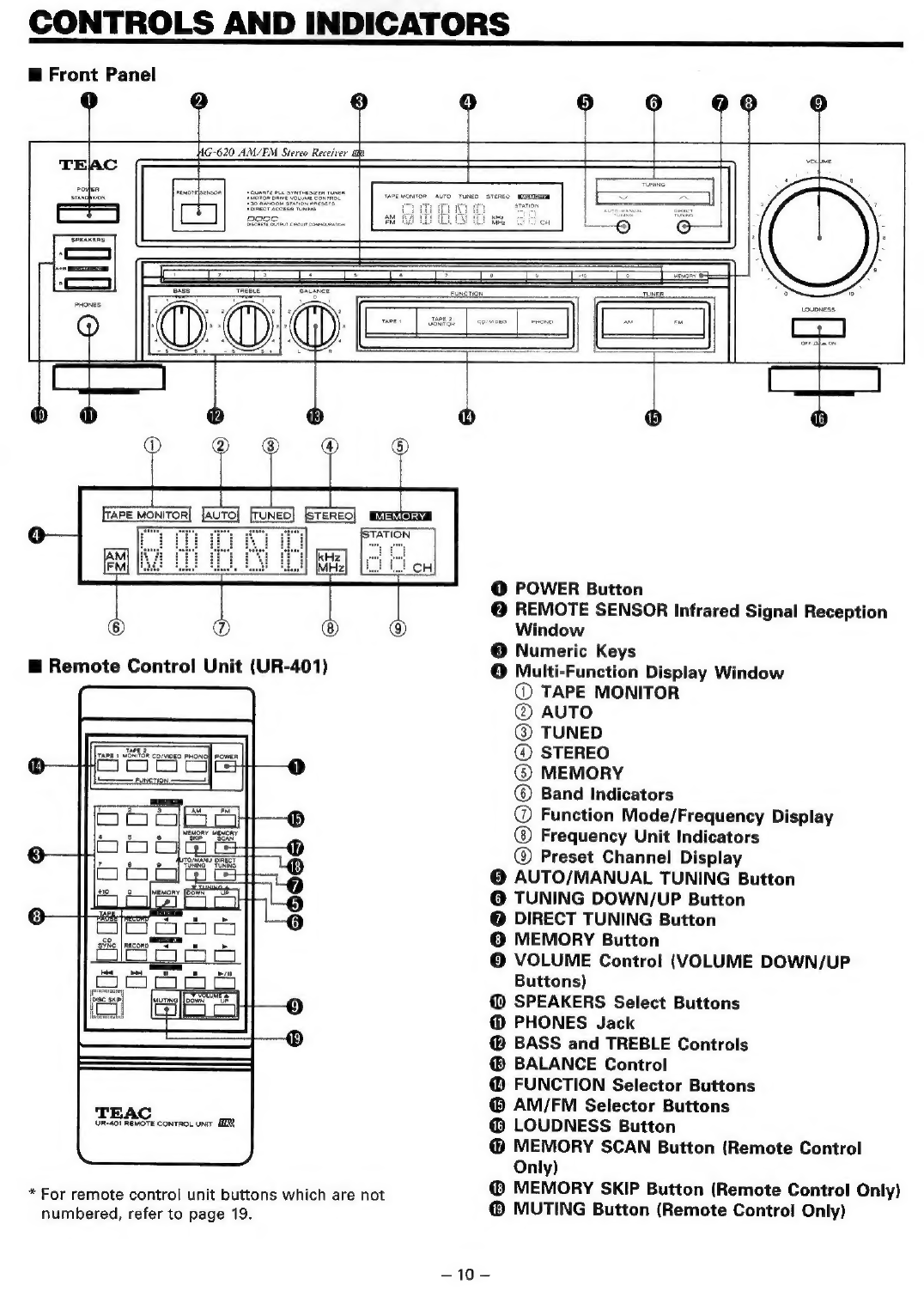

CONTROLS
AND
INDICATORS
@
Front Panel
@
POWER
Button
@
REMOTE
SENSOR
Infrared
Signal
Reception
Window
©
Numeric
Keys
m@
Remote
Control
Unit
(UR-401)
©
Multi-Function
Display
Window
@
TAPE
MONITOR
@
AUTO
@®
TUNED
aby
CON
carta
ose
Roan
@
STEREO
OOO
@
MEMORY
=
@®
Band
Indicators
@
Function
Mode/Frequency
Display
a
ae
a
a
Frequency
Unit
Indicators
@
Preset
Channel
Display
@
AUTO/MANUAL
TUNING
Button
=
3
Cae
fh
oes
es
=
@
TUNING
DOWN/UP
Button
8
ri
i
6
@
DIRECT
TUNING
Button
:
©
MEMORY
Button
©
VOLUME
Control
(VOLUME
DOWN/UP
=
Buttons)
9
@
SPEAKERS
Select
Buttons
@
PHONES
Jack
@
BASS
and
TREBLE
Controls
@®
BALANCE
Control
@
FUNCTION
Selector
Buttons
@
AM/FM
Selector
Buttons
A
coma
am
@
LOUDNESS
Button
@
MEMORY
SCAN
Button
(Remote
Control
Only)
*
For
remote
control
unit
buttons
which
are
not
®
MEMORY
SKIP
Button
(Remote
Control
Only)
numbered,
refer
to
page
19.
@
MUTING
Button
(Remote
Control
Only)
=0p=

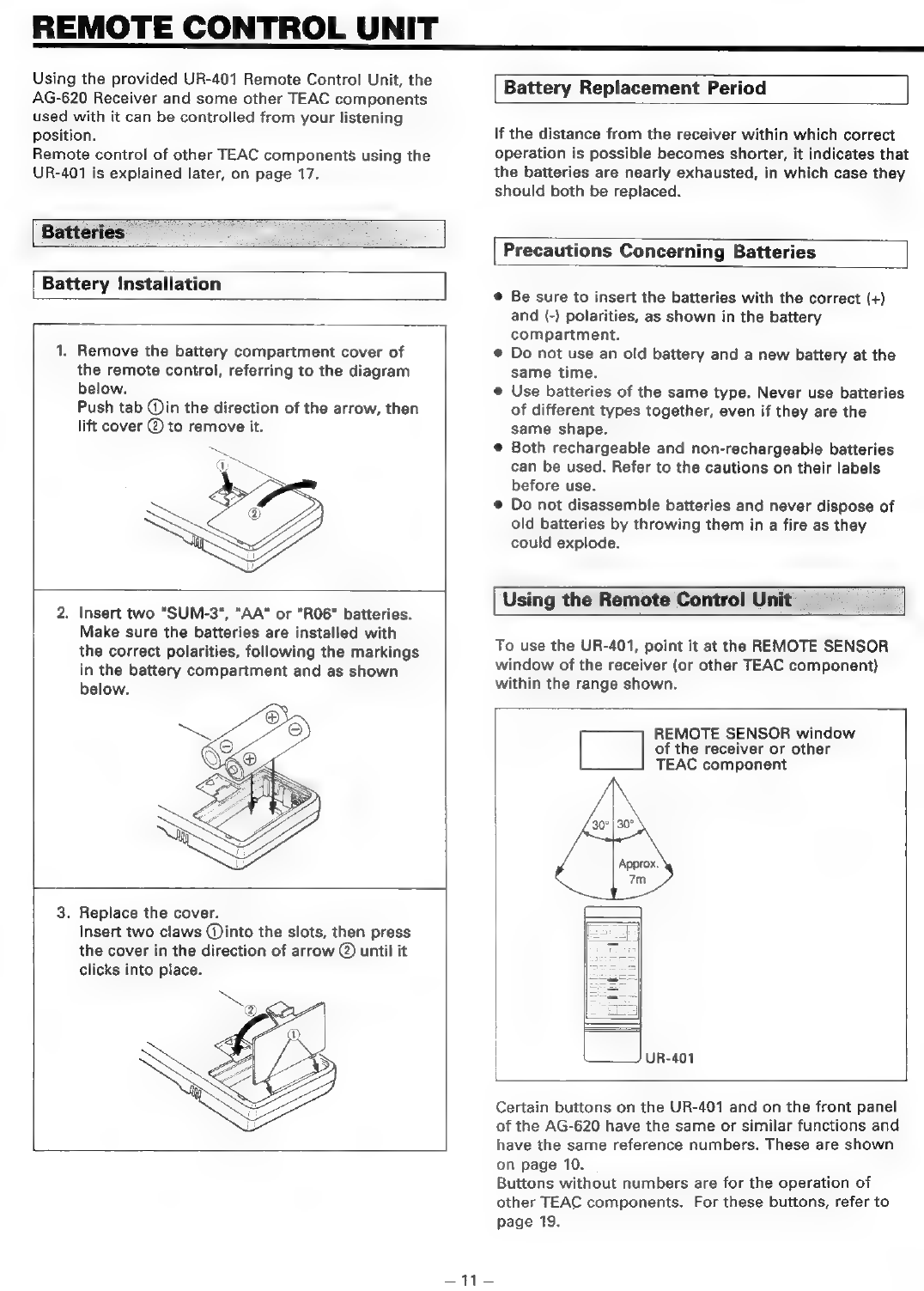

REMOTE
CONTROL
UNIT
Using
the
provided
UR-401
Remote
Control
Unit,
the
AG-620
Receiver
and
some
other
TEAC
components
used
with
it
can
be
controlled
from
your
listening
position.
Remote
control
of
other
TEAC
components
using
the
UR-401
is
explained
later,
on
page
17.
Batteries
Battery
Installation
1,
Remove
the
battery
compartment
cover
of
the
remote
control,
referring
to
the
diagram
below.
Push
tab
Qin
the
direction
of
the
arrow,
then
lift
cover
@
to
remove
it.
2.
Insert
two
"SUM-3",
"AA"
or
"R06"
batteries.
Make
sure
the
batteries
are
installed
with
the
correct
polarities,
following
the
markings
in
the
battery
compartment
and
as
shown
below.
3.
Replace
the
cover.
Insert
two
claws
(into
the
slots,
then
press
the
cover
in
the
direction
of
arrow
@
until
it
clicks
into
place.
ae
ee
Battery
Replacement
Period
If
the
distance
from
the
receiver
within
which
correct
operation
is
possible
becomes
shorter,
it
indicates
that
the
batteries
are
nearly
exhausted,
in
which
case
they
should
both
be
replaced.
Precautions
Concerning
Batteries
©
Be
sure
to
insert
the
batteries
with
the
correct
(+)
and
(-)
polarities,
as
shown
in
the
battery
compartment.
@
Do
not
use
an
old
battery
and
a
new
battery
at
the
same
time.
e
Use
batteries
of
the
same
type.
Never
use
batteries
of
different
types
together,
even
if
they
are
the
same
shape.
@
Both
rechargeable
and
non-rechargeable
batteries
can
be
used. Refer
to
the
cautions
on
their
labels
before
use.
©
Do
not
disassemble
batteries
and
never
dispose
of
old
batteries
by
throwing
them
in
a
fire
as
they
could
explode.
Using
the
Remote
Control
Unit
To
use
the
UR-401,
point
it
at
the
REMOTE
SENSOR
window
of
the
receiver
(or
other
TEAC
component)
within
the
range
shown.
REMOTE
SENSOR
window
[|
of
the
receiver
or
other
TEAC
component
Approx.
7m
UR-401
Certain
buttons
on
the
UR-401
and
on
the
front
panel
of
the
AG-620
have
the
same
or
similar
functions
and
have
the
same
reference
numbers.
These
are
shown
on
page
10.
Buttons
without
numbers
are
for
the
operation
of
other
TEAC
components.
For
these
buttons,
refer
to
page
19.
Cautions
on
Use
of
the
Remote
Control
Unit
Even
when
the
remote
control
unit
is
used
within
the
range
shown,
if
there
is
any
obstacle
between
it
and
the
receiver,
operation
will
be
impossible.
If
you
have
other
appliances
controlled
by
infrared
signals
installed
in
the
same
room
as
your
AG-620,
these could
be
operated
erroneously
by
signals
from
the
remote
control.
(TEAC
cannot
take
responsibility
for
any
incidental
or
consequential
damage
this
may
cause.)
Conversely,
their
remote
controls
could
cause
the
AG-620
to
operate
erroneously.
Be
careful
not
to
place
books,
etc.
on
the
remote
control
unit.
These
could
press
its
buttons
in
which
case
its
batteries
would
become
exhausted
more
quickly.
When
the
remote
control
unit
is
not
to
be
used
for
more
than
a
month
or
so,
remove
the
batteries
so
they
cannot
leak
and
cause
damage.
If
they
do
leak,
clean
the
battery
compartment
by
wiping
with
a
clean
tissue,
then
insert
new
batteries.
a

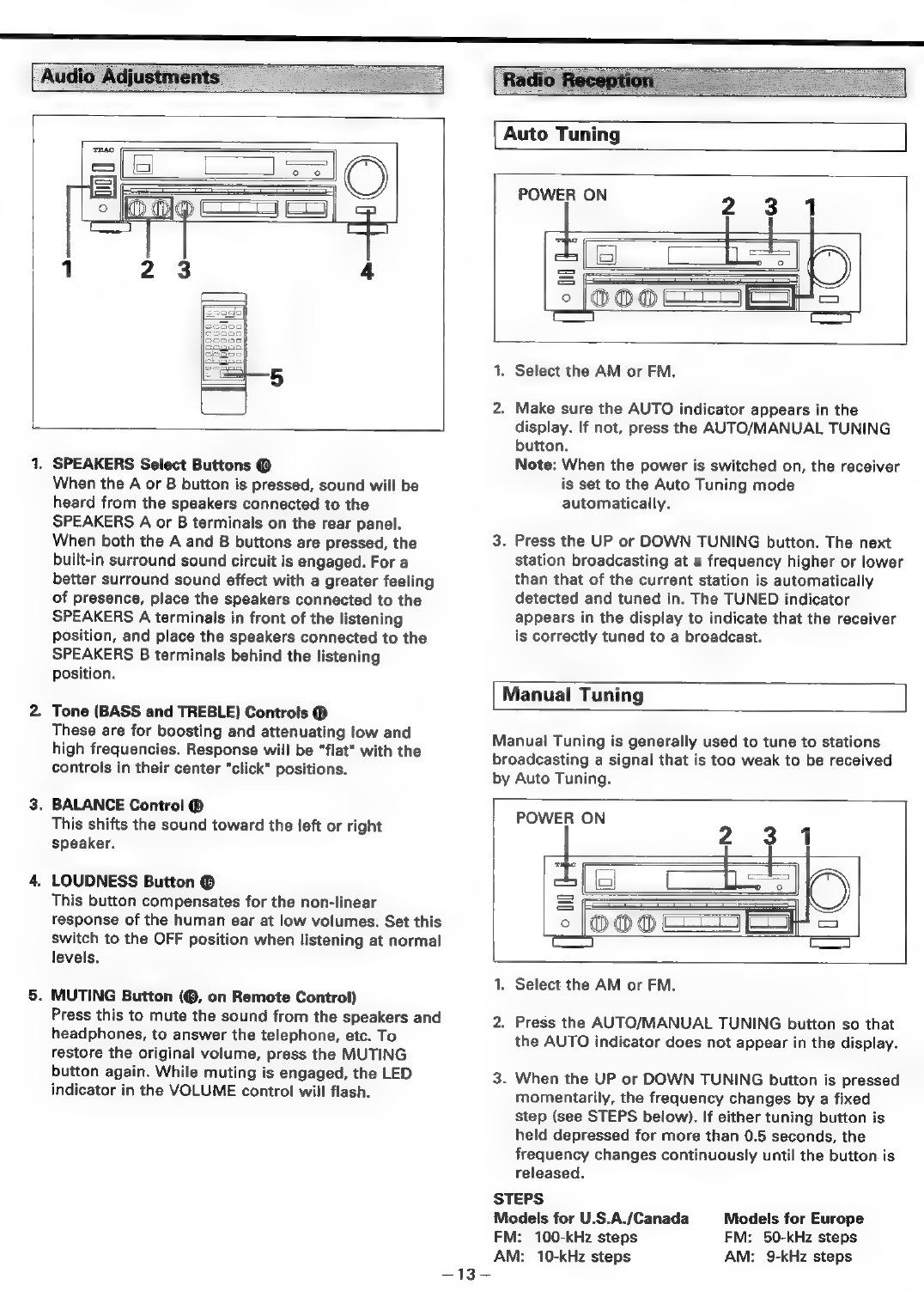

OPERATIONS
The
following
instructions
apply
throughout
the
“OPERATIONS"
sections
unless
otherwise
noted.
@
To
simplify
explanations,
they
use
the
names
of
buttons
and
controls
on
the
front
panel,
making
no
mention
of
the
use
of
remote
control
unit.
Be
sure
the
TAPE
2
MONITOR
button
is
set
to
OFF
(the
TAPE
MONITOR
indicator
will
not
Hereafter,.this
instruction
will
not
be
repeated.
|
Basic
Operations
——---—6)
a
~
_
~
Source
component
.
Set
the
VOLUME
control
to
"0".
This
is
to
protect
the
speakers
from
a
sudden
high
level
signal.
.
Set
the
LOUDNESS
button
to
the
OFF
position.
.
Set
the
BASS,
TREBLE
and
BALANCE
controls
to
their
center
(click)
positions.
.
Press
the
POWER
button
to
turn
on
the
power.
.
Select
the
required
source
by
pressing
one
of
the
function
buttons
(including
the
AM
and
FM
buttons).
To
listen
to
a
source
other
than
tape
deck
2,
check
that
the
TAPE
MONITOR
indicator
is
not
shown
in
the
display;
if
it
is,
switch
it
off
by
pressing
the
TAPE
2
MONITOR
button.
.
Select
the
speakers
to
be
used
with
the
SPEAKERS
select
buttons.
For
details,
refer
to
"SPEAKERS
Select
Buttons"
in
the
following
section.
.
Start
playing
the
source
component.
Gradually
increase
the
volume
with
the
VOLUME
control
and
adjust
the
other
controls
as
required.
Audio
Adjustments
1
1.
SPEAKERS
Select
Buttons
©
When
the
A
or
B
button
is
pressed,
sound
will
be
heard
from
the
speakers
connected
to
the
SPEAKERS
A
or
B
terminals
on
the
rear
panel.
When
both
the
A
and
B
buttons
are
pressed,
the
built-in
surround
sound
circuit
is
engaged.
For
a
better
surround
sound
effect
with
a
greater
feeling
of
presence,
place
the
speakers
connected
to
the
SPEAKERS
A
terminals
in
front
of
the
listening
position,
and
place
the
speakers
connected
to
the
SPEAKERS
B
terminals
behind
the
listening
position.
Tone
(BASS
and
TREBLE)
Controls
®
These
are
for
boosting
and
attenuating
low
and
high
frequencies.
Response
will
be
“flat"
with
the
controls
in
their
center
"click"
positions.
.
BALANCE
Control
®
This
shifts
the
sound
toward
the
left
or
right
speaker.
LOUDNESS
Button
©
This
button
compensates
for
the
non-linear
response
of
the
human
ear
at
low
volumes.
Set
this
switch
to
the
OFF
position
when
listening
at
normal
levels.
-
MUTING
Button
(®,
on
Remote
Control)
Press
this
to
mute
the
sound
from
the
speakers
and
headphones,
to
answer
the
telephone,
etc.
To
restore
the
original
volume,
press
the
MUTING
button
again.
While
muting
is
engaged,
the
LED
indicator
in
the
VOLUME
control
will
flash.
—13=
Auto
Tuning
POWER
ON
=
ODO
(jm
—
.
Select
the
AM
or
FM.
Make
sure
the
AUTO
indicator
appears
in
the
display.
If
not,
press
the
AUTO/MANUAL
TUNING
button.
Note:
When
the
power
is
switched
on,
the
receiver
is
set
to
the
Auto
Tuning
mode
automatically.
.
Press
the
UP
or
DOWN
TUNING
button.
The
next
station
broadcasting
at
a
frequency
higher
or
lower
than
that
of
the
current
station
is
automatically
detected
and
tuned
in.
The
TUNED
indicator
appears
in
the
display
to
indicate
that
the
receiver
is
correctly
tuned
to
a
broadcast.
Manual
Tuning
Manual
Tuning
is
generally
used
to
tune
to
stations
broadcasting
a
signal
that
is
too
weak
to
be
received
by
Auto
Tuning.
POWER
ON
(Sj
oO
0
CLO}
Select
the
AM
or
FM.
Press
the
AUTO/MANUAL
TUNING
button
so
that
the
AUTO
indicator
does
not
appear
in
the
display.
.
When
the
UP
or
DOWN
TUNING
button
is
pressed
momentarily,
the
frequency
changes
by
a
fixed
step
(see
STEPS
below).
If
either
tuning
button
is
held
depressed
for
more
than
0.5
seconds,
the
frequency
changes
continuously
until
the
button.
is
released.
STEPS
Models
for
U.S.A./Canada
FM:
100-kHz
steps
AM:
10-kHz
steps
Models
for
Europe
FM:
50-kHz
steps
AM:
9-kHz
steps
Direct
Tuning
Preset
Tuning
Using
this
method,
the
required
frequency
is
input
directly,
using
the
numeric
keys.
POWER
ON
3
2.1
i=
S
;
°°
(OOO
LJ
Lats
=
1.
Select
the
AM
or
FM.
2.
Press
the
DIRECT
TUNING
button;
"----"
will
blink
in
the
display.
3.
Input
the
frequency
of
the
broadcast
you
want
to
hear
with
the
numeric
keys.
Models
for
U.S.A./Canada
FM:
100-kHz
steps
AM:
10-kHz
steps
Ex.:
FM
87.7
MHz
Ex.:
AM
780 kHz
Note:
When
inputting
the
frequency,
the
last
digit
need
not
be
entered
as
it
is
always
"0".
FM:
50-kHz
steps
AM:
9-kHz
steps
Models
for
Europe
Ex.:
FM
107.55
MHz
ae
Ex.:
AM
1008
kHz
ae
The
AG-620
has
a
preset
memory.
If
the
frequencies
of
broadcasts
are
stored
in
this
memory
which
has
a
capacity
of
30
stations
(channels),
they
can
be
tuned
to
by
a
simplified
procedure.
@
Presetting
POWER
ON
3
2,4
|
|
+
aa
co)
i
S
°
1.
Tune
to
a
station
by
either
Auto,
Manual
orDirect
tuning.
2.
Press
the
MEMORY
button;
the
MEMORY
indicator
will
light
in
the
display
for
approximately
5
seconds.
3.
While
the
MEMORY
indicator
is
lit,
press
the
numeric
key(s)
to
input
the
channel
number
in
which
the
data
(AM
or
FM
band
and
frequency)
for
the
broadcast
is
to
be
stored.
Note:
If
a
frequency
has
already
been
stored
in
a
specified
channel,
the
old
data
will
be
lost
and
replaced
by
the
new
data.
Ex.:
Channel
1
Note:
If
the
frequenecy
input
is
as
follows,
the
frequency
will
blink
for
several
seconds,
then
the
previous
frequency
will
appear
in
the
display
again.
@
Does
not
correspond
to
the
fixed
tuning
steps
in
each
band.
(Europe
models
only)
@
Out
of
the
receivable
frequency
range.
=
146
Ex.:
Channel
20
Press
twice,
then
Lo.
|.
Ex.:
Channel
30
Press
three
times.
Note:
It
is
not
necessary
to
press
the
"0"
key
to
input
the
unit's
digit.
4.
To
release
the
memory
function
while
the
MEMORY
indicator
appears
in
the
display,
press
the
MEMORY
button
again.
@
Recalling
Frequencies
Press
the
numeric
key(s)
corresponding
to
the
channel
number
to
tune
directly
to
a
broadcast.
mg
Using
the
Memory
Scan
function
When
the
MEMORY
SCAN
button
(@,
on
the
remote
control)
is
pressed,
the
preset
channels
in
which
frequencies
in
the
band
(AM
or
FM)
selected
have
been
stored
are
scanned
at
5-second
intervals.
When
you
hear
a
broadcast
you
want
to
listen
to,
release
the
Memory
Scan
function
by
pressing
the
MEMORY
SCAN
button
again.
@
Using
the
Memory
Skip
function
Every
time
the
MEMORY
SKIP
button
(®,
on
the
remote
control)
is
pressed,
tuning
skips
to
the
next
higher
channel
broadcasting
in
the
band
selected.
=,
|
Listening
to
Records,
compat
Discs
and
Sound
from
VCR/VDP
POWER
ON
[ooo
loco
tJ
(Es)
4!
CD
Player
or
VCR/VDP
1.
Press
the
PHONO
or
CD/VIDEO
function
button.
2.
Play
the
turntable
(with
a
moving
magnet
cartridge)
or
CD
player/VCR/VDP.
Playing
Tapes
POWER
ON
Tape
Deck
2
2
Note:
If
two
TEAC
tape
decks
are
used
in
the
system,
the
use
of
the
UR-401
remote
control
unit
may
cause
the
two
decks
to
operate
simultaneously.
1.
Set the
TAPE
2
MONITOR
button
to
ON;
the
TAPE
MONITOR
indicator
will
appear
in
the
display.
2.
Operate
tape
deck
2
for
playback.
@
Playing
tape
deck
1
To
play
back
using
tape
deck
1,
set
the
TAPE
2
MONITOR
button
to
OFF
then
press
TAPE
1
button.
Then
operate
the
tape
deck
1
for
playback.
Recording
Tapes
—
Note:
If
two
TEAC
tape
decks
are
used
in
the
system,
the
use
of
the
UR-401
remote
control
unit
may
cause
the
two
decks
to
operate
simultaneously.
Recording
a
Source
other
than
Tape
POWER
ON
ae
=
°
Source
Component
1.
Make
sure
TAPE
2
MONITOR
button
is
set
to
OFF,
then
press
the
function
button
(including
AM/FM
buttons)
corresponding
to
the
source
to
be
recorded.
2.
Play
the
source.
3.
Operate
tape
deck
2
for
recording.
@
Tape
Monitoring
If
tape
deck
2
has
separate
record
and
playback
heads,
during
recording,
the
recorded
sound
can
be
heard
from
the
speakers
with
the
TAPE
2
MONITOR
button
set
to
ON.
@
Simultaneous
Recording
A
single
source
can
be
recorded
simultaneously
by
tape
decks
1
and
2.
To
do
this,
after
step
2
above,
operate
both
decks
for
recording.
Tape
Dubbing
(from
Tape
Deck
1
to
Tape
Deck
2)
POWER
ON
IC)
fies)
1.
Make
sure
TAPE
2
MONITOR
button
is
set
to
OFF,
then
press
the
TAPE
1
button.
2.
Play
tape
deck
1.
3.
Operate
tape
deck
2
for
recording.
@
Tape
Monitoring
If
tape
deck
2
(the
tape
deck
used
for
recording)
has
separate
record
and
playback
heads,
during
dubbing,
the
recorded
sound
can
be
heard
from
the
speakers
with
TAPE
2
MONITOR
button
set
to
ON.
@
Tape
2-to-Tape
1
Dubbing
In
addition
to
the
Tape
1-to-Tape
2
dubbing
described
above,
dubbing
from
tape
2
to
tape
1
is
also
possible.
To
do
this,
perform
the
following:
press
any
function
button
other
than
TAPE
1.
Set
the
TAPE
2
MONITOR
button
to
ON.
Play
tape
deck
2.
Operate
tape
deck
1
for
recording.
—16—
TEAC
SYSTEM
REMOTE-CONTROLLED
OPERATION
Using
a
Cassette
Deck
with
a
|
REMOTE
“SENSOR
Window
_
Cassette
Deck
AG-620
2
(with
Remote
Sensor
Window)
CD
Player
(with
Remote
Sensor
Window)
(with
Remote
Sensor
Window)
CD
Player's
Remote
Control
Unit
UR-401
Cassette
Deck's
Remote
Control
Unit
Remote
Control
Unit
As
shown,
if
the
other
TEAC
components
have
REMOTE
SENSOR
windows,
the
provided
UR-401
Remote
Control
Unit
can
remotely
control
the
operations
of
these
other
components
directly,
in
addition
to
the
remote
control
of
the
AG-620
receiver.
If
the
other
components
require
operations
beyond
the
basic
ones
provided
by
the
UR-401,
use
the
remote
control
units
provided
with
the
components.
ee
‘Using
a
Cassette
Deck
without
a
REMOTE
SENSOR
Window
TAPE
CD
TAPE
PAUSE
REMOTE
CONTROL,
COUT)
CD
Player
with
Remote
Sensor
aaa
Cassette
Deck
with
Cassette
Deck
with
Non-logic
Control
Full-logic
Control
(No
Remote
Sensor)
(No
Remote
Sensor)
CD
Player's
Remote
Control
Unit
UR-401
Remote
Control
Unit
The
illustration
shows
a
system
using
UR
(Unified
Remote
Control)
cassette
decks
without
REMOTE
SENSOR
windows.
When
a
deck
with
full-logic
control
is
connected
to
the
AG-620
receiver
using
a
remote
control
cable
(optionally
available),
its
basic
operations
are
remote
controlled
using
the
UR-401
Remote
Control
Unit.
When
a
deck
with
non-logic
control
is
connected,
only
the
pause
mode
can
be
remote
controlled.
Other
explanations
are
the
same
as
described
in
the
previous
section.
—
ii
Buttons
for
the
Operation
of
Other
TEAC
Components
:
TAPE
1
MONITOR
CO/VIDEO
PHONO
1
Funerion
———
1
2
3
AM
eM
WENORY
MEUORY
SHH
[
AUTO/MANU
DIRECT
pe
a
a
sr
|
+10
0
Memory
cow
SNUB
patise
|pecono
.
>
3]
Uf
sfc
|heconD
.
>
[4]
2
TEAC
UR-401
REMOTE
CONTROL
UNIT
HR
Remote
Control
Unit
(UR-401)
Note:
Do
not
confuse
"TAPE
I"
as
described
in
this
section
and
“TAPE
1"
which
means
the
tape
deck
connected
to
the
TAPE
1
terminals.
The
same
thing
also
applies
to
"TAPE
II"
and
“TAPE
2".
i
[1]
TAPE
PAUSE
button
Can
only
be
used
with
cassette
decks
with
non-
logic
control.
Press
once
to
set
the
cassette
deck
to
the
pause
mode;
press
again
to
restart.
CD
SYNC
button
When
the
AG-620
is
used
in
a
system
with
a
TEAC
CD
Player
and
a
TEAC
cassette
deck
(with
full-logic
control),
it
is
possible
to
synchronize
the
operations
of
the
CD
player
and
cassette
deck,
so
that
they
can
be
started
at
exactly
the
same
time,
when
copying
a
CD
onto
tape.
In
this
configuration,
the
CD
player's
CD/DECK
SYNC
terminal
and
the
cassette
deck's
CD/DECK
SYNC
terminal
should
be
connected
using
the
optional
WR-7000
sync
cable
(note
that
this
is
different
from
the
optional
remote
control
cable).
Synchronized
operation
of
the
CD
player
and
cassette
deck
can
be
started
by
pressing
either
the
CD
SYNC
button
on
the
remote
control
unit
or
the
CD
SYNC
button
on
the
cassette
deck.
[3]
TAPE
|
buttons
The
TAPE
|
mechanism
of
a
double-transport
cassette
deck
with
full-logic
control
can
be
operated
using
these
buttons.
Notes:
To
start
recording,
simply
press
the
RECORD
button;
it
does
not
have
to
be
pressed
together
with
PLAY.
If
the
TAPE
|
mechanism
of
the
double-transport
cassette
deck
does
not
have
a
recording
function,
pressing
the
TAPE
|
RECORD
button
will
have
no
effect.
TAPE
Il
buttons
The
TAPE
Il
mechanism
of
a
double-transport
cassette
deck
with
full-logic
control
can
be
Operated
using
these
buttons.
They
are
also
used
to
operate
a
single-transport
cassette
deck
with
full-logic
control.
Note:
on
To
start
recording,
simply
press
the
RECORD
button;
it
does
not
have
to
be
pressed
together
with
PLAY.
CD
buttons
SKIP
(
¢<4,
1)
buttons:
Each
time
these
are
pressed,
the
pickup
moves
to
the
beginning
of
the
next
tune
in
either
the
forward
or
reverse
direction.
!f
held
depressed,
skipping
continues
until
the
button
is
released.
PAUSE
(11),
PLAY/PAUSE
(>>
/II)
buttons:
To
temporarily
stop
CD
play,
press
the
PAUSE
button
if
the
CD
player
has
an
independent
PAUSE
button;
press
the
PLAY/PAUSE
button
if
it
has
a
PLAY/PAUSE
button.
STOP
(m)
button:
Press
to
stop
the
CD
player.
DISK
SKIP
button:
Selects
the
next
disc
in
a
CD
auto-changer.
TROUBLESHOOTING
To
determine
any
problem
with
your
receiver,
always
check
the
most
obvious
possible
causes
first.
If
any
problem
still
remains
even
after
you
have
checked
the
items
below,
consult
your
nearest
TEAC
dealer.
‘Remote
Control
Unit
Problem
Probable
Cause
Remedy
Remote
control
impossible.
The
batteries
are
exhausted.
Replace
with
new
batteries.
The
remote
control
unit
is
too
far
from
the
receiver
or
out
of
the
effective
range.
Operate
the
remote
control
unit
within
the
effective
range.
Tuner
Problem
Probable
Cause
Remedy
Auto
tuning
not
possible.
Signal
strength
of
stations
is
too
weak.
Perform
manual
tuning
or
direct
tuning.
Adjust
the
direction
of
the
antenna.
Use
a
better
external
antenna.
Electromagnetic
interference
Ignition
noise
from
cars.
Use
the
external
antenna
and
install
it
away
from
road.
TV
too
near
the
receiver.
Amplifier
Move
the
receiver
away
from
the
Tv.
Problem
Probable
Cause
Remedy
Sound
cannot
be
heard
The
required
speakers
select
button
is
not
ON.
The
muting
key
is
set
to
ON.
Set
the
required
speakers
select
button
to
ON.
Set
the
muting
key
to
OFF.
The
TAPE
2
MONITOR
button
is
ON.
Set
the
TAPE
2
MONITOR
button
to
OFF.
Sound
is
heard
from
only
one
channel.
The
BALANCE
control
is
set
to
one
end.
Adjust
the
balance
control.
Low-frequencies
are
insufficient
and
the
of
mid-frequencies
is
not
fixed.
The
plus
and
minus
connections
of
either
speaker
are
reversed.
Connect
the
speakers
with
correct
polarity.
Hum
or
noise.
Turntable
is
not
grounded.
Connect
the
ground
wire
to
the
GND
terminal
on
the
rear
panel.
The
signal
cords
of
the
turntable
are
not
securely
connected
to
the
PHONO
terminals.
Connect
the
cords
to
the
PHONO
terminals
securely.
Audio
equipment
is
too
near
the
TV.
Move
the
TV
away
from
the
audio
equipment.
Caution:
Since
the
receiver
incorporates
a
microprocessor,
it
may
not
operate
correctly
because
of
external
noise,
etc.
If
this
happens,
disconnect
the
power
plug
from
the
wall
outlet,
and
wait
approx.
ten
seconds,
then
turn
the
POWER
switch
ON
and
restart
operations.
MEMORY
BACKUP
FUNCTION
As
long
as
the
power
plug
is
connected
to
a
wall
outlet,
the
preset
station
memories
(described
on
page
14)
and
the
following
items
set
before
the
receiver
was
switched
off
are
maintained
indefinitely.
They
are
retained
in
memory
for
about
4
hours
even
if
the
power
plug
is
disconnected
from
the
wall
outlet.
AR
Function
button
settings
(including
the
TAPE
2
MONITOR,
AM
and
FM
setting)
Reception
frequency
Reception
band
Preset
channel
number
