Team C T8 User manual

Length …………………………………………………………………………………………510mm
Width …………………………………………………………………………………………310mm
Height …………………………………………………………………………………………190mm
Dimensions
1:8 SCALE 4WD NITRO PRO RACING BUGGY
All manuals and user guides at all-guides.com
all-guides.com

Notice
This manual is written in english language only. If you need a manual in your language please visit our
website or contact your distributor!
Diese Anleitung wurde in englischer Sprache verfasst. Sollten sie eine Anleitung in ihrer Sprache
benötigen, besuchen sie unsere website oder konaktieren sie ihren Vertriebsagenten.
Questo manuale è stato scritto in inglese. Se avete bisogno del manuale nella tua lingua, si prega di
visitare il nostro sito web o contattate il proprio distributore.
Este manual está escrito en Inglés. Si necesita el manual en su idioma, por favor visite nuestro sitio
web o contacte con su distribuidor.
Ce manuel est écrit en langue anglaise. Si vous avez besoin d'un manuel dans votre langue
s'il vous plaît visitez notre site web ou contactez votre distributeur!
Deze handleiding is geschreven in het Engels taal beschikbaar. Als u een handleiding in uw eigen
taal kunt u terecht op onze website of neem contact op met uw distributeur!

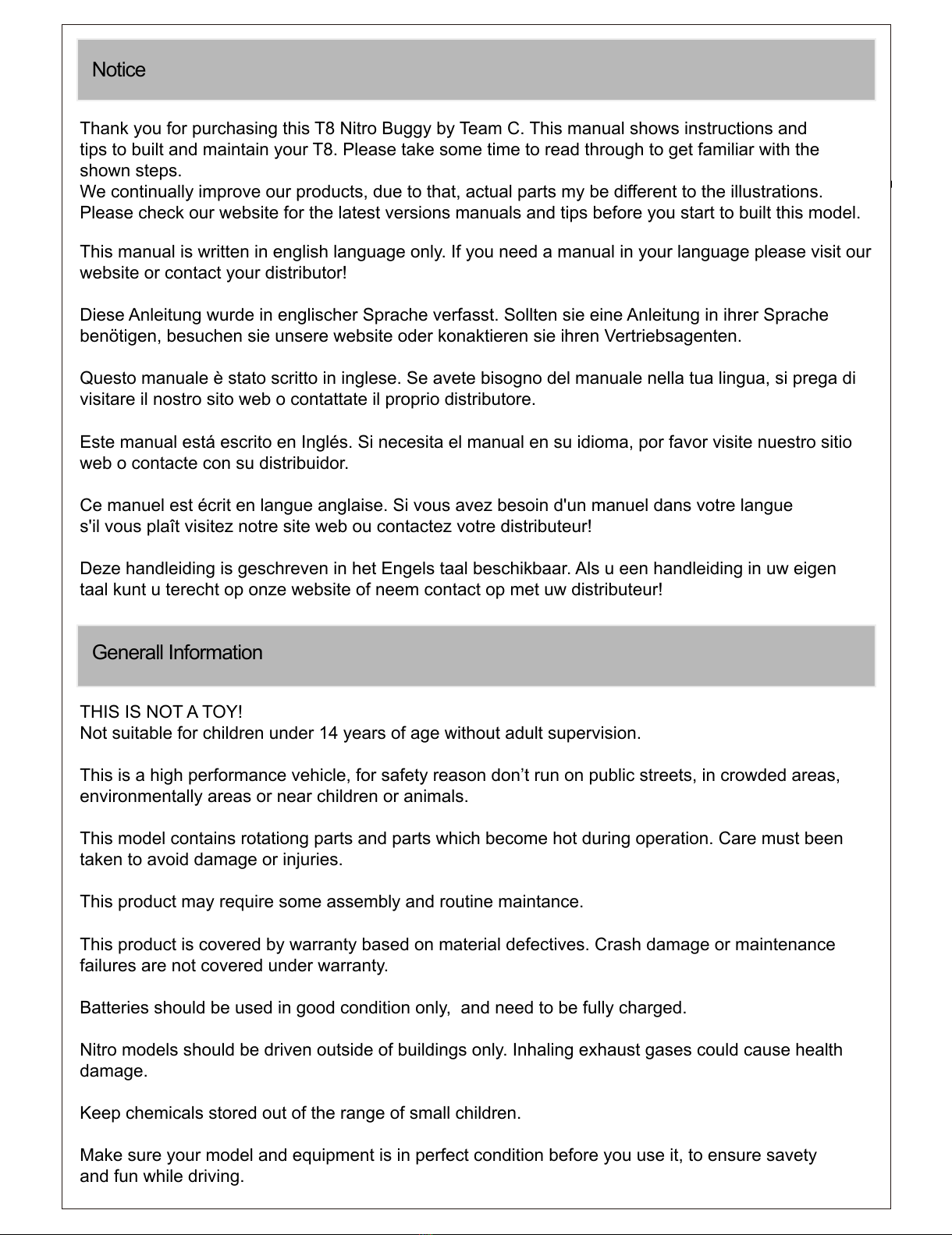

Thank you for purchasing this T8 Nitro Buggy by Team C. This manual shows instructions and
tips to built and maintain your T8. Please take some time to read through to get familiar with the
shown steps.
We continually improve our products, due to that, actual parts my be different to the illustrations.
Please check our website for the latest versions manuals and tips before you start to built this model.
Generall Information
THIS IS NOT A TOY!
Not suitable for children under 14 years of age without adult supervision.
This is a high performance vehicle, for safety reason don’t run on public streets, in crowded areas,
environmentally areas or near children or animals.
This model contains rotationg parts and parts which become hot during operation. Care must been
taken to avoid damage or injuries.
This product may require some assembly and routine maintance.
This product is covered by warranty based on material defectives. Crash damage or maintenance
failures are not covered under warranty.
Batteries should be used in good condition only, and need to be fully charged.
Nitro models should be driven outside of buildings only. Inhaling exhaust gases could cause health
damage.
Keep chemicals stored out of the range of small children.
Make sure your model and equipment is in perfect condition before you use it, to ensure savety
and fun while driving.
All manuals and user guides at all-guides.com

DIGITAL
PROPORTIONAL
RADIO CONTROL
SYSTEM
DIGITAL
PROPORTIONAL
RADIO CONTROL
SYSTEM
反向开关
Transmitter Preparation
27MHzTransmitter Crystal （TX）
Transmitter crystal(TX)
Power Switch
ON
OFF
Antenna
Extend the antenna to the maximum
Length for best performance
The crystal can be replaced to change frequencies.
Note : You must also change receiver crystals!
Do not use AM crystals
Receiver crystal(RX)
Steering Trim
To be used for trimming the steering
operation
Throttle Trim
Steering Dual Rate
To be used to adjust steering servo throw
AA Alkaling Batteries
8X
Open battery cover at the bottom of transmitter.
Install batteries. Follow the direction of batteries
designated in the inside of battery box.
Transmitter Battery Installation
This switch is used for optional parts.
3ch Switch
Reverse Switch
Low Batteries(Light Blinks)
Good Batteries
Battery Level Indicator
Left turn Straight (neutral)
Right turn
Brake
Forward Stop(Neutral)
To be used for throttle operation
Throttle Trigger
Battery Cover
Servo Factory Settings
1
1
2
3
2
To be used for trimming the throttle
operation
3
4
4
All manuals and user guides at all-guides.com

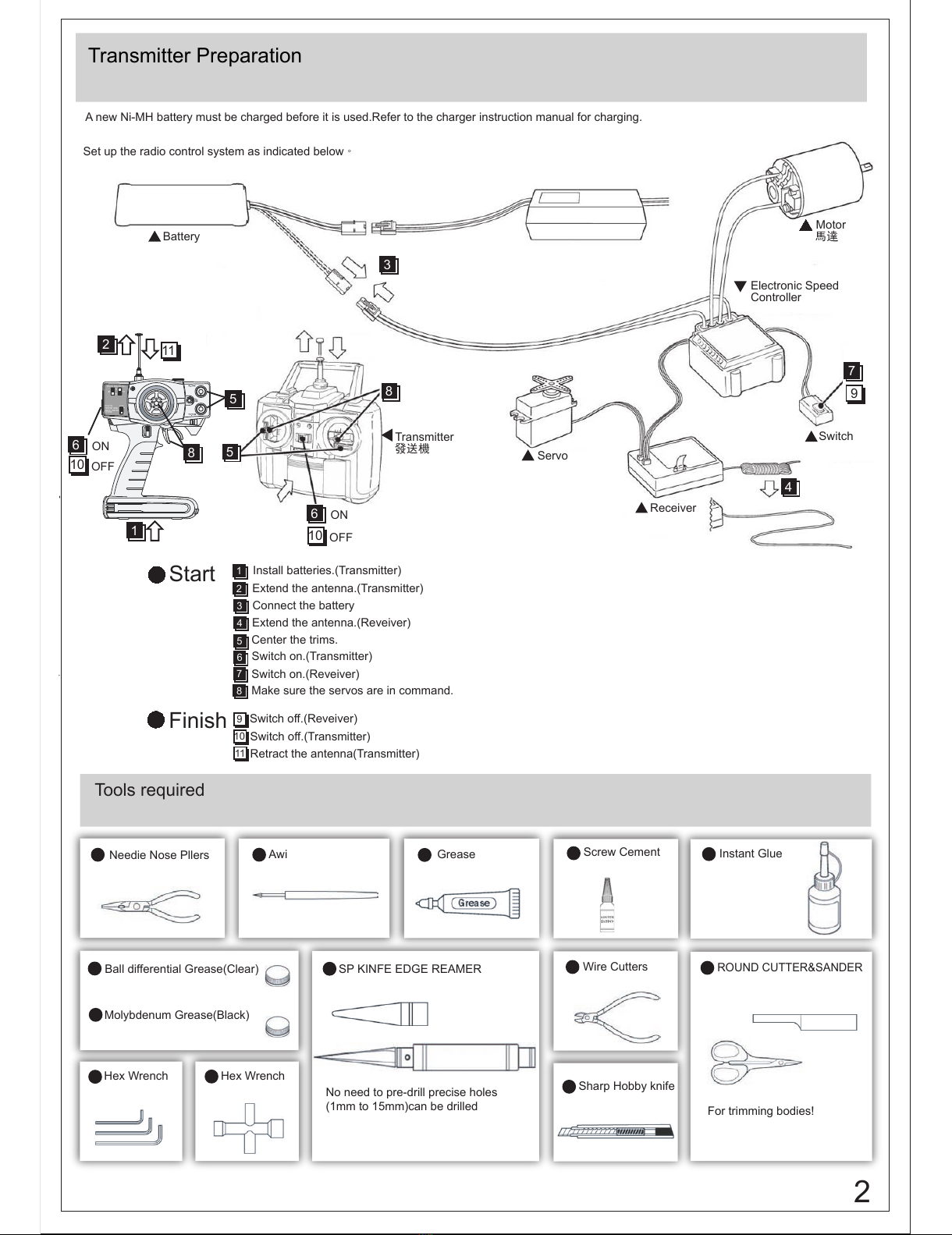

Transmitter Preparation
馬達
發送機
Battery
A new Ni-MH battery must be charged before it is used.Refer to the charger instruction manual for charging.
Set up the radio control system as indicated below。
6
5
8
Servo
Receiver
Transmitter
10
4
Switch
7
9
Electronic Speed
Controller
Motor
DIGITAL
PROPORTIONAL
RADIO CONTROL
SYSTEM
11
2
ON
OFF
6
10
ON
OFF
5
8
1
3
Tools required
Needie Nose Pllers Awi Grease Screw Cement Instant Glue
Hex Wrench
Ball differential Grease(Clear)
Molybdenum Grease(Black)
Hex Wrench
SP KINFE EDGE REAMER
No need to pre-drill precise holes
(1mm to 15mm)can be drilled
Wire Cutters
Sharp Hobby knife
ROUND CUTTER&SANDER
For trimming bodies!
2
Start
Finish
Install batteries.(Transmitter)
Extend the antenna.(Transmitter)
Connect the battery
Extend the antenna.(Reveiver)
Center the trims.
Switch on.(Transmitter)
Switch on.(Reveiver)
Make sure the servos are in command.
Switch off.(Reveiver)
Switch off.(Transmitter)
Retract the antenna(Transmitter)
1
8
7
2
5
3
4
6
9
10
11
All manuals and user guides at all-guides.com

1Servo Saver Turnbuckle
………1
T08674 M3x15 Screw
1
1:1
Approx.23mm
▲Note direction
T08643 3x40 Turnbuckle
…………1
T08606 5.8 Ball End
…………2
T08606 5.8 Ball stud
……………………2
T08666 M3 Nylon Nut
…………………1
………1
T08674 M3x14 Screw
T08666 M3 Nylon Nut
…………………1
T02081 3x7x0.8 Washer
…………………2
T08651 Buffer Screw
……2
Approx.8mm
1:1
True-to -scale diagram
T08666 M3
T08674 M3x15
T08650
Servo Saver Nut
T08650
Servo Saver Spring
T08609
Servo Saver-Top
T08609
Servo Saver-Bottom
T08650
Servo Saver Body
T08651
T08674 M3x14
T08651
Buffer Bushing
T08651
Steering Rack
T08666 M3
T08620
Steering Servo Horn-F
Select the servo horn matching the servo being used.
Futaba-25T Hitec-24T Sanwa/JR/KO-23T
T08609
Servo Saver-Left
Buffer Screw
T02081 3x7x0.8
2Buffer
4mm
T08643
3x40 Turnbuckle
T08606
5.8 Ball End
T08606
5.8 Ball End
T08606
5.8 Ball stud
T08606
5.8 Ball stud
Bag-A
Bag-A
All manuals and user guides at all-guides.com

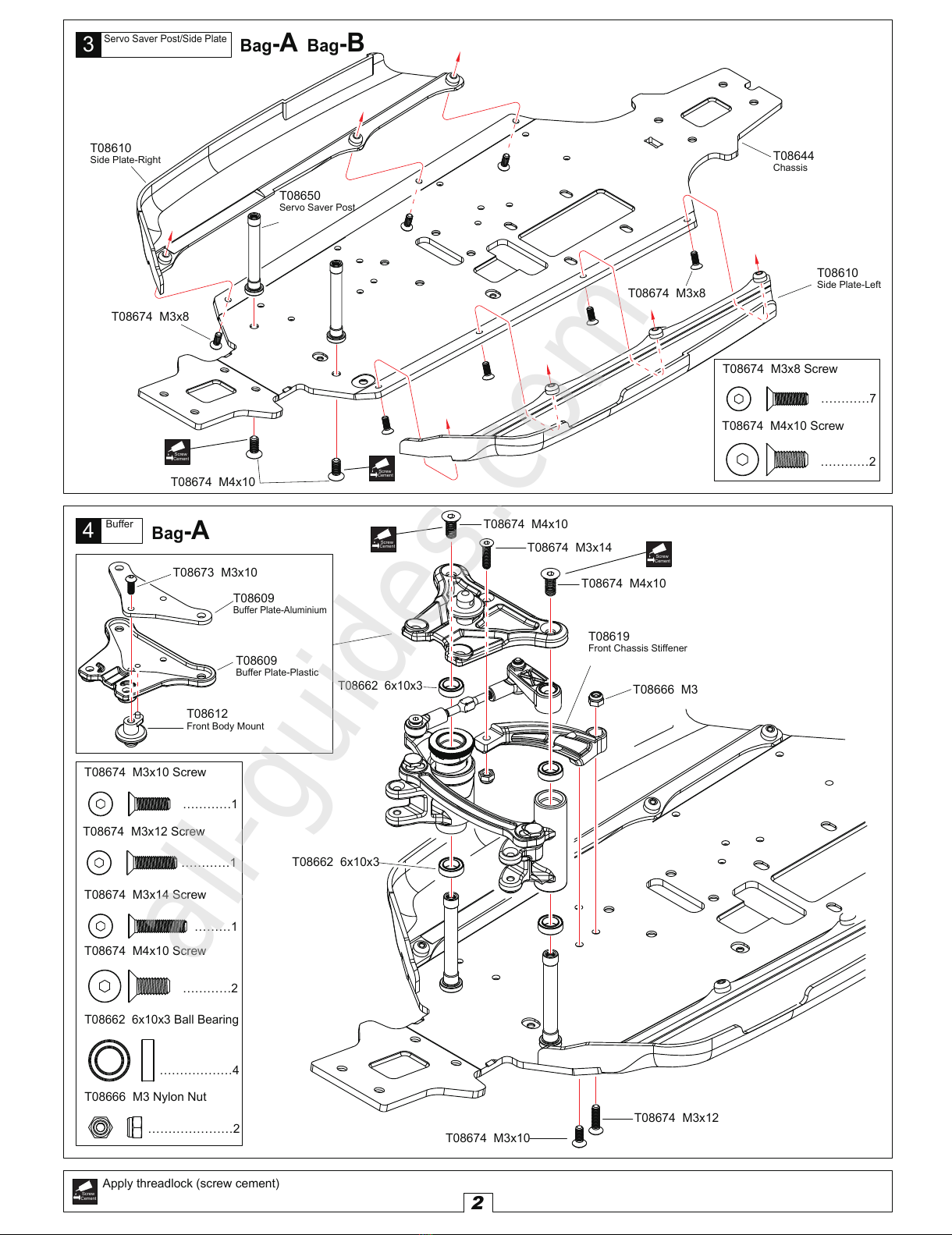

Apply threadlock (screw cement)
2
…………7
T08674 M3x8 Screw
T08674 M4x10 Screw
…………2
…………1
T08674 M3x10 Screw
T08674 M4x10 Screw
…………2
T08666 M3 Nylon Nut
…………………2
T08662 6x10x3 Ball Bearing
T08610
Side Plate-Left
T08610
Side Plate-Right
T08674 M3x8
T08674 M4x10
T08644
Chassis
T08674 M3x8
T08650
Servo Saver Post
Screw
Cement
T08673 M3x10
T08666 M3
T08674 M3x10
………………4
………1
T08674 M3x14 Screw
T08674 M3x12
T08674 M3x14
T08674 M4x10
T08674 M4x10
T08619
Front Chassis Stiffener
T08609
Buffer Plate-Plastic
T08609
Buffer Plate-Aluminium
T08612
Front Body Mount
T08662 6x10x3
T08662 6x10x3
4Buffer
3
Servo Saver Post/Side Plate
Screw
Cement
Screw
Cement
Screw
Cement
Screw
Cement
Bag-A
Bag-ABag-B
…………1
T08674 M3x12 Screw
All manuals and user guides at all-guides.com
all-guides.com

Apply threadlock (screw cement)
3
T08304 13.1x15.9x0.2 Washer
…………2
T08663 6x13x5 Ball Bearing
………2
T08673 M3x16 Screw
……2
T08641 M5x4 Screw
………………1
T08641 M5x4
T08641
84mm Center Front CVD
T08601
Differential Case
T08636
10T Gear
T08673 M3x16
T08601
Differential Case
T08663 6x13x5
T08304
13.1x15.9x0.2
T08663 6x13x5
6Front Differential Case
x2
Assemble as many times as specified
Screw
Cement
Screw
Cement
Bag-CBag-D
T08600/T08636 5.8x1.9 O-Ring
…………………4
T08633 4.1x12x0.2 Washer
…………8
T08664 8x16x5 Ball Bearing
………4 ……8
T08636 M3x12 Screw
T08633
20T Diff Gear
T08633
10T Diff Gear
T08633
20T Diff Gear
T08633
2.5x11.5 Pin
T08633
2.5x11.5 Pin
T08634
Diff Connecting Cup
T08634
Diff Connecting Cup
T08600
Differential Housing
T08633 4.1x12x0.2
T08633
Diff Shaft
T08600
Differential Pads
T08636
43T Diff Gear
T08636 M3x12
T08600 5.8x1.9
T08664 8x16x5
T08636 5.8x1.9
T08664 8x16x5
Oil

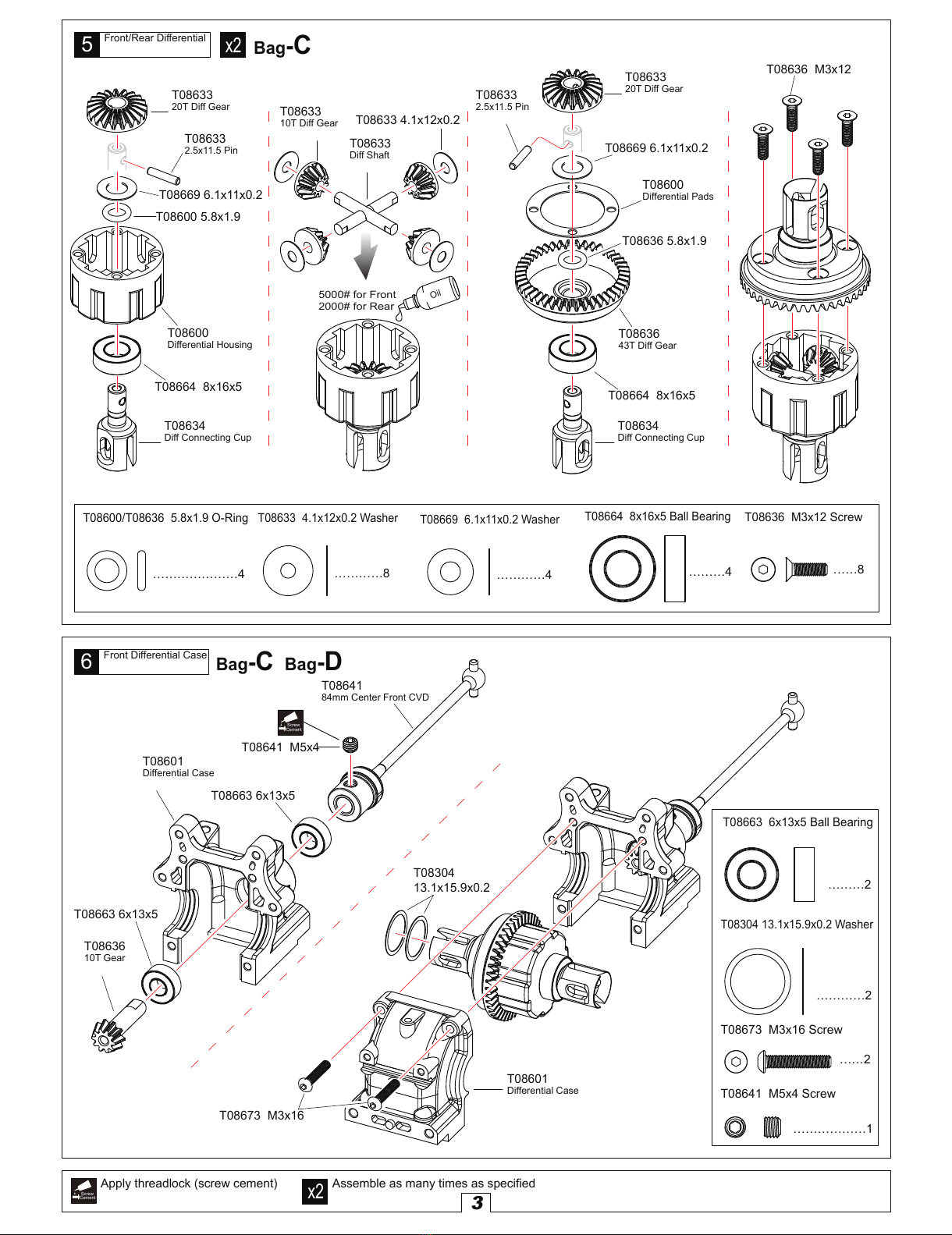

5Front/Rear Differential
x2
5000# for Front
2000# for Rear
Bag-C
T08669 6.1x11x0.2
T08669 6.1x11x0.2
T08669 6.1x11x0.2 Washer
…………4
All manuals and user guides at all-guides.com

x2
4
………………3
T08674 M2.5x8 Screw
……………………4
T08601/T08606 M3x3 Screw
LR
LR
Assemble both Left and Right
T08606 6.8 Ball stud
…………………2
T08606 6.8 Ball stud
………………………2
x2
Assemble as many times as specified
T08606 M3x3
T08606 6.8 Ball End
T08606
………………2
T08601 M3x3
T08674 M2.5x8
T08674 M2.5x8
T08601
Swaybar Mount
T08647
Front Swaybar
8Front Hub Carrie
7Front Swaybar
……4
T08673 M4x14 Screw
T08664 8x16x5 Ball Bearing
T08665 13x19x4 Ball Bearing
………2
………2
………4
…………………2
T08639 M4x4 Screw
……………2
T08649 2.5x16.8 Pin
T08604
Steering Block-Left Steering Block-Right
T08673 M4x14
T08603
Front Hub Carriers 12 Degree
T08639
T08639 M4x4
T08649 2.5x16.8
T08649
Wheel Hex Hub
T08603
T08665 13x19x4
T08664 8x16x5
T08639 2.5x12.8
T08639 5x8.5
T08639
T08639 2.5x12.8 Pin
………………2
T08639 5x8.5 CVD Shaft
……………………2
T08603 King Pin Bushing
King Pin Bushing
Left Right
Bag-D
Bag-D
95.5mm Front CVD
All manuals and user guides at all-guides.com

5
LR
Assemble both Left and Right
……4
T08673 M4x16 Screw
………4
T08675 M4x10 Screw
……………2
LR
T08673 M3x16 Screw
……2
T08645 4x73 Arm Pin
……2
T08674 M3x35 Screw
…………2
T08674 M3x15 Screw
………2
T08673 M4x16
T08673 M4x16
T08675 M4x10
T08607
T08607
Front Lower Arm
T08613
Front Arm Mount-F
T08613
Front Arm Mount-R
T08645 4x73
T08645 4x73
T08674 M3x35
T08674 M3x15
T08673 M3x16
T08673 M3x16

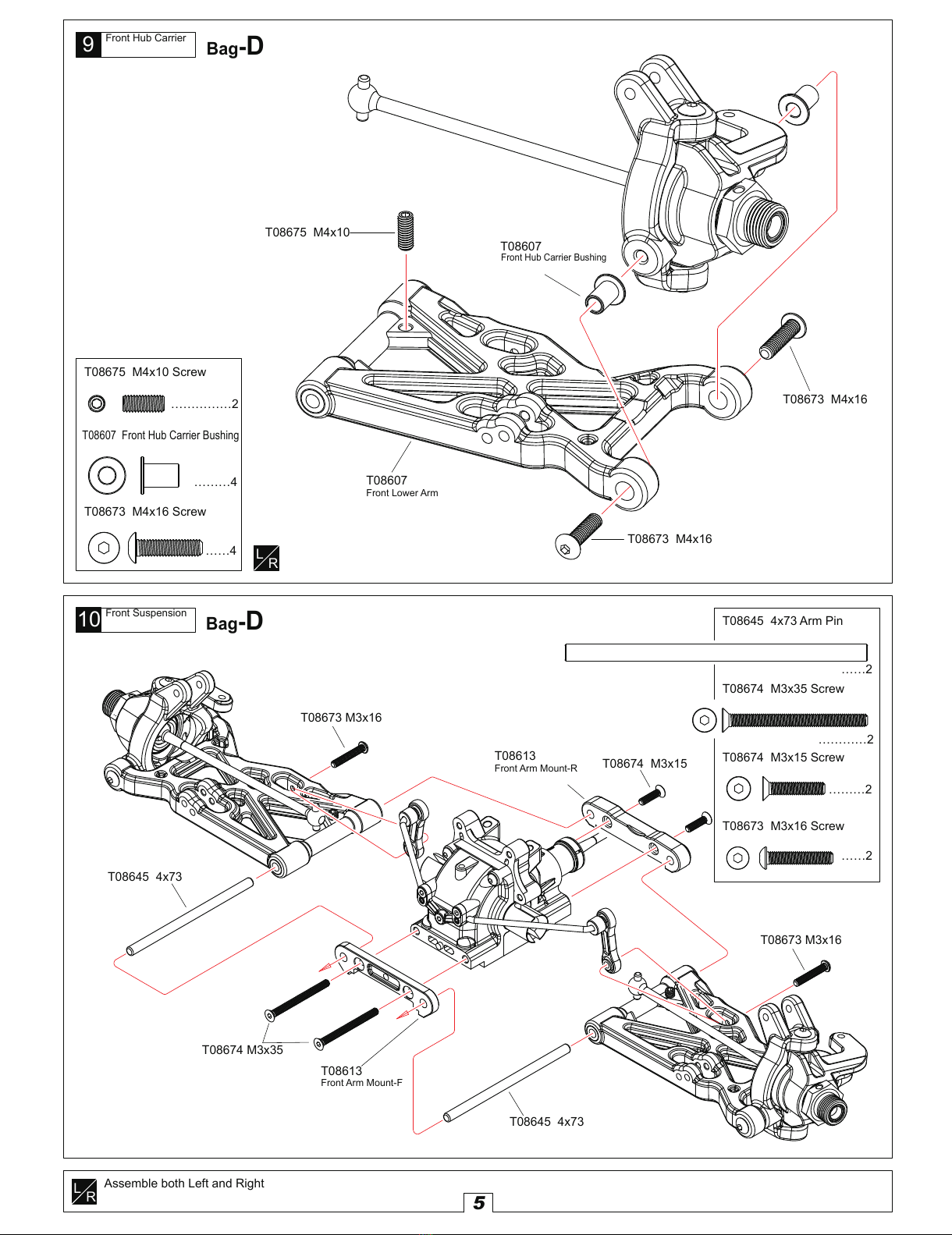

9Front Hub Carrier
10 Front Suspension
Front Hub Carrier Bushing
T08607 Front Hub Carrier Bushing
Bag-D
Bag-D
All manuals and user guides at all-guides.com

6
T08674 M3x12 Screw
………4
T08673 M3.5x25 Screw
………2 ………2
T08622 Shock cap ball
T08643 5x58 Turnbuckle
1:1 x1
1:1 x1
T08606 7.8 Ball stud
………2 ……………2 ……………2
T08606 7.8 Ball stud
Approx.32mm
▲Projection.Note direction
▲Note direction
Approx.32mm
T08606 7.8 Ball End-Front Upper
…………4
Front Upper-Left
Front Upper-Right

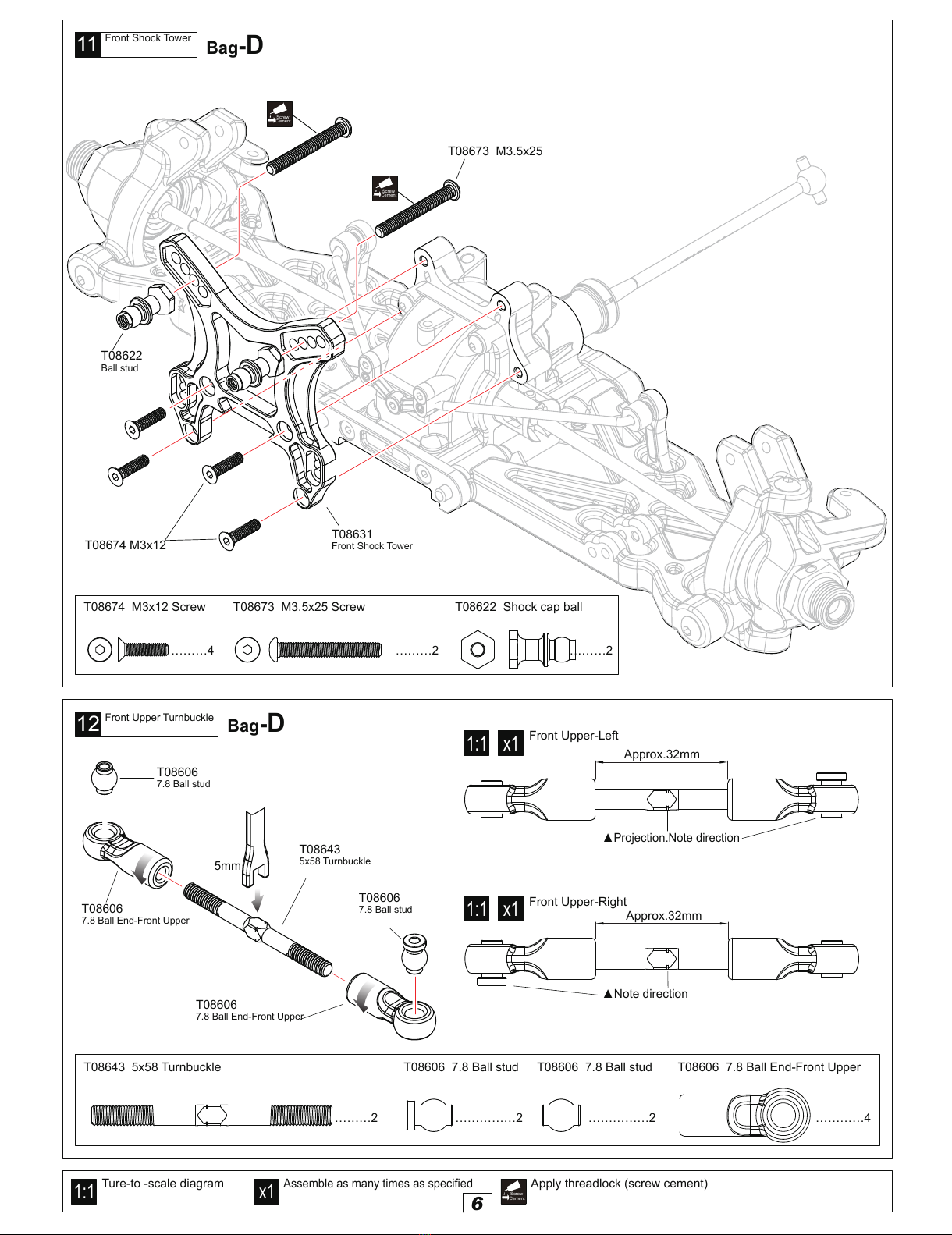

11 Front Shock Tower
12 Front Upper Turnbuckle
1:1
Ture-to -scale diagram
x1
Assemble as many times as specified Apply threadlock (screw cement)
Screw
Cement
Screw
Cement
Screw
Cement
T08643
5x58 Turnbuckle
T08606
7.8 Ball End-Front Upper
T08606
7.8 Ball stud
T08606
7.8 Ball stud
T08606
7.8 Ball End-Front Upper
5mm
T08631
Front Shock Tower
T08622
Ball stud
T08674 M3x12
T08673 M3.5x25
Bag-D
Bag-D
All manuals and user guides at all-guides.com

7
T08643 4x53 Turnbuckle T08606 6.8 Ball stud
………2 ……………2 ……………2
T08606 6.8 Ball stud
1:1 x1
T08676 M3x25 Screw
……2
T08674 M3x16 Screw
……2
T08666 M3 Nylon Nut
…………6 ……2
T08676 M3x18 Screw
T08606 6.8 Ball End-Steering
……………4
1:1 x1
Steering-Right
Steering-Left

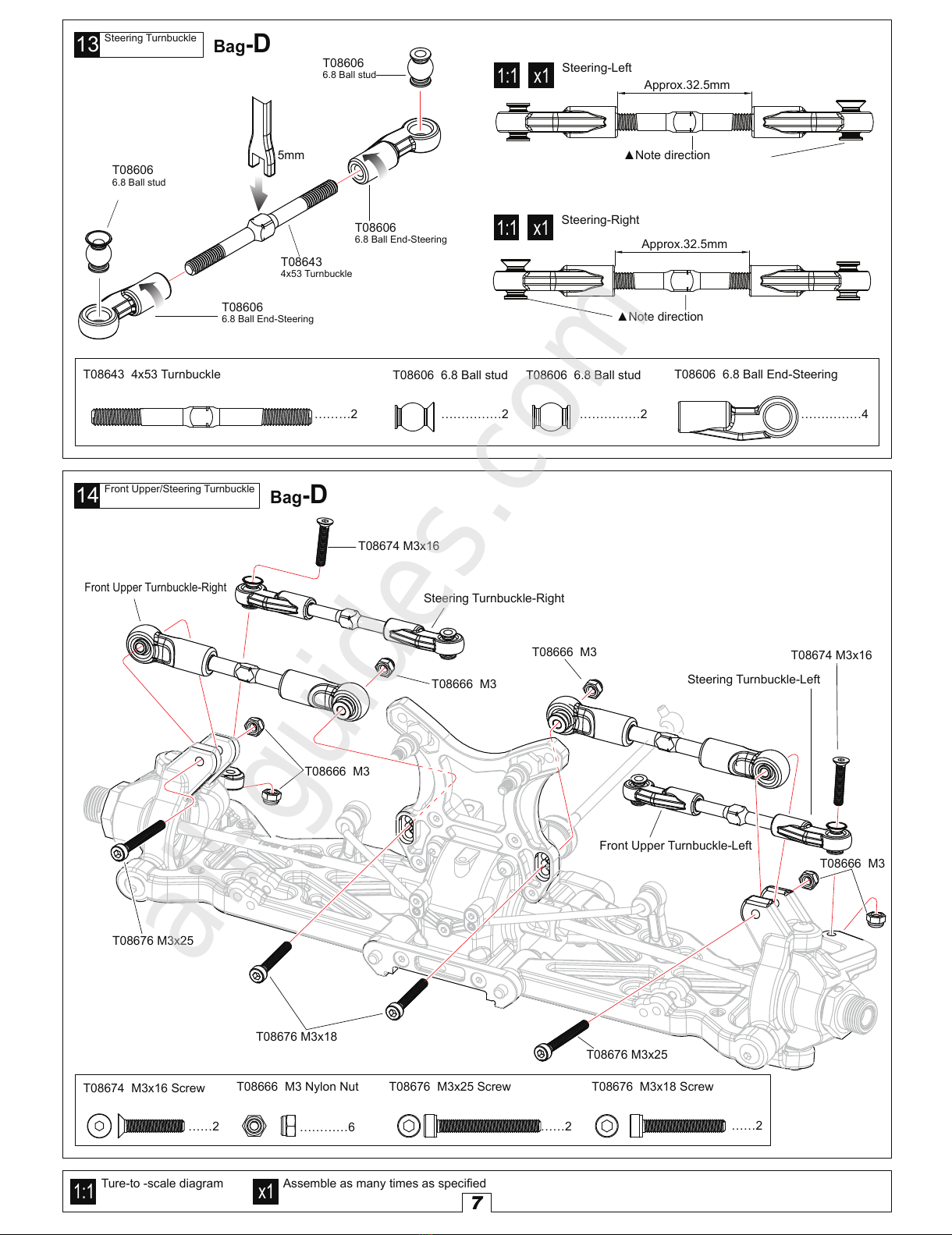

13 Steering Turnbuckle
14
1:1
Ture-to -scale diagram
x1
Assemble as many times as specified
Front Upper/Steering Turnbuckle
T08643
4x53 Turnbuckle
T08606
6.8 Ball End-Steering
T08606
6.8 Ball End-Steering
T08606
6.8 Ball stud
T08606
6.8 Ball stud
Front Upper Turnbuckle-Left
Front Upper Turnbuckle-Right
Steering Turnbuckle-Left
Steering Turnbuckle-Right
T08674 M3x16
T08674 M3x16
T08676 M3x25
T08676 M3x25
T08676 M3x18
T08666 M3
T08666 M3
T08666 M3
T08666 M3
5mm
Approx.32.5mm
Approx.32.5mm
▲Note direction
▲Note direction
Bag-D
Bag-D
All manuals and user guides at all-guides.com
all-guides.com

8
T08674 M4x10 Screw
…………2
T08674 M4x14 Screw
………4
T08674 M3x18 Screw
……2
15 Front Suspension
T08674 M4x14
T08674 M4x10
T08674 M3x18
T08611
Front Bumper
Bag-D
T08633
10T Diff Gear
T08633
20T Diff Gear
T08633
2.5x11.5 Pin
T08600
Differential Housing
T08633 4.1x12x0.2
T08633
Diff Shaft
T08636 M3x12
T08600 5.8x1.9
T08664 8x16x5
5000#
T08638
44T Center Diff Gear
T08633
20T Diff Gear
T08633
2.5x11.5 Pin
T08664 8x16x5
T08635
Center Diff Connecting Cup
T08637 5.8x1.9
T08600
Differential Pads
16 Center Differential
T08635
Center Diff Connecting Cup
Bag-C
T08669 6.1x11x0.2
T08669 6.1x11x0.2
T08600/T08636 5.8x1.9 O-Ring
…………………2
T08633 4.1x12x0.2 Washer
…………4
T08664 8x16x5 Ball Bearing
………2 ……4
T08636 M3x12 Screw
T08669 6.1x11x0.2 Washer
…………2
All manuals and user guides at all-guides.com

9
T08602 Brake Screw
………4
T08602 M3x8 Screw
…………………2
T08653 M3x3 Screw
T08677 5x8x2.5 Ball bearing
………………2
……………4
T08602 M3x30 Screw
T08677 5x8x2.5
T08677 5x8x2.5
T08653
Brake Shaft-Front
T08653
Brake Shaft-Rear
T08653
Brake Rod
T08653
Brake Rod
T08653 M3x3
T08653 M3x3
T08602 M3x30
……………4
T08602 M3x8

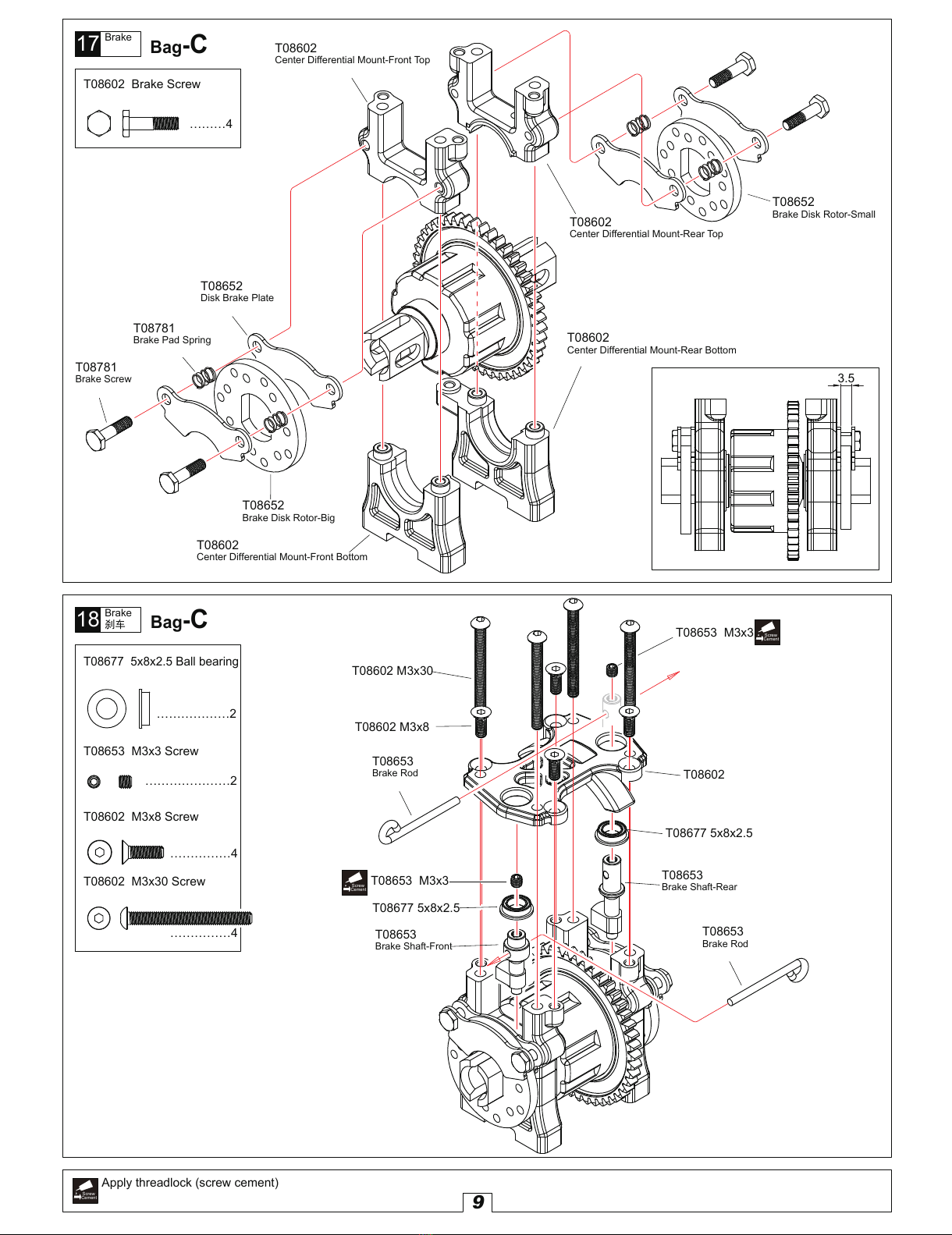

18
17 Brake
Brake
刹车
Apply threadlock (screw cement)
Screw
Cement
Screw
Cement
Screw
Cement
T08602
Bag-C
Bag-C
3.5
T08781
Brake Screw
T08652
Disk Brake Plate
T08652
Brake Disk Rotor-Big
T08602
Center Differential Mount-Rear Bottom
T08602
Center Differential Mount-Front Bottom
T08602
Center Differential Mount-Front Top
T08602
Center Differential Mount-Rear Top
T08652
Brake Disk Rotor-Small
T08781
Brake Pad Spring
All manuals and user guides at all-guides.com

10
T08674 M4x12 Screw
………4
……………………6
T08618 M3x3 Screw
T08666 M2.5 Nylon Nut
…………………1
T08666 3.1x7x1 Plastic Washer
…………………2
……………1
T08676 M2.5x8 Screw
……1
T08676 M2.5x18 Screw
T08676 M2.5x8
T08676 M2.5x18
T08666 M2.5
T08618 M3x3
T08618 M3x3
T08618 M3x3
T08618 M3x3
T08666 3.1x7x1
T08618
Throttle Spring
T08618
Brake Spring
T08618
1.8x58 Rod
T08618
1.8x58 Rod
T08618
1.8x58 Rod
T08618
T08618
T08618
T08618
T08618
T08618
T08618
T08620
Throttle Servo Arm
T08618
19 Brake/Throttle
20 Center Differential
T08674 M4x12
Bag-C
Bag-C
T08618 M3x3
T08618
All manuals and user guides at all-guides.com

11
……………………4
T08601/T08606 M3x3 Screw
T08606 6.8 Ball stud-Swaybar
…………………2
T08606 6.8 Ball stud-Swaybar
………………………2
………………3
T08601 M2.5x8 Screw
T08606
22
21 Rear Differential Case
T08304 13.1x15.9x0.2 Washer
…………2
T08663 6x13x5 Ball Bearing
………2
T08673 M3x16 Screw
……2
T08641 M5x4 Screw
………………1
T08641 M5x4
T08642
110mm Center Rear CVD
T08601
Differential Case
T08636
10T Gear
T08673 M3x16
T08601
Differential Case
T08663 6x13x5
T08304
13.1x15.9x0.2
T08663 6x13x5
Rear Swaybar
x2
x2
Assemble as many times as specifiedApply threadlock (screw cement)
Screw
Cement
Screw
Cement
Bag-E
Bag-CBag-E
T08606 M3x3
T08606 M3x3
T08601 M3x3
T08601 M3x3
T08601 M2.5x8
T08601 M2.5x8
T08601 M2.5x8
T08601
Swaybar Mount
T08647
Rear Swaybar
Screw
Cement
Screw
Cement
All manuals and user guides at all-guides.com

LR
Assemble both Left and RightApply threadlock(screw cement)
Screw
Cement
Screw
Cement
12
T08666 M3 Nylon Nut
………………2
……………2
T08675 M4x10 Screw
………………4
T08605 3.1x9x2.5 Plastic Washer
……………2
T08646 3x51.5 Arm Pin
T08664 8x16x5 Ball Bearing
T08665 13x19x4 Ball Bearing
………2
………2
……………………2
T08640 M4x4 Screw
………………2
T08649 2.5x16.8 Pin
T08605
Rear Hub Carriers-L
T08605
Rear Hub Carriers-R
T08640
T08640 M4x4
T08664 8x16x5
T08665 13x19x4
T08649 2.5x16.8
T08649
Wheel Hex Hub
T08666 M3
T08646 3x51.5
T08675 M4x10
T08605 3.1x9x2.5
T08608
Rear Lower Arm-Left
Rear Hub Carrie
Rear Hub Carrie
T08640 2.5x12.8 Pin
………………2
T08640 5x8.5 CVD Shaft
……………………2
T08640 2.5x12.8
Oil
T08640 5x8.5
T08640
LR
LR

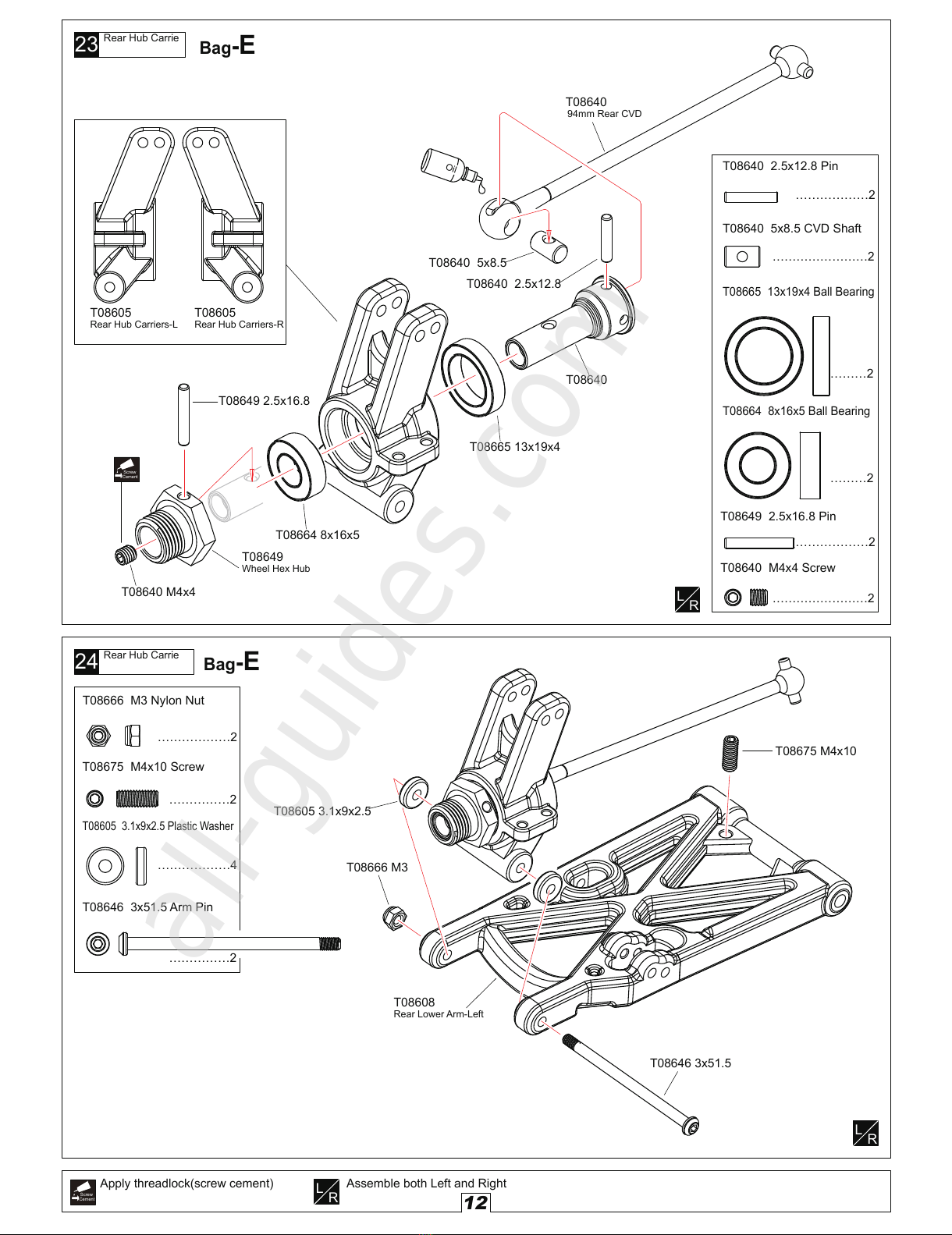

23
24
Bag-E
Bag-E
94mm Rear CVD
All manuals and user guides at all-guides.com
all-guides.com

13
T08646 4x77 Arm Pin
……………2
T08666 M4 Nylon Nut
………………2
T08673 M3x16 Screw
……2
T08674 M3x12 Screw
…………2
T08674 M3x35 Screw
……………2
T08673 M3x6 Screw
……………4
T08622 Shock cap ball
T08674 M3x10 Screw
T08673 M3.5x25 Screw
…………2
……2
……2
T08673 M3x16
T08666 M4
T08646 4x77
T08674 M3x35
T08674 M3x12 T08613
0 Degree Bushing
T08613
+1 Degree Bushing-Left
T08613
+1 Degree Bushing-Right
T08613
Rear Arm Mount-F
T08613
Rear Arm Mount-R

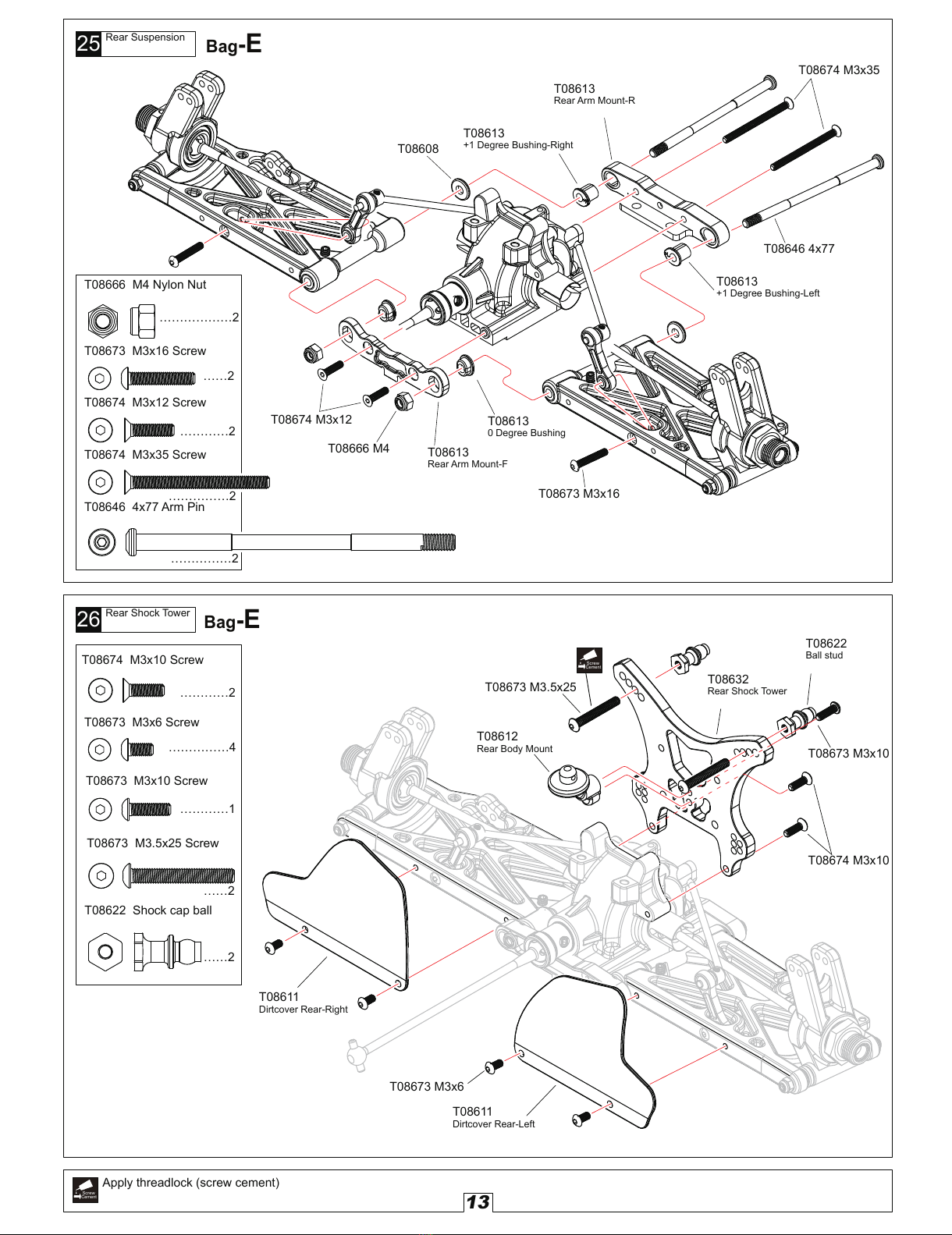

26
25 Rear Suspension
Apply threadlock (screw cement)
Rear Shock Tower
Screw
Cement
Screw
Cement
T08673 M3x10 Screw
…………1
T08611
Dirtcover Rear-Left
T08611
Dirtcover Rear-Right
T08612
Rear Body Mount
T08673 M3.5x25
T08674 M3x10
T08632
Rear Shock Tower
T08622
Ball stud
T08673 M3x6
T08673 M3x10
T08608
Bag-E
Bag-E
All manuals and user guides at all-guides.com

14
T08666 M3 Nylon Nut
…………………2
T08673 M3x18 Screw
…2
T08673 M3x16 Screw
……6
T08643 5x40 Turnbuckle T08606 7.8 Ball End-Rear Upper
………2 ………4 ………………2 ……………2
T08606 7.8 Ball stud T08606 7.8 Ball stud
▲Note direction
▲Note direction
1:1 x1
1:1 x1
Rear Upper-Left
Rear Upper-Right
Approx.14mm
Approx.14mm
大约14mm

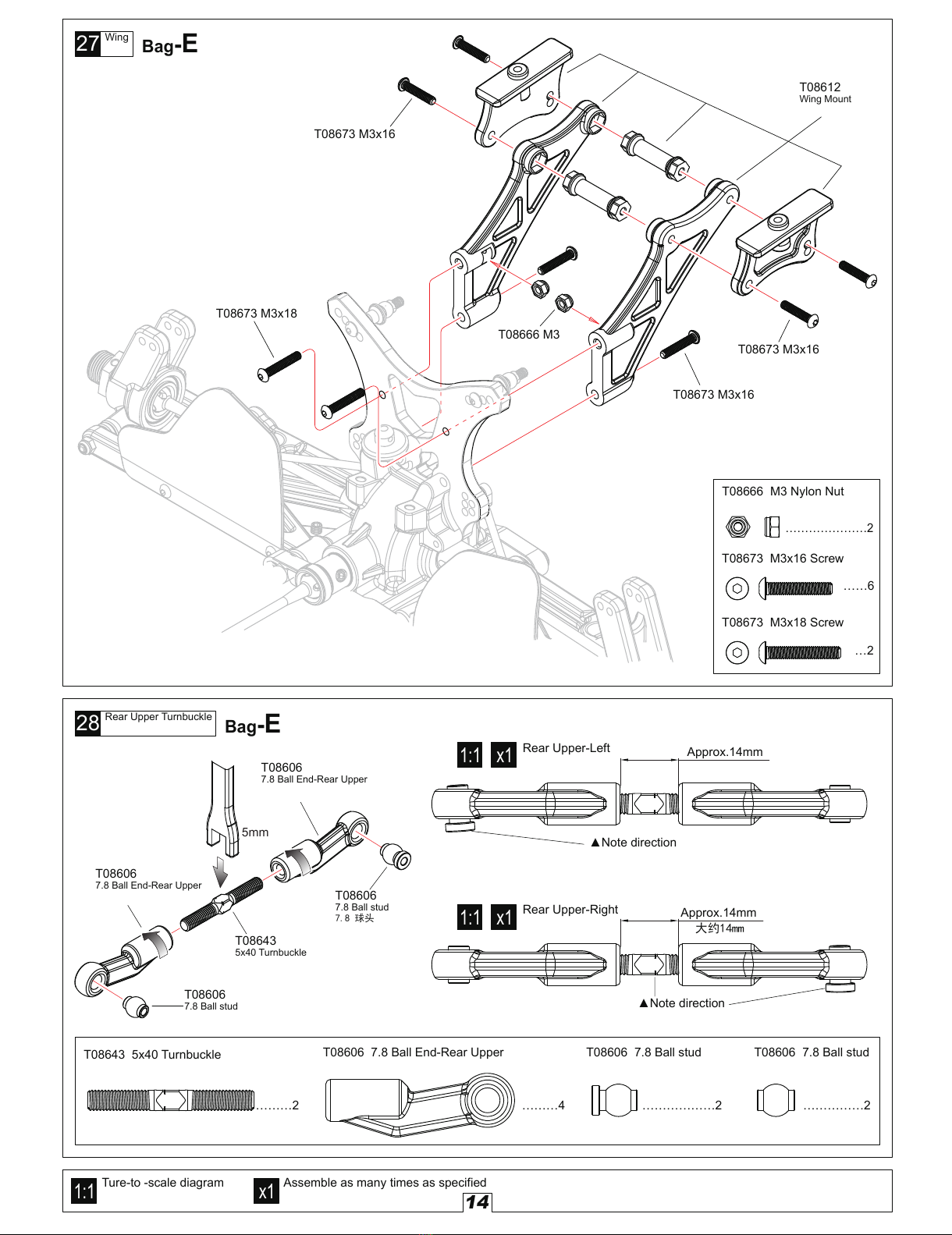

27 Wing
28 Rear Upper Turnbuckle
1:1
Ture-to -scale diagram
x1
Assemble as many times as specified
T08643
5x40 Turnbuckle
T08606
7.8 Ball End-Rear Upper
T08606
7.8 Ball End-Rear Upper
T08606
7.8 Ball stud
T08606
7.8 Ball stud
7.8 球头
5mm
T08673 M3x16
T08673 M3x18
T08612
Wing Mount
T08673 M3x16
T08666 M3
T08673 M3x16
Bag-E
Bag-E
All manuals and user guides at all-guides.com

15
T08666 M3 Nylon Nut
T08676 M3x18 Screw T08676 M3x25 Screw
………1
T08673 M4x22 Screw
T08666 M4 Nylon Nut
T08674 M4x14 Screw
…4
T08674 M3x10 Screw
……1
T08674 M3x12 Screw
……1
T08674 M4x12 Screw
……2 ……2 ……2
………………1……………4
T08666 M3 Nylon Nut
…………1
30 Rear Suspension
29 Rear Upper Turnbuckle
T08666 M3
T08666 M3
T08666 M3
T08676 M3x18
T08676 M3x25
T08619
Rear Chassis Stiffener
T08619
Rear Chassis Stiffener Mount
T08676 M3x25
T08673 M4x22
T08674 M4x12
Rear Upper Turnbuckle-Right
Rear Upper Turnbuckle-Left
T08666 M3
T08674 M4x14
T08674 M3x10
T08674 M3x12 T08674 M4x14
Bag-E
Bag-E
All manuals and user guides at all-guides.com

16
FR
Assemble both Front and Rear
450#
T08627 2.75mm Plastic Washer
T08627 3.3x1.9 O-ring
T08627 1mm Plastic Washer
…………………4
……………………4
……………………8
T08625/T08626 9x1.0 O-ring
…………………4
T08624 2.7x5.8x0.5 Washer
……………………4
T08624 M2.5 Nylon Nut
…………………4
T08624 6.8 Ball stud
………………………4
FR
x2
31 Shock
32
T08627
3.3x1.9 O-ring
T08627
1mm Plastic Washer
T08627
2.75mm Plastic Washer
T08625/T08626
9x1.0 O-ring
T08625/
Shock Bottom cover
T08625
Front Shock Body-Short
T08626
Rear Shock Body-Long
T08624
Front Shock Shaft-Short
Rear Shock Shaft-Long
T08624 2.7x5.8x0.5
T08627
Shock Piston
T08624 M2.5
T08624
6.8 Ball stud
T08622
6.8 Ball End
T08622 6.8 Ball End
……………4
Front-Short
Rear-Long
Front-Short
Rear-Long
FR
x2
T08622
Diaphragm
Front-Short
Rear-Long
T08625/T08626
Shock Top cover
x2
Assemble as many times as specified
Shock
Bag-F
Bag-F
All manuals and user guides at all-guides.com
