Team C TC10 User manual

尺寸：
TC10
Length …………………………………………………………………………420mm
Width …………………………………………………………………………200mm
Height …………………………………………………………………………105mm
長度
寬度
高度
Dimensions
Instruction manual
www.teamcracing.net
1/10 SCALE RADIO CONTROL TOURING CAR

9
8
7
610
11
12
13
14
電池蓋
調整遙控器
在遙控器的底部打開電池蓋子,安裝電池。
跟隨電池的指示在電池盒裡面指定。
AA 堿性電池
遙控器電池安裝
Transmitter Preparation
AA
Alkaling Batteries
4X
Open battery cover at the bottom of transmitter.
Install batteries. Follow the direction of batteries
designated in the inside of battery box.
Transmitter Battery Installation
Battery Cover

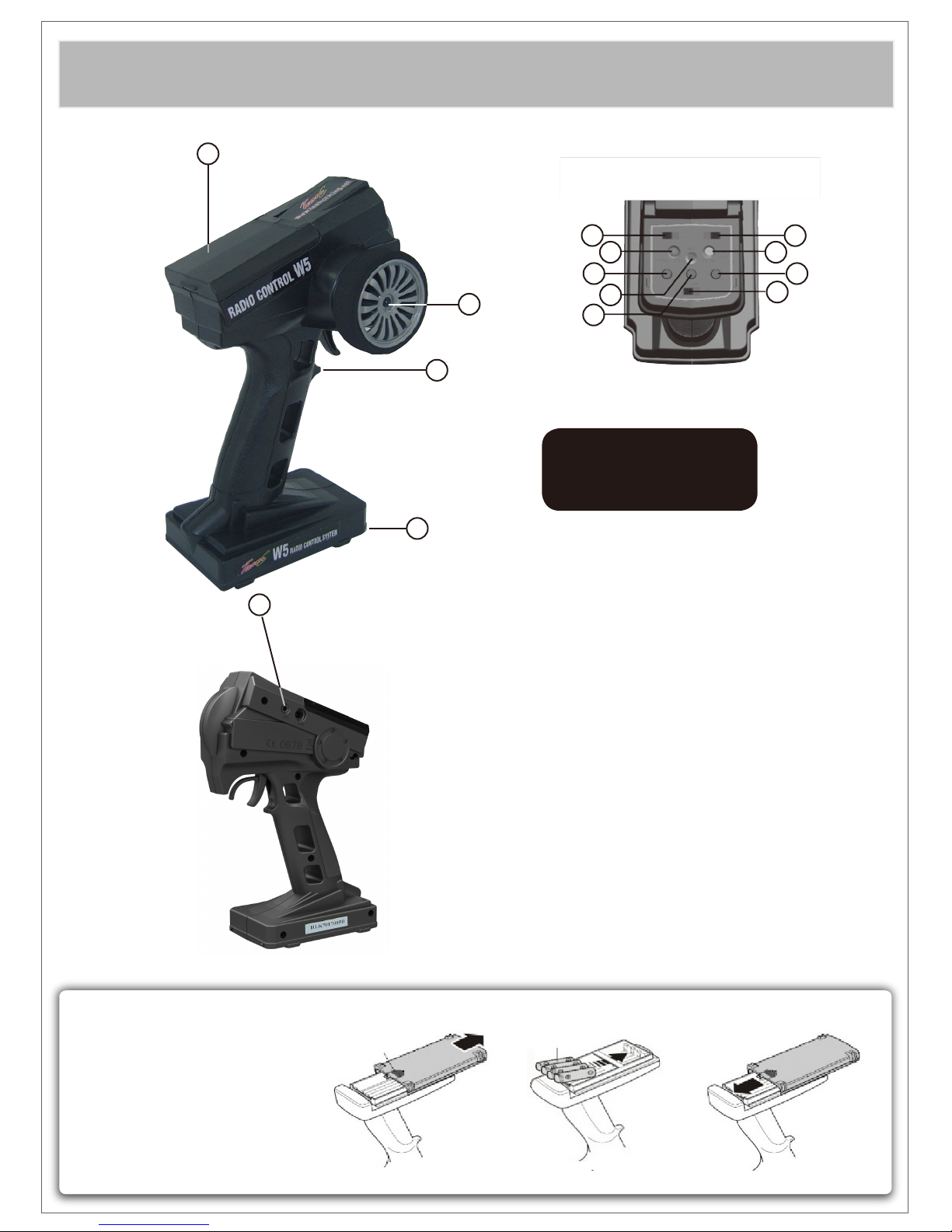

1 Control Panel
2 Steering Wheel
3 Throttle Trigger
4 Battery Compartment
5 Charging Jack
6 Sterring Servo Reverse
7 Power LED
8 Steering Trim
9 Bind Button
10 Throttle Servo Reverse
11 Battery Voltage
12 Steering Dual Rate
13 Power Switch
14 Throttle Trim
GLG20
2.4GHz
1
5
3
4
2
控制面板
轉向輪
油門板扣
電池盒
充電接口
轉向正逆轉開關
電源指示燈
轉向调節
設定按扭
油門正逆轉開關
電池電壓
轉向大小微調
電源開關
油門微調

調整遙控器
Transmitter Preparation
組裝需要的工具
Tools required
Needie Nose Pllers Awl Grease
潤滑油
Screw Cement
螺絲膠水
瞬間膠水
Instant Glue
Hex Wrench
六角扳手
Differential Grease
差速油
Molybdenum Grease(Black)
鉬油(黑)
錐
尖嘴鉗
Hex Wrench
十字套筒
Body Reamer
車殼絞刀
No need to pre-drill precise holes
(1mm to 15mm)can be drilled
可以對預鑽的孔準確地鑽1mm-15mm
Wire Cutters
鋼絲鉗
Sharp Hobby knife
美工刀
ROUND CUTTER
剪刀
For trimming bodies!
用于修剪車殼！
H154
H162
H096
Battery Charger
(Not Included)
Battery
Servo
Motor

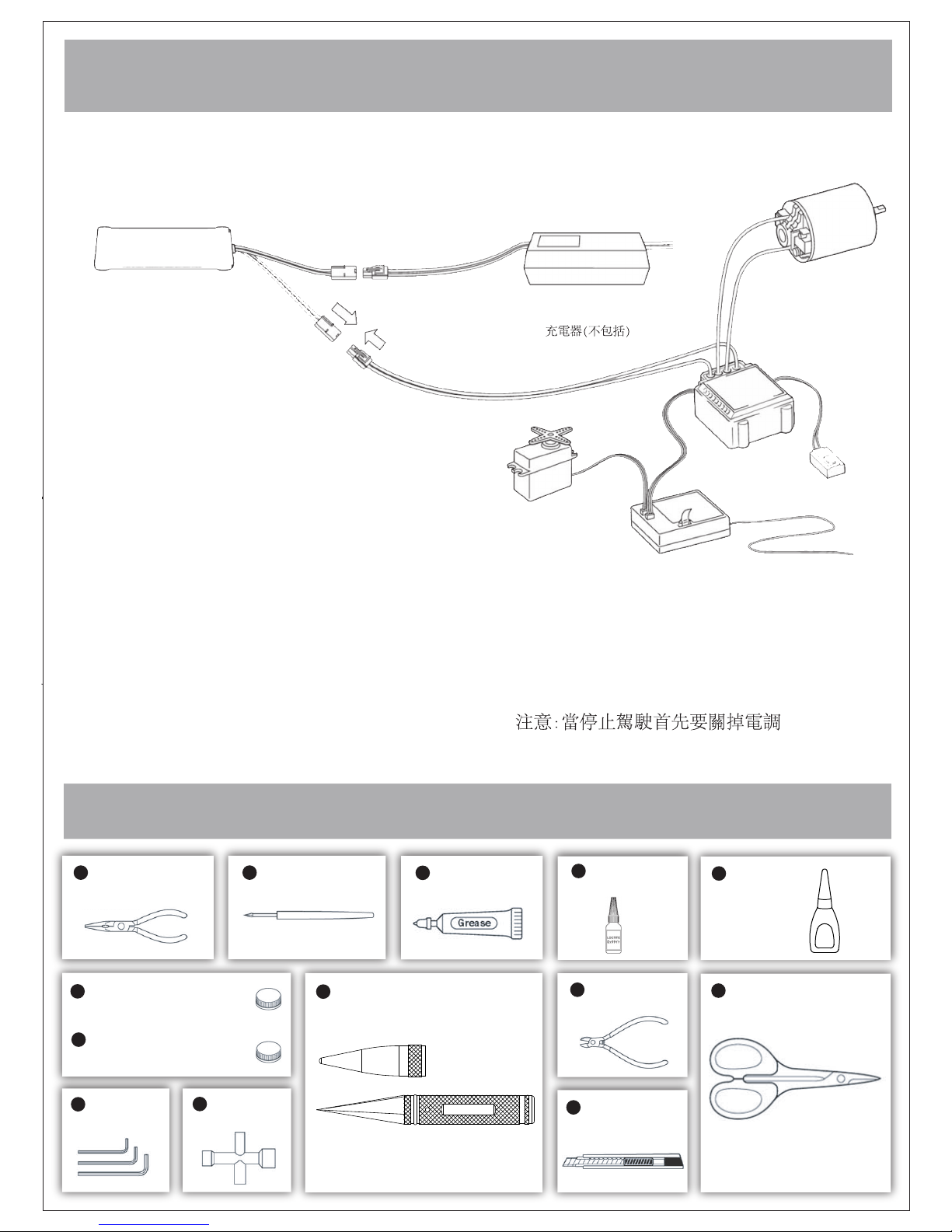

Electronic Speed
Controller / Switch
Receiver
Note: When done driving Turn Off the
ESC and THEN Transmitter
Install Transmitter Batteries1.
Connect Battery to ESC2.
Switch on Transmitter First3.
Switch on ESC Second4.
安裝發射電池
連接電池到電調
首先接通發射機
其次接通電調
其次再關掉發射機
電池 馬達
伺服
接收機
電子變速器

1
2

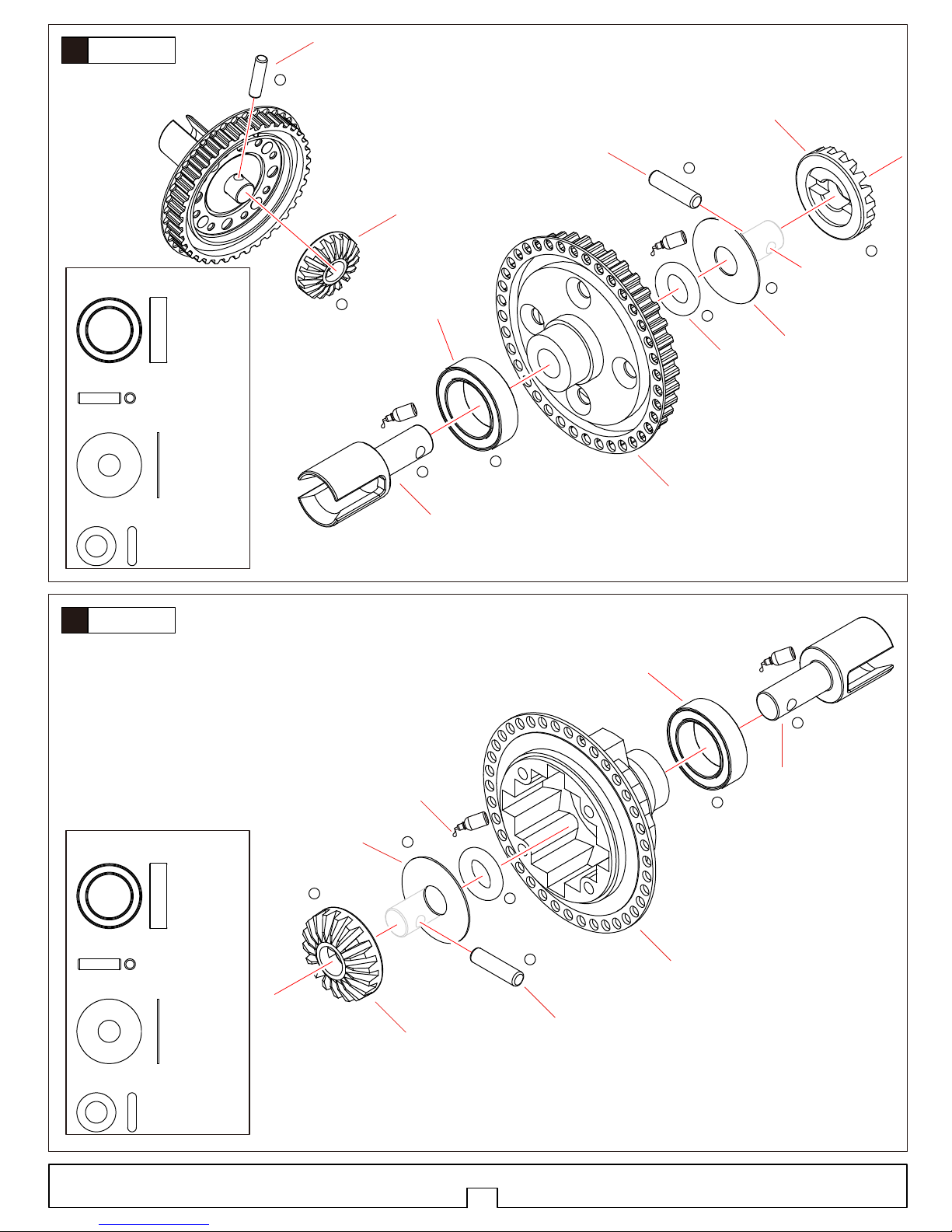

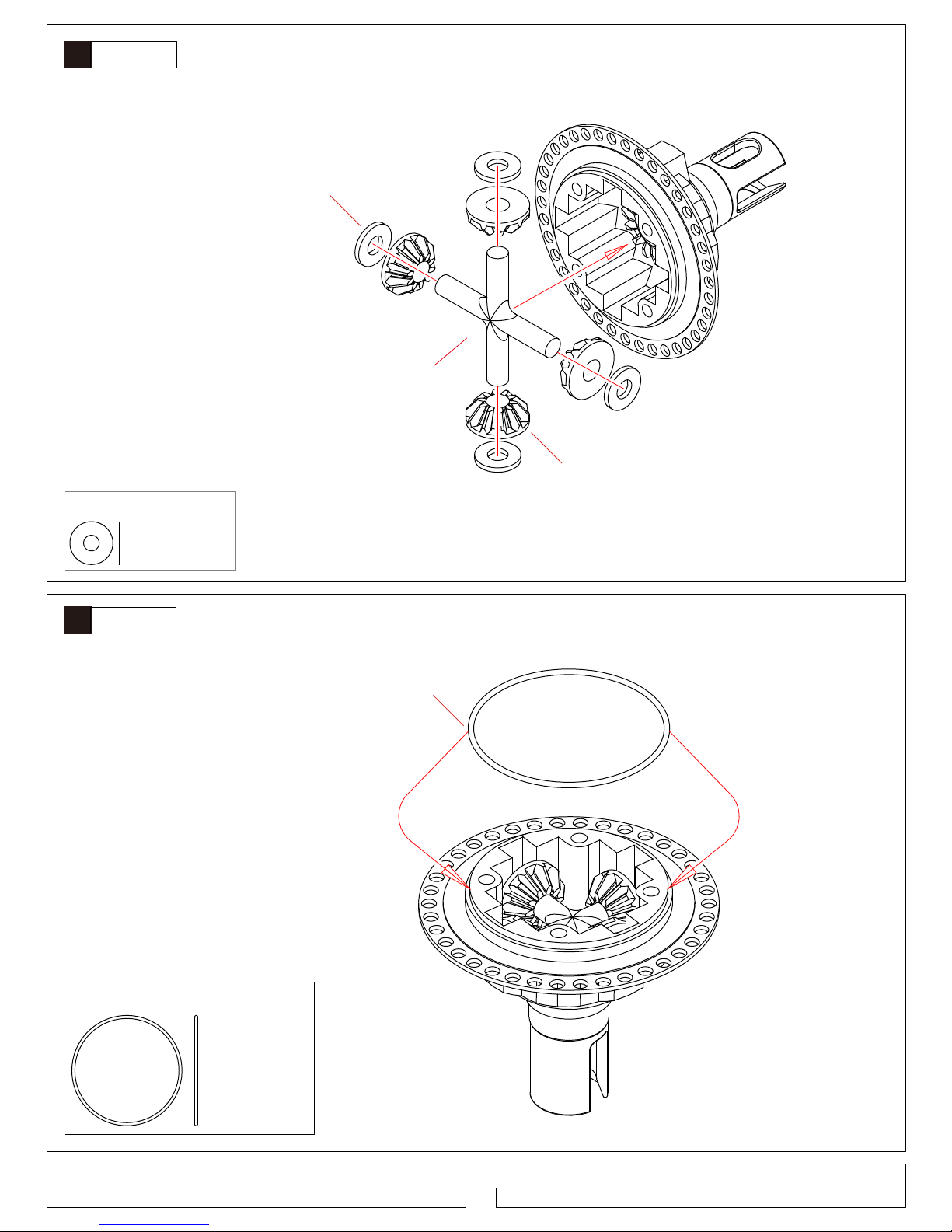

Gear Differential
齿轮差动
1
Bag-A
Bag-A
4
1
4
2
3
5
5
5
1
2
3
4
........................1
………………1
..........................1
5x15x0.3垫片
5x15x0.3 Washer
T01049
2x9.8钢针
2x9.8 Pin
T04032
18T齿轮
18T Diff Gear
T01091
差速接杯
Aluminum Diff connecting cup
T01028
5x1.9 O环
5x1.9 O-ring
T01126
18T齿轮
18T Diff Gear
T01091
18T齿轮
18T Diff Gear
T01091
差速接杯
Aluminum Diff connecting cup
T01028
2x9.8钢针
2x9.8 Pin
T04032
38T差速齿轮带
38T Differential Belt Tooth
T01084
差速壳
Differential Shell
T01084
2x9.8钢针
T04032 2x9.8 Pin
5x1.9 O环
T01126 5x1.9 O-Ring
5x15x0.3垫片
T01049 5x15x0.3 Washer
........................1
....................1
..........................1
2x9.8钢针
T04032 2x9.8 Pin
5x1.9 O环
T01126 5x1.9 O-Ring
5x15x0.3垫片
T01049 5x15x0.3 Washer
Gear Differential
齿轮差动
6
10x15x4轴承
10x15x4 Ball Bearing
T02099
6
10x15x4轴承
10x15x4 Ball Bearing
T02099
5x15x0.3垫片
5x15x0.3 Washer
T01049
5x1.9 O环
5x1.9 O-ring
T01126
10x15x4轴承
T02099 10x15x4 Ball Bearing
..................1
10x15x4轴承
T02099 10x15x4 Ball Bearing
..................1
2x9.8钢针
2x9.8 Pin
T04032
OIL
油
OIL
油
OIL
油
OIL
油

4
31
2
Bag-A
Bag-A
..........................4
..........................1
3.5x10x0.3垫片
3.5x10x0.3 Washer
T01049
Gear Differential
齿轮差动
Gear Differential
齿轮差动
差带十字轴
With Poor Spider
T01091
10T差速内齿
10T Diff Gear
T01091
3.5x10x0.3垫片
T01049 3.5x10x0.3 Washer
24x0.7 O环
T01097 24x0.7 O-Ring
24x0.7 O环
24x0.7 O-ring
T01097

Bag-A
3
……………4
5
6
Bag-A
Gear Differential
齿轮差动
Gear Differential
齿轮差动
M2.5x8螺丝
M2.5x8 Screw
T01117
5000#
M2.5x8螺丝
T01117 M2.5x8 Screw
差速防漏垫片
Diff Leakproof Spacer
T01097
1
4
3
2

4

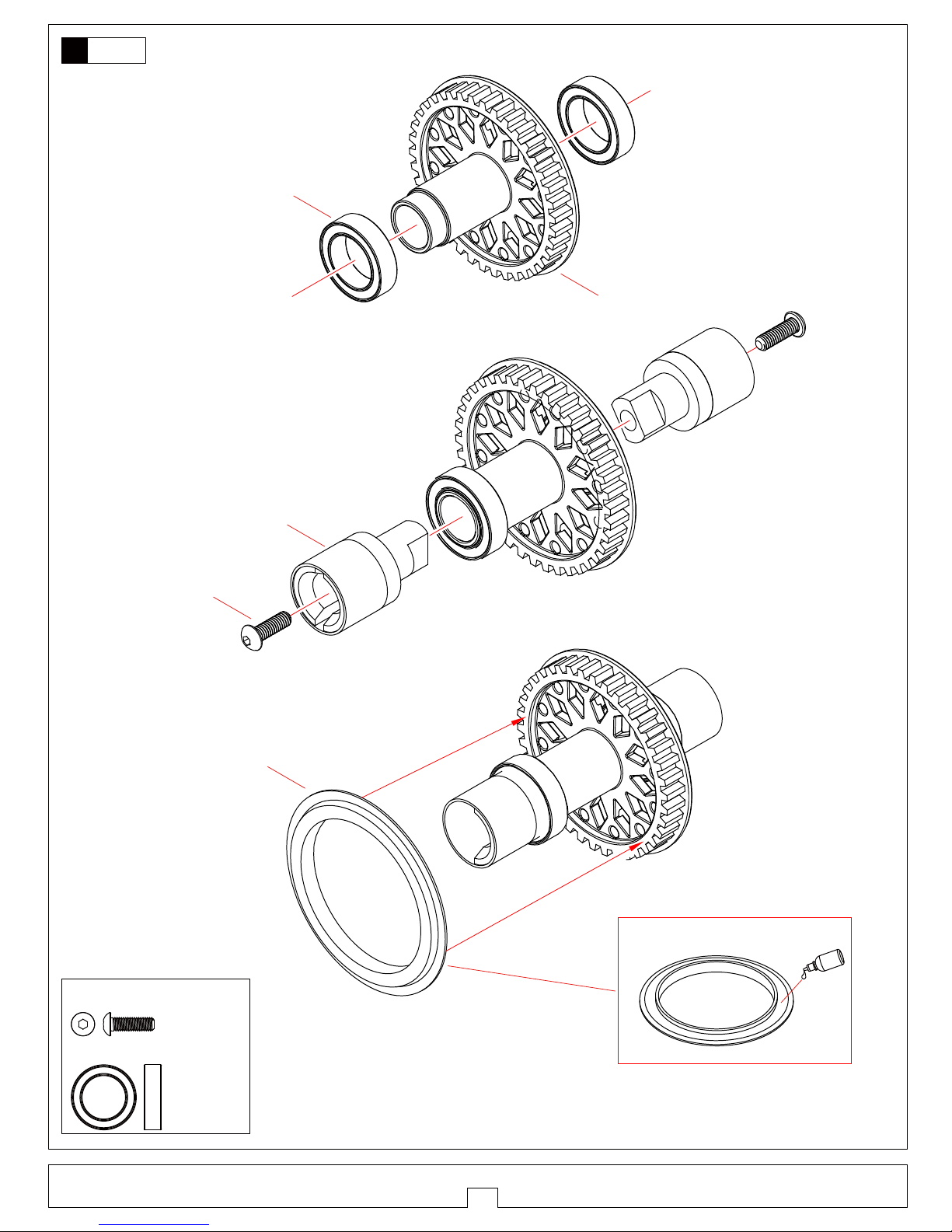

Solid Axle
实心轴
7
Bag-A
10x15x4轴承
10x15x4 Ball Bearing
T02099
……………2
10x15x4轴承
T02099 10x15x4 Ball Bearing
M3x10螺丝
M3x10 Screw
T01115
差速接杯
Diff Connecting Cup
T01080
塑胶直轴
Plastic Straigt Shaft
T01085
直轴齿轮环
Straigt Shaft Gear Ring
T01085
....................2
M3x10螺丝
T01115 M3x10 Screw
Glue
膠水

5
........................13
T01118 M3x6 Screw
M3x6螺絲
Motor Mount/Side Panel
马达座/侧板
Center Gear Adaptor
中心齿轮适配器
8
9
Bag-B
Bag-B
侧板
Side Panel
T01007
马达座-A
Motor Mount-A
T01021
马达座-B
Motor Mount-B
T01022
M3x6螺丝
M3x6 Screw
T01118
主底盘
Main Chassis
T01000
M3x4螺丝
M3x4 Screw
T01112
中齿轮-118T
Mid Gear-118T
T01092
20T皮带轮轴
20T Belt Wheel
T01027
20T皮带轮
20T Pulley
T01026
3.5mm套管
3.5mm Casing
T01073
4x8x3轴承
4x8x3 Ball Bearing
T01074
..........................4
T01112 M3x4 Screw
M3x4螺絲
..........................3
4x8x3轴承
T01074 4x8x3 Ball Bearing
..........................1
3.5mm套管
T01073 3.5mm Casing
中差座
Center Diff Mount
T01023
M3x10螺丝
M3x10 Screw
T01120
.................1
M3x10螺丝
T01120 M3x10 Screw

6

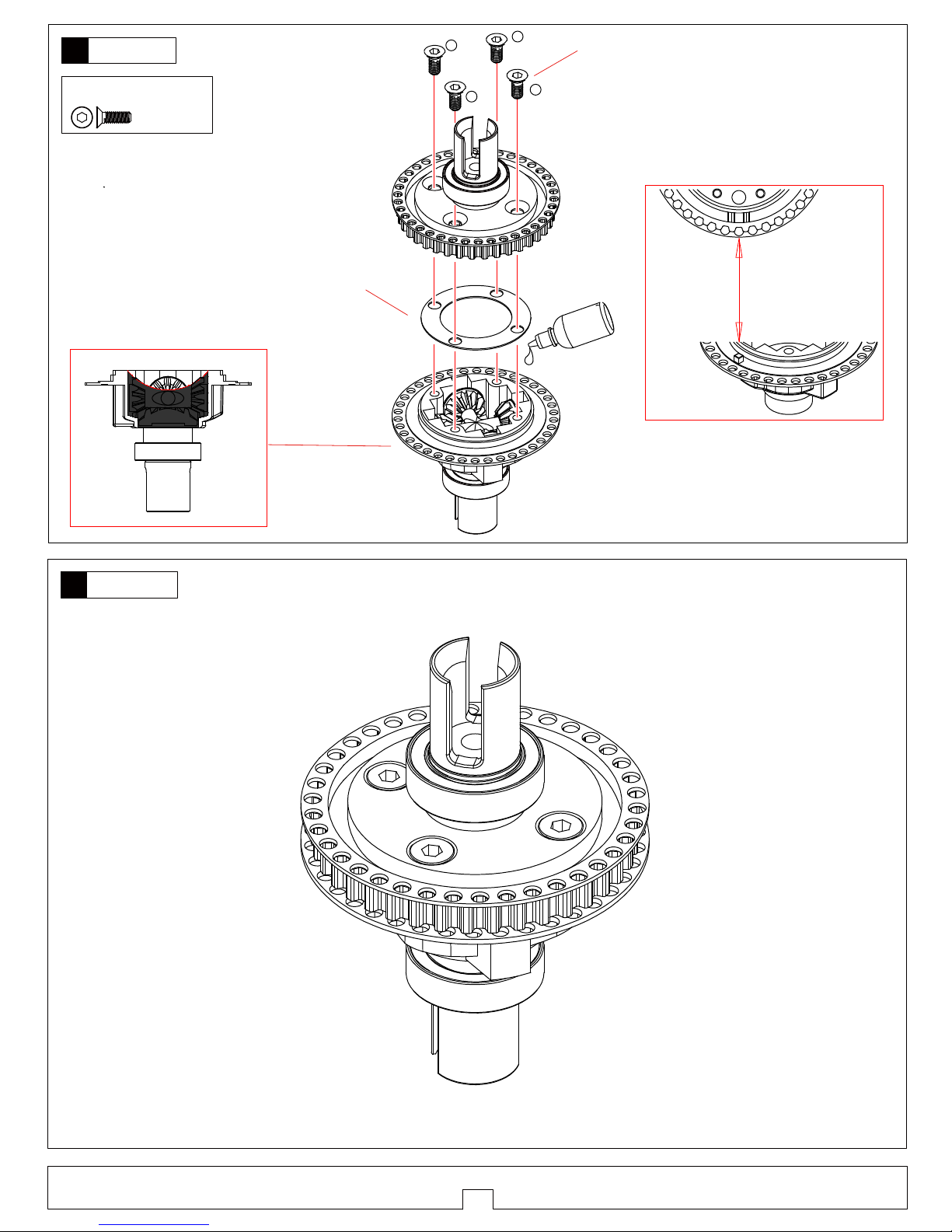

11 Differential assembly
10 Differential assembly
差速组装
差速组装
Bag-B
Bag-B
ａ ｑｕａｒｔｅｒａ ｑｕａｒｔｅｒ
皮带调整环
Belt Adjustment Ring
T01086
小皮带
Small Belt
T01100
皮带
Belt
T01099
M2.5x8螺丝
M2.5x8 Screw
T01117
……………2
M2.5x8螺丝
T01117 M2.5x8 Screw

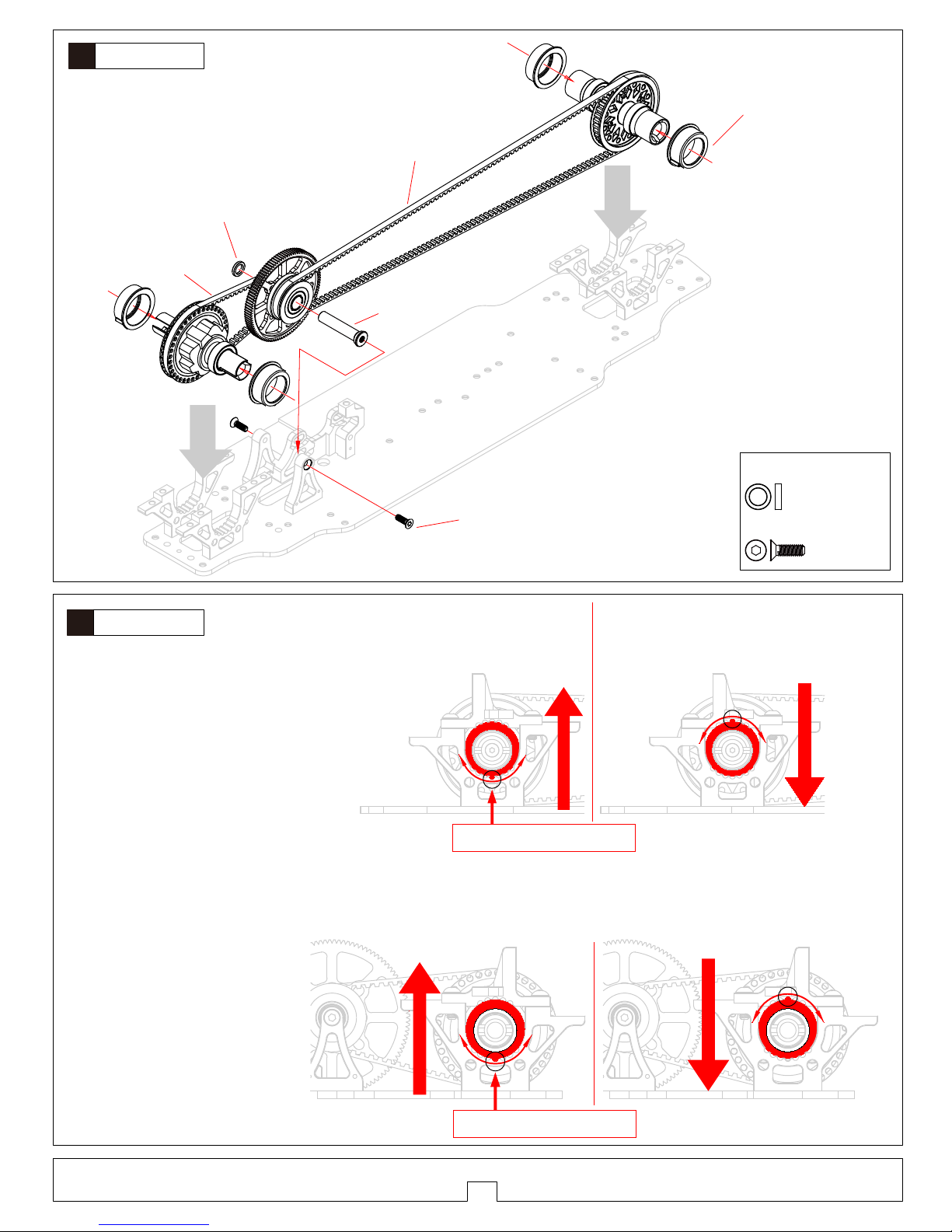

上层位置提供更多前差速转向但提供更少的前牵引。
推荐用於中-高抓地赛道中控制。
Front diff upper position provides more steering but provides less
front traction.Recommended for medium-high grip tracks and
technical tracks. 提供更低的位置前面差速前牵引但使汽车更多的推动
力量。推荐用於低抓地赛道。
Front diff low position provides more front traction but makes the
car more push on power.Recommended for low traction track.
INITIAL POSITION
PLACE TAB IN THIS BOTTOM NOTCH
TO LOOSEN FRONT BELT:Rotate both front nylon hubs in arrow direction A
TO TIGHTEN FRONT BELT:Rotate both front nylon hubs in arrow direction B
上层位置提供更多后方差速权力转向但让后方略微宽松的。
推荐用於中-高抓地赛道。
Rear diff upper position provides more on-power steering but makes the
rear slightly more loose.Recommended for medium-high traction tracks.
提供更低的位置前面差速前牵引但使汽车更多的推动
力量。推荐用於低抓地赛道。
Rear diff lower position provides more rear traction,mainly on
power traction and makes the car more stable in the chicanes,
but makes the car push more on power.Recommended for
low-medium traction.
TO LOOSEN FRONT BELT:Rotate both rear nylon hubs in arrow direction A
TO TIGHTEN FRONT BELT:Rotate both rear nylon hubs in arrow direction B INITIAL POSITION
PLACE TAB IN THIS BOTTOM NOTCH
ABAB
中轴
Axis
T01025
4x6x1.5垫片
4x6x1.5 Washer
T01017
........................1
4x6x1.5垫片
T01017 4x6x1.5 Washer
BA
BA

Apply threadlocker(screw cement)
打螺絲膠水
Screw
Cement 7
13 Front&Rear Shock Tower
前后避震器架
Bag-B
M3x6螺丝
M3x6 Screw
T01113
后避震器架
Rear Shock Tower
T01003
前避震器架
Front Shock Tower
T01002
…………8
M3x6螺丝
T01113 M3x6 Screw
Assemble both Left and Right
組裝左和右
LR
12 Side Panel On The Cover
侧板上盖
Bag-B
侧板上盖-R
Side Panel On The Cover-R
T01008 侧板上盖-L
Side Panel On The Cover-L
T01008
…………8
M3x6螺丝
T01113 M3x6 Screw
M3x6螺丝
M3x6 Screw
T01113
M3x6螺丝
M3x6 Screw
T01113
M3x6螺丝
M3x6 Screw
T01113

8

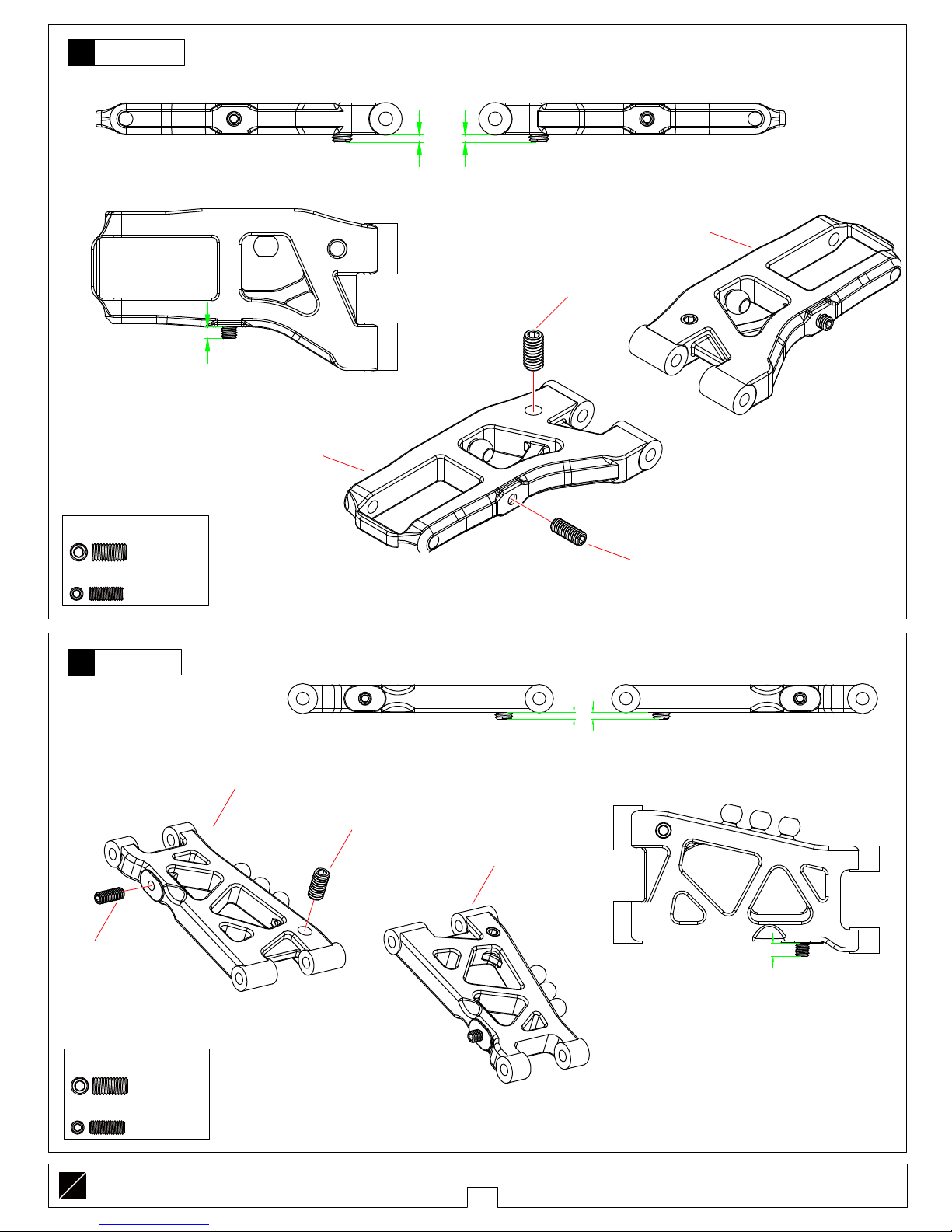

Rear Lower Arm
后下摆臂
15
Bag-C
2.0mm
3.0mm
后下摆臂-L
Rear Lower Arm-L
T01082
后下摆臂-R
Rear Lower Arm-R
T01082
M3x8螺丝
M3x8 Screw
T01095
M4x8螺丝
M4x8 Screw
T01096
…………2
M3x8螺丝
T01095 M3x8 Screw
…………2
M4x8螺丝
T01096 M4x8 Screw
Assemble both Left and Right
組裝左和右
LR
Front Lower Arm
前下摆臂
14
Bag-C
2.2mm
3.0mm
…………2
M3x8螺丝
T01095 M3x8 Screw
…………2
M4x8螺丝
T01096 M4x8 Screw
M4x8螺丝
M4x8 Screw
T01096
M3x8螺丝
M3x8 Screw
T01095
前下摆臂-R
Front Lower Arm-R
T01081
前下摆臂-L
Front Lower Arm-L
T01081

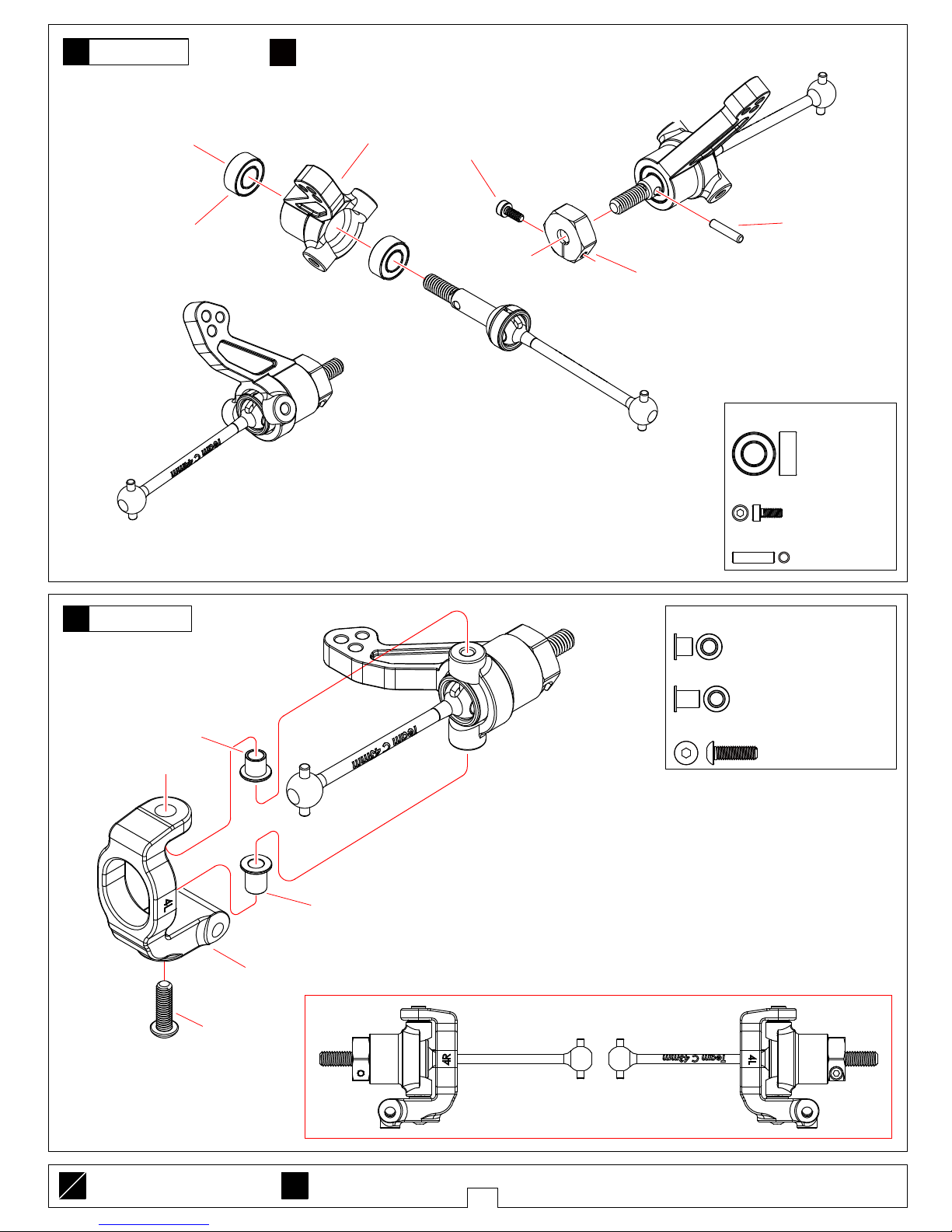

9
Front Lower Arm
前下摆臂
17
Bag-C
摆臂球珠
Arm Mount-Ball
T01050
前摆臂轴-41mm
Front Arm PIN-41mm
T01045
3x5.5x1垫片
3x5.5x1 Washer
T01014
........................................................4
摆臂球珠
T01050 Arm Mount-Ball
..........2
后摆臂轴-41mm
T01044 Rear Arm PIN-41mm
3x5.5x1垫片
T01014 3x5.5x1 Washer
........................................................4
M3x6螺丝
M3x6 Screw
T01118
摆臂固定座-F0
Arm Mount-F0
T01005
M3x6螺丝
T01118 M3x6 Screw
........................................................2
Assemble both Left and Right
組裝左和右
LR
16 Arm Mount/Projection Seat
摆臂固定座/投影座
Bag-C
M3x6螺丝
M3x6 Screw
T01118
投影座-L
Projection Seat-L
T01009
…………8
M3x6螺丝
T01118 M3x6 Screw
投影座-R
Projection Seat-R
T01009
3x5.5x1垫片
3x5.5x1 Washer
T01014
投影座-L
Projection Seat-L
T01009
投影座-R
Projection Seat-R
T01009
OIL
油
OIL
油

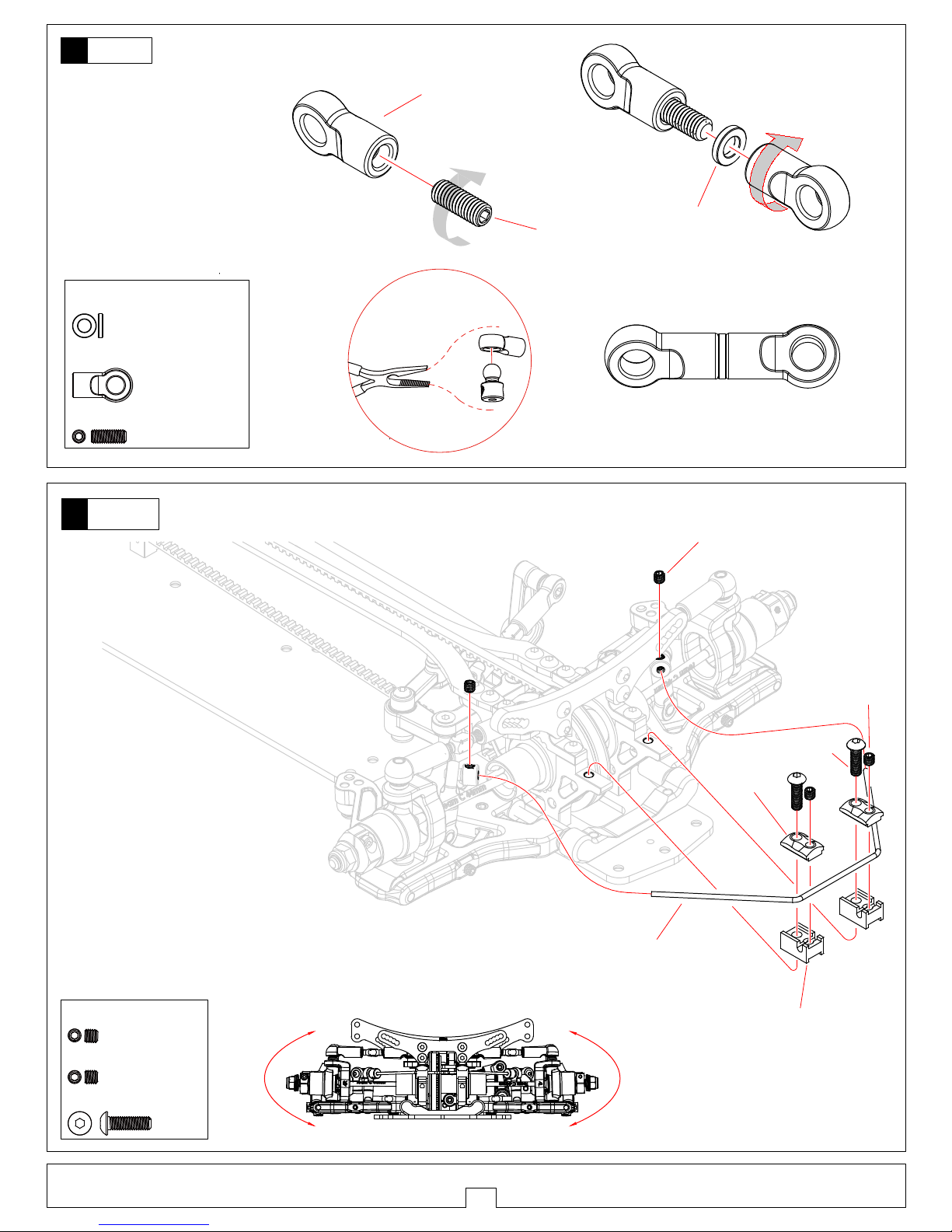

Turnbuckle
拉杆
19
10
Bag-D
22.5mm 22.5mm
16mm
Draglink-Lift
转向拉杆-左
1:1 x1
▲Projection.Note direction
注意方向
▲Projection.Note direction
注意方向
Draglink-Right
转向拉杆-右
1:1 x1
▲Projection.Note direction
注意方向
Steering Servo Rod
转向伺服拉杆
1:1 x1
3x40拉杆
3x40 Turnbuckle
T01043
4.9mm球头座-长
4.9mm Ball End-Long
T01094
4.9mm球头座-短
4.9mm Ball End-Short
T01094
3x25拉杆
3x25 Turnbuckle
T01041
...................2
3x40拉杆
T01043 3x40 Turnbuckle
...................................1
3x25拉杆
T01041 3x25 Turnbuckle
4.9mm球头座-长
T01094 4.9mm Ball End-Long
..............................................4
Ture-to -scale diagram
圖形比例 需組裝次數
Assemble as many times as specified
1:1
x1
18
Bag-C
Rear Lower Arm
后下摆臂
摆臂球珠
Arm Mount-Ball
T01050
3x5.5x2垫片
3x5.5x2 Washer
T01015
后摆臂轴-44mm
Rear Arm PIN-44mm
T01044
3x5.5x1垫片
3x5.5x1 Washer
T01014
...........................................................4
摆臂球珠
T01050 Arm Mount-Ball
.............2
后摆臂轴-44mm
T01044 Rear Arm PIN-44mm
3x5.5x2垫片
T01015 3x5.5x2 Washer
...........................................................2
3x5.5x1垫片
T01014 3x5.5x1 Washer
...........................................................2
摆臂固定座-R3.0
Arm Mount-R3.0
T01006
M3x6螺丝
M3x6 Screw
T01118
M3x6螺丝
T01118 M3x6 Screw
..........................................................2
Assemble both Left and Right
組裝左和右
LR
4.9mm球头座-短
T01094 4.9mm Ball End-Short
..............................................2
OIL
油
OIL
油

11

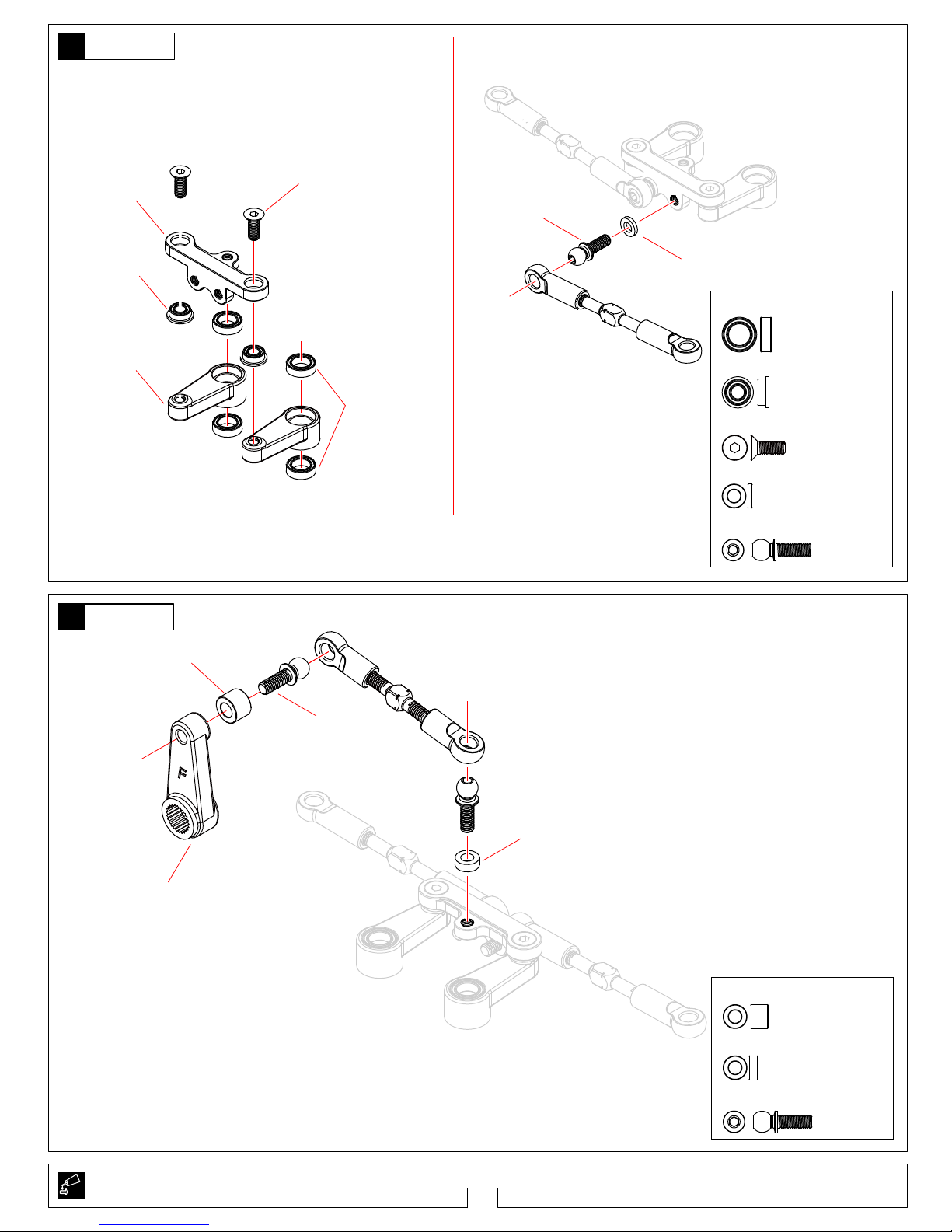

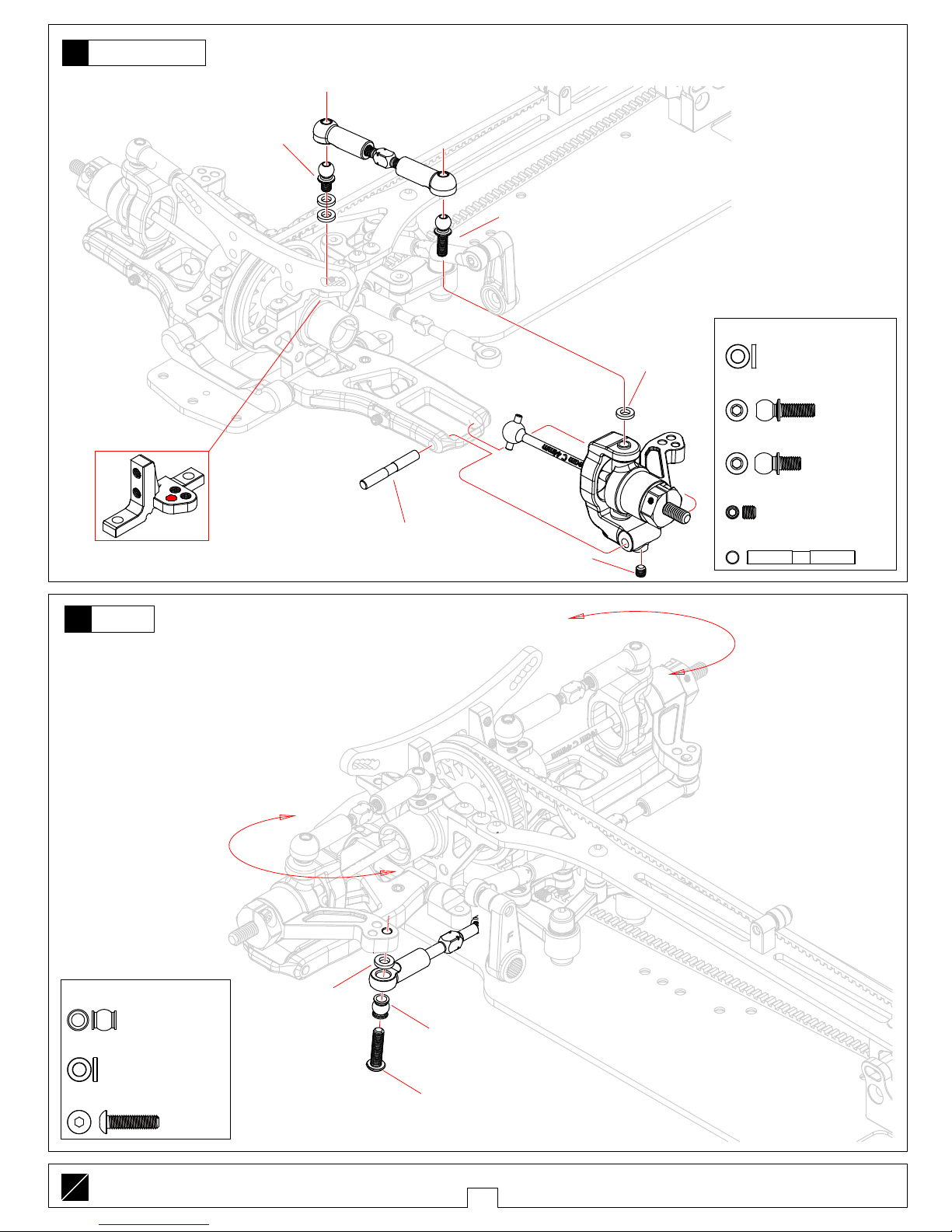

Steering System
转向系统
21
Bag-D
球头-长
Ball Stud-Long
T01058
3x5.5x2垫片
3x5.5x2 Washer
T01015
转向伺服臂
Steering Servo Horn
T04006
球头-长
T01058 Ball Stud-Long
…………2
3x5.5x2垫片
T01015 3x5.5x2 Washer
..................…………1
3x5.5x4垫片
3x5.5x4 Washer
T01016
3x5.5x4垫片
T01016 3x5.5x4 Washer
.............…………1
打螺絲膠水
Apply threadlocker(screw cement)
Screw
Cement
转向系统
20
Steering System
Bag-D
M3x8螺丝
M3x8 Screw
T01119
转向板
Steering Board
T01010
3x6x2.5轴承
3x6x2.5 Ball Bearing
T02080
5x8x2.5轴承
5x8x2.5 Ball Bearing
T01075
缓冲臂
Servo Saver
T01011
3x5.5x1垫片
3x5.5x1 Washer
T01014
球头-长
Ball Stud-Long
T01058
..........…………2
M3x8螺丝
T01119 M3x8 Screw
球头-长
T01058 Ball Stud-Long
…………2
3x5.5x1垫片
T01014 3x5.5x1 Washer
..................…………2
..........…………2
3x6x2.5轴承
T02080 3x6x2.5 Ball Bearing
..........…………4
5x8x2.5轴承
T01075 5x8x2.5 Ball Bearing

Top Deck
二楼板
23
12
Bag-D
M3x6螺丝
M3x6 Screw
T01113
M3x6螺丝
M3x6 Screw
T01113
M3x6螺丝
M3x6 Screw
T01113
二楼板
Top Deck
T01001
皮带压轮座
Pressure Wheel Seat Belt
T01020
3x6x2.5轴承
3x6x2.5 Ball Bearing
T01020
M3x10螺丝
M3x10 Screw
T01020
.........…………11
M3x6螺丝
T01113 M3x6 Screw
.........………1
M3x10螺丝
T01020 M3x10 Screw
.........………2
3x6x2.5轴承
T01020 3x6x2.5 Ball Bearing
Steering System
转向系统
22
Bag-D
M3x6螺丝
M3x6 Screw
T01118
M3x10螺丝
M3x10 Screw
T01115
缓冲柱
Buffer Bolumn
T01013
…………2
M3x6螺丝
T01118 M3x6 Screw
.………2
M3x10螺丝
T01115 M3x10 Screw
前补强柱
Reinforcing Bar Before
T01012
将螺丝锁紧，再退回1/4圈。
Please locking the screw, then return a
quarter circle.
3x5.5x1垫片
3x5.5x1 Washer
T01014
3x5.5x1垫片
T01014 3x5.5x1 Washer
..................………….1

Rear Hub Carriers
后轮座
25
13
LR
Assemble both Left and Right
組裝左和右
Bag-E
2x9.8钢针
2x9.8 Pin
T04032
M2x5螺丝
M2x5 Screw
T01048
六角座
Hex Mount
T01048
5x10x4轴承
5x10x4 Ball Bearing
T02100
后轮座
Rear Hub
T01088
..........................2
2x9.8钢针
T04032 2x9.8 Pin
...........…………2
M2x5螺丝
T01048 M2x5 Screw
5x10x4轴承
T02100 5x10x4 Ball Bearing
........…………4
CVD Group
CVD组
24
Bag-E
2x9.8钢针
2x9.8 Pin
T01057
CVD轴
CVD Shaft
T01057
传动轴
43mm Drive Shaft
T01054
马蹄
Horseshoe
T01053
弹簧扣
Spring Buckle
T04022
CVD接杯
CVD Connecting Cup
T01056
..........................4
2x9.8钢针
T01057 2x9.8 Pin
传动轴
44mm Drive Shaft
T01055
44mm Of Front CVD Group
前44mmCVD组
x2
43mm Of Rear CVD Group
后43mmCVD组
x2
Assemble as many times as specified
需組裝數量
x2
x2
Oil
油
Oil
油

14
27 Front Hub Carriers
前轮座
Cement
Bag-E
3x4x4.2转向臂轴套
3x4x4.2 Steering Arm Sleeves
T01062
3x4x5.8转向臂轴套
3x4x5.8 Steering Arm Sleeves
T01062
M3x10螺丝
M3x10 Screw
T01115
..................................2
M3x10螺丝
T01115 M3x10 Screw
........................................2
3x4x5.8转向臂轴套
T01062 3x4x5.8 Steering Arm Sleeves
........................................2
3x4x4.2转向臂轴套
T01062 3x4x4.2 Steering Arm Sleeves
Assemble both Left and Right
組裝左和右
LR
26 Front Hub Carriers
前轮座
Bag-E
2x9.8钢针
2x9.8 Pin
T04032
M2x5螺丝
M2x5 Screw
T01048
六角座
Hex Mount
T01048
5x10x4轴承
5x10x4 Ball Bearing
T02100
转向臂
Steering Arm
T01087
..........................2
2x9.8钢针
T04032 2x9.8 Pin
...........…………2
M2x5螺丝
T01048 M2x5 Screw
5x10x4轴承
T02100 5x10x4 Ball Bearing
........…………4
C型座-L
C-type Holder-L
T01083
Assemble as many times as specified
需組裝數量
x2
x2

15
Bag-E
后摆臂
Rear Suspension Arm
29
球头-长
Ball Stud-Long
T01058
3x5.5x1垫片
3x5.5x1 Washer
T01014
3x5.5x4垫片
3x5.5x4 Washer
T01016
25mm摆臂轴
25mm Arm Pin
T01046
M3x4螺丝
M3x4 Screw
T01123
球头-长
T01058 Ball Stud-Long
.................2
3x5.5x1垫片
T01014 3x5.5x1 Washer
...................................2
球头-短
T01059 Ball Stud-Short
.................2
3x5.5x4垫片
T01016 3x5.5x4 Washer
................................2
M3x4螺丝
T01123 M3x4 Screw
................................2
25mm摆臂轴
T01046 25mm Arm Pin
......2
球头-短
Ball Stud-Short
T01059
Assemble both Left and Right
組裝左和右
LR
Bag-E
拉杆
Turnbuckle
28
14mm
15mm
3x28拉杆
3x28 Turnbuckle
T01042
4.9mm球头座
4.9mm Ball End
T01094
..................4
3x28拉杆
T01042 3x28 Turnbuckle
4.9mm球头座
T01094 4.9mm Ball End
.............................................8
▲Projection.Note direction
注意方向
▲Projection.Note direction
注意方向
Front Upper Rod
前上拉杆
1:1 x2
Rear Upper Rod
后上拉杆
1:1 x2
Assemble as many times as specified
需組裝數量
x2
Ture-to -scale diagram
圖形比例
1:1

31 Servo Arm
伺服臂
16
30 前摆臂
Front Suspension Arm
Bag-E
Assemble both Left and Right
組裝左和右
LR
Bag-E
球头-长
Ball Stud-Long
T01058
球头-短
Ball Stud-Short
T01059
3x5.5x1垫片
3x5.5x1 Washer
T01014
23mm摆臂轴
23mm Arm Pin
T01047
M3x4螺丝
M3x4 Screw
T01123
球头-长
T01058 Ball Stud-Long
.................2
3x5.5x1垫片
T01014 3x5.5x1 Washer
...................................6
球头-短
T01059 Ball Stud-Short
.................2
M3x4螺丝
T01123 M3x4 Screw
................................2
25mm摆臂轴
T01046 25mm Arm Pin
......2
M3x12螺丝
M3x12 Screw
T01116
4.9x5.5球头
4.9x5.5 Ball Stud
T01052
3x5.5x1垫片
3x5.5x1 Washer
T01014
3x5.5x1垫片
T01014 3x5.5x1 Washer
.................................2
M3x12螺丝
T01116 M3x12 Screw
...............2
4.9x5.5球头
T01052 4.9x5.5 Ball Stud
............................2

17
Turnbuckle
拉杆
32
33
Front Swaybar
前防倾杆
Bag-F
Bag-F
M3x8螺丝
M3x8 Screw
T01095
4.9mm球头座-短
4.9mm Ball End-Short
T01094
…………...........4
M3x8螺丝
T01095 M3x8 Screw
…………...........8
4.9mm球头座-短
T01094 4.9mm Ball End-Short
M3x3螺丝
M3x3 Screw
T01072
M3x4螺丝
M3x4 Screw
T01123
M3x10螺丝
M3x10 Screw
T01115
防倾杆上座
Sway Bar Holder Broad
T01090
防倾杆下座
Sway Bar Holder Under
T01090
.............2
M3x10螺丝
T01115 M3x10 Screw
M3x4螺丝
T01123 M3x4 Screw
..........................2
前防倾杆-1.3
Front Swaybar-1.3
T01065
…………...........2
M3x3螺丝
T01072 M3x3 Screw
3x5.5x1垫片
3x5.5x1 Washer
T01014
3x5.5x1垫片
T01014 3x5.5x1 Washer
...............................4
