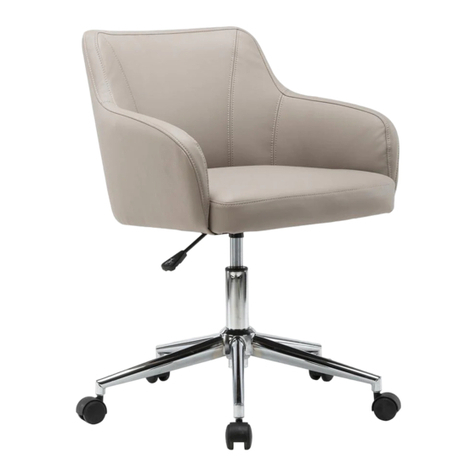

Techni Mobili RTA-2022 User manual

PARTS LIST
ATTENTION: Before you begin to assemble the
product, please make sure that all the parts are
included in the package and in good condition.
ASSEMBLY INSTRUCTIONS
CHAIR STYLE RTA-2022
Insert the casters (F) in the legs of the
base (C) using pressure, then place the
gas lift (E) in the middle of the base and
cover it with (H) as shown.
Flip over the seat (B) with its front
towards you and using screws (I)
assemble the mechanism (D) with its
handle facing to the RIGHT as shown.
Assemble the armrests (G) in the
respective sides to the backrest (A) from
behind using screws (J) and washers
(K) as shown.
Using screws (J), assemble the
backrest (A) to the seat (B) with its metal
plate on top of the mechanism (D) as
shown.
Place the top parts over the base parts
making sure the tip of the gas lift enters
into the hole of the mechanism.
Before seating and using the chair for
the first time, make sure that all
screws are properly tightened.
C
H
E
F
B
I
G
(Right)
G
(Left)
A
J
D
J
A
When you seat on the chair, not looking at it.
5-Star base
Backrest
Armrests
Hydraulic
Gas Lift
Covers for
Gas Lift (Set)
Casters
F
x5
Seat
M6x20mm
M6x30mm Washers
⌀13x⌀6x1.5mm
(Mechanism)
(Backrest, armrests)
E
x1
H
x1
G
D
x1
C
x1
A
x1
B
x1
I
x4
J
x10
K
x6
L
x6 Hole Covers
(Armrests)
ATTENTION:
• Follow the instructions step by step.
• To avoid misalignments, leave the screws loose and do not tighten them until all are in their respective places.
• Do not overtighten or force the screws as they could break, strip, or damage the threads of the holes.
• Using the wrong size of screws on a part could result in damage to the screw or the part
12 3
45 6
Cover the armrest holes with (L).
Mechanism
x1 Right x1 Left
B
5mm Allen Wrench
M
x1
K
L

CHAIR’S FUNCTIONS:
(1) Chair height: Pull UP the lever that is under the seat. The chair goes down while
sitting on it, or up if you lift your body.
(2) Chair tilting: Pull the same lever OUT horizontally to unlock this function. While
unlocked, the chair will tilt freely. When the chair is in the normal position, push
the lever IN to lock the tilting function.
(3) Tilting tension: Turn the mechanism’s knob in either direction to apply more or
less tension. With less tension, the tilting will feel more easy.
WARNINGS:
•Do not stand up on the chair or use it as ladder.
•Use the chair to seat only one person at a time.
•Do not use the chair if parts are damaged or if screws are loose or missing.
•Do not seat near the edge of the seat and always sit properly on the chair to avoid going beyond your balance point and fall off the chair.
•The chair is intended for teenagers and adults. If small children are using the chair, please keep close observation on them.
•Do not allow small children to play with the chair.
•Not paying attention to these warnings could result in severe injuries.
CUCARE AND MAINTENANCE:
•To clean the chair it is recommended to use a soft cloth lightly damped in a solution of smooth soap and water, then dry with a clean towel.
•Do not use solvents or abrasive materials to clean any part of the chair.
•Before applying a cleaning agent, test on a small hidden area of the chair, like underneath the seat.
•Do not expose the product to direct sunlight or to extreme environmental conditions.
•Every 4 months, inspect the chair completely and make sure that all screws are tighten.
(1)
(2)
(3)
