Techni Mobili RTA-913D User manual

Thank you for purchasing our product.

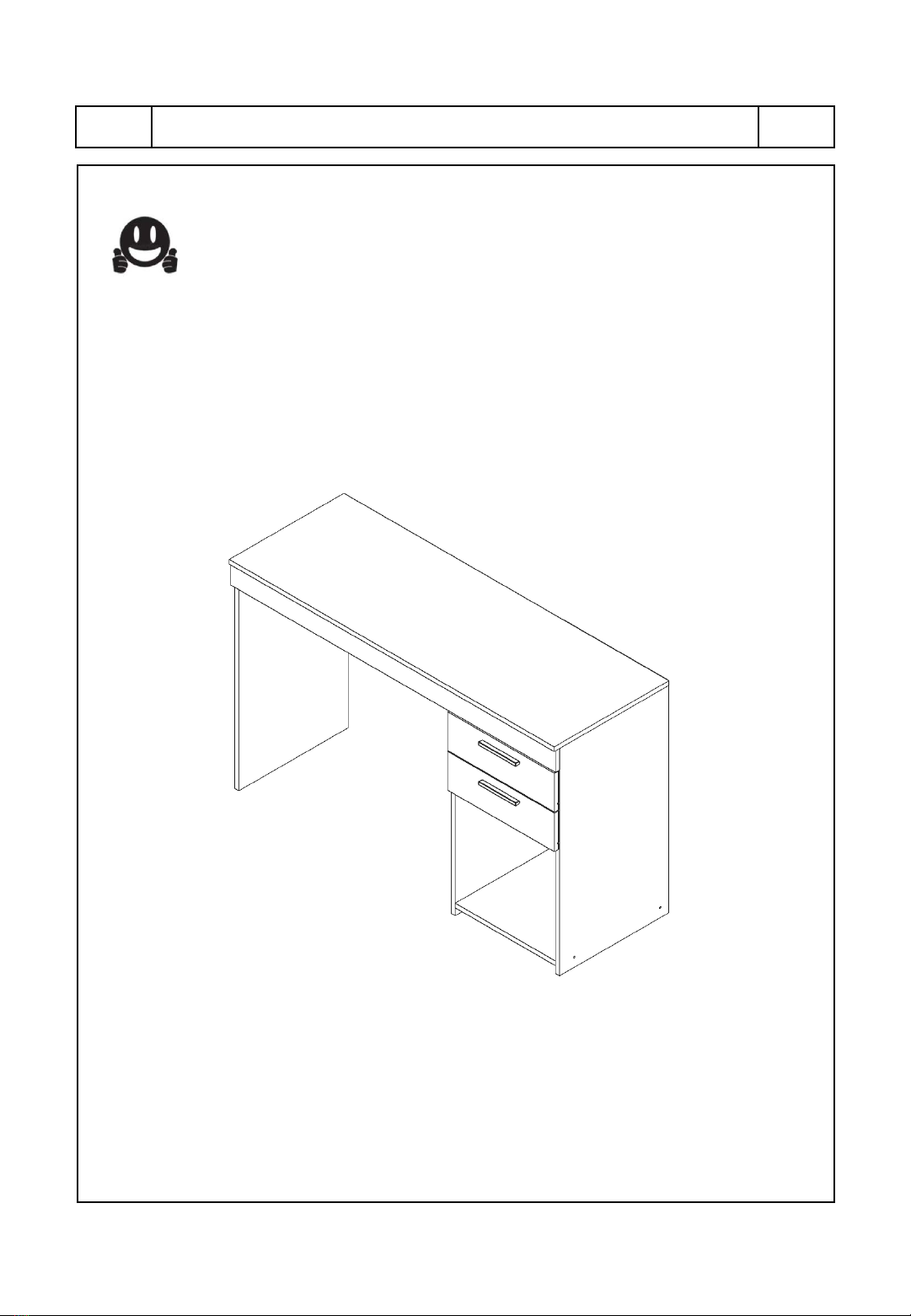

MODEL RTA-913D
ASSEMBLY INSTRUCTIONS
REV.022021-0

•Please read carefully the assembly instructions
before the installation.
•Do not discard this manual or any of the packaging
material until the unit has been completely
assembled.
•Might require two people.
P. 1 RTA-913D P. 1

P. 2 RTA-913D P. 2
1
x1
2
x1
3
x1
Main panel Left panel Back-Left panel

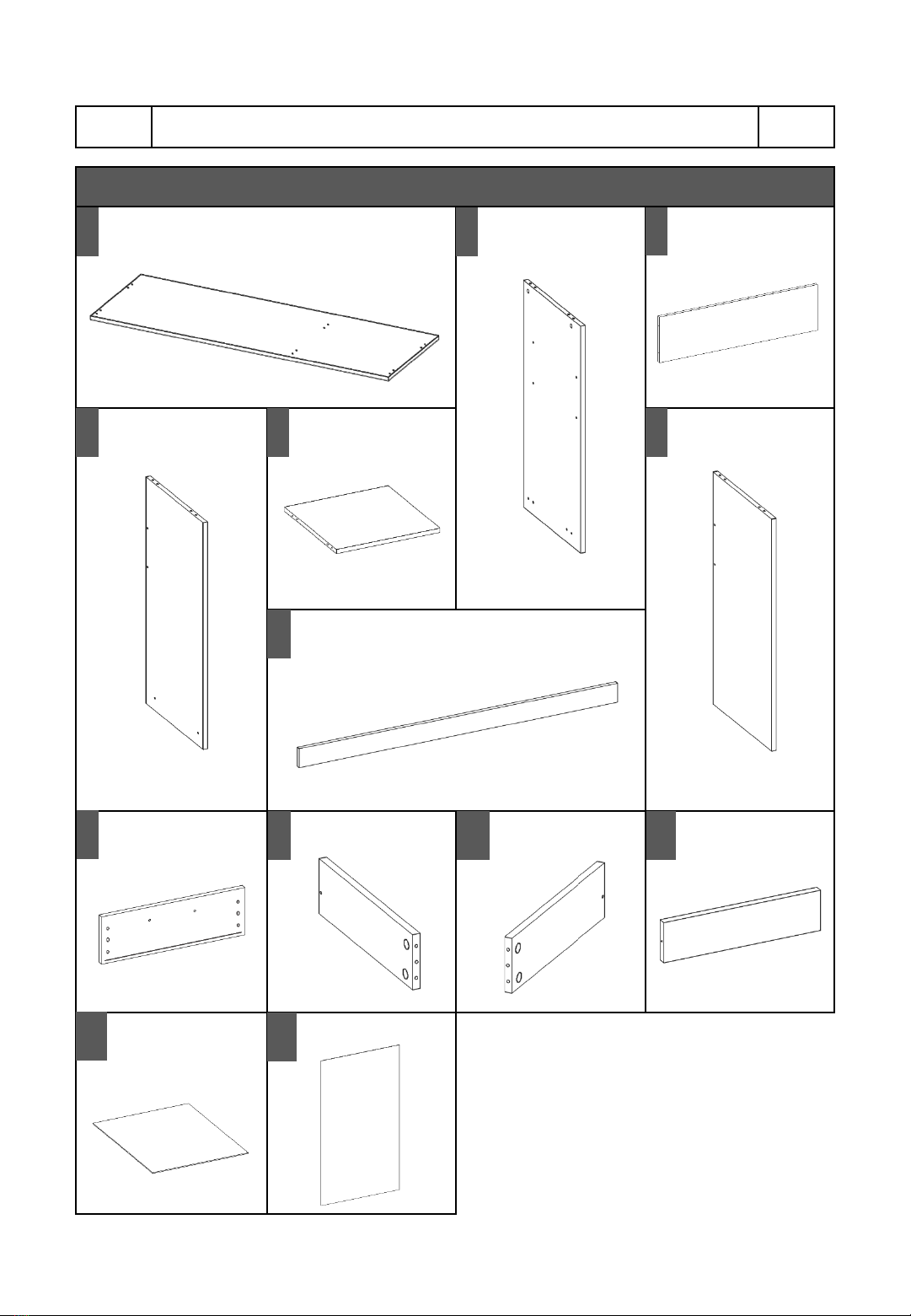

MAIN PARTS LIST
4
x1
5
x1
6
x1
Middle panel Lower panel Right panel
7
x1
Top front panel
8
x2
9
x2
Drawer front panel Drawer right panel 10
x2
11
x2
Drawer left panel Drawer back panel
12
x2
13
x1
Drawer bottom
panel
Back-Right panel

MAIN PARTS LAYOUT (FOR REFERENCE):
P. 3 RTA-913D P. 3
LIST OF HARDWARE, SCREWS AND FITTINGS
PART
QTY ITEM
A10 M6x30
Wooden dowels
B14 M5x31
Bolts
C14 M12x9
Cam locks
D8ST3.5x40
(Flanged head)
E4ST3.5x40
(Flat head)
F4ST3.5x25
G16 ST4x12
H16 ST3x12
PART
QTY ITEM
I14 15mm plastic
adhesive
covers
J40 M4x23
nails
K6
12x12x6mm
Nail-in glide
stud
L2128mm
Handle
M1Touch-Up
N415x15x40mm
Angle bracket
O1
Set Sliders
NOTE: You will need for the assembly a Phillips screwdriver and mallet/hammer (not
included).

P. 4 RTA-913D P. 4
☛
☛

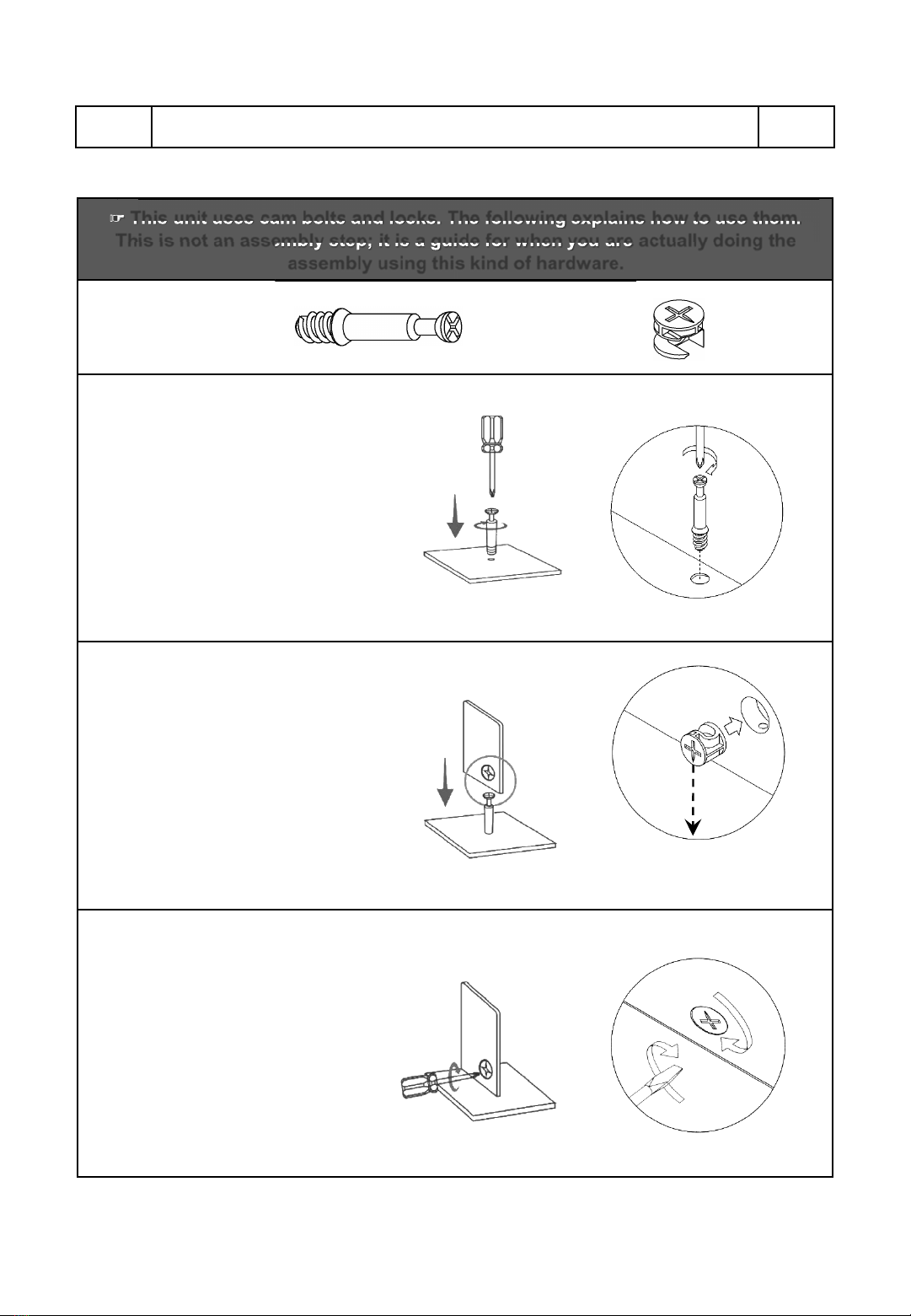

This unit uses cam bolts and locks. The following explains how to use them.
☛
☛
This unit uses cam bolts and locks. The following explains how to use them.
This unit uses cam bolts and locks. The following explains how to use them.
This is not an assembly step; it is a guide for when you are actually doing the
This is not an assembly step; it is a guide for when you are actually doing the
assembly using this kind of hardware.
Cam Bolt Cam Lock
1. Screw the bolt into the
corresponding panel.
2. In the other panel, insert the cam
lock and align it so it can properly
receive the head of the bolt, then
join the panels. There might be a
very small gap between the panels
which is normal.
3. Turn the cam lock clockwise. This
will lock the parts together and will
close any gaps.
Alignment: Point towards
the panel with the bolt.

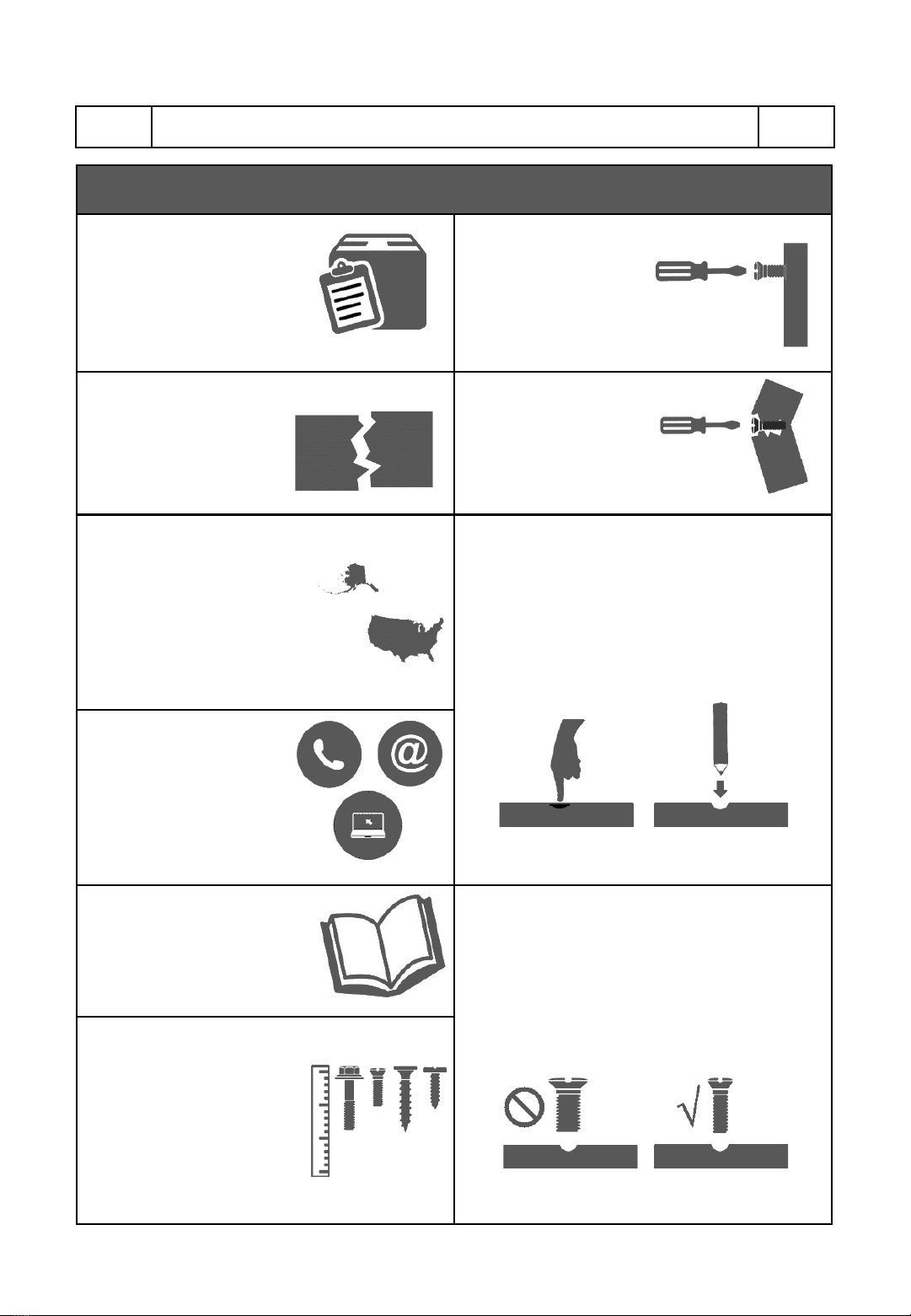

BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS.
❶Do aquick inventory
to make sure the package
contains all the parts and
hardware listed in the
assembly instructions.
❷Missing, damaged
and defective parts can
be replaced at no cost
to you. Please refer to
the last pages on this
manual.
❸The replacement parts
service is limited to the
continental United States.If
you reside in Hawaii, Puerto
Rico, U.S. Dependencies or
other countries, please
contact the supplier from
where the unit was
purchased.
❹If during assembly
you find an issue or
need clarification, please
contact our Customer
Service for assistance.
Please refer to the last
pages on this manual.
❺On each step read the
instructions and analyze
the illustrations thoroughly
before proceeding to do the
assembly.
❽Do not overtighten
or force the screws as
they might break, strip,
damage the threads of
the holes or get stuck
inside the part.
❻Make sure you
understand which
hardware will be used on
each step.Using the
wrong size of screw, bolt
or pin might strip the
threads or cause damage
to the part in which it is
being used.
❼To avoid
misalignments, always
leave the screws loose
and tighten them until
all pieces are
positioned correctly.
❾Sometimes the laminate might cover
partially or entirely the hole on apanel.If there
is no visible hole for the screw, pass and press
the tip of your finger over the area where the
hole should be located to feel the indentation,
and once found, carefully pierce the laminate to
reveal the hole underneath.
❿If the hole seems too small for the screw,
first make sure you are using the correct size of
screw and that it’s been installed in the correct
hole.If the hole still appears to be too small,
carefully pierce the laminate to reveal the
hole’s actual size.
P. 5 RTA-913D P. 5

ASSEMBLY STEPS

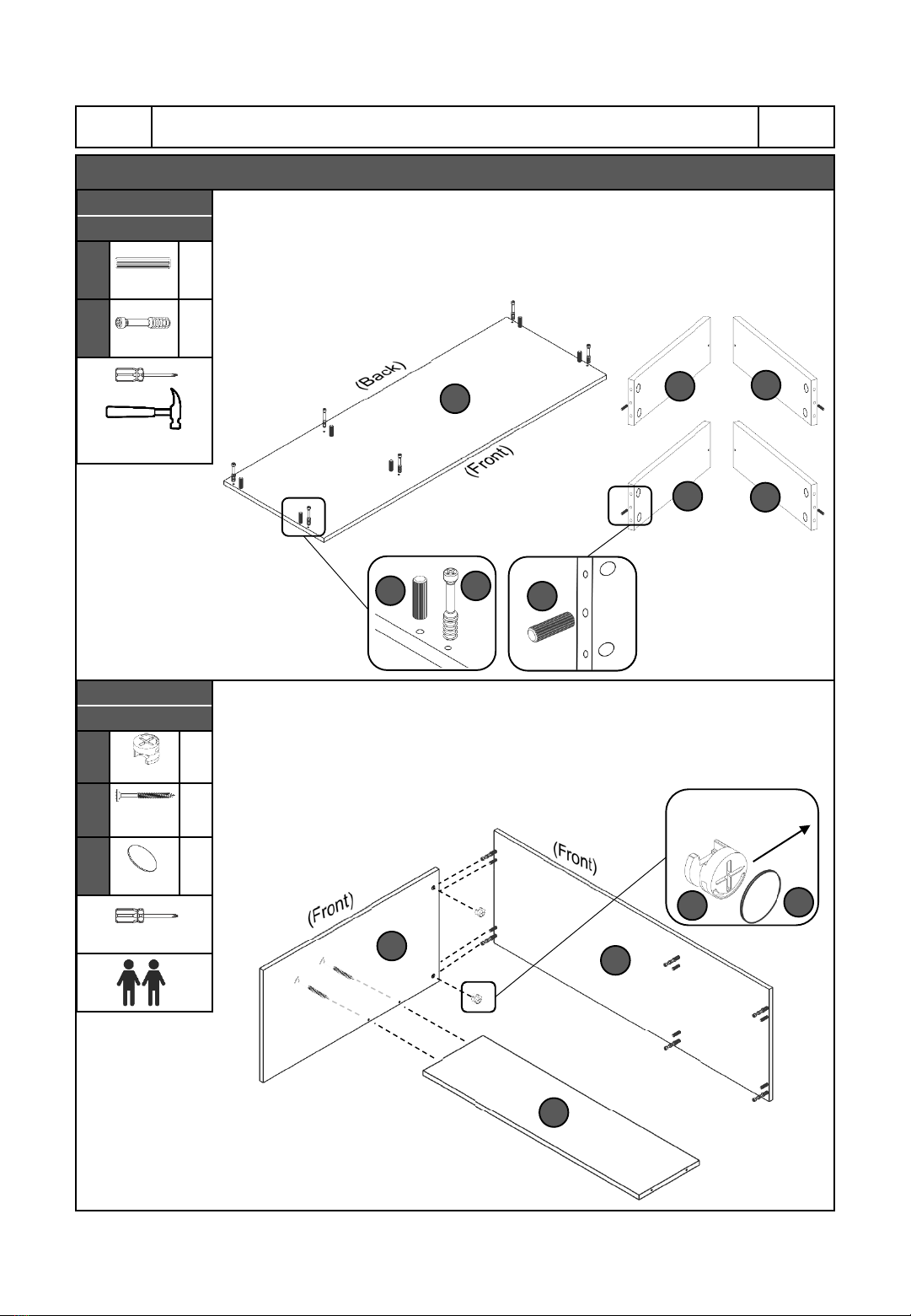

Place the main panel 1upside-down over a blanket to protect its finish,
and attach the dowels Ainto the innermost holes, and the bolts Binto
the outermost holes as shown. Then attach the dowels Ainto the center
hole on the profile of panels 9and 10.
STEP 1
Hardware/Tools:
A
Dowels
10
Pcs
B
Bolts
6
Pcs
(NOT INCLUDED)
P. 6 RTA-913D P. 6

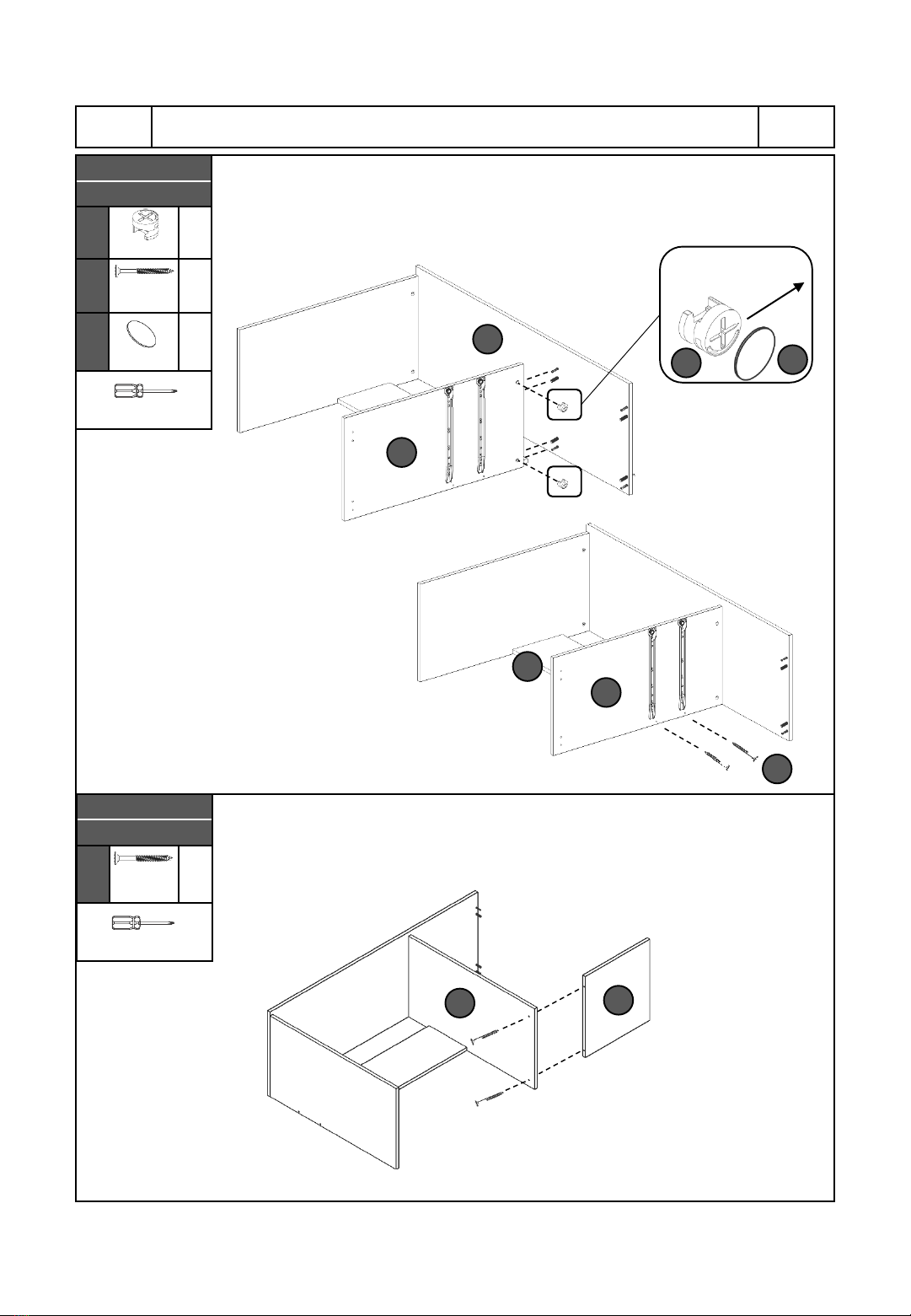

With the help of another person, insert and align the cam locks Cinto
panel 2and assemble it to the main panel 1as shown and as explained
in page 4. Then cover the cam locks with the stickers I. Finally, assemble
the back panel 3to panel 2with screws Dfrom the exterior.
1
B
AA
9
10
9
10
STEP 2
Hardware/Tools:
C
Cam locks
2
Pcs
DST3.5x40
(Flanged)
2
Pcs
I
Stickers
2
Pcs
(NOT INCLUDED)
Cam lock
alignment
21
3
CI

P. 7 RTA-913D P. 7

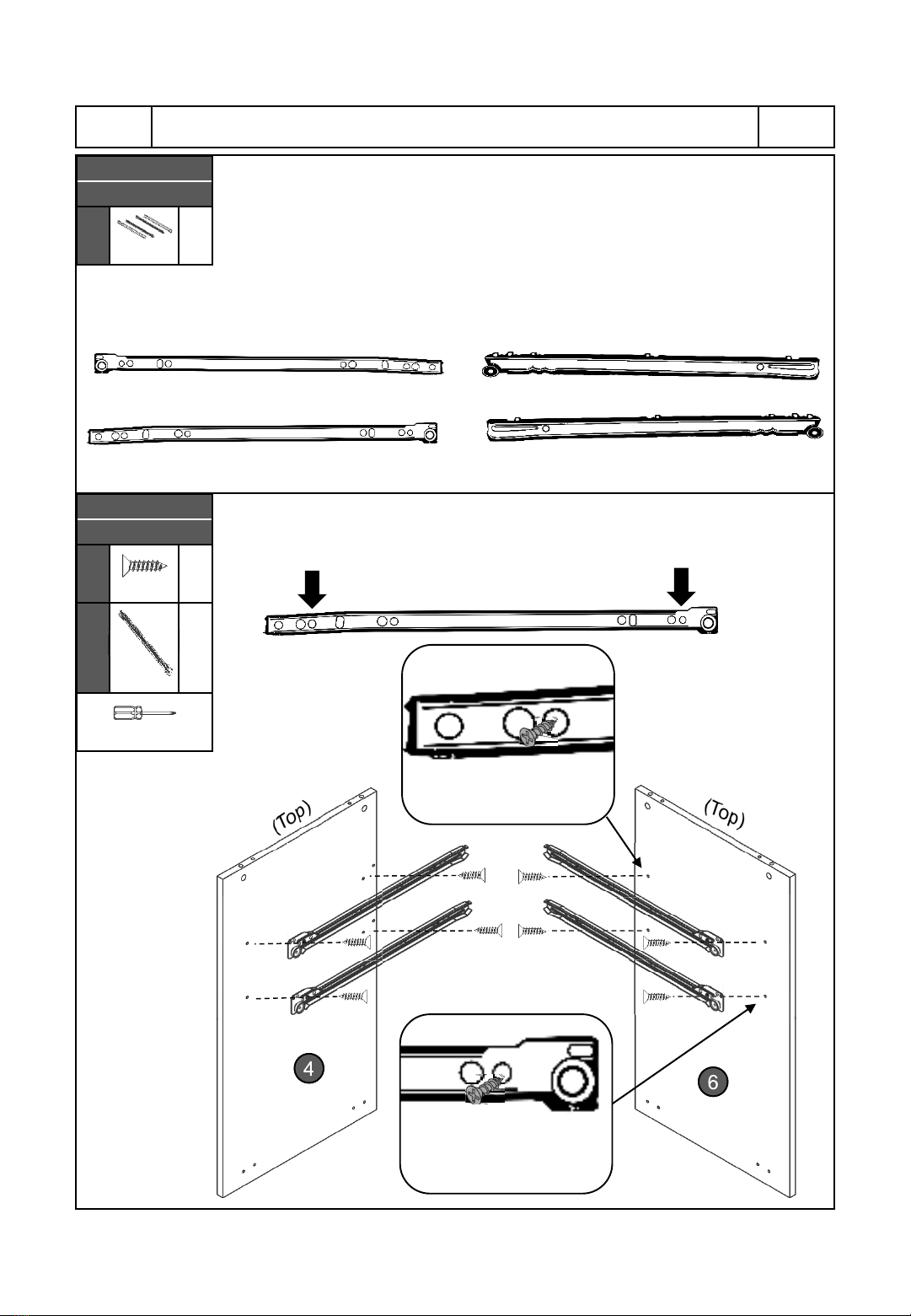

STEP 3
Hardware/Tools:
O
Sliders
1
Set
With panels 4and 6oriented as shown, attach to them the flat sliders O
with screws H. The wheels go towards the front and facing down. For
best results, attach at the front of the panels first.
6
4
Separate all the sliders pieces O according to their shape (no assembly is
done here):
-The “Flat” ones will be used in the next step.
-The “L” shaped go on the drawer and will be used until step 15.
“L shaped”: Use until step 15
(on the drawer)
RIGHT
LEFT
“FLAT”: Use on step 4
(inside the unit)
RIGHT
LEFT
STEP 4
Hardware/Tools:
H
ST3x12
8
Pcs
O
FLAT
4
pcs
(NOT INCLUDED)
4
6
Note: Wheel goes at
front and facing down.
Hole at the front.
Hole at the back.
(Front)
(Front)

P. 8 RTA-913D P. 8
Assemble the lower panel 5to panel 4with screws Dfrom the inside.
STEP 6
Hardware/Tools:
DST3.5x40
(Flanged)
2
Pcs
(NOT INCLUDED)
STEP 5
Hardware/Tools:
C
Cam locks
2
Pcs
DST3.5x40
(Flanged)
2
Pcs
I
Stickers
2
Pcs
(NOT INCLUDED)
Insert and align the cam locks Cinto panel 4and assemble it to the main
panel 1as shown and as explained in page 4. Then cover the cam locks
with the stickers I. Finally, secure the panel 4to panel 3with screws D
as shown.
Cam lock
alignment
CI
1
4
3
4
D
5
4
FIRST
THEN

P. 9 RTA-913D P. 9
Align the corner of the brackets Nalong the edge of the top front panel 7
and secure them with screws Gas shown.
STEP 7
Hardware/Tools:
C
Cam locks
2
Pcs
DST3.5x40
(Flanged)
2
Pcs
I
Stickers
2
Pcs
(NOT INCLUDED)
Insert and align the cam locks Cinto panel 6 and assemble it to the main
panel 1as shown and as explained in page 4. Then cover the cam locks
with the stickers I. Finally, secure the panel 6to panel 5with screws D
as shown.
Cam lock
alignment
CI
1
D
6
6
5
STEP 8
Hardware/Tools:
G
ST4x12
8
Pcs
NAngle
brackets
4
Pcs
(NOT INCLUDED)
7
G
N
FIRST
THEN

P. 1 0 RTA-913D P. 1 0

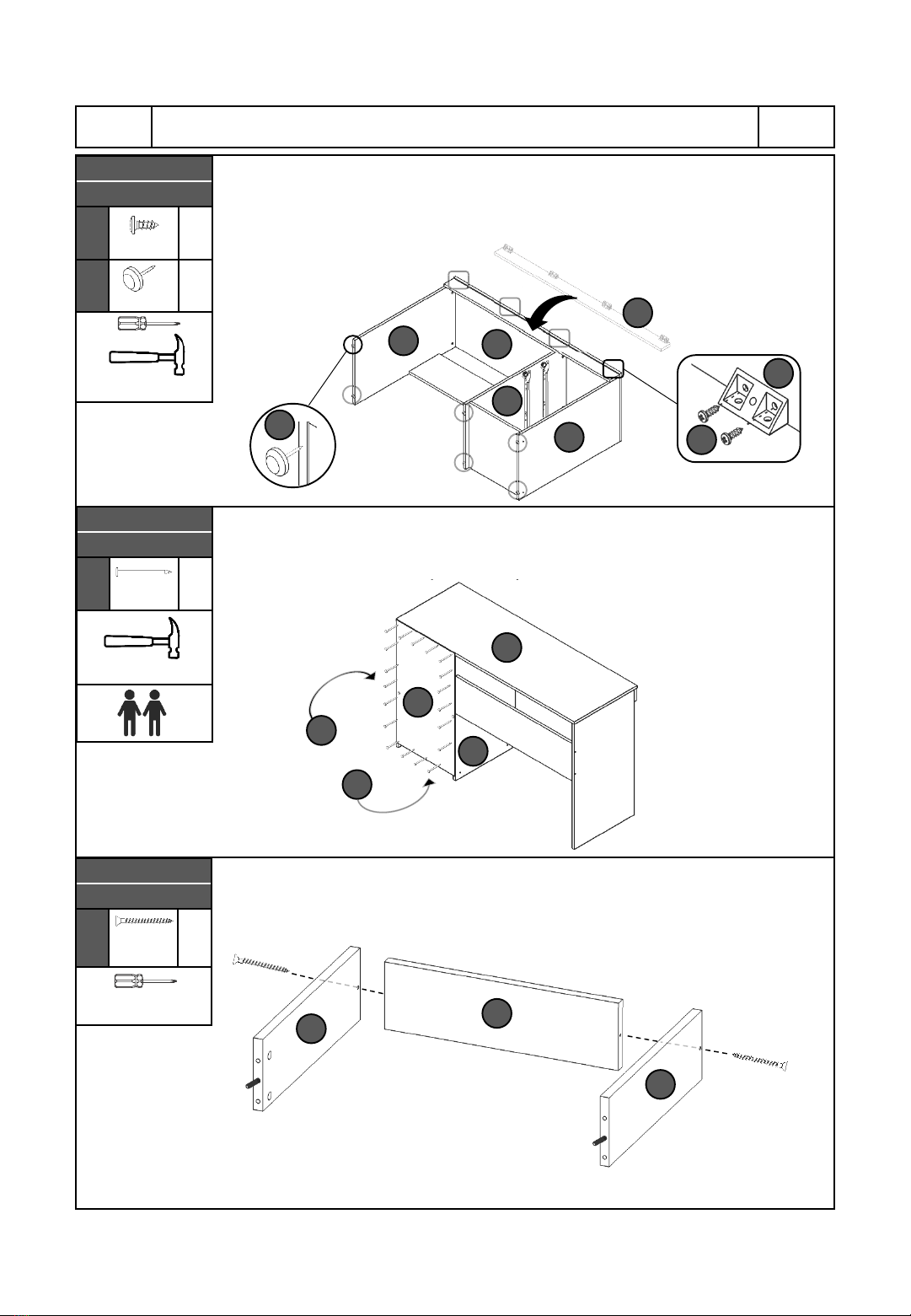

With the help of another person, bring the unit to the upright position,
then assemble the back panel 13 with nails Jmaking sure the panel
aligns and fit over all the profiles of panels 1, 4, 5and 6as shown.
Place panel 7over the unit making sure it is flushed with the main panel 1
and that it aligns on both ends, and secure it to panel 1with screws G
through the brackets N. Then attach the glide studs Kon the bottom of
panels 2, 4and 6as shown.
STEP 10
Hardware/Tools:
JNails
22
Pcs
(NOT INCLUDED)
G
N
STEP 9
Hardware/Tools:
G
ST4x12
8
Pcs
K
Glide studs
6
Pcs
(NOT INCLUDED)
K
1
7
2
4
6
aligns and fit over all the profiles of panels
1
4
5
6
STEP 11
Hardware/Tools:
EST3.5x40
(Flat)
4
Pcs
(NOT INCLUDED)
For each drawer, assemble panels 9and 10 to panel 11 with screws E
as shown.
11
9
10
13

P. 11 RTA-913D P. 11
For each drawer, attach the bolts Bto the indicated holes on panel 8. Then
insert and align the cam locks Cinto panels 9and 10 and assemble them to
panel 8as shown and as explained in page 4. Finally, cover the cam locks
with the stickers I.
STEP 12
Hardware/Tools:
B
Bolts
8
Pcs
C
Cam locks
8
Pcs
I
Stickers
8
Pcs
(NOT INCLUDED)
Cam lock
alignment
CI
B
8
9
10
8
For each drawer, assemble the handle L to the drawer front panel 8 with
screws F from inside.
L
8
The groove on panel 8 go
on the bottom of the drawer.
The illustration shows
the drawer upside-down.
STEP 13
Hardware/Tools:
F
ST3.5x25
4
Pcs
L
Handle
2
Pcs
(NOT INCLUDED)
STEP 14
Hardware/Tools:
JNails
18
Pcs
(NOT INCLUDED)
For each drawer, place the panel 12 on the bottom of the drawer making
sure it enters into the groove of panel 8, then secure panel 12 to panels 9,
10 and 11 with nails Jas shown.
10
and
11
with nails
J
as shown.
Panel 12 enters into
the groove of panel 8.
12
12
9
11
10
8
8

P. 1 2 RTA-913D P. 1 2
STEP 15
Hardware/Tools:
H
ST3x12
10
Pcs
O
“L” shape
4
Pcs
(NOT INCLUDED)
For each drawer, assemble the L-Shaped sliders O to the bottom of the
drawer with screws H.
IMPORTANT: Please pay attention to the orientation of the sliders as
indicated.
ATTENTION:
Incorrect: Will raise 1”
and drawer won’t fit!
Correct:
The wheels go towards
the back of the drawer
Insert the drawers into the unit starting with the bottom one. You might need
to insert them an angle with the front facing down.
If the drawers don’t fit, please review the assembly of the steps 4and 15.
STEP 16

ALL DONE!
Give yourself a nice pat on the back. You did a
great job!
P. 1 3 RTA-913D P. 1 3

AFTER THE ASSEMBLY IS DONE, PLEASE READ CAREFULLY THE FOLLOWING
CARE AND MAINTENANCE WARNINGS:
•Do not exceed the indicated weight limits.
•Do not expose the surfaces to direct sunlight or to extreme environmental conditions.
•Clean the surfaces preferable with a clean cloth damped in a solution of mild soap and
water, then dry with a clean towel.
•Do not use solvents or abrasive materials to clean the unit.
•If you decide to use a cleaning agent, test first on an area hidden from view such as
underneath the tabletop.
•Do not sit on the unit or lean against it.
•Do not allow small children to play under or over the unit.
•Do not allow small children to reach inside the drawers without your supervision.
•Do not pull, push or drag the unit to move it for more than 1 feet. The unit must be
lifted by at least 2 persons when moving in the same or adjacent rooms.
•Before moving the unit, make sure to secure or remove any object that is heavy or
might fall off.
•When lifting the unit, use both hands and bend your knees, not your backs.
•When transporting the unit to places far away, protect and secure the unit to avoid
damage in transit.
•Shall any part of the unit become defective during the warranty period, replacement
parts might be available to you at no charge. Please refer to the last pages on this
manual.
•The warranty does not extend to regular wear and tear, nor the manufacturer assumes
liability for damages or consequences due to accidents, incorrect assembly,
negligence, improper use, modifications, or not heeding the above warnings.
WEIGHT LIMITS
P. 1 4 RTA-913D P. 1 4
= 44 Lbs. (20 Kg)
= 6.60 Lbs. (3 Kg)
= 15.5 Lbs. (7 Kg)
A
B
C
A
B
C

RTA Products, LLC warrants to the Original Purchaser who acquired anew product from
RTA Products or its authorized resellers that this product will be free from defects in its
workmanship and materials, under normal use and service conditions, as described
herein."Defects" as used in this warranty, is defined as any imperfections that impair the
use of the furniture or product.RTA Products LLC will replace any defective part, at its
discretion, and without charge to the original purchaser other than the freight from the end
consumer to RTA Products.
Replacement parts can only be supplied if parts are available.Items out of production
may be unavailable.This warranty will be effective for the applicable time period
beginning the date of purchase on your original sales receipt.RTA product’s obligation
under this warranty is limited to repairing or replacing products or parts as provided
herein.This product has been designed for and is intended for office and home-office use
only.This warranty is Original Purchaser’s sole remedy for product defects, and this
warranty does not extend to any product, or damage to any product, caused by or
attributed to abuse or misuse, products used for commercial or rental purposes, use
modifications of, or attachments to the product, and products or parts not used,
maintained, or extended hereunder is in lieu of any and all other warranties, express or
implied, including without limitations any implied warranty or merchantability or of fitness
for aparticular purpose.Please note, all desks made with PVC Laminate surface should
not be exposed to direct sunlight, as it may damage the material.Damage of this nature
is not covered under this warranty.
RTA Products will not be responsible for indirect, special, incidental or consequential
damages.This warranty is limited to merchandise purchased in the Continental United
States.Some States do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitations or exclusions may not apply to you.This warranty
gives you specific legal rights.You may also have other rights that may vary from state to
state.
RTA Products will advise you of the procedure to follow in making warranty claims.The
following are the procedures for warranty claims:
a. Call us Monday –Friday, from 9am-5pm (Eastern Time) at [phone] to explain
the defect and give your name, address and phone number.Please have ready the
model number of our product, date and place of purchase.You can also write to us by
e-mail to [e-mail] and include the same information.
b. If we determine that replacement will remedy the situation, and in order to determine
the extent or the cause of the defect, purchaser will need to send the part in question
at purchaser’s expense.Once we receive the part, we will examine it and determine
whether the claim is valid (or not), and then proceed to send the replacement.We will
ship the replacement at our expense.
P. 1 5 RTA-913D P. 1 5
TECHNI MOBILI WARRANTY
DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY
TV Stand/Entertainment Center: 2 YEAR WARRANTY

FOR SEVERAL HELP OPTIONS
INCLUDING REPLACEMENT PARTS ORDERS
_________________________________________________________________
VISIT: WWW.TECHNIMOBILI.COM
CLICK ON SUPPORT TAB
Scan QR Code to order replacement parts
OR EMAIL US: [e-mail]
P. 1 6 RTA-913D P. 1 6
