Technibel MPAF180R5I User manual

10/2009
OPERATING INSTRUCTIONS • INSTRUCCIONES DE USO
NOTICE D’UTILISATION • BEDIENUNGSANLEITUNG
ISTRUZIONI D’USO • MANUAL DE INSTRUÇÕES
Split air conditioner system • Acondicionador de aire de consola partida sistema split
Climatiseurs split • Split-klimagerät
Condizionatore d’aria split system • Aparelho de ar condicionado-Sistema Split
Save These Instructions •Guardéis estas instrucciones
Conserver ce notice d’utilisation •Bewahren Sie bitte diese Bedienungsanleitung auf
Conservate queste istruzioni• Guarde estas instruções
This air conditioner uses the new refrigerant R410A
MPAF180R5I
MPAF240R5I

2
Features
This air conditioner is an inverter type unit that automatically adjusts capability as appropriate. Details on these
functions are provided below; refer to these descriptions when using the air conditioner.
• Microprocessor Controlled Operation
The interior compartment of the remote control
unit contains several features to facilitate
automatic operation, easy logically displayed for
easy use.
• Simple One-touch Wireless Remote Control
The remote control unit has several features to
facilitate automatic operation.
• 24-Hour ON or OFF Timer
This timer can be set to automatically turn the
unit on or off at any time within a 24 hour period.
• 1-Hour OFF Timer
This timer can be set to automatically turn off the
unit at any time after one hour.
• Night Setback
This function saves energy by controlling
operation to provide a quieter operating sound
than normal.
• Automatic and 3-step Fan Speed
Auto/High/Medium/Low
• Air Sweep Control
This function moves a flap up and down in the air
outlet, directing air in a sweeping motion around
the room and providing comfort in every corner.
• Auto. Flap Control
This automatically sets the flap to the optimum
position during heating, cooling, and drying
operation.
• Automatic Switching between Cooling and
Heating
When the remotecontrol’s S/M switch is at the
“S” (Single) position
This unit automatically switches between cooling
operation and heating operation according to the
difference between the room temperature and the
temperature setting.
When the remotecontrol’s S/M switch is at the
“M” (Multiple) position
Unlike when the switch is at the “S” position as
described above, the function for automatically
switching between cooling and heating does not
work.
• Hot Start Heating System
Right from the start, the air is warm and
comfortable. This system prevents any cold blasts
at the beginning while the heat pump is warming
up, or even defrosting.
• Automatic Restart Function for Power Failure
Even when power failure occurs, preset
programmed operation can be reactivated once
power resumes.
• High Power Operation
If not in Auto Operation, the unit operates at
maximum output for 30 minutes, regardless of the
desired temperature.
The fan speed is 1 step above “High”.
• Quiet Operation
The fan rotates slower than the fan speed setting
to provide a quieter operating sound.
•LED Clean Operation
While the unit is operating, the UV antibacteria unit is activated
for 30 minutes and cleans the air blown from the air conditioner.
• Anti-Mold Filter
This unit is equipped with an anti-mold filter that
inhibits the growth of mold and bacteria.
• Air Clean Filter
An air filter that eliminates unpleasant odors and
cleans the air is available.
Purchase a replacement filter at your local dealer.
• “Single use” means that only one indoor unit is connected with one outdoor unit in a one-unit-to-
one-unit configuration and that the remote control's S/M switch is at the “S” (Single) position.
• “Multiple use” means that two or more indoor units are connected with one outdoor unit in a
multiple-unit-to-one-unit configuration and that the remote control’s S/M switch is at the “M”
(Multiple) position. (Refer to “Using the Remote Control Unit” on page 10.)
IMPORTANT

3
Contents
Page
Features ............................................................................................................ 2
Product Information........................................................................................... 3
Alert Symbols.................................................................................................... 3
Installation Location .......................................................................................... 4
Electrical Requirements .................................................................................... 4
Safety Instructions............................................................................................. 4
Names of Parts ................................................................................................. 5
Using the Remote Control Unit ....................................................................... 10
Operation with the Remote Control Unit ......................................................... 12
1. Automatic Operation .............................................................................. 12
2. Manual Operation .................................................................................. 13
3. Adjusting the Fan Speed........................................................................ 14
4. Fan Only................................................................................................. 14
5. Night Setback Mode............................................................................... 15
6. QUIET Mode .......................................................................................... 16
7. HIGH POWER Mode ............................................................................. 16
8. LED CLEAN Mode ................................................................................. 16
Special Remarks............................................................................................. 17
Setting the Timer............................................................................................. 18
Using the 1-Hour OFF Timer .......................................................................... 20
Tips for Energy Saving .................................................................................... 20
Adjusting the Airflow Direction ........................................................................ 21
Operation without the Remote Control Unit .................................................... 22
Care and Cleaning .......................................................................................... 22
Troubleshooting............................................................................................... 25
Operating Range............................................................................................. 25
Product Information
If you have problems or questions concerning your Air Conditioner, you will
need the following information. Model and serial numbers are on the nameplate
on the bottom of the cabinet.
Model No. ______________________ Serial No. ____________________
Date of purchase ________________________________________________
Dealer’s address ________________________________________________
Phone number ________________
DECLARATION OF CONFORMITY
This product is marked « » as it satisfies EEC Directive No. 89/336/ EEC, 73/
23/EEC, 93/68/EEC and 92/31/EEC.
This declaration will become void in case of mis-usage and/or from non
observance though partial of Manufacturer’s installation and/or operating
instructions.
Alert Symbols
The following symbols used in this manual, alert you to potentially
dangerous conditions to users, service personnel or the appliance:
This symbol refers to a hazard or unsafe
practice which can result in severe
personal injury or death.
This symbol refers to a hazard or unsafe
practice which can result in personal
injury or product or property damage.
CAUTION

4
Installation Location
• We recommend that this air conditioner be installed properly by
qualified installation technicians in accordance with the Installation
Instructions provided with the unit.
• Before installation, check that the voltage of the electric supply in your home
or office is the same as the voltage shown on the nameplate.
Electrical Requirements
1. All wiring must conform to the local electrical codes. Consult your dealer or a
qualified electrician for details.
2. Each unit must be properly grounded with a ground (or earth) wire or
through the supply wiring.
3. Wiring must be done by a qualified electrician.
Safety Instructions
• Read this Instruction Manual carefully before using this air
conditioner. If you still have any difficulties or problems, consult your
dealer for help.
• This air conditioner is designed to give you comfortable room
conditions. Use this only for its intended purpose as described in this
Instruction Manual.
• Do not install this air conditioner where there are fumes or
flammable gases, or in an extremely humid space such as a
greenhouse.
• Do not install the air conditioner where excessively high heat-
generating objects are placed.
Avoid: To protect the air conditioner from heavy corrosion, avoid installing the
outdoor unit where salty sea water can splash directly onto it or in
sulphurous air near a spa.
• Never use or store gasoline or other flammable vapor or liquid near
the air conditioner — it is very dangerous.
• This air conditioner has no ventilator for intaking fresh air from
outdoors. You must open doors or windows frequently when you
use gas or oil heating appliances in the same room, which consume
a lot of oxygen from the air. Otherwise there is a risk of suffocation
in an extreme case.
• Do not turn the air conditioner on and off from the power mains
switch. Use the ON/OFF operation button.
• Do not stick anything into the air outlet of the outdoor unit. This is
dangerous because the fan is rotating at high speed.
• Do not let children play with the air conditioner.
• Do not cool or heat the room too much if babies or invalids are
present.
CAUTION

5
Names of Parts
This illustration is based on the external view of a standard model.
Consequently, the shape may differ from that of the air conditioner which you
have selected.
This air conditioner consists of an indoor unit and an outdoor unit. You can
control the air conditioner with the remote control unit.
Air Intake Air from the room is drawn into this section and passes through air filters
which remove dust.
Air Outlet Conditioned air is blown out of the air conditioner through the air outlet.
Remote Control Unit The wireless remote control unit controls power ON/OFF, operation mode
selection, temperature, fan speed, timer setting, and air sweeping.
Refrigerant Tubes The indoor and outdoor units are connected by copper tubes through which
refrigerant gas flows.
Drain Hose Moisture in the room condenses and drains off through this hose.
Outdoor (Condensing) Unit The outdoor unit contains the compressor, fan motor, heat exchanger coil,
and other electrical components.
INDOOR UNIT
Air intakes
Remote control unit
Air outlet
Refrigerant tubes
Drain hose
OUTDOOR UNIT
Air outlet
NOTE

6

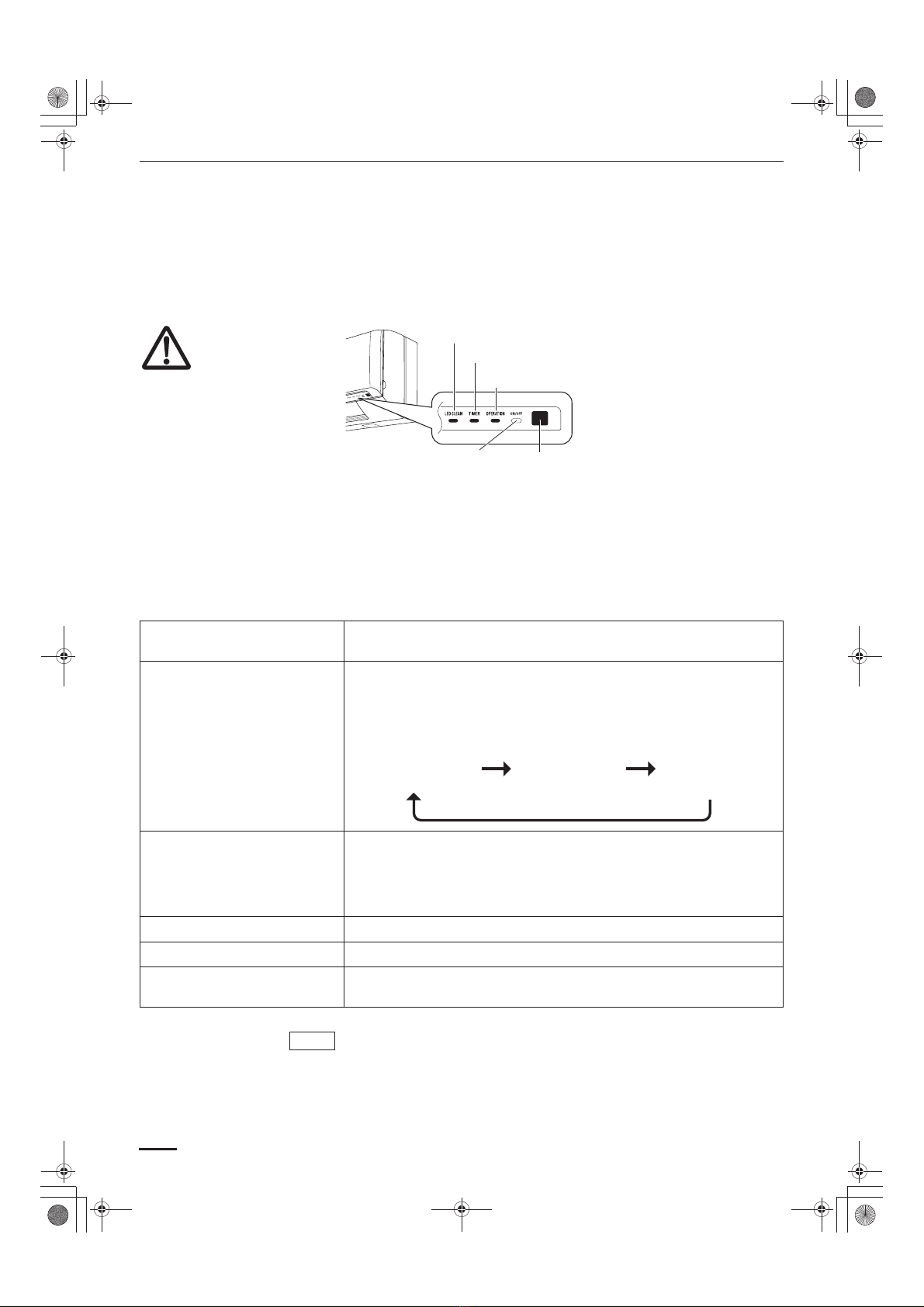

Unit Display and Operation Button
REMOTE CONTROL receiver This section picks up infrared signals from the remote control unit
(transmitter).
OPERATION button When the remote control cannot be used, pressing this button enables
heating and cooling operation.
Each time this button is pressed, the type of operation conducted is indicated
by the changing color of the OPERATION lamp. Press the button and select
the lamp color that suits your preference for operation.
OPERATION lamp This lamp lights when the system is in the continuous AUTO (red or green),
HEAT (red), DRY (orange), COOL (green) and FAN (green) mode (but no
FAN mode at M of the S/M switch on the remote control unit).
The OPERATION lamp lights up red and orange alternately when the system
is defrosting.
TIMER lamp This lamp lights when the system is being controlled by the timer.
LED CLEAN lamp This lamp lights during operation in the UV
anti-bacterial mode.
The unit’s display lamps are dimmed during operation in the NIGHT
SETBACK mode.
Avoid using radio equipment
such as mobile phone near
(within 1 m) the remote
control receiver. Some radio
equipment may cause
malfunction of the unit.
If the trouble happens,
disconnect power and restart
the air conditioner after a few
minutes.
IMPORTANT
REMOTE CONTROL receiver
Cooling operation
(green)
Heating operation
(red)
Stop
(lamp off)
NOTE
OPERATION lamp
TIMER lamp
(ON/OFF) button
LED CLEAN lamp

7

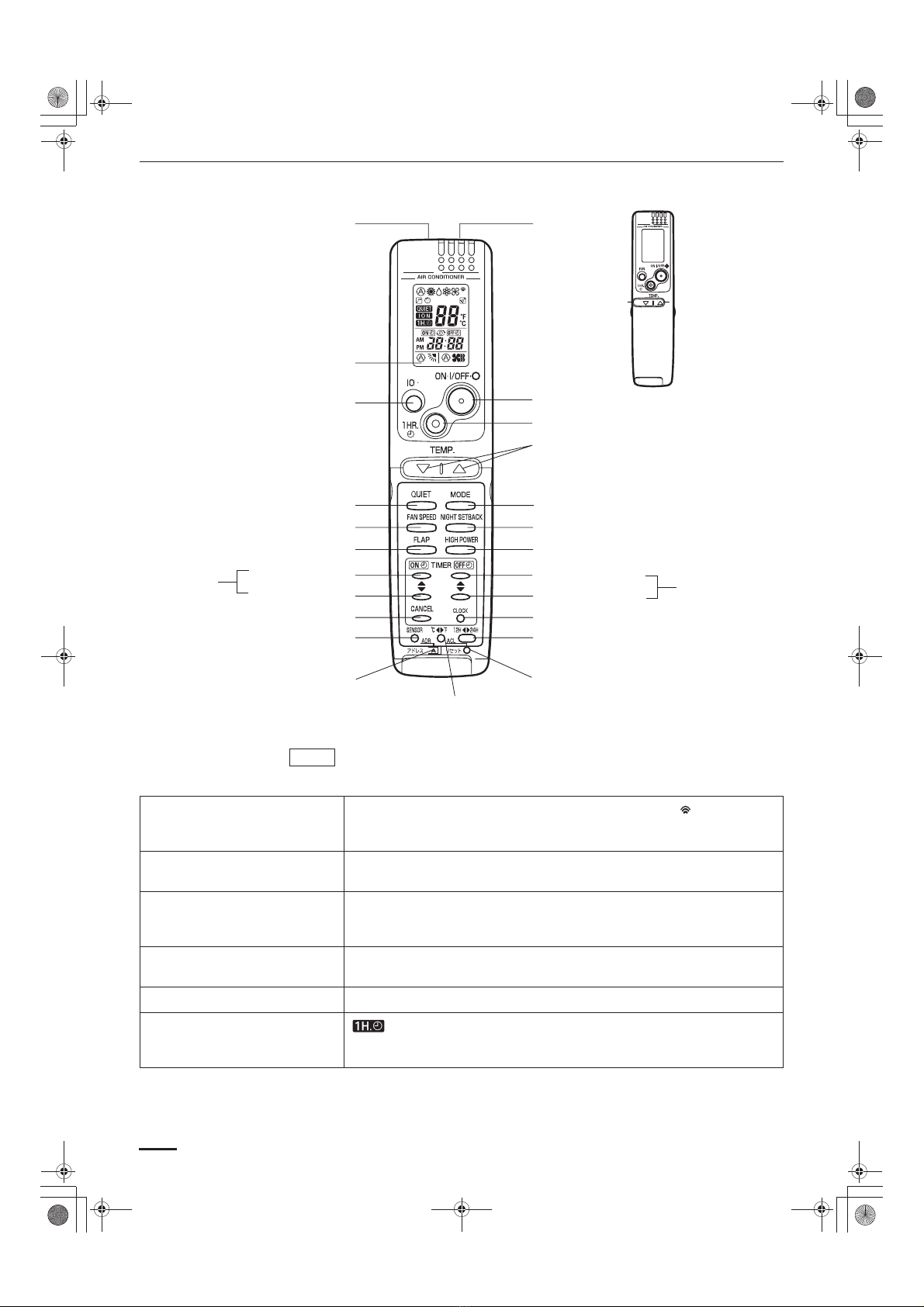

Remote Control Unit (Display)
(1) Operation mode
AUTO .....................................
HEAT ......................................
MILD DRY ..............................
COOL .....................................
FAN ........................................
(2) Fan speed
Automatic operation ...............
HIGH .....................................
MEDIUM.................................
LOW .......................................
(3) Temperature setting
16–30°C
When set to 28 °C
temperature indication............
(4) Timer
24-hour clock with ON/OFF
program Timer........................
ON Timer................................
OFF Timer. .............................
1-hour OFF Timer...................
(5) NIGHT SETBACK ..................
(6) Confirmation of transmission..
(7) Auto. flap indication ................
Flap angle indication ..............
Sweep indication ....................
(8) High power operation .............
(9) Quiet operation.......................
(10) LED CLEAN operation.......................
Displayed when setting timer
Displayed when transmitting data
Displayed when indoor unit sensor
is in use
Displayed when setting
temperature
Displayed when temperature is
shown
Displayed when the
time display is set to
12-hour time.
Symbols

8
Remote Control Unit
Transmitter Sensor
(Cover closed)
Display
FAN SPEED selector button
FLAP button
ON TIME
setting
buttons Return button
Advance button
CANCEL button
SENSOR button
CLOCK button
ACL button
ON/OFF operation button
1 HR. TIMER button
Temperature setting buttons (TEMP.)
MODE selector button
Advance button
NIGHT SETBACK button
HIGH POWER button
OFF TIME
setting
buttons
Return button
LED CLEAN
ADDRESS switch
Temperature display
selector button
Time display selector button
QUIET button
The illustration above pictures the remote control unit after the cover has
been opened.
NOTE
Transmitter When you press the buttons on the remote control unit, the mark appears
in the display to transmit the setting changes to the receiver in the air
conditioner.
Sensor A temperature sensor inside the remote control unit senses the room
temperature.
Display Information on the operating conditions is displayed while the remote control
unit is switched on. If the unit is turned off, FLAP setting and FAN SPEED
setting are not displayed.
LED CLEAN If this button is pressed during operation, the UV antibacterial unit is
activated for 30 min. and cleans the air blown from the air conditioner.
ON/OFF operation button This button is for turning the air conditioner on and off.
1 HR. TIMER button
(1-HOUR OFF TIMER) : When you press this button, regardless of whether the unit is operating or stopping, the unit operates for one hour and then shuts
down.
LED
CLE N

9
Remote Control Unit (continued)
Temperature setting buttons
(TEMP.) Press the button to increase the set temperature. Press the button to reduce the set temperature.
The temperature setting changes by 1 °C or 2 °F each time one of the TEMP.
buttons is pressed.
QUIET button : When you press this button, the fan rotates slower than the fan
speed setting to provide a quieter operating sound.
MODE selector button Use this button to select AUTO, HEAT, DRY, COOL or FAN mode.
(AUTO) : When this setting is selected, the air conditioner calculates the
difference between the thermostat setting and the room temperature
and automatically switches to the ‘‘COOL’’ or ‘‘HEAT’’ mode as
appropriate except at “M” of the Single/Multiple switch.
(HEAT) : The air conditioner makes the room warmer.
(DRY) : The air conditioner reduces the humidity in the room.
(COOL) : The air conditioner makes the room cooler.
(FAN) : The air conditioner works only as a circulation fan except at “M” of the
Single/Multiple switch.
FAN SPEED selector button : The air conditioner automatically decides the fan speeds.
: High fan speed
: Medium fan speed
: Low fan speed
NIGHT SETBACK button For details, see “5. Night Setback Mode”. When you press this button in the
HEAT, DRY or COOL mode, the mark appears in the display, and the
remote control unit will automatically adjust the set temperature to save
energy.
FLAP button Press this button either to select the setting of the airflow direction to the
auto. flap in each mode or one of the six possible positions manually or to
select the sweep function which moves the flap up and down automatically.
: Auto flap setting: If selected in a heating operation, the flap is set to
position (3) in the following chart. If selected in a cooling or dry
operation, the flap is set at position (7) in the following chart.
: The airflow direction can be set manually. (six positions)
: The flap moves up and down automatically.
When you press the FLAP button, the air flow direction will be changed one
by one as follows.
HIGH POWER button : If this button is pressed during HEAT, DRY, COOL or FAN operation,
the unit operates at maximum output for 30 minutes, regardless of the
desired temperature.
The fan speed is 1step above ‘‘HIGH’’.
ON TIME/OFF TIME setting
buttons No display: The timer does not operate. : The air conditioner starts at the set time.
: The air conditioner stops at the set time.
: The air conditioner stops and starts, or starts and stops, at
the set times every day. For details, see “Setting the Timer”.
NOTE
SWEEP

10
Remote Control Unit (continued)
Using the Remote Control Unit
SENSOR button When you press this button (use a small-tipped object such as a ballpoint
pen), the mark will appear at the display. And the room temperature is
detected by the sensor which is built into the indoor unit and the air
conditioner is controlled accordingly.
If the remote control is located near a heat source, such as a space heater or in
direct sunlight, press the SENSOR button to switch to the sensor on the indoor unit.
Temperature Display Selector button This switches the temperature display between °C and °F.
Time Display Selector button This switches the time display between 24-hour time and 12-hour time.
ACL button (ALL CLEAR) Puts the remote control unit into pre-operation status. Always press this
button after replacing the batteries and setting the S/M switch.
ADDRESS switch • The address switch changes to prevent mixing of signals from remote
control units when two air conditioners are installed next to each other.
Normally, the address switch is set to A. For more information, please
contact the dealer where you made the purchase.
• Normally, the tabs on the remote control unit should not be bent.
S/M (Single/Multiple switch) • Initially, the S/M switch is set to S (Single).
• Set this switch to M (Multiple) for multiple operation.
• Always press ACL button by a thin object such as the tip of a pen after
setting the S/M switch.
When multiple indoor units are used and units in other rooms are already operating,
they will be set to the same mode of operation as the operating indoor units.
The remote control unit sends the temperature signal to the air conditioner regularly at five minute
intervals. If the signal from the remote control unit stops for more than 15 minutes due to the loss of
the remote control unit or other trouble, the air conditioner will switch to the temperature sensor which
is built into the indoor unit and control the room temperature. In these cases, the temperature around
the remote control unit may differ from the temperature detected at the air conditioner’s position.
How to Install Batteries
• The batteries last about six months, depending on how much you
use the remote control unit. Replace the batteries when the remote
control unit’s display fails to light, or when the remote control cannot
be used to change the air conditioner’s settings.
• Use two fresh leak-proof type-AAA alkaline batteries.
• In replacing batteries, follow the instructions as mentioned in the
sub-section “How to Install Batteries”.
• If you do not use the remote control unit more than 1 month, take out
the batteries.
NOTE
NOTE
NOTE
1. Slide the cover in the direction
indicated by the arrow and remove it.
2. Install two AAA alkaline batteries.
Make sure the batteries point in the
direction marked in the battery
compartment.
3. Use a thin object such as the tip of a
pen to press the ACL button.
ACL button
NOTE

11
Using the Remote Control Unit (continued)
How to Use the Remote
Control Unit When using the remote control unit, always point the unit’s transmitter head directly at the air conditioner’s receiver.
Remote Control Unit
Installation Position The remote control unit may be operated either from a non-fixed position or from a wall-mounted position. To ensure that the air conditioner operates
correctly, DO NOT install the remote control unit in the following places:
DO NOT • In direct sunlight
• Behind a curtain or other places where it is covered
• More than 8 m away from the air conditioner
• In the path of the air conditioner’s airstream
• Where it may become extremely hot or cold
• Where it may be subject to electrical or magnetic noise
• Where there is an obstacle between the remote control unit and air
conditioner (since a check signal is sent from the remote control unit every
5 minutes)
Mounting the Remote Control
Unit Before mounting the remote control unit, press the ON/OFF operation button at the mounting location to make sure that the air conditioner operates from
that location. The indoor unit should make a beeping sound to indicate that it
has received the signal.
To take out the remote control unit, pull it forward.

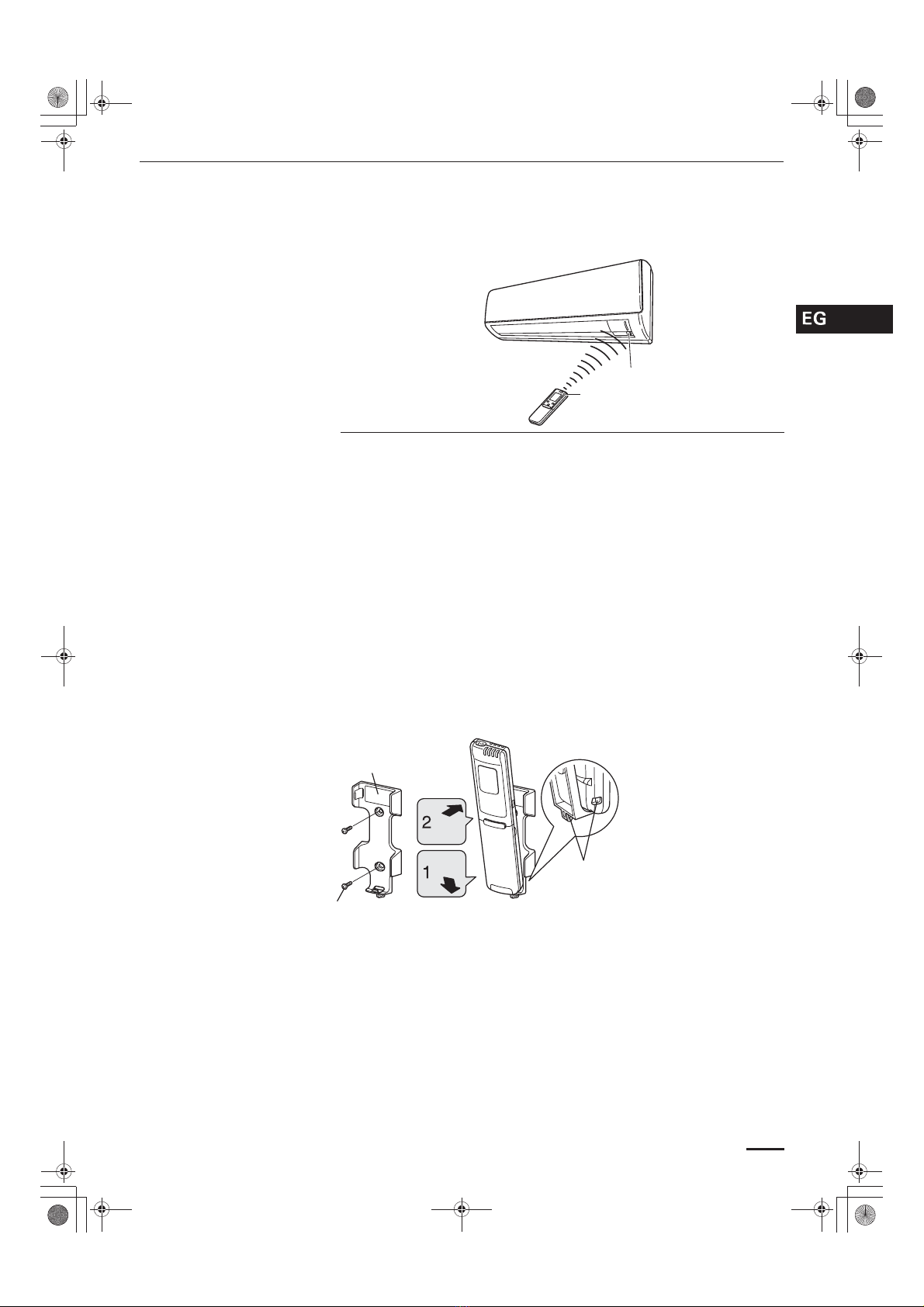

When Holding the Remote
Control Unit • When using the remote control unit and during air conditioner operation, the transmitter on the remote control unit should be pointed toward the
receiver on the indoor unit.
• Make sure that there are no objects between the remote control unit and
receiver which could block the signal.
Air conditioner
(Indoor unit)
Receiver
Remote control
unit (Transmitter head)
Remote control
unit mount
Mounting screws
4 x 16 (included)
Rear side
Hole
• To prevent loss of the remote control
unit, you can connect the remote
control unit to the mount by passing
a string through the remote control
unit and attachment hole.
Press
Set in
place

12
Operation with the Remote Control
Unit
1. Automatic Operation When the remote control’s S/M switch is at the “S” (Single) position
This unit automatically switches between cooling operation and heating
operation according to the difference between the room temperature and the
temperature setting.
When the remote control’s S/M switch is at the “M” (Multiple) position
Unlike when the switch is at the “S” position as described above, the function
for automatically switching between cooling and heating does not work.
Check that the circuit breaker on the power panel is turned on.
Once mode is selected and the unit is preset by following the steps below,
you can have the air conditioner automatically bring the room to the desired
temperature simply by pressing the ON/OFF operation button.
STEP 1 Press the MODE selector button to .
STEP 2 Press the ON/OFF operation button.
To stop the air conditioner, press the ON/OFF operation button again.
• To change the temperature setting; press the temperature setting buttons
and change the setting to the desired temperature.
NOTE
NOTE
STEP 1
STEP 2

13
Operation with the Remote Control Unit (continued)

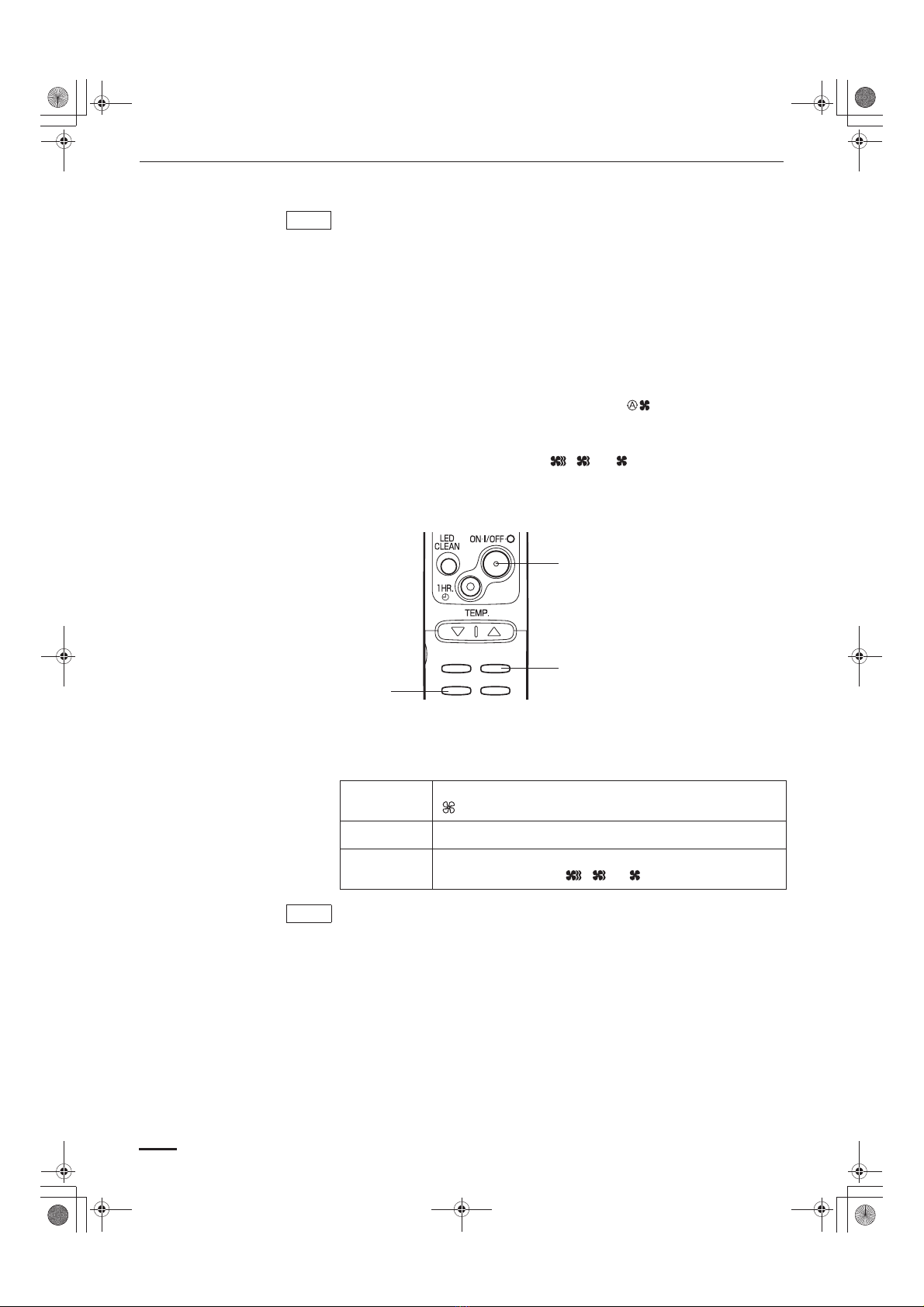

2. Manual Operation
Check that the circuit breaker on the power panel is turned on.
If the automatic operation settings of the unit do not meet your needs, press
the setting buttons as described below and change the settings as desired.

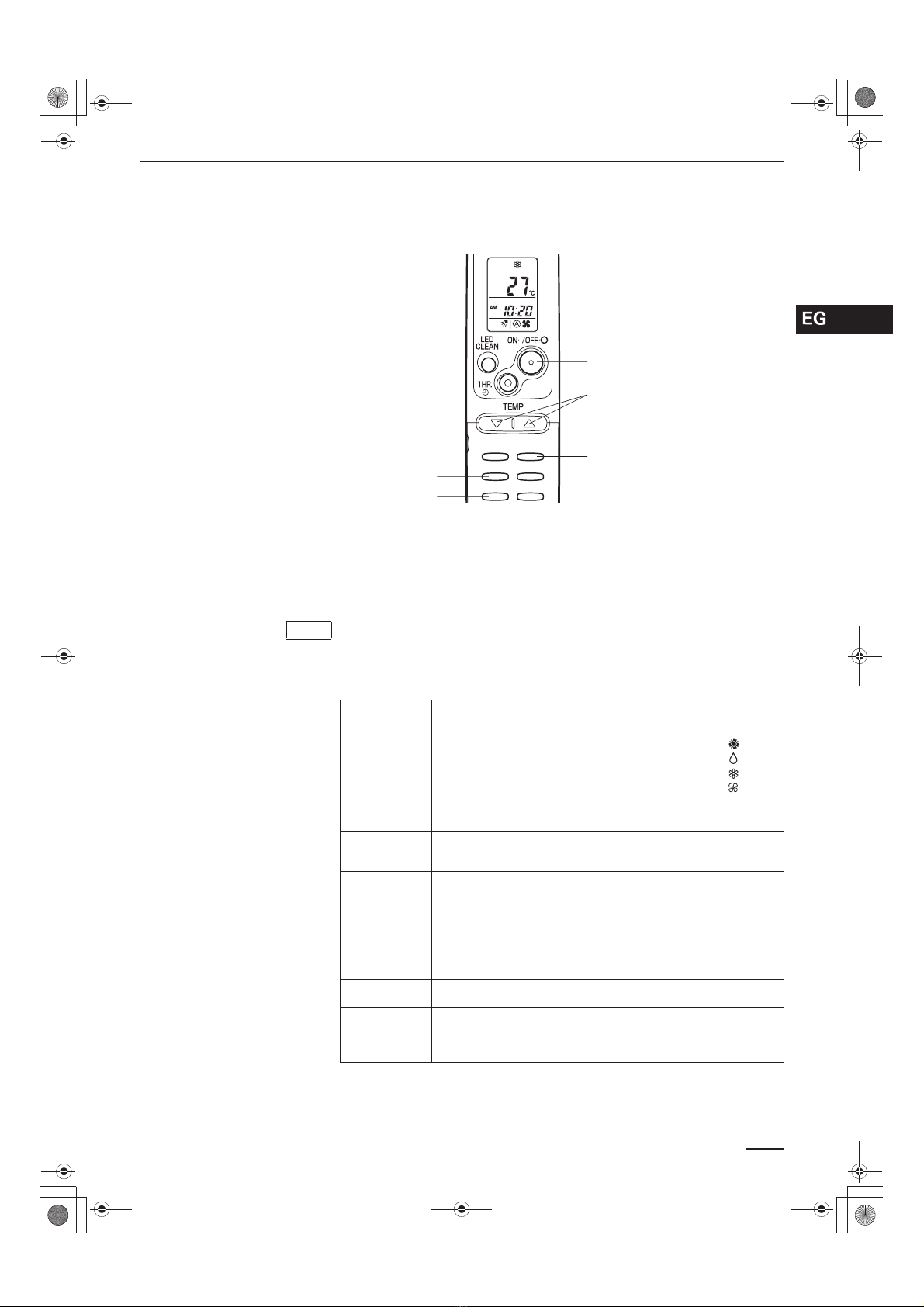

STEP 1 Press the MODE selector button and select the desired
mode.
For heating operation →
For dehumidifying operation →
For cooling operation →
For fan only operation →
(No FAN mode at M of the S/M switch on the remote control
unit.)
STEP 2 To start the air conditioner, press the ON/OFF operation
button.
STEP 3 Press the TEMP. setting buttons to change the temperature
setting to the desired temperature.
Adjustable temperature range:
STEP 4 Set the FAN SPEED selector button to the setting you want.
STEP 5 Press the FLAP button and set the airflow direction as
desired.
(Refer to “Adjusting the Airflow Direction” on page 21.)
To stop the air conditioner, press the ON/OFF operation button again.
30 °C max.
16 °C min.
or 86 °F max.
60 °F min.
STEP 1
STEP 4
STEP 5
STEP 2
STEP 3
NOTE

14
Operation with the Remote Control Unit (continued)
• Choose the best position in the room for the remote control unit, which
also acts as the sensor for room comfort and transmits the operating
instructions. Once you’ve found this best position, always keep the remote
control unit there.
• This appliance has a built-in 5-minute time delay circuit to ensure reliable
operation. When the operation button is pressed, the compressor will start
running within three minutes. In the event of power failure, the unit will
stop.
3. Adjusting the Fan Speed
A. Automatic fan speed Simply set the FAN SPEED selector button to the position.
This automatically sets the best fan speed for the room temperature.
B. Manual fan speed If you want to adjust fan speed manually during operation, just set the FAN
SPEED selector button as desired. [ , , or ]
4. Fan Only
If you want to circulate air without any temperature control, follow these steps:
STEP 1 Press the MODE selector button to switch to the fan mode
.
STEP 2 Press the ON/OFF operation button.
STEP 3 Press the FAN SPEED selector button to select the fan
speed of your choice ( , or ).
There is no FAN only function at M of the S/M switch on the remote control
unit.
NOTE
NOTE
STEP 2
STEP1
STEP 3

15
Operation with the Remote Control Unit (continued)

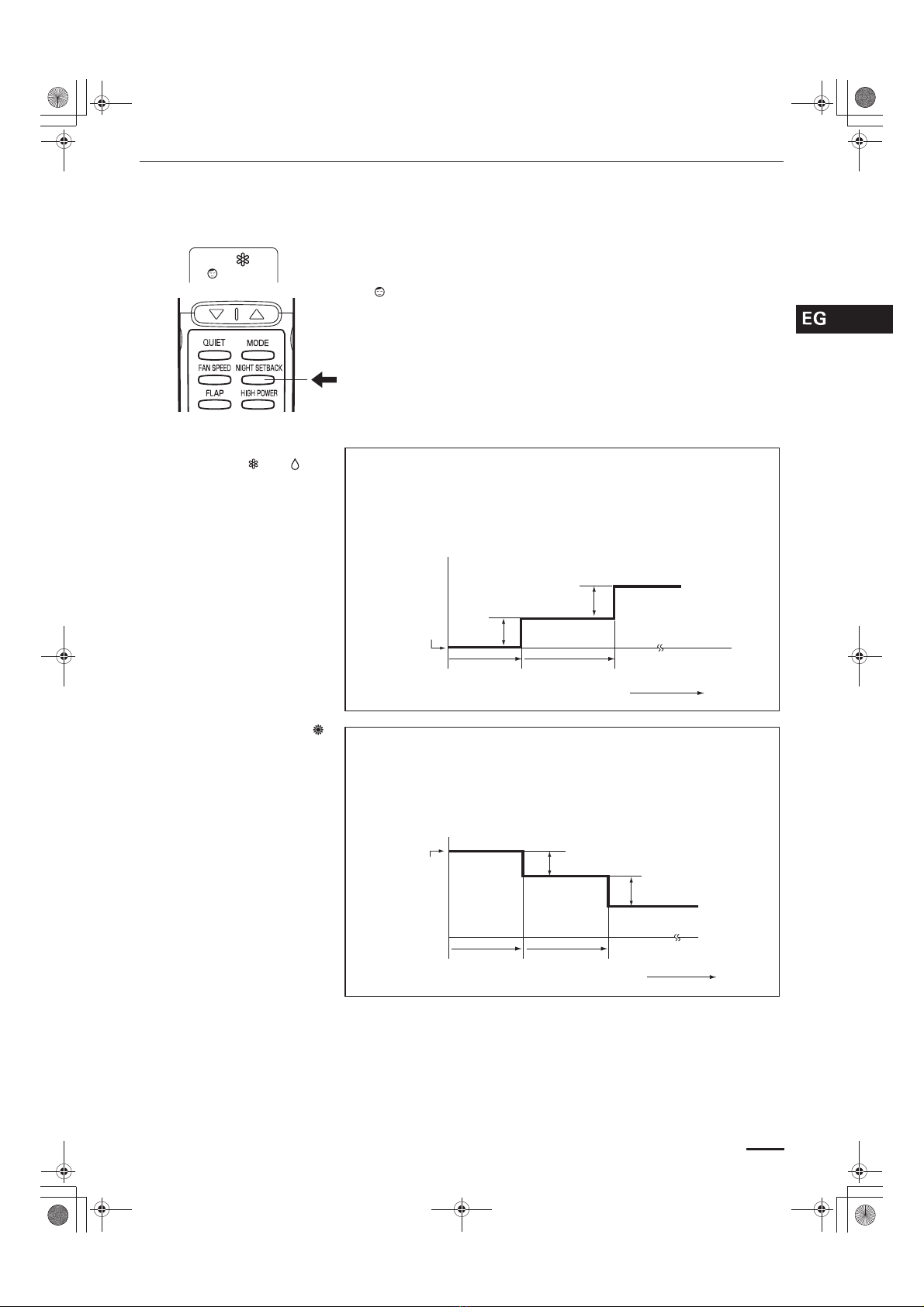

5. Night Setback Mode
Night Setback Mode is used for saving energy.
Press the NIGHT SETBACK button while operation.
The mark appears in the display.
To release the night setback function, press the NIGHT SETBACK button
again.
A. In Cooling and DRY
Mode: ( and )
B. In Heating Mode: ( )
When the night setback mode is selected, the air conditioner automatically
raises the temperature setting 1 °C when 30 minutes have passed after the
selection was made, and then another 1 °C after another 30 minutes have
passed, regardless of the indoor temperature when night setback was
selected. This enables you to save energy without sacrificing comfort. This
function is convenient when gentle cooling is needed.
Setting
temperature
Press the NIGHT
SETBACK button 30 min. 30 min. Time
1°C(2°F)
1°C(2°F)
When the night setback mode is selected, the air conditioner automatically
lowers the temperature setting 2 °C when 30 minutes have passed after the
selection was made, and then another 2 °C after another 30 minutes have
passed, regardless of the indoor temperature when night setback was
selected. This enables you to save energy without sacrificing comfort. This
function is convenient when gentle heating is needed.
Setting
temperature
Press the NIGHT
SETBACK button 30 min. 30 min. Time
2°C(4°F)
2°C(4°F)

16
Operation with the Remote Control Unit (continued)

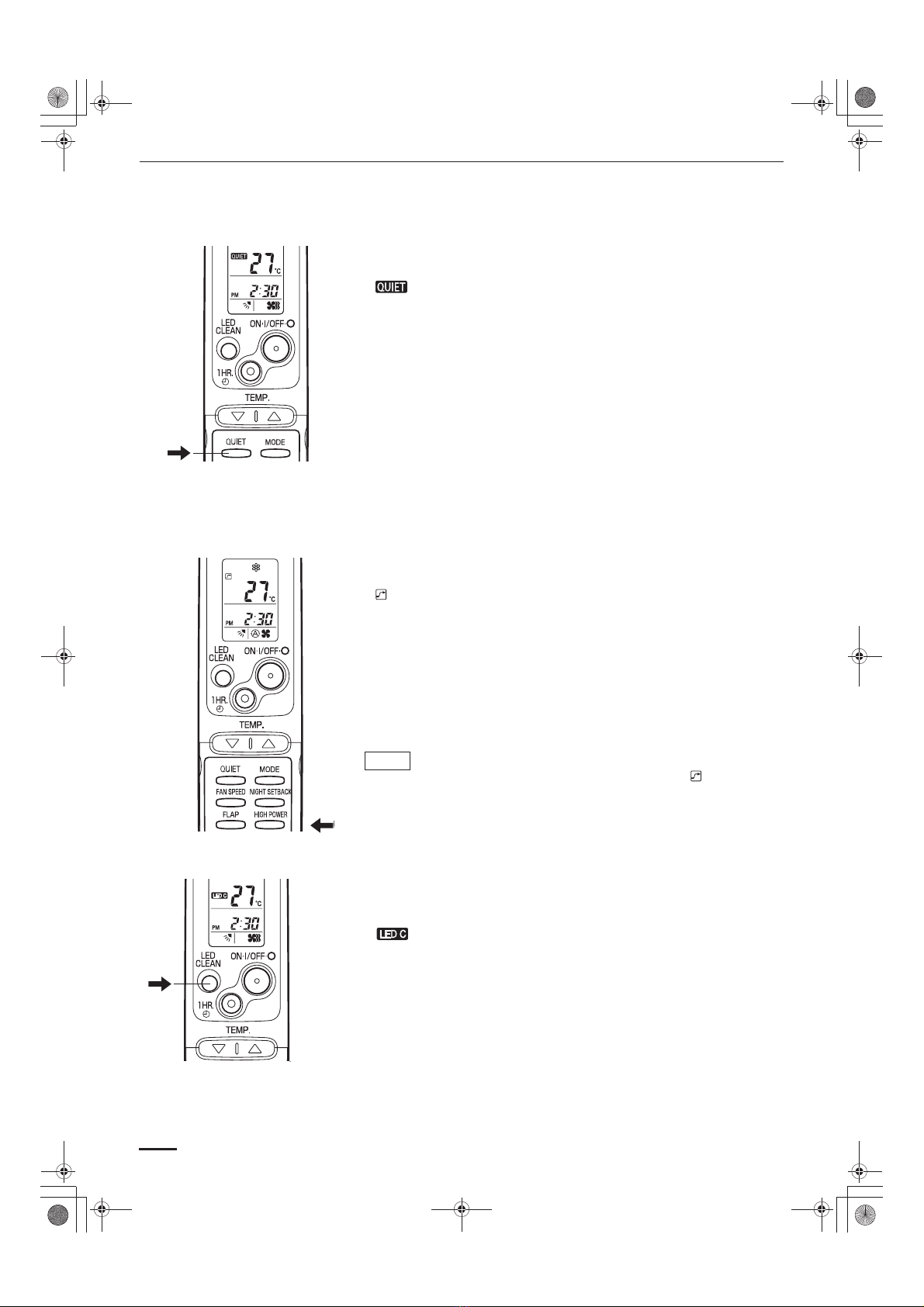

6. QUIET Mode
QUIET Mode is used to reduce the fan sound of the indoor unit.
Press the QUIET button.
The mark appears in the display.
To cancel, press QUIET button again.
• In QUIET Mode, the fan rotates at a slower speed than the fan speed
setting.
• If the unit is already operating with a very low airflow, the fan sound may
not change even if the QUIET button is pressed.
7. HIGH POWER Mode
HIGH POWER mode can be used to increase the output of the indoor unit for
all operation modes except automatic operation.
Press the HIGH POWER button.
The mark appears in the display.
To cancel, press HIGH POWER button again.
• When the HIGH POWER button is pressed, the unit operates at maximum
output for 30 minutes, regardless of the desired temperature. The fan
speed is 1 step above “High”.
• HIGH POWER Mode cannot be used when the operation mode is
Automatic Operation.
• QUIET Mode and HIGH POWER Mode cannot be used at the same time.
8. LED CLEAN Mode
In LED CLEAN mode, a UV antibacterial unit (including a LED CLEAN lamp and anti-bacterial filter)
is used to remove the bacteria from air blown from the air conditioner..
Press the LED CLEAN button.
The mark appears in the display.
To cancel, press LED CLEAN button again.
• When this button is pressed, the UV antibacterial unit operates for 30minutes: don't open the front panel.
• Pressing MODE button cancels LED CLEAN mode
• The LED CLEAN lamp may reflect inside the airconditioner and be visible: it's not a malfunction.
• When set to High fan speed during heating operation, the
fan runs at High fan speed even though the mark is
displayed.
• Depending on the operating conditions, the fan speed may
be increased by a small amount only.
NOTE

17
Special Remarks
How it works? • Once the room temperature reaches the level that was set, the unit’s
operation frequency is changed automatically.
• During DRY operation, the fan speed automatically runs at lower speed for
providing a comfortable breeze.
• ‘‘DRY’’ operation is not possible if the indoor temperature is 15 °C or less.
Heating performance • Because this air conditioner heats a room by drawing in the heat of the
outside air (heat pump system), the heating efficiency will fall off when the
outdoor temperature is very low. If sufficient heat cannot be obtained with
this air conditioner, use another heating appliance together with it.
Defrosting • When the outdoor temperature is low, frost or ice may form on the heat
exchanger coil, reducing heating performance. When this happens, a
microcomputer defrosting system operates. At the same time, the fan on
the indoor unit stops and the OPERATION lamp lights red and orange
alternately until defrosting is completed. Heating operation restarts after
several minutes. (This interval will vary slightly depending upon the
outdoor temperature and the way in which frost forms.)
Cold draft prevention • For several minutes after the start of heating operation, the indoor fan runs
at a lower speed until the indoor heat exchanger coil has warmed up
sufficiently. However, the fan may remain stopped when the room
temperature is low. This is because the COLD DRAFT PREVENTION
SYSTEM is in operation.
• Sometimes the indoor unit may not get to the set fan speed such as LOW
and QUIET under cool operation at very low outdoor temperatures due to
the indoor unit being protected from ice or frost.
• In the event of power failure, the unit will stop. When the power is
resumed, the unit will restart automatically within 5 minutes or 15 minutes
at M position of the S/M switch on AUTO mode by the remote control unit.
Clicking sound is heard from
the air conditioner • In heating or cooling operation, any plastic parts may expand or shrink due to a sudden temperature change. In this event, a clicking sound may occur.
This is normal, and the sound will soon disappear.
• The remote control unit sends the setting condition signals to the air
conditioner regularly at five minute intervals.
‘‘DRY’’ ( ) Operation
Heating ( ) Operation
Cooling ( ) Operation
Power failure during
operation
Clicking Sound
Remote Control Unit

18

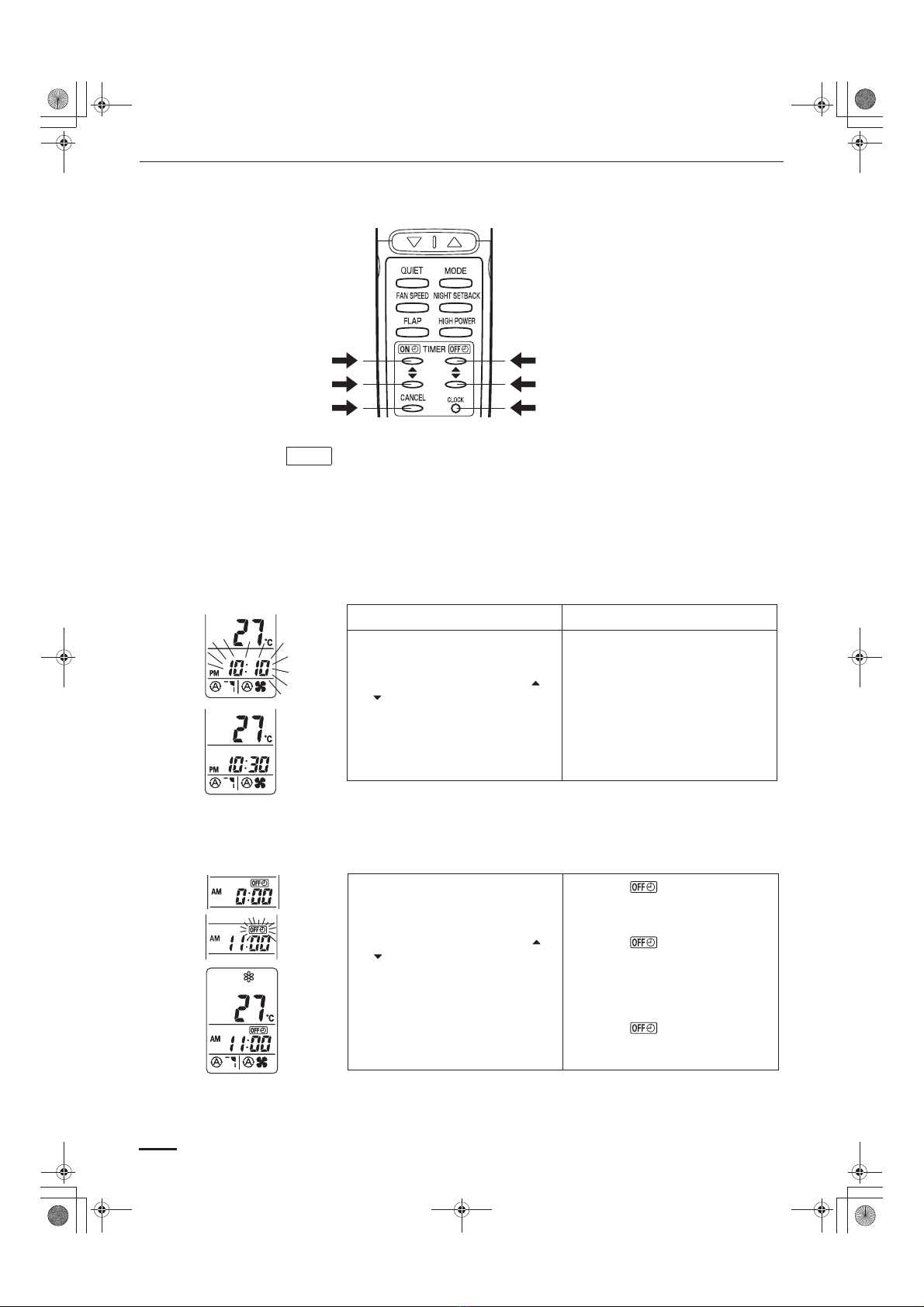

Setting the Timer
In the descriptions below, the following settings are used for the temperature
and time indicator selector button on the bottom front section of the remote
control.
• Temperature: °C
• Time: AM, PM
1. How to set the present
time (Example) To set to 10:30 pm.
2. How to set the OFF time (Example) To stop the air conditioner at 11:00 am.
NOTE
Operation Indication
1. Press the CLOCK button once if
the time indicator is not flashing.
The time indication alone flashes.
2. Press the Advance, Return ( ,
) button until PM 10:30 is
displayed.
The time can be set in 1-minute
increments. Holding down the
button advances the time rapidly in
10-minute increments.
3. Press the CLOCK button again. This completes the setting of the
current time.
1. Press the OFF TIME setting
button once.
The timer indication is
displayed, and the present OFF
time is shown.
2. Press the Advance, Return ( ,
) button until AM 11:00 is
displayed.
The timer indication blinks.
The time can be set in 10-minute
increments. Holding down the
button advances the time rapidly in
10-minute increments.
3. Wait a few seconds, and then
the setting is complete.
The timer indication stops
blinking and the present time is
displayed.

19
Setting the Timer (continued)

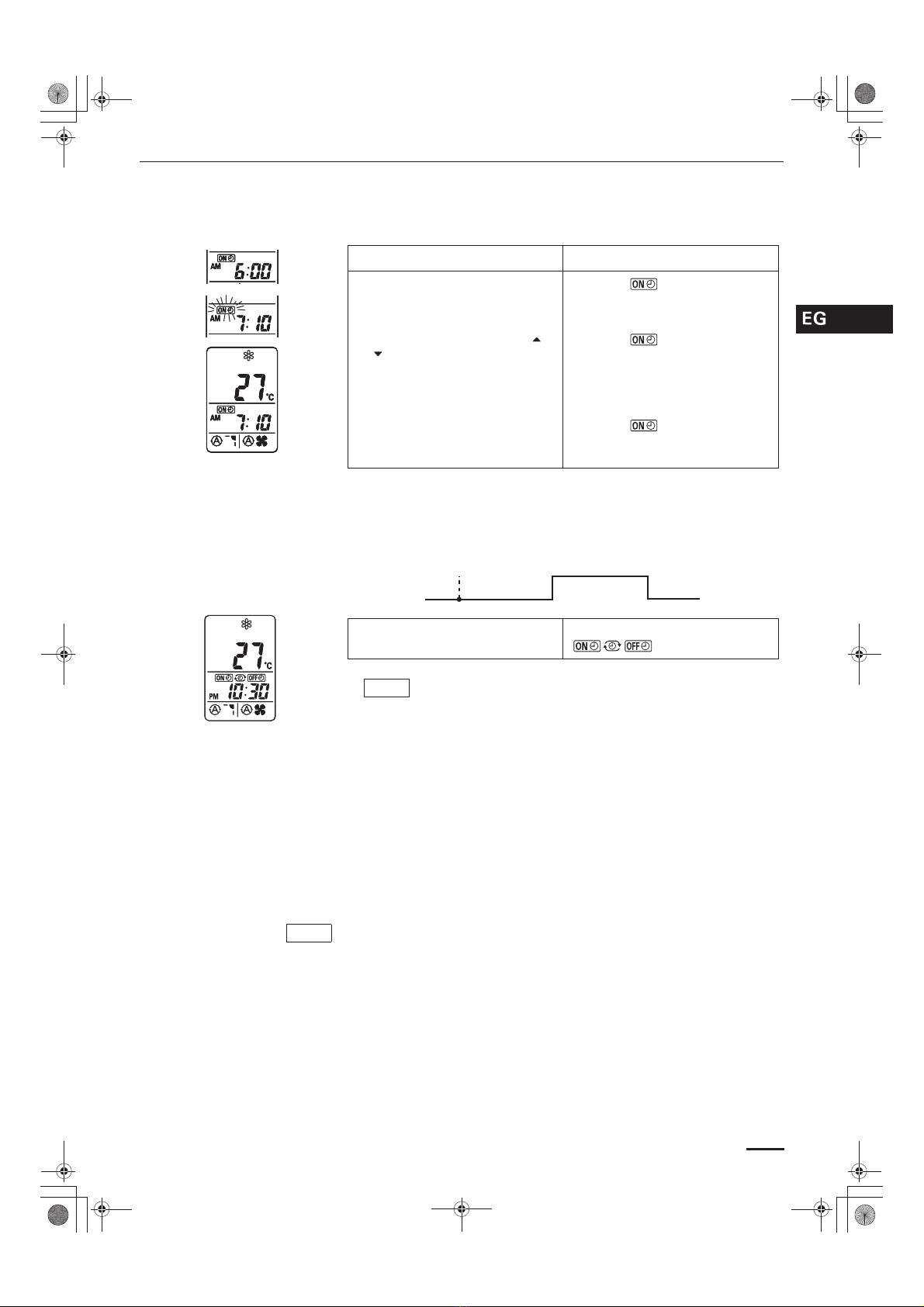

3. How to set the ON time (Example) To start operation at 7:10 am.
4. How to set DAILY ON/OFF
REPEAT timer (Example) To start operation at 7:10 am. and stop the air conditioner at 11:00
am.
To cancel a timer program • Press the CANCEL button.
• When either an ON or OFF timer is to be canceled, press the button
corresponding to the timer whose program is to be canceled, and then
press the CANCEL button.
• The airflow direction, fan speed and temperature setting can be changed
after a timer program has been set even when the unit is stopped. Even
when operation is stopped during an ON timer program, the unit will start
operating when the set time is reached provided that the program is not
canceled.
• When the ON timer and OFF timer are set to the same time, the timer
operates as if it is turned off.
Operation Indication
1. Press the ON TIME setting
button once.
The timer indication is
displayed, and the present ON time
is shown.
2. Press the Advance, Return ( ,
) button until AM 7:10 is
displayed.
The timer indication blinks.
The time can be set in 10-minute
increments. Holding down the
button advances the time rapidly in
10-minute increments.
3. Wait a few seconds, and then
the setting is complete.
The timer indication stops
blinking and the present time is
displayed.
7:10 am.
ON 11:00 am. OFF
10:30 pm.
Present time
1. Set the timer ON/OFF times as
shown in 2-1, 2, 3 and 3-1, 2, 3.
The present time 10:30 pm. and
are displayed.
• The ON/OFF combination timer uses the current time as
the reference, and it is activated starting from whichever
set time comes first.
• With the ON/OFF combination timer, the settings are
repeated every day.
• You can check the timer ON/OFF times after you have set
them by pressing the ON TIME and OFF TIME setting
buttons.
NOTE
NOTE

20

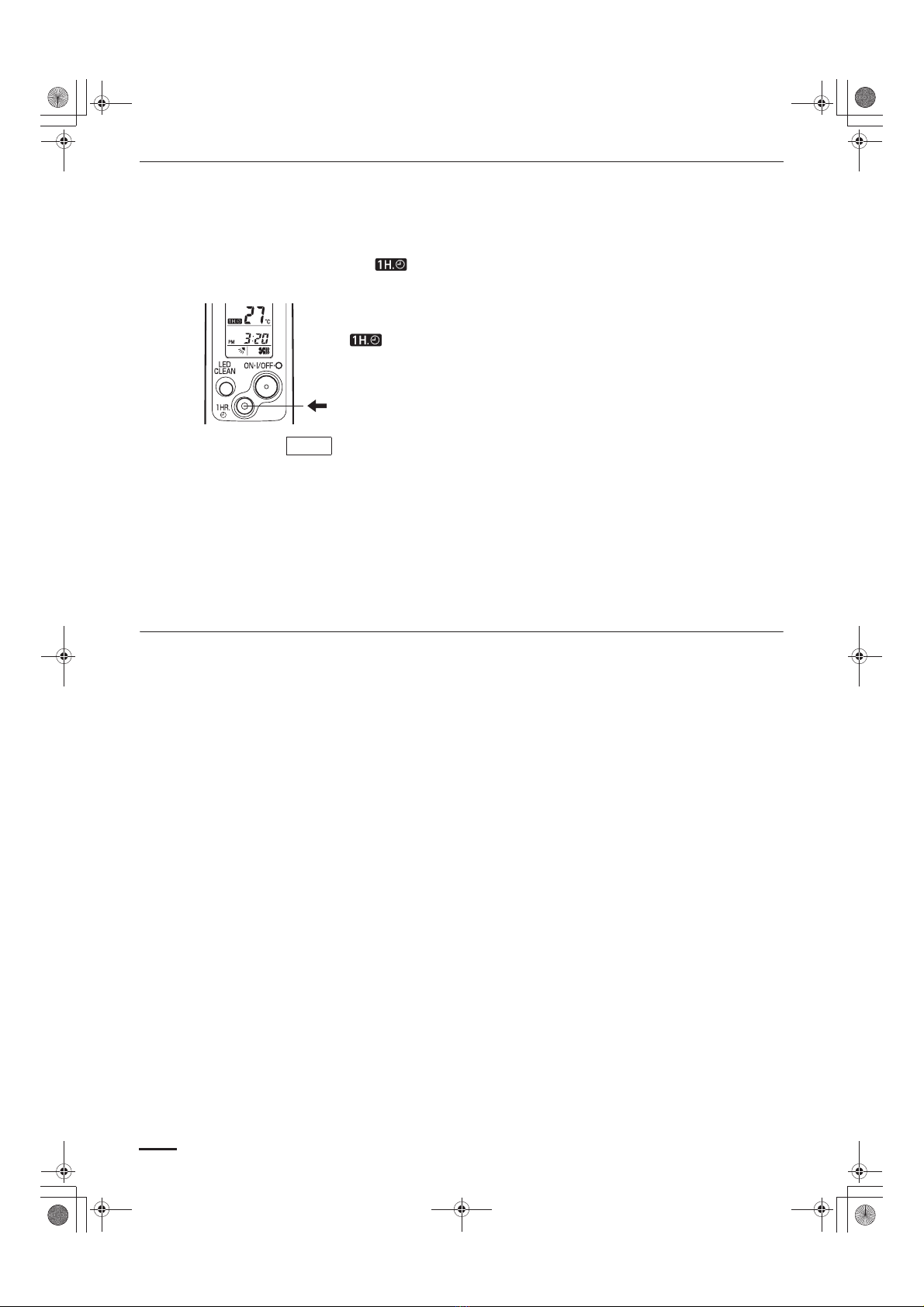

Using the 1-Hour OFF Timer
Tips for Energy Saving
1. 1-Hour OFF Timer This function causes the unit to operate for one hour and then stop,
regardless of whether the unit is on or off when this button is pressed.
The indicator in the display indicates that this function is operating.
Setting procedure:
Regardless of whether the unit is operating or stopped, press the 1 HR.
TIMER button.
appears in the display.
Cancellation procedure:
Press the ON/OFF operation button to turn the unit off, wait for the unit to stop
operating, and then press the ON/OFF operation button again.
The 1-Hour Timer function is now cancelled and the unit operates normally.
• If, while the 1-Hour Timer function is operating, the 1HR. TIMER button is
pressed once to cancel the function and then again, the unit continues to
operate for one hour from that point in time and then stops.
• It is not possible to use the OFF Timer and 1-Hour OFF Timer together.
Whichever function is set last takes precedence. If the 1 HR. TIMER
button is pressed while the TIMER OFF function operates, the OFF Timer
is cancelled and the unit will stop operating one hour later.
2. Operation together with the
DAILY ON/OFF REPEAT Timer The 1-Hour OFF Timer setting is given priority over the DAILY ON/OFF REPEAT setting.
Do not • Block the air intake and outlet of the unit. If they are obstructed, the
unit will not work well, and may be damaged.
• Let direct sunlight into the room. Use sunshades, blinds or curtains. If the
walls and ceiling of the room are warmed by the sun, it will take longer to
cool the room.
Do • Always try to keep the air filter clean. (Refer to “Care and Cleaning”.) A
clogged filter will impair the performance of the unit.
• To prevent conditioned air from escaping, keep windows, doors and any
other openings closed.
NOTE
