Technica 100BASE-T1 MediaConverter BCM User manual

100BASE-T1
MEDIACONVERTER
BCM
Manual-Version: 2.5
Hardware-Version: 2.0 to 3.0.a
July 2020
USER MANUAL

100BASE-T1 MediaConverter_BCM User Manual
2
CONTENT
1GENERAL INFORMATION ......................................................................................... 3
1.1 Functionality and Features of the 100BASE-T1 MediaConverter_BCM ........... 3
1.1.1 Features........................................................................................................ 3
1.1.2 General Information ..................................................................................... 4
1.1.3 LINKS ............................................................................................................ 4
1.1.4 General operating and safety strategy of Technica Engineering’s Products
4
1.1.5 General design rules for the power supply of Technica Engineering’s
products..................................................................................................................... 5
1.2 Warranty and Safety Information ....................................................................... 5
1.3 RoHS Certificate of Compliance ........................................................................ 7
1.4 Scope of Delivery ................................................................................................ 8
2HARDWARE INTERFACES......................................................................................... 9
2.1 Connectors .......................................................................................................... 9
2.1.1 Black MQS Connector.................................................................................. 9
2.1.2 RJ45 Ethernet connectors .........................................................................10
2.2Other Interfaces ................................................................................................11
2.2.1 DIP-Switches ..............................................................................................11
2.2.2 Status LEDs ................................................................................................11
3CONFIGURATION OF THE DEVICE .........................................................................12
4STANDARD USE CASE ............................................................................................13
5100BASE-T1 FILTER................................................................................................14
6ADDITIONAL INFORMATION ..................................................................................15
7LIST OF FIGURES.....................................................................................................16
8CHANGELOG ...........................................................................................................17
9CONTACT ................................................................................................................18
10 DECLARATION OF CONFORMITY........................................................................19

100BASE-T1 MediaConverter_BCM User Manual
3
1GENERAL INFORMATION
1.1 Functionality and Features of the 100BASE-T1
MediaConverter_BCM

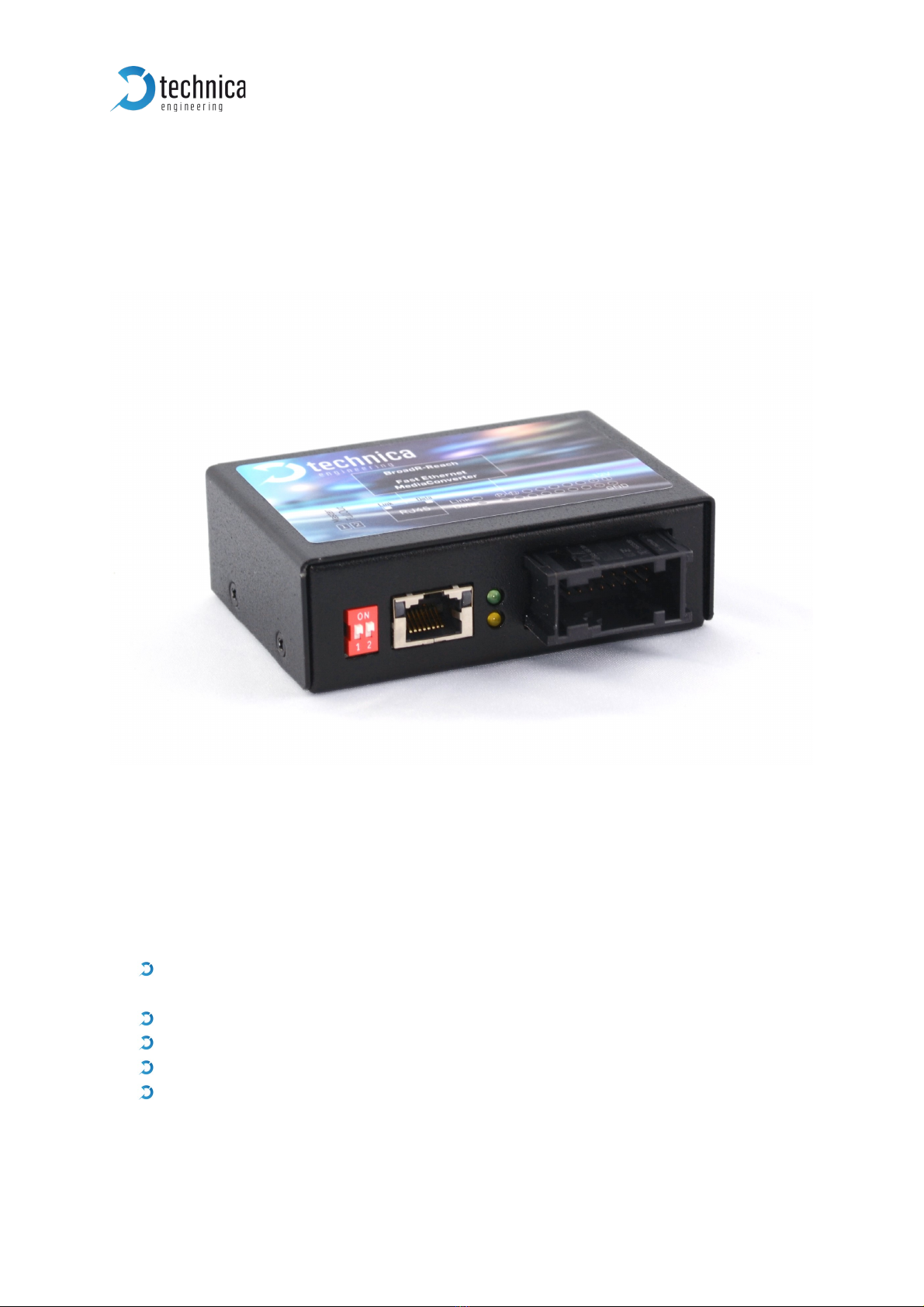

Figure 1-1: 100BASE-T1 MediaConverter_BCM
The Technica Engineering 100BASE-T1 MediaConverter_BCM transmits data frames
directly from the physical layer BroadR-Reach (100BASE-T1) to Fast Ethernet
(100BASE-TX) with constant delay time of 2.0µs.
1.1.1 Features
1 port BroadR-Reach (100BASE-T1) Ethernet with Broadcom BCM89810
Transceiver
1 port Fast Ethernet (100BASE-TX)
Automotive Tyco MQS Connector for 100BASE-T1 and power supply
Robust steel case
DIP Switches for easy configuration

100BASE-T1 MediaConverter_BCM User Manual
4
1.1.2 General Information
Voltage requirement:
8 to 16 Volt DC (nominal 12 Volt DC)
Power consumption:
2 Watt
Size:
92 x 63 x 30 mm
Weight:
0,2 kg
International Protection:
IP 2 0
Operating temperature:
-40° to +80 °Celsius
1.1.3 LINKS
The User can download the latest firmware and documentation for the 100BASE-T1
MediaConverter_BCM here:
https://technica-engineering.de/en/produkt/100base-t1-mediaconverter_bcm/
1.1.4 General operating and safety strategy of Technica
Engineering’s Products
Technica Engineering’s products are designed for operation in automotive systems
and for supply voltages of nominal 12 V or 24 V. The applicable limit values adhere to
the standard norms for 12 V or 24 V automotive onboard power systems
correspondingly and can be found in the mentioned norms.
Should Technica Engineering’s products be operated in voltage ranges beyond those
specified in the norms, which represents a breach of the conditions of operation, then
this will void the product warranty and Technica Engineering will assume no liability
whatsoever of the results and/or consequences thereof.
This is especially valid whenever the voltage level reaches or exceeds the limits of the
low-voltage directive. In this case, damage to the devices cannot be excluded. Due to
the manufacturing characteristics of the devices, there is no imminent fire hazard from
the device itself, if the devices are being operated in an environment according to the
conditions of use. A secondary fire hazard cannot be excluded, should those
conditions not be met. A protection against overvoltage cannot be provided in such a
breach of the conditions of use.

100BASE-T1 MediaConverter_BCM User Manual
5
1.1.5 General design rules for the power supply of Technica
Engineering’s products
The power supply circuit of Technica Engineering’s products are equipped with self-
protection components. This automatic function protects the devices against
excessive temperature and too high supply-voltage by switching the device off. This
automatic switch-off function is independent of any software function.
The root-cause of excessive temperature in the power supply circuit can eventually be
due to a too high environment temperature or due to an internal failure of the device.
In both cases, the automatic switch-off function will switch-off the power supply from
the device to avoid further damage.
The protection against too high supply-voltage protects the device even in case of an
internal failure of the Technica Engineering device.
1.2 Warranty and Safety Information
Before operating the device, read this manual thoroughly and retain
it for your reference.
The latest documentation for the 100BASE-T1 Media Converter BCM
can be downloaded here:
https://technica-engineering.de/en/produkt/100base-t1-
mediaconverter-bcm/
Use the device only as described in this manual.
Use only in dry conditions.
Do not insert any foreign object in the slots/openings of the housing.
Do not apply power to a damaged device.
The device may only be used by specialists.
Do not open the device. Otherwise warranty will be lost.

100BASE-T1 MediaConverter_BCM User Manual
6
This product is intended for use in automobiles or automotive-like
environments. An automotive-like environment includes test setups
or test benches in the office, laboratory and workshop areas. In the
test setups the same environmental conditions apply as in vehicle
electrical systems. Technica Engineering products are not intended
to be used as standard IT equipment. The test systems and
products from Technica Engineering are designed as customer and
application-specific test modules that are only used by specialists
for development and test facilities.
When integrating the modules in a vehicle or test set-up, the user
must ensure appropriate ventilation or air convection.
Technica Engineering products must not be considered as a safety
element out of context when using safety-critical systems and must
be included in the safety assessment when used. The development
class in a safety system must be taken into account with standard
QM referred to ISO26262.
Caution
: The device can get hot.
Do not cover the device due to fire danger.
Do not place the device near to highly flammable materials due to fire
danger.
Do not use the device above the specified operating temperature.
The operating temperature is the ambient temperature of the
installation space.
This symbol is only valid in the European Union. If you wish to discard
this product, please contact your local authorities or dealer and ask
for the correct method of disposal. Technica Engineering GmbH is
registered as manufacturer of the brand "Technica Engineering" and
the device type "Small devices of Information- and
Telecommunications- technology for exclusive use in non-private
Households”. WEEE reg. No. DE 20776859
Please refer to
CHAPTER 10
for the EU Declaration of Conformity in
accordance with Directive 2014/30/EU.

100BASE-T1 MediaConverter_BCM User Manual
7
1.3 RoHS Certificate of Compliance

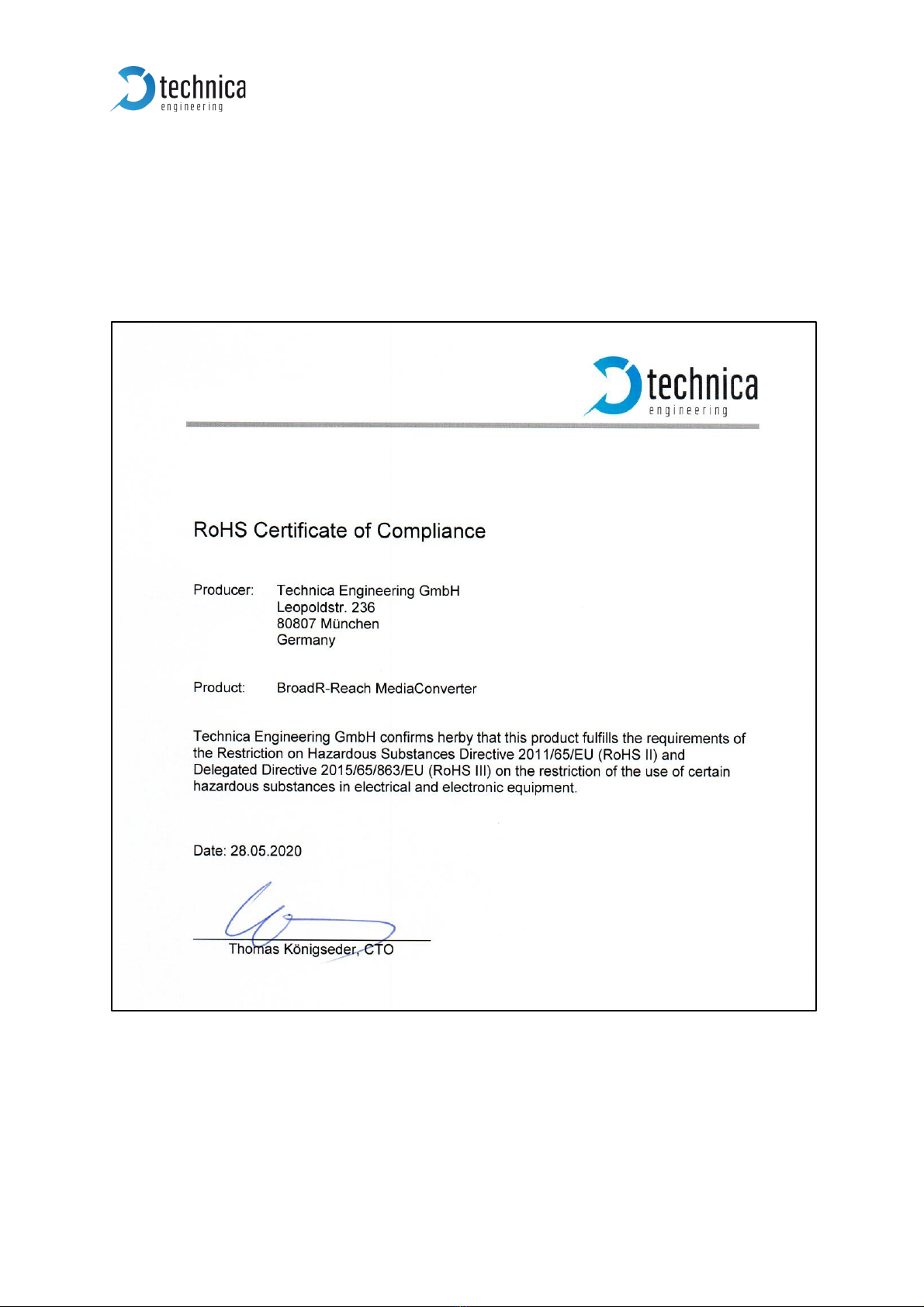

Figure 1-2 Copy of RoHS Certificate of Compliance

100BASE-T1 MediaConverter_BCM User Manual
8
1.4 Scope of Delivery
The delivery includes:
1x 100BASE-T1 MediaConverter BCM
1x 1m Ethernet Cable
1x Black MQS Connector
1x 1m 100BASE-T1 Cable
MQS crimp contacts

100BASE-T1 MediaConverter_BCM User Manual
9
2HARDWARE INTERFACES
2.1 Connectors
On the label on top of the device you can see an overview about all HW interfaces of
the 100BASE-T1 MediaConverter_BCM.

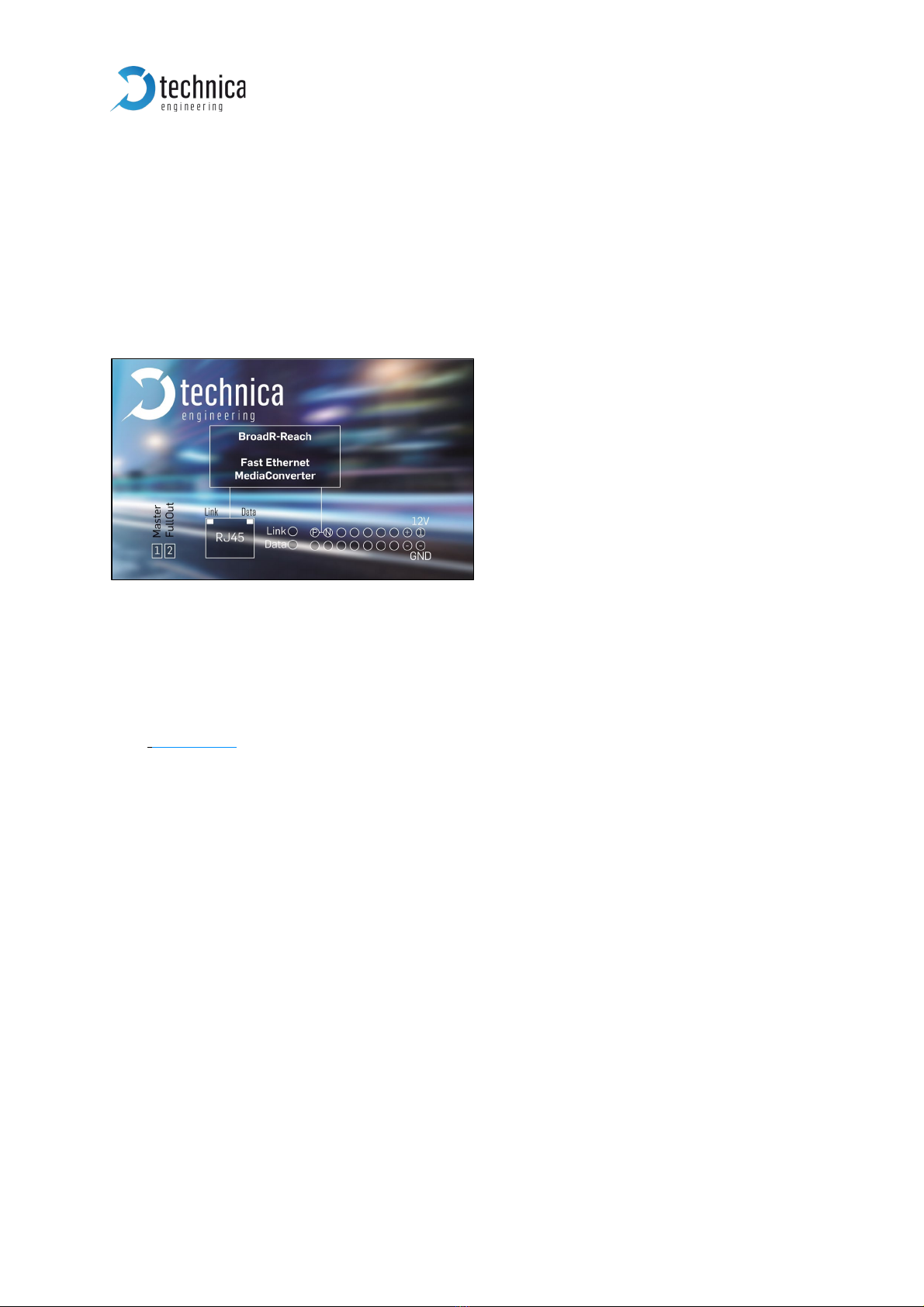

Figure 2-1: Label of 100BASE-T1 MediaConverter_BCM
2.1.1 Black MQS Connector
The pinning of the ECU connectors is listed on the label on top of the device as well.
(See FIGURE 2-1).
The Connector color is black.
The power supply for the device is supplied by pin 1 (12 Volt) and pin 10 (Ground)
Warning: If you apply a voltage higher than 18 Volt, the device will be damaged!

100BASE-T1 MediaConverter_BCM User Manual
10

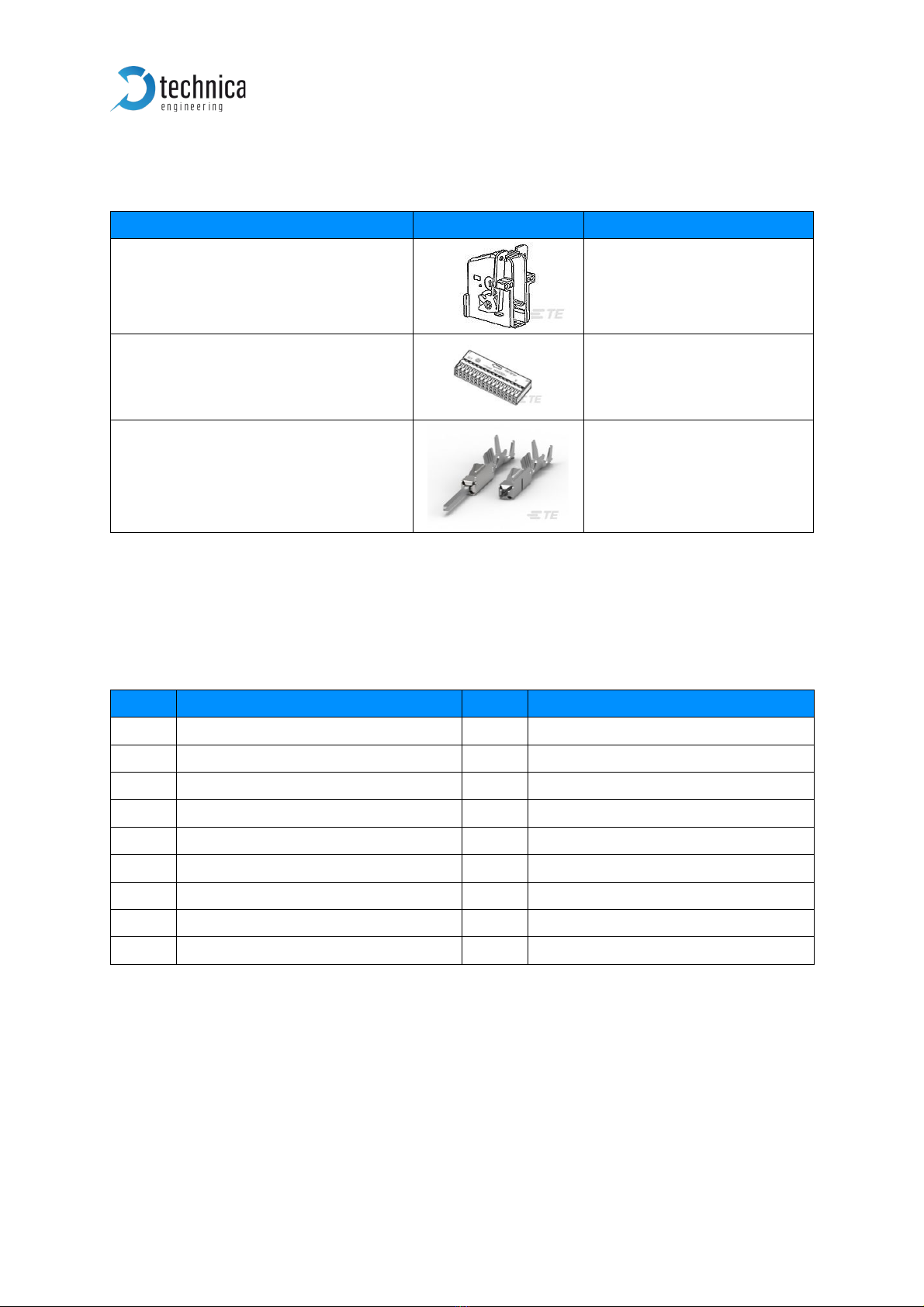

The Tyco Electronics (TE) Micro Quad Lock System (MQS) is used.
Name
Part Number
Tyco, MQS Abdeckkappe 2x9 Pol, black
Alternative
1-967416-1
1-1355350-1
Tyco, MQS Buchsengehäuse 2x9 Pol
Alternative
965778-1
962108-2
Tyco crimp contact 928999-1
Table 2—1: Parts of black MQS connector
Note: You can use the official Tyco tool for these crimp contacts. A cheap variant is
the crimp tool for “PSK” contacts.
Pin
Function
Pin
Function
1
Battery +12 Volt Input
10
Power Ground
2
reserved
11
reserved
3
n.c.
12
n.c.
4
n.c.
13
n.c.
5
n.c.
14
n.c.
6
n.c.
15
n.c.
7
n.c.
16
n.c.
8
100BASE-T1 port, negative
17
n.c.
9
100BASE-T1 port, positive
18
n.c.
Table 2—2: Pinning of black MQS connector
2.1.2 RJ45 Ethernet connectors
There is one RJ45 Standard Ethernet connector for Fast Ethernet (100BASE-TX).

100BASE-T1 MediaConverter_BCM User Manual
11
2.2 Other Interfaces
2.2.1 DIP-Switches
The 100BASE-T1 MediaConverter_BCM has two DIP switches for configuration (see
CHAPTER 3).
2.2.2 Status LEDs
The 100BASE-T1MediaConverter_BCM has two status LEDs at the frontside of the
case for the 100BASE-T1 Port.
Upper LED:
Green Color. It is lit when there is a linkup on the 100BASE-T1 port.
Lower LED:
Yellow Color. It is toggling in alternation with the green LED when there is
communication.
Note: There is a bug in the used BroadR-Reach PHY. When the 100BASE-T1 Plus and
Minus lines are swapped, and the 100BASE-T1 port is set to Slave then the Link LED is
lit, but there is no data transmission possible. So please connect the 100BASE-T1 lines
correctly.

100BASE-T1 MediaConverter_BCM User Manual
12
3CONFIGURATION OF THE DEVICE
The 100BASE-T1 MediaConverter is configured by two DIP switches on the front of the
device.
DIP-Switch
Status
Description
1
ON (up)
OFF (down)
100BASE-T1 Port is set to Master
100BASE-T1 Port is set to Slave
2
ON (up)
OFF (down)
100BASE-T1 Port is set to FullOut
100BASE-T1 Port is set to HalfOut
Table 3—1: Configuration of DIP-Switches
Note: In a 100BASE-T1 Link one device must be set as Master, the other must be set
as Slave.
Note: The 100BASE-T1 MediaConverter_BCM should always be set to FullOut. HalfOut
was a former configuration for EMC optimization but it will cause an unstable link.

100BASE-T1 MediaConverter_BCM User Manual
13
4STANDARD USE CASE
Here you can see a standard use case of the 100BASE-T1 MediaConverter_BCM:
Figure 4-1: Example for use case
MC: MediaConverter
DUT: Device under Test.
DIP switch 2 should be always ON, DIP switch 1 is dependent of the DUT. If DUT is
Master, MC must be configured as Slave (DIP-switch 1: OFF) and vice versa.

100BASE-T1 MediaConverter_BCM User Manual
14

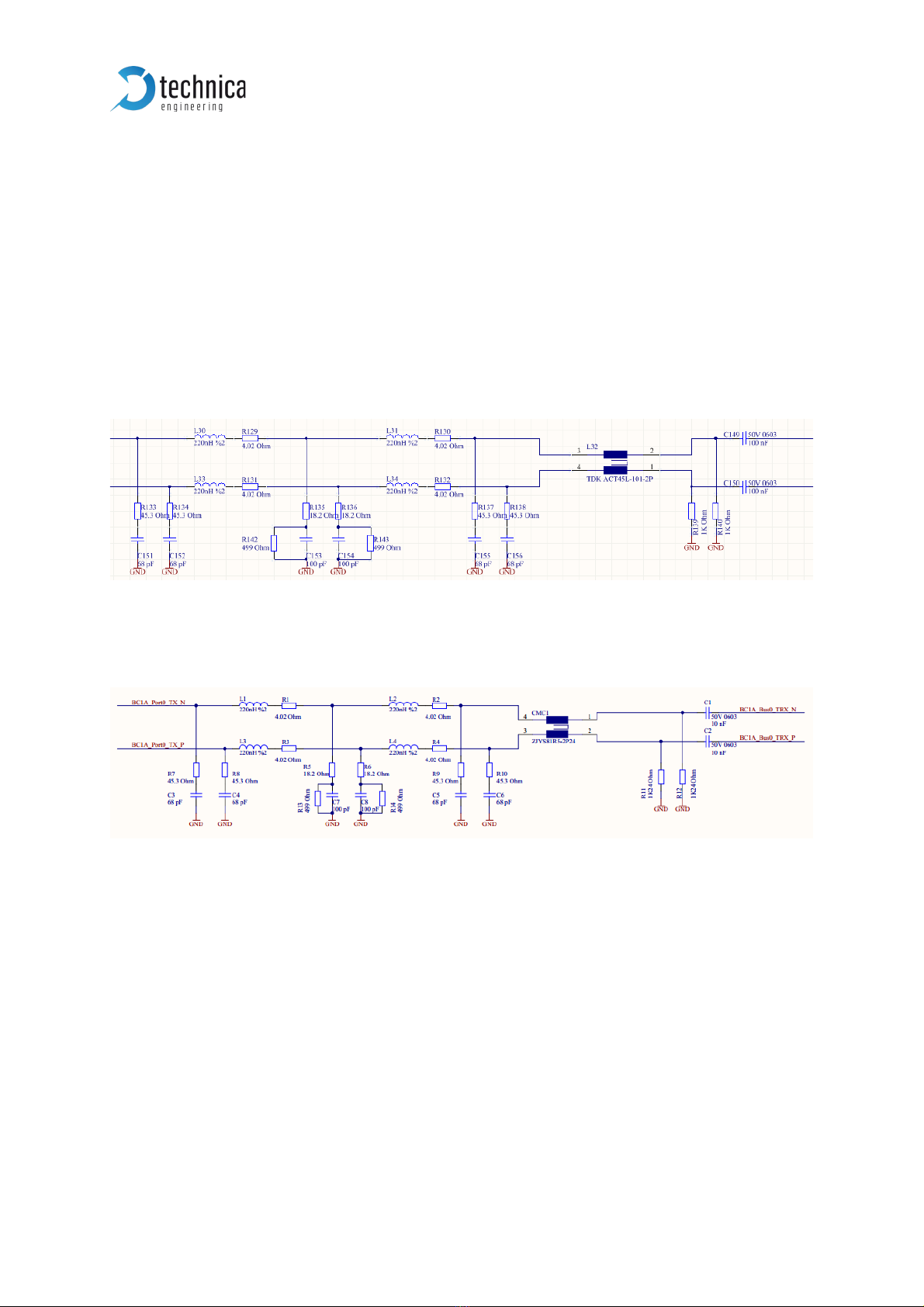

5100BASE-T1 FILTER
There are different BroadR-Reach filters in different hardware versions of the
100BASE-T1 MediaConverter_BCM:
The following 100BASE-T1 filter is used in the hardware version 3.0:
In Version 3.0 the Würth CMC 510010003 is used for L32.
In Version 3.0a the TDK CMC ACT45L - 2 01 - 2P is used for L32.
Figure 5-1: 100BASE-T1 filter for HW v3.0 and v3.0a
The following 100BASE-T1 filter is used in the hardware version 2.0:
Figure 5-2: 100BASE-T1 filter for HW v2.0
All filter versions are compatible to each other and it is possible to set up a stable link.
It is recommended to use the latest filter version.

100BASE-T1 MediaConverter_BCM User Manual
15
6ADDITIONAL INFORMATION
The delay time is constant 2.0µs. The delay is independent from the ethernet
packet frame size.
The 100BASE-T1 MediaConverter_BCM is optimized for automotive use. The
maximum cable length for 100BASE-T1 segments is limited to 15 meters
The 100BASE-T1 MediaConverter is a physical layer changer. It is independent
from transmitted protocol sent on the 100BASE-T1.

100BASE-T1 MediaConverter_BCM User Manual
16
7LIST OF FIGURES
Figure 1-1: 100BASE-T1 MediaConverter_BCM .............................................................. 3
Figure 1-2 Copy of RoHS Certificate of Compliance....................................................... 7
Figure 2-1: Label of 100BASE-T1 MediaConverter_BCM................................................ 9
Figure 4-1: Example for use case...................................................................................13
Figure 5-1: 100BASE-T1 filter for HW v3.0 and v3.0a ...................................................14
Figure 5-2: 100BASE-T1 filter for HW v2.0 ....................................................................14

100BASE-T1 MediaConverter_BCM User Manual
17
8CHANGELOG
Version
Chapter
Description
Date
1.0
All First release
2.0
All Second release 21.09.2018
2.1
All Design and rework of content 25.02.2019
2.2
4 Chapter added 29.04.2019
2.3
1.4 Correction of PHY name 23.03.2020
2.3
1.2 Extension of warranty and safety 23.03.2020
2.3
All Optical adaption 23.03.2020
2.4
All Small corrections in spelling May 2020
2.5
1.1.4 Added information on General Operating and Safety Strategy
of Technica Engineering’s Products
July 2020
1.1.5 Added information on General Design Rules for the Power
Supply of Technica Engineering’s Products
1.2 Warranty and Safety Information updated
1.3 RoHS Certificate of Compliance added
10 Declaration of conformity added

100BASE-T1 MediaConverter_BCM User Manual
18
9CONTACT
If you have any questions regarding this product, please feel free to contact us:
Technica Engineering GmbH
Leopoldstr. 236
80807 München
Germany
Technical support:
[e-mail]
General information:
[e-mail]
Most current user manuals and product information:
https://technica-engineering.de/

100BASE-T1 MediaConverter_BCM User Manual
19
10 DECLARATION OF CONFORMITY
Български
С настоящото Technica Engineering GmbH
декларира, че продуктът Модул за улавяне
100BASE-T1 MediaConverter BCM (TE-1000),
е в съответств ие с Директива 2014/30/ЕС.
Цялостният текст на ЕС декларацията за
съответствие може да се намери н а
следния интернет адрес:
https://technica-
engineering.de/produkt/100base-t1-
mediaconverter-bcm/
Čeština
Tímto Technica Engineering GmbH prohlašuje,
že produkt 100BASE-T1 MediaConverter BCM
(TE-1000), je v souladu se směrnicí
2014/30/EU. Úplné znění EU prohlášení o
shodě je k dispozici na této internetové
adrese:
https://technica-
engineering.de/produkt/100base-t1-
mediaconverter-bcm/
Dansk
Hermed erklærer Technica Engineering
GmbH, at produktet 100BASE-T1
MediaConverter BCM (TE-1000), er i
overensstemmelse med Direktiv 2014/30/EU.
EU-overensstemmelseserklæringens fulde
tekst kan findes p følgende internetadresse:
https://technica-
engineering.de/produkt/100base-t1-
mediaconverter-bcm/
Deutsch
Hiermit erklärt Technica Engineering GmbH,
dass das Produkt 100BASE-T1
MediaConverter BCM (TE-1000) die Richtlinie
2014/30/EU entspricht. Der vollständige Text
der EU-Konformitätserklärung ist unter der
folgenden Internetadresse verfügbar:
https://technica-
engineering.de/produkt/100base-t1-
mediaconverter-bcm/
Eesti
Käesolevaga deklareerib Technica
Engineering GmbH, et toode hõivamismoodul
100BASE-T1 MediaConverter BCM (TE-1000),
vastab direktiivi 2014/30/EL nuetele. ELi
vastavusdeklaratsiooni tielik tekst on
kttesaadav jrgmisel internetiaadressil:
https://technica-
engineering.de/produkt/100base-t1-
mediaconverter-bcm/
English
Hereby, Technica Engineering GmbH declares
that the product 100BASE-T1 MediaConverter
BCM (TE-1000), is in compliance with Directive
2014/30/EU. The full text of the EU declaration
of conformity is available at the following
internet address:
https://technica-
engineering.de/produkt/100base-t1-
mediaconverter-bcm/
Español
Por la presente, Technica Engineering GmbH
declara que el producto 100BASE-T1
MediaConverter BCM (TE-1000), es conforme
con la Directiva 2014/30/UE. El texto
completo de la declaración UE de
conformidad está disponible en la página web
siguiente:
https://technica-
engineering.de/produkt/100base-t1-
mediaconverter-bcm/
Ελληνικά
Με την παρούσα ο/ηTechnica Engineering
GmbH, ότι το προϊόν 100BASE-T1
MediaConverter BCM (TE-1000), πληροί την
οδηγία 2014/30/ΕΕ. Το πλήρες κείμενο της
δήλωσης συμμόρ φωσης ΕΕ διατίθεται στην
ακόλουθη ιστοσελίδα στο διαδίκτυο:
https://technica-
engineering.de/produkt/100base-t1-
mediaconverter-bcm/
Français
Le soussigné, Technica Engineering GmbH,
déclare que le produit 100BASE-T1
MediaConverter BCM (TE-1000), est conforme
la directive 2014/30/UE. Le texte complet de
la déclaration UE de conformité est disponible
l'adresse internet suivante:
https://technica-
engineering.de/produkt/100base-t1-
mediaconverter-bcm/

100BASE-T1 MediaConverter_BCM User Manual
20
Hrvatski
Technica Engineering GmbH ovime
izjavljuje da je proizvod 100BASE-T1
MediaConverter BCM (TE-1000) u skladu s
Direktivom 2014/30/EU. Cjeloviti tekst EU
izjave o sukladnosti dostupan je na sljedećoj
internetskoj adresi:
https://technica-
engineering.de/produkt/100base-t1-
mediaconverter-bcm/
Italiano
Il fabbricante, Technica Engineering GmbH,
dichiara che il prodotto 100BASE-T1
MediaConverter BCM (TE-1000), conforme
alla direttiva 2014/30/UE. Il testo completo
della dichiarazione di conformità UE
disponibile al seguente indirizzo Internet:
https://technica-
engineering.de/produkt/100base-t1-
mediaconverter-bcm/
Latviešu
Ar šo Technica Engineering GmbH deklarē, ka
produkts 100BASE-T1 MediaConverter BCM
(TE-1000), atbilst Direktīvai 2014/30/ES. Pilns
ES atbilstības deklarācijas teksts ir pieejams
šādā interneta v ietnē:
https://technica-
engineering.de/produkt/100base-t1-
mediaconverter-bcm/
Lietuvių
Aš, Technica Engineering GmbH,
patvirtinu, kad produktas sugavimo modulis
100BASE-T1 MediaConverter BCM (TE-1000),
atitinka Direktyvą 2014/30/ES. Visas ES
atitikties deklaracijos tekstas prieinamas šiuo
internet adresu:
https://technica-
engineering.de/produkt/100base-t1-
mediaconverter-bcm/
Magyar
Technica Engineering GmbH igazolja, hogy a
termék 100BASE-T1 MediaConverter BCM
(TE-1000) a 2014/30/EU irányelvnek. Az
EUmegfelelőségi nyilatkozat teljes szövege
elérhető a következő internetes címen:
https://technica-
engineering.de/produkt/100base-t1-
mediaconverter-bcm/
Malti
B'dan, Technica Engineering GmbH,
niddikjara li l-prodott 100BASE-T1
MediaConverter BCM (TE-1000), huwa
konformi madDirettiva 2014/30/UE. It-test
kollu tad-dikjarazzjoni ta' konformit tal-UE
huwa disponibbli f'dan l-indirizz talInternet li
ġej:
https://technica-
engineering.de/produkt/100base-t1-
mediaconverter-bcm/
Nederlands
Hierbij verklaar ik, Technica Engineering
GmbH, dat het 100BASE-T1 MediaConverter
BCM (TE-1000) product voldoet aan richtlijn
2014/30/EU. De volledige tekst van de
EUconformiteitsverklaring kan worden
geraadpleegd op het volgende internetadres:
https://technica-
engineering.de/produkt/100base-t1-
mediaconverter-bcm/
Polski
Technica Engineering GmbH niniejszym
oświadcza, że produkt 100BASE-T1
MediaConverter BCM (TE-1000), jest zgodny z
dyrektywą 2014/30/UE. Pełny tekst deklaracji
zgodnośc I UE jest dostępny pod
następującym adre sem internetowym:
https://technica-
engineering.de/produkt/100base-t1-
mediaconverter-bcm/
Português
O(a) abaixo assinado(a) Technica Engineering
GmbH declara que o produto 100BASE-T1
MediaConverter BCM (TE-1000), está em
conformidade com a Diretiva 2014/30/UE. O
texto integral da declarao de conformidade
está disponível no seguinte endereo de
Internet:
https://technica-
engineering.de/produkt/100base-t1-
mediaconverter-bcm/
Română
Prin prezenta Technica Engineering GmbH
declară ca produsul 100BASE-T1
MediaConverter BCM (TE-1000), este în
conformitate cu Directiva 2014/30/UE. Textul
integral al declarației UE de conformitate este
disponibil la următoarea adresă internet:
https://technica-
engineering.de/produkt/100base-t1-
mediaconverter-bcm/
