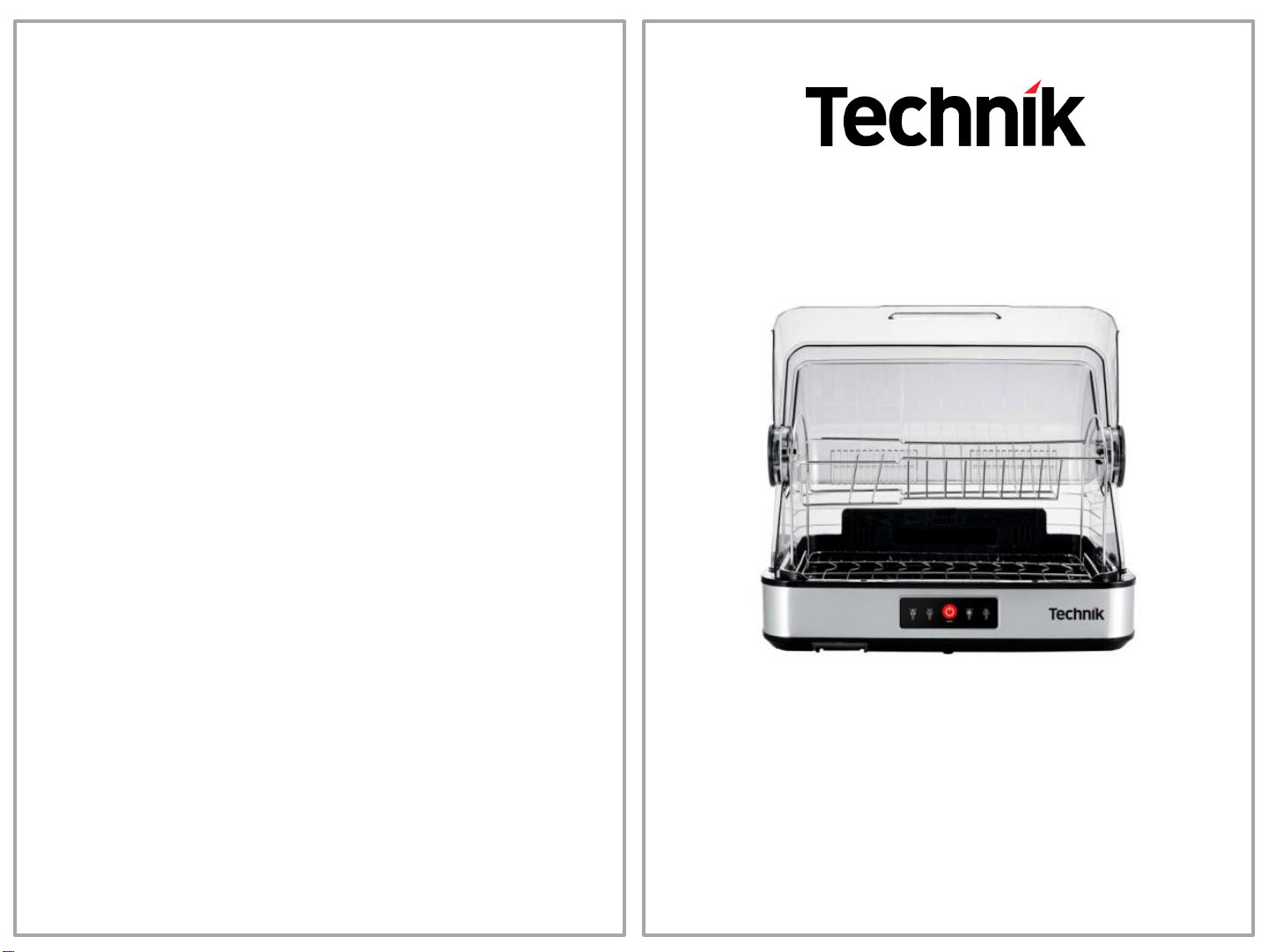

Technik TUV-45SSN User manual

TUV-45SSN
Tableware UV Sterilizer
Please read the operation manual carefully so
you can conveniently and correctly use the
product.

For safe handling of the device and in order to get to
know the entire scope of features:
•Thoroughly read this operating instructions prior to first
use.
•Above all, observe the safety instructions.
•The device should only be used as described in this
operating instructions.
•Keep this operating instructions for reference.
•If you pass the device onto someone else, please
include this operating instructions.
Thank you for purchasing this appliance. Read this entire
manual before connecting the appliance to prevent
damage due to improper use.
The Sterilizer is a newly developed modern model with
portable size, big internal cabinet.
The UV light and rapid convenient system clean and dry
the tableware quickly which makes your life more
convenient and healthy.
TABLE OF CONTENTS
Safety Instructions 1
Features 3
Component and Installation 4
How To Use 5
Technical Specifications 6
Warranty 7
1
SAFETY INSTRUCTIONS
•Keep the dish sterilizer out of reach from children.
•Keep power cord intact in case electricity leak away.
•Immediately stop running once a failure occurs during
run time.
•Do not clean the dish sterilizer with diluents, toluene or
other solvents etc.
•Do not use accessories unless they are provided by.
•Do not heat tableware if its melting point is below
90°C.
•High temperature, please be careful not to get burnt.
•This device can be used by children from age of 8
and people with restricted physical, sensory or
intellectual abilities or people without adequate
experience and/or understanding, if they are
supervised or instructed on how to use this device
safely and if they are aware of the resulting danger.
•Children must not play with the device. Cleaning and
user maintenance must not be performed by
unsupervised children unless they are older than 8
years and supervised.

•Disconnect the mains plug from the wall socket.
a) If there is a fault;
b) When you are not using the device;
c) Before you clean the device;
d) During thunderstorm.
•To avoid any risk, do not make modifications to the
product.
WARNING!
•Ensure corresponding power supply of 230V a.c 60Hz.
•Do not open the cover during runtime to avoid
burning hands.
•Children under the age of 8 must be kept away from
the device and the power cable.
•If the mains power cable of this device should
become damaged, it must be replaced by the
manufacturer, the manufacturer’s customer service
department or a similarly qualified specialist, in order
to avoid any hazards.
•The base, the mains power cable and the mains plug
must not be immersed in water or any other liquids.
•Should liquids enter the base, pull out the mains plug
immediately. Have the device checked before
reusing.
•this device is equally intended for use in the home and
in applications similar to the home, such as for
example:
a) In kitchens for employees in shops, offices and
other commercial areas;
b) On agricultural estates;
c) By customers in hotels, motels and other
residential facilities;
d) In bed-and-breakfast establishments.
•Never put the device into operation if there are visible
damages to the device or the power cable or if the
device has been dropped before.
•Ensure that the power cable cannot be trapped or
crushed.
•The device is not fully disconnected from the power
supply, even after it is switched off. In order to fully
disconnect it, pull out the mains plug. When removing
the mains plug from the wall socket, always pull the
plug and never the cable.
FEATURES
•Health –sealed and anti-bacterial environment for
storage.
•Convenience –dishes can be directly stored even
without wiping.
•Energy saving –precise control with advanced
microcomputer which results to low power of 0.25kW,
possible for running a 350W ultra alternating thermal
system.
2 3

COMPONENT AND INSTALALTION
1. Close the cover when the dishes are in place.
2. Press button, indicator will light up and
flash. It will run in standard mode within 3 seconds.
3. Press button again, it will run in next mode as
the following:
HOW TO USE
4 5

76
TECHNICAL SPECIFICATIONS
Product Name: Tableware UV Sterilizer
Model No.: TUV-45SSN
Rated Voltage: 230V a.c.
Rated Frequency: 60Hz
Rated Power: 350 W
Interior Volume: 45 L
Sterilizing Temperature: 60°C - 80°C
Working Time UV + Heat Dry : 55 min
Heat Dry: 45 min
UV Sterilize: 30 min
Natural Wind: 10 min
Power of UV Lamp: 3W
UV Lamp Life Span: ≥3000 h
Heater Life Span: ≥3000 h
Plug Type: 2-pin US Plug
Net weight: 4.7 kg
Net Dimension: 522 x 380 x 440mm
WARRANTY
TERMS AND CONDITIONS:
Any defect affecting the functionality of the appliance and which occurs
within one (1) year of its purchase will be repaired free of charge provided
the appliance has been used and maintained in accordance with the
instructions and has not been abused or used improperly in any way.
The warranty shall not cover defects resulting from any of the following:
•Normal wear and tear and improper use of the unit and nonadherence to
prescribed instruction for the normal operation and maintenance of the
unit.
•Improper fuses, faulty electrical circuitry of the customer’s place.
•Operating the unit outside the specified voltage range.
•Negligence, tampering and/or unauthorized repair of the unit.
•Damages caused by insects/rodents, accidents, fire, flood or other acts of
God.
•Development of rust/stains/cracks in any part of the body that is a normal
consequence of operation.
The warranty is void, if the serial number of the unit is removed, altered or
defaced.
If the warranty applies, proof of purchase (e.g. sales invoice or delivery
receipt) must be presented to the authorized service center for verification.
APPSTAR GLOBAL DISTRIBUTORS, INC. and/or its authorized service center
will exercise its best efforts in performing the services covered by the
warranty, but will not be liable for damages, direct or otherwise arising out of
delays or failure in furnishing parts or services caused by acts of God, acts of
Government (National, Provincial or Local), labor disputes or difficulties,
failure of transportation or other causes beyond its control, or for damages
resulting from delays in performing services covered by this warranty
In line with our policy of continuous product development we reserve the
right to change the product, its packaging or documentation without prior
notice.
