TECHWOOD TRO-6856 User manual


FOOD PROCESSOR
INSTRUCTION MANUAL
1

IMPORTANT SAFEGUARDS
❑Please read these instructions carefully before use.
❑Keep present instructions for future references.
❑Check that your mains voltage corresponds to that stated on
the appliance.
❑Only use the appliance for domestic purposes and
household or similar applications such as:
-staff kitchen areas, in shops, offices and other working
environments;
- Environment type like :
• Farm Houses • Bed and Breakfast.
❑-by clients in hotels, motels and other residential type
environments;
Only use the appliance in the way indicated in these
instructions.
❑Never use this unit near bathtub, shower, wash-hand basins
or other containers with water.
❑Never use this apparatus near water projections.
❑Never use this apparatus with the wet hands.
❑If, unfortunately the apparatus is wet, immediately withdraw
the cord of the socket-outlet.
❑Inform potential users of these instructions.
❑Never leave the appliance unsupervised when in use.
❑The appliance must be used only for its intended purpose. No
responsibility can be taken for any possible damage caused
by incorrect use or improper handling.
❑Children and persons with disabilities are not always aware of
the danger posed by the use of appliances.
❑This appliance shall not be used by children. Keep the
appliance and its cord out of reach of children.
❑Appliances can be used by persons with reduced physical,
sensory or mental capabilities or lack of experience and
2

knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and if they
understand the hazards involved. Children shall not play with
the appliance
❑Switch off the appliance and disconnect from supply before
changing accessories or approaching parts that move in use
❑There is a potential injury from misuse.
❑Always disconnect the appliance from the supply if it is left
unattended and before assembling, disassembling or
cleaning.
❑Care shall be taken when handling the sharp cutting blades,
emptying the bowl and during cleaning
❑Regarding the instructions for cleaning surfaces in contact
with food or oil, thanks to refer to the below paragraph
"cleaning and maintenance" in manual.
❑Regarding the instructions for the use of accessories,
operation times and speed settings, thanks to refer to the
below paragraphs
❑This device is not a toy, do not leave small children or people
with disabilities to play with.
❑In order to ensure your children‘s safety, please keep all
packaging (plastic bags, boxes, polystyrene etc.) out of their
reach.
❑Caution ! Do not allow small children to play with the foil :
THERE IS A DANGER OF SUFFOCATION !
❑From time to time check the cord for damages. Never use the
appliance if cord or appliance shows any signs of damage.
❑Never immerse the appliance in water or any other liquid for
any reason whatsoever.
❑Never place it into the dishwasher.
❑Never use the appliance near hot surfaces.
❑Do not operate the appliance with a damaged cord or plug, or
after the appliance has been damaged in any manner. If the
3

supply cord or appliance is damaged, it must be replaced by
the manufacturer or its service agent or a similarly qualified
person in order to avoid a hazard.
❑Disconnect the power source cable before any operation of
cleaning of maintenance and accessories assembly.
❑Never use the appliance outside and always place it in a dry
environment.
❑Never use accessories, which are not recommended by the
producer. They could constitute a danger to the user and risk
to damage the appliance.
❑Never use any other connector than the one provided.
❑Never move the appliance by pulling the cord. Make sure the
cord cannot get caught in any way.
❑Never wind the cord around the appliance and do not bend it
❑Ensure that the power cord does not come into contact with
hot parts of this unit.
❑Make sure the appliance has cooled down before cleaning
and storing it.
❑The temperature of accessible surfaces may be very high
when the appliance is operating. Never touch these parts, of
apparatus, to avoid burning itself.
❑Make sure the appliance never comes into contact with
flammable materials, such as curtains, cloth, etc...& the
power cord and plug do not come in contact with water.
❑Before cleaning, always unplug the appliance from the power
supply and let it cool down.
❑This appliance is not intended to be operated by means of an
external timer or separate remote-control system.
❑Always place the unit on a flat surface. Ensure, also, not to
cover the device and not to put anything on it.
❑Always remove the plug from the wall socket when the
appliance is not in use.
4

❑When using an extension lead always make sure that the
entire cable is unwound from the reel. Use solely CE
approved extension leads. Input power must be at least 16A,
250V, 3000W.
❑Incorrect operation and improper use can damage the
appliance and cause injury to the user.
❑This device, designed for home use, complies with standards
relating to this type of product.
❑The appliance must be used and rested on a table or flat &
stable surface.
❑The item must not be left unattended when it is connected to
main supply.
❑The item is not to be used, if it has been dropped or if there
are visible signs of damage or if it is leaking.
❑This appliance is only intended for household use.
GENERAL INFORMATION
The symbol "OPEN BOOK" means a recommendation
to read important things contained in the record.
The symbol "BIN" crossed out, abbreviation WEEE
(Waste of Electrical and Electronic Equipment) means
that at the end of life, it should not be discarded with
household waste, but filed to the sorting of the locality.
Waste recovery can help preserve our environment.
The symbol "CE" is the guarantee of compliance with
harmonized European standards, voluntary, reflecting
the essential requirements into technical
specifications. These standards are not mandatory
but are guarantees of compliance with essential
requirements.
5

The symbol ROHS (Restriction of use of some
Hazardous Substances) on the Environmental
Protection, certifies that for each of the five hazardous
substances • Lead • Mercury • (hexavalent) chromium •
products for protection against flames PBB and PBDE,
the peak concentration is equal to or less than 0.1% of
the weight of homogeneous material, and 0.01% for the
6th • cadmium.
The symbol "DOUBLE SQUARE" means a double
insulated. A basic insulation and supplementary
insulation. This device requires no connection to the
mass of a protective conductor grounded. The
materials are said : double insulation class II.
The symbol "GLASS / FORK" means that the device is
compatible and can come into contact with foodstuffs.
The symbol "TRIMAN" indicates that the consumer is
invited to dispose the product as part of a separate
collection (eg recycling bin, waste, voluntary intake
point).
For more information : http://www.quefairedemesdechets.fr
FIRST USE
Before first use, remove the unit and all accessories carefully and paying attention
to the sharp accessories.
Clean with soap and water, bowls and all accessories. Rinse and dry thoroughly.
Clean the outside and inside of the machine cabinet with a damp cloth and wipe
dry.
WARNING
6

● This appliance should be used strictly in accordance with these instructions.
● Never try to operate the appliance without the Bowl in place so as to avoid
accidentally touching the moving blade.
IMPORTANT : PROCESSING OF FOOD CAN BE DONE WITHIN A SHORT TIME
OF OPERATION.
DURING OPERATION, MAKE SURE THAT THE PROCESSOR IS
NOT SWITCHED ON CONTINUOUSLY FOR LONGER THAN THE TIME
SPECIFIED.
ALSO ALLOW ENOUGH REST TIME BEFORE THE NEXT
OPERATION.

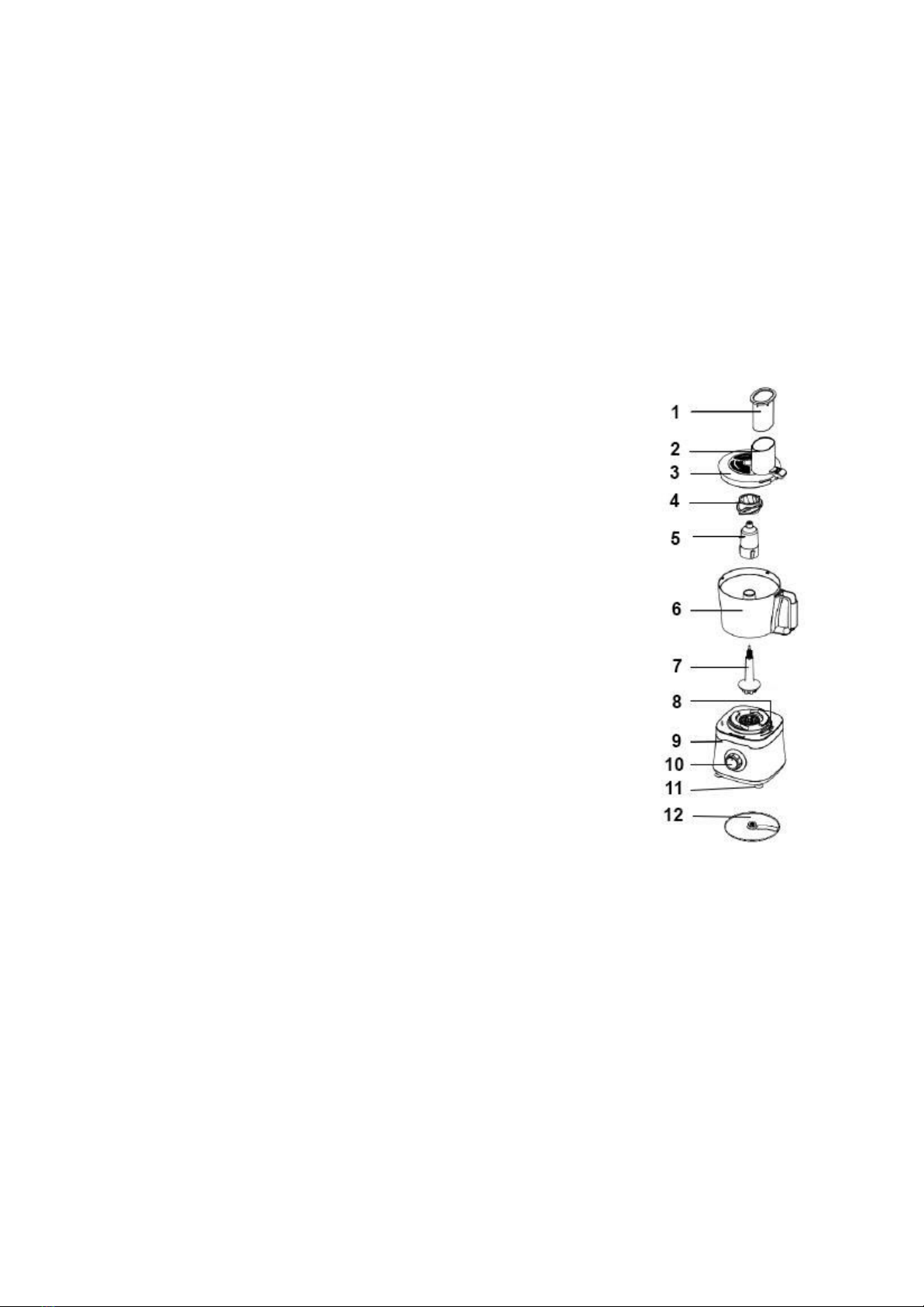

TO KNOW ITS UNIT
1. Pusher
2. Feeding tube
3. Lid
4. Chop knife
5. Support of the accessory (knife, slicer ...)
6. Bowl
7. Drive shaft of the accessory support
8. Anti-start-up safety system
9. Engine Base
10. Speed Selector (2 speeds + pulse)
11. Non-slip feet
12. Slicing / grating disc
USE
● Unroll the power cord completely.
● Check that the tension in force in the country where you are, corresponds to
that indicated on the apparatus.
● Connect the apparatus in a correct socket-outlet, (and connected to the
ground if the unit is Class I), to avoid any danger.
● Disconnect the power source cable before any operation of cleaning of
maintenance and accessories assembly.
● Never modify the appliance in anyway.
GENERAL OPERATION
To mix
7

● Attach the accessory that you intend to use.
● Place the Bowl onto the body.
● Place the ingredients into the Bowl.
To cut or shred
● install the multifunction disc in the desired direction or slicer or rasp on the
other side.
● Insert the cover.
● Connect the appliance and set the selector switch to the selected speed 1 or
2.
CAUTION: If the bowl is not properly engaged, on the engine block, the Engine
will not be able to start.
If the bowl lid is not properly seated on the motor unit, the motor will
not be able to start.
● Insert the ingredients (eg Carrots ...) in the lid aperture.
NOTE: From this moment until the end of use, do not separate the bowl from the
motor.
PULSE: By turning the speed selector to the left, you will give a fast impulse and by
releasing, you will stop the device.
● After use, unplug the appliance and wait for all moving accessories to come to
a complete stop.
BLADES - CHOPPING
● You can chop foodstuff including vegetables, raw or cooked meats.
● Depending on the type of food, you can process up to 300g of foodstuff.
This operation can be carried out with 15 seconds ON and 15 seconds OFF.
Caution: Always stop the machine as soon as the dough has formed a paste.
This operation can be carried out with rest periods of 2 minutes.
DISKS - GRATING/SLICING/CHIPPING
● For grating, insert the Spindle into the centre of the Blow.
● Reversible Grating/Slicing Disk with the Grating Blade side facing up so that
the Disk around the Spindle penetrates the three slots around the centre of
the disk. Rotate the disk by gripping the Spindle as shown in the figure and
turn until it locks it into the disk.
● For slicing, use the Slicing Blade with the blade side facing up.
● For chipping, use the Chop Knife
● Attach the Chop Knife onto the Bowl Axle in the motor and assemble the
Bowl Lid.
● Cut potatoes, carrots, cucumbers etc, into pieces and place the ingredients
into the feed chute of the Bowl Lid.
● Use the Pusher to push food down the feed chute.
Never use your fingers or other utensils.
8

Operation hints:
● Depending on the type of food, you can prepare up to 0.3kg each time
within 15 seconds.
This operation can be carried out with rest periods of 1minutes.
● The wider ingredients you cut, the longer the chips will be.
9

CLEANING AND MAINTENANCE
Be careful when handling the blades to clean them, they are extremely sharp.
Before cleaning, always: switch off the appliance, disconnect the apparatus and
let it cool.
Clean the outside of the apparatus with a sponge or slightly wet linen.
The parts (removable) in contact with food like plate, bowl, forks, Spatula etc. can
be washed in hot water with sponge and soft detergent or put in the dishwasher.
Never plunge the apparatus in water or all other liquid!
Do not use abrasive cleaners, gritting, or metal brush or another cutting object.
Function
Type of Food
Accessory
Maximum Capacity
Chopping
Onions, other vegetables, fruit,
raw and cooked meat or fish
Chopper Knife
300g
Grating
Vegetables and fruit
Grating Knife
Until bowl is full
Slicing
Vegetables and fruit
Slicing Knife
Until bowl is full

STORAGE
-Ensure the unit is completely cool and dry.
-Do not wrap the cord around the appliance, as this will cause damage.
-Keep the appliance in a cool, dry place and out of reach from children.
GUARANTEE
Before being delivered, all our products are subjected to a rigorous control.
This apparatus is guaranteed 24 months starting from the date of purchase by
the consumer.
The documents in proof of guarantee are :
• The invoice and
• The filled and stamped warrantee plate (located on side or bottom of the gift
box). Without these documents in proof, no free replacement, nor no free repair,
can be carried out.
During the warranty period, we deal for free, the defects of the apparatus or the
accessories, rising from a defect of materials or manufacture by repair or,
replacement. The services within the framework of the guarantee do not involve
any extension of the warranty period and does not give right to a new guarantee !
In the event of recourse to the guarantee, bring back the complete apparatus to
your retailer, in its original packing, accompanied by the proofs of purchase.
The breakage of parts out of glass or plastic is, in all the cases, not warranted.
Defects on the accessories or the wearing parts (for example: coals of engines,
hooks, drive belts, remote control of replacement, teeth brushes of replacement,
10

webs etc) as well as cleaning, maintenance or it replacement of wearing parts
are not guaranteed and are thus to pay !
In the event of foreign intervention, the guarantee becomes null and void.
After flow of the warranty period, repairs can be carried out, against payment, by
a specialized trade or a repair service.
SPECIFICATIONS
Power supply 220-240V~ 50/60Hz
Power 600-800W
Norm Class II
Made in PRC
The characteristics can change without prior notice.
CAUTION: In order to minimize the risks of electric shock, In the event of
breakdown, not to open the case but to call upon a qualified technician
for repairs.
This device complies with EC directives, it was controlled according to all current
European directives, applicable such as: electromagnetic compatibility (EMC) and
low voltage (LVD).
This device has been designed and manufactured in compliance with the latest
regulations and technical requirements for safety.
Imported by Sotech International
PARC "LE PERIPOLE" N° A-107
33, Avenue du Marechal de Lattre de Tassigny
94120 FONTENAY sous-bois – France
11
