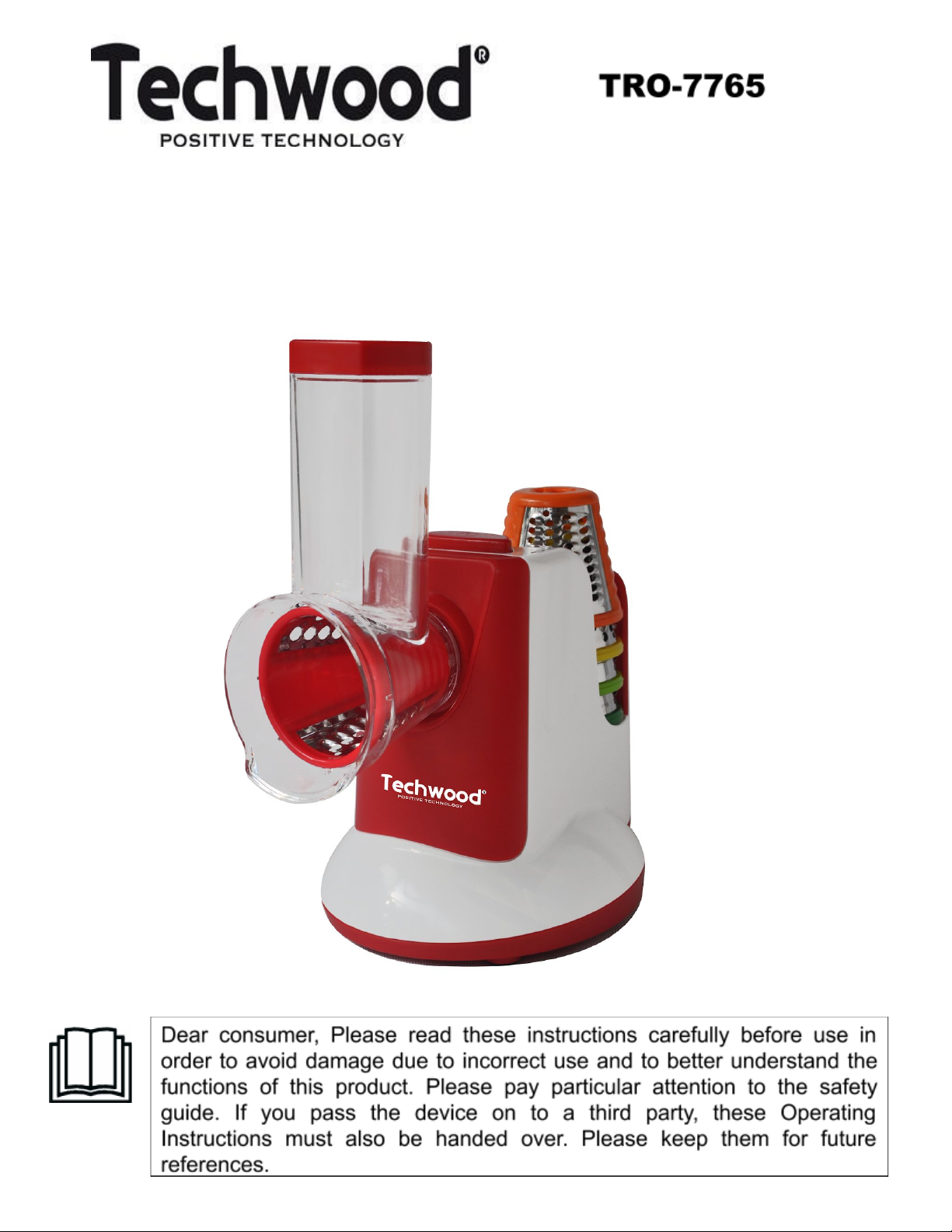

TECHWOOD TRO-776 User manual


“RAP’ TOUT”
MULTIFUNCTION FOOD PROCESSOR
INSTRUCTION
MANUAL
1

IMPORTANT SAFEGUARDS
❑Please read these instructions carefully before use.
❑Keep present instructions for future references.
❑Check that your mains voltage corresponds to that stated on
the appliance.
❑Only use the appliance for domestic purposes and household
or similar applications such as:
-staff kitchen areas, in shops, offices and other working
environments;
-by clients in hotels, motels and other residential type
environments;
- Environment type like :
• Farm Houses • Bed and Breakfast.
❑Only use the appliance in the way indicated in these
instructions.
❑Never use this unit near bathtub, shower, wash-hand basins or
other containers with water.
❑Never use this apparatus near water projections.
❑Never use this apparatus with the wet hands.
❑If, unfortunately the apparatus is wet, immediately withdraw the
cord of the socket-outlet.
❑Inform potential users of these instructions.
❑Never leave the appliance unsupervised when in use.
❑The appliance must be used only for its intended purpose. No
responsibility can be taken for any possible damage or injury
caused by incorrect use or improper handling.
❑Children and persons with disabilities are not always aware of
the danger posed by the use of appliances.
❑This appliance can be used by persons with reduced physical,
sensory or mental capabilities or lack of experience and
2

knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and if they
understand the hazards involved.
❑Always disconnect the appliance from the supply if it is left
unattended and before assembling, disassembling or cleaning
❑This appliance shall not be used by children. Keep the
appliance and its cord out of reach of children
❑Regarding the instructions for cleaning surfaces in contact with
food or oil, thanks to refer to the below paragraph "cleaning and
maintenance" in manual.
❑Regarding the instructions for the use of accessories, operation
times and speed settings, thanks to refer to the below
paragraphs.
❑Care shall be taken when handling the sharp cutting blades,
emptying the bowl and during cleaning
❑This device is not a toy, do not leave children or people with
disabilities to play with.
❑In order to ensure your children‘s safety, please keep all
packaging (plastic bags, boxes, polystyrene etc.) out of their
reach.
❑Caution ! Do not allow small children to play with the foil :
THERE IS A DANGER OF SUFFOCATION !
❑From time to time check the cord for damages. Never use the
appliance if cord or appliance shows any signs of damage.
❑Never immerse the appliance in water or any other liquid for
any reason whatsoever.
❑Never place it into the dishwasher.
❑Never use the appliance near hot surfaces.
❑Do not operate the appliance with a damaged cord or plug, or
after the appliance has been damaged in any manner. If the
supply cord or appliance is damaged, it must be replaced by
3

the manufacturer or its service agent or a similarly qualified
person in order to avoid a hazard.
❑Disconnect the power source cable before any operation of
cleaning of maintenance and accessories assembly.
❑Never use the appliance outside and always place it in a dry
environment.
❑Never use accessories, which are not recommended by the
producer. They could constitute a danger to the user and risk
to damage the appliance.
❑Never use any other connector than the one provided.
❑Never move the appliance by pulling the cord. Make sure the
cord cannot get caught in any way.
❑Never wind the cord around the appliance and do not bend it
❑Ensure that the power cord does not come into contact with hot
parts of this unit.
❑Make sure the appliance has cooled down before cleaning and
storing it.
❑The temperature of accessible surfaces may be very high when
the appliance is operating. Never touch these parts, of
apparatus, to avoid burning itself.
❑Make sure the appliance never comes into contact with
flammable materials, such as curtains, cloth, etc... & the power
cord and plug do not come in contact with water.
❑Before cleaning, always unplug the appliance from the power
supply and let it cool down.
❑This appliance is not intended to be operated by means of an
external timer or separate remote-control system.
❑Always place the unit on a flat surface. Ensure, also, not to
cover the device and not to put anything on it.
❑Always remove the plug from the wall socket when the
appliance is not in use.
4

❑When using an extension lead always make sure that the entire
cable is unwound from the reel. Use solely CE approved
extension leads. Input power must be at least 16A, 250V,
3000W.
❑Incorrect operation and improper use can damage the appliance
and cause injury to the user.
❑This device, designed for home use, complies with standards
relating to this type of product.
❑The appliance must be used and rested on a table or flat &
stable surface.
❑The item must not be left unattended when it is connected to
main supply.
❑The item is not to be used, if it has been dropped or if there are
visible signs of damage or if it is leaking.
❑This appliance is only intended for household use.
SPECIAL WARNINGS FOR THIS APPLIANCE
• Repairs must only be performed by an authorized repairer.
• THIS PRODUCT IS INTENDED FOR PRIVATE HOUSEHOLD
USE ONLY.
• Always unplug the power cable from the mains if it is left
unattended and before any cleaning, maintenance and
accessory installation. Precautions must be taken when
handling accessories and cutting blades, during assembly,
disassembly and during cleaning.
• Stop the unit and disconnect it from the power supply before
changing accessories or approaching moving parts during
operation.
• Potential injury may occur during misuse.
5

• For instructions on cleaning surfaces in contact with food or oil,
please refer to the section "cleaning and maintenance" in the
manual.
• For instructions on how to use accessories, operating time and
speed settings, refer to the paragraphs below.
• During operation, make sure that the device is not used
continuously for too long and also ensure sufficient rest time
between two operations.
• Do not insert your finger into the feed tube. Always use the
pusher to avoid injury.
• This unit is not suitable for cutting extremely hard products,
such as nutmeg, coffee beans or some cereals.
• This appliance is not a meat grinder. Do not slice any type of
meat with it.
•Keep hair, clothing and jewelry away from rotating parts.
GENERAL INFORMATION
The symbol "OPEN BOOK" means a recommendation to
read important things contained in the record.
The symbol "BIN" crossed out, abbreviation WEEE
(Waste of Electrical and Electronic Equipment) means
that at the end of life, it should not be discarded with
household waste, but filed to the sorting of the locality.
Waste recovery can help preserve our environment.
The symbol "CE" is the guarantee of compliance with
harmonized European standards, voluntary, reflecting
the essential requirements into technical specifications.
6

These standards are not mandatory but are guarantees
of compliance with essential requirements.
The symbol ROHS (Restriction of use of some Hazardous
Substances) on the Environmental Protection, certifies
that for each of the five hazardous substances • Lead •
Mercury • (hexavalent) chromium • products for
protection against flames PBB and PBDE, the peak
concentration is equal to or less than 0.1% of the weight
of homogeneous material, and 0.01% for the 6th •
cadmium.
The symbol "DOUBLE SQUARE" means a double
insulated. A basic insulation and supplementary
insulation. This device requires no connection to the
mass of a protective conductor grounded. The
materials are said : double insulation class II.
The symbol "GLASS / FORK" means that the device is
compatible and can come into contact with foodstuffs.
The symbol "TRIMAN" indicates that the consumer is
invited to dispose the product as part of a separate
collection (eg recycling bin, waste, voluntary intake
point).
For more information : http://www.quefairedemesdechets.fr
7

BEFORE THE FIRST USE
remove the appliance and all accessories carefully and pay attention to sharp
accessories.
• Clean all accessories and bowls with soapy water and dry thoroughly.
• Clean the outside of the appliance with a damp sponge or cloth and wipe it.
• Install the appliance on a table or flat, stable and horizontal surface.
• Unwind the power cord completely.
• Check that the voltage in the country where you are, corresponds to that indicated
on the device.
• Connect the appliance to a good electrical outlet, (earthed if the appliance is class
I), to avoid any danger.
• Never modify the device.
• The device should not be left unattended when connected to the main power
supply.
•The device must not be used if it has fallen and shows visible signs of damage.
TO KNOW IT’S UNIT
1. Pusher
2. Chimney for entrance of vegetables
3. On / Off switch4. Base + Engine
5. Cone storage
6. Clamp screw
7. Cutting cone
8. Different types of cones
ACCESSORIES
Fine grater (Orange)
Or
Fat grater (Red)
Recommend to grate: carrots, cucumbers,
zucchini, potatoes, radish, dry cheeses and
chocolate.
8

9

Slicer (Light green)
Or
Thick slicer (Dark green)
Recommend to make slices of:
carrots, zucchini, potatoes, cucumbers,
peppers, onions, turnips, red cabbage, white
cabbage, apples or hard cheese.
Shredder Grater
Recommended for: dry bread, hazelnuts *,
walnuts *, almonds *, parmesan, chocolate,
cookies and other pastry.
MOUNTING
CONE HOLDER
1. Maintain inclined the cone holder (a quarter
turned to the right) and insert it into the unit
engine. on the front side.
2. Turn the cone holder (a quarter turn) to the left until it clips.
Note : To remove the cone holder of its location on the drive
shaft, Rotate a quarter turn to the right and remove it from the
engine block by pulling it.
10

CONE
Make sure the cone holder is in place and secure.
• Select the appropriate cone for the desired use.
• Unscrew and remove the cone clamping screw
located on the axis of the device (2)
• Insert the cone (1) on the shaft (2) in the cone
holder.
• Screw the fixing device (to the left) to secure the
cone.
• Notes : The cone should not be free on its axis if
it is correctly installed.
After use, to remove the cone in place, turn the fastener clockwise out
and remove the cone.
• Clean the elements as described in the paragraph " Cleaning " and replace the
fastener to prevent it from being lost.
USE
1. Place the unit on a flat level, slip surface if possible.
2. Connect the equipment into an outlet properly installed.
3. Place a bowl under the opening of the cone holder to
recover the shredded food.
4. Press the On / Off switch (1) briefly once or twice before
placing food in the feed tube, to ensure that the cone is
properly attached to the drive shaft of the motor.
5. Push on & Hold the On / Off button (1) and put the food to
grate or slice in the tube. (2)
Note : (if necessary) Use the pusher to push food inside.
After use,
6. Release the Start / Stop button to stop the unit.
7. Remove the electric plug from the outlet.
8. Remove the cone as described above.
9. Clean the device and accessories after each use.
Tip : Wash removable parts immediately under the tap,
because once dry fruit pulp or leftover vegetable can be removed less easily.
CLEANING AND MAINTENANCE
11

Be careful when handling the cones for cleaning. The stainless steel blade is
extremely sharp and can cause severe cuts.
Always switch off the appliance, disconnect the apparatus and let it cool before
cleaning.
Clean the outside of the apparatus with a sponge or slightly wet linen.
The parts (removable) in contact with food like cones, holder, bowl, forks, Spatula
etc. can be washed in hot water with sponge and soft detergent or put in the
dishwasher.
Never plunge the apparatus in water or all other liquid !
Do not use abrasive cleaners, gritting, or metal brush or another cutting object.
STORAGE
-Ensure the unit is completely cool and dry.
-Do not wrap the cord around the appliance, as this will cause damage.
-Keep the appliance in a cool, dry place.
GUARANTEE
Before being delivered, all our products are subjected to a rigorous control.
This apparatus is guaranteed 24 months starting from the date of purchase by the
consumer.
The documents in proof of guarantee are :
• The invoice and
• The filled and stamped warrantee plate (located on side or bottom of the gift box).
Without these documents in proof, no free replacement, nor no free repair, can be
carried out.
During the warranty period, we deal for free, the defects of the apparatus or the
accessories, rising from a defect of materials or manufacture by repair or,
replacement. The services within the framework of the guarantee do not involve any
extension of the warranty period and does not give right to a new guarantee !
In the event of recourse to the guarantee, bring back the complete apparatus to your
retailer, in its original packing, accompanied by the proofs of purchase.
The breakage of parts out of glass or plastic is, in all the cases, not warranted.
Defects on the accessories or the wearing parts (for example: coals of engines,
hooks, drive belts, remote control of replacement, teeth brushes of replacement,
webs etc) as well as cleaning, maintenance or it replacement of wearing parts are
not guaranteed and are thus to pay !
In the event of foreign intervention, the guarantee becomes null and void.
12

After flow of the warranty period, repairs can be carried out, against payment, by a
specialized trade or a repair service.
13

SPECIFICATIONS
Power supply 220-240V~ 50-60Hz
Power 150W
Norm Class II
Made in PRC
The characteristics can change without prior notice.
CAUTION: In order to minimize the risks of electric shock, In the event of
breakdown, not to open the case but to call upon a qualified technician for
repairs.
This apparatus satisfied EC directives, it was controlled according to all the
European current directives, like: electromagnetic compatibility (EMC) and low
tension (LVD).
This apparatus was designed and manufactured in respect of the last safety
regulations and technical specifications.
Imported by Sotech International
" LE PERIPOLE " N°A-107
33, Avenue du Marechal de Lattre de Tassigny
94120 Fontenay sous-bois - France


14
