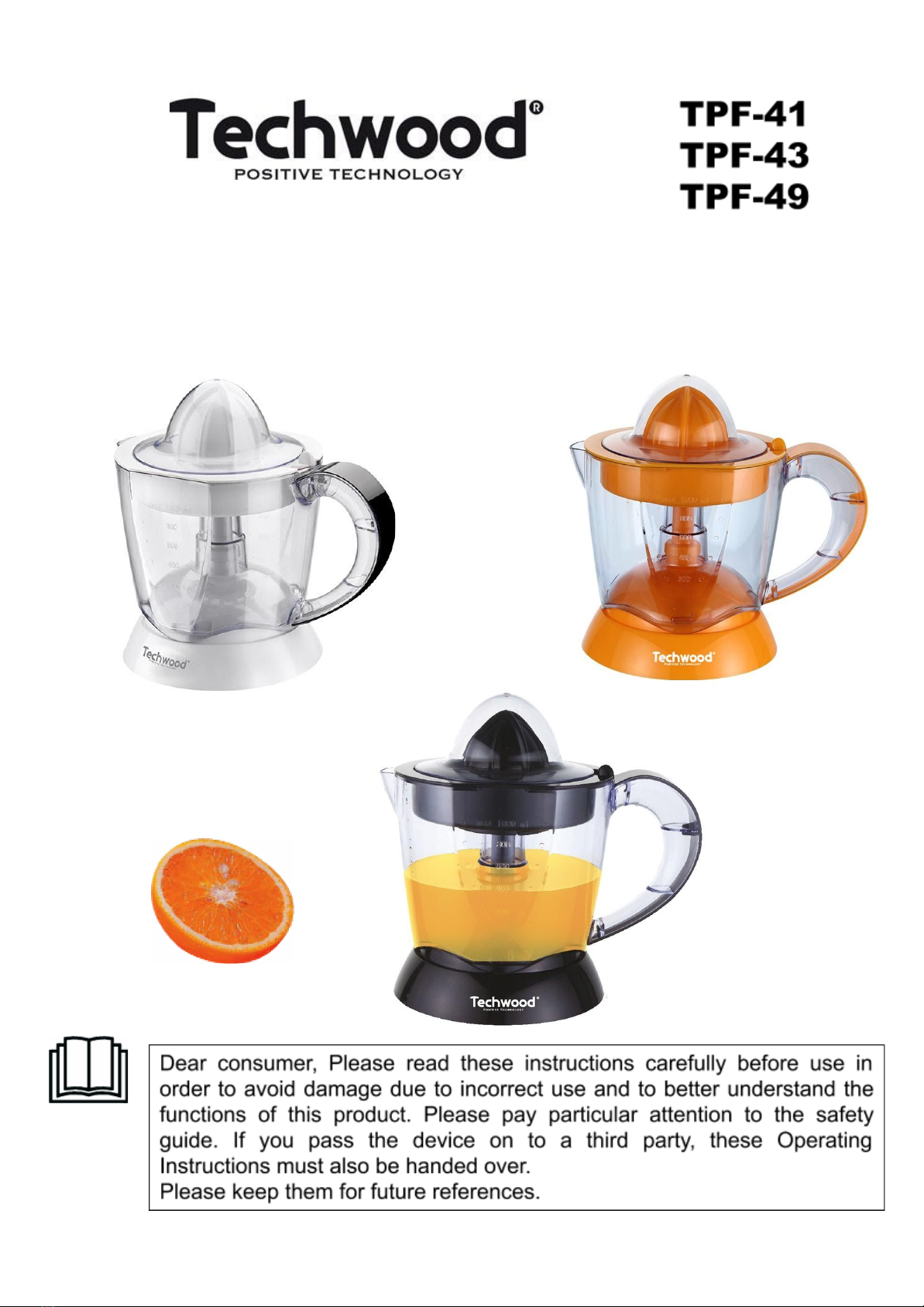

TECHWOOD TPF-41 User manual


CITRUS JUICER
INSTRUCTION MANUAL
1

IMPORTANT SAFEGUARDS
❑Please read these instructions carefully before use.
❑Keep present instructions for future references.
❑Check that your mains voltage corresponds to that stated on
the appliance.
❑Only use the appliance for domestic purposes and
household or similar applications such as:
-staff kitchen areas, in shops, offices and other working
environments.
- Environment type like :
• Farm Houses • Bed and Breakfast.
❑-by clients in hotels, motels and other residential type
environments;
-bed and breakfast type environments
❑Only use the appliance in the way indicated in these
instructions.
❑Never use this unit near bathtub, shower, wash-hand basins
or other containers with water.
❑Never use this apparatus near water projections.
❑Never use this apparatus with the wet hands.
❑If, unfortunately the apparatus is wet, immediately withdraw
the cord of the socket-outlet.
❑Inform potential users of these instructions.
❑Never leave the appliance unsupervised when in use.
❑The appliance must be used only for its intended purpose. No
responsibility can be taken for any possible damage caused
by incorrect use or improper handling.
❑Children and persons with disabilities are not always aware of
the danger posed by the use of appliances.
❑This appliance can be used by children aged from 8 years
and above if they have been given supervision or instruction
2

concerning use of the appliance in a safe way and if they
understand the hazards involved.
❑This appliance can be used by persons with reduced
physical, sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and
if they understand the hazards involved.
❑Cleaning and user maintenance shall not be made by
children unless they are older than 8 and supervised.
❑Keep the appliance and its cord out of reach of children aged
less than 8 years.
❑This device is not a toy , do not leave children or people with
disabilities to play with.
❑In order to ensure your children‘s safety, please keep all
packaging (plastic bags, boxes, polystyrene etc.) out of their
reach.
❑Caution ! Do not allow small children to play with the foil :
THERE IS A DANGER OF SUFFOCATION !
❑From time to time check the cord for damages. Never use the
appliance if cord or appliance shows any signs of damage.
❑Never immerse the appliance in water or any other liquid for
any reason whatsoever.
❑Never place it into the dishwasher.
❑Never use the appliance near hot surfaces.
❑If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly Competent
qualified person(*) in order to avoid a hazard.
❑Always disconnect the appliance from the supply if it is left
unattended and before assembling, disassembling or
cleaning.
❑Never use the appliance outside and always place it in a dry
environment.
3

❑Never use accessories, which are not recommended by the
producer. They could constitute a danger to the user and risk
to damage the appliance.
❑Never use any other connector than the one provided.
❑Never move the appliance by pulling the cord. Make sure the
cord cannot get caught in any way.
❑Never wind the cord around the appliance and do not bend it
❑Ensure that the power cord does not come into contact with
hot parts of this unit.
❑Make sure the appliance has cooled down before cleaning
and storing it.
❑The temperature of accessible surfaces may be very high
when the appliance is operating. Never touch these parts, of
apparatus, to avoid burning itself.
❑Make sure the appliance never comes into contact with
flammable materials, such as curtains, cloth, etc...& the
power cord and plug do not come in contact with water.
❑Before cleaning, always unplug the appliance from the power
supply and let it cool down.
❑This appliance is not intended to be operated by means of an
external timer or separate remote-control system.
❑Always place the unit on a flat surface. Ensure, also, not to
cover the device and not to put anything on it.
❑Always remove the plug from the wall socket when the
appliance is not in use.
❑When using an extension lead always make sure that the
entire cable is unwound from the reel. Use solely CE
approved extension leads. Input power must be at least 16A,
250V, 3000W.
❑Incorrect operation and improper use can damage the
appliance and cause injury to the user.
❑This device, designed for home use, complies with standards
relating to this type of product.
4

❑Switch off the appliance and disconnect from supply before
changing accessories or approaching parts that move in use.
❑Regarding the instructions for cleaning surfaces in contact
with food or oil, thanks to refer to the below paragraph "
CLEANING AND MAINTENANCE " in manual.
❑Regarding the instructions for the use of accessories and
operation times, please refer to the below paragraphs.
(*) Competent qualified person : after sales department of the
producer or importer or any person who is qualified, approved
and competent to perform this kind of repairs.
GENERAL INFORMATION
The symbol "OPEN BOOK" means a recommendation
to read important things contained in the record.
The symbol "BIN" crossed out, abbreviation WEEE
(Waste of Electrical and Electronic Equipment) means
that at the end of life, it should not be discarded with
household waste, but filed to the sorting of the locality.
Waste recovery can help preserve our environment.
The symbol "CE" is the guarantee of compliance with
harmonized European standards, voluntary, reflecting
the essential requirements into technical
specifications. These standards are not mandatory
but are guarantees of compliance with essential
requirements.
The symbol ROHS (Restriction of use of some
Hazardous Substances) on the Environmental
Protection, certifies that for each of the five hazardous
5

substances • Lead • Mercury • (hexavalent) chromium •
products for protection against flames PBB and PBDE,
the peak concentration is equal to or less than 0.1% of
the weight of homogeneous material, and 0.01% for the
6th • cadmium.
The symbol "DOUBLE SQUARE" means a double
insulated. A basic insulation and supplementary
insulation. This device requires no connection to the
mass of a protective conductor grounded. The
materials are said : double insulation class II.
The symbol "GLASS / FORK" means that the device is
compatible and can come into contact with foodstuffs.
The symbol "TRIMAN" indicates that the consumer is
invited to dispose the product as part of a separate
collection (eg recycling bin, waste, voluntary intake
point).
CLEANING AND MAINTENANCE
Before cleaning switch off the appliance, always disconnect the
apparatus and to let it cool before cleaning.
Clean the outside of the apparatus with a sponge or slightly wet
linen.
The parts (removable) in contact with food like plate, bowl,
forks, Spatula etc. can be washed in hot water with sponge and
soft detergent or put in the dishwasher.
Never plunge the apparatus in water or all other liquid !
6

Do not use abrasive cleaners, gritting, or metal brush or another
cutting object.
Tip-off : Rinse removable parts immediately in clear water to
prevent remaining fruits from drying.
Moreover, all removable plastic parts can be rinsed normally.
Structure Illustration
A. Top Cover
B. Cup
C. Transmit Axes
D. Base
E. Extractor Cover
F. Extractor
G. Move Filter
H. Fix Filter
IMPORTANT INSTRUCTION

When using electrical appliances, In order to reduce the risk of fire, electric shock
or injury to persons, Basic safety precautions should also be followed, including
the following: Please kindly pay your attention to below points:
● Read all instructions carefully, even if you are familiar with the appliance.
● The electric power supply should come from a properly wired outlet. also,
● Check the capacity of the out and use the appliance separately from other
equipment.
Always ensure the voltage to be used corresponds to the voltage stated on the
unit.
● Put the electric products in dry and stable flat. Using dried cloth when
cleaning the machinery body.
● The appliance is suitable to soft fruits, such as orange etc. And can t meet
the hard fruits so as to avoid being broken because of the over.
7

● Shut off the electric power for the following happenings:
a. The turning blades working is not correct.
b. The uncommon voice when using.
c. Cleaning.
d. Finish using
● This appliance rate capacity，do not excess this scale on working
● After use unplug from the outlet. ( when unplug , always grasp the plug
And unplug it from the outlet. )
● This appliance is designed only for household use
8

USE
● Unroll the power cord completely.
● Check that the tension in force in the country where you are corresponds to
that indicated on the apparatus.
● Connect the apparatus in a correct socket-outlet, (and connected to the ground
if the unit is Class I), to avoid any danger.
● Disconnect the power source cable before any operation of cleaning of
maintenance and accessories assembly.
● Stand the appliance on a table or flat surface.
● Never modify the appliance in anyway.
OPERATION
Plug in the appliance.
Cut citrus or Orange fruit in half and press on the cone. The juicer will switch on
automatically; the cone will turn to the left and alternatively to the right.
Removal of the squeezed fruit switches off the appliance automatically.
IMPORTANT NOTE: Do not use the juicer more than 5 minutes continuously.
After this time, leave the unit cooling down for 10 minutes, before using it again.
Press on the pourer of The juice collector to pour the juice in glass or else posed
beforehand below.
After using, the strainer and the cone can be removed.
STORAGE
- Ensure the unit is completely cool and dry.
- Do not wrap the cord around the appliance, as this will cause damage.
- Keep the appliance in a cool, dry place.
GUARANTEE
Before being delivered, all our products are subjected to a rigorous control.
This apparatus is guaranteed 24 months starting from the date of purchase of
consumer.
The documents in proof of guarantee are :
• The invoice and
• The filled and stamped warrantee plate (located on side or bottom of the gift
box). Without these documents in proof, no free replacement, nor no free repair,
can be carried out.
During the warranty period, we deal for free, the defects of the apparatus or the
accessories, rising from a defect of materials or manufacture by repair or,
9

replacement. The services within the framework of the guarantee do not involve
any extension of the warranty period and does not give right to a new guarantee !
In the event of recourse to the guarantee, bring back the complete apparatus to
your retailer, in its original packing, accompanied by the proofs of purchase.
The breakage of parts out of glass or plastic is, in all the cases, not warranted.
Defects on the accessories or the wearing parts (for example: coals of engines,
hooks, drive belts, remote control of replacement, teeth brushes of replacement,
webs etc) as well as cleaning, maintenance or it replacement of wearing parts
are not guaranteed and are thus to pay !
In the event of foreign intervention, the guarantee becomes null and void.
After flow of the warranty period, repairs can be carried out, against payment, by
a specialized trade or a repair service.
SPECIFICATIONS
Power supply 230V~ 50Hz
Power 40W
Norm Class II
Made in PRC
The characteristics can change without prior notice.
CAUTION: In order to minimize the risks of electric shock, In the event of
breakdown, not to open the case but to call upon a qualified technician for repairs.
This device complies with EC directives, it was controlled according to all current
European directives, applicable such as: electromagnetic compatibility (EMC) and
low voltage (LVD).
This device has been designed and manufactured in compliance with the latest
regulations and technical requirements for safety.
Product Imported by Sotech International
N°A-107 - PARC "LE PERIPOLE"
33, Avenue du Marechal de Lattre de Tassigny
94120 FONTENAY SOUS-BOIS - FRANCE
10
