TECHWOOD TPF-6161 User manual


CITRUS JUICER
INSTRUCTION MANUAL
1

IMPORTANT SAFEGUARDS
❑Please read these instructions carefully before use.
❑Keep present instructions for future references.
❑Warning: potential injury from misuse.
❑Care shall be taken when handling the sharp cutting blades,
emptying the bowl and during cleaning.
❑Check that your mains voltage corresponds to that stated on
the appliance.
❑Only use the appliance for domestic purposes and
household or similar applications such as:
-staff kitchen areas, in shops, offices and other working
environments;
-by clients in hotels, motels and other residential type
environments;
- Environment type like :
• Farm Houses • Bed and Breakfast.
❑Only use the appliance in the way indicated in these
instructions.
❑Never use this unit near bathtub, shower, wash-hand basins
or other containers with water.
❑Never use this apparatus near water projections.
❑Never use this apparatus with the wet hands.
❑If, unfortunately the apparatus is wet, immediately withdraw
the cord of the socket-outlet.
❑Inform potential users of these instructions.
❑Never leave the appliance unsupervised when in use.
❑The appliance must be used only for its intended purpose. No
responsibility can be taken for any possible damage caused
by incorrect use or improper handling.
❑Children and persons with disabilities are not always aware of
the danger posed by the use of appliances.
2

❑This appliance can be used by children aged from 8 years
and above if they have been given supervision or instruction
concerning use of the appliance in a safe way and if they
understand the hazards involved.
❑This appliance can be used by persons with reduced
physical, sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and
if they understand the hazards involved. Children shall not
play with the appliance.
❑Always disconnect the appliance from the supply if it is left
unattended and before assembling, disassembling or
cleaning.
❑Switch off the appliance and disconnect from supply before
changing accessories or approaching parts that move in use.
❑Regarding the instructions for cleaning and operating time,
thanks to refer to the below paragraph of the manual.
❑Cleaning and user maintenance shall not be made by
children unless they are older than 8 and supervised.
❑Keep the appliance and its cord out of reach of children aged
less than 8 years.
❑This device is not a toy, do not leave small children or people
with disabilities to play with.
❑In order to ensure your children‘s safety, please keep all
packaging (plastic bags, boxes, polystyrene etc.) out of their
reach.
❑Caution ! Do not allow small children to play with the foil :
THERE IS A DANGER OF SUFFOCATION !
❑From time to time check the cord for damages. Never use the
appliance if cord or appliance shows any signs of damage.
❑Never immerse the appliance in water or any other liquid for
any reason whatsoever.
3

❑Never place it into the dishwasher.
❑Never use the appliance near hot surfaces.
❑If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly Competent
qualified person(*) in order to avoid a hazard.
❑Disconnect the power source cable before any operation of
cleaning of maintenance and accessories assembly.
❑Never use the appliance outside and always place it in a dry
environment.
❑Never use accessories, which are not recommended by the
producer. They could constitute a danger to the user and risk
to damage the appliance.
❑Never use any other connector than the one provided.
❑Never move the appliance by pulling the cord. Make sure the
cord cannot get caught in any way.
❑Never wind the cord around the appliance and do not bend it
❑Ensure that the power cord does not come into contact with
hot parts of this unit.
❑Make sure the appliance has cooled down before cleaning
and storing it.
❑The temperature of accessible surfaces may be very high
when the appliance is operating. Never touch these parts, of
apparatus, to avoid burning itself.
❑Make sure the appliance never comes into contact with
flammable materials, such as curtains, cloth, etc...& the
power cord and plug do not come in contact with water.
❑Before cleaning, always unplug the appliance from the power
supply and let it cool down.
❑This appliance is not intended to be operated by means of an
external timer or separate remote-control system.
❑Always place the unit on a flat surface. Ensure, also, not to
cover the device and not to put anything on it.
4

❑Always remove the plug from the wall socket when the
appliance is not in use.
❑When using an extension lead always make sure that the
entire cable is unwound from the reel. Use solely CE
approved extension leads. Input power must be at least 16A,
250V, 3000W.
❑Incorrect operation and improper use can damage the
appliance and cause injury to the user.
❑This device, designed for home use, complies with standards
relating to this type of product.
(*) Competent qualified person : after sales department of the
producer or importer or any person who is qualified, approved
and competent to perform this kind of repairs.
GENERAL INFORMATION
The symbol "OPEN BOOK" means a recommendation
to read important things contained in the record.
The symbol "BIN" crossed out, abbreviation WEEE
(Waste of Electrical and Electronic Equipment) means
that at the end of life, it should not be discarded with
household waste, but filed to the sorting of the locality.
Waste recovery can help preserve our environment.
The symbol "CE" is the guarantee of compliance with
harmonized European standards, voluntary, reflecting
the essential requirements into technical
specifications. These standards are not mandatory
but are guarantees of compliance with essential
requirements.
5

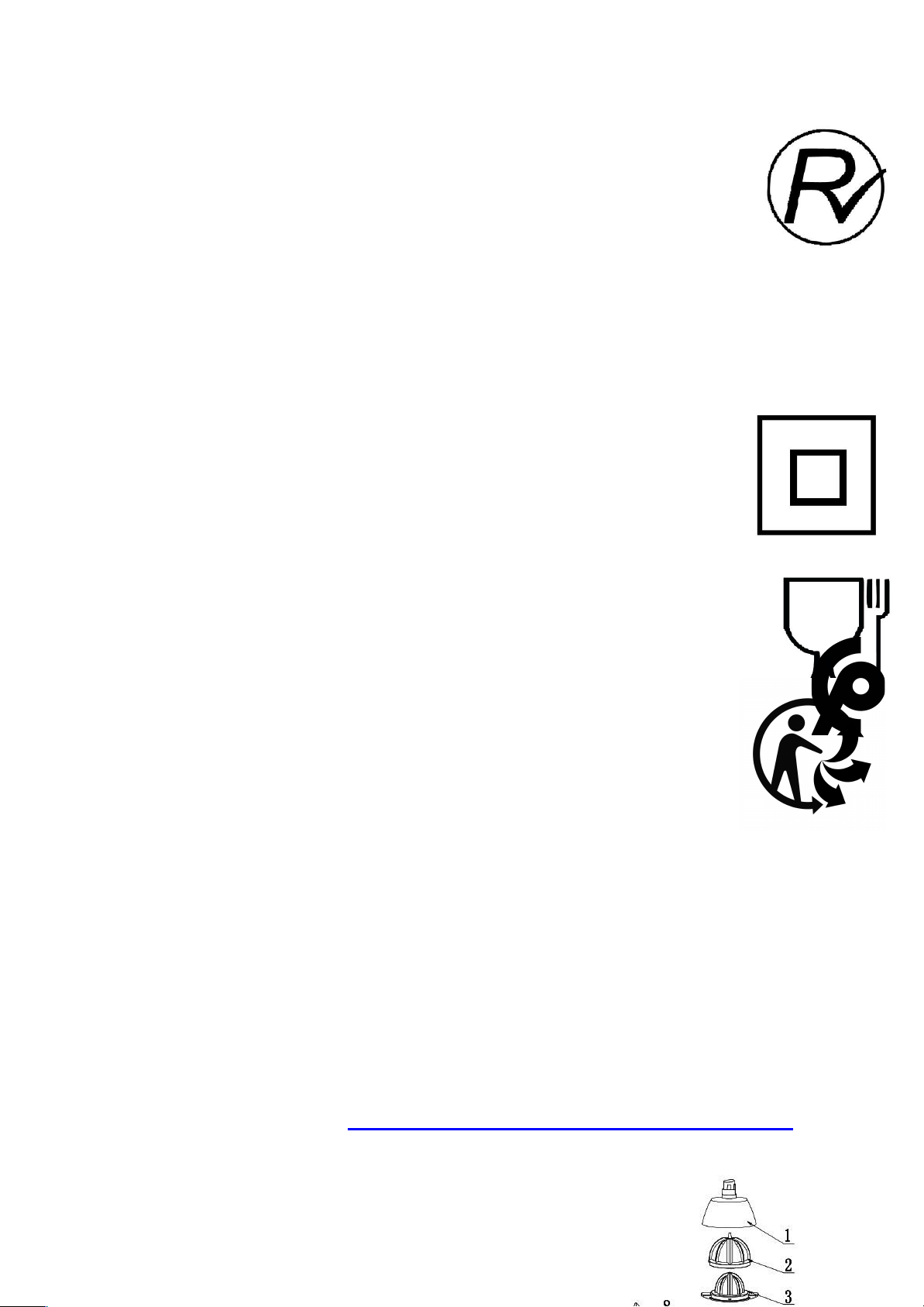

The symbol ROHS (Restriction of use of some
Hazardous Substances) on the Environmental
Protection, certifies that for each of the five hazardous
substances • Lead • Mercury • (hexavalent) chromium •
products for protection against flames PBB and PBDE,
the peak concentration is equal to or less than 0.1% of
the weight of homogeneous material, and 0.01% for the
6th • cadmium.
The symbol "DOUBLE SQUARE" means a double
insulated. A basic insulation and supplementary
insulation. This device requires no connection to the
mass of a protective conductor grounded. The
materials are said : double insulation class II.
The symbol "GLASS / FORK" means that the device is
compatible and can come into contact with foodstuffs.
The symbol "TRIMAN" indicates that the consumer is
invited to dispose the product as part of a separate
collection (eg recycling bin, waste, voluntary intake
point).
The symbol " CMIM " is the guarantee of compliance with
optional harmonized Moroccan Standards, which reflect the
essential requirements in terms of technical specifications.
These standards are not mandatory but ensuring compliance
with the essential requirements.
For more information : http://www.quefairedemesdechets.fr
TO KNOW IT’S UNIT
6

1. Lid
2. Cone 1
3. Cone 2
4. Filter 1
5. Filter 2
6. Juice tank
7. Base with motor
8. Pressure Lever on Citrus
ASSEMBLY
Place the juice container (6) on the base (7).
Place the chosen filter (4 or 5) on the tank (6).
Choose the cone according to the size of the citrus fruit to be squeezed
Place cone 1 or cone 2 (2 or 3) on the filter.
USE
● Unroll the power cord completely.
● Check that the tension in force in the country where you are corresponds to
that indicated on the apparatus.
● Connect the apparatus in a correct socket-outlet, (and connected to the ground
if the unit is Class I), to avoid any danger.
● Disconnect the power source cable before any operation of cleaning of
maintenance and accessories assembly.
● Stand the appliance on a table or flat surface.
● Never modify the appliance in anyway.
OPERATION
1. Plug the unit into a good electrical outlet.
2. Cut the citrus fruit in half.
3. The appliance will start automatically by pressing with the pressure handle on
the half citrus fruit placed on the extraction cone.
4. To stop the unit, do not apply pressure anymore to the cone.
5. Place a glass under the anti-drip spout.
6. Press the spout down to pour the juice into the glass.
Notes: Rotation can be left or right
The device stops automatically as soon as you stop applying pressure to the
cone.
7

IMPORTANT NOTE: Do not use the citrus juicer more than 5 minutes
continuously. After this time, allow the unit to rest for 10 minutes before reuse.
After squeezing your fruit, tilt the tank to pour the remaining juice into the
container placed beforehand under the spout.
After use, remove the press cone, filter and reservoir for cleaning.
Note: it is better to clean the device immediately after use to prevent the pulp
remaining on the dry cone! Over time, it will be harder to remove.
NOTES: - The biggest cone is for bigger fruits like orange, and it is advisable to
press with the lever.
- the small cone is for the smallest fruits like lemon, and you must
press either with the lever or with the hand.
- If you squeeze a large amount of fruit, you should periodically clean
the filter and the tank to remove any remaining pulp.
CLEANING AND MAINTENANCE
Before cleaning switch off the appliance, always disconnect the apparatus and to
let it cool before cleaning.
Clean the outside of the apparatus with a sponge or slightly wet linen.
The parts (removable) in contact with food like plate, bowl, forks, Spatula etc. can
be washed in hot water with sponge and soft detergent or put in the dishwasher.
Never plunge the apparatus in water or all other liquid!
Do not use abrasive cleaners, gritting, or metal brush or another cutting object.
Tip: Rinse parts immediately in clear water to prevent remaining fruits from drying.
STORAGE
-Ensure the unit is completely cool and dry.
-Do not wrap the cord around the appliance, as this will cause damage.
-Keep the appliance in a cool, dry place.
GUARANTEE
Before being delivered, all our products are subjected to a rigorous control.
This apparatus is guaranteed 24 months starting from the date of purchase by the
consumer.
The documents in proof of guarantee are :
• The invoice and
• The filled and stamped warrantee plate (located on side or bottom of the gift
box). Without these documents in proof, no free replacement, nor no free repair,
can be carried out.
8

During the warranty period, we deal for free, the defects of the apparatus or the
accessories, rising from a defect of materials or manufacture by repair or,
replacement. The services within the framework of the guarantee do not involve
any extension of the warranty period and does not give right to a new guarantee !
In the event of recourse to the guarantee, bring back the complete apparatus to
your retailer, in its original packing, accompanied by the proofs of purchase.
The breakage of parts out of glass or plastic is, in all the cases, not warranted.
Defects on the accessories or the wearing parts (for example: coals of engines,
hooks, drive belts, remote control of replacement, teeth brushes of replacement,
webs etc) as well as cleaning, maintenance or it replacement of wearing parts are
not guaranteed and are thus to pay !
In the event of foreign intervention, the guarantee becomes null and void.
After flow of the warranty period, repairs can be carried out, against payment, by a
specialized trade or a repair service.
SPECIFICATIONS

Power supply 230V~ 50-60Hz
Power 160W
Protection Class II
Made in P.R.C
The characteristics can change without prior notice !
CAUTION: In order to minimize the risks of electric shock, In the event of
breakdown, not to open the case but to call upon a qualified technician
for repairs.
This apparatus satisfied EC directives, it was controlled according to all the
European current directives, like: electromagnetic compatibility (EMC) and low
tension (LVD).
This apparatus was designed and manufactured in respect of the last safety
regulations and technical specifications.
Imported by Sotech International
" LE PERIPOLE " N°A-107
33, Avenue du Marechal de Lattre de Tassigny
94120 Fontenay sous-bois - France

9
