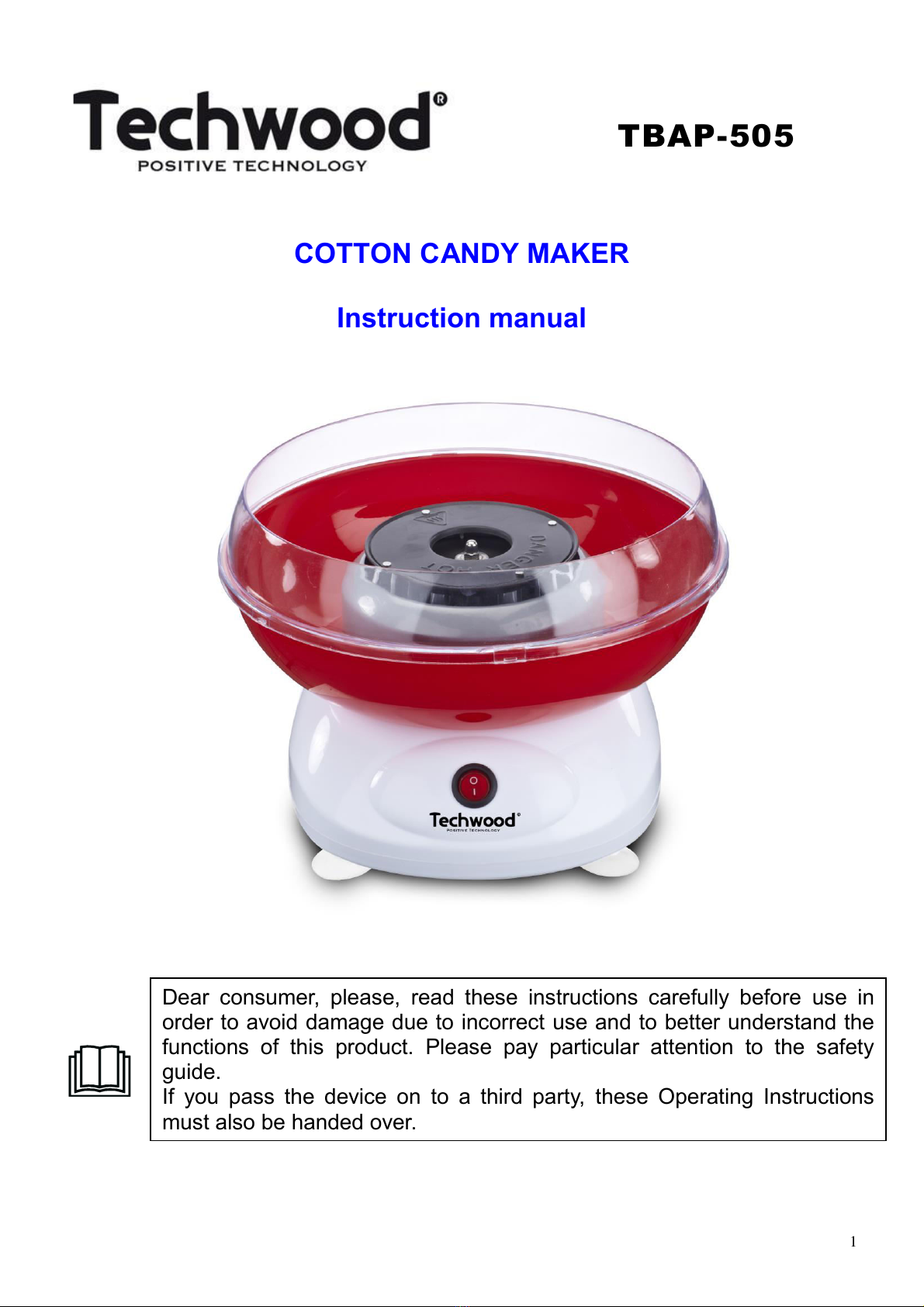

TECHWOOD TBAP-505 User manual

1
COTTON CANDY MAKER
Instruction manual
Dear consumer, please, read these instructions carefully before use in
order to avoid damage due to incorrect use and to better understand the
functions of this product. Please pay particular attention to the safety
guide.
If you pass the device on to a third party, these Operating Instructions
must also be handed over.
Please keep them for future references.
TBAP-505

2

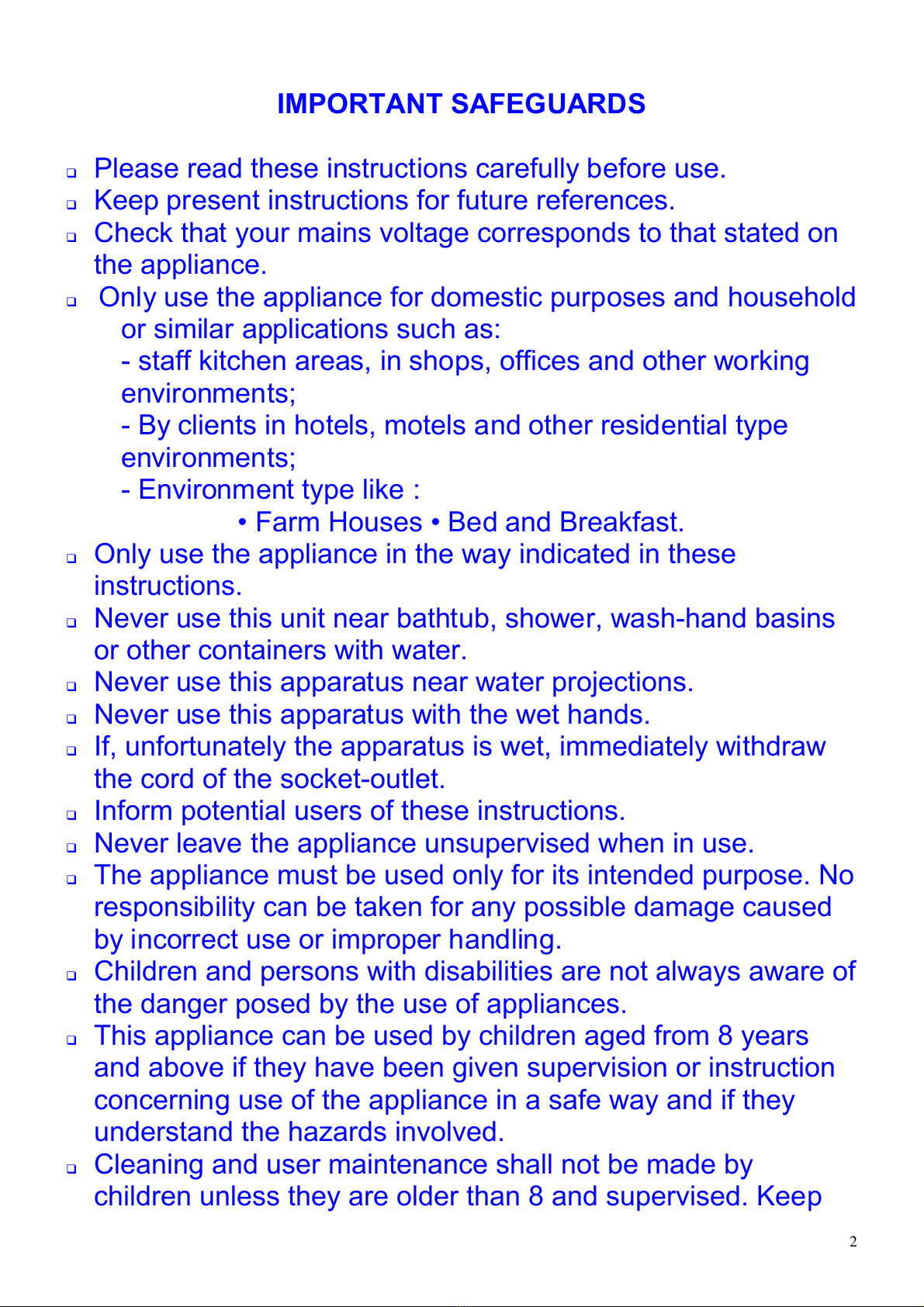

IMPORTANT SAFEGUARDS
Please read these instructions carefully before use.
Keep present instructions for future references.
Check that your mains voltage corresponds to that stated on
the appliance.
Only use the appliance for domestic purposes and household
or similar applications such as:
- staff kitchen areas, in shops, offices and other working
environments;
- By clients in hotels, motels and other residential type
environments;
- Environment type like :
• Farm Houses • Bed and Breakfast.
Only use the appliance in the way indicated in these
instructions.
Never use this unit near bathtub, shower, wash-hand basins
or other containers with water.
Never use this apparatus near water projections.
Never use this apparatus with the wet hands.
If, unfortunately the apparatus is wet, immediately withdraw
the cord of the socket-outlet.
Inform potential users of these instructions.
Never leave the appliance unsupervised when in use.
The appliance must be used only for its intended purpose. No
responsibility can be taken for any possible damage caused
by incorrect use or improper handling.
Children and persons with disabilities are not always aware of
the danger posed by the use of appliances.
This appliance can be used by children aged from 8 years
and above if they have been given supervision or instruction
concerning use of the appliance in a safe way and if they
understand the hazards involved.
Cleaning and user maintenance shall not be made by
children unless they are older than 8 and supervised. Keep

3

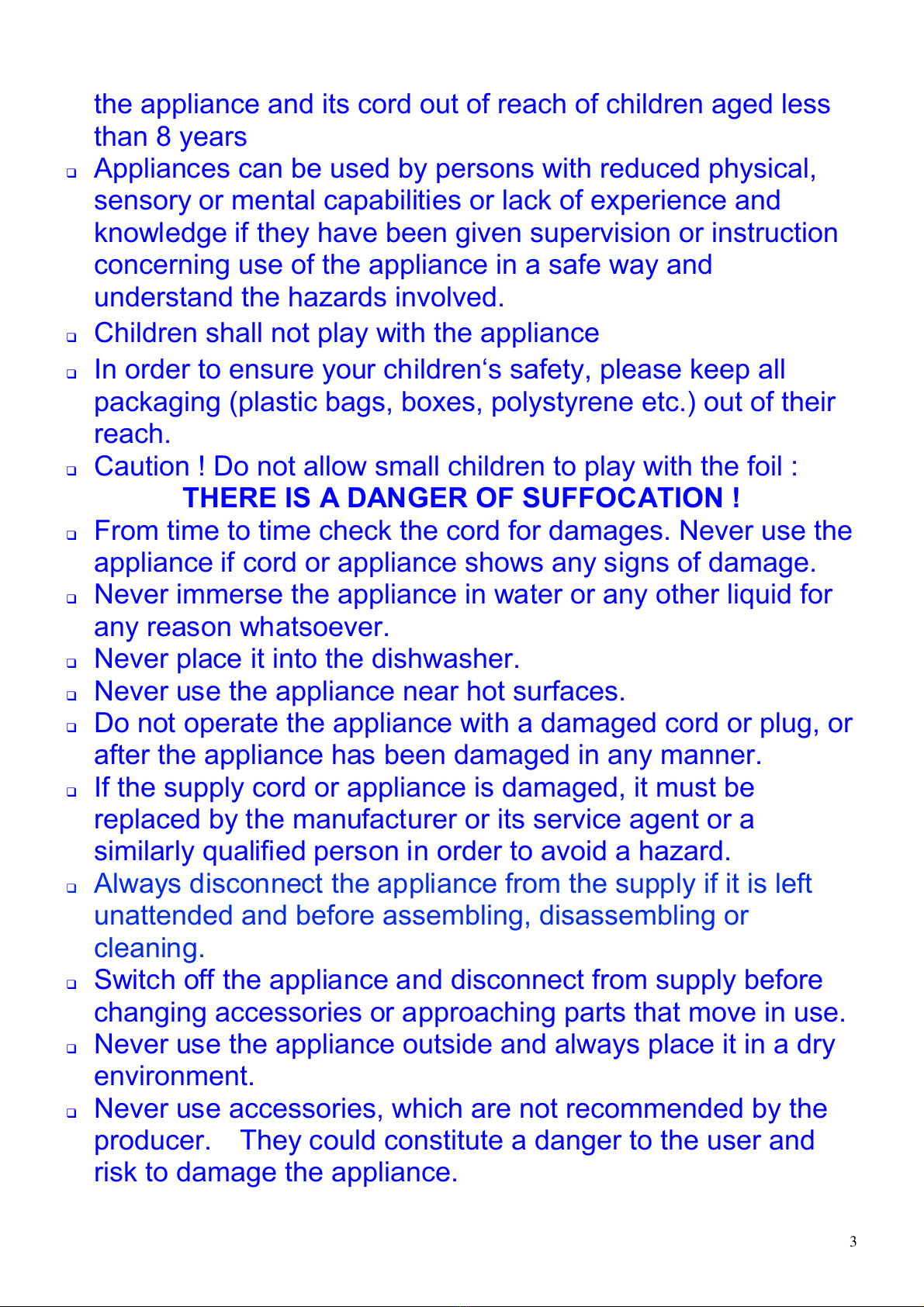

the appliance and its cord out of reach of children aged less
than 8 years
Appliances can be used by persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and
understand the hazards involved.
Children shall not play with the appliance
In order to ensure your children‘s safety, please keep all
packaging (plastic bags, boxes, polystyrene etc.) out of their
reach.
Caution ! Do not allow small children to play with the foil :
THERE IS A DANGER OF SUFFOCATION !
From time to time check the cord for damages. Never use the
appliance if cord or appliance shows any signs of damage.
Never immerse the appliance in water or any other liquid for
any reason whatsoever.
Never place it into the dishwasher.
Never use the appliance near hot surfaces.
Do not operate the appliance with a damaged cord or plug, or
after the appliance has been damaged in any manner.
If the supply cord or appliance is damaged, it must be
replaced by the manufacturer or its service agent or a
similarly qualified person in order to avoid a hazard.
Always disconnect the appliance from the supply if it is left
unattended and before assembling, disassembling or
cleaning.
Switch off the appliance and disconnect from supply before
changing accessories or approaching parts that move in use.
Never use the appliance outside and always place it in a dry
environment.
Never use accessories, which are not recommended by the
producer. They could constitute a danger to the user and
risk to damage the appliance.

4
Never use any other connector than the one provided.
Never move the appliance by pulling the cord. Make sure the
cord cannot get caught in any way.
Never wind the cord around the appliance and do not bend it
Ensure that the power cord does not come into contact with
hot parts of this unit.
Make sure the appliance has cooled down before cleaning
and storing it.
The temperature of accessible surfaces may be very high
when the appliance is operating. Never touch these parts, of
apparatus, to avoid burning itself.
Make sure the appliance never comes into contact with
flammable materials, such as curtains, cloth, etc...& the
power cord and plug do not come in contact with water.
Before cleaning, always unplug the appliance from the power
supply and let it cool down.
This appliance is not intended to be operated by means of an
external timer or separate remote-control system.
Always place the unit on a flat surface. Ensure, also, not to
cover the device and not to put anything on it.
Always remove the plug from the wall socket when the
appliance is not in use.
When using an extension lead always make sure that the
entire cable is unwound from the reel. Use solely CE
approved extension leads. Input power must be at least 16A,
250V, 3000W.
Incorrect operation and improper use can damage the
appliance and cause injury to the user.
This device, designed for home use, complies with standards
relating to this type of product.
The appliance must be used and rested on a table or flat &
stable surface.
The item must not be left unattended when it is connected to
main supply.

5
The item is not to be used, if it has been dropped or if there
are visible signs of damage or if it is leaking.
Regarding the instructions for cleaning, please, refer to the
below paragraph of the manual.
This appliance is only intended for household use.
Maximum quantities of sugar : 10g
Wait 5 minutes preheating before use.
Maximum continuous using time 10-15 minutes. (= 5 Cotton
Candy.)
(*) Competent qualified person : after sales department of the
producer or importer or any person who is qualified, approved
and competent to perform this kind of repairs.
GENERAL INFORMATION
The symbol "OPEN BOOK" means a recommendation
to read important things contained in the record.
The symbol "BIN" crossed out, abbreviation WEEE
(Waste of Electrical and Electronic Equipment) means
that at the end of life, it should not be discarded with
household waste, but filed to the sorting of the locality.
Waste recovery can help preserve our environment.
The symbol "CE" is the guarantee of compliance with
harmonized European standards, voluntary, reflecting
the essential requirements into technical
specifications. These standards are not mandatory
but are guarantees of compliance with essential
requirements.

6

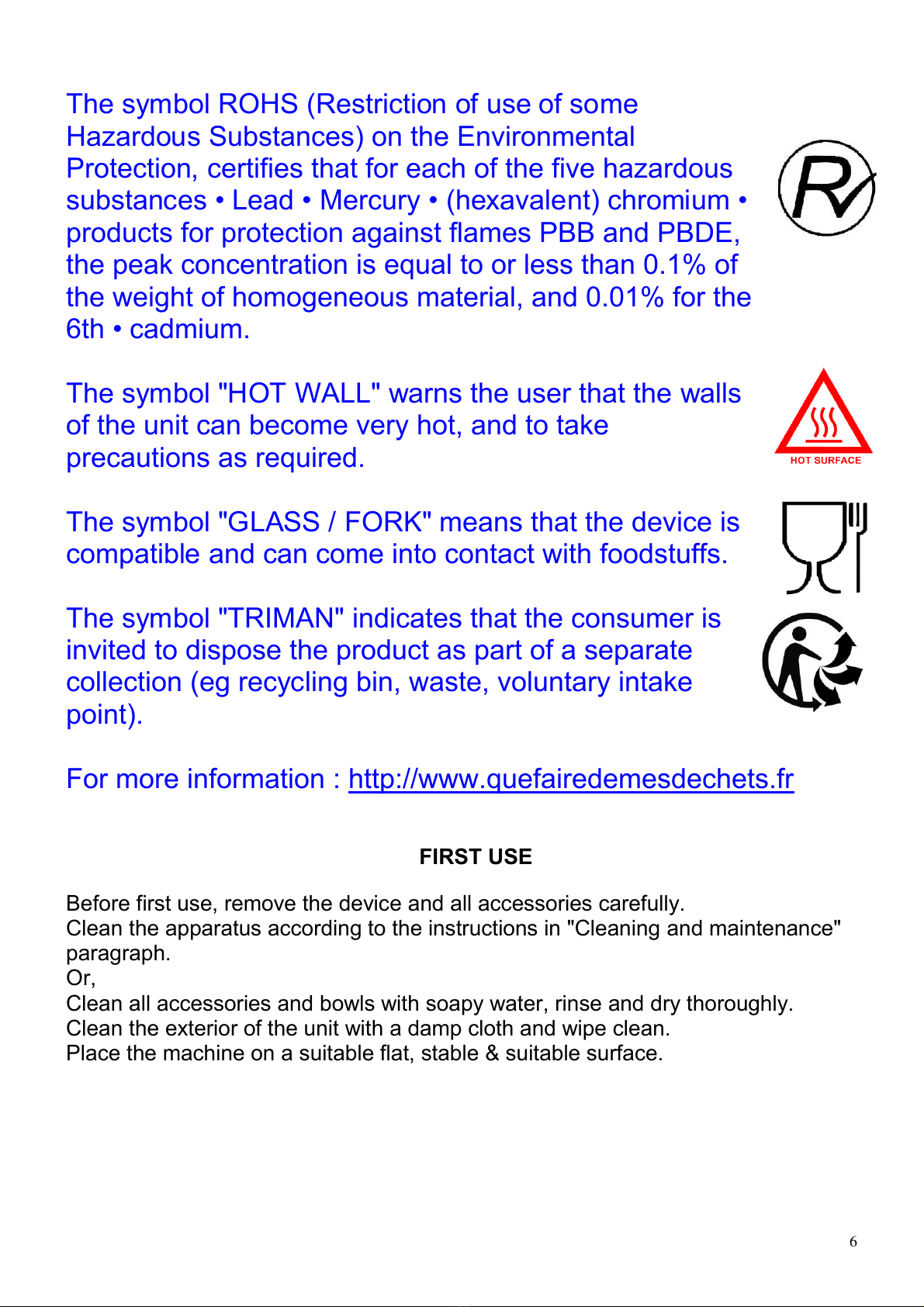

The symbol ROHS (Restriction of use of some
Hazardous Substances) on the Environmental
Protection, certifies that for each of the five hazardous
substances • Lead • Mercury • (hexavalent) chromium •
products for protection against flames PBB and PBDE,
the peak concentration is equal to or less than 0.1% of
the weight of homogeneous material, and 0.01% for the
6th • cadmium.
The symbol "HOT WALL" warns the user that the walls
of the unit can become very hot, and to take
precautions as required.
The symbol "GLASS / FORK" means that the device is
compatible and can come into contact with foodstuffs.
The symbol "TRIMAN" indicates that the consumer is
invited to dispose the product as part of a separate
collection (eg recycling bin, waste, voluntary intake
point).
For more information : http://www.quefairedemesdechets.fr
FIRST USE
Before first use, remove the device and all accessories carefully.
Clean the apparatus according to the instructions in "Cleaning and maintenance"
paragraph.
Or,
Clean all accessories and bowls with soapy water, rinse and dry thoroughly.
Clean the exterior of the unit with a damp cloth and wipe clean.
Place the machine on a suitable flat, stable & suitable surface.

7

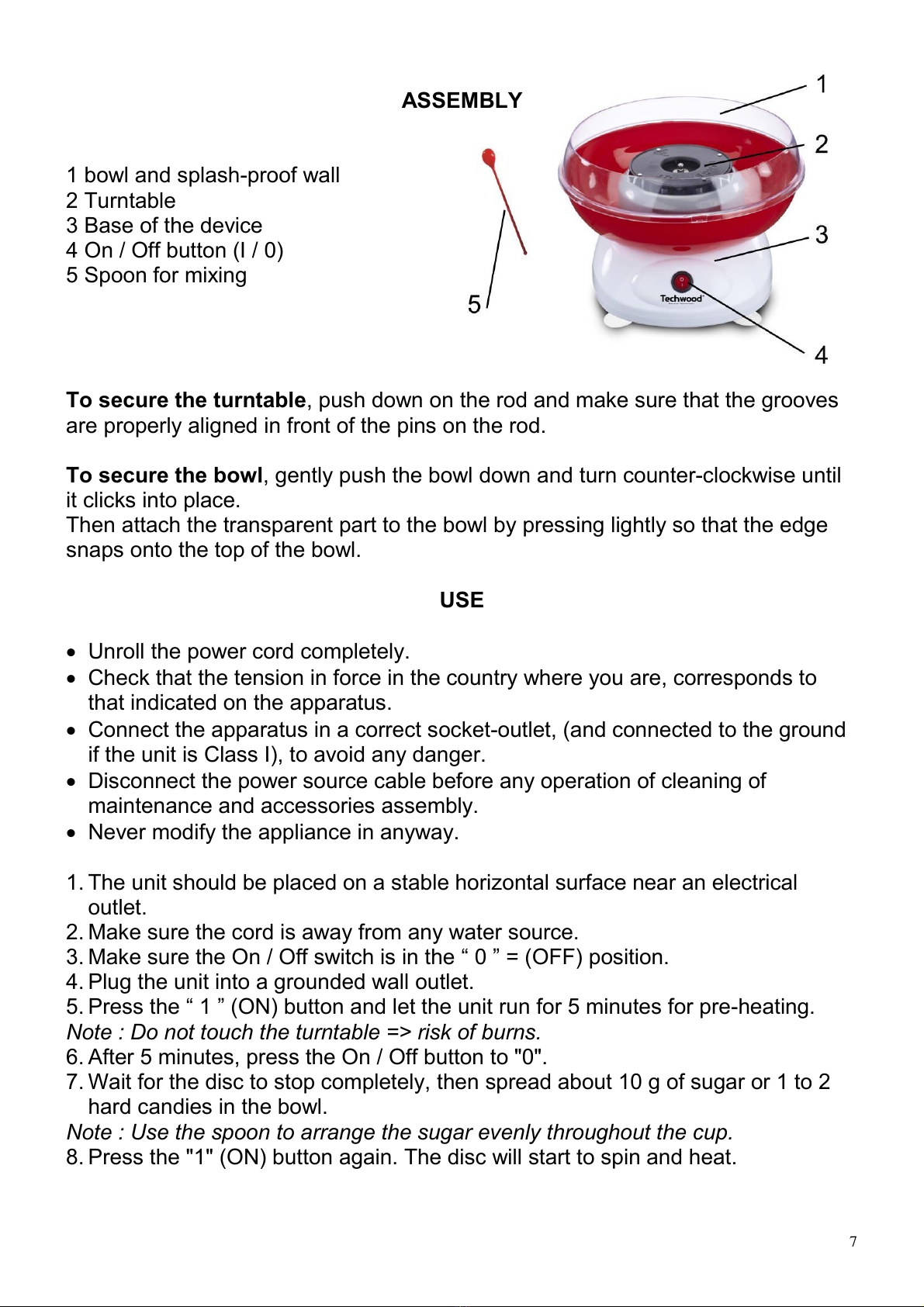

ASSEMBLY
1 bowl and splash-proof wall
2 Turntable
3 Base of the device
4 On / Off button (I / 0)
5 Spoon for mixing
To secure the turntable, push down on the rod and make sure that the grooves
are properly aligned in front of the pins on the rod.
To secure the bowl, gently push the bowl down and turn counter-clockwise until
it clicks into place.
Then attach the transparent part to the bowl by pressing lightly so that the edge
snaps onto the top of the bowl.
USE
Unroll the power cord completely.
Check that the tension in force in the country where you are, corresponds to
that indicated on the apparatus.
Connect the apparatus in a correct socket-outlet, (and connected to the ground
if the unit is Class I), to avoid any danger.
Disconnect the power source cable before any operation of cleaning of
maintenance and accessories assembly.
Never modify the appliance in anyway.
1. The unit should be placed on a stable horizontal surface near an electrical
outlet.
2. Make sure the cord is away from any water source.
3. Make sure the On / Off switch is in the “0 ”= (OFF) position.
4. Plug the unit into a grounded wall outlet.
5. Press the “1 ”(ON) button and let the unit run for 5 minutes for pre-heating.
Note : Do not touch the turntable => risk of burns.
6. After 5 minutes, press the On / Off button to "0".
7. Wait for the disc to stop completely, then spread about 10 g of sugar or 1 to 2
hard candies in the bowl.
Note : Use the spoon to arrange the sugar evenly throughout the cup.
8. Press the "1" (ON) button again. The disc will start to spin and heat.

8
9. After 3 to 5 minutes, sugar filaments will escape from the unit. Use a wooden
wand or plastic cone and turn the cone or wand over the bowl to hang on the
sugar filaments. When the first filaments are hooked, hold the cone in a
horizontal position and continue rotating it between the fingers to increase the
volume of sugar on the support. -
10. Turn off the unit when no more sugar filaments are coming out of the propeller. -
11. Wait until the propellant stops to put on a new dose of sugar and to refill a
cotton candy.
Note : Do not use more than two candies or 10g of sugar at a time. This may clog
the unit and prevent proper operation.
ADVICE
If cotton candy does not form very well and the filaments break, follow these
instructions :
• Put only 1-2 hard candies at a time.
• Make sure the pieces of candy are evenly placed on each side of the turntable.
Note : For best results, break candies before use.
The machine works well with candies (with or without sugar) from the below list
• Fruity candies
• Cream sweets
• Caramel
• Pepper mint
• Cinnamon sweets
• Coffee sweets
• Any other candy flavour.
The candies that can damage the device are :
• Ball-shaped candies
• Candy with a hard shell
• Gummed or chewed candies
• Candy pressed in sugar
• Instant drinks
CLEANING AND MAINTENANCE
Before cleaning, always: switch off the appliance, disconnect the apparatus and
let it cool.
Clean the outside of the apparatus with a sponge or slightly wet linen.
The parts (removable) in contact with food like plate, bowl, forks, Spatula etc. can
be washed in hot water with sponge and soft detergent or put in the dishwasher.
Never plunge the apparatus in water or all other liquid!
Do not use abrasive cleaners, gritting, or metal brush or another cutting object.
1. After cooling, remove the turntable by firmly squeezing both sides and pulling
upward.
2. Unlock the bowl by turning clockwise and lifting.
3. Wash the disassembled parts with warm water, using a clean, slightly damp,
non-abrasive sponge. Rinse and dry.
Note : The unit can be removed easily for easy cleaning.

9

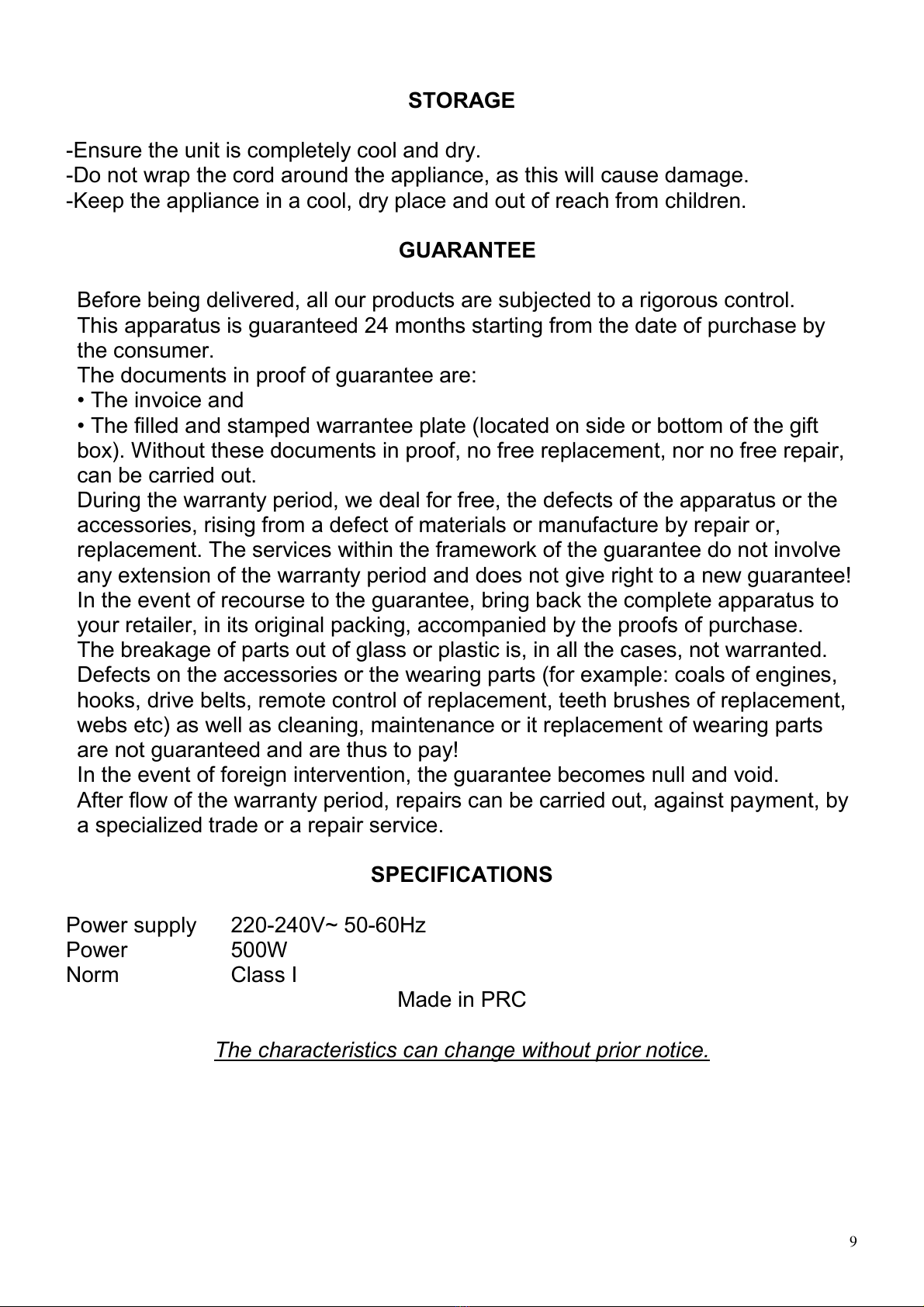

STORAGE
-Ensure the unit is completely cool and dry.
-Do not wrap the cord around the appliance, as this will cause damage.
-Keep the appliance in a cool, dry place and out of reach from children.
GUARANTEE
Before being delivered, all our products are subjected to a rigorous control.
This apparatus is guaranteed 24 months starting from the date of purchase by
the consumer.
The documents in proof of guarantee are:
• The invoice and
• The filled and stamped warrantee plate (located on side or bottom of the gift
box). Without these documents in proof, no free replacement, nor no free repair,
can be carried out.
During the warranty period, we deal for free, the defects of the apparatus or the
accessories, rising from a defect of materials or manufacture by repair or,
replacement. The services within the framework of the guarantee do not involve
any extension of the warranty period and does not give right to a new guarantee!
In the event of recourse to the guarantee, bring back the complete apparatus to
your retailer, in its original packing, accompanied by the proofs of purchase.
The breakage of parts out of glass or plastic is, in all the cases, not warranted.
Defects on the accessories or the wearing parts (for example: coals of engines,
hooks, drive belts, remote control of replacement, teeth brushes of replacement,
webs etc) as well as cleaning, maintenance or it replacement of wearing parts
are not guaranteed and are thus to pay!
In the event of foreign intervention, the guarantee becomes null and void.
After flow of the warranty period, repairs can be carried out, against payment, by
a specialized trade or a repair service.
SPECIFICATIONS
Power supply 220-240V~ 50-60Hz
Power 500W
Norm Class I
Made in PRC
The characteristics can change without prior notice.

10
This unit is equipped with an electrical outlet with earth and must
be earthed in an according plug.
Note : In the event of question concerning the earth or electric
connection, please consult a qualified personnel.
In the event of short-circuit, earthing reduces the risk of electric
shock while making possible the current to be evacuated by the
wire of ground.
CAUTION: In order to minimize the risks of electric shock, In the event of
breakdown, not to open the case but to call upon a qualified technician for repairs.
This device complies with EC directives, it was controlled according to all current
European directives, applicable such as: electromagnetic compatibility (EMC) and
low voltage (LVD).
This device has been designed and manufactured in compliance with the latest
regulations and technical requirements for safety.
Product imported par Sotech International
" LE PERIPOLE " N°A-107
33, Avenue du Marechal de Lattre de Tassigny
94120 Fontenay sous-bois - France
