TECHWOOD TCF-276 User manual

1
ELECTRIC JUICE EXTRACTOR
INSTRUCTION MANUAL
Dear consumer, Please read these instructions carefully before use in
order to avoid damage due to incorrect use and to better understand the
functions of this product. Please pay particular attention to the safety
guide.
If you pass the device on to a third party, these Operating Instructions
must also be handed over.
Please keep them for future references.
TCF-276
TCF-279
TCF-276
TCF-279

2

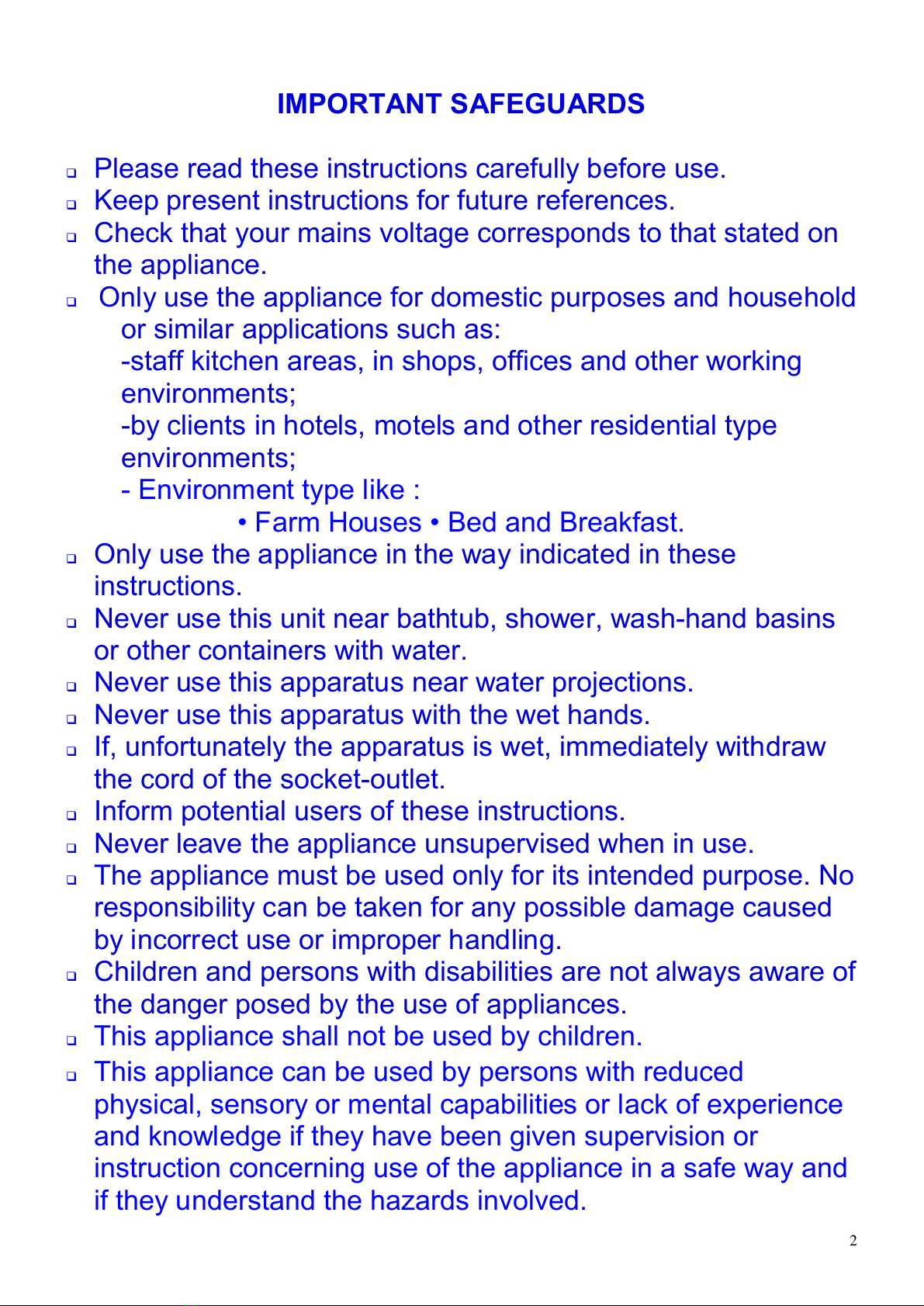

IMPORTANT SAFEGUARDS
Please read these instructions carefully before use.
Keep present instructions for future references.
Check that your mains voltage corresponds to that stated on
the appliance.
Only use the appliance for domestic purposes and household
or similar applications such as:
-staff kitchen areas, in shops, offices and other working
environments;
-by clients in hotels, motels and other residential type
environments;
- Environment type like :
• Farm Houses • Bed and Breakfast.
Only use the appliance in the way indicated in these
instructions.
Never use this unit near bathtub, shower, wash-hand basins
or other containers with water.
Never use this apparatus near water projections.
Never use this apparatus with the wet hands.
If, unfortunately the apparatus is wet, immediately withdraw
the cord of the socket-outlet.
Inform potential users of these instructions.
Never leave the appliance unsupervised when in use.
The appliance must be used only for its intended purpose. No
responsibility can be taken for any possible damage caused
by incorrect use or improper handling.
Children and persons with disabilities are not always aware of
the danger posed by the use of appliances.
This appliance shall not be used by children.
This appliance can be used by persons with reduced
physical, sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and
if they understand the hazards involved.

3

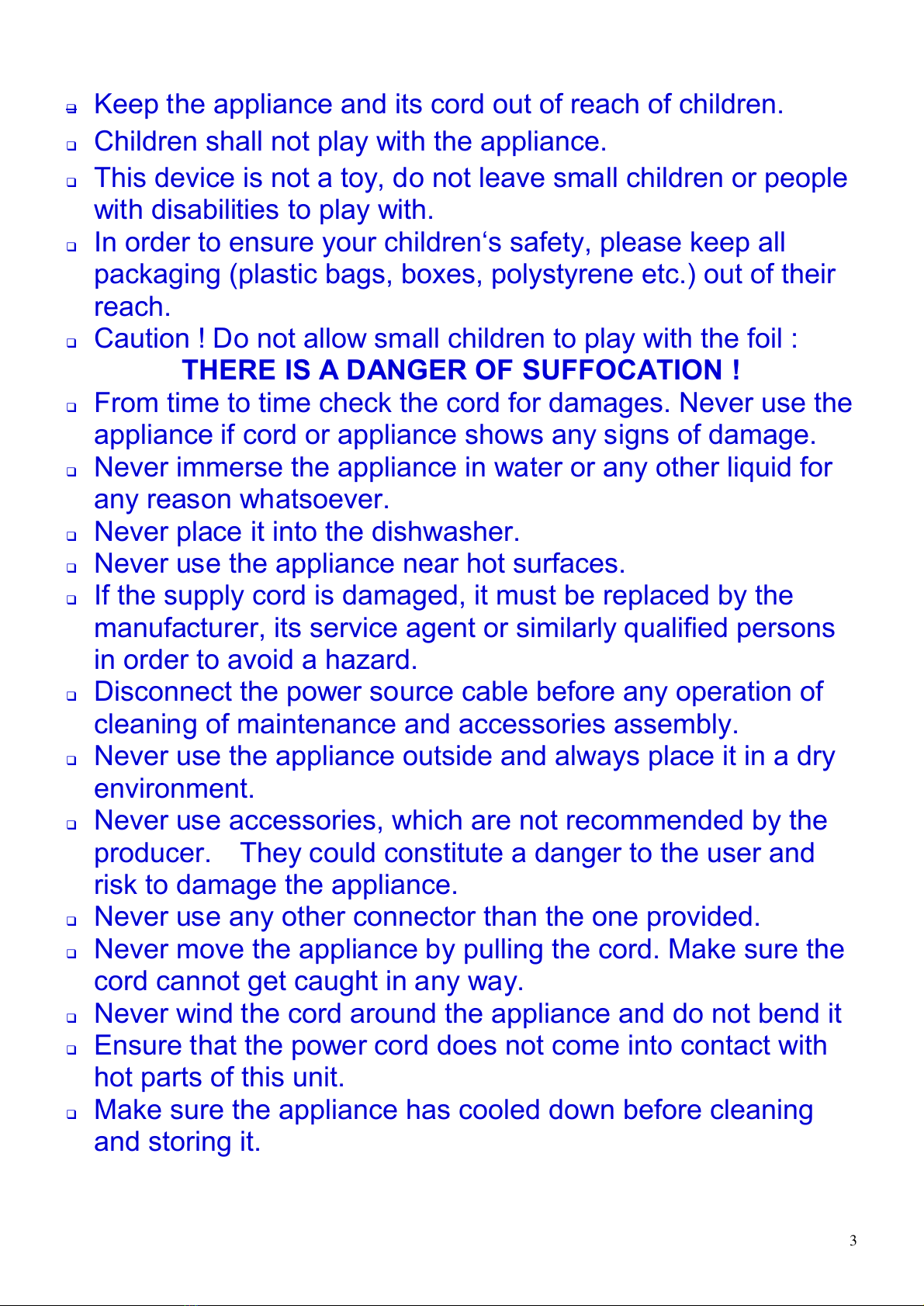

Keep the appliance and its cord out of reach of children.
Children shall not play with the appliance.
This device is not a toy, do not leave small children or people
with disabilities to play with.
In order to ensure your children‘s safety, please keep all
packaging (plastic bags, boxes, polystyrene etc.) out of their
reach.
Caution ! Do not allow small children to play with the foil :
THERE IS A DANGER OF SUFFOCATION !
From time to time check the cord for damages. Never use the
appliance if cord or appliance shows any signs of damage.
Never immerse the appliance in water or any other liquid for
any reason whatsoever.
Never place it into the dishwasher.
Never use the appliance near hot surfaces.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
Disconnect the power source cable before any operation of
cleaning of maintenance and accessories assembly.
Never use the appliance outside and always place it in a dry
environment.
Never use accessories, which are not recommended by the
producer. They could constitute a danger to the user and
risk to damage the appliance.
Never use any other connector than the one provided.
Never move the appliance by pulling the cord. Make sure the
cord cannot get caught in any way.
Never wind the cord around the appliance and do not bend it
Ensure that the power cord does not come into contact with
hot parts of this unit.
Make sure the appliance has cooled down before cleaning
and storing it.

4
The temperature of accessible surfaces may be very high
when the appliance is operating. Never touch these parts, of
apparatus, to avoid burning itself.
Make sure the appliance never comes into contact with
flammable materials, such as curtains, cloth, etc...& the
power cord and plug do not come in contact with water.
Before cleaning, always unplug the appliance from the power
supply and let it cool down.
This appliance is not intended to be operated by means of an
external timer or separate remote-control system.
Always place the unit on a flat surface. Ensure, also, not to
cover the device and not to put anything on it.
Always remove the plug from the wall socket when the
appliance is not in use.
When using an extension lead always make sure that the
entire cable is unwound from the reel. Use solely CE
approved extension leads. Input power must be at least 16A,
250V, 3000W.
Incorrect operation and improper use can damage the
appliance and cause injury to the user.
This device, designed for home use, complies with standards
relating to this type of product.
The appliance must be used and rested on a table or flat &
stable surface.
The item must not be left unattended when it is connected to
main supply.
The item is not to be used, if it has been dropped or if there
are visible signs of damage or if it is leaking.
This appliance is only intended for household use.
Do not use the appliance if rotating sieve is damaged.
Switch off the appliance and disconnect from supply before
changing accessories or approaching parts that move in use.
Always disconnect the appliance from the supply if it is left
unattended and before assembling, disassembling or
cleaning.

5
Care shall be taken when handling the sharp cutting blades,
emptying the bowl and during cleaning.
Regarding the instructions for cleaning surfaces in contact
with food or oil, thanks to refer to the below paragraph
"cleaning" in manual.
Regarding the instructions for the use of accessories,
operation times and speed settings, thanks to refer to the
below paragraphs.
SPECIAL WARNING FOR THIS APPLIANCE
• Always unplug the appliance from the power supply if it is left
unattended and before assembling, disassembling or cleaning.
• Switch off the unit and disconnect it from the power supply
before changing accessories or approaching parts that are
movable during operation.
• Potential injuries may occur during misuse. Precautions
should be taken when handling, emptying the bowl and during
cleaning.
• Do not use the appliance if the rotating filter is damaged
• For details on how to clean surfaces that come into contact
with food, speed and time settings, refer to the following
paragraph in this manual.
GENERAL INFORMATION
The symbol "OPEN BOOK" means a recommendation
to read important things contained in the record.
The symbol "BIN" crossed out, abbreviation WEEE
(Waste of Electrical and Electronic Equipment) means
that at the end of life, it should not be discarded with
household waste, but filed to the sorting of the locality.
Waste recovery can help preserve our environment.

6
The symbol "CE" is the guarantee of compliance with
harmonized European standards, voluntary, reflecting
the essential requirements into technical
specifications. These standards are not mandatory
but are guarantees of compliance with essential
requirements.
The symbol ROHS (Restriction of use of some
Hazardous Substances) on the Environmental
Protection, certifies that for each of the five hazardous
substances • Lead • Mercury • (hexavalent) chromium •
products for protection against flames PBB and PBDE,
the peak concentration is equal to or less than 0.1% of
the weight of homogeneous material, and 0.01% for the
6th • cadmium.
The symbol "DOUBLE SQUARE" means a double
insulated. A basic insulation and supplementary
insulation. This device requires no connection to the
mass of a protective conductor grounded. The
materials are said : double insulation class II.
The symbol "GLASS / FORK" means that the device is
compatible and can come into contact with foodstuffs.
The symbol "TRIMAN" indicates that the consumer is
invited to dispose the product as part of a separate
collection (eg recycling bin, waste, voluntary intake
point).
For more information : http://www.quefairedemesdechets.fr

7
TO KNOW IT’S UNIT
1. Cover
2. Introduction tube for Ingredients
3. Upper part of the extractor
4. Engine base
5. Crusher + filter holder
6. Crusher with integrated strainer
7. On / Off and step selector
8. Anti slip feet
9. Pouring spout
10. Pulp recuperator
FIRST USE
Before first use, remove the unit and all accessories carefully and paying attention
to the sharp accessories.
Clean with soap and water, bowls and all accessories. Rinse and dry thoroughly.
Clean outside and inside of the machine cabinet with a damp cloth and wipe dry.
ASSEMBLY
• Place the motor base on a flat surface, such as a kitchen countertop, and make
sure the appliance is stable.
• Place the strainer holder on the motor base so that the spout fits into the slot on
the side of the motor base.
• Assemble the stainless-steel strainer (filter) and the grinder.
Note: Be careful not to touch the sharp and aggressive parts in the bottom of the
strainer.
• Insert the assembly into the strainer holder and turn so that it is correctly
positioned, so that the gear shaft is engaged in the holder.
• Make sure the block turns evenly.
• Place the top part on the assembly and turn clockwise until the arrows are in
alignment.
• Place a glass, bowl or other suitable container under the spout.
• Place a suitable container under the pulp collector.
• The device is ready for use.
Tip : Clean the unit immediately to prevent residue from sticking to the filter. See
cleaning.

8
USE
Unroll the power cord completely.
Check that the tension in force in the country where you are, corresponds to
that indicated on the apparatus.
Connect the apparatus in a correct socket-outlet, (and connected to the ground
if the unit is Class I), to avoid any danger.
Disconnect the power source cable before any operation of cleaning of
maintenance and accessories assembly.
Never modify the appliance in anyway.
Always disconnect from power supply if it is left unattended and before
assembling, disassembling or during cleaning.
Stop the machine and disconnect it from the power supply before changing
accessories or approaching parts that are mobile during operation.
Potential injuries can occur with misuse. Care shall be taken when handling,
emptying the bowl and during cleaning.
Regarding the instructions for operating time and cleaning, refer to the
corresponding section of the manual.
Switch on the appliance, by setting the selector to On.
Insert the fruits and / or vegetables through the funnel into the appliance.
Introduce them gradually into the feed tube.
Note : For long vegetables, such as carrots, it is best to introduce the pointed end,
first, into the tube.
Gently press the fruits and / or vegetables with the pusher if necessary.
Notes: Too much pressure reduces the amount of juice extracted and can
damage the unit.
Keep an eye on the pulp container and juice container, and stop the unit
before they are too full.
Stop the appliance, by setting the selector to Off, before lifting the lid.
Do not operate the unit for more than 30 minutes continuously. If the unit has
been running for thirty minutes, let it cool down for 20 minutes before using it
again.
SELECTOR
High position : Forward Use before introducing fruits and vegetables.
Centre position : Off Position To stop the unit.
Low Position : Reverse Use if the unit is turning with difficulty or if
ingredients get stuck in the device.
This product is equipped with a security, and it will work only if, the installation and
assembly are done correctly.

9
Fruit Selection
Select fresh fruits and vegetables containing much juice.
Suitable fruits :
1. pineapple, beetroot, celery stick, apple, cucumber, spinach, melon, tomato,
mandarin orange and grape etc.
NOTE : Fruits and vegetables with thin skin are not required to peel.
Those with thick one such as mandarin orange, pineapple and raw
beetroot.
Citrus fruits' seeds, which may cause bitter taste to juice, shall be
removed.
In squeezing apples, concentration of apple juice depends on the type of apple
you selected.
clear juice can also be squeezed out from apples with much juice, you can select
the type of apple to be squeezed according to your needs or to your test.
The freshly-squeezed apple juice, which may turn to brown quickly,
- can be added several drops of lemon juice to slow down discolour.
Leaves and steams (such as lettuce) can be put into food processor for juicing.
The fruits containing starch such as banana, papaya, avocado, figs and mango
are not suitable to be put into food processor to make juice, but they can be
processed with the mixing function of food processor.
TIPS AND TRICKS
• Put a suitably sized plastic bag in the pulp container before using the appliance,
this will make it easier to clean.
• Use fresh fruits and vegetables - they contain more juice than thawed fruits and
vegetables.
• Leafy green vegetables such as cabbage or spinach can be squeezed. Roll out
the cylinder-shaped sheets of an appropriate size before inserting them into the
funnel.
• All types of juices should be consumed immediately after manufacturing
because they quickly lose nutrients and vitamins when exposed to oxygen from
the air. The taste can also be altered.
• Remember that the harvested fruit pulp can be used in cakes, vegetables,
lasagne, muffins, etc.
CLEANING AND MAINTENANCE
Before cleaning, Always : switch off the appliance, disconnect the apparatus and
let it cool.
Clean the outside of the apparatus with a sponge or slightly wet linen.
The parts (removable) in contact with food like plate, bowl, forks, Spatula etc. can
be washed in hot water with sponge and soft detergent or put in the dishwasher.
Never plunge the apparatus in water or all other liquid !

10
Do not use abrasive cleaners, gritting, or metal brush or another cutting object.
• Turn the upper part counter clockwise and lift up to detach from the main body.
• Remove the filter + grinder assembly from the unit and disassemble them.
• Clean the filter after each use with a soft brush (or toothbrush).
Note : After a time, the residues left in the extractors will have dried and
will be more difficult to remove.
• Do not clean in the dishwasher, the unit may be damaged.
• Do not immerse the base in water. Use a damp sponge or cloth to clean it.
• Dry the parts after cleaning before reinstalling.
STORAGE
-Ensure the unit is completely cool and dry.
-Do not wrap the cord around the appliance, as this will cause damage.
-Keep the appliance in a cool, dry place and out of reach from children.
GUARANTEE
Before being delivered, all our products are subjected to a rigorous control.
This apparatus is guaranteed 24 months starting from the date of purchase by
the consumer.
The documents in proof of guarantee are :
• The invoice and
• The filled and stamped warrantee plate (located on side or bottom of the gift
box). Without these documents in proof, no free replacement, nor no free repair,
can be carried out.
During the warranty period, we deal for free, the defects of the apparatus or the
accessories, rising from a defect of materials or manufacture by repair or,
replacement. The services within the framework of the guarantee do not involve
any extension of the warranty period and does not give right to a new guarantee !
In the event of recourse to the guarantee, bring back the complete apparatus to
your retailer, in its original packing, accompanied by the proofs of purchase.
The breakage of parts out of glass or plastic is, in all the cases, not warranted.
Defects on the accessories or the wearing parts (for example: coals of engines,
hooks, drive belts, remote control of replacement, teeth brushes of replacement,
webs etc) as well as cleaning, maintenance or it replacement of wearing parts
are not guaranteed and are thus to pay !
In the event of foreign intervention, the guarantee becomes null and void.
After flow of the warranty period, repairs can be carried out, against payment, by
a specialized trade or a repair service.

11
Nutrition constituent of common fruits and vegetable
SPECIFICATIONS
Power supply 220-240V~ 50/60Hz
Power 200W
Norm Class II
Continuous operating time of juicing 30 minutes
Spacing Interval 20 minutes
Made in PRC
The characteristics can change without prior notice

12
CAUTION: In order to minimize the risks of electric shock, In the event of
breakdown, not to open the case but to call upon a qualified technician
for repairs.
This apparatus satisfied EC directives, it was controlled according to all the
European current directives, like: electromagnetic compatibility (EMC) and low
tension (LVD).
This apparatus was designed and manufactured in respect of the last safety
regulations and technical specifications.
Imported by Sotech International
" LE PERIPOLE " N°A-107
33, Avenue du Marechal de Lattre de Tassigny
94120 Fontenay sous-bois - France
