TECO TAF230WMPCM User manual

TAF230WMPCM
REFRIGERATOR
User Manual

CONTENTS
Important Safety Instructions
Installation Instructions
Reversing the Door
Starting Instructions
Structure and Functions
Maintenance and Care of the Appliance
Troubleshooting
Repair, Service & Warranty

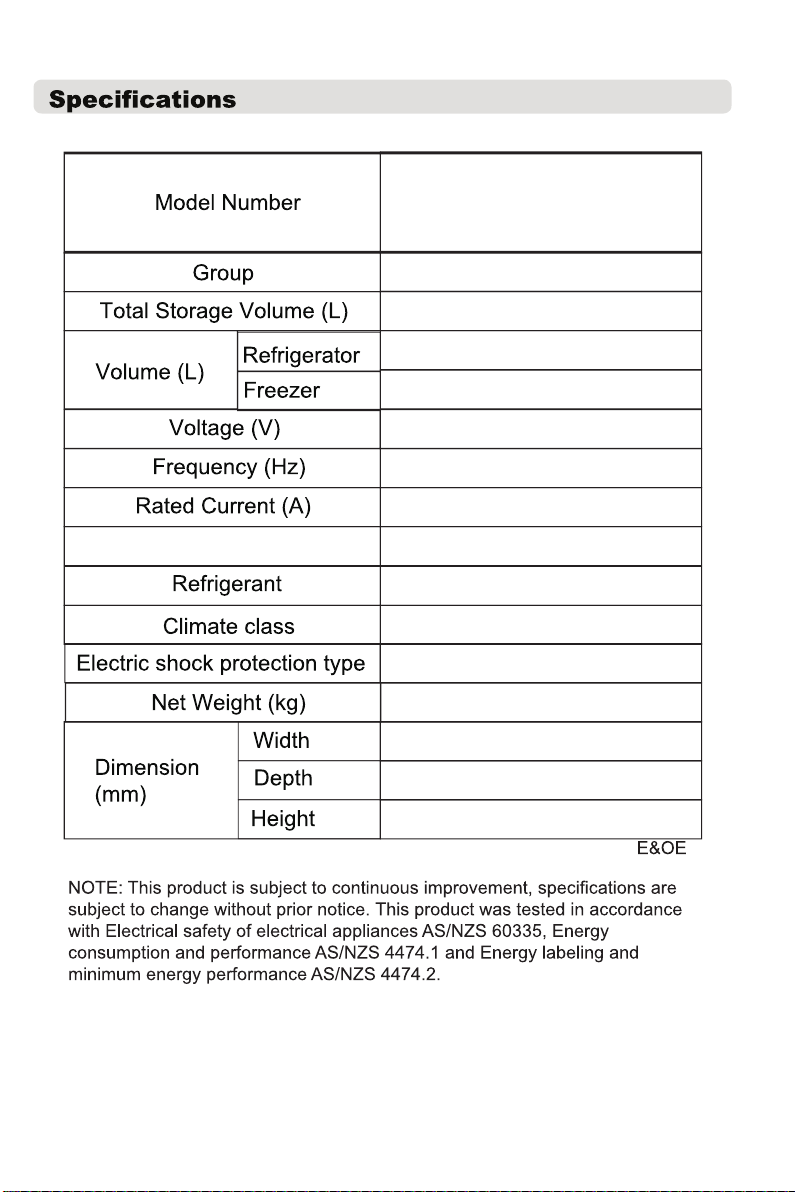

Specifications
1
4
5
6
7
8
9
10
11

1
Important Safety Instructions
Warning:risk of fire / flammable materials.
• Thank you for purchasing our product and thank you for placing your
confidence in us.
• Read this manual carefully before use. Follow instructions and keep the
manual for future reference.
• Follow the operating instructions and safety notices in this manual.
• If any trouble arise, do not attempt to fix it yourself. Please contact TECO
service on 1300 660 037 (8:30am - 4pm Mon~Fri AEST).
• This refrigerator is designed and approved for use with flammable R600a
refrigerant.
• The appliance is specifically constructed for domestic use only. The appliance
has not been designed or manufactured for professional use. TECO declines
all responsibility for damage deriving from improper use of the appliance. The
refrigerator
has undergone the necessary tests on the tightness of the refrigeration circuit
and complies with the safety regulations
for electrical appliances.
• All images, illustrations and photos contained in this manual are for illustration
purposes only and may differ from your appliance.
Prohibition symbol
Warning symbol
Note symbol
This is a prohibition symbol.
Any incompliance with instructions marked with this
symbol may result in damage to the product or endanger
the personal safety of the user.
This is a warning symbol.
It is required to opera te in stric t observance of
instructions marked with this symbol; or otherwise
damage to the product or personal injury may be caused.
This is a cautioning symbol.
Instructions marked with this symbol require special
caution. Insufficient caution may result in slight or
moderate injury, or damage to the product.
•This appliance contains a small quantity of flammable, non-synthetic
R600a refrigerant.
•The room for installing the appliance must be at least
1m3 per 8g of refrigerant. The amount of refrigerant in
the appliance can be found on the rating plate attached
to the appliance.
•If the refrigerant circuit should become damaged. Avoid
open flames and sources of ignition. Disconnect
the appliance from the mains power. Thoroughly
ventilate the room in which the appliance is situated
for several minutes.

•The refrigerator is designed to operate on a single phase power
supply within a voltage range of 220~240V/50Hz.
•This product is for indoor use only.
•Do not use extension cords or ungrounded (two prong) adapters.
•Do not locate multiple portable socket-outlets or portable power supplies
at the rear of the appliance.
•If the supply cord is damaged, it must be replaced by authorised TECO
service personal, service agent or similarly qualified persons in order to
avoid a hazard.
•Do not place electrical items or cooking equipment nearby. Keep away
from substances which could cause ignition and good ventilation
shall be always maintained.
•Do not place objects on top of the appliance which are magnetic, heavy
or filled with water.
•Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
•Do not store flammable, explosive, volatile and highly corrosive
materials in the refrigerator. Containers with flammable gases or
liquids can leak at low temperature. There is a risk of explosion or fire.
•Do not splash water on the appliance. It may cause malfunction or electric
shock.
•Always switch off and unplug appliance before cleaning.
•Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
•Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the manufacturer.
•Do not damage the refrigerant circuit.
•The refrigeration system contains refrigerant. Do not allow any sharp
objects to come in contact with the refrigerant system.
•Do not use electrical appliances inside the food storage compartments of
the appliance.
•For appliances which use flammable insulation blowing gases, Please
keep the products away from the fire or similar glowing substance.
•This appliance is intended to be used in household and similar
applications such as:
ostaff kitchen areas in shops, offices and other working
environments;
ofarm houses and by clients in hotels, motels and other residential
type environments;
obed and breakfast type environments;
ocatering and similar non-retail applications.
2

3
Refrigerant and cyclopentane foaming material used for the
refrigerator are flammable. Therefore, when the refrigerator is
scrapped, it shall be kept away from any fire source and be
recovered by a special recovering company with
corresponding qualification other than be disposed by
combustion, so as to prevent damage to the environment or
any other harm.
When the refrigerator is scrapped, disassemble the
doors, and remove gasket of door and shelves; put
the doors and shelves in a proper place, so as to
prevent trapping of any child.
Correct Disposal of this product：
This marking indicates that this product should not
be disposed with other household wastes. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to
promote the sustainable reuse of material resources. To
return your used device, please use the return and
collection systems or contact the retailer where the
product was purchased. They can take this product for
environmental safe recycling.
•Contact your local authorities for correct method of disposal.
Dispose of all packaging in a responsible manner in accordance
with local regulations.
•This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
•Young children should be supervised to ensure that they
do not play with the appliance.
•Packing (e.g. wraps, polystyrene etc.) can be dangerous
for children. There is a risk of suffocation. Keep
packaging materials away from children.

4
Precautions before installation:
Before installation or adjusting of accessories, it shall be
ensured that the refrigerator is disconnected from power.
Precautions shall be taken to prevent fall of the handle from causing
any personal injury.
30cm
10cm
10cm

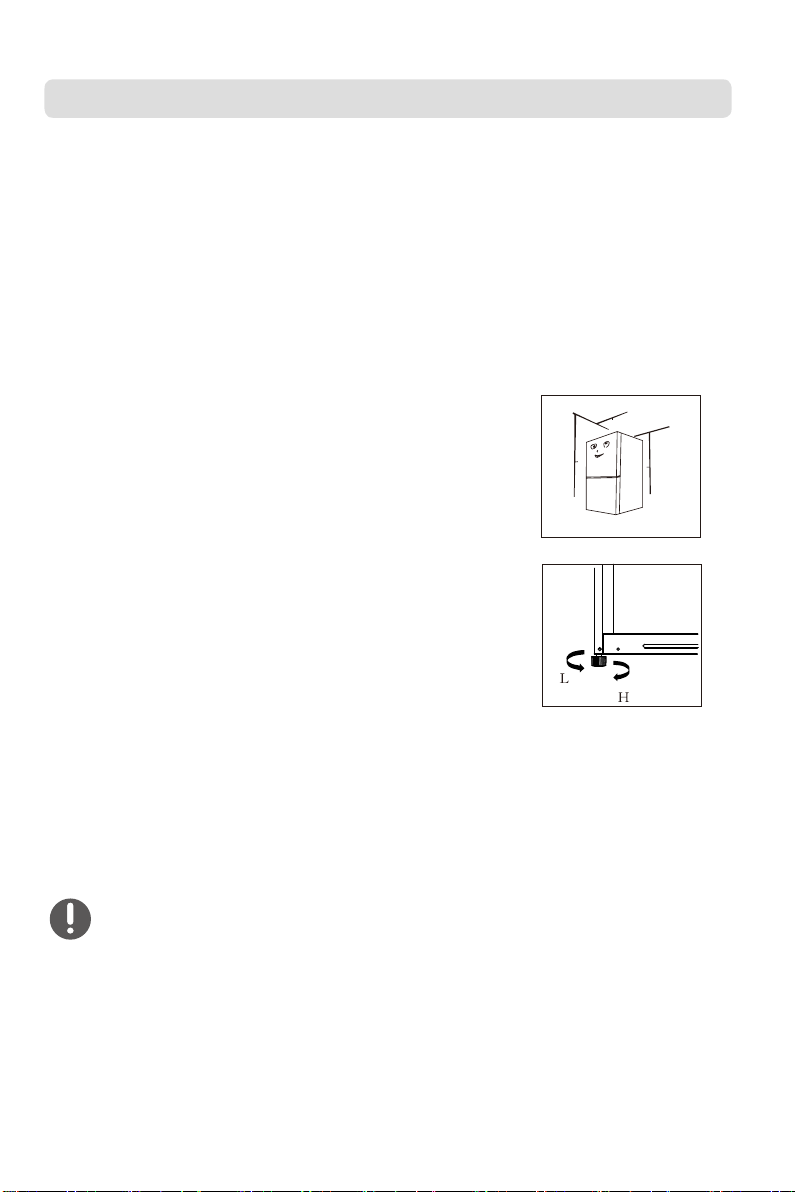

Installation Instructions
• Before using the refrigerator for the first time, remove all of the packing
materials, including the foam base and adhesive tape holding accessories in
place; tear off the protective film on th e doors and the refrigerator body.
• The refrigerator should be located in a well-ventilated indoor place; the ground
shall be firm, flat surface that is strong enough to support the refrigerator when
it is fully loaded.
• Choose a location that is not exposed to direct sunlight, high temperatures,
heat sources such as a stove or radiator, or in a moist area. Do not choose a
location where the temperature will go below 12°C as this could cause the
refrigerator to not function properly.
•The top space of the refrigerator shall be greater
than 30cm, and the refrigerator should be placed
against a wall with a free distance more than 10cm
to facilitate heat dissipation. This allows for proper
air circulation. This appliance is intended to be free-
standing and should not be built-in or placed in a
recessed area.
•The refrigerator legs must be adjusted during
installation in order to function properly. The leveling
legs on the front corners can be adjusted by turning
clockwise to raise the appliance, and counter-
clockwise to lower it. Be sure to have the appliance
slope slightly backward to ensure that the door
closes tightly.
Adjusting procedures:
a. Turn the feet clockwise to raise the refrigerator;
b. Turn the feet counterclockwise to lower the refrigerator;
c. Adjust the right and left feet based on the procedures above to a
horizontal level.

5
3) Remove the door and the bottom hinge assembly and the adjustable foot,
then assemble the bottom hinge assembly and the adjustable foot on the
other side. Remove the stopper from the right bottom side of the door, and
assemble it on the other side of the door.
Reversing the Door
1) Please power off this appliance before conduct this operation. Remove all
food from door shelves.
2) Remove the upper hinge cover, fitting screws of upper hinge and the
upper hinge, and remove the plastic screw hole cap from the other side.

4) Assemble the shaft of the top hinge as in the picture below. Put the door
on the bottom hinge, and assemble the upper hinge, upper hinge cover and
the plastic screw hole cap successively.
doors and drawers or statement by the distributor.
Energy saving tips
•The appliance should be located in the coolest area of the room,
away from heat producing appliances or heating ducts, and out of the
direct sunlight.
•Let hot foods cool to room temperature before placing in the appliance.
Overloading the appliance forces the compressor to run longer. Foods
that freeze too slowly may lose quality, or spoil.
•Be sure to wrap foods properly, and wipe containers dry before placing
them in the appliance. This cuts down on frost build-up inside the
appliance.
•Appliance storage bin should not be lined with aluminum foil, wax paper,
or paper toweling. Liners interfere with cold air circulation, making the
appliance less efficient.
•Organize and label food to reduce door openings and extended
searches. Remove as many items as needed at one time, and close the
door as soon as possible.
•Before initial start, keep the refrigerator still for two
hours before connecting it to power supply.
•Before putting any fresh or frozen foods, the
refrigerator shall have run for 2-3 hours, or for
above 4 hours in summer when the ambient
temperature is high.
•Spare enough space for convenient opening of the
135°
959mm
545mm
500mm
927mm
Starting Instructions
(The pictures above are only for reference only. The actual configuration depends on
the physical product).
6

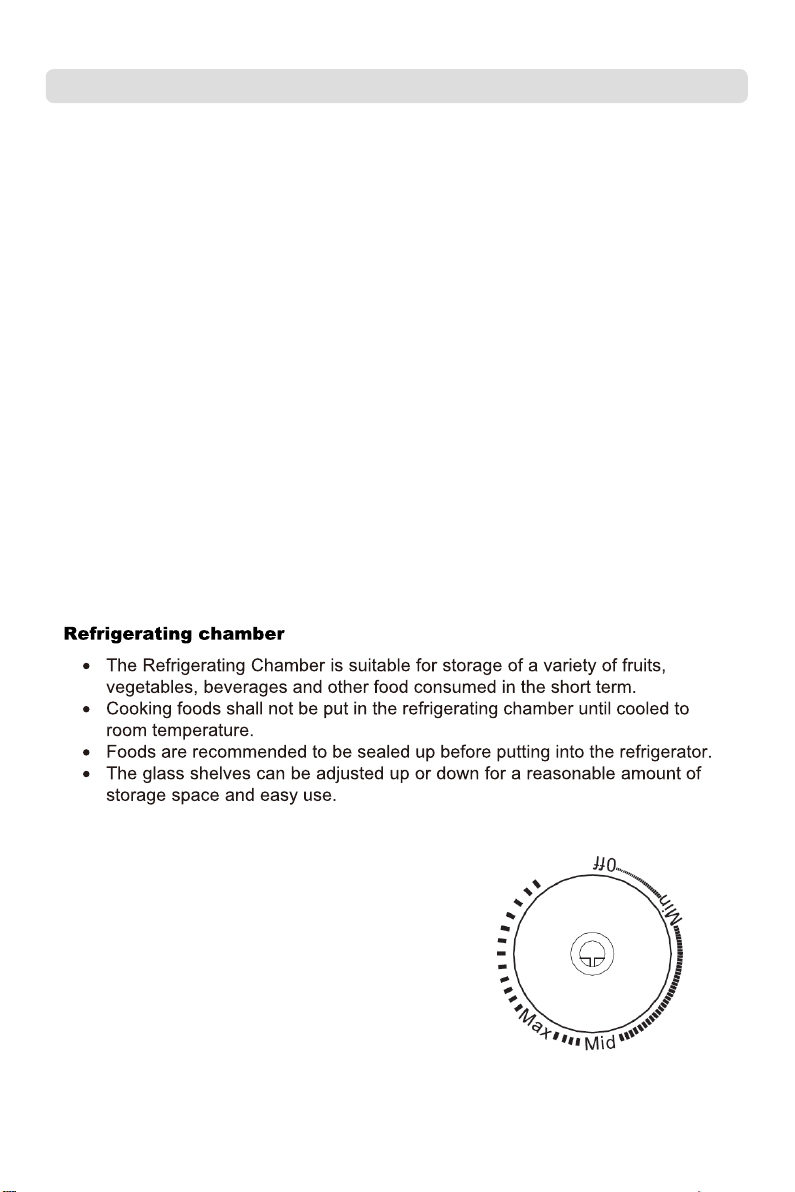

Structure and Functions
Temperature control knob
(The pictures above are only for reference only. The actual configuration depends on
the physical product).
•If the ambient temperature is too high or in summer,
according to actual needs, the thermostat can be
adjusted to MAX.
•If the ambient temperature is too low or in winter,
according to actual needs, the thermostat can be
adjusted to MIN.
Note: Please adjust between MIN and MAX.
7

Please unplug the refrigerator for defrost and cleaning.
Maintenance and Care of the Appliance
•Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the
cooling effect and energy saving.
•Check the door gasket regularly to make sure there are no debris. Clean the door gasket
with a soft cloth dampened with soapy water or diluted detergent.
•The interior of the refrigerator should be cleaned regularly to avoid odor.
Please turn off the power before cleaning interior, remove all foods, drinks ,shelves,
drawers, etc.
•Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of
baking soda and a quart of warm water. Then rinse with water and wipe clean. After
cleaning, open the door and let it dry naturally before turning on the power.
•For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or
corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and
when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no
contaminants or bacterial accumulation in these areas.
•Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors
in the interior of the refrigerator or contaminated food.
•Clean the bottle frame, shelves and drawers with a soft cloth dampened with soapy water
or diluted detergent. Dry with a soft cloth or dry naturally.
•Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water,
detergent, etc., and then wipe dry.
•Do not use hard brushes, clean steel balls, wire brushes, abrasives
(such as toothpastes), organic solvents (such as alcohol, acetone,
banana oil, etc.), boiling water, acid or alkaline items, which may
damage the fridge surface and interior. Boiling water and organic
solvents such as benzene may deform or damage plastic parts.
•Do not rinse directly with water or other liquids during cleaning to
avoid short circuits or affect electrical insulation after immersion.
detergent
Out of Operation
•Power outage: In case of a power outage, even if it is in summer, foods inside the
appliance can be kept for several hours; during the power outage, the times of door
opening shall be reduced, and no more fresh food shall be put into the appliance.
•Long-time non-use: The appliance shall be unplugged and then cleaned; then the doors
are left open to prevent odor.
•Moving: Before the refrigerator is moved, take all objects inside out, fix the glass
partitions, vegetable holder, freezing chamber drawers and etc. with tape, and tighten
the leveling feet; close the doors and fix them with tape. During moving, the appliance
shall not be laid upside down or horizontally, or be vibrated; the inclination during
movement shall be no more than 45°.
The appliance shall run continuously once it is started. Generally, the operation of
the appliance shall not be interrupted;otherwise the service life may be impaired.
8

Troubleshooting
Water pan overflows
There is too much food in the chamber or food stored contains
too much water,resulting in heavy defrosting.
The doors are not closed properly, resulting in frosting due to entry
of air and increased water due to defrosting.
Failed operation
Check whether the appliance is connected to power or whether the plug
is in well contact .
Check whether the voltage is too low.
Check whether there is a power failure or partial circuits have tripped.
Door seal fails to
be tight
Remove foreign matters on the door seal.
Heat the door seal and then cool it for restoration (or blow it with an
electrical drier or use a hot towel for heating).
Hot housing
Abnormal noise
Long operation of the refrigerator is normal in summer when the ambient
temperature is high.
It is not recommended having too much food in the appliance at the same time.
Food shall get cool before being put into the appliance.
The doors are opened too frequently.
Long-time operation
of the compressor
The door is stuck by food packages.
The refrigerator is tilted.
Doors cannot be
properly closed
Surface condensation
Condensation on the exterior surface and door seals of the refrigerator is
normal when the ambient humidity is too high. Just wipe the condensate
with a clean towel.
Buzz: The compressor may produce buzzes during operation, and the buzzes
are loud particularly upon start or stop. This is normal.
Creak: Refrigerant flowing inside of the appliance may produce creak, which
is normal.
Heat dissipation of the built-in condenser via the housing, which is normal.
When housing becomes hot due to high ambient temperature and
storage of too much food,it is recommended to provide sound ventilation
to facilitate heat dissipation.
Odor
Odorous foods shall be tightly wrapped.
Check whether there is any rotten food.
Clean the inside of the refrigerator.
Check whether the refrigerator is connected to power supply and whether the
illuminating light is damaged. (Any replacement of the LED lamps shall be made
by the authorised agent or similar qualified personal).
Light fails to get lit
Loud noise
Check whether the floor is level and whether the refrigerator is placed stably.
Check whether accessories are placed at proper locations.
9

Repairs, Service & Warranty
It is hazardous for anyone installing, removing, altering, repairing, servicing,
testing or certifying the gas system of a gas device (i.e. charging, discharging or
breaking into the refrigeration system that uses hydrocarbon refrigerants).
Only an Authorised Service Person can carry out servicing or repairs to this
appliance. In Queensland the authorised person must hold a Gas Work
Authorisation for hydrocarbon refrigerants, before carrying out servicing or
repairs which involve the removal of covers.
IF SERVICE IS REQUIRED:
If you have a problem, and the problem persists after you have made the
checks mentioned in this manual, contact:
TECO Australia’s Service on 1300 660 037 (8:30am - 4pm Mon~Fri AEST).
For warranty details please visit
www.teco.com.au
Service Email : [email protected]
Spare Parts : [email protected]
10

TAF230WMPCM
11
2
230
230
/
220 ~ 240
50
0.4
LED 2W
R600a
T
I
37
550
550
1420
Lamp Rated Power

TECO
TECO
M CB-V 2
.teco.com.au E&OE
WARRANTY INFORMATION
Teco's warranty information for the product purchased is available at www.teco.com.au.
A copy of the warranty may also be obtained by contacting Teco's Warranty and Service
Department on 1300 660 037 during business hours (Mon - Fri 8.30am - 4pm AEST).
To arrange for servicing of a Teco product, please contact our Warranty and Service
Department on 1300 660 037 during business hours (Mon - Fri 8.30am - 4pm AEST).
To assist in processing any warranty claim that you may have Teco recommends that you:
1. Complete the following information in relation to your purchase:
Name of retailer:
Name of owner:
Date of purchase:
Model No. :
Serial No. :
MFG code:
2. Retain proof of your purchase for any warranty claim. Ideally this proof of
purchase will be the tax invoice issued for your purchase.
3. Complete the following information in relation to the person that installed your Teco
appliance (if applicable):
Installer's name:
Telephone No.:
Licence No.:
