Model:
TSXS582WNCM
TSXS582SNCM
USER’S MANUAL
FROST FREE SIDE BY SIDE REFRIGERATOR
Thank you for purchasing our product and thank you for placing your
confi dence in us.
Read this manual carefully before use. Follow instructions and
keep the manual for future reference.
Follow the operating instructions and safety notices in this manual.
If any trouble arise, do not attempt to fi x it yourself. Please contact
TECO service on 1300 660 037 (8:30am - 4pm Mon~Fri AEST).
This refrigerator is designed and approved for use with fl ammable
R600a refrigerant.
The appliance is specifi cally constructed for domestic
use and is therefore suitable for the refrigeration and storage
of fresh and frozen foods and the production of ice-cubes.
The appliance has not been designed or manufactured for
professional use. TECO declines all responsibility for damage
deriving from improper use of the appliance. The refrigerator
has undergone the necessary tests on the tightness of the
refrigeration circuit and complies with the safety regulations
for electrical appliances.
All images, illustrations and photos contained in this manual are for
illustration purposes only and may differ from your appliance.
WARNING ICON
This symbol indicates information concerning your personal
safety
CAUTION ICON
This symbol indicates information on how to avoid damaging
the appliance
FLAMMABLE ICON
R600a WARNING LABEL
CAUTION
WARNING
R600a
3.3 Water dispenser
3.4 On door ice making
15
6. Repairs, service & warranty
15
15
16
17
1 Safety warnings -------------------�

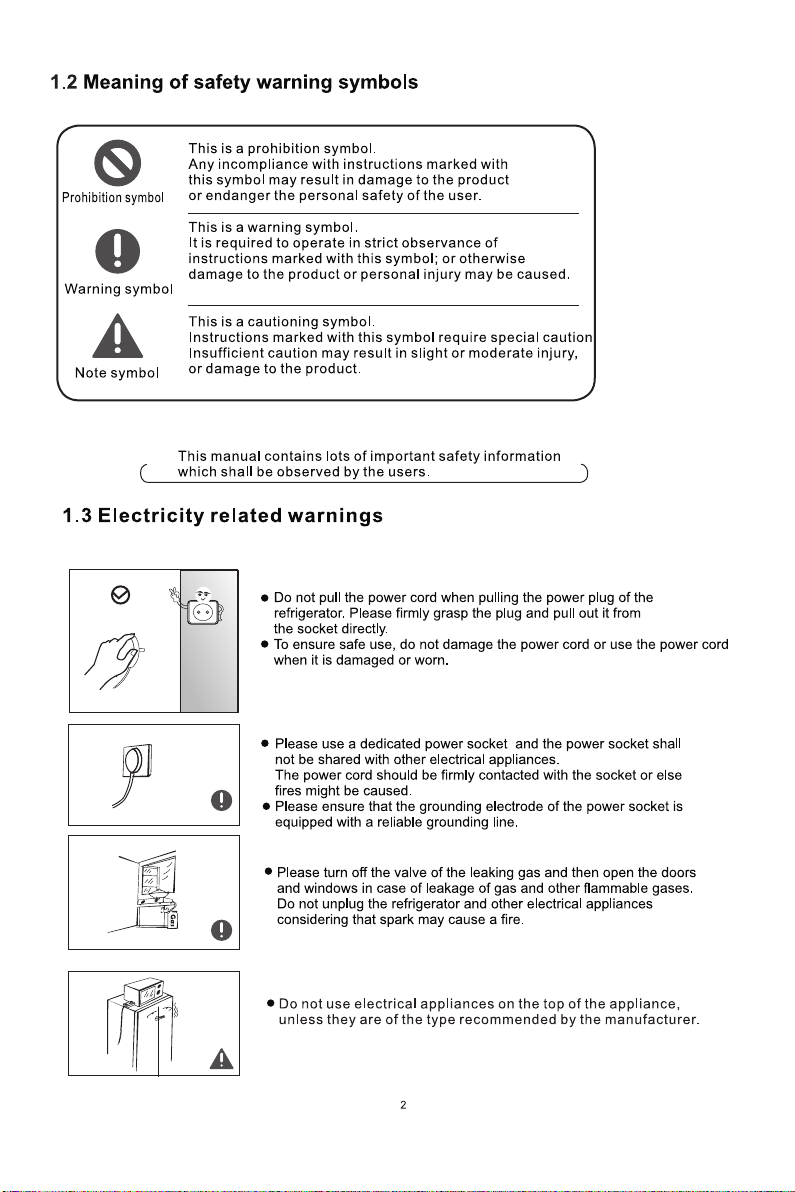

1.1 Warning
It

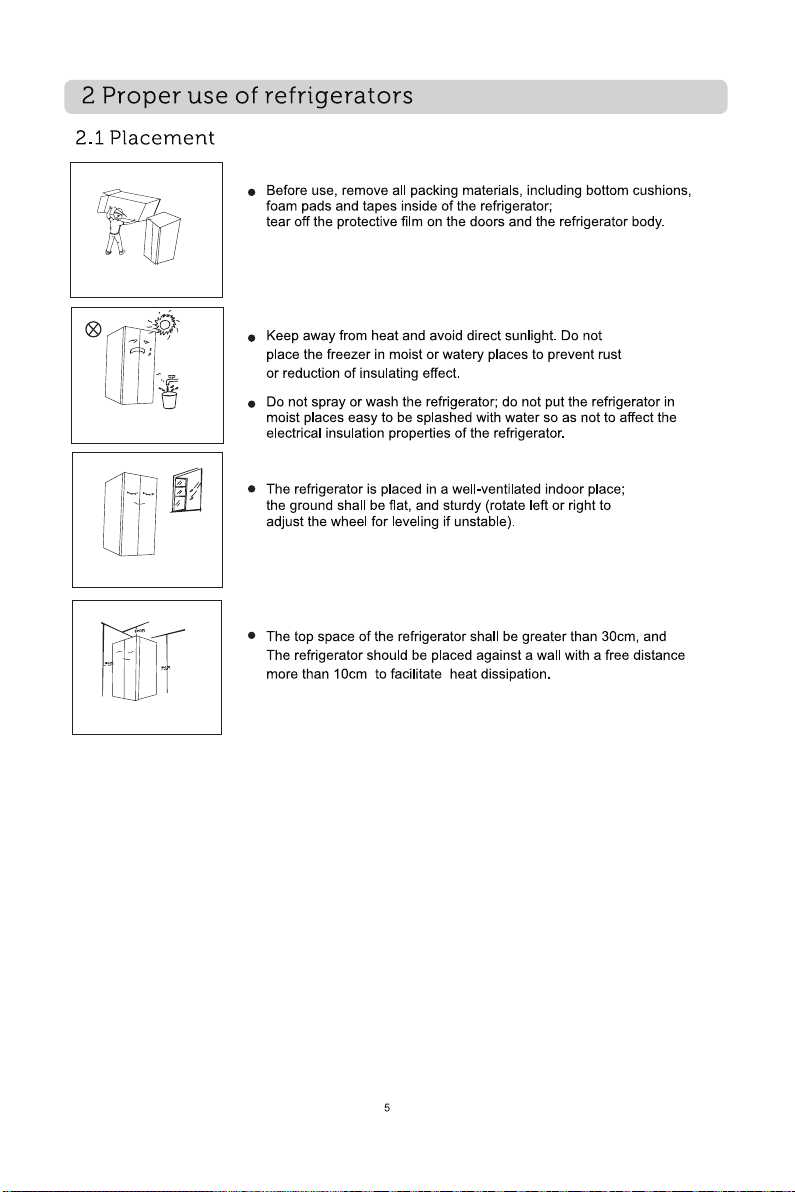

2.2 Levelling feet
0
L
H

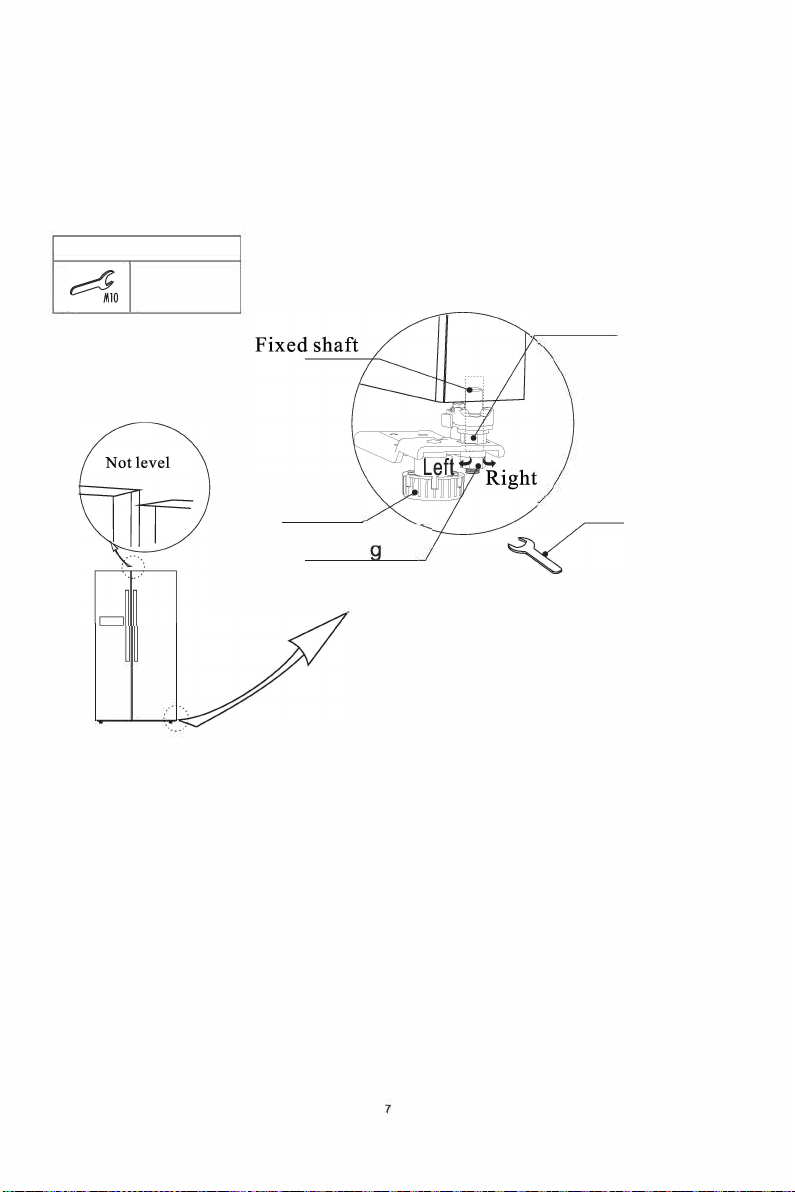

2.3 Levelling door
Lockin nut
Adjusting nut
Wrench
When the fridge door is low:
When the fridge door is high:

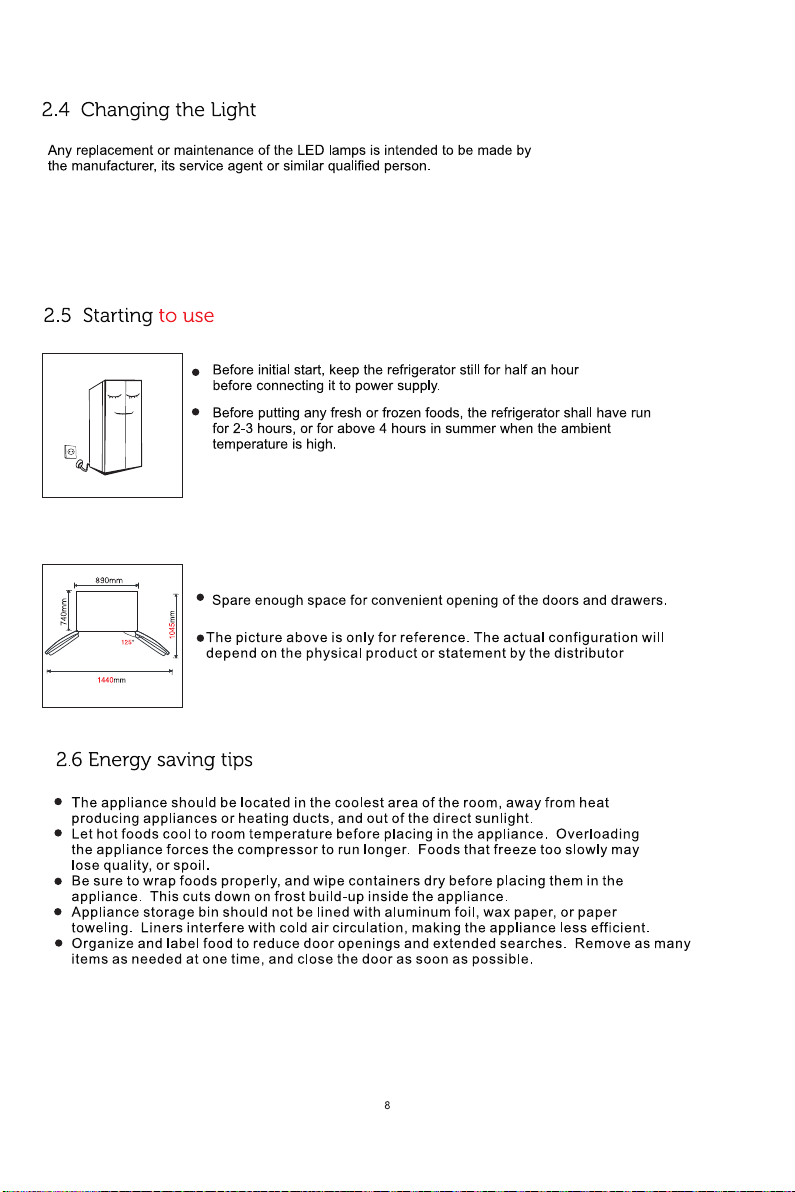

3 Structure and functions
3.1 Key components
( The picture above is only for reference. The actual configuration will depend
on the physical product or statement by Teco Australia).
Refrigerating chamber
• The Refrigerating Chamber is suitable storage of a variety of fruits, vegetables, beverages and
other food consumed in the short term.
• Cooking shall not be put in the refrigerating chamber until cooled to room temperature_
• Foods are recommended to be sealed up before putting into the refrigerator.
• The glass shelves can be adjusted up or down for a proper storage space and easy use_
Freezing chamber
• The low temperature freezing chamber may keep fresh for a long lime and ii is mainly used to
store frozen foods and making ice.
• The freezing chamber is suitable for storage of meat, sh, rice balls and other foods not to be
consumed in short term.
• Chunks of meat are preferably to be divided into small pieces for easy access. Please be noted food
shall be consumed within the shelf lime_
Note: Storage of too much food during operation after the initial connection to power may adversely
aect the freezing eect of the refrigerator. Foods stored shall not block the air outlet; or otherwise
the freezing eect willalso be adversely
9

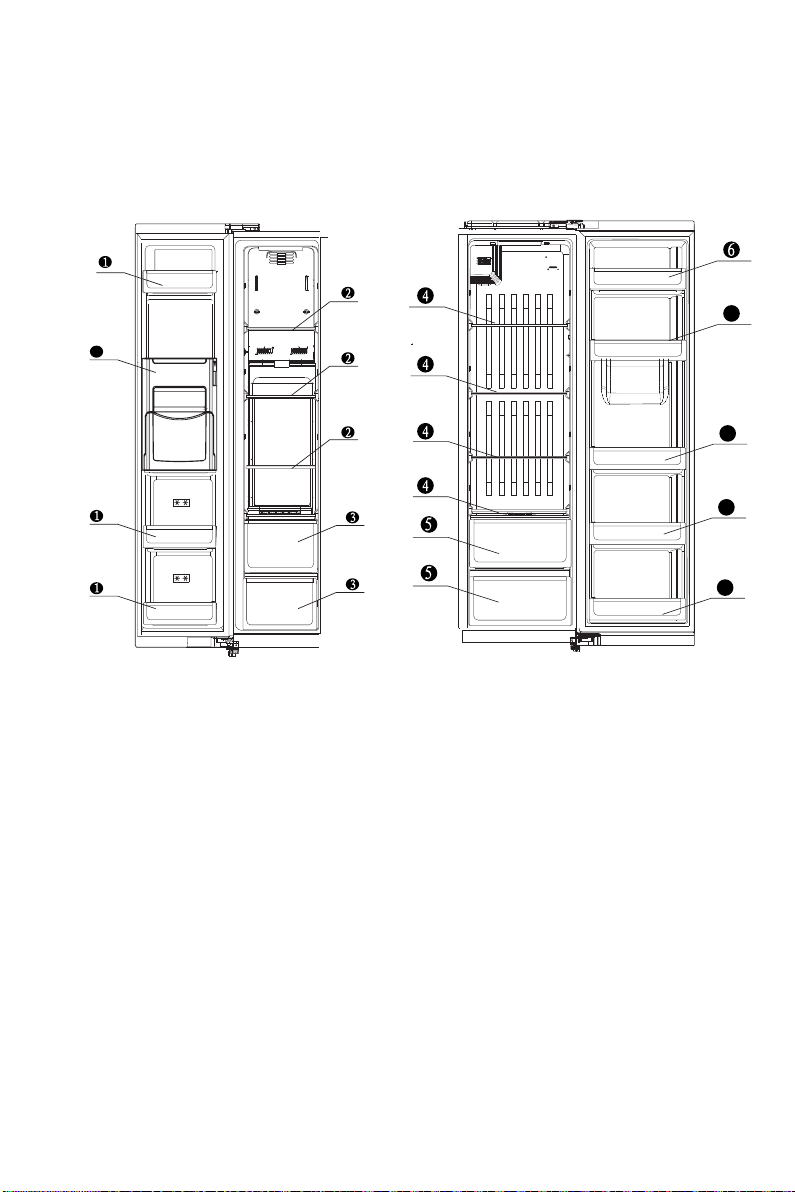

1. Freezer Door Rack 4. Refrigerator Glass Shelf
2. Freezer Glass Shelf 5. Vegetable Crisper
3. Freezer Compartment Drawer 6. Refrigerator Door Rack
1
2
3
4
5
6
10
Freezer Compartment Refrigerator Compartment
1. Freezer Door Rack 4. Refrigerator Glass Shelf
2. Freezer Glass Shelf 5. Vegetable Crisper
3. Freezer Storage Drawer 6. Door Rack
9. In-door Easy Twist Ice Maker 7. Water Tank (Dispenser)
8. Large Door Rack
7
8
8
8
9
3.2 Functions
A 1 2 B
MODE LOCK/UNLOCK
HOLD3S UNLOCK
C 3 4 5 6 D
&
$
$
11
1
2
•
•
•
•
•
•
•
3.3. On-door ice making
o
13
3.2
4. Maintenance and care of the appliance
4.1 Overall cleaning
( A
4.2 Cleaning of door tray
1
4
WATER TANK & DISPENSER MAINTENANCE
Every three (3) months, follow the steps below to maintain the water tank and dispenser. NOTE:
If detergent is used to clean any part of the dispenser or water tank, flush the system five (5) or
six (6) times by filling the water tank and empty through the dispenser to remove any
residue that could remain before use.
1) Completely empty the water tank.
2) Remove the water tank by gently pulling forward slightly then lifting
away at a 45o angle (refer to image on the right). Be careful when
disconnecting from the dispenser valve.
3) Clean the water tank and wipe the dispenser valve.
4) Allow the water tank and dispenser valve to dry.
5) Replace the water tank by sliding downward into place
and gently push back into place. Ensure the water tank is aligned with
the dispenser valve and is flush against the refrigerator door.
6) Flush the water dispenser five (5) or six (6) times by filling and empty
the water tank through the dispenser before use.

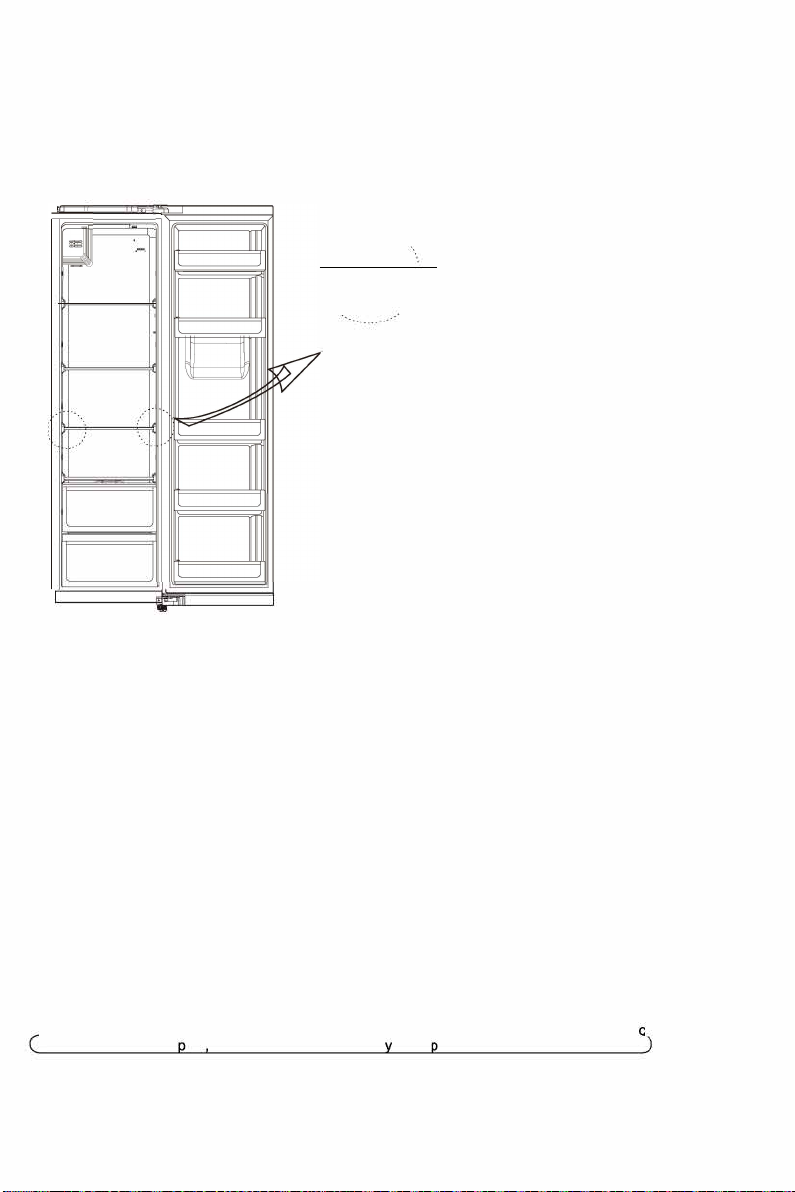

4.3 Cleaning of Glass shelf
. �,
4.4 Defrosting
4.5 Out of operation
°
A
1
5
5 Trouble shooting
-
1
6
6. Repairs, service & warranty
It is hazardous for anyone installing, removing, altering, repairing,
servicing, testing or certifying the gas system of a gas device (i.e.
charging, discharging or breaking into the refrigeration system that uses
hydrocarbon refrigerants).
Only an Authorised Service Person can carry out servicing or repairs to
this appliance. In Queensland the authorised person must hold a Gas
Work Authorisation for hydrocarbon refrigerants, before carrying out
servicing or repairs which involve the removal of covers.
Individuals will need to hold appropriate refrigeration/air conditioning
competencies and also training in hydrocarbon refrigerants. This type of
authorisation is provided to individuals only.
IF SERVICE IS REQUIRED:
If you have a problem, and the problem persists after you have made the
checks mentioned in this manual, contact:
TECO Australia’s Service on 1300 660 037 (8:30am-4pm Mon~Fri AEST)
Service Email: [email protected]
Spare Parts Email: [email protected]
For warranty details please visit www.teco.com.au
16
