TECO TFF536WNMATEBF User manual

USER’S MANUAL
DC INVERTER FROST FREE
REFRIGERATOR
Models : TFF536WNMA
TFF536SNMA
TFF542WNTA
TFF542SNTA
To ensure proper use of the appliance and your safety, please read the
following user manual completely before use.
Made By TECO Taiwan
5
YEAR
W
A
R
R
A
N
T
Y
W
A
R
R
A
N
T
Y

2
Thank you for purchasing our product and thank you for placing your
confidence in us.
Read this manual carefully before use. Follow instructions and
keep the manual for future reference.
Follow the operating instructions and safety notices in this manual.
If any trouble arise, do not attempt to fix it yourself. Please contact
TECO service on 1300 660 037 (refer to Page 18).
This refrigerator is designed and approved for use with flammable
R600a refrigerant.
The appliance is specifically constructed for domestic
use and is therefore suitable for the refrigeration and storage
of fresh and frozen foods and the production of ice-cubes.
The appliance has not been designed or manufactured for
professional use. TECO declines all responsibility for damage
deriving from improper use of the appliance. The refrigerator
has undergone the necessary tests on the tightness of the
refrigeration circuit and complies with the safety regulations
for electrical appliances.
All images, illustrations and photos contained in this manual are for
illustration purposes only and may differ from your appliance.
WARNING ICON
This symbol indicates information concerning your personal
safety
CAUTION ICON
This symbol indicates information on how to avoid damaging
the appliance
FLAMMABLE ICON
R600a WARNING LABEL
CAUTION
WARNING
R600a

3
TABLE OF CONTENTS
Safety Information.....................................................
Name of Parts and Usage (TFF536WNMA/TFF536SNMA)
Name of Parts and Usage (TFF542WNTA/TFF542SNTA)
Packing List ..............................................................
Transporting the Appliance & Installation .................
Operating Instructions ..............................................
Temperature Settings ...............................................
Energy Saving Tips ..................................................
Maintenance ......................................... ..................
Disconnection of the Appliance ...............................
Troubleshooting ......................................................
Repairs, Service & Warranty ...................................
Specifications ......................................................
4 - 5
6
7
8
9
10 - 12
10
12
13 - 15
16
16 - 17
18
19
SPECIAL FEATURES
◊DC Inverter Compressor ◊SOFTKEY Temp. Control
◊Touch Control Handle ◊Quick Freeze Function
◊Quiet Operation ◊Dynamic Airflow Cooling
◊LED Lighting ◊Antibacterial & Antifungal Gasket
◊Twist Ice Cube Maker ◊Silver NANO Antibacterial
◊Independantly Controlled Chiller Deodorizing Filter
Compartment
◊Large Capacity Vegetable Drawer (TFF536 series only)
◊Far Infrared Preservation (TFF536 series only)

4
R600a Isobutane Refrigerant
Hydrocarbon refrigerants have excellent refrigerant
properties and minimal low global warming potential and
no ozone depletion potential.
This appliance contains a small quantity of flammable, non-
synthetic R600a refrigerant:
Hydrocarbon refrigerants cannot be ‘retrofitted’ to the appliance
that has not been designed and approved to use that type of
refrigerant.
Ensure that the tubing of the refrigerant circuit is not damaged
during transportation and installation.
Leaking refrigerant may cause eye injuries or could ignite.
The room for installing the appliance must be at least 1m3per 8g
of refrigerant. The amount of refrigerant in the appliance can be
found on the rating plate attached to the appliance.
Risk of fire
If the refrigerant circuit should become damaged. Avoid open
flames and sources of ignition. Disconnect the appliance from the
mains power. Thoroughly ventilate the room in which the
appliance is situated for several minutes.
SAFETY INFORMATION
• The refrigerator is designed to operate on a single phase power
supply within a voltage range of 220~240V/50Hz.
• The refrigeration system contains refrigerant. Do not allow any
sharp objects to come in contact with the refrigerant system to
avoid damage the refrigerant circuit.
• This product is for indoor use only.
• Do not place electrical items or cooking equipment nearby.
Keep away from substances which could cause ignition and good
ventilation shall be always maintained.
• Do not place objects on top of the appliance which are magnetic,
heavy or filled with water.
• If the supply cord is damaged, it must be replaced by authorised
TECO service personal, service agent or similarly qualified persons
in order to avoid a hazard.
• Do not store flammable, explosive, volatile and highly corrosive
materials in the refrigerator. Containers with flammable gases or
liquids can leak at low temperature. There is a risk of explosion or fire.
WARNING
WARNING

5
• Do not splash water on the appliance. It may cause malfunction or
electric shock.
• Always switch off and unplug appliance before cleaning.
• This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of perience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
• WARNING: Keep ventilation openings, in the appliance enclosure or in
the built-in structure, clear of obstruction.
• WARNING: Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the
manufacturer.
• WARNING: Do not damage the refrigerant circuit.
• WARNING: Do not use electrical appliances inside the food storage
compartments of the appliance.
• For appliances which use flammable insulation blowing gases, Please
keep the products away from the fire or similar glowing substance before
you dispose of the refrigerator.
• This appliance is intended to be used in household and similar
aplications such as:
- staff kitchen areas in shops, offices and other working environments;
- farm houses and by clients in hotels, motels and other residential type
environments;
- bed and breakfast type environments;
- catering and similar non-retail applications..
Safety of children
• Young children should be supervised to ensure that they do not
play with the appliance.
• Packing (e.g. wraps, polystyrene etc.) can be dangerous
for children. There is a risk of suffocation. Keep packaging
materials away from children.
• Contact your local authorities for correct method of disposal.
Dispose of all packaging in a responsible manner in accordance
with local regulations.
Dispose of old appliances in accordance with local regulations.
Remove the doors, cut off the main cable, break or remove
spring or bolt catches if fixed to prevent children getting trapped
or involve themselves in other dangers.
WARNING

6
NAME OF PARTS AND USAGE
Models: TFF536WNMA / TFF536SNMA
1. Freezer Section Light Switch 11. Storage Tray
2. Freezer LED Light 12. Vegetable Drawer (Approx. 8oC)
3. Antibacterial Deodorizing Filter 13. Vegetable Crisper
4. Freezer Tempered Glass Shelf 14. Adjustable Feet
5. Twist Ice Cube Maker 15. Freezer Door Rack
6. Chill Compartment & Temp. Control 16. Egg Tray
7. Refrigerator Temp. Control 17. Refrigerator Door Rack
8. Refrigerator Tempered Glass Shelf 18. Refrigerator Light Switch
9. Refrigerator LED Light 19. 2L Bottle Rack
10. Far Infrared Preservation Tray
1
2
4
3
5
7
8
9
10
11
12
13
6
14
15
16
17
18
17
19

7

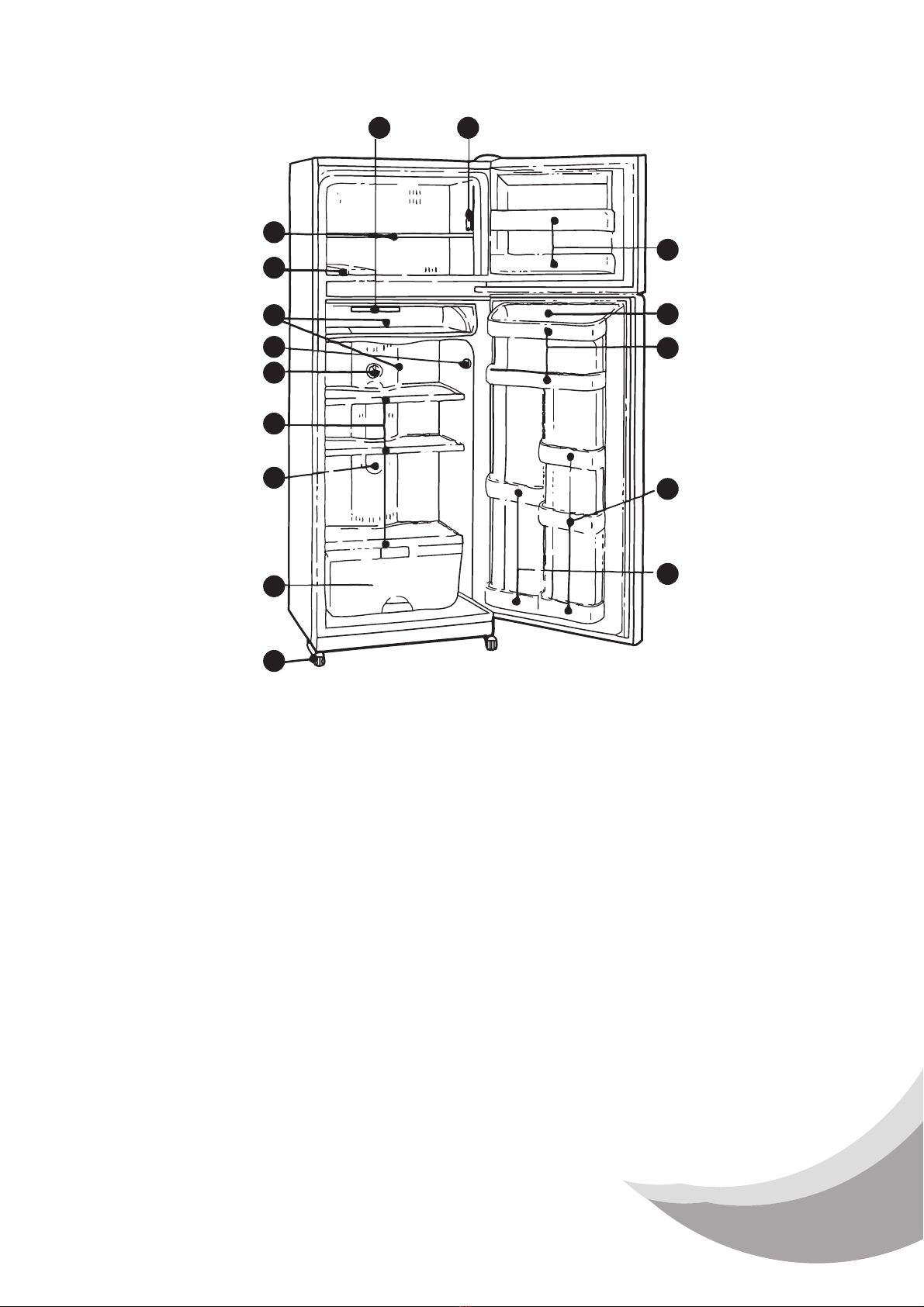

Models: TFF542WNTA / TFF542SNTA
1. Freezer Fan Switch 8. Refrigerator Section Shelves
2. Antibacterial Deodorizing Filter 9. Refrigerator LED Light
3. Freezer Section Shelf 10. Vegetable Crisper
4. Twist Ice Cube Maker 11. Adjustable Feet
5. Chill Compartment & Temp. Control 12. Freezer Door Racks
6. LED Light Switch 13. Egg Tray
7. Refrigerator Section Temp. Control 14. Refrigerator Door Rack
15. Refrigerator Door Rack (Left)
The refrigerator you purchased is subject to continuous improvement,
which may not be completely consistent with the manual, however, the
functions and operating methods will not change.
If you use the refrigerator for the first time, remove the adhesive tapes
from all surfaces, drawers, shelves, trays, etc.
Do not pull or push the drawers and shelves forcefully during use as this
may result in damage to the appliance.
3
21
4
5
6
7
8
9
10
11
15
14
14
13
12

8
PACKING LIST
Check the packing list that all items have been included.
Note: Product specifications are subject to change without prior notice.
Item
User’s Manual
Warranty
Information Sheet
1 Copy
1 Copy
2
1
Part No.

9
TRANSPORTING THE APPLIANCE &
INSTALLATION
The appliance must be transported only in a vertical position. The packing
must be intact during the transportation.
When unpacking and re-packing the appliance, please memorise the
position of each accessory of the appliance when unpacking it. When
re-packing the appliance for transportation, ensure all accessories are
secured before transportation.
Do not lift or pull the doors during transportation.

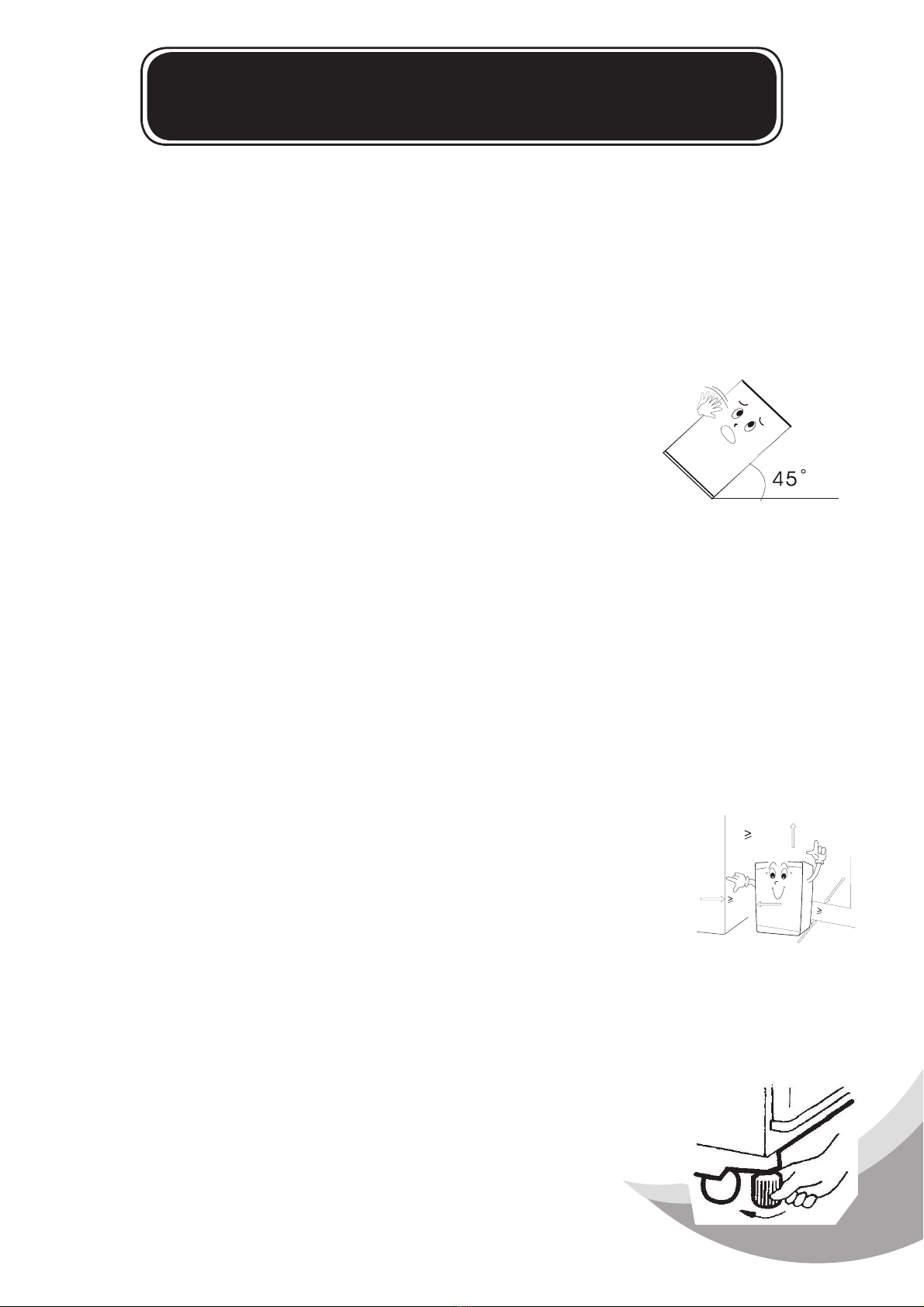

When moving the appliance, do not tilt >45 degrees
(the angle of the vertical direction). Please avoid strong
vibration and impacts that could cause damage to the appliance.
The refrigerator should be located on a firm and flat surface. An uneven
surface may cause excess operating noise or vibration.
(a) The noise may be increased if the floor is not firm.
(b) If the appliance is to be positioned on carpet flooring and heat
emitted from the appliance is a concern, place a solid sheet
under the appliance.
Choose a location which is not exposed to sunlight, high temperature or
humid, as humidity may cause staining or damage.
It is recommended a clearance of at least 10mm away
from objects and walls on both sides and back. Ensure the
clearance above the appliance is not less than 200mm and
160° clear for the doors to swing open.
If the appliance is unstable, rotating either of the front two legs in a
clockwise direction will raise the appliance.
When adjusting the front legs, ensure the appliance
slopes backwards slightly to keep the door closed.
Remove all internal packaging before operating.
●
●
●
●
●
●
●
●
●
●
200mm
10mm
10mm

10
●
●
●
●
OPERATING INSTRUCTIONS
Before first use, let the refrigerator stand for 2 hours before connecting the
power. Leave 4 to 5 hours after connecting power before placing fresh or
frozen food into the refrigerator.

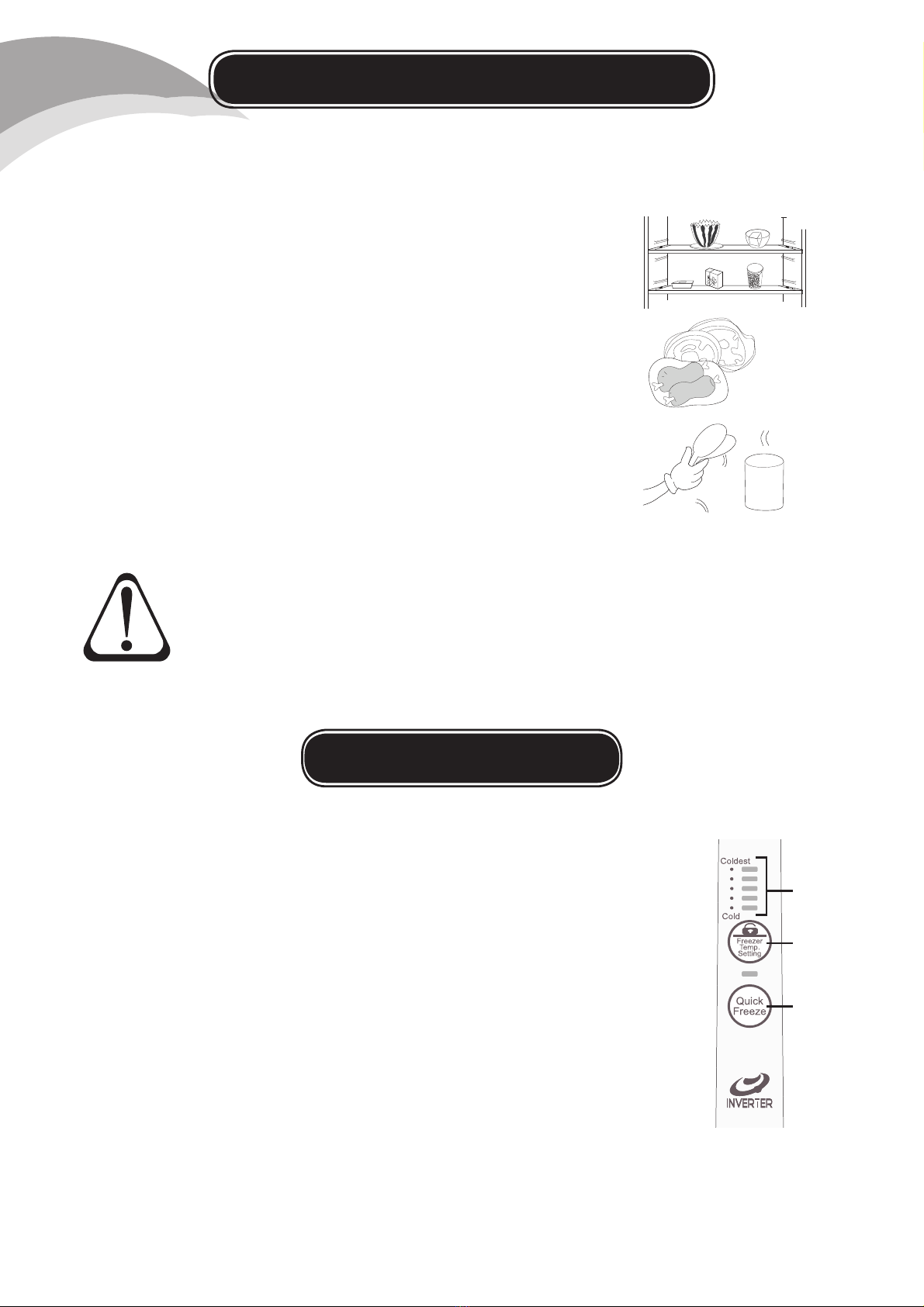

PLACEMENT OF FOOD
There should always be some space between
items inside for air circulation.
Food should be kept in sealed packaging to
avoid becoming dry or spoilt.
Hot food should be cooled down before placing
into the appliance. Otherwise, the interior
temperature and power consumption will increase.
Reduce opening the door frequently.
This will increase the appliance efficiency and reduce
power consumption.
Do not use any electronic equipment inside the appliance.
Do not store objects which are costly or subject to temperature
variations. e.g. medication or chemicals.
Do not adjust shelving once food has been placed on them.
TEMP. SETTINGS
Controlling the temperature of the refrigerator and freezer compartments,
locking and unlocking the panel and quick
freeze functions are set by the control panel. Refer to
the descriptions below.
Freezer Door Handle Controls:
1) Temperature Setting Indicator
2) Panel Unlock / Freezer Temperature Setting Button
3) Quick Freeze Button
LED Display:
The LED display (1) shows the currently set temperature.
The five LED lights represent the freezer temperature using
a scale from “COLD“ at the bottom (minimum setting) and “COLDEST“ at
the top (maximum setting).
WARNING
1
2
3

11
FREEZER TEMP. SETTING
Press the Freezer Temp. Setting button (2) gently to cycle through the
freezer temperature settings. Each gentle press of the button will be
displayed as a LED indicator (1). Each gentle press of the button will
adjust the temperature setting between COLD (min.) and COLDEST
(max.).
PANEL LOCK / UNLOCK
The panel will automatically lock after no button is pressed for at least
6 seconds. To unlock, press and hold the PANEL UNLOCK button for at
least 2 seconds. Once the panel is locked, you must UNLOCK the panel
before restoring button functionality.
QUICK FREEZE
Press the QUICK FREEZE button while the panel is unlocked. The Quick
Freeze indicator will be displayed confirming the fuction is active. The
freezer will run in this mode for approx. 3 hours and then automatically
return to normal function. Quick freeze is used to rapidly cool the
freezer section down. To disable this function, press the QUICK FREEZE
button. The Quick Freeze indicator will no longer be illuminated,
confirming the function is no longer
active.
REFRIGERATOR TEMP. SETTING
To adjust the temperature of the refrigerator
section, locate the temperature control at the
rear of the fresh food section. By default, the
temperature is set to “Normal“.
Turning the control to the left or right will decrease
(COOL) or increase (COOLER) the internal
temperature. Refer to images on right.
Note: Prolonged use at the COOLER (Max.)
setting may cause food to freeze or frost to form.
CHILL ZONE TEMP. SETTING
To adjust the temperature of the Chill Zone, locate
the temperature slider near to the refrigerator temp.
setting at the rear of the fresh food compartment. Slide
the control up (min.) or down (max.).
COOLCOOLER
Min.
COOLCOOLER
Max.
CHILL
CHILL ZONE
CHILLED
SUPER CHILL

12

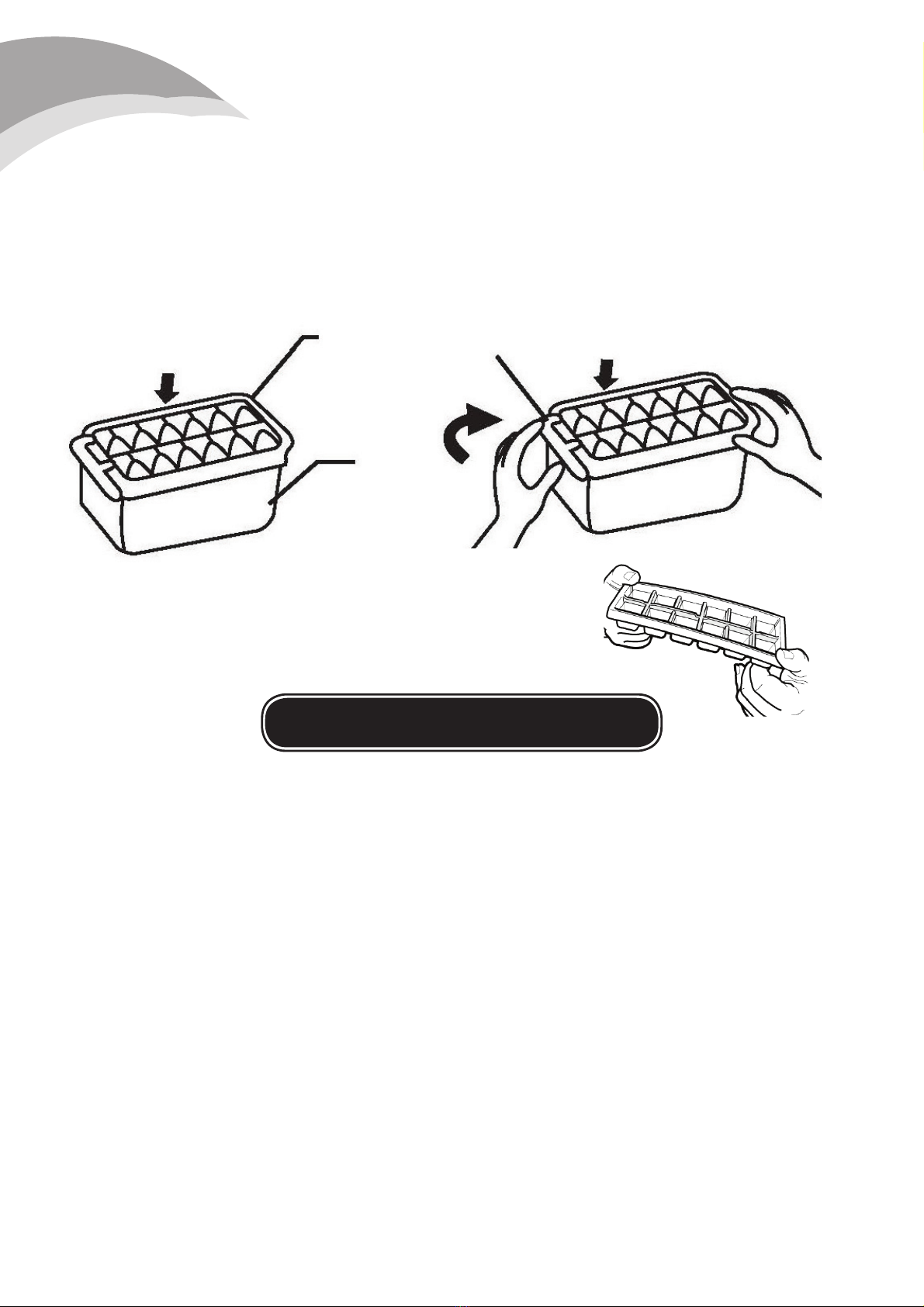

ICE MAKING
To make ice cubes, fill the twist ice cube maker using a measuring cup
(not supplied) with clean drinking water (be careful not to spill). To remove
ice cubes easily, twist the tray in the ice cube maker. (If you use the twist
ice maker, please be careful opening and closing the freezer door until the
water has frozen completely). Alternatively, fill an ice tray and place in the
freezer section. Run water on the tray before gently twisting and inverting
the tray. Twist ice
cube maker
Ice storage
container
ENERGY SAVING TIPS
Adjust the temperature control to a setting that is acceptable for the
storage of the food. This will reduce the power consumption.
Only open the door when required and ensure all doors are closed
securely. Frequently opening or doors left open will increase power
consumption.
To maintain good air circulation, keep the shelves and crisper of the
refrigerator as supplied, and do not block air outlets.

13
MAINTENANCE
The appliance should be maintained and cleaned frequently. For your
safety, unplug the appliance from the mains power source before
performing any maintenance.
1.Interior and exterior maintenance
Clean the interior of the appliance with clean water and wipe it dry
with a piece of dry cloth.
Cleansers such as soap powder, abrasive cleaning powder, alkali
cleansers, chemical cloth, thinners, alcohol, acid petroleum products
and hot water should not be used to clean the refrigerator as they
may damage the painted cover and plastics.
2. Smearing can age the interior plastic components, so remove it as soon
as possible.
3. Wipe the door gasket clean, it is easy to damage the door gaskets if
polluted by stains, e.g. oil, sauce, etc.
4. The replacement of interior light
The interior light is LED and should not be replaced. If the interior light
stops working, please contact support. Refer to page 18 for more
information.
5. Empty the drip tray
Do not attempt to remove the drip tray from the rear of the refrigerator.
Be careful not to bump the refrigeration tubing. The tray may have water
in it, be careful not to spill it while removing any water in the tray. This
should be carried out at least once a year. Use a sponge or towel to
soak up the water from the drip tray into a bucket. Discard the water
appropriately.
6. Please check the points below after maintenance:
1) Is there any damage or loss of the power lead?
2) Can the power plug be inserted into the power socket correctly?
3)Is the power plug and/or lead heating up?

14
COMPARTMENT, DRAWER & RACK MAINTENANCE
Please be careful when handling and removing comparments, drawers
and racks. Follow the steps below to remove, clean and replace each of
the refrigerator items.

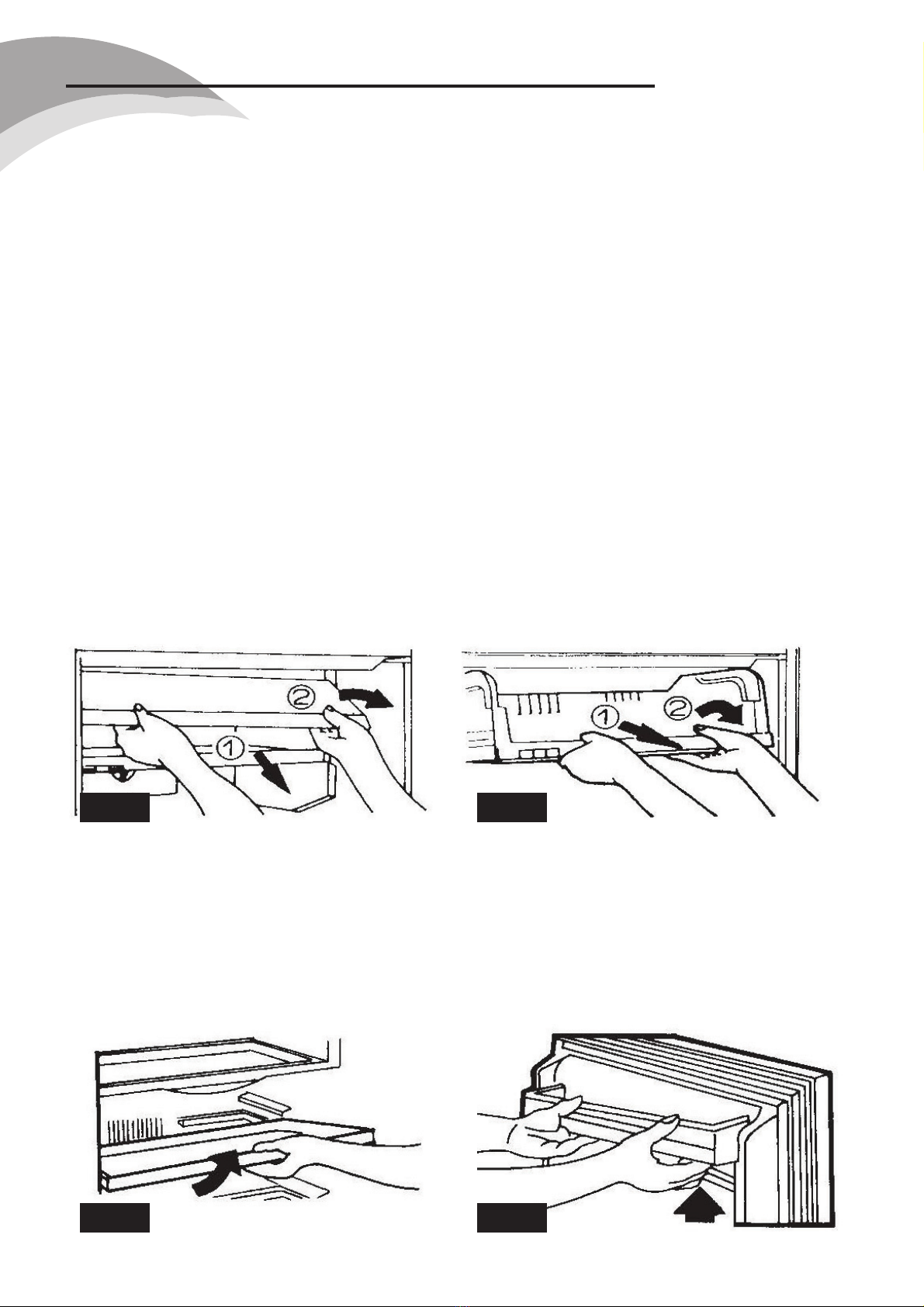

CHILL ZONE
It is necessary to remove the chill zone cover before removing the drawer.
Pull the cover out while tilting up on the left side. Continue to pull the cover
out gently to remove completely. Refer to Fig. 1 below.
Once the cover is removed, the chill zone campartment can be removed
by gently pulling the compartment forward until fully extended. Lift the
drawer slightly while continuing to pull forward. The drawer should lift past
the mechanisim keeping it on the drawer rail. Remove the compartment
and clean the drawer and cover thoroughly. Alow to dry completely before
returning to original position.
To replace, first install the chill zone compartment. To do so, install by
tilting the drawer back and into the rails. Once the rear of the drawer
is correctly on the rail, lower and slide the chill zone drawer back into
position.
Replace the chill zone lid by tilting to the left and sliding into position.
Fig. 3
Fig. 1
Fig. 4
Fig. 2
GLASS SHELVES & DOOR RACKS
To remove glass shelves for cleaning, pull the shelf out as far as possible
and then lift slightly. The shelf should lift away easily. (Refer to Fig. 3).
Clean the shelf completely, alow to dry before replacing.
To remove the door racks, grasp the rack with both hands and gently lift.
Once removed, clean and alow to dry before replacing. (Refer to Fig. 4).

15
VEGETABLE CRISPER, DRAWERS & TRAYS
To remove the vegetable crisper, gently slide the crisper out and over the
stopper. The crisper can now be lifted away for cleaning. Refer to Fig. 5
below.
Fig. 5

16
CAUTION
DISCONNECTION OF THE APPLIANCE
If a power failure occurs, even in summer, the refrigerator could store food
normally for some time.
1, Power failure
During a power failure, do not put additional food in the appliance and
reduce opening the door frequently.
Place several ice cubes into a container if power failure is anticipated
beforehand, and place it in the top of the fridge.
2, Power failure during vacation
Before departure of a short vacation, remove any items that could spoil
if a power failure occurs. Ensure the door is closed firmly.
If going on a long vacation, remove all items, clean and wipe dry the
internal of the appliance, prior to disconnecting the power and leave the
door open.
3, Storage of appliance
If the refrigerator will be stopped for a long period of time (storage),
remove all items, clean and wipe dry the internal of the appliance,
unplug the appliance from the power outlet. The door should be kept
open in order to prevent unpleasant odours.
Unplugging the appliance from the power outlet, please
leave at least 5 minutes before reconnection.
TROUBLESHOOTING
The following cases are not malfunctions:
1. Moisture may form as condensation on the outside of the appliance
during humid conditions. To remove excess moisture, wipe clean.
2. The flow of refrigerant through the pipeline coil could cause gurgling,
similar to water boiling. This is the normal function of the appliance.
3. It is normal that the sides of the appliance will get warm as a result of
the refrigeration system operation.
4. The appliance operation could cause electrical interference to electrical
equipment.
SYMPTOM: The refrigerator does not work.
SUGGESTION: It may not be connected to the power supply (plug, power
failure or blown fuse) and switched on. Check that the temperature dial is
not set to the minimum position.

17
SYMPTOM: The refrigerator does not work efficiently as expected.
SUGGESTION: It may be caused by heavy frost, warm temperature
setting, frequently opening the door or low voltage.
SYMPTOM: It makes an unusual noise.
SUGGESTION: It may be caused by an unbalanced appliance or unstable
surface, bottles are incorrectly placed and rattling, vibration from an object
on top of, behind or beside the appliance.
SYMPTOM: The compressor keeps working for a long period.
SUGGESTION: The environment temperature may be too high. The doors
may be opened frequently or they are left open. The temperature setting
may increase the working time of the compressor. Large amounts of warm
food recently placed in the appliance may also cause this symptom.
SYMPTOM: Unpleasant odours.
SUGGESTION: Interior may need cleaning. Some foods produce strong
odours, some containers can also cause odours. Food should be packed
tightly before being placed inside the appliance. Check if any food has
spoilt in the appliance.
SYMPTOM: Heavy frost occurs in the freezer compartment.
SUGGESTION: Make sure the door is correctly closed and the seal is not
obstructed.
SYMPTOM: Refrigerator temperature is too cold.
SUGGESTION: Check the position of the temperature dial.
ERROR CODES Located on Freezer Door Temp. Control (see Page 10)
DISPLAY DESCRIPTION
LED5 & 4 flash Communication error
LED5 & 3 flash EPROM error
LED5 flash Freezer sensor error
LED4 flash Defrost sensor error
LED2 flash Compressor start error
LED1 flash Compressor run error
LED5
LED4
LED3
LED2
LED1

18
REPAIRS, SERVICE & WARRANTY
It is hazardous for anyone installing, removing, altering, repairing,
servicing, testing or certifying the gas system of a gas device (i.e.
charging, discharging or breaking into the refrigeration system that uses
hydrocarbon refrigerants).
Only an Authorised Service Person can carry out servicing or repairs to
this appliance. In Queensland the authorised person must hold a Gas
Work Authorisation for hydrocarbon refrigerants, before carrying out
servicing or repairs which involve the removal of covers.
Individuals will need to hold appropriate refrigeration/air conditioning
competencies and also training in hydrocarbon refrigerants. This type of
authorisation is provided to individuals only.
IF SERVICE IS REQUIRED:
If you have a problem, and the problem persists after you have made the
checks mentioned above, contact:
TECO Australia’s Service on 1300 660 037
For warranty details please visit www.teco.com.au
Complete and retain the following information:
Name of retailer: _________________________________
Date of purchase: ________________________________
Model No. : _____________________________________
Serial No. : _____________________________________
MFG code: _____________________________________
Please retain proof of purchase for warranty claims.

19
SPECIFICATIONS
Note: Product specifications are subject to change without prior notice.
For full specification information, please refer to the rating plate attached
to the appliance.
Model Number TFF536WNMATEBF
TFF536SNMATEBF
42
305
133
56
21
288
119
50
1730
730
807
91
Climate Class
Classication of
Installation and Use
Rated Total
Gross
Volume (L)
Rated Total
Storage
Volume (L)
Voltage
Frequency
Noise Level
Refrigerant Type
Ambient Operating
Temperature (oC)
Dimensions (mm)
IP Rating
Net Weight (Kg)
Chill
Fridge
Freezer
Drawer
Chill
Fridge
Freezer
Drawer
(V)
(Hz)
(dB)
Height
Width
Depth
TFF542WNTATEBF
TFF542SNTATEBF
42
367
133
-
21
343
119
-
1730
730
807
89
T
Group 5T
Indoor Use Only
220~240
50
32
R600a
43
IPX0

www.teco.com.au
Did you know?
TECO Australia’s product range also includes:
Top Load Clothes Washers
Front Load Clothes Washers
Twin Tub Clothes Washers
Auto Sensing Condenser and Vented Clothes Dryers
Refrigerators
Chest and Vertical Freezers
Bar Fridges
Dehumidifiers
Televisions
Air Curtains and Air Conditioners
Visit www.teco.com.au for our full range.
HBF-PV6
