TECO TFF278WNTAG User manual

TFF278WNTAG
TFF278SNTAG
TFF278BNTAG
REFRIGERATOR / FREEZER
User Manual

CONTENTS
Important Safety Instructions
Packing List
Product Overview
Installation Instructions
Reversing the Door
Operation Instructions
Temperature Settings
Maintenance
Defrost
Packing and Moving
Disconnecting the Appliance
LED Code Indications
Troubleshooting
Repair, Service & Warranty
Specifications
1
4
5
6
8
9
10
10
10
11
11
12
13
14
3

1
Important Safety Instructions
Warning:risk of fire / flammable materials.
• Thank you for purchasing our product and thank you for placing your
confidence in us.
• Read this manual carefully before use. Follow instructions and keep the
manual for future reference.
• Follow the operating instructions and safety notices in this manual.
• If any trouble arise, do not attempt to fix it yourself. Please contact TECO
service on 1300 660 037 (8:30am - 4pm Mon~Fri AEST).
• This refrigerator is designed and approved for use with flammable R600a
refrigerant.
• The appliance is specifically constructed for domestic use only. The appliance
has not been designed or manufactured for professional use. TECO declines
all responsibility for damage deriving from improper use of the appliance. The
refrigerator
has undergone the necessary tests on the tightness of the refrigeration circuit
and complies with the safety regulations
for electrical appliances.
• All images, illustrations and photos contained in this manual are for illustration
purposes only and may differ from your appliance.
Prohibition symbol
Warning symbol
Note symbol
This is a prohibition symbol.
Any incompliance with instructions marked with this
symbol may result in damage to the product or endanger
the personal safety of the user.
This is a warning symbol.
It is required to opera te in stric t observance of
instructions marked with this symbol; or otherwise
damage to the product or personal injury may be caused.
This is a cautioning symbol.
Instructions marked with this symbol require special
caution. Insufficient caution may result in slight or
moderate injury, or damage to the product.
•This appliance contains a small quantity of flammable, non-synthetic
R600a refrigerant.
•The room for installing the appliance must be at least
1m3 per 8g of refrigerant. The amount of refrigerant in
the appliance can be found on the rating plate attached
to the appliance.
•If the refrigerant circuit should become damaged. Avoid
open flames and sources of ignition. Disconnect
the appliance from the mains power. Thoroughly
ventilate the room in which the appliance is situated
for several minutes.

2
•The refrigerator is designed to operate on a single phase power
supply within a voltage range of 220~240V/50Hz.
•The refrigeration system contains refrigerant. Do not allow any
sharp objects to come in contact with the refrigerant system to
avoid damage the refrigerant circuit.
•This product is for indoor use only.
•Do not place electrical items or cooking equipment nearby. Keep away
from substances which could cause ignition and good
ventilation shall be always maintained.
•Do not place objects on top of the appliance which are magnetic,
heavy or filled with water.
•If the supply cord is damaged, it must be replaced by authorised TECO
service personal, service agent or similarly qualified persons in order to
avoid a hazard.
•Do not store flammable, explosive, volatile and highly corrosive
materials in the refrigerator. Containers with flammable gases or
liquids can leak at low temperature. There is a risk of explosion or fire.
•Do not splash water on the appliance. It may cause malfunction or electric
shock.
•Always switch off and unplug appliance before cleaning.
•Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
•Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the manufacturer.
•Do not use electrical appliances inside the food storage compartments
of the appliance.
•For appliances which use flammable insulation blowing gases, Please
keep the products away from the fire or similar glowing substance.
•This appliance is intended to be used in household and similar
applications such as:
ostaff kitchen areas in shops, offices and other working
environments;
ofarm houses and by clients in hotels, motels and other
residential type environments;
obed and breakfast type environments;
ocatering and similar non-retail applications.
•This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
•Young children should be supervised to ensure that they
do not play with the appliance.
•Packing (e.g. wraps, polystyrene etc.) can be dangerous
for children. There is a risk of suffocation. Keep
packaging materials away from children.

3
Refrigerant and cyclopentane foaming material used for the
refrigerator are flammable. Therefore, when the refrigerator is
scrapped, it shall be kept away from any fire source and be
recovered by a special recovering company with
corresponding qualification other than be disposed by
combustion, so as to prevent damage to the environment or
any other harm.
When the refrigerator is scrapped, disassemble the
doors, and remove gasket of door and shelves; put
the doors and shelves in a proper place, so as to
prevent trapping of any child.
Correct Disposal of this product：
This marking indicates that this product should not
be disposed with other household wastes. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to
promote the sustainable reuse of material resources. To
return your used device, please use the return and
collection systems or contact the retailer where the
product was purchased. They can take this product for
environmental safe recycling.
•Contact your local authorities for correct method of disposal.
Dispose of all packaging in a responsible manner in accordance
with local regulations.
Packing List
User Manual
Ice Cube Tray
Top Hinge Cover
Egg tray
1 Copy
1 Piece
1 Piece
1 Piece
2
3
4
1
No. Parts
Note: Product specifications are subject to change without prior notice.

•The refrigerator you purchased may be improved, which maybe not completely
consistent with the manual, However the functions and operating methods will
not change. Please feel free to use!
•If you use the refrigerator for the first time, remove the adhesive tapes of the
drawers, balconies, egg tray, and the drain tube plug.
•Do not pull or push the drawers and balconies fiercely during use in case of
damage.
•Don’t open the refrigerator door continually if it is in the normal working
situation.
•Keep the combination of drawers, baskets and shelves of the refrigerator is
consistent with its original standard.
1.Shelves
2.Wind tunnel knob
3.Lamp and temperature control button
4.Crisper glass cover
5.Vegetable crisper
6.Rod
7.Cola bar
8.Bottle protector
6
6
7
8
1
2
3
1
4
5
Product Overview
4

5
Precautions before installation:
Before installation or adjusting of accessories, it shall be
ensured that the refrigerator is disconnected from power.
Precautions shall be taken to prevent fall of the handle from causing
any personal injury.
Installation Instructions
• Before using the refrigerator for the first time, remove all of the packing
materials, including the foam base and adhesive tape holding accessories in
place; tear off the protective film on th e doors and the refrigerator body.
• The refrigerator should be located in a well-ventilated indoor place; the ground
shall be firm, flat surface that is strong enough to support the refrigerator when
it is fully loaded.
• Choose a location that is not exposed to direct sunlight, high temperatures,
heat sources such as a stove or radiator, or in a moist area. Do not choose a
location where the temperature will go below 12°C as this could cause the
refrigerator to not function properly.
•The top space of the refrigerator shall be greater
than 30cm, and the refrigerator should be placed
against a wall with a free distance more than 5cm
to facilitate heat dissipation. This allows for proper
air circulation. This appliance is intended to be free-
standing and should not be built-in or placed in a
recessed area.
•The refrigerator legs must be adjusted during
installation in order to function properly. The leveling
legs on the front corners can be adjusted by turning
clockwise to raise the appliance, and counter-
clockwise to lower it. Be sure to have the appliance
slope slightly backward to ensure that the door
closes tightly.
Adjusting procedures:
a. Turn the feet clockwise to raise the refrigerator;
b. Turn the feet counterclockwise to lower the
refrigerator;
c. Adjust the right and left feet based on the
procedures above to a horizontal level.

6

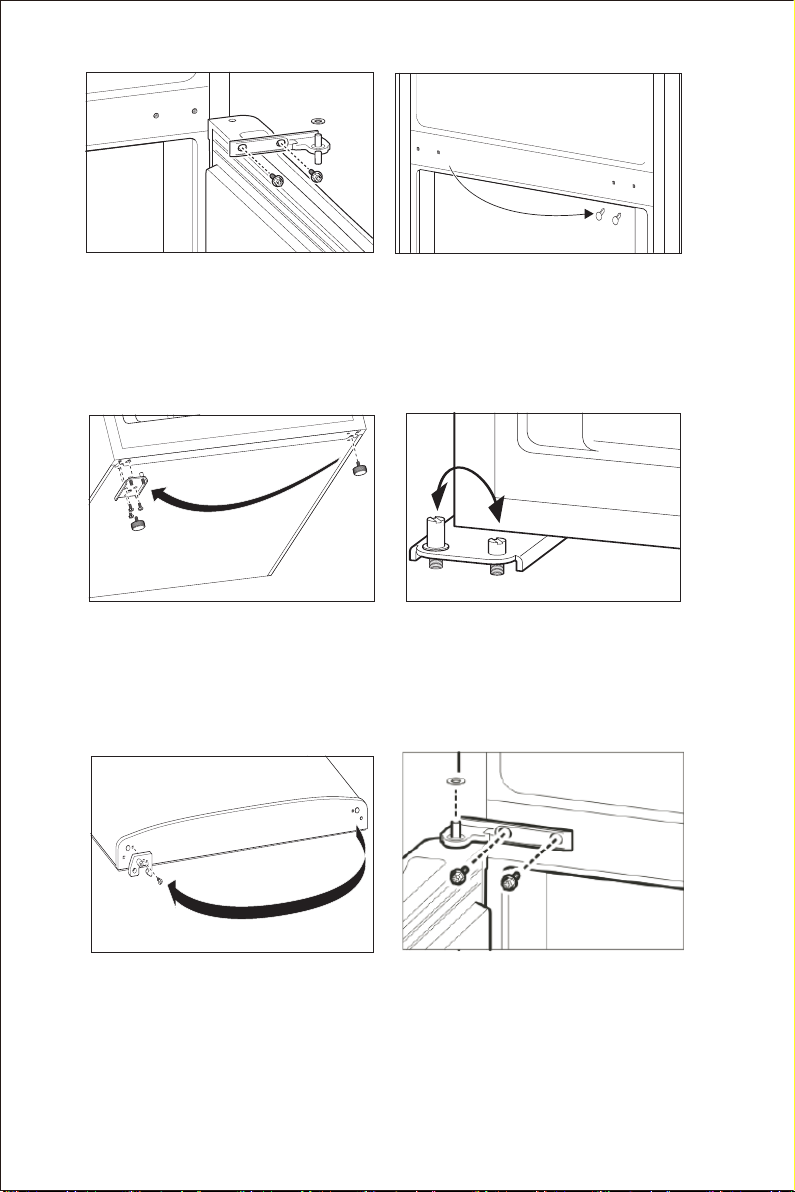

Reversing the Door
You can choose to open your refrigerator by the right side or the left one.
To change the way of opening, please follow the below instructions.
Important safety warning: before doing so please unplug and discinnect
the appliance.
1) Firstly, you need to check if the power connect or not.
2) Remove the protective covers with a Phillips screwdriver through the
back side. and save the protective covers for later use.
3) Take off the 3 shelf-tapping screws, and save them.
4) Push the top hinge forward, then uplift the freezer door until it is
separated from the cabinet completely.
5) Pry off the screw cover on the top left side of the refrigerator to
uncover the screw holes.
6) Replace screw cover on the top left side of the refrigerator to the
right top to cover the holes.

7
7) Open the refrigerator door. Unscrew the 2 middle hinge screws, remove
the middle hinge then uplift the refrigerator door until it is separated from
the cabinet completely.
8) Pry off and remove the screw caps from the left side of the middle beam
and cover the middle hinge screw holes on the right.
9) Carefully lay the machine against the wall. Remove the 2 fixed feet and
lower hinge screws and the lower hinge.
10) Install the lower hinge to the left side of the machine and install the feet.
11) Exchange the 2 bolts.
12) Remove the fixed hinge plate on the refrigerator door and install on the
other side.
13) Install the refrigerator door to the lower hinge and then install the middle
hinge to the door and reattach the screws.

8
15) Install the freezer door on to the middle hinge, and place the top hinge to
the freezer door. Line up the top hinge with the screw holes and reattach the
screws properly before place the protective cover over the top hinge.
NOTE: The picture above is for reference only. The actual configuration will
depend on the physical product.
14)Remove the right door limit block and install the left limit block to the
bottom of the freezer door.
Warning
Do not use any electronic equipment inside the appliance.
Do not store objects which are costly or subject to temperature variations.
e.g. medication or chemicals.
Food should be kept in sealed package to avoid becoming
dry or with odour.
3.Hot food should be cooled down before placing into the
appliance. Otherwise, interior temperature and electronic
consumption will increase.
.Reduce the frequency of door opening can efficiently low
down the electronic consumption.
Operation Instructions
PLACEMENT OF FOOD
1.There should always be some space between items inside for air circulation.
2.
4

9
Temperature Settings
Controlling the temperature of the refrigerator compartment can be set by the
control panel.
Refrigerator Temperature Controls:
1) Temp. Setting 1 - LED1 (Warmest)
2) Temp. Setting 2 - LED2
3) Temp. Setting 3 - LED3
4) Temp. Setting 4 - LED4
5) Temp. Setting 5 - LED5 (Coldest) SET Button
REFRIGERATOR CONTROL
The temperature of refrigerator can be controlled manually by the display.
However, the number shown on the display does not directly represent the
temperature. Instead, the larger the number is the lower the interior temperature
will be. Initially set the refrigerator control on the middle setting(number 3). If you
want to set the refrigerator temperature to a colder temperature, press the set
button until the state is on 4 or 5. Each time the set button is pressed, the state
increases by 1. When the state is in the highest state, press the button again and
return to the first state.
FREEZER CONTROL
If the freezer’s lower temperature is needed, please regulate the knob along the
“COLDER” direction;contrarily, regulate the knob along the “COLD” direction.
Note: Regulate the knob to set the freezer temperature as you desired. Always
wait 24 hours after any adjustment to reach the desired temperature.
NOTE: The picture above is for reference only. The actual configuration will
depend on the physical product.

10
Maintenance
The appliance should be maintained and cleaned frequently. For your safety, do
please pull the plug out of the socket before the cleaning.
Interior maintenance
Clean the interior of the appliance with clean water or neutral abluent. Scour it with
clean water and wipe it with a piece of dry cloth.
Maintenance of door gasket
It is easy to damage if the door gaskets are polluted by the stain like oil, sauce and
etc., so it is better to clean them carefully.
Outer maintenance
Wipe the dust with a piece of dry cloth ,clean it with neutral abluent if necessary.
Interior light
The refrigerator is fitted with several LED internal lights, that are not replaceable.
If the lights stop working, please contact TECO Service.
Empty the drip tray
Do not attempt to remove the drip tray from the rear of the refrigerator. Be
careful not to bump the refrigeration tubing. The tray may have water in it, be
careful not to spill it while removing any water in the tray . This should be carried
out at least once a year. Use a sponge or towel to soak up the water from the
drip tray into a bucket. Discard the water appropriately.
1.
2.
3.
4.
5.
Defrost of refrigerator will be executed automatically while product running, so
there is no requirement for manual defrost. The defrost water flows into the
vaporization plate and will be vaporized by the heat of compressor. So its drain
tube must be cleaned.
Defrost
Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the
manufacturer.
Packing and Moving
Unpack, repack and carry
Please memorize the position of each accessory of the appliance
when unpack it, repack the product and check it carefully before
transportation.
Do not lift or pull the door or the door handle during transportation.
When moving, the appliance can not be sloped over 45 degrees
(the angle to the vertical direction). Please avoid strong vibration
and hit.
1.
2.
3.

Disconnecting the Appliance
11
In a general condition, do not stop the appliance in case of affecting its
life. After unplugging the power, please leave at least 5 minutes
before resumption.
Discontinuation during power failure
After power failure, do not put additional food in the appliance and reduce the
frequency of door opening.Make several ices in a container if know the power
failure beforehand, and put it in the top of the fridge.
Discontinuation during vacation
Please fetch out the easy-rot food and the food in fridge before short vacation.
After confirmation, close the door firmly.If have a long vacation, please fetch out
all the food and cut off the power. After defrosting, clean up the liner of the
appliance and wipe it dry, and leave the door open.
Stop using
If the refrigerator may be stopped using for a long time, please unplug the outlet
and clean up the appliance. The door should be kept open in order to prevent
unpleasant smell caused by food leavings.
3.
1.
2.
After power failure, even in summer, the refrigerator can store food normally in
several hours.
LED Code Indications
Refrigeration Sensor Failure
1
2
3
4
Defrost Sensor Failure
Fan Failure
Overheating Failure
● ● ○ ○ ○
○●●○○
○ ○ ● ● ○
● ○ ○ ○ ○
○ ● ○ ○ ○
○ ○ ● ○ ○
○ ○ ○ ● ○
○○○○●
No Defect LED1-LED5 Description
Indicated LEDs will flash
intermittently at 0.5s
intervals.
One of Indicated LEDs will
flash intermittently at 0.5s
intervals.

Troubleshooting
Water pan overflows
There is too much food in the chamber or food stored contains
too much water,resulting in heavy defrosting.
The doors are not closed properly, resulting in frosting due to entry
of air and increased water due to defrosting.
Failed operation
Check whether the appliance is connected to power or whether the plug
is in well contact .
Check whether the voltage is too low.
Check whether there is a power failure or partial circuits have tripped.
Door seal fails to
be tight
Remove foreign matters on the door seal.
Heat the door seal and then cool it for restoration (or blow it with an
electrical drier or use a hot towel for heating).
Hot housing
Abnormal noise
Long operation of the refrigerator is normal in summer when the ambient
temperature is high.
It is not recommended having too much food in the appliance at the same time.
Food shall get cool before being put into the appliance.
The doors are opened too frequently.
Long-time operation
of the compressor
The door is stuck by food packages.
The refrigerator is tilted.
Doors cannot be
properly closed
Surface condensation
Condensation on the exterior surface and door seals of the refrigerator is
normal when the ambient humidity is too high. Just wipe the condensate
with a clean towel.
Buzz: The compressor may produce buzzes during operation, and the buzzes
are loud particularly upon start or stop. This is normal.
Creak: Refrigerant flowing inside of the appliance may produce creak, which
is normal.
Heat dissipation of the built-in condenser via the housing, which is normal.
When housing becomes hot due to high ambient temperature and
storage of too much food,it is recommended to provide sound ventilation
to facilitate heat dissipation.
Odor
Odorous foods shall be tightly wrapped.
Check whether there is any rotten food.
Clean the inside of the refrigerator.
Check whether the refrigerator is connected to power supply and whether the
illuminating light is damaged. (Any replacement of the LED lamps shall be made
by the authorised agent or similar qualified personal).
Light fails to get lit
Loud noise
Check whether the floor is level and whether the refrigerator is placed stably.
Check whether accessories are placed at proper locations.
12

Repairs, Service & Warranty
It is hazardous for anyone installing, removing, altering, repairing, servicing,
testing or certifying the gas system of a gas device (i.e. charging, discharging or
breaking into the refrigeration system that uses hydrocarbon refrigerants).
Only an Authorised Service Person can carry out servicing or repairs to this
appliance. In Queensland the authorised person must hold a Gas Work
Authorisation for hydrocarbon refrigerants, before carrying out servicing or
repairs which involve the removal of covers.
IF SERVICE IS REQUIRED:
If you have a problem, and the problem persists after you have made the
checks mentioned in this manual, contact:
TECO Australia’s Service on 1300 660 037 (8:30am - 4pm Mon~Fri AEST).
For warranty details please visit
www.teco.com.au
Service Email : [email protected]
Spare Parts : [email protected]
13

Specifications
NOTE: This product is subject to continuous improvement, specifications are
subject to change without prior notice. This product was tested in accordance
with Electrical safety of electrical appliances AS/NZS 60335, Energy
consumption and performance AS/NZS 4474.1 and Energy labeling and
minimum energy performance AS/NZS 4474.2.
E&OE
14
Climate class
Electric shock protection type
Capacity (L) Freezer
Refrigerator
Voltage (V)
Frequency (Hz)
Current (A)
Voice [dB(A)]
T
I
220-240
50
1.5
<45
210
68
Refrigerant R600a/40g
Freezer
Interior
o
temperature ( C)
Dimension (mm)
Width
Depth
Height
Refrigerator 0~8
599
653
1517
<-18
Model
TFF278WNTAG
TFF278SNTAG
TFF278BNTAG

Did you know?
TECO Australia's product range also includes:
Top Load Clothes Washers
Front Load Clothes Washers
Auto Sensing Vented Clothes Dryers
Heat Pump Clothes Dryer
Refrigerators
Chest and Vertical Freezers
Bar Fridges
Televisions
Air Curtains
Air Conditioners
Visit www.teco.com.au for our full range.

TECO
WARRANTY INFORMATION
TECO
.teco.com.au
GCB-V1
Teco's warranty information for the product purchased is available at www.teco.com.au.
A copy of the warranty may also be obtained by contacting Teco's Warranty and Service
Department on 1300 660 037 during business hours (Mon - Fri 8.30am - 4pm AEST).
To arrange for servicing of a Teco product, please contact our Warranty and Service
Department on 1300 660 037 during business hours (Mon - Fri 8.30am - 4pm AEST).
To assist in processing any warranty claim that you may have Teco recommends that you:
1. Complete the following information in relation to your purchase:
Name of retailer:
Name of owner:
Date of purchase:
Model No. :
Serial No. :
MFG code:
2. Retain proof of your purchase for any warranty claim. Ideally this proof of
purchase will be the tax invoice issued for your purchase.
3. Complete the following information in relation to the person that installed your Teco
appliance (if applicable):
Installer's name:
Telephone No.:
Licence No.:
TECO
.teco.com.au
JCB-V1 E&OE
