TECO TFF411WNBRM User manual

USER’S MANUAL
FROST FREE
SWITCHABLE / HYBRID
REFRIGERATOR or FREEZER
Models : TFF411WNBRM
TFF411WNBLM
TFF411SNBRM
TFF411SNBLM
To ensure proper use of the appliance and your safety, please read the
following user manual completely before use.

2
Thank you for purchasing our product and for placing your confidence
in us.
Read this manual carefully before use. Follow instructions and
keep this manual for future reference.
Follow the operation instructions and safety notices in this manual.
If any issue occur, do not attempt to fix it yourself. Please contact
TECO service on 1300 660 037 (8:30am - 4pm Mon~Fri AEST).
This refrigerator is designed and approved for use with R132a
refrigerant.
The appliance is specifically constructed for domestic use and is
therefore suitable for the refrigeration and storage of fresh and frozen
foods and the production of ice-cubes.
The appliance has not been designed or manufactured for professional
use. TECO declines all responsibility for damage deriving from improper
use of the appliance. The refrigerator has undergone the necessary
tests on the tightness of the refrigeration circuit and complies with the
safety regulations for electrical appliances.
All images, illustrations and photos contained in this manual are for
illustration purposes only and may differ from your appliance.
WARNING ICON
This symbol indicates information concerning your personal
safety
CAUTION ICON
This symbol indicates information on how to avoid damaging
the appliance
CAUTION
WARNING

3
TABLE OF CONTENTS
Safety Information.....................................................
Name of Parts and Usage ........................................
Packing List ..............................................................
Transporting the Appliance & Installation .................
Installing the Handle .................................................
Installing the Kick Panel ...........................................
Operating Instructions (Control Panel) .....................
Temperature Settings ...............................................
Energy Saving Tips ..................................................
Maintenance .............................................................
Disconnection of the Appliance ................................
Troubleshooting ......................................................
Specifications ...........................................................
Repairs, Service & Warranty ....................................
..
4 - 5
6
7
8
9
10
11
12
12
13 - 14
15
15 - 16
17
Back
cover
SPECIAL FEATURES
◊Frost Free
◊Internal Lighting
◊Electronic Temp. Control
◊Easily Switch Between Freezer and Refrigerator
◊Large Storage Baskets
◊Quick Freeze Function

4
SAFETY INFORMATION
• The refrigerator is designed to operate on a single phase power supply
within a voltage range of 220~240V/50Hz.
•The refrigeration system contains refrigerant. Do not allow any
sharp objects to come in contact with the refrigerant system to
avoid damage the refrigerant circuit.
•This product is for indoor use only.
•Do not place electrical items or cooking equipment nearby.
Keep away from substances which could cause ignition and good
ventilation shall be always maintained.
•Do not place objects on top of the appliance which are magnetic,
heavy or filled with water.
•If the supply cord is damaged, it must be replaced by authorised
TECO service personal, service agent or similarly qualified persons
in order to avoid a hazard.
•Do not store flammable, explosive, volatile and highly corrosive
materials in the refrigerator. Containers with flammable gases or
liquids can leak at low temperature. There is a risk of explosion or fire.
•Do not splash water on the appliance. It may cause malfunction or
electric shock.
•Always switch off and unplug appliance before cleaning.
•This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of perience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
•WARNING: Keep ventilation openings, in the appliance enclosure or in
the built-in structure, clear of obstruction.
•WARNING: Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the
manufacturer.
• WARNING: Do not damage the refrigerant circuit.
• WARNING: Do not use electrical appliances inside the food storage
compartments of the appliance.
• For appliances which use flammable insulation blowing gases, Please
keep the products away from the fire or similar glowing substance before
you dispose of the refrigerator.

5
• This appliance is intended to be used in household and similar
aplications such as:
- staff kitchen areas in shops, offices and other working environments;
- farm houses and by clients in hotels, motels and other residential type
environments;
- bed and breakfast type environments;
- catering and similar non-retail applications..
Safety of children
• Young children should be supervised to ensure that they do not
play with the appliance.
• Packing (e.g. wraps, polystyrene etc.) can be dangerous
for children. There is a risk of suffocation. Keep packaging
materials away from children.
• Contact your local authorities for correct method of disposal.
Dispose of all packaging in a responsible manner in accordance
with local regulations.
Dispose of old appliances in accordance with local regulations.
Remove the doors, cut off the main cable, break or remove
spring or bolt catches if fixed to prevent children getting trapped
or involve themselves in other dangers.
WARNING

6

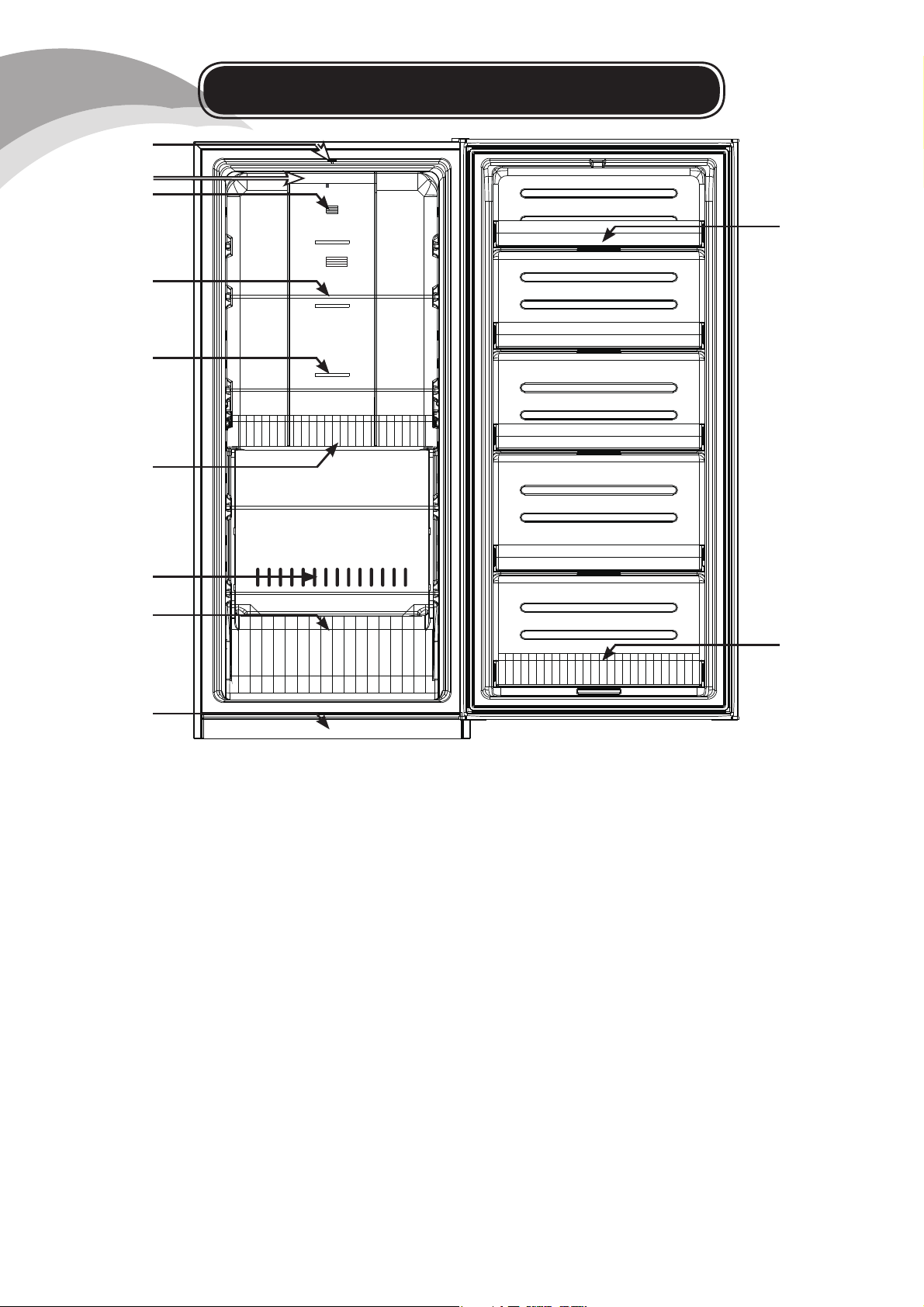

NAME OF PARTS AND USAGE
1. Internal Light Switch 6. Airflow Inlet
2. Internal Light Cover 7. Wire Drawer
3. Temperature Sensor 8. Door Rack(s)
4. Wire Shelve(s) 9. Wire Door Rack
5. Airflow Outlet 10. Kick Panel
The refrigerator you purchased is subject to continuous improvement,
which may not be completely consistent with the manual, however, the
functions and operating methods will not change.
If you use the refrigerator for the first time, remove the adhesive tapes
from all surfaces, drawers, shelves, trays, etc.
Do not pull or push the drawers and shelves forcefully during use as this
may result in damage to the appliance.
1
2
3
4
8
9
5
7
6
7
10

7
PACKING LIST
Check the packing list that all items have been included with you
Note: Product specifications are subject to change without prior notice.
Item
Kick Panel
Door Handle
Door Handle / Kick
Panel
User manual
Warranty
Information
1 piece
1 piece
1 kit
1 copy
1 copy
1
2
3
Qty.
Part No.
4
5

8
TRANSPORTING THE APPLIANCE &
INSTALLATION
The appliance must be transported only in a vertical position. The packing
must be intact during the transportation.
When unpacking and re-packing the appliance, please memorise the
position of each accessory of the appliance when unpacking it. When
re-packing the appliance for transportation, ensure all accessories are
secured before transportation.
Do not lift or pull the doors during transportation.

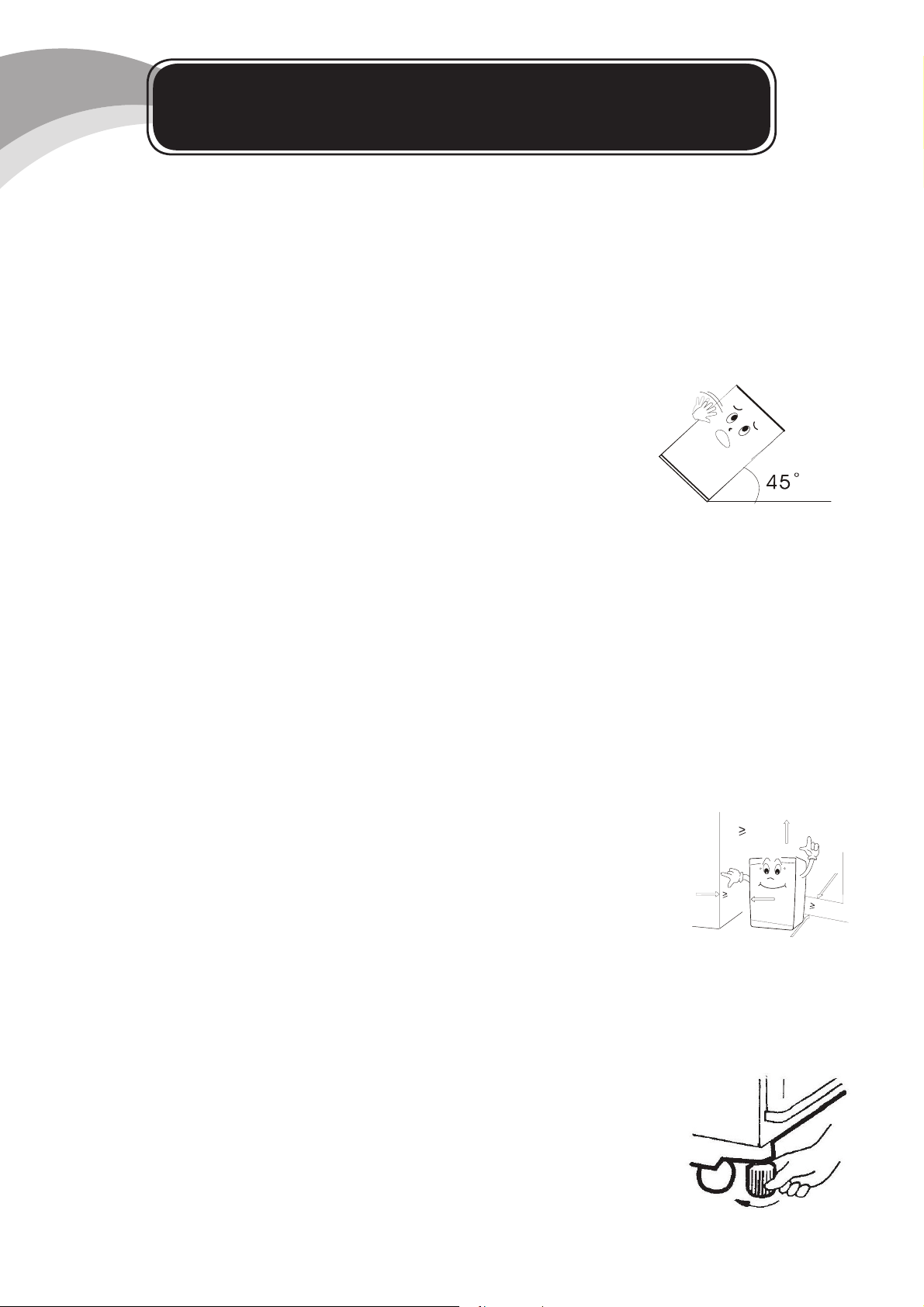

When moving the appliance, do not tilt >45 degrees
(the angle of the vertical direction). Please avoid strong
vibration and impacts that could cause damage to the appliance.
The refrigerator should be located on a firm and flat surface. An uneven
surface may cause excess operating noise or vibration.
(a) The noise may be increased if the floor is not firm.
(b) If the appliance is to be positioned on carpet flooring and heat
emitted from the appliance is a concern, place a solid sheet
under the appliance.
Choose a location which is not exposed to sunlight, high temperature or
humid, as humidity may cause staining or damage.
It is recommended a clearance of at least 50mm away
from objects and walls on both sides and back. Ensure the
clearance above the appliance is not less than 100mm and
160° clear for the doors to swing open.
If the appliance is unstable, rotating either of the front two legs in a
clockwise direction will raise the appliance.
When adjusting the front legs, ensure the appliance
slopes backwards slightly to keep the door closed.
Remove all internal packaging before operating.
●
●
●
●
●
●
●
●
●
●
100mm
50mm
50mm

9
DOOR HANDLE INSTALLATION
It is recommended the refrigerator be disconnected from the mains
power source before attempting to install the door handle. Please
be aware, this appliance is available with the handle attachment on
the right (THF411WNBLM/THF411SNBLM) or left (THF411WNBRM/
THF411SNBRM). Check the model you purchased to determine the
correct side to attach the handle.
1. Remove the allen key and two screws from the plastic bag supplied and
install them into the door holes. Install the top most screw, then repeat the
process for the bottom of the door handle.
2. Tighten the screws securely.
Hole
Screw
1
2
1
2
Install handle on this side for
THF411WNBRM or THF411SNBRM.
Install handle on
this side for
THF411WNBLM
THF411SNBLM.

10
INSTALLING THE KICK PANEL
Open the door and remove the necessary items to install the kick panel
(kick panel and screws). Refer to page 7.
Install the kick panel onto the bottom beam of the refrigerator. Refer to the
illustration below.
Remove the cover plate on the hinge
side.
Use the cover on the opposite side
of the hinge to level the kick panel.
Do not remove the cover on the
hinge side.
Install the kick panel using the supplied screws as illustrated below.
Cover plate
Screws
Kick panel

11
OPERATING INSTRUCTIONS
Before first use, let the refrigerator stand for 2 hours before connecting the
power. Leave 4 to 5 hours after connecting power before placing fresh or
frozen food into the refrigerator.
PLACEMENT OF FOOD
There should always be some space between
items inside for air circulation.
Food should be kept in sealed packaging to
avoid becoming dry or spoilt.
Hot food should be cooled down before placing
into the appliance. Otherwise, the interior
temperature and power consumption will increase.
Reduce opening the door frequently.
This will increase the appliance efficiency and reduce
power consumption.
Do not use any electronic equipment inside the appliance.
Do not store objects which are costly or subject to temperature
variations. e.g. medication or chemicals.
Do not adjust shelving once food has been placed on them.

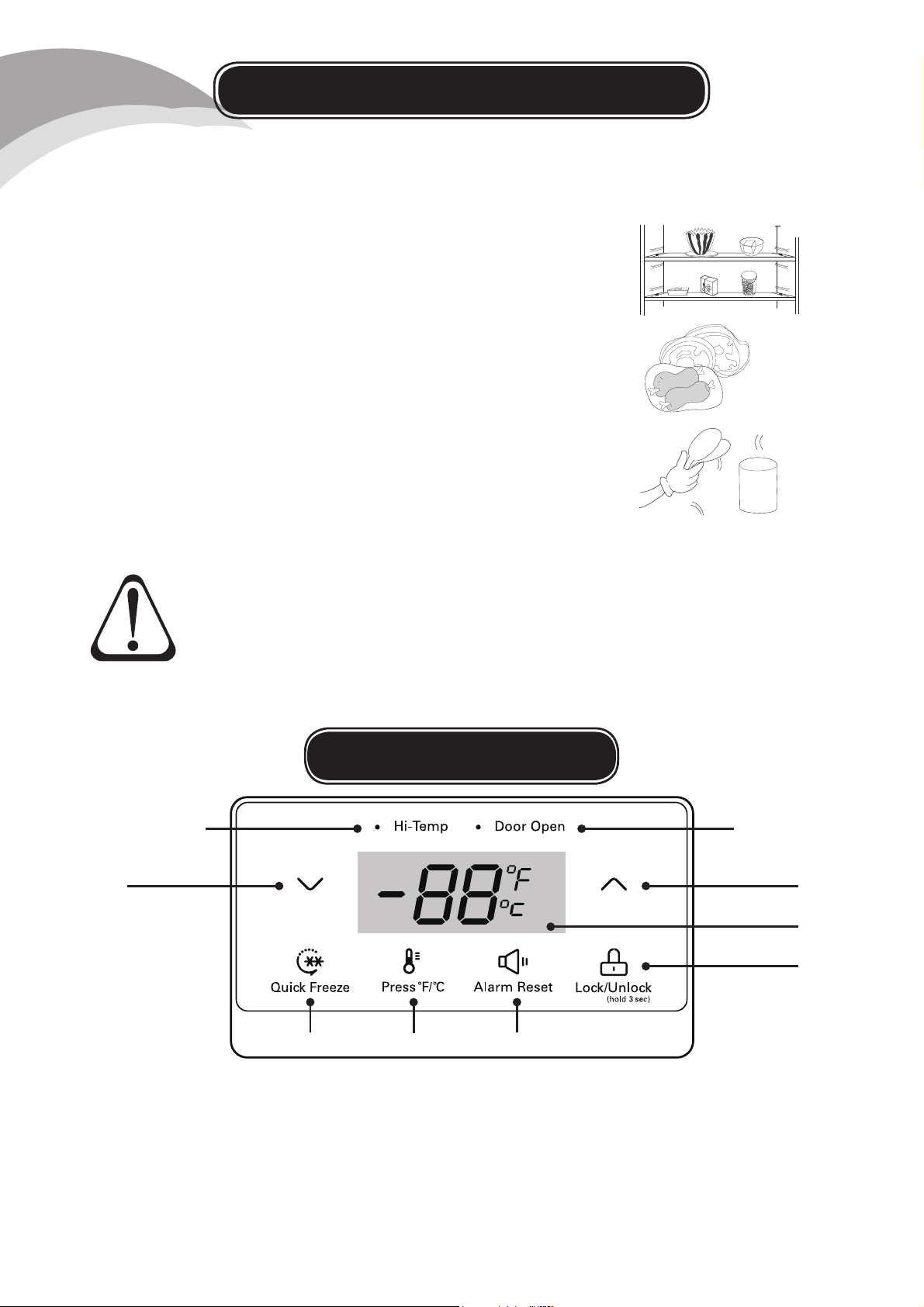

CONTROL PANEL
●
●
●
●
WARNING
1
3
567
2
4
9
8
1. High temperature alarm
2. Door open alarm (sounds if door is open >60 seconds)
3. Temperature setting / quick freeze time setting down (decrease)
4. Temperature setting / quick freeze time setting up (increase)
5. Quick freeze 6. Temperature display format (oC or oF)
7. Alarm reset 8. Keypad lock / unlock 9. Numeric display panel

12
SWITCH BETWEEN FRIDGE & FREEZER - TEMP. SETTING
Setting the temperature also acts as the switch between Refrigerator and
Freezer. To do this, first UNLOCK the control panel by holding the Keypad
Lock / Unlock button (refer to item 8 on page 11) for at least 3 seconds.
Press either button 3 or 4 to set the temperature. The temperature will
flash on the display. Set the temperature from -24oC to -12oC to set the
appliance to FREEZER mode. A warmer temp. (between 2oC and 8oC) will
set the appliance to FRIDGE mode. To exit temperature settings, do not
press a button for at least 30 seconds.
You can lock the keypad at any point (refer below) and the temperature
settings will take effect.
QUICK FREEZE
To set QUICK FREEZE, ensure the control panel is UNLOCKED.
Press the Quick Freeze button (refer to page 11 item 5) to enter Quick
Freeze mode. The temperature will be set to -24oC (-11oF) will be
displayed. The default Quick Freeze duration is 6 hours. You can press
button 8 to lock the keypad or 5 to cancel Quick Freeze.
NOTE: It is not advisable to use Quick Freeze for 48 hours.
ICE MAKING
To make ice cubes, fill an ice maker tray using a
measuring cup (not supplied) with clean drinking water
and place in the freezer section.
To remove the cubes from the tray, first run water on
the tray while gently twisting and inverting the tray.
ENERGY SAVING TIPS
Adjust the temperature control to a setting that is acceptable for the
storage of the food. This will reduce the power consumption.
Only open the door when required and ensure all doors are closed
securely. Frequently opening or doors left open will increase power
consumption.
To maintain good air circulation, keep the shelves and crisper of the
refrigerator as supplied, and do not block air outlets.

13
MAINTENANCE
The appliance should be maintained and cleaned frequently. For your
safety, unplug the appliance from the mains power source before
performing any maintenance.
1.Interior and exterior maintenance
Clean the interior of the appliance with clean water and wipe it dry
with a dry cloth.
Cleansers such as soap powder, abrasive cleaning powder, alkali
cleansers, chemical cloth, thinners, alcohol, acid petroleum products
and hot water should not be used to clean the refrigerator as they
may damage the painted surfaces and plastics.
2. Smearing can age the interior plastic components, remove it as soon
as possible.
3. Wipe the door gasket clean, it is easy to damage the door gaskets if
polluted by stains, e.g. oil, sauce, etc.
4. The replacement of interior light
Locate and remove the screw holding the lamp cover. Remove the bulb
and replace with a working bulb. Replace cover and screw in place.
The interior lamp is an E14 MAX. 40W bulb.
5. Empty the drip tray
Do not attempt to remove the drip tray from the rear of the refrigerator.
Be careful not to bump the refrigeration tubing. The tray may have water
in it, be careful not to spill it while removing any water in the tray. This
should be carried out at least once a year. Use a sponge or towel to
soak up the water from the drip tray into a bucket. Discard the water
appropriately.
6. Please check the points below after maintenance:
1) Is there any damage or loss of the power lead?
2) Can the power plug be inserted into the power socket correctly?
3)Is the power plug and/or lead heating up?

14
COMPARTMENT, DRAWER & RACK MAINTENANCE
Please be careful when handling and removing comparments, drawers
and racks. Follow the steps below to remove, clean and replace each of
the refrigerator items.
SHELVES & DOOR RACKS
To remove shelves for cleaning, pull the shelf out as far as possible and
then lift slightly. The shelf should lift away easily. (Refer to Fig. 1 below).
Clean the shelf completely, alow to dry before replacing.
To remove the door racks, grasp the rack with both hands and gently lift.
Once removed, clean and alow to dry before replacing. (Refer to Fig. 2).
Fig. 1 Fig. 2
Fig. 3
VEGETABLE CRISPER, DRAWERS & TRAYS
To remove the vegetable crisper, gently slide the crisper out.
Refer to Fig. 3.

15
DISCONNECTION OF THE APPLIANCE
If a power failure occurs, even in summer, the refrigerator could store food
normally for some time.
1, Power failure
During a power failure, do not put additional food in the appliance and
reduce opening the door frequently.
Place several ice cubes into a container if power failure is anticipated
beforehand, and place it in the top of the fridge.
2, Power failure during vacation
Before departure of a short vacation, remove any items that could spoil
if a power failure occurs. Ensure the door is closed firmly.
If going on a long vacation, remove all items, clean and wipe dry the
internal of the appliance, prior to disconnecting the power and leave the
door open.
3, Storage of appliance
If the refrigerator will be stopped for a long period of time (storage),
remove all items, clean and wipe dry the internal of the appliance,
unplug the appliance from the power outlet. The door should be kept
open in order to prevent unpleasant odours.
Unplugging the appliance from the power outlet, please
leave at least 5 minutes before reconnection.
TROUBLESHOOTING
The following cases are not malfunctions:
1. Moisture may form as condensation on the outside of the appliance
during humid conditions. To remove excess moisture, wipe clean.
2. The flow of refrigerant through the pipeline coil could cause gurgling,
similar to water boiling. This is the normal function of the appliance.
3. It is normal that the sides of the appliance will get warm as a result of
the refrigeration system operation.
4. The appliance operation could cause electrical interference to electrical
equipment.
SYMPTOM: The refrigerator does not work.
SUGGESTION: It may not be connected to the power supply (plug, power
failure or blown fuse) and switched on. Check that the temperature dial is
not set to the minimum position.

16
SYMPTOM: The refrigerator does not work efficiently as expected.
SUGGESTION: It may be caused by heavy frost, warm temperature
setting, frequently opening the door or low voltage.
SYMPTOM: It makes an unusual noise.
SUGGESTION: It may be caused by an unbalanced appliance or unstable
surface, bottles are incorrectly placed and rattling, vibration from an object
on top of, behind or beside the appliance.
SYMPTOM: The compressor keeps working for a long period.
SUGGESTION: The environment temperature may be too high. The doors
may be opened frequently or they are left open. The temperature setting
may increase the working time of the compressor. Large amounts of warm
food recently placed in the appliance may also cause this symptom.
SYMPTOM: Unpleasant odours.
SUGGESTION: Interior may need cleaning. Some foods produce strong
odours, some containers can also cause odours. Food should be packed
tightly before being placed inside the appliance. Check if any food has
spoilt in the appliance.
SYMPTOM: Heavy frost occurs in the freezer compartment.
SUGGESTION: Make sure the door is correctly closed and the seal is not
obstructed.
SYMPTOM: Refrigerator temperature is too cold.
SUGGESTION: Check the position of the temperature dial.
ERROR CODES
Note: All codes listed below are visible alerts and will appear on the
display (refer to page 11).
CODE DESCRIPTION
E2 Temperature sensor failure
E5 Defrosting sensor failure
E6 Communication failure
E7 Ambient temperature sensor failure
E9 High temperature alert

17
SPECIFICATIONS
Note: Product specifications are subject to change without prior notice.
For full specification information, please refer to the rating plate attached
to the appliance.
THF411WNBLM
THF411WNBRM
THF411SNBLM
THF411SNBRM
T
Group 1 / 7
Indoor Use Only
411
388
230
50
43
R132a
43
1550
711
750
IPX0
69
Climate Class
Classication of
Installation and Use
Rated Total
Gross Volume
Rated Total
Storage Volume
Voltage
Frequency
Noise Level
Refrigerant Type
Ambient Operating
Temperature
Dimensions (mm)
IP Rating
Net Weight
L
L
V
Hz
dB
oC
Height
Width
Depth
Kg
Model Number

18
Did you know?
TECO Australia’s product range also includes:
Top Load Clothes Washers
Front Load Clothes Washers
Twin Tub Clothes Washers
Auto Sensing Condenser and Vented Clothes Dryers
Refrigerators
Chest and Vertical Freezers
Bar Fridges
Dehumidifiers
Televisions
Air Curtains and Air Conditioners
Visit www.teco.com.au for our full range.

www.teco.com.au
EBG-PV
REPAIRS, SERVICE & WARRANTY
It is hazardous for anyone installing, removing, altering, repairing,
servicing, testing or certifying the gas system of a gas device (i.e.
charging, discharging or breaking into the refrigeration system that use
refrigerants).
Only an Authorised Service Person can carry out servicing or repairs to
this appliance. In Queensland the authorised person must hold a Gas
Work Authorisation for refrigerants, before carrying out servicing or repairs
which involve the removal of covers.
Individuals will need to hold appropriate refrigeration/air conditioning
competencies and also training in hydrocarbon refrigerants. This type of
authorisation is provided to individuals only.
IF SERVICE IS REQUIRED:
If you have a problem, and the problem persists after you have made the
checks mentioned in this manual, contact:
TECO Australia’s Service on 1300 660 037 (8:30am-4pm Mon~Fri AEST)
For warranty details please visit www.teco.com.au
Complete and retain the following information:
Name of retailer: _________________________________
Date of purchase: ________________________________
Model No. : _____________________________________
Serial No. : _____________________________________
MFG code: _____________________________________
Please retain proof of purchase for warranty claims.
