TECO THCF145WMGM User manual

IMPORTANT NOTE:
Thank you for selecting a TECO quality HYBRID chest freezer / refrigerator.
Read this manual carefully before installing or operating your new unit.
Make sure to save this manual for future reference.
The design and specifications are subject to change without prior notice for
product improvement. Consult with the sales agency or manufacturer for
details.
User's Manual
HYBRID CHEST FREEZER or
REFRIGERATOR
Model:
THCF145WMGM

2
Thank you for purchasing our product and thank you for placing your
confidence in us.
Read this manual carefully before use. Follow instructions and
keep the manual for future reference.
Follow the operating instructions and safety notices in this manual.
If any trouble arise, do not attempt to fix it yourself. Please contact
TECO service on 1300 660 037 (8:30am - 4pm Mon~Fri AEST).
This refrigerator is designed and approved for use with flammable
R600a refrigerant.
The appliance is specifi cally constructed for domestic
use and is therefore suitable for the refrigeration and storage
of fresh and frozen foods and the production of ice-cubes.
The appliance has not been designed or manufactured for
professional use. TECO declines all responsibility for damage
deriving from improper use of the appliance. The refrigerator
has undergone the necessary tests on the tightness of the
refrigeration circuit and complies with the safety regulations
for electrical appliances.
All images, illustrations and photos contained in this manual are for
illustration purposes only and may differ from your appliance.
WARNING ICON
This symbol indicates information concerning your personal
safety
CAUTION ICON
This symbol indicates information on how to avoid damaging
the appliance
FLAMMABLE ICON
R600a WARNING LABEL
CAUTION
WARNING
R600a

TABLE OF CONTENTS
Safety Information................................................ 4-5
Name of parts and usage...................................... 6
Transporting the appliance ................................... 8
Installation instructions..........................................
Operating instructions .......................................
Defrosting .............................................................
Energy Saving Tips .............................. ................
Maintenance ......................................... ................
Disconnection of the appliance ............................
Troubleshooting ................................................
Specifications ......................................................
8
9-10
11
12
12
13
14-15
16
3

R600a Iso-butane Refrigerant
Hydrocarbon refrigerants have excellent refrigerant
properties and minimal low global warming potential and
no ozone depletion potential.
This appliance contains a small quantity of ammable, non-
synthetic R600a refrigerant:
Hydrocarbon refrigerants cannot be ‘retrofitted’ to the appliance
that has not been designed and approved to use that type of
refrigerant.
Ensure that the tubing of the refrigerant circuit is not damaged
during transportation and installation.
Leaking refrigerant may cause eye injuries or could ignite.
The room for installing the appliance must be at least 1m3per 8g
of refrigerant. The amount of refrigerant in the appliance can be
found on the rating plate attached to the appliance.
Risk of fire
If the refrigerant circuit should become damaged. Avoid
open flames and sources of ignition. Disconnect the appliance
from the mains power. Thoroughly ventilate the room in which
the appliance is situated for several minutes.
SAFETY INFORMATION
•The refrigerator is designed to operate on a single phase power
supply within a voltage range of 220~240V/50Hz.
• The refrigeration system contains refrigerant. Do not allow any
sharp objects to come in contact with the refrigerant system to
avoid damage to the refrigerant circuit.
• This product is for indoor use only.
• Do not place electrical items or cooking equipment nearby.
Keep away from substances which could cause ignition and ensure
good ventilation is always available.
• Do not place objects on top of the appliance which are magnetic,
heavy or filled with water.
• If the supply cord is damaged, it must be replaced by authorised
TECO service personal, service agent or similarly qualified persons
in order to avoid a hazard.
WARNING
WARNING
4

• Do not store ammable, explosive, volatile and highly corrosive
materials in the refrigerator. Containers with ammable gases or
liquids can leak at low temperature. There is a risk of explosion or
fire.
• Do not splash water on the appliance. It may cause malfunction or
electric shock.
• Do not place or operate any electrical appliance in the refrigerator.
• Always switch off and unplug the appliance before cleaning.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Safety of children
• Young children should be supervised to ensure that they do not
play with the appliance.
• Packing (e.g. wraps, polystyrene etc.) can be dangerous
for children. There is a risk of suffocation. Keep packaging
materials away from children.
• Contact your local authorities for correct method of disposal.
Dispose of all packaging in a responsible manner in accordance
with local regulations.
Dispose of old appliances in accordance with local regulations.
Remove the doors, cut off the main cable, break or remove spring
or bolt catches if xed to prevent children trapped or involve
themselves in other dangers.
WARNING
5

NAME OF PARTS AND USAGE
The freezer you purchased is subject to continuous improvement,
which may not be completely consistent with the manual, however the
functions and operating methods will not change.
If you use the freezer for the rst time, remove any adhesive tapes.
6
Do not pull or push the wire basket forcefully during use in case of
damage.
It is recommended to cut large pieces of meat into smaller pieces
before storage for ease of access.
Food should be consumed within the shelf life.
Do not place large quantities of food into the appliance. For best
results, it is recommended to leave space between items for air to
circulate.

PACKING LIST
Check the packing list that all items have been included.
Note: Product specifications are subject to change without prior notice.
Model
Wire Basket
Ice Scraper
User manual
THCF145WMGM
1 Piece
1 Piece
1 Copy
7

TRANSPORTING THE APPLIANCE
1.The appliance must be transported only in a vertical position. The
packing must be intact during the transportation.
2. When unpacking and re-packing the appliance, please memorise the
position of each accessory of the appliance when unpacking it. When
re-packing the appliance for transportation, ensure all accessories are
secured before transportation.
3. Do not lift or pull the lid during transportation
INSTALLATION INSTRUCTIONS
1. When moving the appliance, do not tilt >45 degrees (the angle of the
vertical direction). Please avoid strong vibration and impacts that could
cause damage to the appliance.
2. The freezer should be located on a firm and flat surface. An uneven
surface may cause excess operating noise or vibration.
(a) The noise may be increased if the floor is not firm.
(b) If the appliance is to be positioned on carpet flooring and heat
emitted from the appliance is a concern, place a solid sheet
under the appliance.
3. Choose a location which is not exposed to sunlight, high temperature or
humid, as humidity may cause staining.
4. It is recommended a clearance of at least 130mm away from objects
and walls on both sides and back. Ensure the clearance above the
appliance is not less than 700mm from the closed lid position and 90°
clear for the lid to swing open.
5. Remove all internal packaging before operating.
8

OPERATING INSTRUCTIONS
PLACEMENT OF FOOD
1. There should always be some space between
items inside for air circulation.
2. Food should be kept in sealed packaging to
avoid becoming dry or spoilt.
3. Hot food should be cooled down before placing
into the appliance. Otherwise, the interior
temperature and power consumption will increase.
4. Reduce opening the lid frequently.
This will increase the appliance efficiently and reduce
power consumption.
Do not use any electronic equipment inside the appliance.
NOTE:
eht,deggulpnu/ffodehctiwssitinuehtfi,snosaerytefasroF•
compressor will take a few munutes to return to normal operation.
• Large amounts of food will lower the cooling efficiency of the appliance.
tatsomrehttsujda,gnittestatsomrehtehtegnahcotesoohcuoyfI•
control by one numerical increment at a time. Allow several hours for
temperature to stabilize between adjustments.
WARNING
9
Do not store objects which are costly or subject to temperature
variations. e.g. medication or chemicals.
ICE MAKING
To make ice cubes, fill an ice tray (not supplied) with potable water and
place it in the freezer. To remove ice cubes easily, run water on the tray
before gently twisting and inverting the tray.
WARNING

10
CAUTION
Ensure the device is set
correctly for your purpose.
Refrigerator : 1oC ~ 10oC
Freezer : -12oC ~ -24oC

DEFROSTING
Heavy frost will effect the refrigerating process or internal temperature of the
appliance and increase the power consumption. Thus, defrosting is required
if the frost is >5mm thick. Defrosting is a manual process. Please follow
these steps:
1. Switch off and disconnect the appliance.
2. Remove all food from the freezer compartment.
3. Remove the wire basket(s).
4. Open the lid and wait for the ice to defrost.
5. During defrosting, the ice melts into the cabinet.
6. Remove the drain plug on the inside floor of the freezer by pulling
straight out.
7. Place a shallow pan outside drain outlet.
8. Check the pan occasionally so the water does not overflow.
9. When de-icing, a scraper or plastic utensil (supplied) may be used.
Never use metal instruments or electrical appliances to de-ice the freezer.
10. To speed up the defrosting process, you can place a bowl of hot water in
the compartment and close the lid.
11. Clean the interior of the freezer.
12. Replace the plug on the inside floor.
13. Reset the thermostat to desired setting.
14. Replace the wire basket and food before restoring power.
15. Allow the cabinet to cool for one hour.
16. Switch on the Fast Freeze for a minimum of 2 hours.
Do not use an electric heater or hair dryer to increase the
defrost process. It may destroy the cooling system.
CAUTION
11

ENERGY SAVING TIPS
1. Adjust the temperature control to a setting that is acceptable for the
storage of the food. This will reduce the power consumption.
2. Only open the lid when required. Frequently opening the lid will increase
power consumption.
3. Maintain good air circulation within the freezer.
MAINTENANCE
The appliance should be maintained and cleaned frequently. For your
safety, pull the plug out of the socket before cleaning.
1. Interior and exterior maintenance
Clean the interior of the appliance with clean water and wipe it dry
with a piece of dry cloth.
Cleansers such as soap powder, abrasive cleaning powder, alkali
cleansers, chemical cloth, thinners, alcohol, acid petroleum products
and hot water should not be used to clean the freezer as they
may damage the painted cover and plastics.
2. Smearing can age the interior plastic components, so remove it as soon
as possible.
3. Wipe the lid gasket clean, it is easy to damage the lid gaskets if polluted
by stains, e.g. oil, sauce, etc.
4. Please check the points below after maintenance:
(1) Is there any damage or loss of the power lead?
(2) Can the power plug be inserted into the power socket correctly?
(3) Is the power plug and/or lead heating up?
Please remove the gasket from the lid before disposing. The
disposed apparatus should be handled by professionals, as it
may be harmful to the environment. If disposal is necessary,
please contact your local authorities for correct method of
disposal. Dispose of all packaging in a responsible manner in
accordance with local council regulations.
REPLACING THE INTERNAL LIGHT
1.Remove the two screws holding the cover 2.Unscrew and remove the
existing bulb 3.Install working 10W (max.) bulb 4.Replace cover.
CAUTION
12

DISCONNECTION OF THE APPLIANCE
If a power failure occurs, even in summer, the freezer could store food
normally for some time.
1. Power failure
During a power failure, do not put additional food in the appliance and
reduce opening the lid frequently.
Place ice cubes into the freezer if power failure is anticipated
beforehand, and place it in the top of the freezer.
2. Power failure during vacation
Before departure of short vacation, remove any items that could spoil if a
power failure occurs. Ensure the lid is closed firmly.
If going on a long vacation, remove all items, defrost the appliance,
clean and wipe dry the internal of the appliance, prior to disconnecting
the power and leave the lid open.
3. Storage of appliance
If the freezer will be stopped for a long period of time (storage),
remove all items, defrost the appliance, clean and wipe dry the internal
of the appliance, unplug the appliance from the power outlet. The lid
should be kept open in order to prevent unpleasant odours.
After unplugging the appliance from the power outlet,
please leave at least 5 minutes before reconnection.
WARNING
13

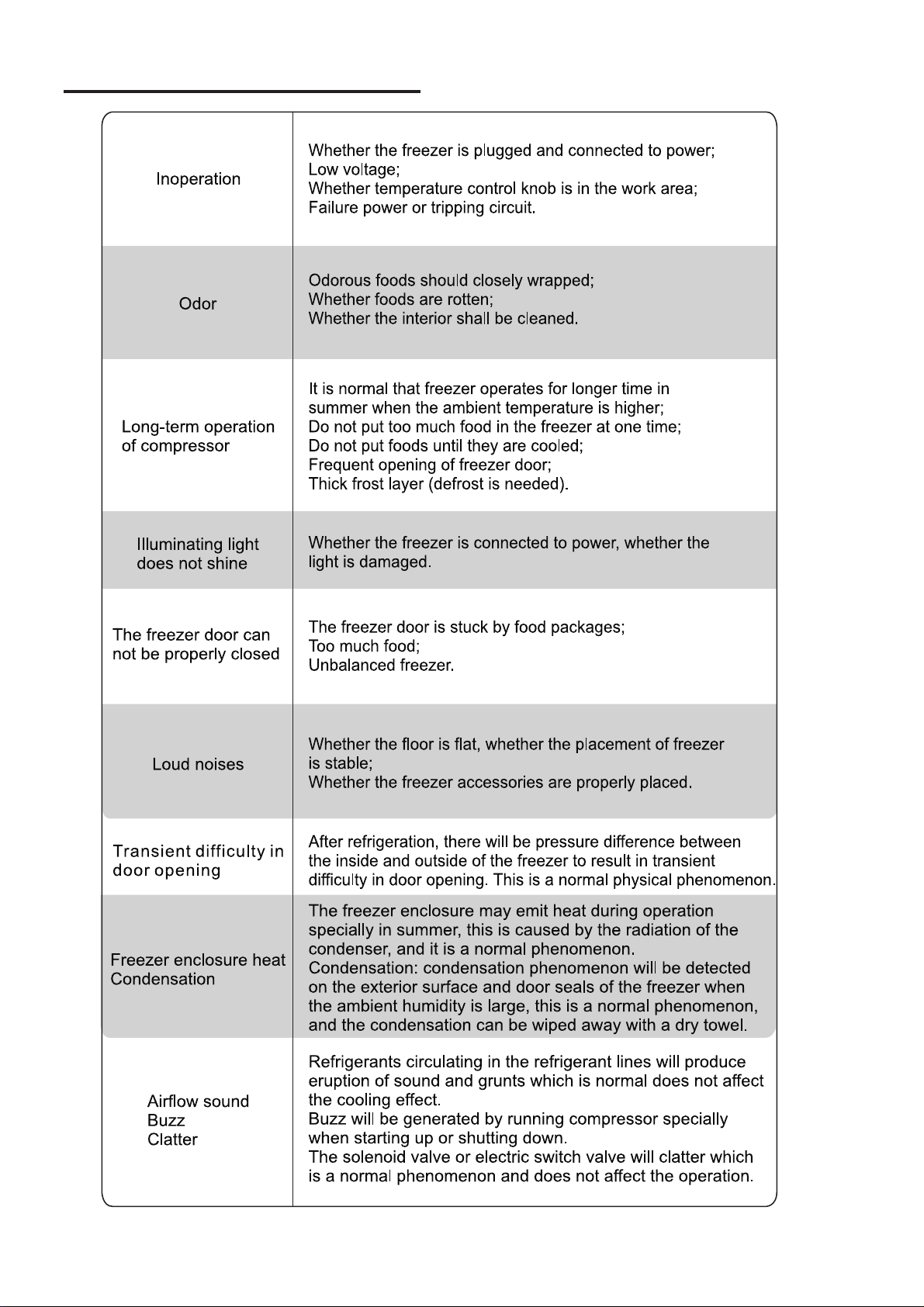

TROUBLESHOOTING
14

The following cases are not malfunctions:
1. Moisture may form as condensation on the outside of the appliance
during humid conditions. To remove excess moisture, wipe clean.
2. The flow of refrigerant through the pipeline coil could cause gurgling,
similar to water boiling. This is the normal function of the appliance.
3. It is normal that the sides of the appliance will get warm as a result of
the refrigeration system operation.
4. Do not place objects on top of the appliance which are magnetic,
heavy, or filled with water.
5. The appliance operation could cause electrical interference to electrical
equipment.
15
Error Code

SPECIFICATIONS
Note: Product specifications are subject to change without prior notice.
Model THCF145WMGM
Climate class T
Classification of
installation and use
Class 1
Indoor use
Rated Total Gross
Volume (L) 142
Voltage (V) 220-240~
Frequency (Hz) 50
Noise Level (dB) 40
Refrigerant type R600a
Freezer
Dimensions
(mm)
IP rating
Height
Width
Depth
850
730
523
IPX0
Net/Gross Weight (Kg) 29.8/32.8
16

Did you know?
TECO Australia’s product range also includes:
Top Load Clothes Washers
Front Load Clothes Washers
Twin Tub Clothes Washers
Auto Sensing Condenser and Vented Clothes Dryers
Refrigerators
Chest and Vertical Freezers
Bar Fridges
Dehumidiers
Televisions
Air Curtains and Air Conditioners
Visit www.teco.com.au for our full range.

It is hazardous for anyone installing, removing, altering, repairing,
servicing or testing of this appliance.
Only an Authorised Service Person can carry out servicing or repairs to
this appliance.
IF SERVICE IS REQUIRED:
If you have a problem, and the problem persists after you have made the
checks mentioned in this manual, contact:
TECO Australia’s Service on 1300 660 037 (8:30am - 4pm Mon~Fri AEST)
For warranty details please visit ww
Service Email : [email protected]
Spare Parts : [email protected]
w.teco.com.au
REPAIRS, SERVICE & WARRANTY

www.teco.com.au
FBI-V5
