TECO TBF84WMTA User manual

TWO DOOR
84L REFRIGERATOR
USER’S MANUAL
Models : TBF84WMTA
TBF84BMTA
TBF84RMTA
To ensure proper use of the appliance and your safety, please read the
following user manual completely before operating this appliance.

Thank you for purchasing our product and thank you for placing your
confidence in us.
Read this manual carefully before using. Follow instructions and
keep the manual for future reference.
Follow the operating instructions and safety notices in this manual.
If any trouble arise, do not fix it yourself or hand it to the after sales
service centre which have not been authorised. Please contact TECO
service on 1300 660 037.
This refrigerator is designed and approved for use with flammable
R600 a refrigerant.
The appliance is specifically constructed for domestic
use and is therefore suitable for the refrigeration and storage
of fresh and frozen foods and the production of ice-cubes.
The appliance has not been designed or manufactured for
professional use. Teco declines all responsibility for damage
deriving from improper use of the appliance. The refrigerator
has undergone the necessary tests on the tightness of the
refrigeration circuit and complies with the safety regulations
for electrical appliances.
WARNING ICON
This symbol indicates information concerning your personal
safety
CAUTION ICON
This symbol indicates information on how to avoid damaging
the appliance
FLAMMABLE ICON
R600a WARNING LABEL
CAUTION
WARNING
R600a

TABLE OF CONTENTS
Safety Precautions................................................1 - 2
Name of Parts and Usage..................................... 3
Packing List .......................................................... 4
Transporting the Appliance & Installation ............. 5
Operating Instructions .......................................... 6
Energy Saving Tips ............................................... 7
Maintenance ......................................... ................ 7
Defrosting ............................................................. 8
Disconnection of the Appliance ............................. 8
Reversing the Door ............................................ 9 - 10
Troubleshooting ................................................ 11 - 12
Repairs, Service & Warranty ................................12
Specifications ...................................................... 13

R600a Iso-butane Refrigerant
Hydrocarbon refrigerants have excellent refrigerant
properties and minimal low global warming potential and
no ozone depletion potential.
This appliance contains a small quantity of flammable, non-
synthetic R600a refrigerant:
Hydrocarbon refrigerants cannot be ‘retrofitted’ to the appliance
that has not been designed and approved to use that type of
refrigerant.
Ensure that the tubing of the refrigerant circuit is not damaged
during transportation and installation.
Leaking refrigerant may cause eye injuries or could ignite.
The room for installing the appliance must be at least 1m3per 8g
of refrigerant. The amount of refrigerant in the appliance can be
found on the rating plate attached to the appliance.
Risk of fire
If the refrigerant circuit should become damaged. Avoid
open flames and sources of ignition. Disconnect the appliance
from the mains power. Thoroughly ventilate the room in which
the appliance is situated for several minutes.
SAFETY PRECAUTIONS
Instructions
The refrigeration system behind and inside the refrigerator
contains refrigerant. Do not allow any sharp objects to come in
contact with the refrigerant system.
Keep ventilation openings, in the appliance enclosure or
in the built in structure, clear of obstruction.
Do not damage the refrigerant circuit, do not use electrical items or fire
equipment nearby, and open all windows to provide good ventilation.
Do not use electrical appliances inside the food storage compartments
of the appliance unless they are the type recommended by the
manufacturer.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
WARNING
1
WARNING

Young children should be supervised to ensure that they do not
play with the appliance.
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
When disposing of the appliance, do so only at an
authorised waste disposal centre.
Don’t store inflammable materials such as ether,
benzene, LP gas and glue etc in the refrigerator.
Please remove all the doors before you dispose your refrigerator
and leave the shelves in place to prevent access by children.
Do not expose to flame.
Please keep the appliance away from substances which could
cause ignition.
Before obtaining access to electrical terminals, all electrical supply
circuits must be disconnected.
The fridge is designed to operate on a single phase
power supply within a voltage range of 220~240V/50Hz.
Don’t splash water on the rear of the appliance,
for it may cause malfunction or electric shock.
Containers with flammable gases or liquids can leak at
low temperature. There is a risk of explosion.
Do not store any container with flammable materials such
as spray cans in the refrigerator.
Do not operate any electrical appliance in the refrigerator (e.g.
electric ice cream makers, mixers etc.).
Before cleaning the appliance, always switch off the appliance
and unplug it, or pull the house fuse or switch off the circuit
breaker.
Safety of children
Packaging (e.g. wraps, polystyrene) can be dangerous for
children. There is a risk of suffocation. Keep packaging materials
away from children. Remember to dispose of old appliances in
accordance with local laws. Pull out the mains plug, cut off the
mains cable, break or remove spring or bolt catches if fixed and ensure
that children cannot lock themselves in the appliance when playing (there
is risk of suffocation) or involve themselves in other dangers, for children
cannot recognize the hazard present in household appliances themselves.
Therefore, it is very important for parents to make adequate supervision
and never let children play with the appliance.
WARNING
2

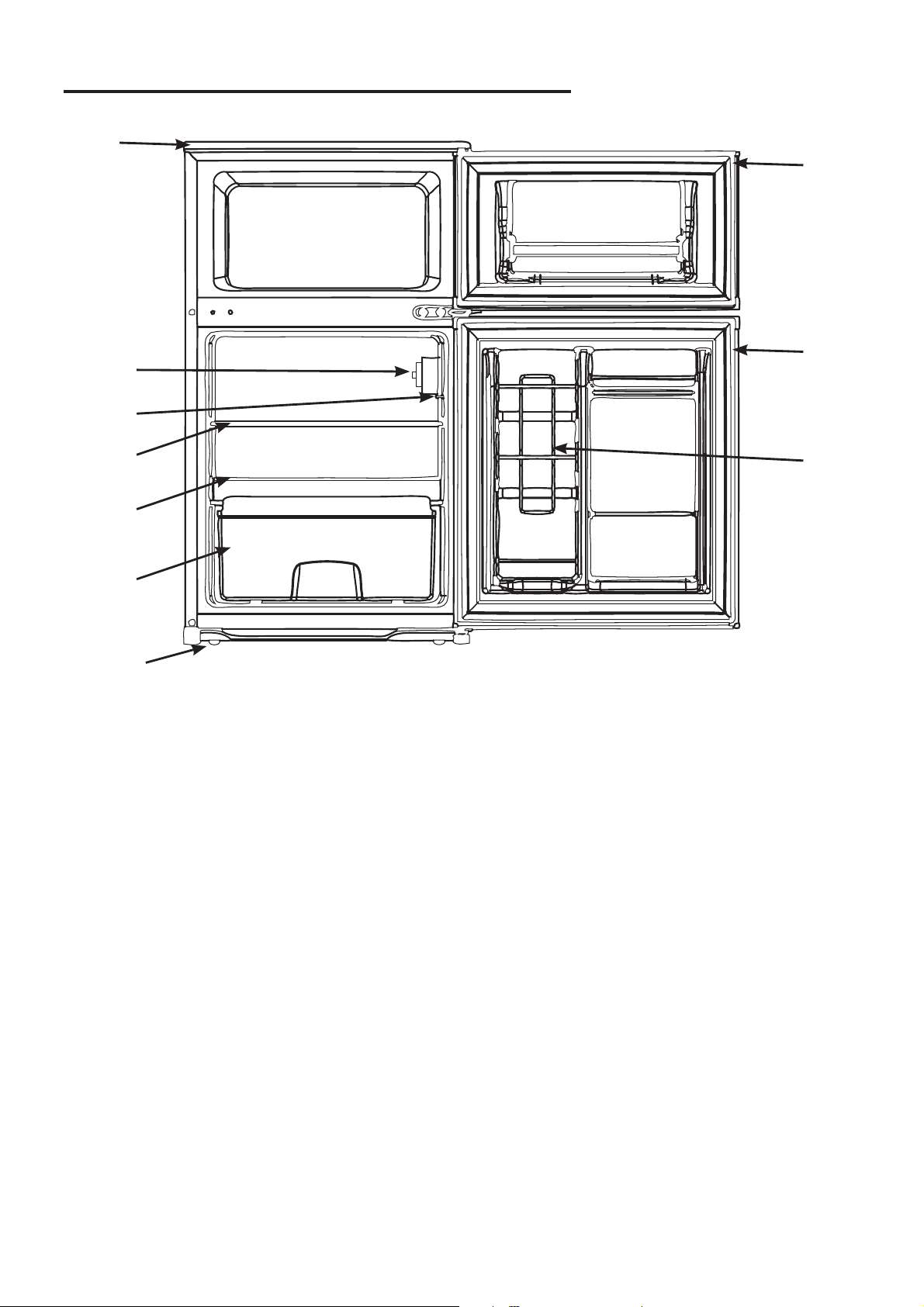

NAME OF PARTS AND USAGE
1. Cabinet Top 6. Vegetable Crisper
2. Thermostat Control / Internal Light 7. Freezer Door
3. Internal Light Switch 8. Refrigerator Door
4. Glass Shelf 9. Internal Can Dispenser
5. Vegetable Crisper Lid (Glass) 10. Adjustable Feet
The refrigerator you purchased is subject to continuous improvement,
which may not be completely consistent with the manual, however the
functions and operating methods will not change.
If you use the refrigerator for the first time, remove the adhesive tapes
from the drawers, shelves, trays, etc.
Do not pull or push the drawers and shelves forcefully during use in
case of damage.
3
0
1
2
1
2
3
4
6
7
8
9
10
5

PACKING LIST
Check the packing list that all items have been included.
Note: Product specifications are subject to change without prior notice
4
Model TBF84 Series
Vegetable Crisper
Ice Cube Tray
Glass Shelf
Reversible Door
Hinge Assembly
Vegetable Crisper
Lid (Glass)
User Manual
Warranty
Information
1 piece
1 piece
1 piece
1 piece
1 piece
1 copy
1 copy
Part No.
(see pg.3)
6
4
5

TRANSPORTING THE APPLIANCE &
INSTALLATION
1.The appliance must be transported only in a vertical position. The
packing must be intact during the transportation.
2. When unpacking and re-packing the appliance, please memorise the
position of each accessory of the appliance when unpacking it. When
re-packing the appliance for transportation, ensure all accessories are
secured before transportation.
3. Do not lift or pull the door during transportation.
4. When moving the appliance, do not tilt >45 degrees
(the angle of the vertical direction). Please avoid strong
vibration and impacts that could cause damage to the appliance.
5. The refrigerator should be located on a firm and flat surface. An uneven
surface may cause excess operating noise or vibration.
(a) The noise may be increased if the floor is not firm.
(b) If the appliance is to be positioned on carpet flooring and heat
emitted from the appliance is a concern, place a solid sheet
under the appliance.
6. Choose a location which is not exposed to sunlight, high temperature or
humid, as humidity may cause staining.
7. It is recommended a clearance of at least 127mm away
from objects and walls on both sides and back. Ensure the
clearance above the appliance is not less than 300mm and
160° clear for the door to swing open.
8. If the appliance is unstable, rotating either of the front two legs in a
clockwise direction will raise the appliance.
9. When adjusting the front legs, ensure the
appliance slopes backwards slightly for keeping the
door closed.
10. Remove all internal packaging before operating.
127mm
127mm
127mm
5

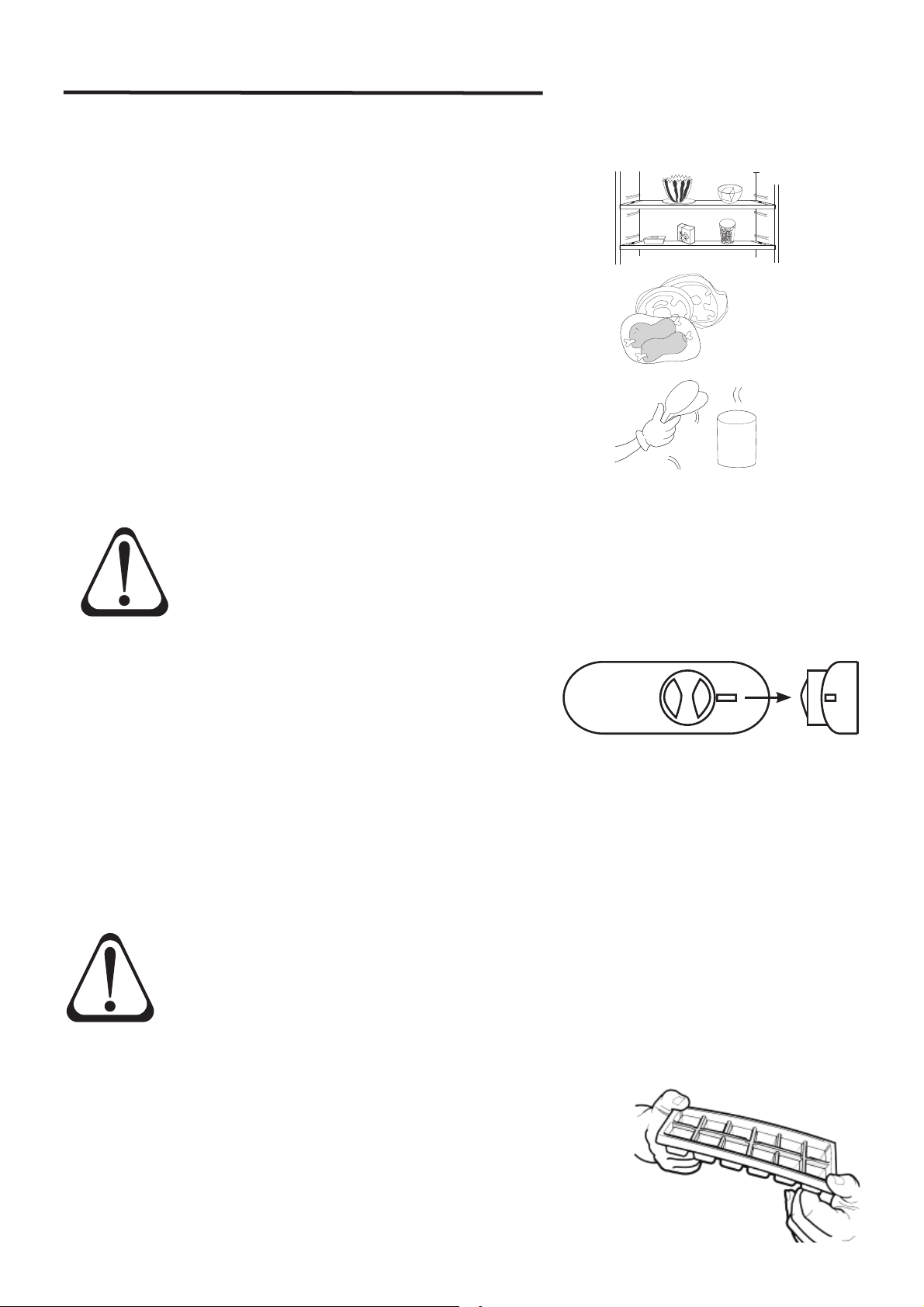

OPERATING INSTRUCTIONS
PLACEMENT OF FOOD
1. There should always be some space between
items inside for air circulation.
2. Food should be kept in sealed packaging to
avoid becoming dry or spoilt.
3. Hot food should be cooled down before placing
into the appliance. Otherwise, the interior
temperature and power consumption will increase.
4. Reduce opening the door frequently.
This will increase the appliance efficiently and reduce
power consumption.
Do not use any electronic equipment inside the appliance.
The temperature of the refrigerator can
be controlled manually by adjusting the
thermostat dial. However, the number shown
on the dial does not directly represent the
temperature. Instead, the larger the number is, the lower the interior
temperature will be. 0 stands for off (refrigeration system only). Turn the
dial to position 4 for normal use, turn it to position 4-7 if a lower interior
temperature is required; alternatively, to increase the interior temperature
select position 4-1.
It is not necessary to adjust the temperature of the freezer section.
Do not store objects which are costly or subject to temperature
variations. e.g. medication or chemicals.
ICE MAKING
To make ice cubes, fill the ice tray with potable
water and place it in the freezer section or within
the twist ice cube maker. To remove ice cubes
easily, run water on the tray before gently twisting
and inverting the tray.
WARNING
0
1
2
6
WARNING

ENERGY SAVING TIPS
1. Adjust the temperature control to a setting that is acceptable for the
storage of the food. This will reduce the power consumption.
2. Only open the door when required. Frequently opening the door will
increase power consumption.
3. To maintain good air circulation, keep the shelves and crisper of the
refrigerator as supplied.
MAINTENANCE
The appliance should be maintained and cleaned frequently. For your
safety, pull the plug out of the socket before cleaning.
1.Interior and exterior maintenance
Clean the interior of the appliance with clean water and wipe it dry
with a piece of dry cloth.
Cleansers such as soap powder, abrasive cleaning powder, alkali
cleansers, chemical cloth, thinners, alcohol, acid petroleum products
and hot water should not be used to clean the refrigerator as they
may damage the painted cover and plastics.
2. Smearing can age the interior plastic components, so remove it as soon
as possible.
3. Wipe the door gasket clean, it is easy to damage the door gaskets if
polluted by stains, e.g. oil, sauce, etc.
4. The replacement of interior light
Remove the cover and replace the light bulb with a screw type base
(E14 , 240V/10W) Consult the following picture.
a. Unplug the power and remove the
screw holding the cover in place.
b. Side the cover off carefully.
c. Unscrew the bulb and replace with
a new 10W bulb.
d. Replace the cover and plug in the refrigerator.
5. Please check the points below after maintenance:
1) Is there any damage or loss of the power lead?
2) Can the power plug be inserted into the power socket correctly?
3) Is the power plug and/or lead heating up?
Please remove the gasket from the door before disposing. The disposed
apparatus should be handled by professionals, as it may be harmful to the
environment. If disposal is necessary, please contact your local authorities
7
LAMP 10W MAX

for correct method of disposal. Dispose of all packaging in a responsible
manner in accordance with local council regulations.
DEFROSTING
Heavy frost will effect the refrigerating process or internal temperature of
the appliance and increase the power consumption. Thus, defrosting is
required if the frost is >5mm thick. Defrosting is a manual process. Please
follow these steps:
1. Switch off and disconnect the appliance.
2. Remove all food from the freezer section.
3. Open the door and wait for the ice to defrost.
4. When de-icing, a scraper or plastic utensil may be used. Never use
metal instruments or electrical appliances to de-ice the ice box.
5. To speed up the defrosting process, you can place a bowl of hot water
in the compartment and close the door.
6. When defrosting is complete, clean the appliance.
7. Replace food before restoring power.
DISCONNECTION OF THE APPLIANCE
If a power failure occurs, even in summer, the refrigerator could store food
normally for some time.
1, Power failure - During a power failure, do not put additional food in the
appliance and reduce opening the door frequently.
Place several ice cubes into a container if power failure is anticipated
beforehand, and place it in the top of the fridge.
2, Power failure during vacation - Before departure of a short vacation,
remove any items that could spoil if a power failure occurs. Ensure the
door is closed firmly. If going on a long vacation, remove all items,
clean and wipe dry the internal of the appliance, prior to disconnecting
the power and leave the door open.
3, Storage of appliance - If the refrigerator will be stopped for a long period
of time (storage), remove all items, clean and wipe dry the internal of the
appliance, unplug the appliance from the power outlet. The door should be
kept open in order to prevent unpleasant odours.
Unplugging the appliance from the power outlet, please
leave at least 5 minutes before reconnection.
8
CAUTION

REVERSING THE DOOR
Follow these steps to reverse the door from the supplied position.
Ensure the refrigerator is empty and disconnected before reversing the door.
Step 1: Remove the cover from the cabinet by lifting
the two caps at the top front and removing the two
screws. Remove the two screws from the rear of the
cover. Lift the cover and place in a safe location to
avoid scratches or damage.
9
Step 4: Remove the two
(2) screws holding the
middle hinge. Support
the refrigerator door as
you remove the hinge.
Step 3: Locate the hinge
assembly at the base of
the freezer door. Remove
the screw holding it in
place and attach the
supplied hinge assembly
(in accessory bag) to the
opposite corner of the
freezer door. Place the
freezer door in a safe
location to avoid damage.
Step 2: Unscrew the two
bolts holding the hinge
in place. Lift the freezer
door from the hinge.
Step 6: Carefully remove the
three (3) caps from the left
side by unscrewing them.
Install them in the screw holes
from Step 4 on the right side.
Step 1a Step 1b
Step 4
Step 6
Step 3
Step 5: Carefully lift
the door from the
hinge and place it in a
safe location to avoid
scratches or damage.
Step 7a Step 7cStep 7b
Step 7: Carefully tilt the refrigerator back (no more than
45o) to expose the bracket on the under side. Remove
the adjustable foot then unscrew the bolts holding the
hinge bracket. Unscrew the adjustable foot from the left side and screw it into the
top hole on the right side. Mount the hinge bracket on the left side with the two (2)
bolts and install the adjustable foot.
Step 2

Step 14
Step 13
Step 11
Step 10
Step 9
10
Step 12. Align each door to ensure they are
positioned correctly. Check that the door seals
correctly and they open and close without
obstruction.
Tighten the screws holding the hinges in place
(refer to Steps 7, 9 and 11).
Step 13. Place the cover onto the top of the
cabinet and secure in place with the four (4)
screws. Two (2) at rear and two (2)
located at the top front left and right sides.
Step 14: Once the doors are in place
and all screws (top, middle and
bottom hinge brackets) are securely
tightened, insert the cap on both of
the front screw holes.
Step 11: Carefully position the
freezer door onto the middle
hinge. Align the door before
securing the top hinge.
Step 10: Remove
the cover support
bracket from the left
side and install it in
the screw holes on the
right side. Install the
coversupport bracket
where the hinge
bracket was previously
located.
NOTE: Do not fasten hinge screws
completely until the doors have been
positioned correctly.
Step 8: Before replacing the door onto the
hinge, locate the hinge assembly at the base of
the refrigerator door. Remove the plastic hinge
assembly and install it on the opposite side. Ensure
the hinge assembly is facing the correct way. Refer
to the illustration on the left (Step 8).
Step 9: Place the refrigerator door on the
bottom hinge. Align the door and hold in place
while installing the middle hinge onto the left
side. Fasten in place with the two (2) screws.
Step 8

TROUBLESHOOTING
The following cases are not malfunctions:
1. Moisture may form as condensation on the outside of the appliance
during humid conditions. To remove excess moisture, wipe clean.
2. The flow of refrigerant through the pipeline coil could cause gurgling,
similar to water boiling. This is the normal function of the appliance.
3. It is normal that the sides of the appliance will get warm as a result of
the refrigeration system operation.
4. Do not place objects on top of the appliance which are magnetic,
heavy, or filled with water.
5. The appliance operation could cause electrical interference to electrical
equipment.
SYMPTOM: The refrigerator does not work.
SUGGESTION: It may not be connected to the power supply (plug, power
failure or blown fuse) and switched on. Check that the temperature dial is
not set to 0 position.
SYMPTOM: The refrigerator does not work efficiently as expected.
SUGGESTION: It may be caused by heavy frost on the ice box
compartment, by a warm temperature setting or by frequently opening the
door, or low voltage.
SYMPTOM: It makes an unusual noise.
SUGGESTION: It may be caused by an unbalanced appliance or unstable
surface, bottles are badly placed and rattling, vibration from an object on
top of, behind or beside the appliance.
SYMPTOM: The compressor keeps working for a long period.
SUGGESTION: The environment temperature may be too high. The doors
may be opened frequently or even they are left open. The temperature
control knob setting in (4-6) position may increase the working time of
compressor. Large amounts of warm food recently placed in the appliance.
SYMPTOM: Unpleasant odours.
SUGGESTION: Interior may need cleaning. Some foods produce strong
odours, some containers can also cause odours. Food should be packed
tightly before being put inside the appliance. Please check whether there
is any spoilt items left in the appliance.
11

SYMPTOM: Heavy frost occurs in the freezer compartment.
SUGGESTION: Make sure the door is fully closed.
SYMPTOM: Refrigerator temperature is too cold.
SUGGESTION: Check the position of the temperature dial.
REPAIRS, SERVICE & WARRANTY
It is hazardous for anyone installing, removing, altering, repairing,
servicing, testing or certifying the gas system of a gas device (i.e.
charging, discharging or breaking into the refrigeration system that uses
hydrocarbon refrigerants).
Only an Authorised Service Person can carry out servicing or repairs to
this appliance. In Queensland the authorised person must hold a Gas
Work Authorisation for hydrocarbon refrigerants, before carrying out
servicing or repairs which involve the removal of covers.
Individuals will need to hold appropriate refrigeration/air conditioning
competencies and also training in hydrocarbon refrigerants. This type of
authorisation is provided to individuals only.
IF SERVICE IS REQUIRED:
If you have a problem, and the problem persists after you have made the
checks mentioned above, contact:
TECO Australia’s Service on 1300 660 037
For warranty details please visit www.teco.com.au
Complete and retain the following information:
Name of retailer: _________________________________
Date of purchase: ________________________________
Model No. : _____________________________________
Serial No. : _____________________________________
MFG code: _____________________________________
Please retain proof of purchase for warranty claims.
12

SPECIFICATIONS
Model TBF84WMTA
TBF84BMTA
TBF84RMTA
Climate class T
Classification of
installation and use
Class 4
Indoor use only
Rated
Total Gross
Volume (L)
59
25
Voltage (V) 230
Fridge
Freezer
Frequency (Hz) 50
Noise Level (dB) 42
Refrigerant type R600a
Dimensions
(mm)
IP rating
Height
Width
Depth
850
485
510
IPX0
13
Net Weight (Kg) 26
Ambient Operating
temp (oC)
43

NOTES:
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________

www.teco.com.au
FBD-PV
