TECshow Mini Hive-10 User manual

USER MANUAL / MANUAL DE USUARIO
PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE USE /
POR FAVOR LEA LAS INSTRUCCIÓNES ANTES DE USAR
LED MOVING HEAD
MINI HIVE 10

MINI HIVE 10
A. Overview
Mini Hive-10 is a moving head that, thanks to its versatility,
comes to change the game. Equipped with 7 x 4-in-1 15W
LEDs and a precise zoom function, this fixture gives you
the possibility of going from beam to wash in a snap by
changing its beam angle between 4º and 60º. As a highlight,
this innovative equipment has an infinite rotation lens
to both sides, making it able to achieve an awesome
honeycomb visual eect. Mini Hive-10 also sports a color
mix without multicolor shadows, pixel by pixel control, 65
color macros and CTO.
Specifications
Source & Optics
• Light Source: 7 x 4-in-1 OSRAM® 15W LEDs
• LEDs life: 60,000 hours
• Zoom: 4° to 60° linear zoom
Eects & Functions
• Pixel mapping: Pixel by pixel control
• Bi-directional rotating lens
• Honeycomb eect
• Quad-color LED technology: Smooth RGBW mix
with no multi colored shadows.
• Vivid, saturated and uniform colors
• 65 color macros
• Dimmer: Full range 0-100%
• Strobe eect
• CTO color temperature linear change from 2500-
8000K
Movement
• Pan: 540º
• Tilt: 210º
• 16-bit resolution
• Auto repositioning
Control
• DMX Channels: 25/55
• Operational modes: Sound active, DMX &
Master/Slave
Electrical
• Input voltage range: 100–240V, 50-60Hz
• Power Supply: Automatic range
• Max. power consumption: 180W
Physical
• DMX Connectors: 2 XLR connectors (XLR-3 input
& output)
• Power supply connectors: PowerCON™ In/Out
• LCD display
• Dimensions: 346x200x167 mm. / 13.6x7.9x6.5 in.
• Weight: 8.2 Kg. / 18 Lb.
ENGLISH VERSION
P. 2

MINI HIVE 10
B. Before Using
What is included
• Equipment x 1
• Power cable with Plug x 1
• User manual x 1
• Iron holder x 2
ENGLISH VERSION
P. 3
C. Open Instructions


Please open the equipment carefully, and check all the spare
parts are included or not. If any part cause failure due to
improper transportation or carton, please keep the packing
materials and immediately inform the shipper to check.
If the equipment must be returned to the factory, the
equipment should be in the original carton and packaging.
Safety instructions
This product is level protection equipment, so it must be
connected well and connected by the professional people.
• Make sure the voltage won’t be above or below the
user manual rated values.
• Confirm the power cord is not sword cut or
damaged.
• Power supply must be cut o if it’s not in use or
cleaning.
• Only allowed with the power cord plug connection.
Please do not force when unplug the power cord.
• Be careful in the process of installation of equipment.
Avoid touching the bare wire, otherwise it will suer
fatal shocks.
• Don’t look the light source directly, otherwise it will
hurt the eyes.

MINI HIVE 10



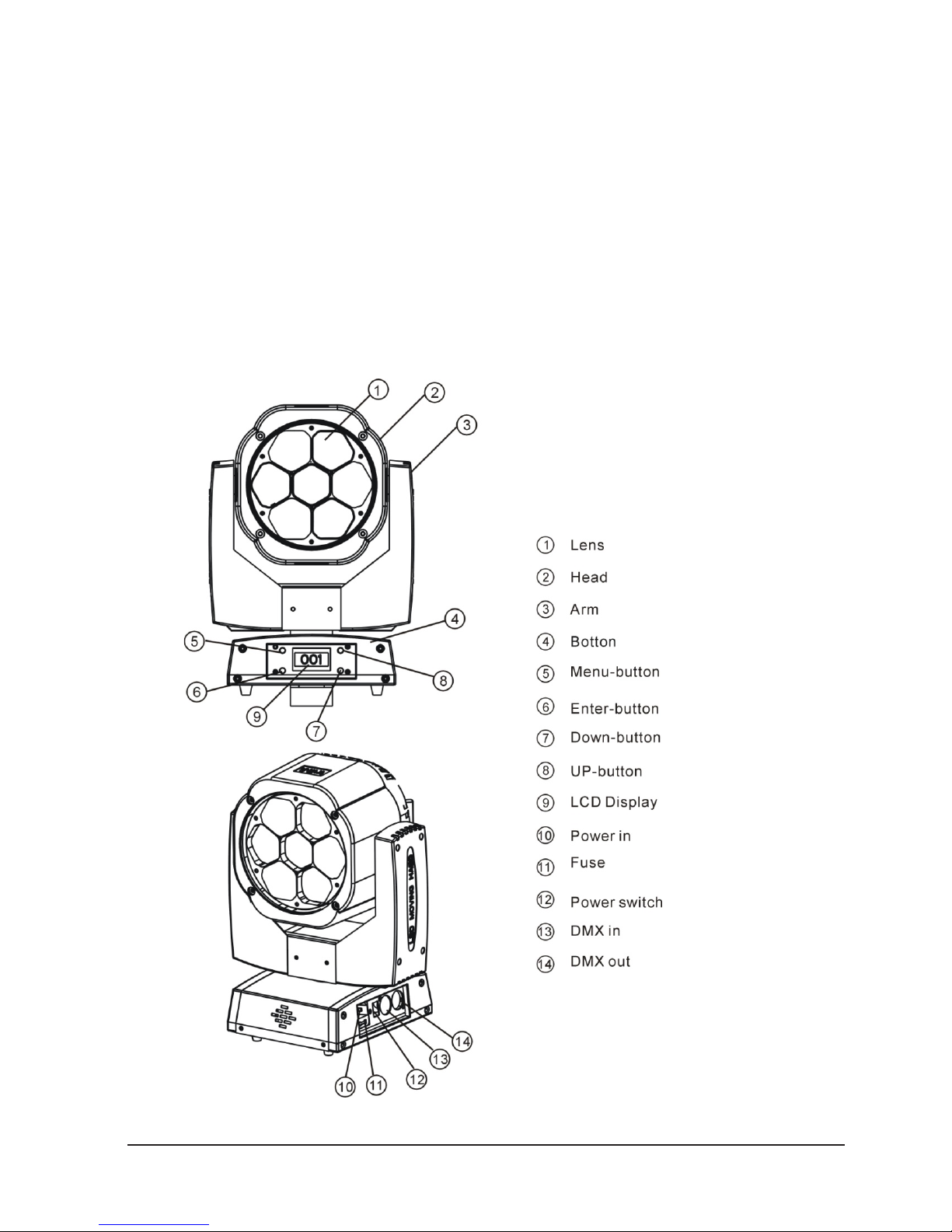

Introduction
ENGLISH VERSION
P. 4
When choosing installation position of equipment and the
equipment must be more than 0.5m distance between ob-
jects.
• Please use the equipment wires appropriate.
• Without the manufacturer’s authorization or
laypeopledon’tremove,repairor modificateany
equipment.
• The maximum operating temperature is 40,
don’t operate the equipment when it is over 40.
• Do not connect the equipment to the dimmer
equipment.
• Under 120V voltage, output power don’t series
more than 10 pcs equipment, voltage 230V. Out
put power don’t series more than 15 pcs.

MINI HIVE 10
ENGLISH VERSION
P. 5
Installation
Installation Requirements
This equipment can be used in many places, it can hang
and put on the ground.
• Choosing a suitable place to put or hang the
equipment when installation. Must be use the special
screws and hook to make sure the lamp’s weight is in the
weight range.
• When installing the equipment, ensure no in-
flammable and explosive goods at 0.5 meter distance.
• Please ask the professionals to install the equip-
ment, any improper installation will cause personal injury
or material damage.
• To prevent others entering the working ares be-
low, the installation or maintenance of equipment with
suitable and stable platform.
• The equipment must be placed in ventilated
place, at least 50 cm from the ground, please ensure that
the vent without clogging.



MINI HIVE 10
ENGLISH VERSION
P. 6
COLOR CONNECTIONS PIN
Brown Ac Power Cord 1
Blue Neutral AC Cable 2
Green/Yellow Earthing 3
DMX Signal Connection
1. Use DMX512 controller, use the DMX signal (male) to
plug into the first lamp (female) 3 pin.
2. Put out of the equipment of the first signal wire (head),
connected to the equipment of the next 3 pin plug (fe-
male) ,so on. See belowed pictures:



The equipment can be used in the wide voltage input.
Please make sure the voltage is the scale of rated voltage
when connecting the power. The equipment can adapt to
100V to 240 V AC voltage and 50-60 Hz.
Power Supply connection

MINI HIVE 10
Operating Instructions
ENGLISH VERSION
P. 7
BUTTON Function
MENU Choose Menu or function exit
ENTER Current show menu or enter into the current selected function
UP Increase the value
DOWN Decrease the value

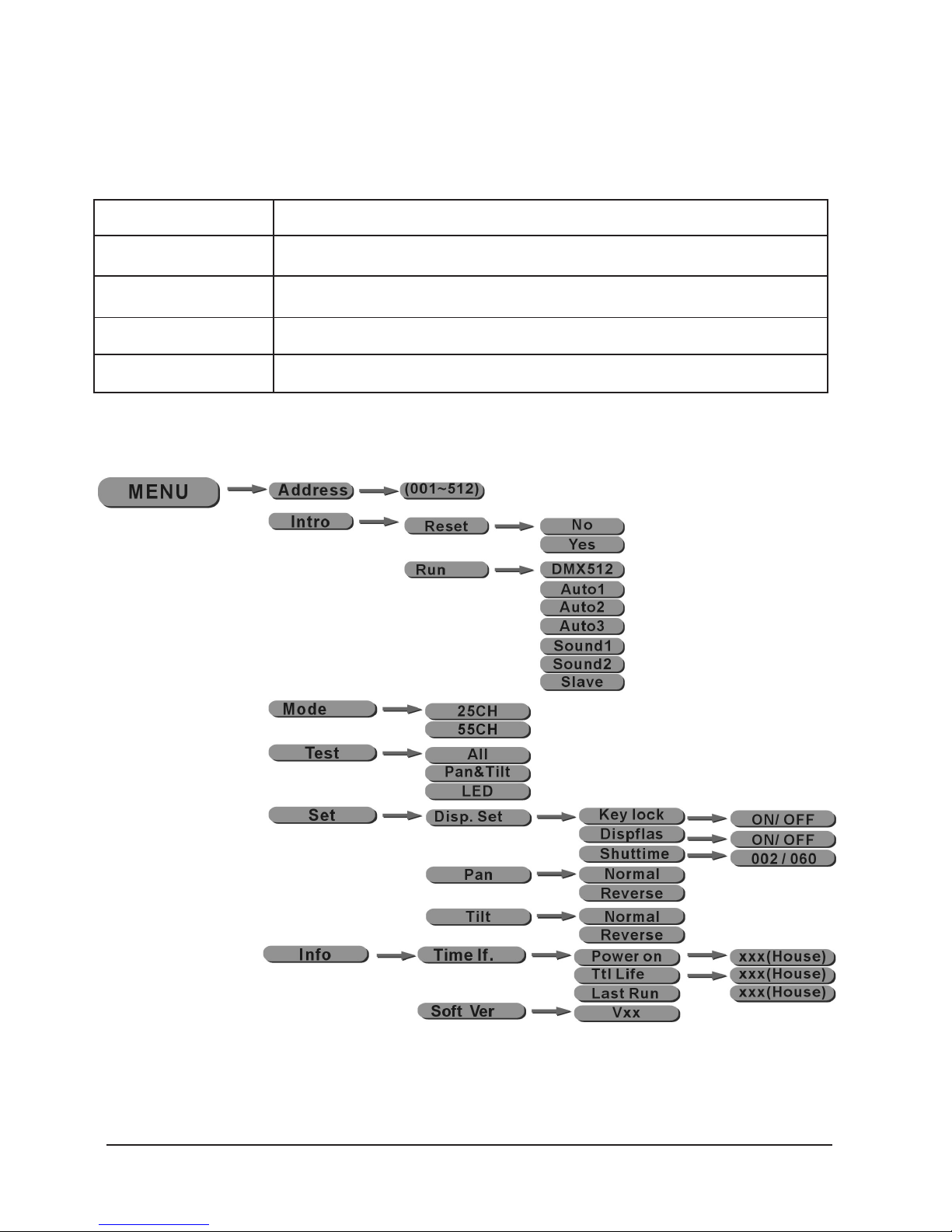

Control Panel Functions
Menu Map



MINI HIVE 10


Function selection
• Press MENU until it shows Intro, press ENTER.
• Press UP or DOWN to choose Reset, Run.

Menu Instruction

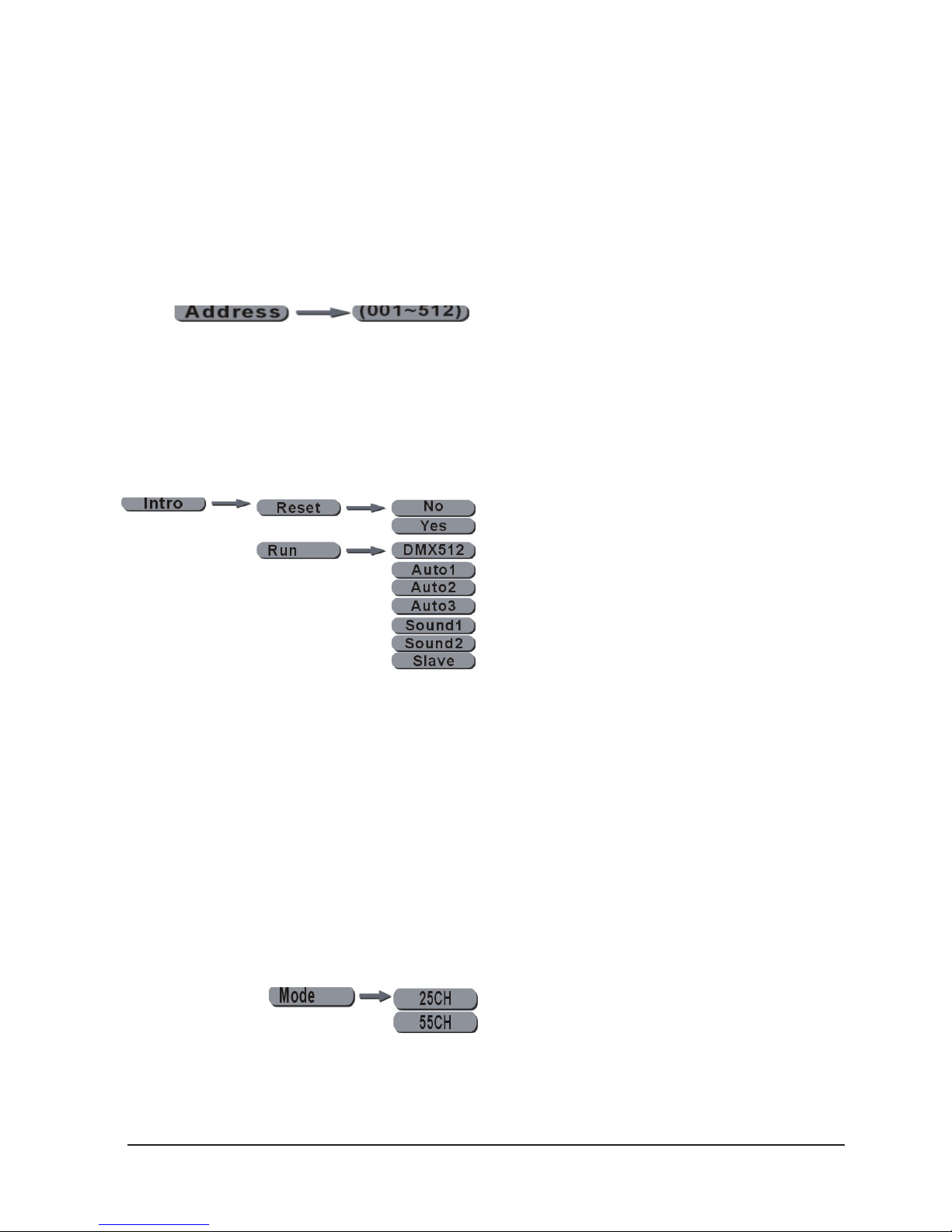

DMX address setting
• Press MENU when it shows Address, then press
ENTER.
• Change the DMX address by UP or DOWN.
• When choosing Reset, press ENTER, and press UP
or DOWN to choose YES or NO. When choosing YES, press
ENTER the equipment reset, restore factory sett
• When choosing Run, press ENTER press UP or
DOWN to choose DMX512 Auto1, Auto2, Auto3, Sound1,
Sound2, Slave. When choosing DMX512 the DMX control-
ler sending the signal(3 pin signal is valid),
• When choosing Auto1 Auto2 Auto3 Sound1 or
Sound2 Auto1, Auto2, Auto3, Sound1, Sound2, choose
Auto or Sound mode,it can be used as the master. When
choosing Slave it is Slave receive the Master signal. Choose
the Slave need to quit to the main menu can be controlled.
P. 8
ENGLISH VERSION

MINI HIVE 10
ENGLISH VERSION
P. 9
DMX Mode selection
• Press MENU until it shows Users mode then just
press ENTER.
• Choose Channel mode by pressing UP or DOWN:
25 CH, 55CH.

Test Procedure
• Press MENU until it shows Test and then press
ENTER.
• Press UP or DOWN to choose All Pan & Tilt and
LED. When selecting All it is testing the motor and
LED. When selecting Pan & Tilt to test the motor
choose LED; it is only LED operated.

Adaptive function setting
• Press MENU until it shows Set and then just press
ENTER.
• Press UP, DOWN to choose Disp.setting, Pan Tilt.
• When selecting Disp.setting press ENTER, press
UP or DOWN to choose Shut o time, Flip display, Key
lock, or Disp flash. If selecting Shut o time press
ENTER operate UP or DOWN it can be set LCD backlight
close from 2-60 mins.
• When selecting Key lock press ENTER and oper-
ate UP or DOWN. Enter Option ON/OFF and select option
ON. When the backlight shuts o, the button key is locked,
it means the operation is invalid at this time. It must be
entered Up, Down, Down, then press ENTER to confirm
the unlock. When selecting Disp flash, press ENTER, oper-
ate UP or DOWN, it can be choosed ON/OFF, choose ON,
the screen’s backlight begin to blink when the equipment
received the DMX signal; that means it has received the
DMX signal. The screen’s backlight closed when there is no
signal. When selecting Pan or Tilt, press ENTER, operate
UP or DOWN. Choose Normal or Reverse to set the for-
ward and reverse operation.

MINI HIVE 10
ENGLISH VERSION
P. 10


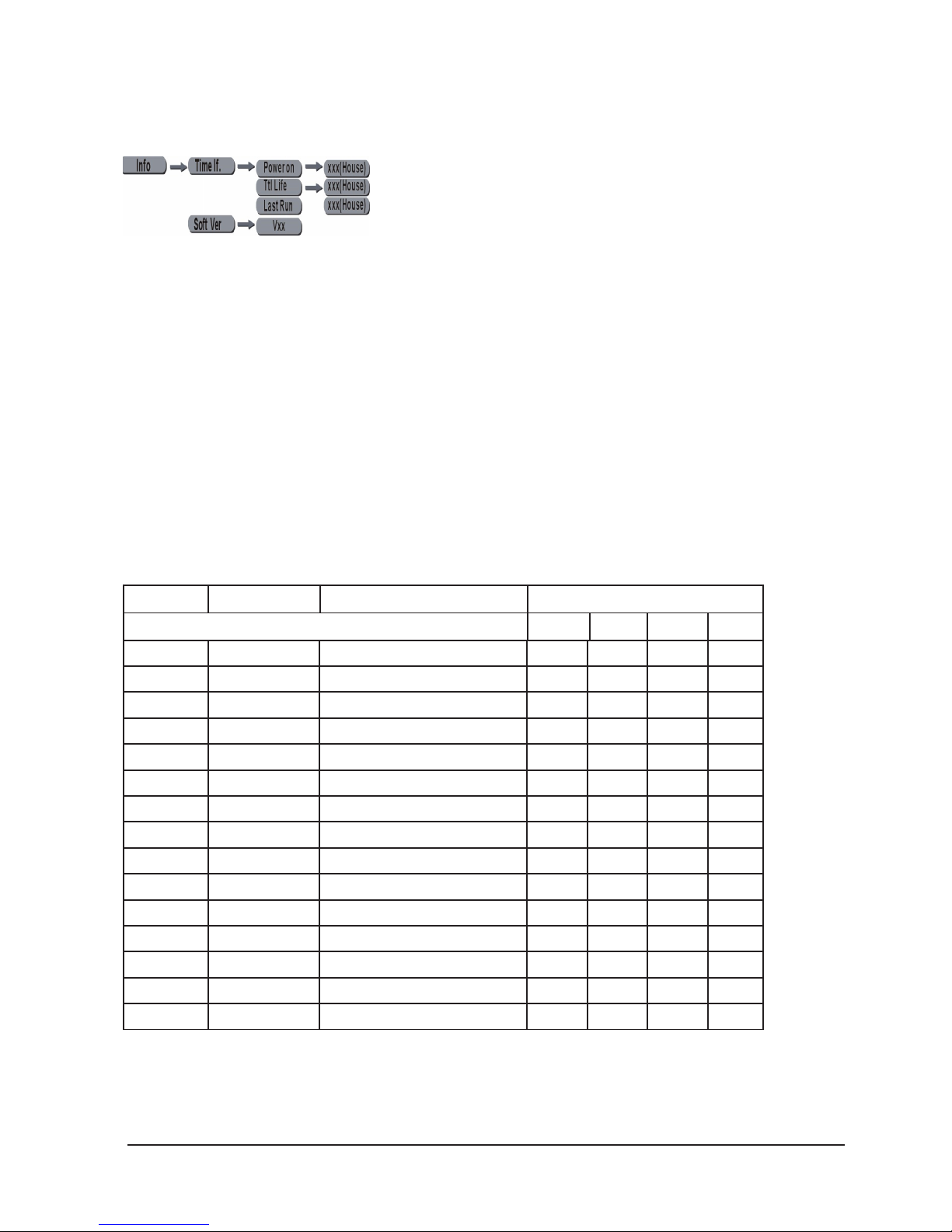

• Press MENU until it shows Info, then press ENTER.
• Operate UP, DOWN to choose Time Info or So-
ware Ver.
• When selecting Time Info press ENTER, operate
UP or DOWN to choose Power on, Ttl Life hrs or Last Run
Hrs. If choosing Power on press ENTER to enter into the
equipment “XXXX” hours. If selecting Ttl Life hrs press
ENTER to enter into the equipment total operation time
“XXXX” hours. If selecting Last Run Hrs press ENTER to
show the LED’s last operation“XXXX” hours.
• When selecting Soware Ver press ENTER, it will
show the equipment’s soware version.
Macro Colour
BIT LEE REFERENCE COLOUR BIT VALUE
R G B W
209-255 -- White 255 235 66 255
208 -- Dirty White 255 255 122 255
207 197 Alicia Blue 128 255 143 0
191-206 181 Congo Blue 77 0 255 0
184-190 174 Dark Steel Blue 181 255 95 0
180-183 170 Deep Lavender 255 168 64 0
179 169 Lilac Tint 255 199 49 0
175-178 165 Daylight Blue 82 214 90 0
174 164 Flame Red 255 46 2 0
172-173 162 Bastard Amber 255 181 28 0
168-171 158 Deep Orange 222 84 0 0
162-167 152 Pale Gold 253 171 26 0
157-161 147 Apricot 255 143 13 0
151-156 141 Bright Blue 0 255 87 0
149-150 139 Primary Green 77 255 0 0

MINI HIVE 10
ENGLISH VERSION
P. 11
147-148 137 Special Lavender 219 197 79 0
146 Pale Lavender 255 197 61 0
145 136 Deep Golden Amber 255 58 0 0
142-144 135 Medium Blue 0 255 143 0
138-141 132 Bright Pink 255 53 36 0
136-137 128 Mauve 227 41 56 0
134-135 126 Dark Green 84 255 13 0
131-133 124 Leaf Green 206 255 0 0
129-130 121 Dark Blue 0 186 255 0
128 119 Light Blue 74 255 82 0
127 118 Steel Blue 206 255 56 0
126 117 Med Blue Green 206 255 56 0
125 116 Peacock Blue 51 255 51 0
123-124 115 Magenta 255 20 15 0
121-122 113 Dark Pink 255 109 33 0
120 111 Middle Rose 217 130 28 0
119 110 Light Salmon 255 138 31 0
118 109 English Rose 255 148 23 0
117 108 Light Rose 255 141 31 0
115-116 107 Orange 255 122 0 0
114 105 Deep Amber 255 166 0 0
113 104 Straw 230 160 0 69
112 103 Light Amber 237 163 0 0
110-111 102 Spring Yellow 245 202 0 0
100-109 100 Dark Yellow Green 41 219 0 0
89-99 90 Just Blue 0 194 130 0
78-88 79 Sky Blue 0 255 135 0
68-77 68 Lavender 243 117 133 199
62-67 58 Light Lavender 243 117 39 197
49-61 52 Pink Carnation 255 107 0 130
46-48 39 Medium Pink 255 87 0 107
45 35 Light Pink 255 112 0 141
35-44 25 Sunrise Red 255 83 2 0
BIT LEE REFERENCE COLOUR BIT VALUE
R G B W

MINI HIVE 10
32-34 22 Dark Amber 255 65 0 0
31 21 Gold Amber 255 100 0 0
30 20 Medium Amber 255 135 0 0
29 19 Fire 255 56 0 0
27-28 17 Surprise Peach 198 114 9 0
23-26 13 Straw Tint 152 115 9 0
20-22 10 Medium Yellow 156 126 0 0
19 - Black 0 0 0 0
18 - White 5000k 255 137 0 193
17 - White 3700k 255 201 25 255
16 - White 7000k 216 237 61 255
15 - Magenta 255 0 255 0
14 - Yellow 255 255 0 0
13 - Cyan 0 255 255 0
12 - Blue 0 0 255 0
11 - Green 0 255 0 0
10 - Red 255 0 0 0
0-9 - Macro color OFF - - - -
BIT LEE REFERENCE COLOUR BIT VALUE
R G B W
P. 12
ENGLISH VERSION

MINI HIVE 10

 
BIT EFFECT
255 Led On
0 Led O
RED
GREEN
BLUE
WHITE
BIT EFFECT
255 8000K
224 7200K
188 6000K
144 5600K
117 5000K
99 4000K
54 3200K
10 2500K
0-9 Unused Range
Linear CTO
Note: If CTO channel is active, the WHITE channel is disabled.
P. 13
ENGLISH VERSION

MINI HIVE 10
Stop Strobe - Foreground Strobe - Background Strobe
BIT EFFECT
252-255
239-251
226-238
213-225
208-212
207
.
.
.
.
.
.
108
104-107
103
.
.
.
.
.
.
4
0-3
Open
Random Fast Strobe
Random Medium Strobe
Random Slow Strobe
Open
Fast Pulsation (25 flash/sec)
Slow Pulsation (0.5 flash/sec)
Open
Fast Strobe (25 flash/sec)
Slow Strobe (1 flash/sec)
Closed
P. 14
ENGLISH VERSION

MINI HIVE 10
Tilt
Operation with option InvertPan, GO
(Tilt conventionally represented at 35 bit and option
Invert Tilt, GO)
Operation with option InvertPan, GOn (Tilt conventionally
represented at 35 bit and option Invert Tilt, GO)

 
BIT
255
0
BIT
255
0

 

 
BIT
255
0
BIT
255
0

 
Dimmer Dimmer Fin
BIT EFFECT
255 Full Light
0 No Light
BIT EFFECT
255 Up
0Low
P. 15
ENGLISH VERSION

MINI HIVE 10

 
BIT
255
0
BIT
255
0

 
Pan Pan Fin
Operation with option InvertPan, GO
(Tilt conventionally represented at 35 bit and option
Invert Tilt, GO)
BIT EFFECT
58 – 255
53 – 57
48 – 52
43 – 47
38 – 42
24 – 37
12 – 24
0 – 11
Reserved
Dimmer Curve 4
Dimmer Curve 3
Dimmer Curve 2
Dimmer Curve 1
Pan Tilt Normal xy
Pan Tilt Fast (Default)
Function o – rearmed
Function
P. 16
ENGLISH VERSION

MINI HIVE 10
Reset
BIT EFFECT
256
.
.
.
.
..
128
127
.
.
.
.
.
.
77
76
.
.
.
.
.
26
25
0
Complete Reset
Complete reset is activated passing throug the unused
range and staying 5 seconds in complete reset levels
Complete Reset
Pan / Tilt Reset
Pan / Tilt reset is activated passing throug the unused
range and staying 5 seconds in Pan / Tilt reset levels
Pan / Tilt Reset
Zoom Reset
Eects reset is activated passing throug the unused
range and staying 5 seconds in Eects reset levels.
Zoom Reset
Unused Range
P. 17
ENGLISH VERSION

MINI HIVE 10
Zoom
BIT EFFECT
255
.
.
.
.
.
.
.
.
.
0
Wide Beam
.
.
.
.
.
.
.
.
.
Narrow Beam
Zoom Rotation
BIT EFFECT
255
.
.
.
.
193
191-192
190
.
.
.
.
.
128
127
.
.
.
.
.
.
.
0
Fast Rotation
Slow Rotation
Stop
Slow Rotation
Fast Rotation
Linear Rotation
P. 18
ENGLISH VERSION

MINI HIVE 10
BIT MACRO EFFECT
193-255
191-192
120-190
127
126
...
3
2
1
0
CCW Rotation, speed from 3 RPH to 10 RPM
Stop rotation
CW Rotation, speed from 10 RPM to 3 RPH
Indexed zone. Lens angle = 60.00
Indexed zone. Lens angle = 59.52
Indexed zone. Lens angle = 1.42
Indexed zone. Lens angle = 0.94
Indexed zone. Lens angle = 0.47
Indexed zone. Lens angle = 0
BIT MACRO EFFECT
128-255
127
126
125
...
1
0
Lens oset angle: 0.00 degree
Lens oset angle: +4.00 degree
Lens oset angle: +3.94 degree
Lens oset angle: +3.87 degree
Lens oset angle: +0.06 degree
Lens oset angle: 0.00 degree
(Available on zoom channel from 0 bit to 42 bit)
(Available on zoom channel at 255 bit only)
RED LED 1 to…
GREEN LED 1 to…
BLUE LED 1 to…
WHITE LED 1 to…
BIT EFFECT
255 Led On
0 Led O
P. 19
ENGLISH VERSION

MINI HIVE 10
Shape Selection-Shape Sped-Shape Ose
BIT SHAPE SELEC-
TION
DESCRIP-
TION
PANDOM
COLORS 1
SHAPE SPEED SHAPE OFFSET
0-7 Macro O NA NA NA
8-12
13-17
Ring 1
Ring 2
Static
eects. The
ring or rings
used by the
macro are
turned on
with the
foreground
NA NA NA
18-22 No function
23-27 Ring 1+2
28-32 No function
33-37 Ring Opening
(Closing)
Yes 0-63 = Radius size, static.
64-158 = max to min
speed, Closing eect
159-160 = STOP
161-255 = min to max
speed, Opening eect
0-9 → continuous
10-255→ random
distribution of
flash from 2 to 20
fixtures
38-42 Ring Opening
(Closing) Filled
Yes
43-47 Ring Opening
(Close/Open)
Yes 0-63 = Radius size, static.
64-158 = max to min
speed, Closing eect，
159-160 = STOP.
161-255 = min to max
speed, Opening eect
48-52 Ring Opening
(Close/Open)
Filled
Yes
P. 20
ENGLISH VERSION
