TECshow Cubex 360 User manual

USER MANUAL / MANUAL DE USUARIO
PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE USE /
POR FAVOR LEA LAS INSTRUCCIÓNES ANTES DE USAR
CUBEX 360
MOVING HEAD

CUBEX 360
P.
2
1. Overview
Cubex 360 is a moving head that combines six razor-sharp
beams with 12 ultra-bright strips, achieving stunning
visual eects. Equipped with 6 CREE® RGBW 10W LEDs and
12 RGB SMD 5050 strips, the fixture is a true 2-in-1 moving
head with 9º beams and limitless color combinations. Re-
garding functions, Cubex 360 sports endless tilt rotation,
0-100% dimmer and high-speed strobe eect. Control-
lable via DMX, the fixture has color macros, built-in pro-
grams and an optimized sound-active mode. Cubex 360 is
an all-in-one moving head ideal for small/medium-scale
applications.
Specifications
Source & Optic
• Light Source:
- 6 x 4-in-1 CREE® 10W LEDs
- 12 x 4 SMD 5050 RGB LEDs
• LEDs life: 50,000 hours
• Beam angle: 6 x 9º
Photometric Data
• Luminous flux: 650 lux @ 3M (10 .)
• Color temperature: 6500K
Eects & Functions
• 6 razor sharp beams
• 12 high-brightness strips
• Quad-color LED technology: Smooth RGBW mix
with no multi colored shadows
• Dimmer: Full range 0-100%
• Strobe eect
• Built-in eects
• Color macros
• Unlimited tilt movement
• Flicker free operation
Control
• DMX Channels: 14/16
• Operational modes: DMX, Sound active, Mas-
ter/Slave & Autorun
Movement
• Pan: 630º
• Tilt: Unlimited
• 16-bit resolution
• Auto repositioning
Electrical
• Input voltage range: 100–240V, 50-60Hz
• Max. power consumption: 83W
Physical
• DMXConnectors:2XLRconnectors(XLR-3input&output)
• Power supply connectors: Interlock In
• 4-digit LED display
• Dimensions: 362x265x170.4 mm. / 14x10x6.7 in.
• Weight: 4.3 Kg. / 9.5 Lb.
ENGLISH VERSION

CUBEX 360
P.
3
2. Introduction
Thank you for having chosen this professional
moving head. You will see you have acquired a
powerful and versatile device.
Unpack the device. Inside the box you should find:
1. One DMX connection cable
2. One quick lock handle
3. One safety rope
4. One use manual
5. One power cable
ENGLISH VERSION
3. Safety and maintenance
Information
• This device has le the factory in perfect condi-
tion. In order to maintain this condition and to
ensure a safe operation, it is absolutely necessa-
ry for the user to follow the safety instructions
and warning notes written in this user manual.
• Damages caused by the disregard of this user
manual are not subject to warranty. The dealer
will not accept liability for any resulting defects
or problems.
• If the device has been exposed to temperature
changes due to environmental changes, do not
switch it on immediately. The arising condensa-
tion could damage the device. Leave the device
switched o until it has reached room temperature.
• Please make sure that the device be earthed.
• Please replace housing if it is broken. This fixture
can be using aer finished installed.
• Theelectricconnectionmustcarryoutbyqualifiedperson.
• Make sure that the available voltage is not higher
than stated at the end of this manual.
• Make sure the power cord is never crimped or
damaged by sharp edges. If this would be the
case, replacement of the cable must be done by
an authorized dealer.

CUBEX 360
P.
4
ENGLISH VERSION
• If the external flexible cable or cord of this lumi-
naire is damaged, it shall be exclusively replaced
by the manufacturer or his service agent or a simi-
lar qualified person in order to avoid a hazard.
• Please cut o the power if don’t use the fixture
or want to clean, maintenance.
• Please be aware that damages caused by manu-
al modifications to the device are not subject to warran-
ty. Keep away from non-professionals.
Guidance
• This device is a lighting eect for professional use
on stages, in discotheques, theaters, etc., the de
vice was designed for indoor use only.
• This fixture is only allowed to be operated with
the max alternating current which stated in the
technical specifications in the last page of this manual.
• The device can do continuous work for eight
hours. Lighting eects are not designed for per-
manent operation. Consistent operation breaks
may ensure that the device will serve you for a
long time without defects.
• Handle with care, do not make the device by
strong shocks.
• While choosing the installation-spot, please
make sure that the device is not exposed to ex-
treme heat, moisture or dust. Please don’t pro-
ject the beam onto combustible substances.The
minimum distance between light-output from
the projector and the illuminated surface must
be more than 1 meter.
• Please do not in damp, overheat or dusty envi-
ronment install and use the device. Do not use
light on fuel. The distance between the device
and the projectile to keep at least 1 meter.
• If you use the quick lock cam in hanging up the
fixture, please make sure the quick lock fasteners
turned in the quick lock holes correctly.
• Operate the device only aer having familiarized
with its functions. Do not permit operation by
persons not qualified for operating the device.
• Mostdamagesaretheresultof unprofessionaloperation.
• Please use the original packaging if the device is
to be transported.
• For safety reasons, please be aware that all mod-
ifications on the device are forbidden.
If this device will be operated in any way dier-
ent to the one described in this manual, the prod-
uct may suer damages and the guarantee be-
comes void. Furthermore, any other operation
may lead to short-circuit, burns, electric shock,
lamp explosion, crash, etc.

CUBEX 360
P.
5
ENGLISH VERSION
4. Installation
• The applicable temperature for the lighting is be-
tween -25°C to 45°C. Do not use the lighting under
or above the temperature.
• The installation of the eect has to be built and
constructed in a way that it can hold 10 times the
weight for 1 hour without any harming deformation.
• The installation must always be secured with a
secondary safety attachment, e.g. an appropriate
safety rope.Never stand directly below the device
when mounting, removing or servicing the fixture.
• The operator has to make sure the safety relating
and machine technical installations are approved
• by an expert before taking the device into opera-
tion for the first time.
• These installations have to be approved by a
skilled person once a year.
• Overhead mounting requires extensive experi-
ence, including amougst others calculating work-
ing load limits, installation material being used,
and periodic safety inspection of all installation
material and the device. If you lack these qualifi-
cations, do not attempt the installation yourself.
Improper installation can result in bodily injury.
Rigging


Mounting Bracket
Handing Bracket
Safety Rope
Rapid locking hook

CUBEX 360
P.
6
ENGLISH VERSION
1. Insert the quick-lock fasteners of the first hold-
er into the respective holes on the bottom of the
device. Tighten the quick-lock fasteners fully clockwise.
2. Make the finished installed mounting bracket
tighten on the fixed bracket.
3. Pull the safety rope through the holes on the bot-
tom of the base and over the trussing system or
other safe fixation spot.
4. Note:This step is quite important to ensure that
fixture will not drop out by the damage of clamp.
LCD display

1. MENU
2. UP
3. DOWN
4. ENTER
5. DISPLAY

1.DMX IN
2.DMX OUT
3.FUSE
4.POWER IN
5.POWER OUT

CUBEX 360
P.
7
ENGLISH VERSION
LED Digit display operation
Main Menu Sub-menu Function Show Instruction
Menu
Addr 000-512 Address setting
Chnd 14Ch Channel 14
16Ch Channel 16
Shnd Sh1 Scene mode 1
Sh2 Scene mode 2
Sh3 Scene mode 3
Slnd Mast Master mode
SL1 Slave mode
Lost Hold Keep mode
Soun Sound mode
Auto Auto mode
Blac Black mode
Sens S000~S099 Sound sensitivity
Angl 630 Pan 630 degree
540 Pan 540 degree
Pint yes Pan reverse Yes
No Pan reverse No
Tint Yes Tilt reverse Yes
No Tilt reverse No
Menu
Pan Pan Manual test 000-255
Til Tilt Manual test 000~255
Til2 Tilt2 Manual test 000~255
Red Red Manual test 000~255
Gren Green Manual test 000~255
Blue Blue Manual test 000-255

CUBEX 360
P.
8
ENGLISH VERSION
Whit White Manual test 000-255
Stro Strobe Manual test 000-255
Dim Dimmer Manual test 000-
255
led Led Manual test 000-255
Led on LED black out on
o LED black out o
Disp on Display reverse on
o Display reverse o
Test Whole Function Test
Fhrs Operate Time
Ver Soware Version
Rest Whole Reset
Defa Default
MENU operation
This fixture has 4 keys on front panel for operation, press
these to set address, reset, edit and run programs and so
on.
• MENU:pressMENUkeytoentereditstatus,ineditsta-
tus,ifpressMENUagain,itwillreturntheupperinter
face.Ifnooperation30seondsaerentereditstatus,
the fixture will exit the edit status automatically.
• Up:pressUPkey,theindicatorwillflash,theaddress
increasesonebyone,ifholdthekeycontinuously,the
addresswillincreaserapidly.Ifnopresswithin30sec-
onds,theindicatorstopsflashing and exitit. Inedit
status,pressUPkey,itwilldisplaytheoptionscircu-
larly from down to up.
• Down: press DOWN key,the indicatorwill flash, the
addressdecreasesonebyone,ifholdthekeycontin-
uously,theaddresswilldecreaserapidly.Ifnopress
within 30 seconds, the indicator stops flashing and
exit it. In edit status, press DOWN key, it will display
the options circularly from up to down.
• ENTER:innormalstatus,nofunctiontopressENTER.
In edit mode, press ENTER to enter lower interface.
Function setting
DMX address setting
1.Press MENU to enter EDIT interface
2. Press UP/DOWN to choose, then press ENTER.
3. Press Up/Down to choose address 001~XXX
4. Press ENTER to confirm, or press “MENU” to exit
Channel Setting
1. Press MENU to enter EDIT interface
2. Press UP/DOWN to choose, then press ENTER
to enter Chnd.
3. Press UP/DOWN to choose each chan-
nel.‘14CH’/‘16CH’
4. Press ENTER to confirm, or press “MENU” to exit
Scene mode Setting
(before this setting, please Press MENU into Lost
to select Soun or Auto and save, user should be in
Sound/Auto Modefirst,thedifferentscenecanbeselected)
1. Press MENU to enter EDIT interface

CUBEX 360
P.
9
ENGLISH VERSION
2. Press UP/DOWN to choose, then press ENTER
to enter Shnd.
3. Press UP/DOWN can choose light’s three
scene: Sh1, Sh2, Sh3 (can choose any scene mode
to operate )
4. Press Enter to confirm, or press “MENU” to exit.
Master-slave setting
1. Press MENU to enter EDIT interface
2. Press UP/DOWN to choose, then press ENTER
to enter SLnd.
3. Press UP/DOWN to choose Mast/SL1.
4. Press Enter to confirm, or press “MENU” to exit.
DMX Lost Setting
1. PressMENU to enter EDIT interface.
2. Press UP/DOWN to choose, then press ENTER
to enter Lost.
3. Press UP/DOWN can choose light’s three scene:
hold, soun, Auto, blac.
(you can choose any scene mode to operate )
4. Press Enter to confirm, or press “MENU” to exit.
Sound sensitivity Setting
(before this setting, please Press MENU into Lost
to select Soun and save, user should be in Sound
Mode first,the differentSound sensitivity canbeselected)
1. Press MENU to enter EDIT interface
2. Press UP/DOWN to choose, then press ENTER
to enter Sens.
3. Press Up/Down, Enter to adjust the sound sen-
sitivity from 0%-99%.
4. Press Enter to confirm, or press “MENU” to exit.
Pan angle setting
1. Press MENU to enter EDIT interface.
2. Press UP/DOWN to choose, then press ENTER
to enter Angl.
3 Press<Up/Down> to choose ‘630’，/‘540’
4. Press <Enter> to confirm, or press “MENU” to exit.
Pan reverse setting
1. Press MENU to enter EDIT interface.
2. Press UP/DOWN to choose, then press ENTER
to enter Pint.
3. Press Up/Down to choose ‘YES’/‘NO’
4. Press Enter to confirm, or press “MENU” to exit.
Tilt reverse setting
1. Press MENU to enter EDIT interface.
2. Press UP/DOWN to choose, then press ENTER
to enter Tint.
3. Press Up/Down to choose ‘YES’/‘NO’
4. Press Enter to confirm,or press “MENU” to exit.
Manual test
1. Press MENU to enter EDIT interface
2. Press UP/DOWN to choose, then press ENTER
to enter Manu.
3. Press Up/Down, to choose PAN, TIL, TIL2, Red,
Gren, Blue, Whit, Stro, Dim, LED.
Pan
1.Press <Enter> into【PAN，
2. Press <Up/Down> to choose ‘000~255’
3. Press <Enter> to confirm, or press “MENU” to exit.
TILT
1. Press Enter into TIL.
2. Press Up/Down to choose ‘000~255’.
3. Press Enter to confirm, or press “MENU” to exit.
TILT2
1. Press Enter intoTIL2.
2. Press Up/Down to choose ‘000~255’.
3. Press Enter to confirm, or press “MENU” to exit.
Red
1. Press Enter into Red.
2. Press Up/Down to choose ‘000~255’
3. Press Enter to confirm, or press “MENU” to exit.
Green

CUBEX 360
P.
10
ENGLISH VERSION
1. Press Enter into Gren.
2. Press Up/Down, Choose ‘000~255’
3. Press Enter to confirm, or press “MENU” to exit.
Blue
1. Press Enter into Blue.
2. Press Up/Down choose ‘000~255’
3. Press Enter to confirm, or press “MENU” to exit.
White
1. Press Enter into Whit.
2. Press Up/Down choose ‘000~255’
3. Press <Enter> to confirm, or press “MENU” to exit.
Strobe
1. Press Enter into Stro.
2. PressUp/Down choose ‘000~255’
3. Press Enter to confirm, or press “MENU” to exit.
Dimmer
1. Press Enter into Dim.
2. Press Up/Down choose ‘000~255’
3. Press Enter to confirm, or press “MENU” to exit.
LED
1. Press Enter into led.
2. Press Up/Down choose ‘000~255’
3. Press Enter to confirm, or press “MENU” to exit.
LED setting
1. Press MENU to enter EDIT interface.
2. Press UP/DOWN to choose, then press ENTER
to enter LED.
3. Press Up/Down to choose ‘ON’/‘OFF’
4. Press Enter to confirm, or press “MENU” to exit.
Display reverse setting
1. Press MENU to enter EDIT interface.
2. Press UP/DOWN to choose, then press ENTER
to enter Disp.
3. Press Up/Down to choose ‘ON’/‘OFF’
4. Press Enter to confirm, or press “MENU” to exit.
Whole test
1. Press ENTER to enter EDIT interface
2.PressUP/DOWN,thenpressENTER Test todowholetest
3. Press Enter to confirm, or press “MENU” to exit.
Operate time
1. Press ENTER to enter EDIT interface
2. Press UP/DOWN, then press ENTER Fhrs
to check the light’s working time
3. Press Enter to confirm, or press “MENU” to exit.
Soware Version
1. Press ENTER to enter EDIT interface
2. Press UP/DOWN, then press ENTER Ver to
check the light’s version information
3. Press Enter to confirm, or press “MENU” to exit.
Whole reset
1. Press MENU to enter EDIT interface.
2. PressUP/DOWN to choose, then press ENTER
to enter Rest.
3. Aer reset, it will go back to the upper interface
Restore factory settings
1. Press MENU to enter EDIT interface.
2. Press UP/DOWN to choose, then press ENTER
to enter Defa.
3. Press Enter to confirm,or press “MENU” to exit.

CUBEX 360
P.
11
ENGLISH VERSION
Channel Value Function
CH1 Pan 000-255 Pan 0-630°
CH2 Tilt 000-255 Tilt 0-200°
CH3 Infinite tilt 000-030 Stop
031-140 clockwise,from fast to slow
141-145 Stop
146-255 Counter-Clockwise from slow to
fast
CH4 Speed 000-255 Pan/Tilt Speed from fast to slow
CH5 Red 000-255 Red(0-100%)
CH6 Green 000-255 Green(0-100%)
CH7 Blue 000-255 Blue(0-100%)
CH8 White 000-255 White(0-100%)
CH9 Strobe 000-015 No Function (open)
016-095 Strobe 1HZ-25Hz Slow-Fast
096-175 Strobe 1Hz Fast-Slow
176-255 Random Strobe (Slow-Fast)
CH10 Dimmer 000-255 Master Dimmer 0-100%
CH11 LED strip program 000-036 No Function
037-056 Red
057-077 Green
078-098 Blue
099-119 R&G
120-140 R&B
141-161 G&B
162-176 R&G&B
177-186 RGB Change
187-196 Red-Chase
197-206 Green-Chase
207-216 Blue-Chase
217-226 R&G-Chase
227-236 R&B-Chase
237-246 G&B-Chase
R&G&B-Chase
Channel Instructions 14 channels

CUBEX 360
P.
12
ENGLISH VERSION
CH12 LED Strip Speed 000-255 Speed from slow to fast
CH13 Color Macro 000-045 No Function
046-065 Red
066-085 Green
086-105 Blue
106-125 White
126-145 R&G
146-165 R&B
166-185 G&B
186-205 R&G&B&W
206-255 RGB Change Fast-Slow
CH14 Function 000-049 No Function
050-069 Auto 1
070-089 Auto 2
090-109 Auto 3
110-119 Sound (5s aer start sound mode)
120-249 No Function
Whole Reset
Channel Value Function
CH1 Pan 000-255 Pan 0-630°
CH2 Pan Fine 000-255 Pan Fine
CH3 Tilt 000-255 Tilt 0-200°
CH4 Tilt Fine 000-255 Tilt Fine
CH5 Infinite tilt 000-030 Stop
031-140 clockwise,from fast to slow
141-145 Stop
146-255 Counter-Clockwise from slow to
fast
CH6 Speed 000-255 Pan/Tilt Speed from fast to slow
CH7 Red 000-255 Red(0-100%)
Channel Instructions 16 channels

CUBEX 360
P.
13
ENGLISH VERSION
CH8 Green 000-255 Green(0-100%)
CH9 Blue 000-255 Blue(0-100%)
CH10 White 000-255 White(0-100%)
CH11 Strobe 000-015 No Function (open)
016-095 Strobe 1HZ-25Hz Slow-Fast
096-175 Strobe 1Hz Fast-Slow
176-255 Random Strobe (Slow-Fast)
CH12 Dimmer 000-255 Master Dimmer 0-100%
CH11 LED strip program 000-036 No Function
037-056 Red
057-077 Green
078-098 Blue
099-119 R&G
120-140 R&B
141-161 G&B
162-176 R&G&B
177-186 RGB Change
187-196 Red-Chase
197-206 Green-Chase
207-216 Blue-Chase
217-226 R&G-Chase
227-236 R&B-Chase
237-246 G&B-Chase
R&G&B-Chase

CUBEX 360
P.
14
ENGLISH VERSION
CH13 LED Strip Program 000-036 No Function
037-056 Red
057-077 Green
078-098 Blue
099-119 R&G
120-140 R&B
141-161 G&B
162-176 R&G&B
177-186 RGB Change
187-196 Red-Chase
197-206 Green-Chase
207-216 Blue-Chase
217-226 R&G-Chase
227-236 R&B-Chase
237-246 G&B-Chase
247-255 R&G&B-Chase
CH14 LED Strip Speed 000-255 Speed from slow to fast
CH15 Color Macro 000-045 No Function
046-065 Red
066-085 Green
086-105 Blue
106-125 White
126-145 R&G
146-165 R&B
166-185 G&B
186-205 R&G&B&W
206-255 RGB Change Fast-Slow
CH16 Function 000-049 No Function
050-069 Auto 1
070-089 Auto 2
090-109 Auto 3
110-119 Sound (5s aer start sound mode)
120-249 No Function
Whole Reset

CUBEX 360
P.
15
ENGLISH VERSION

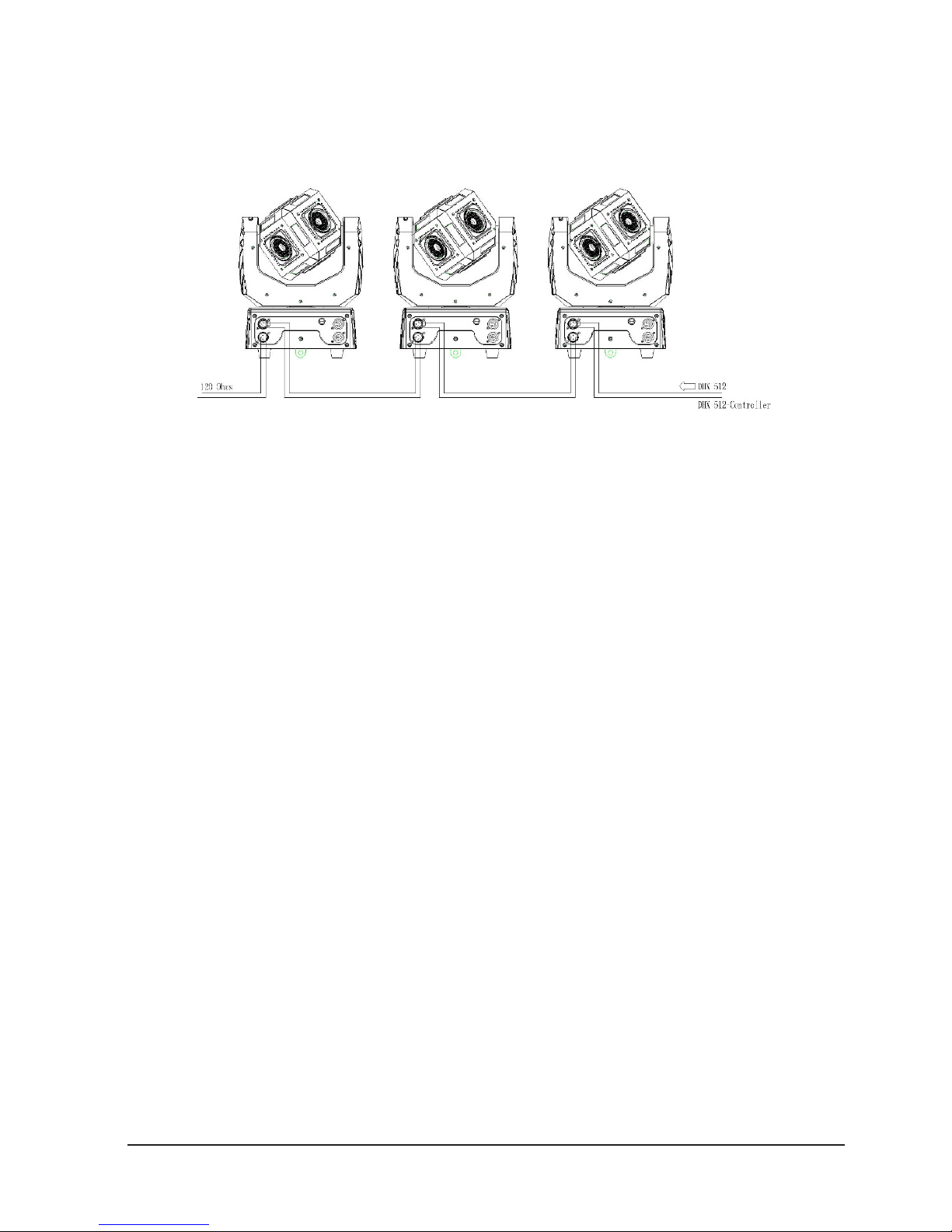

DMX-512 control connection
Connect the provided XLR cable to the male 3-pin XLR
output of your controller and the other side to the female
3-pin XLR input of the light.You can chain multiple lights
together through serial linking
The cable needed should be two core, screened cable with
XLR input and output connectors. Please refer to the dia-
gram below.

DMX OUTPUT DMX INPUT
1: Ground
2: Signal (-)
3: Signal (+)
DMX address setting
Each fixture must set a specific starting address. When re-
ceiving signal transmission, fixture will receive channels
control signals which from the starting address.
According to dierent requirements or easy to use, the
user can set many fixtures to the same address, also can
set up a separately address for every device.
If more than one fixtures set to the same address, all of
them receive from DMX channels signal. All connections
fixtures are jointly controlled, controller can't separate
control a device.
If each device set to a dierent address, each device will
be separate from its particular set the starting address and
began accepting DMX512 control signal, so that more con-
venient separate control one of device. Using this method
must be based on channel quantity of device to determine
a starting address.
This device have 16 channels, so the first device starting ad-
dress set 1, second is 17(1+16), third is 33(17+16) and so on.

CUBEX 360
P.
16

Address33 Address 17 Address 01
Cleaning and maintenance
• Cleaning should be performed every 15-day peri-
od, by using a sponge which is dipped with alco
hol, rather than wet cloth or other chemical liq-
uid, to clean the mirror.
• Cut o power before cleaning and maintenance!
• Do not see directly light source when open the
light, and make sure power o before do any in-
stallation or maintenance.
• Wires connection must be done professional
ENGLISH VERSION

CUBEX 360
P.
17
Warranty Card
This product is made of high-brightness transistor. We will provide 1 year warranty
under the condition that user has operated the light normally and lifetime service. We
won't provide warranty if the damage is caused by artificial or force majeure event.
Cost of fittings should be charged by user if product need maintenance aer 1 year
.Please cut this warranty card and shipped it along with the product to our factory
when applying for warranty.
Product Purchasing date Code of invoice
Warranty date: From To
User’s name Add
Company Tel
ENGLISH VERSION

CUBEX 360
P.
18
VERSION ESPAÑOL
1. Descripción
Cubex 360 es un cabezal móvil que combina 6 haces
definidos con 12 tiras ultra-brillantes, logrando efectos de
gran impacto visual. Equipado con 6 LEDs CREE® RGBW de
10W y 12 tiras SMD 5050 de 4 LEDs RGB cada una, el equipo
proyecta haces de 9º, resultando en un efecto 2-en-1 que
permite controlar los haces por un lado y las tiras por otro.
En cuanto a sus funciones y prestaciones, Cubex 360 cuen-
ta con movimiento tilt ilimitado, dimmer 0-100% y efecto
estrobo de alta velocidad. Controlable mediante DMX, el
cabezal posee macros de color y programas integrados,
además de un sistema audiorritmico optimizado. Cubex
360 es un cabezal que brinda un efecto integral, ideal para
aplicaciones de pequeña/mediana escala.
Especificaciones
Fuente & Optica
• Fuente de luz:
• - 6 LEDs CREE® 4-en-1 de 10W
• - 12 x 4 LEDs SMD 5050 RGB
• Vida útil promedio: 50.000 horas
• Ángulo de haz: 6 x 9°
Información Fotométrica
• Flujo lumínico: 650 lux @ 3m (10 .)
• Temperatura color: 6500K
Efectos y Funciones
• 6 haces definidos y potentes
• 12 tiras de alto brillo con programas preseteados
• Tecnología LED 4-en-1: Mezcla RGBW suave sin sombras
• Dimmer lineal de 0-100%
• Efecto estrobo
• Presets de efectos integrados
• Macros de color
• Movimiento tilt ilimitado
• Funcionamiento sin parpadeo (ideal broadcasting).
• Control
• Canales DMX: 11/13
• Función RDM
• Indica temperatura de base, brazo & lámpara
• IC de comunicación de respaldo
• Actualización del soware vía DMX
• Velocidad de refrigeración ajustable de acuer
do a la temperatura
Movimiento
• Pan: 630° / 540°
• Tilt: 265°
• Motor de 3 fases
• Resolución de 16-bit
• Reposicionamiento automático
Eléctrico
• Rango de voltaje de entrada: 100–240V, 50-60Hz
• Alimentación: Rango automático
• Consumo de potencia: 420W
Físico
• Conectores DMX: 2 conectores XLR (XLR-3 de
entrada & salida)
• Conectores de alimentación PowerCON® de Entrada
• Display COG de 2 pulg.
• Dimensiones: 343x250x501 mm. / 13,5x9,8x19,7 pulg.
• Peso: 15 Kg. / 33 Lbs.

CUBEX 360
P.
19
VERSION ESPAÑOL
2. Introducción
Gracias por haber elegido el producto Cubex 360. Por su
seguridad, lea atentamente el manual antes de utilizar el
equipo. Para la instalación, póngase en contacto con un
profesional certificado y procure seguir las instrucciones
de esta guía para garantizar su funcionamiento y manten-
imiento.
- 1 equipo.
- 1 manual del usuario.
- 1 cable DMX.
- 1 cable de suministro eléctrico.
- 1 soporte de cierre rápido
- 1 Cable de seguridad.
Verifique que el equipo no haya sufrido daños durante el
envío. En caso de que encuentre daños o piezas faltantes,
póngase en contacto de inmediato con su distribuidor.
3. Instrucciones de seguridad
• El equipo fue entregado en perfectas condi-
ciones. Procure seguir las instrucciones y advert-
encias de seguridad del manual para garantizar
el buen estado del equipo y su funcionamiento seguro.
• La garantía no cubre daños provocados por el uso
inapropiado de este producto. El fabricante y el
distribuidor no aceptarán responsabilidad por el
mal uso del equipo.
• En caso de que el equipo haya sido expuesto a
cambios de temperatura drásticos, no lo encien-
da de inmediato. La condensación puede causar
daños en el equipo. Manténgalo apagado hasta
que alcance la temperatura ambiente.
• Procure la conexión a tierra del equipo.
• Reemplace las piezas ópticas si se dañan e impi
den el óptimo funcionamiento del equipo.
• La instalación eléctrica del equipo debe ser real-
izada por un profesional certificado.
• Compruebe que el voltaje utilizado no sea supe-
rior ni inferior a los valores indicados.

CUBEX 360
P.
20
VERSION ESPAÑOL
• Verifique que el cable de suministro eléctrico no
se encuentre cortado o dañado. Si ese fuera el
caso, contacte a su distribuidor para reempla-
zarlo por otro cable en óptimas condiciones.
• Desconecte el equipo del suministro eléctrico
cuando necesite limpieza o cuando no esté en
funcionamiento.
• Evite tocar el equipo durante su funcionamiento.
La cubierta alcanza altas temperaturas.
• No mire en forma directa a la fuente de luz. Las
personasfotosensitivascorrenriesgodesufrirconvulsiones.
• La garantía no cubre daños provocados por la
introducción de modificaciones manuales en el
equipo. Mantenga el equipo fuera del alcance
de niños y usuarios inexpertos.
Lineamientos generales
• Esta equipo se diseño para uso profesional en
escenarios, discotecas, teatros, etc. Debe ser usa
do únicamente en espacios interiores.
• Utilice el equipo únicamente con la corriente al-
terna indicada en las especificaciones técnicas,
ubicadas en la página 5 del presente manual.
• Los efectos de luz no están diseñados para fun-
cionar de forma permanente. Procure que el
equipo descanse luego de 8 horas de funcionam-
iento continuo para prolongar su vida útil.
• No sacuda el equipo. Evite utilizar o instalar el
equipo de forma brusca.
• Al elegir el punto de instalación, procure que el
equipo no quede expuesto al calor, humedad o
polvo en exceso. La distancia mínima requerida
entre la salida de luz del equipo y la superficie a
iluminar debe ser superior a los 3 metros.
• El equipo debe ser instalado a una distancia de al
menos 1 metro de objetos o superficies inflamables.
• Si emplea soportes con cierre rápido para la in-
stalación del equipo, verifique que las trabas es-
tén bien aseguradas.
• Procure familiarizarse con las instrucciones antes
de utilizar el equipo. No permita que personas in
expertas operen la unidad. La mayoría de los
daños son consecuencia del uso inapropiado o
poco profesional del equipo.
• Utiliceelembalajeoriginalsiprecisatrasladarelequipo.
• Si opera el equipo de alguna forma no descrita
en el presente manual, el producto puede su-
frir daños severos. La garantía no cubre aquel
los daños provocados por el uso indebido del
equipo. Cualquier otro uso de la unidad puede
causar cortocircuitos, descargas eléctricas, ex-
plosión de la lámpara, etc.
