tefen InjectRite User manual

InjectRite
Proportional Peristaltic Pump
User Guide
79000000035
07
.20
22

Page | 2
Kibbutz Nahsholim 3081500, Israel
Tel.[phone] | Fax. [phone] | [e-mail] | www.tefentech.com
1. Technical Details
Feature
Pump
EUVersion
USAVersion
Dosage Rate
0.2 , 0.25,0.5,0.75,1.0,1.25,1.5,1.75,2.0
,2.0%
1:256, 200,128,100,64,50
Power Plug
220V
110V
Water Meter Input*
1 pulse per 1 liter
1 pulse per 0.1 or 1gallon
gallon
Tube Material
Santoprene
Pump Tube
Connection
3/8'' BSPT
3/8''NPT
Max. Injection
12 L/H
3.16GPH
Operation Trigger
Dry pulse (from water meter)
Dimensions (LxHxW)
185 (7.28) x125(4.92) x145(5.7)
*Using the right water meter is essential for the successful operation of the pump.
MaximumMainlineWaterFlowRateperDosageRate

Page | 3
Kibbutz Nahsholim 3081500, Israel
Tel.[phone] | Fax. [phone] | [e-mail] | www.tefentech.com
2. Assembly Instructions
2.1. Install the pump
2.2. Attach the 2 core cables, outside the pump, to the water meter output, by cables color
code
2.3. Connect the pump outlet to the water system. Ensure that the pump is installed after
a pressure regulator, and that the line's counter pressure does not exceed 2.5 bar
(36 psi).
2.4. Insert the suction tube into the additive tank. Make sure the tube is fully immersed
inside the liquid, but floats above the bottom of the tank.
2.5. Insert the pump's power plug into the socket. Now the blue display and the bottom red
LED are on (constantly), indicating proper functioning.
2.6. Set the water meter input:
2.6.1. Press: MODE + - + -
2.6.2. Water meter options:
Power Cable
Connection to
the water meter
Water outlet
NOTE: Examine check valve position
Water Inlet
Vertical position

Page | 4
Kibbutz Nahsholim 3081500, Israel
Tel.[phone] | Fax. [phone] | [e-mail] | www.tefentech.com
2.6.3. Switching between options by pressing: MODE + - + -
Set the dosage rate as follow:
2.6.4. Press Mode
2.6.5. Change the dosage rate by pressing the - / + buttons.
2.6.6. Set the required rateby pressing Mode again
2.7. Open the line's water flow and press (constantly) on Prime , until the suction tube is
filled with additive.
2.8. Now the pump is operating automatically, according to the water flow rate. When the
mainline valve is closed, the pump will stop.
2.9. Every time the water meter sends an input signal, the top LED blinks green and the
pump should work
2.10. Pump displays:
2.10.1. XXX –Flow rate
2.10.2. GHP- Gallon per Hour (1:xx)
2.10.3. L-H –Litter per Hour (%)
Display
Input units
U1
Pulse / 1 Gallon
U01
Pulse / 0.1 Gallon
Eu
Pulse / 1 Litter

Page | 5
Kibbutz Nahsholim 3081500, Israel
Tel.[phone] | Fax. [phone] | [e-mail] | www.tefentech.com
3. Troubleshooting
3.1. The pump is equipped with an error detection feature. When encountering an error, the
top LED blinks red, and an error message is displayed.
3.2. Common Errors and Solutions:
Error
Display
PossibleCause
Solution
Nosignal
from water
meter
Top LED blinks red, and
Er.1 isdisplayed.
No water flow
The pump will
reactivate
automatically when
water flow returns.
Water meter cable is
not connected.
Recheck connection
between the water
meter and the pump's
inputcable.
Water meter cable
malfunction
Replace water meter
cable.
Mainline
water
overflow
Top LED blinks red, and
Er.2 is displayed.
Flow rate exceeds the
maximumallowed.
The pump will operate
in full capacity, with
inaccurate dosage rate.
Reduce the water
flow rate below the
threshold.Or,reduce
the dosage rate and
keep the same water
flow.
Nosuction
_
Pump suction failure
Make sure the counter
pressure is below 3 bar
(43psi).
Suction occurs, but
additive returns to tank.
Check the foot valve at
the end of the suction
tube. Try to wash and
cleanit.
Abrasionin
pump tube
_
Tube wear and tear
Replace the pump tube
with 3 simple steps:
• Unfasten the 2
screws holding the
clear cover.
• Replace the tube and
attach fittings.
• Fasten the screws.
Pumpdoes
not work.
Display and LED are on.
Pump is on Off mode
–water flow without
additive injection.
Change Off toone of
the dosage rates.
Display is on, Prime
is working.
Water meter cable is
disconnected.
Reconnectthecable,
and wait 60 seconds.
CheckifthetopLED
blinksgreen.

Page | 6
Kibbutz Nahsholim 3081500, Israel
Tel.[phone] | Fax. [phone] | [e-mail] | www.tefentech.com

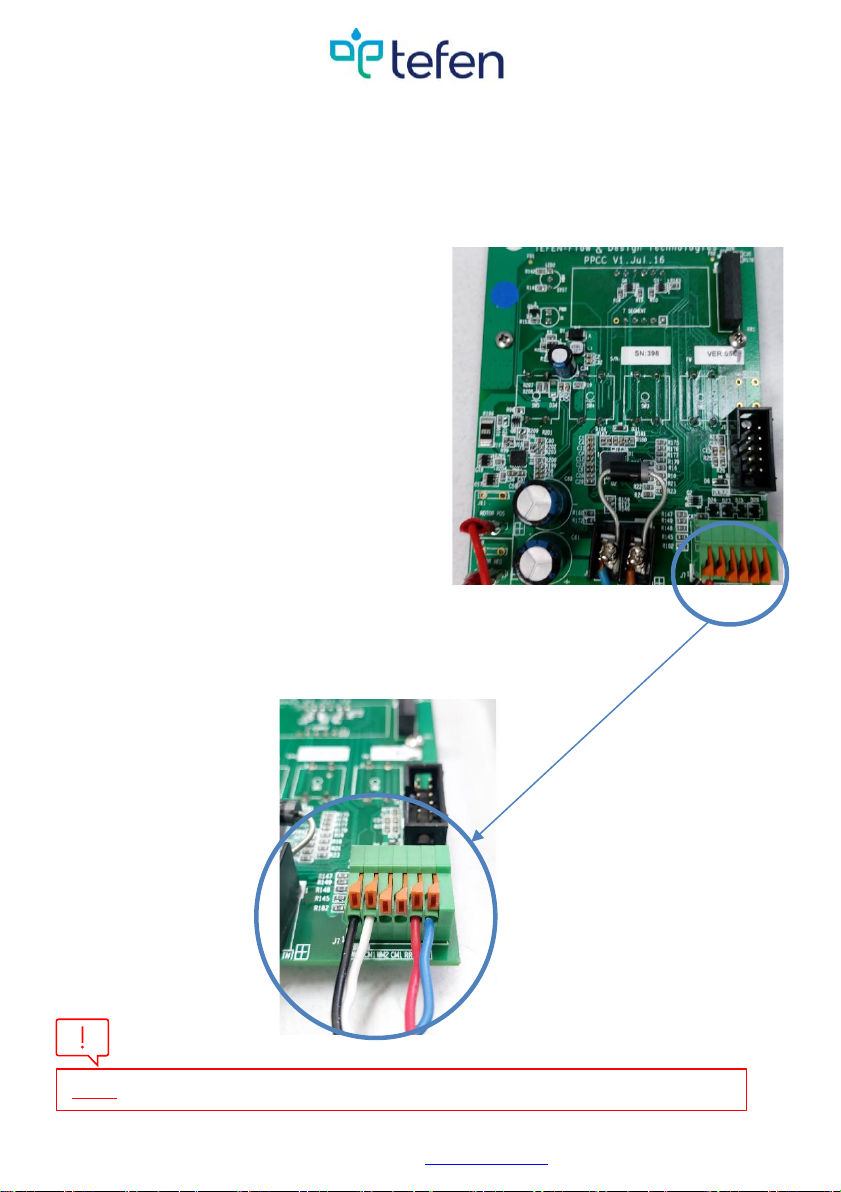

4. PCB Connectors
A deep switch connects the dry pulse from the water meter to the control
water system.
WM1, CM1 –Connectors for dry pulse
signals from the water meter into the
pump
WM1-black
CM1- white
RR1, RR2 - connectors for dry pulse
signals from the pump into the
controller/ or to the second pump, to
theWM1, CM1connectors
RR1- red
RR2- blue
In order to send signals from the water
meter, the pump must be connected to
the power supply.
NOTE: Only qualified electrician certificates may change the wiring of the pump

Page | 7
Kibbutz Nahsholim 3081500, Israel
Tel.[phone] | Fax. [phone] | [e-mail] | www.tefentech.com
Single Installation
Parallel Installation
InjectRite
InjectRite
InjectRite

Page | 8
Kibbutz Nahsholim 3081500, Israel
Tel.[phone] | Fax. [phone] | [e-mail] | www.tefentech.com
Maintenance:
#
Period
Maintenance Action
1
Week
Cleaning the suction filter
2
1 month
Add grease on the suction tube
3
6 months
Tight the connectors
4
The rollers working properly
5
As need
Replace the suction tube
Suction tube replacement instructions

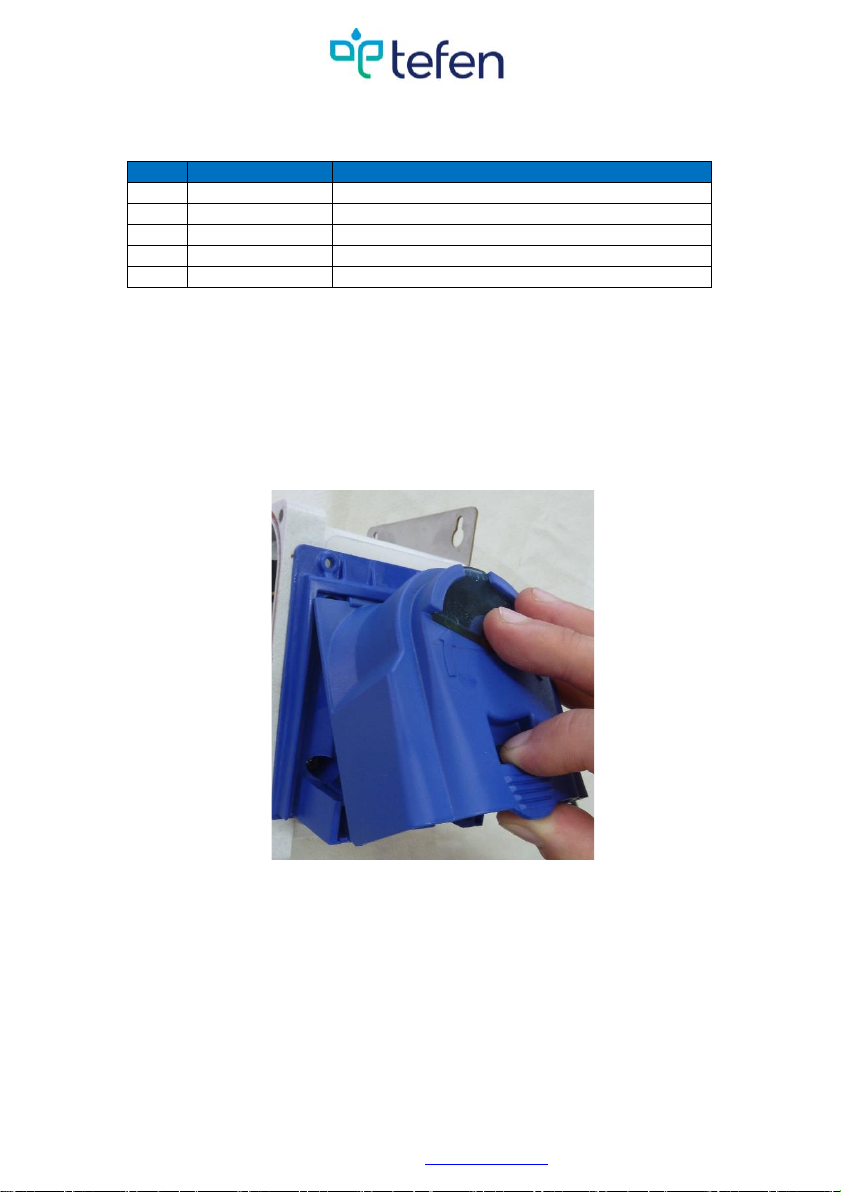

1. Open the head cover

Page | 9
Kibbutz Nahsholim 3081500, Israel
Tel.[phone] | Fax. [phone] | [e-mail] | www.tefentech.com
2. Remove the old squeeze tube and insert a new tube
3. Close the head cover

Page | 10
Kibbutz Nahsholim 3081500, Israel
Tel.[phone] | Fax. [phone] | [e-mail] | www.tefentech.com
Spare Parts
DescriptionSKUPhotoNo.
Squeeze Tube Kit366000000031
Pump mounting plate 81.63380000003112
Rinse Pump head kit 81.118.16380000003123
Motor & Gearbox380000003134
10-32 X 1/2 SS PHIL SCREW 25.85.2380000003145
Suction & Injection Kit366000000016

Page | 11
Kibbutz Nahsholim 3081500, Israel
Tel.[phone] | Fax. [phone] | [e-mail] | www.tefentech.com
Limited Warranty
Merchandise Return Policy
No merchandise may be returned for credit without written authorization from TEFEN. A Return
Merchandise Authorization (RMA) number must be requested and issued prior to the return of
any product.
Product Warranty
TEFEN products are warranted against defects in material and workmanship under normal use
and service, for a period of one year from date of purchase. This limited warranty does not apply
to any products that have a normal life shorter than one year, or failure and damage caused by
chemicals, corrosion, physical abuse, or misapplication. Rubber and synthetic rubber parts such
as o-rings, diaphragms, PVC tubing, and gaskets are considered expendable and are not covered
under warranty. This warranty extends only to the original buyer of TEFEN products. This
warranty does not cover products that are altered or repaired without prior approval from TEFEN.
Defective units or parts should be returned to the factory with transportation prepaid. If inspection
shows them to be defective, they will be repaired or replaced without charge, FOB factory.
TEFEN assumes no liability for damages. All returns must have an RMA number (See
“Merchandise Return Policy" above).
