tefen MixRite E-300 User manual
MixRite E-300 -User Guide
79000000036
07.2022
MixRite E-300 -User guide
P.I - 10.26/05
Document no:
Page 2of 13
Tefen Flow and Dosing Technologies LTD. Kibbutz Nahsholim 3081500 Israel
Table of Contents
Introduction - Safety guidelines…………………………..…………..3
P1 - Technical data……………………………………………...……4
P2 - Assembly instructions and installation……………………......…5
P3 - Set pump parameter and operation………………………...…6-7
P4 - Troubleshooting……………………………………………..…..8
P5 –Maintenance…………………………………………………….9
P6 - Additive flow and motor % with pressure………………….....10
P7 - Kits list……………………………………………………..11-12
P8 - Pump spare parts…………………………………….…………13
MixRite E-300 -User guide
P.I - 10.26/05
Document no:
Page 3of 13
Tefen Flow and Dosing Technologies LTD. Kibbutz Nahsholim 3081500 Israel
Introduction
TEFEN E300 fertilizer pump is designed to ensure precise amount of fertilizer to your irrigation
system.
E-300 electric dosing pump directly injects liquid additives into water lines.
The E300 operate by an AC/DC irrigation controller.
GENERAL SAFETY GUIDELINES
Carefully follow the installation instruction
Keep the pump protected from sun and water. Avoid water splashes.
All hazardous electric voltage jobs must be conducted by a local qualified electrician and
according to local regulations.
Do not leave the electrical compartment, hood, or any connection box open while the
machine is running or while you are away.
When installing always observe national regulations. electrical installation must comply with
the local safety standards and regulations
Before any operation :
always read chemical Material Safety Data Sheet (MSDS)
always discharge the liquid end before servicing the pump .
empty and rinse the liquid end before work on a pump that has been used with
hazardous or unknown chemicals.
Always use protective equipment, gloves, and goggles when handling fertilizers, acid and
other chemicals!
Do not use in explosive area (EX).
Do not use with flammable chemicals.
Do not use with radioactive chemicals.
This equipment requires regular maintenance to ensure potability requirements of the
water and maintenance of improvements as declared by the manufacturer.
MixRite E-300 -User guide
P.I - 10.26/05
Document no:
Page 4of 13
Tefen Flow and Dosing Technologies LTD. Kibbutz Nahsholim 3081500 Israel
P1. Technical Data
Material
Diaphragm
Santoprene
Piston
Viton
Pump house
PP
Category
Details
Pump
•V –12 DC
•P –80W
•A –7 A
Power Supply
•220 AC
•110 AC
•12 DC
Water Connection
•3/8"-18 NPT Female
Additive Temperature
•Max 77 C° (170 F°)
Priming
•Self-Priming Up To 1.5m (5 Ft.) Vertical, Max. Inlet Pressure
2.1 Bar (30 PSI)
Flow L/h
•Max –314 L/H (1.38GPM) at 1 bar (14.5 psi)
Pressure
•Max –5.0bar (72 psi)
Ambient Temperature
•Up to 40°C
MixRite E-300 -User guide
P.I - 10.26/05
Document no:
Page 5of 13
Tefen Flow and Dosing Technologies LTD. Kibbutz Nahsholim 3081500 Israel
P2. Assembly Instructions and Installation
General Dimensions (Back view)
1. Position the pump vertically.
2. Pump must Instaled under shelter - protected from sun and water. Avoid water splashes.
3. Make sure that filter ¾" (120 micron) is installed at the pump inlet.
4. Verify that check valve is positioned according to the arrow - horizontal or vertical position.
Irrigation Controller
Flow
Pump position
Horizontal position
Vertical position
Only qualified electrician certificates may change the wiring of the pump:NOTE
1
2
3
MixRite E-300 -User guide
P.I - 10.26/05
Document no:
Page 6of 13
Tefen Flow and Dosing Technologies LTD. Kibbutz Nahsholim 3081500 Israel
P3. Set Pump Parameter and Operation
1- Connect the pump to the power source –and to irrigation controller.
2- The display will show “OFF”
3- Mode adjustment:
3.1- The default value is DC NC (Normally Closed) for the first activation.
3.2-Select the mode, execute the following steps:
1- Press the buttons as shown below:
(P)→(+) →(P)→(+)
2- Press (P) to change mode options:
MixRite E-300 -User guide
P.I - 10.26/05
Document no:
Page 7of 13
Tefen Flow and Dosing Technologies LTD. Kibbutz Nahsholim 3081500 Israel
3.3 –To fix the mode press (+).
3.4- The mode will be stored.
4- Pump operation –pump value setup:
a- When the motor is stopped, the display shows "OFF" and when started the display
shows the power value.
b- Press (+) to increase motor power (value in percentage).
c- Press (-) to decrease motor power (value in percentage).
d- Press simultaneously on (+) and (-) to Start or Stop the Pump. Pump value can be changed
during operation/stop.
e- When display shows 0% the pump will turn-off automatically after 20 seconds.
5- Operation cycle
a- Up to 4 bar- continuous.
b- 4 - 5 bar - 1.5 hours-
On first operation execute priming. Press (P) continuously to activate the motor
at 90% power. Verify that the system contains fluid.
Pump Value Setup
Water Line Pressure (bar)
Additive amount (l/h)
DC NC
DC NO
AC
MixRite E-300 -User guide
P.I - 10.26/05
Document no:
Page 8of 13
Tefen Flow and Dosing Technologies LTD. Kibbutz Nahsholim 3081500 Israel
P4. Troubleshooting
There are three main causes of pump failures:
1- Display E r 1 - 12 A Over-Current (Electrical Overload):
a- The Motor turns-off and Red light appears.
2- Display E r 2 - 16 A Over-Current (Electrical Overload):
a- The Motor turns-off and Red light appears.
3- Display E r 3 - Under-voltage (Driver Low voltage) supply
a- The Motor turns-off and Red light appears.
MixRite E-300 -User guide
P.I - 10.26/05
Document no:
Page 9of 13
Tefen Flow and Dosing Technologies LTD. Kibbutz Nahsholim 3081500 Israel
P5. Maintenance
#
Period
Maintenance Action
1
1 Week
Clean suction filter
2
2 Week
Check that the tube is clean
3
6 months
Clean diaphragm
4
6 months
Check function and noise
* After using aggressive chemicals, it is recommended to flash the system with clean water.
MixRite E-300 -User guide
P.I - 10.26/05
Document no:
Page 10 of 13
Tefen Flow and Dosing Technologies LTD. Kibbutz Nahsholim 3081500 Israel
P6. Additive flow rate MixRite E-300
Bar
Value
L/H
Bar
Value
L/H
1
10
21
4
16
19
1
20
59
4
20
32
1
30
94
4
30
64
1
40
131
4
40
94
1
50
166
4
50
125
1
60
200
4
60
151
1
70
228
4
70
168
1
80
258
4
80
191
1
90
291
4
90
234
1
100
314
4
100
256
2
13
21
5
10
0
2
20
49
5
20
8
2
30
86
5
30
39
2
40
120
5
40
71
2
50
153
5
50
98
2
60
181
5
60
129
2
70
205
5
70
150
2
80
236
5
80
186
2
90
266
5
90
214
2
100
301
5
100
252
3
10
19
3
20
36
3
30
72
3
40
104
3
50
140
3
60
171
3
70
189
3
80
224
3
90
245
3
100
287
MixRite E-300 -User guide
P.I - 10.26/05
Document no:
Page 11 of 13
Tefen Flow and Dosing Technologies LTD. Kibbutz Nahsholim 3081500 Israel
P7. MixRite E-300 STD KIT
ImagePart No.DescriptionsQty.
12010308088FEMALE PIPE COUPLING - 1/2""1.00
12010312128FEMALE PIPE COUPLING - 3/4" BLUE1.00
12022212123PIPE HEX NIPPLE - 3/4" NPT1.00
14030052101PE TUBING 12 MM - NATURAL10.00
22046852068MALE CONNECTOR - 12 MM*3/8"2.00
22046852088MALE CONNECTOR - 12 MM*1/2"1.00
22046852128MALE CONNECTOR - 12 MM*3/4"1.00
22047152048MALE BRANCH TEE - 12 MM*1/4"1.00
230025040432 WAY 1/4" VALVE PP GREY1.00
23444008122Line Check Valve 3/4"*1/2 MALE EPDM1.00
38000000172FILTER 3/4" GREY1.00
MixRite E-300 -User guide
P.I - 10.26/05
Document no:
Page 12 of 13
Tefen Flow and Dosing Technologies LTD. Kibbutz Nahsholim 3081500 Israel

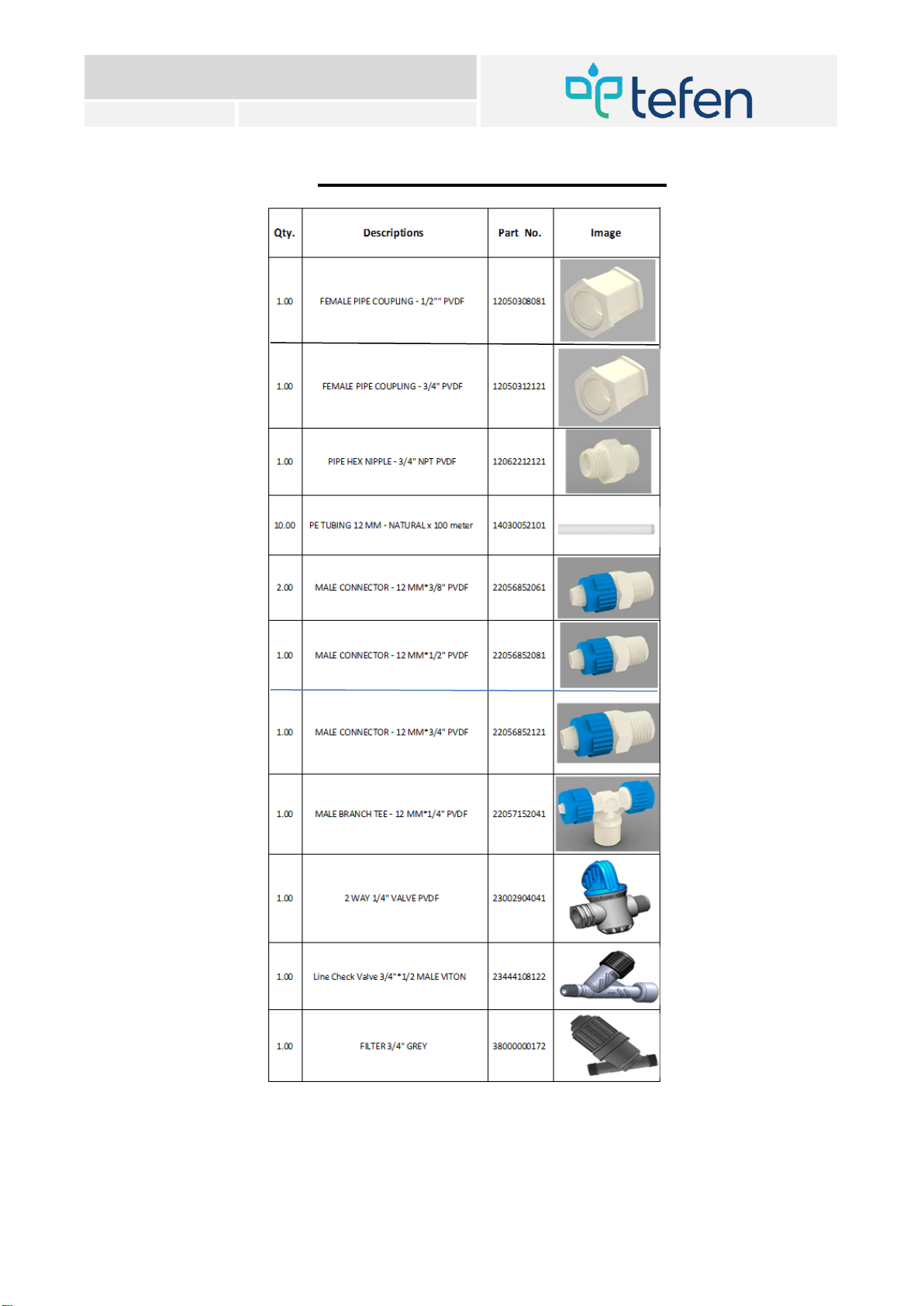

MixRite E-300 PVDF KIT
Assembly Instructions
MixRite E-300 -User guide
P.I - 10.26/05
Document no:
Page 13 of 13
Tefen Flow and Dosing Technologies LTD. Kibbutz Nahsholim 3081500 Israel

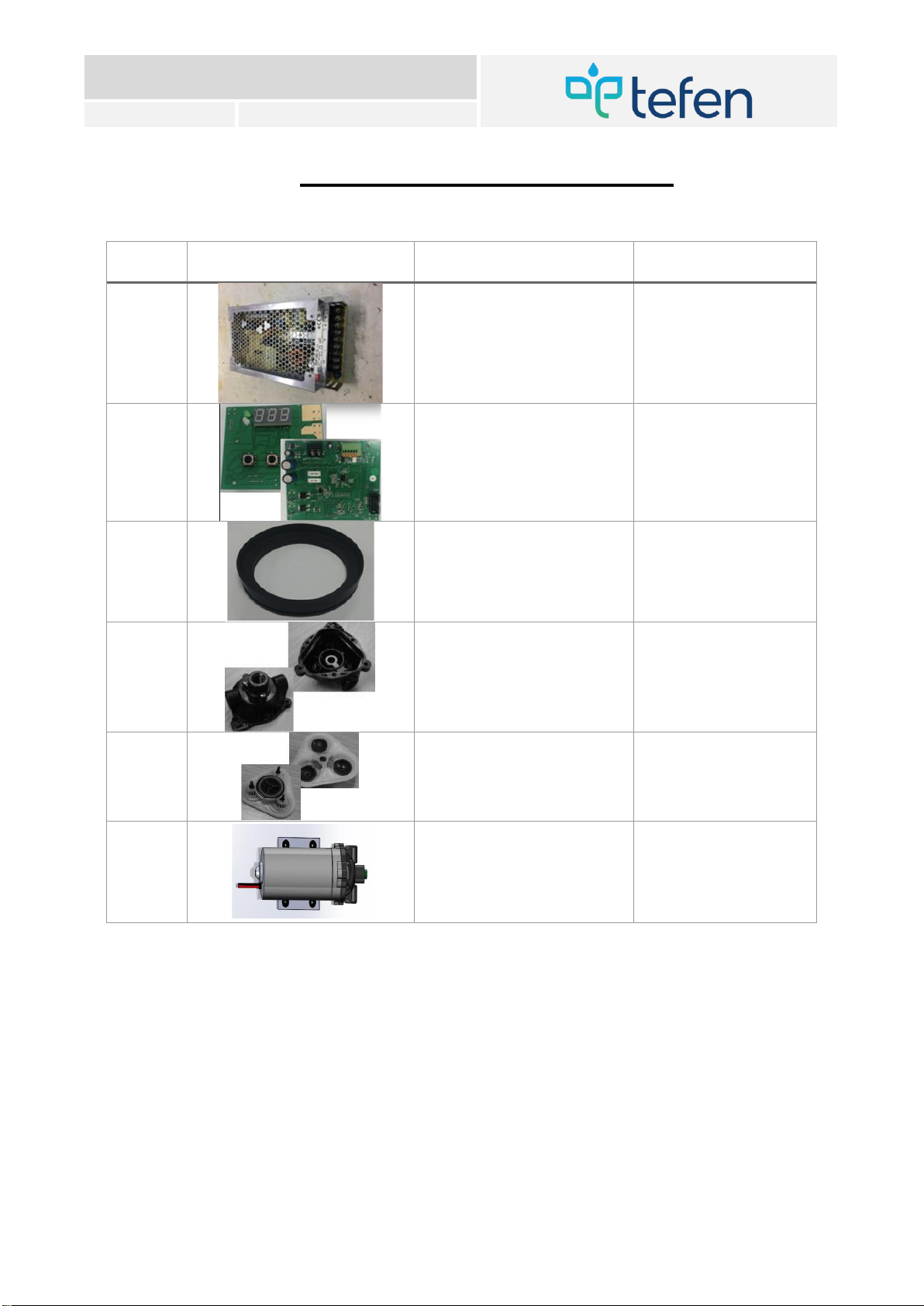

P8. MixRite E-300 - Spare parts
Item no
Part No.
Descriptions
1
38000000254
Power supply
2
38000000273
Controller STD for
electric pump
3
38000000356
Motor Gasket
4
38000000390
Upper Housing
5
38000000391
Valve Kit (Viton)
6
36700000004
ElectroRite Pump
wired Diaphragm
Pump
