TEGRAS Concept iFoam Mini User manual

concept
Intelligent active foam generator
ENG
Originalmanualtranslation
o
User manual

Intelligent active foam generator 2-30
o
introduction
Dear client:
Many thanks for having placed your trust in a quality product from TEIN-
NOVA.
This product has been developed with modern manufacturing procedures
and a range of measures in order to guarantee quality.
We endeavor to do everything possible so that you are satisfied with this
product and can work with it without any problems.
If you have any questions about this product, please contact your distributor
or contact our company directly.
Before starting the machine, carefully read the usage instructions for your
equipment.
Consider this manual as part of the machine and always have it to hand for
future queries.
Our training services have been designed to support our clients in achieving
their objectives and together we develop training programmes that suit their
strategy.
We offer the possibility of providing companies with specific training for
using our equipment and training their operatives so that they can perform
the best service and thus contribute to the success of their end clients. This
includesaspectssuchasknowinghowtodraftagoodandobjectivebudget,
responding to specific problems that might arise or offering a more profes-
sional and efficient service.
Thanks to manufacturing the cleaning equipment ourselves we can control
the quality and the performance of each machine we manufacture at all
times. This has allowed us to have very low repair rates which have always
been resolved by our own Technical Assistance Service in very short time
frames. The service is managed by the same human team as the factory.
We have every type of replacement available for your equipment as well
as related accessories.
his instruction manual is protected by copyright. We reserve all rights, especially the right to produce, trans-
late and create using electronic systems.
Training services
Technical service

Intelligent active foam generator 3-30
o
index
symbols
safety warnings
conditions of use
know your machine
control panel
accessories and related equipment
operating instructions
use of chemical products
5-30
6-30
7-30
8-30
9-30
10-30
14-30
23-30

Intelligent active foam generator 4-30
o
index
transport
maintenance and care
waste management
troubleshooting guide
technical specifications
guarantee conditions
declaration of conformity “CE”
24-30
25-30
26-30
27-30
28-30
29-30
30-30

Intelligent active foam generator 5-30
o
symbols
All of the graphic symbols shown in this manual as well as those indicated
on the equipment itself are explained in this section. It is important to read
the text relating to these symbols with special care as it concerns personal
and equipment safety.
DANGER!
Thissymbolwarnsofapotentiallydangeroussituationthatcouldcauseserious
injuries or even death if the indicated instructions are not followed
appropriately. Ensure that you read all the instructions described in the
“Safety information” section.
WARNING!
This symbol warns of a potentially dangerous situation that could either
cause mild or moderate injuries or damage to property, causing personal
injuries, if the indicated instructions are not followed appropriately.
CAUTION!
This symbol warns of a situation that could cause damage to property
without causing personal injuries if the indicated instructions are not followed
appropriately.
IMPORTANT NOTE!
This symbol warns of information relating to the optimal use of the
equipment in order to avoid possible handling errors.

Intelligent active foam generator 6-30
o
The IFOAM MINI equipment must NOT be used for anything other than the uses outlined in this
instruction manual.
Before starting up the equipment ensure that all electric and liquid connections are correct.
Do not aim the stream from the lances at people.
Take care to place your IFOAM MINI on a smooth and stable surface.
Persons operating the IFOAM equipment must be sufficiently trained.
It is adviseable to use mechanical protection gloves and overalls when operating the equipment.
It is mandatory to use complete facial protection equipment in order to avoid the possibility of chemical
products splashing into the eyes of the operator.
Adequately secure the IFOAM MINI in a vertical position and lock the wheels when transporting it in
a vehicle.
Do not open the back cover of your IFOAM MINI or tamper with any of the equipment’s internal
elements. In the event of a breakdown, get in touch with TEINNOVA’s Technical Assistance Service on
telephone number: [phone].
safety warnings

Intelligent active foam generator 7-30
o7-29
Any other use is completely
prohibited without written
authorisation from the manufacturer.
Do not, under any circumstances,
place the IFOAM MINI in a
horizontal position as this will cause
the machine to break down.
KEY
Unless indicated otherwise, the
degreasing chemical product shall
be the one recommeneded by the
manufacturer, COMEGRAS BOX.
Using a different chemical will nullify
the guarantee and might cause
irreparable damage to your
TEGRAS equipment.
IFOAM MINI is a machine for generating and applying active foam and for subsequently rinsing with water.
It is suitable for working in kitchens and food companies as well as for using tested aggressive chemical
products. It can be used in flues and extraction hoods.
It can be used in combination with either a TEGRAS brushing robot or a manual lance as shown in the usage
diagram.
intended conditions of use
Low pressure foam
production/rinsing
lance
IFOAM MINI
Active foam and rinse
generator
AR20
Compressed air
generator
TEGRAS MULTIPRO
Pneumatic brushing robot for
cleaning ducts
low pressure chemical and rinse product
electric-powered
compressed air
mains water

Intelligent active foam generator 8-30
o

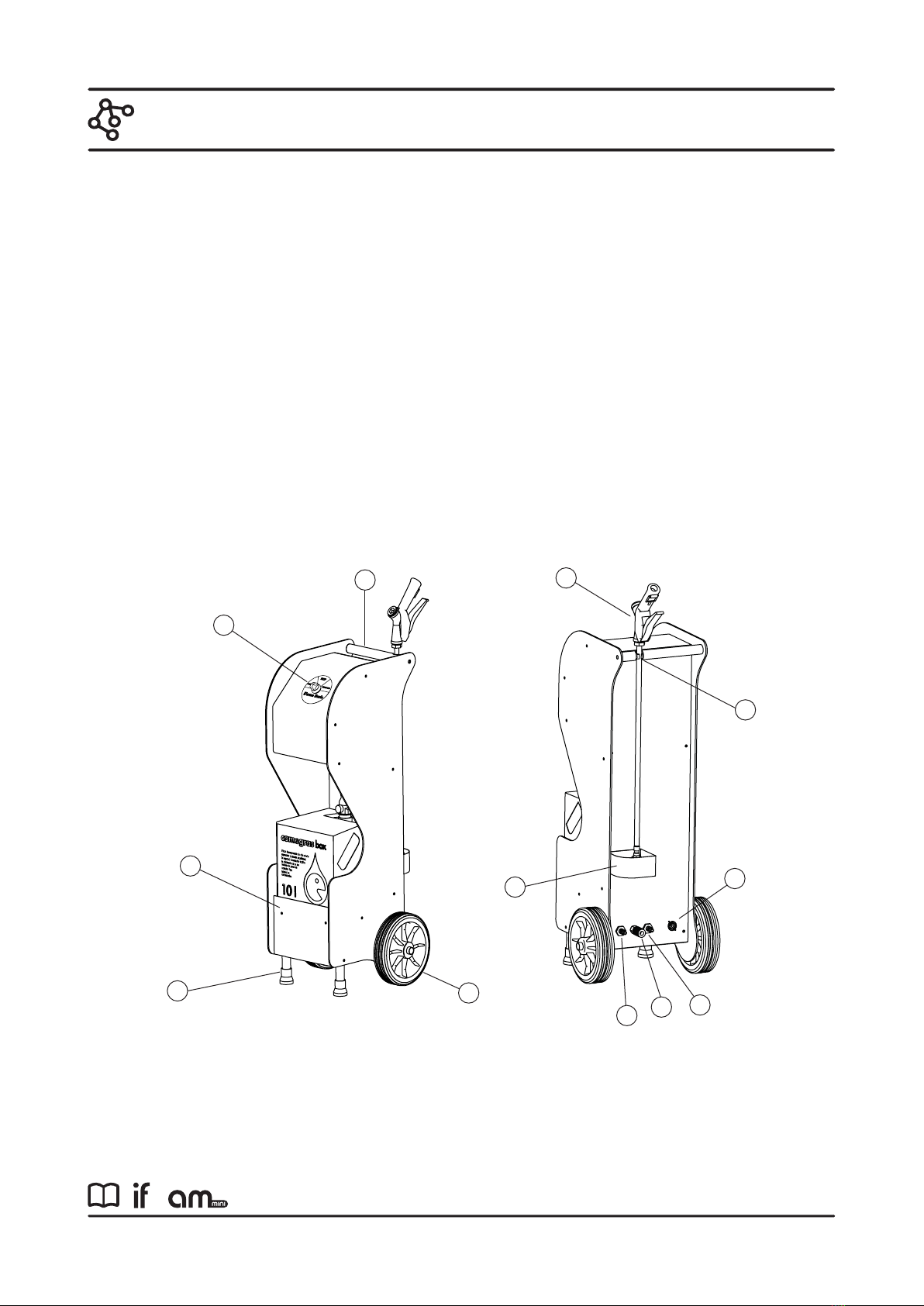

get to know your
Components:
1- Control panel
2- Front legs
3- Transport handle
4- Chemical compartment
5- Back wheel
6- Lance for low pressure
7- Foam/rinse exit point
8- Power outlet
9- Mains water outlet
10- Compressed air outlet
11- Lance support
12- Lance hook
8
7
5
1
2
3
411
9
12
6
10

Intelligent active foam generator 9-30
o
control panel
1
1
2
2
3
3
Main control panel:
Foam option
Stopping the machine
Rinse option
Stop the functioning of the machine.
Activate the rinse system by injecting water at 6 bar. This
function should always be performed with the nozzle with
four outlets.
Activate the foam creation system and its injection at 6 bar
pressure. This function should always be performed with the
foam nozzle.
Green LED
Red LED
The green light will remain active throughout the entire
operationindicatingthatthewaterinlettemperatureiscorrect.
The red light will appear only when the water inlet
temperature exceeds 60oC. At the same time, the machine
will be locked to prevent failure of internal components.
5
4
45

Intelligent active foam generator 10-30
o
Accessories included for the low pressure system:
accessories and related equipment
An 8 metre hose with standardised connectors, specifically for
supplying low pressure compressed air to the low pressure lance
supplied by Teinnova. The connectors correspond to those found on
the equipment provided by TEINNOVA.
Code: AC3303221
iFoam low pressure liquid hose with brushing robot
1.58metrecable.TheIFOAMMINIpowersupplyiseffectedthrougha
specificconnector.Theconnectiontomainselectricitycorrespondstothe
standard outlet.
Code: 999330053
Electric power supply cable
An 8 metre hose with standardised connectors, specifically for
supplying low pressure liquids to your TEGRAS MULTIPRO. The
connectors correspond to those found on the equipment provided by
TEINNOVA.
Code: AC3303101
Compressed air supply hose
A 60 cm lance specifically for rinsing and producing foam at low
pressure. It is included and integrated in the IFOAM MINI.
Code: AC3303301
Low pressure 60 cm lance

Intelligent active foam generator 11-30
o
Adaptor for connecting the mains water hose to round taps that supply
the IFOAM MINI.
Code: AC6200004
Adaptor for connecting the mains water hose to square taps that
supply the IFOAM MINI.
Code: AC6200003
Chemical product for dissolving grease and disinfecting ducts.
Code: PQ8100121
Hose reel for mains water
Adapter for round taps
Adapter for square taps
COMEGRAS BOX chemical
accessories and related equipment
Optional accessories:
Twinopposedpistoncompressorthatdoesnotneedoilandhasacapacity
of 70-78 litros/min. Silent, portable, light and compact equipment that
provides an air supply that is free from oil which is ideal for your
IFOAM MINI equipment.
220V 50Hz. Code: TG3330412
110V 60Hz. Code: TG3330410
A hose reel that makes it possible to supply your IFOAM MINI with
mains water from an outlet far from the cleaning area. The length of
the hose is 15 metres.
Code: HE7300200
AR10

Intelligent active foam generator 12-30
o
accessories and related equipment
A 90 cm lance specifically for rinsing and producing foam at low
pressure.
It is not included in the IFOAM MINI.
Code: AC3303302
Low pressure 90 cm lance
Liquid tank for transporting water in workplaces where there is no
access to a mains water supply.
Code: AC3303206
Auxiliary tank 30l

Intelligent active foam generator 13-30
o
Pneumatic brushing robot for cleaning ducts.
Code: TG3310102
Electro-pneumatic brushing robot for cleaning ducts.
Code: TG3310202
accessories and related equipment
Related equipment:
forte
multipro
Vane compressor that generates an output of
compressed air of 240 litres at 10 bar.
220V 50Hz. Code: TG3330201
110V 60Hz. Code: TG3330500

Intelligent active foam generator 14-30
o

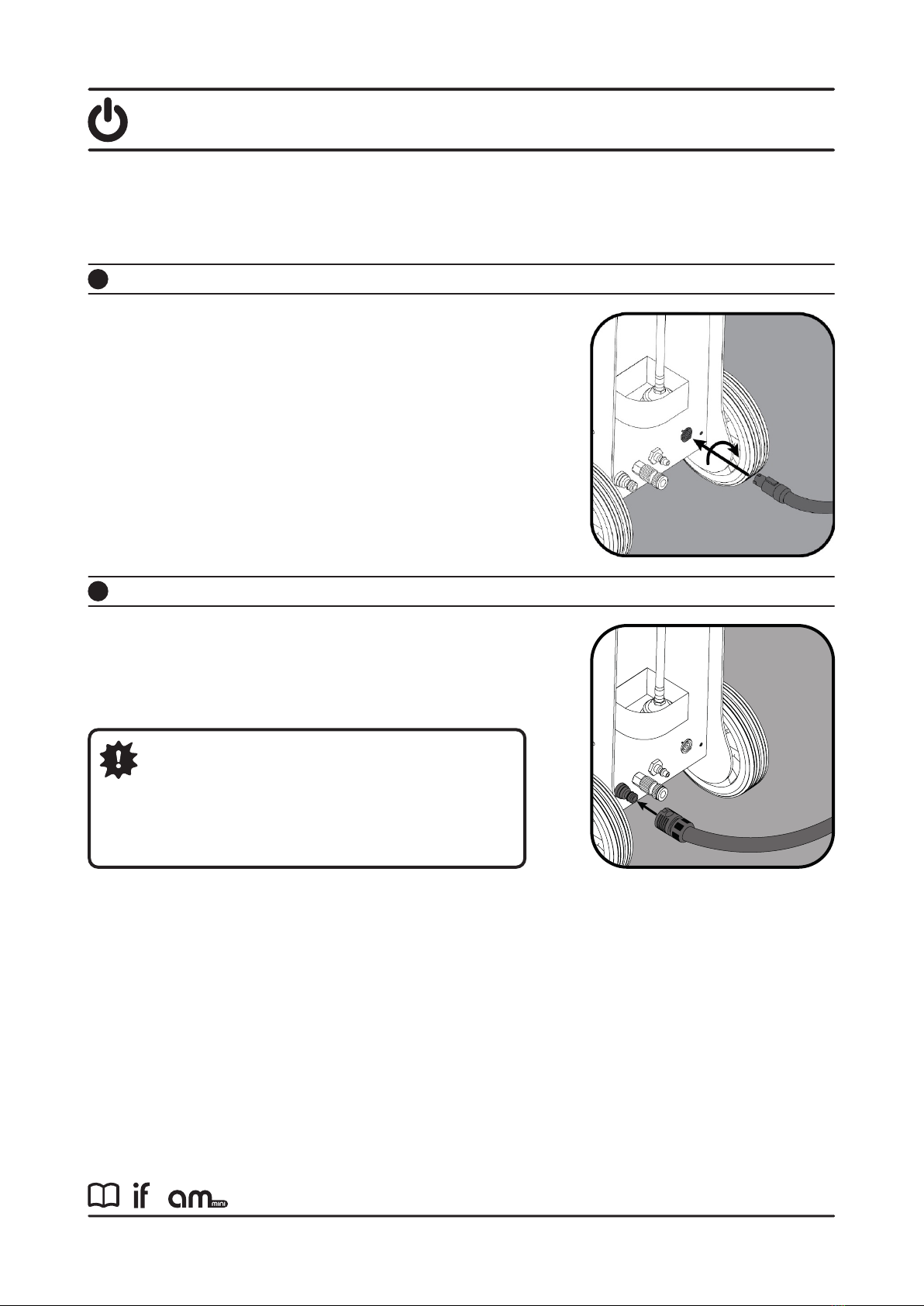

Theconnectionwillbemadebymeansofanelectricalconnnection
cable that comes with the machine. This cable features a
standard connector to mains electricity and an electrical supply
connector (blue in colour) especially for the machine. Connect
the cable to the mains electricity and then connect it to your
IFOAM MINI. The connection to your IFOAM MINI is made by
turning the blue connector to the right, as shown in the image.
Connect the hose to a mains water outlet at a minimum pressure
of 2 bar. There are adaptors for different taps which are offered
as optional accessories. Connect the hose to your IFOAM
MINI’s water input connector.
Steps to install the IFOAM correctly:
Connecting to a mains water outlet:
Connecting to mains electricity:
1
operating instructions
The temperature at which the water enters the
machine must not be greater than 80oC. If the
water going into the machine is greater than
80oC, faults can occur in the equipment’s internal
components.
2

Intelligent active foam generator 15-30
o
The IFOAM MINI equipment must be used in combination with a compressed air generator for its foam
production function. This compressed air generator should have a minimum provision of 80l/m at 5 bar. It is
recommended to use a compressed air generator sold by TEINNOVA.
It is connected by means of a low pressure hose which is also used to connect the low pressure lance. The
connection should be made when your IFOAM MINI is switched off.

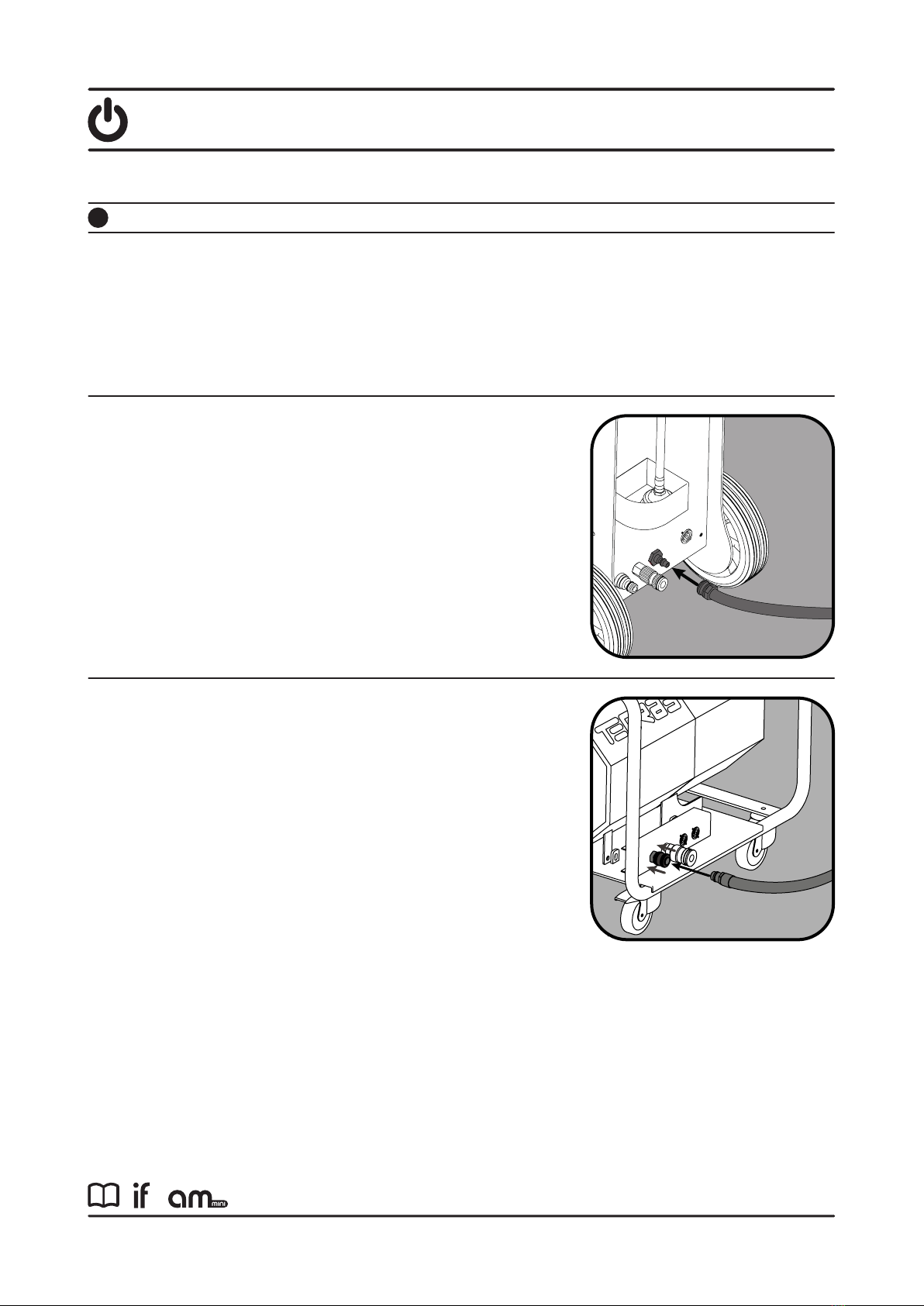

Connect the low pressure hose to the compressed air outlet on
whichever compressor that is going to be used. In this image the
connection is made with the AR20 compressed air generator.
Connect the low pressure hose to your IFOAM MINI.
operating instructions
Connecting your IFOAM MINI to the compressed air generator:
3

Intelligent active foam generator 16-30
o
operating instructions
Connecting the chemical:
4
Remove the cap from the nozzle in the Bag-in-Box as is shown
in the image.
Remove the cut out from the Bag-in-Box where the chemical’s
nozzle will come out from.
Failing to remove this cap when connecting the
Bag-in-Box to your IFOAM MINI will cause damage
to the machine.

Intelligent active foam generator 17-30
o
Push the machine’s supply inlet down onto the chemical outlet
nozzle until it clicks. This means it is correctly connected.
Place the Bag-in-Box in the compartment and open the box,
leaving the inside valve visible. Handle the box by using its side
handles.
operating instructions
Connecting the chemical:
The first time the Comegras Box is connected to your
IFOAM MINI it will take a few minutes for it to start
takinginthechemicalasithastosuckoutalltheexcess
air in order to create the vacuum. Once the vacuum
is created the chemical will be sucked in continuously.
5
¡CLIC!

Intelligent active foam generator 18-30
o

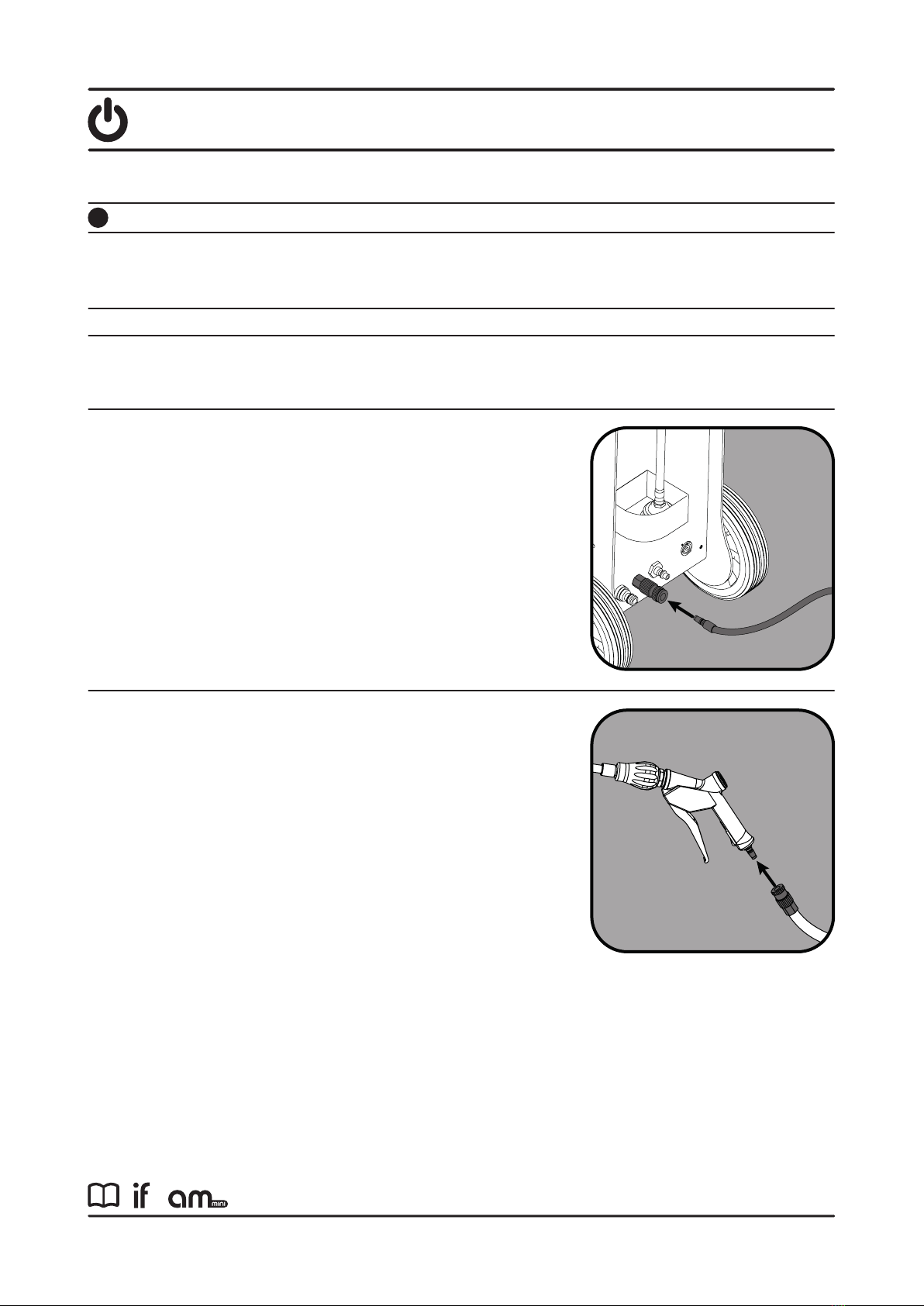

The IFOAM MINI’s low pressure system can be connected to a lance for producing foam or rinsing and to a
TEGRAS brushing robot. The connection will be selected depending on the function desired.
The low pressure lance allows the rinsing and foam production function. The connection is made directly to
the machine by means of a hose that connects to the lower back part of the machine.
Using in low pressure mode:
Connecting the low pressure lance:
6
Connect the liquids hose to the low pressure lance.
Connect the liquids hose to your IFOAM MINI.
operating instructions

Intelligent active foam generator 19-30
o
It is connected by means of a low pressure hose which is also used to connect the low pressure lance. The
connection should be made when your IFOAM MINI is switched off.
Connect the liquids hose to the liquids inlet in the TEGRAS
brushing machine.
Connect the liquids hose to your IFOAM MINI.
Using with TEGRAS brushing robot:
7
operating instructions

Intelligent active foam generator 20-30
o
Your IFOAM MINI has a selector button which is used to select the function to be performed. The functions
that can be performed with your IFOAM MINI are rinsing and producing foam.
To produce foam, apply a layer of active foam and wait five
minutes for the chemical to take effect. The foam production
function corresponds to the icon in the image.
Rinse after five minutes. The foam production function
corresponds to the icon in the image.
After finishing the work, switch the machine off.
Selecting the function to be performed:
8
The final function to be performed must always be
rinsing. This is to avoid chemicals remaining in the
machine’s conduits.
operating instructions
