Teka CGC 4G AI AL User manual

INSTALLATION INSTRUCTIONS
AND RECOMMENDATIONS FOR USE AND MAINTENANCE
GLASS GAS HOBS
EINBAU-ANLEITUNG
UND EMPFEHLUNGEN FÜR GEBRAUCH UND INSTANDHALTUNG
GAS-KOCHFELDER AUF GLAS
INSTRUCTIONS POUR L’INSTALLATION
ETRECOMMANDATIONS D’UTILISATION ETD’ENTRETIEN
PLAQUES DE CUISSON
CG.1 4G /CG.1 3G 1P
CG Lux-60 4G /CGLux-70 4G /CG Lux-70 4G AIAL
CG Lux-705G /CGLux-60 4G Al AL /CG Lux-70 5GAlAL
CG Lux-70 5G AITR AL /CG Lux-705G TR/CGC4G
CGC 4G AI AL /CGLux-75 2G AI TRAL /CG Lux-86 3G AITR AL
CG Lux-60 4G AI /CG Lux-704G AI /CG Lux-705G AI
CG Lux-70 5G AITR /CG Lux-75 2G AI TR /CG Lux-863G AI TR
VR 90 4G AITR AL /VR 90 4G AITR

Contents/Inhalt /Table des Matières
Introduction
User Guide
Installation
Positioning the hobs
Positioning the oven
Anchoring the hob
Connecting the gas
Connecting the electricity
Gas conversion
Technical information
Dimensions and powers
Technical data
Use and Maintenance
Before starting for the first time
Igniting the burners
Turning on the electric hotplates
Anti-accidental turn mechanism on
the gas controls
Safety sistem components
Using the hotplates
Suggestions for effective use
the burners
Maintenance of the burners
Suggestions for effective use
ofthe hotplates
Maintenance of the electric
hotplates
Cleaning and care
Reminder
If something doesn’twork
Page 5
10
11
11
12
12
15
16
16
18
18
20
21
21
21
23
23
24
24
25
25
25
26
26
29
30
GB DE
Präsentation
Hinweise zum Gebrauch
Einbau
Einbauort für die Kochfelder
Einbauort für den Ofen
Verankerung des Kochfelds
Gasanschluss
Elektrischer Anschluss
Umstellung auf andere Gasart
Technische Information
Abmessungen und Leistungen
Technische Daten
Gebrauch und Instandhaltung
Besondere Vorbedingungen für die
Inbetriebnahme
Anzünden der Gasbrenner
Einschalten der elektrischen Kochzonen
Schutz gegen versehentliches Drehen
der Gashähne
Bestandteile eines Systems
für sicheren Gebrauch
Gebrauch derKochzonen
Tipps für den korrekten Gebrauch
der Gasbrenner
Instandhaltung der Brenner
Tipps für die korrekte Verwendung
der Kochfelder
Elektrische Kochzonen
Reinigung und Pflege
Im Störungsfall
Seite 5
31
32
32
33
33
37
38
38
40
40
42
43
43
43
45
46
46
46
47
48
48
49
49
53
3

Présentation
Guide d’utilisation
Installation
Logement des tables de cuisson
Logement du four
Ancrage de la table de cuisson
Raccordementau gaz
Branchement électrique
Adaptation du gaz
Informations techniques
Dimensions et puissances
Caractéristiques techniques
Utilisation et entretien
Conditions spéciales avant la
mise en marche
Allumage des brûleurs
Allumage des plaques électriques
Système de blocage des
commandes de gaz
Composantsd’un système
de sécurité
Utilisation des tables de cuisson
Recommandations pour une bonne
utilisation des brûleurs
Entretien des brûleurs
Recommandations pour une bonne
utilisation des plaques
Plaques électriques
Nettoyage et entretien
Rappel
Si quelque chose ne fonctionne pas
FR
Page 5
54
55
55
56
56
60
60
61
62
62
64
65
65
65
67
67
68
68
70
69
70
70
70
73
74
4

5
CG.1 4G
1Semi-rapid burner 1,500 Kcal/h -1.75 kW.
2Auxiliary burner860 Kcal/h -1kW.
3Semi-rapid burner 1,500 Kcal/h -1.75 kW.
4Rapid burner 2,580 Kcal/h -3 kW.
*All the burners have agrid.
*Maximum calorificpower: 6,400 Kcal/h -7.5 kW.
1Mittel-Brenner mit 1500 kcal/h -1,75 kW
2Hilfsbrenner mit 860 kcal/h - 1kW
3Mittel-Brenner mit 1500 kcal/h -1,75 kW
4Stark-Brenner mit 2580 kcal/h -3kW
*Alle Brenner sind mit Stellrost ausgestattet.
*Maximale Wärmeleistung: 6400 Kcal/h -7,5 kW.
1Brûleur semi-rapide de 1.500 Kcal/h - 1,75 kW.
2Brûleur auxiliaire de 860 Kcal/h -1kW.
3Brûleur semi-rapide de 1.500 Kcal/h - 1,75 kW.
4Brûleur rapide de 2.580 Kcal/h -3kW.
*Tous les brûleurs disposent d’une grille.
* Puissance calorifiquemaximale: 6.400 Kcal/h -7,5 kW.
CG.1 3G 1P
1Rapid hotplate 1500 W., ø145 mm.
2Auxiliary burner 860 Kcal/h -1kW.
3Semi-rapid burner 1,500 Kcal/h -1.75 kW.
4Rapid burner 2,580 Kcal/h - 3kW.
*All theburners have agrid.
*Maximum calorific power: 4,900 Kcal/h -
5.75 kW.
*Maximum electric power: 1500 watts.
1Schnellkochzone mit 1500W,ÿ145 mm
2Hilfsbrenner mit 860 kcal/h -1kW
3Mittel-Brenner mit 1500 kcal/h -1,75 kW
4Stark-Brenner mit2580 kcal/h -3kW
*AlleBrenner sind mit Stellrost ausgestattet.
*Maximale Wärmeleistung: 4900 Kcal/h -
5,75 kW.
*Maximale Elektrische Leistung: 1500 W
1Plaque rapide de 1.500 W.,ø145 mm.
2Brûleur auxiliaire de 860 Kcal/h -1kW.
3Brûleur semi-rapide de 1.500 Kcal/h -
1,75 kW.
4Brûleur rapide de2.580 Kcal/h -3kW.
*Tous les brûleurs disposent d’une grille.
* Puissance calorifique maximale:
4.900 Kcal/h - 5,75 kW.
*Puissance électriquemaximale: 1.500Watts.
Introduction /Einführung /Présentation
1 2
34
12
3 4
GB
DE
FR
GB
DE
FR

6
CG-Lux-60 4G /CG Lux-60 4G Al AL /CGLux-60
4G AI
1Rapid burner 2,580 Kcal/h -3kW.
2Semi-rapid burner 1,500 Kcal/h -1.75 kW.
3Semi-rapid burner 1,500 Kcal/h -1.75 kW.
4Auxiliary burner 860 Kcal/h -1kW.
5Burner operating controls.
*All the burners have agrid.
*Maximum calorificpower: 6,450 Kcal/h -7.5 kW.
1Stark-Brenner mit 2580 kcal/h -3kW
2Mittel-Brenner mit 1500kcal/h -1,75 kW
3Mittel-Brenner mit 1500kcal/h -1,75 kW
4Hilfsbrenner mit 860 kcal/h -1kW
5Bedienregler für dieBrenner
*Alle Brenner sind mit Stellrostausgestattet.
*MaximaleWärmeleistung: 6450 Kcal/h -7,5 kW.
1Brûleur rapide de 2.580 Kcal/h -3kW.
2Brûleur semi-rapidede 1.500 Kcal/h -1,75 kW.
3Brûleur semi-rapidede 1.500 Kcal/h -1,75 kW.
4Brûleur auxiliaire de 860 Kcal/h -1kW.
5Manettes pour l’allumagedes brûleurs.
* Tous les brûleurs disposent d’une grille.
* Puissance calorifique maximale: 6.450 Kcal/h - 7,5 kW.
CGC 4G /CGC 4G AI AL
1Rapid burner 2,580 Kcal/h -3kW.
2Semi-rapid burner 1,500 Kcal/h -1.75 kW.
3Semi-rapid burner 1,500 Kcal/h -1.75 kW.
4Auxiliary burner 860 Kcal/h -1kW.
*All the burnershave agrid.
*Maximum calorificpower: 6,450 Kcal/h -7.5 kW.
1Stark-Brenner mit 2580 kcal/h -3kW
2Mittel-Brenner mit1500 kcal/h -1,75 kW
3Mittel-Brenner mit1500 kcal/h -1,75 kW
4Hilfsbrenner mit 860 kcal/h -1kW
*Alle Brenner sindmit Stellrostausgestattet.
*MaximaleWärmeleistung: 6450 Kcal/h -7,5 kW.
1Brûleur rapide de 2.580 Kcal/h -3kW.
2Brûleur semi-rapide de 1.500 Kcal/h -1,75 kW.
3Brûleur semi-rapide de 1.500 Kcal/h -1,75 kW.
4Brûleur auxiliaire de 860 Kcal/h -1kW.
* Tousles brûleurs disposent d’une grille.
* Puissance calorifique maximale: 6.450 Kcal/h - 7,5 kW.
1 2
34
12
34
5
GB
DE
FR
GB
DE
FR

7
CG-Lux-70 5G/CG Lux-70 5G Al AL/CG Lux -70
5G AI
1Rapid burner 2,580 Kcal/h - 3kW.
2Semi-rapid burner 1,500 Kcal/h -1.75 kW.
3Semi-rapid burner 1,500 Kcal/h -1.75 kW.
4Auxiliary burner 860 Kcal/h -1kW.
5Rapid burner 2,580 Kcal/h - 3kW.
6Burner operating controls.
*All theburners have agrid.
*Maximum calorific power: 9,020 Kcal/h -10.5 kW.
1Stark-Brenner mit2580 kcal/h -3kW
2Mittel-Brenner mit 1500 kcal/h -1,75 kW
3Mittel-Brenner mit 1500 kcal/h -1,75 kW
4Hilfsbrenner mit 860 kcal/h -1kW
5Stark-Brenner mit2580 kcal/h -3kW
6Bedienregler für die Brenner
*AlleBrenner sind mit Stellrost ausgestattet.
*Maximale Wärmeleistung: 9020 Kcal/h -10,5 kW.
1Brûleur rapide de2.580 Kcal/h -3kW.
2Brûleur semi-rapide de 1.500 Kcal/h -1,75 kW.
3Brûleur semi-rapide de 1.500 Kcal/h -1,75 kW.
4Brûleur auxiliaire de 860 Kcal/h -1kW.
5Brûleur rapide de2.580 Kcal/h -3kW.
6Manettes pour l’allumage des brûleurs.
*Tous les brûleurs disposent d’une grille.
*Puissance calorifique maximale: 9.020 Kcal/h -
10,5 kW.
CG-Lux-70 5G TR /CG Lux-705G AI TR AL/
CG Lux -70 5G AI TR
1Rapid burner 2,580 Kcal/h -3kW.
2Semi-rapid burner 1,500 Kcal/h -1.75 kW.
3Semi-rapid burner 1,500 Kcal/h -1.75 kW.
4Auxiliary burner 860 Kcal/h -1kW.
5 Triple crownburner 3,010Kcal/h -3.5 kW.
6Burner operating controls.
*All the burners have agrid.
*Maximum calorificpower: 9,450 Kcal/h -11kW.
1Stark-Brenner mit 2580 kcal/h -3kW
2Mittel-Brenner mit 1500 kcal/h -1,75 kW
3Mittel-Brenner mit 1500 kcal/h -1,75 kW
4Hilfsbrenner mit 860 kcal/h -1kW
5Brenner mit Dreifachkranz 3010 kcal/h -3,5 kW
6Bedienregler für die Brenner
*Alle Brenner sind mit Stellrost ausgestattet.
*Maximale Wärmeleistung: 9450 Kcal/h -11kW.
1Brûleur rapide de 2.580Kcal/h -3kW.
2Brûleur semi-rapide de1.500 Kcal/h -1,75 kW.
3Brûleur semi-rapide de1.500 Kcal/h -1,75 kW.
4Brûleur auxiliaire de 860 Kcal/h -1kW.
5Brûleur triple couronne de 3.010 Kcal/h -3,5 kW.
6Manettes pour l’allumage des brûleurs.
* Tous les brûleurs disposentd’une grille.
*Puissancecalorifique maximale: 9.450 Kcal/h -
11kW.
12
34
5
1 2
34
5
6
6
GB
DE
FR
GB
DE
FR

8
CG-Lux-70 4G /CG-Lux-70 4G AI AL/
CGLux -70 4G AI
1Rapid burner 2,580 Kcal/h -3kW.
2Semi-rapidburner 1,500 Kcal/h -1.75 kW.
3Semi-rapidburner 1,500 Kcal/h -1.75 kW.
4Auxiliary burner 860 Kcal/h -1kW.
5Burner operating controls.
*All the burners have agrid.
*Maximum calorific power:6,450 Kcal/h -7.5 kW.
1Stark-Brenner mit 2580 kcal/h -3kW
2Mittel-Brenner mit 1500 kcal/h - 1,75 kW
3Mittel-Brenner mit 1500 kcal/h - 1,75 kW
4Hilfsbrenner mit 860 kcal/h -1kW
5Bedienregler für die Brenner
*Alle Brenner sind mit Stellrost ausgestattet.
*Maximale Wärmeleistung:6450 Kcal/h -7,5 kW.
1Brûleur rapide de 2.580 Kcal/h -3kW.
2Brûleur semi-rapide de 1.500 Kcal/h -1,75kW.
3Brûleur semi-rapide de 1.500 Kcal/h -1,75kW.
4Brûleur auxiliaire de 860 Kcal/h -1kW.
5Manettespour l’allumage des brûleurs.
* Tous les brûleurs disposent d’unegrille.
* Puissance calorifique maximale: 6.450 Kcal/h -7,5 kW.
CG-Lux-75 2G AITR AL/CGLux-75 2G AITR
1Triple crownburner 3,010 Kcal/h -3.5 kW.
2Triple crownburner 3,010 Kcal/h -3.5 kW.
3Burner operating controls.
*All the burners have agrid.
*Maximum calorific power: 6,020 Kcal/h -7 kW.
1Brenner mit Dreifachkranz3010 kcal/h -3,5 kW
2Brenner mit Dreifachkranz3010 kcal/h -3,5 kW
3Bedienregler für die Brenner
*Alle Brenner sind mit Stellrost ausgestattet.
*Maximale Wärmeleistung: 6020 Kcal/h -7 kW.
1Brûleur triplecouronne de 3.010 Kcal/h -3,5 kW.
2Brûleur triplecouronne de 3.010 Kcal/h -3,5 kW.
3Manettes pour l’allumage des brûleurs.
* Tous les brûleurs disposent d’unegrille.
* Puissance calorifique maximale: 6.020 Kcal/h -7kW.
12
34
5
1 2
3
GB
DE
FR
GB
DE
FR

9
CG-Lux-86 3G AITR AL/CGLux-86 3G AITR
1Triple crownburner 3,010 Kcal/h -3.5 kW.
2Triple crownburner 3,010 Kcal/h -3.5 kW.
3 Semi-rapid burner 1,500 Kcal/h -1.75 kW.
4 Burner operating controls.
*All the burners have agrid.
*Maximum calorific power: 7,520 Kcal/h -8.75 kW.
1 Brenner mit Dreifachkranz3010 kcal/h -3,5 kW
2 Brenner mit Dreifachkranz3010 kcal/h -3,5 kW
3 Mittel-Brenner mit 1500 kcal/h -1,75 kW
4 Bedienregler für die Brenner
*Alle Brenner sind mit Stellrost ausgestattet.
*Maximale Wärmeleistung: 7520 Kcal/h -8,75 kW.
1 Brûleur triplecouronne de 3.010 Kcal/h -3,5 kW.
2 Brûleur triplecouronne de 3.010 Kcal/h -3,5 kW.
3 Brûleur semi-rapide de 1.500 Kcal/h - 1,75 kW.
4 Manettes pour l’allumage des brûleurs.
* Tous les brûleurs disposent d’une grille.
* Puissance calorifiquemaximale: 7.520 Kcal/h -8,75 kW.
12
3
4
GB
DE
FR
VR 90 4G AI TR AL/VR 90 4G AI TR
1Triple crown burner 3.010 Kcal/h -3,5 kW.
2Auxiliary burner 860 Kcal/h - 1kW.
3Semi-rapid burner 1.500 Kcal/h -1,75 kW.
4Rapid burner 2.580 Kcal/h -3kW.
*Allthe burners have agrid.
*Maximum calorific power: 7.950 Kcal/h -9,25 kW.
1Brenner mit Dreifachkranz 3.010 Kcal/h -3,5 kW.
2Hilfsbrenner mit 860 Kcal/h -1kW.
3Mittel-Brenner mit 1.500 Kcal/h -1,75 kW.
4Stark-Brenner mit 2.580 Kcal/h - 3kW.
*Alle Brenner sind mit Stellrostausgestattet.
*Maximale Wärmeleistung: 7.950 Kcal/h -9,25 kW.
1Brûleur triple couronne de 3.010 Kcal/h -3,5 kW.
2Brûleur auxiliaire de 860 Kcal/h -1kW.
3Brûleur semi-rapide de 1.500 Kcal/h -1,75 kW.
4Brûleur rapide de 2.580 Kcal/h -3kW.
* Tous les brûleurs disposent d’une grille.
* Puissance calorifique maximale:
7.950 Kcal/h -9,25 W.
12
34
GB
DE
FR

GB
10
Guide to Using the Instructions Booklet
Dear customer,
We are delighted that you have put your
trust in us.
We are confident that the new hob that you
have purchased will fullysatisfy your
needs.
Thismodern, functional andpractical
model has been manufactured using top-
quality materialsthathaveundergone
strict qualitycontrols throughout the manu-
facturing process.
Before installing and using it,we would
ask that you read this Manual carefully and
follow the instructions closely,as this will
guarantee better resultswhen using the
appliance.
Keep this Instruction Manual in asafe
place so thatyou can refer to it easily and
thus abide by the guarantee conditions.
In order tobenefit from this Guarantee, itis
essential thatyou submit the purchase
receipt together with the Guarantee Certi-
ficate.
You should keep the Guarantee
Certificateor,where relevant, the
technical datasheet, together with the
Instruction Manual for the duration of
the useful life of the appliance. It has
important technical information about
the appliance.
Safety instructions
Before first use, you should carefully read
the installation and connection instruc-
tions.
These hob models may be installed in the
same kitchen furniture unitsas TEKA
brand ovens.
For yoursafety,installation should be
carried out by an authorised technician
and should comply with existing installa-
tion standards. Likewise, any internal work
on the hob should only be done by TEKA’s
technical staff,including the change of the
flexible supply cable of the appliance.
Please note:
When the hotplates are in opera-
tion or have recently been in operation,
some areas willbe hot and can burn.
Children shouldbe kept well away.

GB
11
Important
INSTALLATIONAND SETUPSHOULD
BE CARRIEDOUTBYAN AUTHORISED
TECHNICIAN IN LINE WITH CURRENT
INSTALLATION STANDARDS.
Positioning the hobs
Depending on the model to be installed, an
opening with the dimensions shown in
figure 11will be cut into the unit’s worktop
or stove. In the packaging of the models
CG.1 4G and CG.1 3G 1P,there is atem-
plate included that is for use in sizing the
space for these two hob models.
The system for fixing the hob is intended
for use with kitchen unitswith athickness
of 20, 30 and 40 mm.
In free standing models, aboard should be
placed inside the kitchen unit, with the top
of the board being 20 mm.below the bot-
tom of the hob.
The hobs described in this manual can
only be installed withTeka ovens. Models
with no control knobs are only to be insta-
lled with Teka ME ovens and/or Teka con-
trol panels.
The minimum distance between the surfa-
ce supporting the cooking pans and the
lower part of the kitchen unit or the hood
located above the hob should be 650 mm.
Ifthehood’sinstallation instructions
recommend thatthe gap is greater than
this, you should follow this advice.
The unit where the hob and oven will be
located will be suitably fixed.
Warnings:
When hobs are handled before
being installed,care should be taken in
case there is any protruding part or
sharp edge which could cause injury.
When installing unitsor applian-
ces above the hob, the hob should be
protected by aboard so that the glass
cannotbedamaged byaccidental
blows or heavy weights.
If the glass breaks or cracks, the
hob should immediately be disconnec-
ted from the electric current in order to
avoid the risk ofelectricshock.
The glues used in manufacturing
Installation
fig. 10
Minimum distances
to walls
Minimum ventilation
distances
OVEN

the kitchen unit and in the adhesive on
the decorative laminate of the worktop
surface shouldbe made to tolerate tem-
peratures of up to 100ºC.
TEKAassumes no responsibility
for any malfunction or damage caused
by faulty installation.
PLEASE REMEMBER THATTHE GUA-
RANTEE DOES NOTCOVERTHE
GLASS IFITSUFFERS AVIOLENT
BLOW OR IFITIS USED IMPROPERLY.
Positioning the oven
See the corresponding manual.
Anchoring the hob
When the gap has been properly sized,
the sealing washer (A) should be put on
the lower part of the cooker.Fix the clamps
(D)into the holes on the lower part of the
case, as shown in the drawing 12, by tigh-
tening the four screws supplied (Ø 4.2
mm). For worktops 30 mm thick or less,
use the M5 screws supplied as comple-
mentary fixation by introducing them into
the circular hole of the clamp. Afillet shall
form in this hole as the screw is introduced
in it. This operation should be done before
fastening the clamps to the hob.
GB
12
fig. 12
Seal
Worktop
Screw
Fastering clip
20 mm
30 mm
40 mm

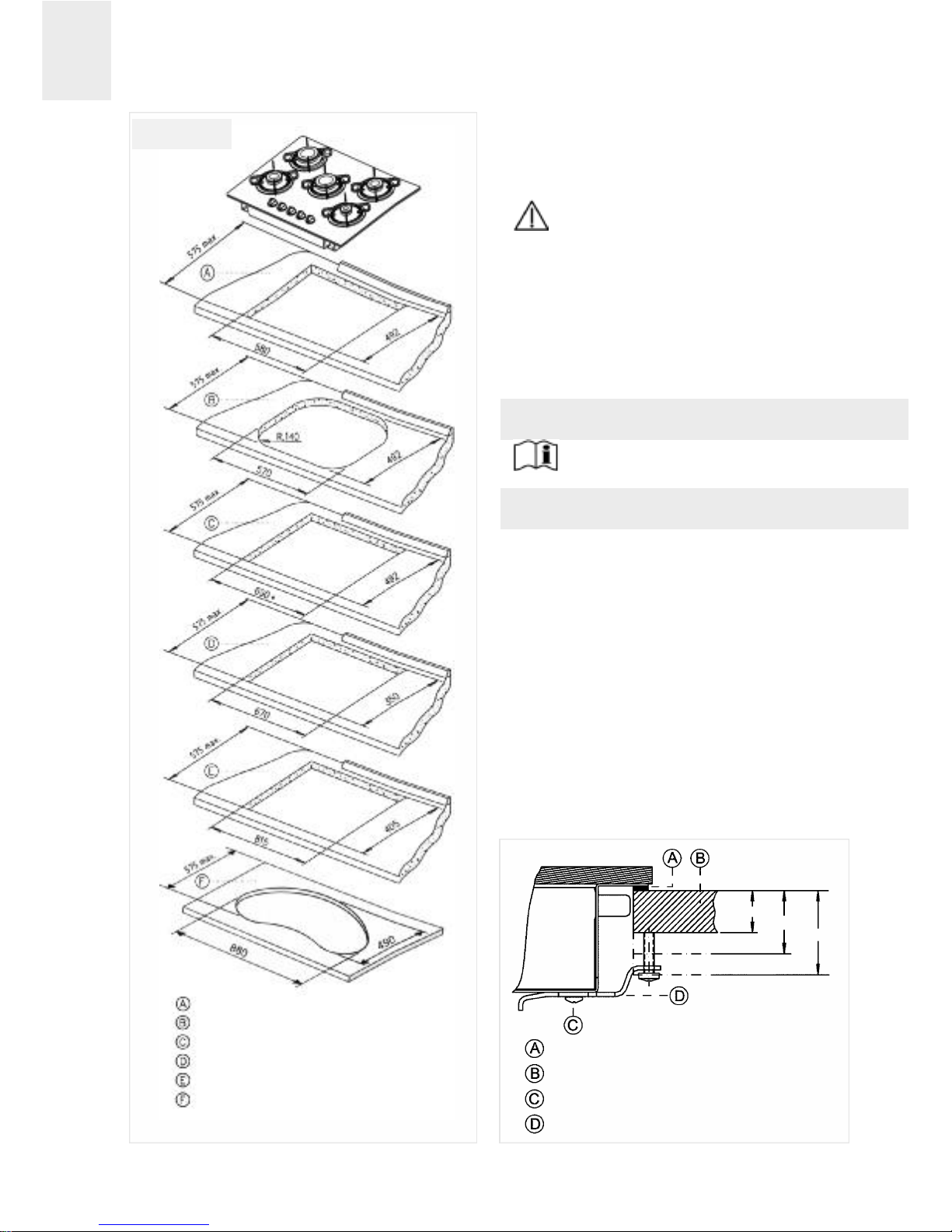

fig. 11
Mod.: CG Lux-60 yCGC 4G
Mod.: CG.1 3G 1P yCG.1 4G
Mod.: CG Lux-70
Mod.: CG Lux-75
Mod.: CG Lux-86
Mod.: VR 90 4G
Fitting holes
*With granite hobs, the measurement maybe580 mm.

GB
13
Note: Itisessential thatthe sealing was-
her isplaced beneath the hob’srim.Ifit
is notplaced there, the worktop could
suffer extremely high temperatures.
On models CG.1 4Gand CG.1 3G 1P,the
clipsshould be fixed as shownin figure 13,
depending on the thickness of the worktop.
For worktop thicknesses of30 mm or less,
use the self-tapping screws (M5) thatare
provided as afastening accessory -put
them into the clip’s round hole. This hole
will be threaded as the screw is inserted
into it,and this should be done before
fixing the clip to the worktop.
Hob model CGC4G AIALis mounted by
inserting the quick nutsinto the holes
where the screws go (see fig. 14) and then
attaching the appropriate clip, depending
on the worktop’sthickness (20,30 and 40
mm) and tightening the screws until itis
firmly fastened.
Withthe hob model CGC 4G,when the
gap has been properly sized,the sealing
washer (J) should be glued on the lower
part of the hob.
Position the clips(K)as shown in the dia-
gram, fastening them to the openings in the
lowerpartofthe body using the metal thre-
aded screwsprovided (Ø4,2mm). The
clips (K) and the sealing washer (J) are
provided, and can be found in the packa-
ging. (See fig. 15)
Toattach the models CG.1 4G,CG.1 3G
1Pand CGC 4G tothe oven,fourcardan
telescopic shaftsare included with the
hob. When you are putting the oven into
the space, be careful that it does not take
the weight ofthe cardan shaftsor itcould
break. Leave enough space tobe able to
insertthe cardans’other ends into the
shaftsat the rear of the control panel, and
attach the fixing pins.
If an oven is being installed beneath the
hob, avoid the power cable coming into
contact withvery hot components.

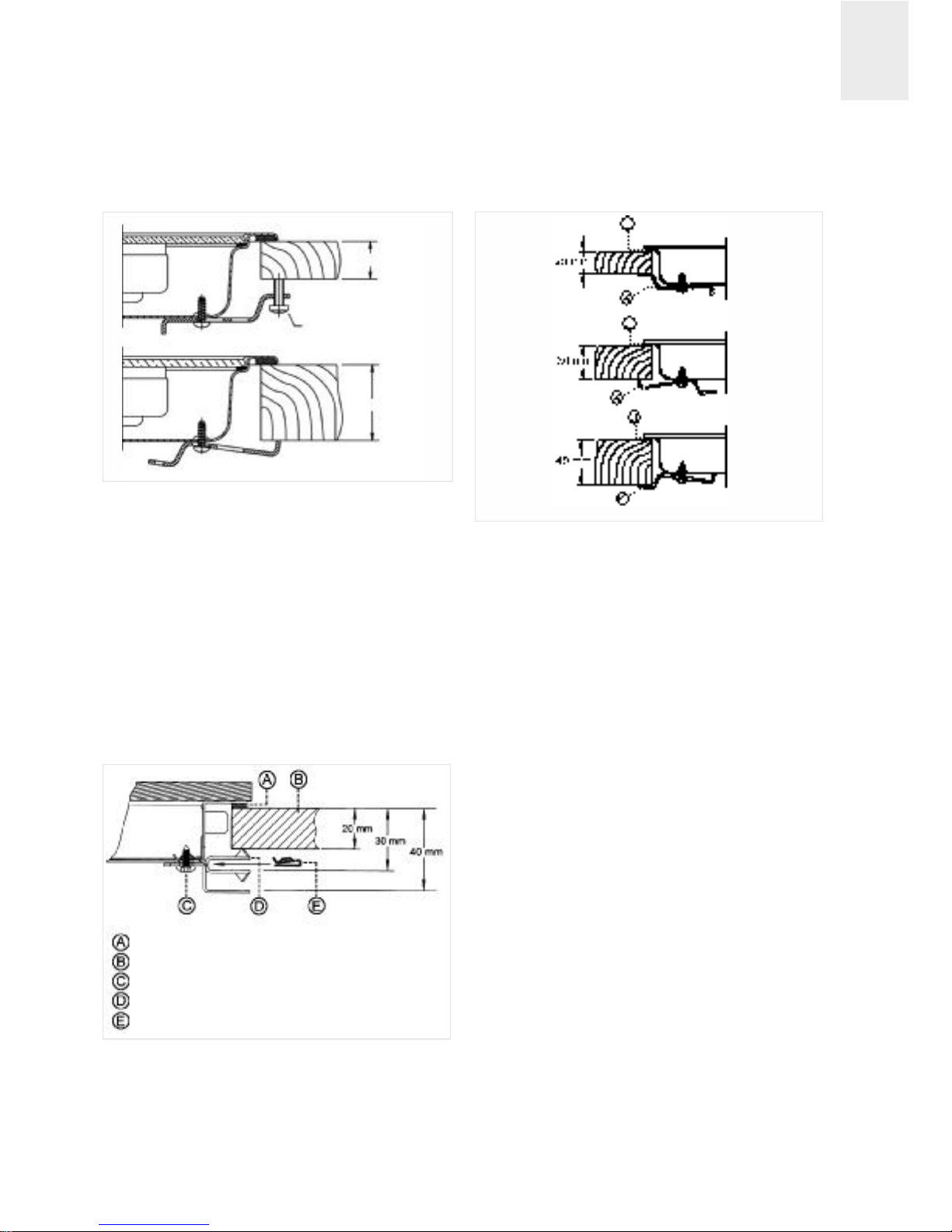

fig. 13
20/30 mm
40 mm
Self-tapping screw for 20
and 30 mm thick worktops
fig. 14
Sealing washer
Worktop
Screw
Fixing clip
Rapid screw
fig. 15

ATTACHINGTHE HOB TO THE OVEN
OR THE CONTROLPANEL
The hob has four cardan telescopic shafts
for this purpose.(See fig. 16).
The way to join them is as follows:
1Turn offthe electricity (mods. CG.13G
1Pand CGC 4G AI AL).
2Detach the cardan telescopic shaftsby
pressing on the retention clip (A) (where
it says PUSH) with aslim screwdriver,
and pull the extension out afew centi-
metres.
3Remove the four pins from the ends (B).
4Put the oven part-way into itsspace,
taking care not todrag the cardan teles-
copic shaftscoming from the hob, and
leaving enough space to put in the other
ends ofthe telescopic shaftsinto the
shaftsin the rear partof the control
panel, and then replace the pins.
5Tomake the electric connection betwe-
en the two appliances, attach the hob’s
connector totheoven’sconnector.
(mods. CG.1 3G 1P and CGC 4GAIAL).
6Completethe definitive positioning ofthe
oven,ensuring thatthe cardan telescopic
shafts arefirmlyin positionand thatthe
telescopic pipesarewell-aligned when
inserted so thatmoving isquitesimple.
7Position the controls on the front of the
oven.
8Tooperate the control knobs, they first
have to be pressed in, and then turned
in order to release the safety device.
Rear view of the ControlPanel:
If the cardan telescopic shaftsare too
small, the extensionscan beadded.
These are added by pressing,and they
are fixed by the cover that is included.
Toconnect the oven to the electric power,
refer tothe oven’sinstruction manual.
Hob CGC 4G AI AL
In this case,the hob is attached to the
oven in the same way,except for point 7,
where you should proceed as follows:
Place the hob controls’caps in the oven,
asdescribedintheoven’sinstruction
manual. The capsthat need to be placed
GB
14
fig. 16
fig. 17
Flexible supply cable
Connector
Protective casing for electrics
Retention clips
Pins

GB
15
are those that are included with the hob
-the ones that come with the oven can
be discarded.
This cookerincludes capsforall TEKA
ovens except models RT-600 and RT-800.
Capsforthese two models should be
requested from the distribution outlet or the
appropriate TEKAofficial technical service.
Connecting the Gas
Connecting the hob to the gas mains
should be done in compliance withthe
current installation standards and/or regu-
lations, and by aqualified technician (an
authorised installing engineer). The gas
connection for these hotplates should be
made with rigidpiping,becausethe
appliance is astationery one, where it is
destined for the EC market. The hob has a
threaded connection of 1/2’’in diameter
(as per ISO 228-1 )or 1/2’’with aconical
thread (as per ISO 7-1), depending on the
regulations in the destination country.
For marketswith an ISO 228-11/2’’con-
nection, a10/12 mm copper pipe is provi-
ded as an accessory for welding to the gas
intake pipe.
Ventilation slotsshould also be made at
the site in compliance with current norms.
Connecting the hob’sgas intake to the
mains should be done in compliance with
the basic gas installation standards for
residential premises.
TEKA assumes no responsibility for any
malfunction or damage that arises from an
incorrect or faulty installation.
In order that the hob is not damaged by
tightening the nut on the gas connection
pipe, amaximum torque of 300 cm *Kgf
should be applied.
When the gas connection has been made,
the installation should be checked to ensu-
re thatitis completely sealed. Ifthe check
is done using air,care should be taken that
the testpressure is no more than 200
g/cm² Where air is not available, soapy
watershould be applied to ensure that
there are no leaks in the connections. Tes-
ting should never be done using a
flame.
When the hob has been installed, check
that the burnerminimums are properly
adjusted. Todo this, lightthe burnersand
check thatthey do notgo out ifyou switch
quickly from the maximum to the minimum.
Whenever the gas connection nut is remo-
ved, itswasher should be changed.
Connecting the Electricity
(Only hobs with automatic ignition or elec-
tric hotplates)
Before connecting the hob tothe electric
mains, check that the voltage and fre-
quency of the mains matches what is
shown on the hob’srating plate, which is
located lower down, and on the guarantee
certificate or,where appropriate,the tech-
nical datasheet supplied, which should be
kept together with this manual.
The connection is made via an omnipolar
switch or plug where accessible, which is
suitable for the intensity to be tolerated
and which has aminimum gap of 3mm
between itscontacts, which will ensure
disconnection in case of emergency or
when cleaning the hob. Itshould also be
correctly earthed in line withcurrent stan-
dards.
Theconnection shouldinclude correct
earthing,incompliance with current
norms.

GB
16
If theflexiblesupplycablefitted tothese
appliances ever needstobechanged,it
shouldbe replaced by TEKA’sofficial service.
Gas conversion
Important!
Any alteration thatis to be made tothe
appliance toconvertitto adifferent
type of gas shouldonlybe carried out
by aqualified technician.
Information for Technical Assis-
tance: whenever the type of gas or the
appliance’s pressure is changed, the new
regulation plate should be placed on top of
the old one so that the new features can
be seen after the change.
The tasks involved in conversion are:
*Replace the injectors.
*Adjust the taps’minimums.
The injectors required for each gas type
are shownin table 1.
To replace the injectors,follow these ins-
tructions:
1Remove the grids and upper partsof the
burner so that the injector can be seen.
2Using anumber 7pipe spanner,remove
the injectorsand replace them withthe
new ones.Take caretopress the injector
down firmly so that there is no leakage.
3Replace the grid and burners that were
previously removed.
When the injectors have been changed,
this is how to adjust the minimums:
Hobs CG.1 4G,CG.1 3G 1P,CGC 4G and
CGC 4G AI AL
1Turn the burners on totheir minimum.
2Take the oven or the control panel out so
that you can access the gas taps.
3Use aslim, grooved screwdriver to turn
the screw located tothe right or in the
centre ofthe gas tap’s shaft(the flame
increases when you turn to the leftand
decreases when you turn to the right).
4When properly adjusted, check that the
flame does notgo out when you turn the
knob quickly from maximum to minimum.
5On hob CGC 4G AI AL, in order to
access the taps’regulator screw,you
first have to liftup the cover thatprotects
the taps and then take out the two
screws that fasten this cover to the
body.
Other hobs
1Turn the burners on to their minimum.
2Pull the taps’controls firmly upwards to
remove them.
3Use aslim, grooved screwdriver to turn
the screw located tothe right or in the
centre ofthe gas tap’s shaft(the flame
increases when you turn to the leftand
decreases when you turn to the right).
4When properly adjusted, check that the
flame does not go out when you turn the
knob quickly from maximum to mini-
mum.
The only task required for the conversion
is to replace the injectors and regulate the
minimums.
TEKAINDUSTRIAL, S.A. assumes no
responsibility for any hob malfunction if the
gas conversion or the adjustmentof the
burners’minimums has not been carried
outby TEKA’s official personnel.

GB
17
Burner Family
Second Third
GroupH GroupE+ Group 3+
Triple crown 135 T 135 T 95
Rapid 116 Y 116 Y 85
Semi-rapid 97 Z 97 Z 66
Auxiliary 72 X 72 X 50
Øinjector expressed in 1/100 mm.
Table 1

GB
18
TechnicalInformation
Dimensions and powers
CG.1 4G CG.1
3G 1P CG Lux-60
4G CGC
4G
CGC 4G
AIAL
CG Lux-70
4G
CG Lux-60
4GAI
CG Lux-60
4GAIAL
Models
SEE RATING PLATE
*For voltages other than 230 Vplease consult the appliance’s rating plate
590
510
163
5
590
510
163
5
610
510
115
8
610
510
115
8
600
510
150
8
600
510
143
8
600
510
115
8
900
510
125
8
880
490
70
570
492
117
570
492
117
580
492
70
580
492
70
580
492
100
580
492
93
690
492
70
50-60 50-60 50-60
1.500 0,6 0,6
7,5 9,257,57,57,5 7,5
5,757,5
1
1
1
1
1
2
1
1
2
1
1
2
1
1
2
1
1
2
1
1
1
1
1
2
1
1
50-60
0,6
VR 90 4G
AI TR
VR 90 4G
AI TR AL
Dimensions in mm
Length
Width
Height
Glass thickness
Dimensionsofthespace intheunit mm
Length
Width
Depth
Powerper burnerandhotplate
Triplecrown gas
burner3,5kW.
Rapidgas
burner3kW.
Semi-rapid gas
burner1.75 kW.
Auxiliary gas burner
1 kW.
Rapidelectric hotplate
Ø145 mm, 1500W.
Electrics
Nominal power
(W) for 230 V*
Supply
voltageV.
Frequency Hz.
Gas
Maximum
powerkW.

GB
19
Models CGLux-70 CG Lux-70 CG Lux-70 CG Lux-75 CG Lux-86
4G AI 5G AI 5G AI TR 2G AI TR 3GAI TR
CG Lux-70 CG Lux-70 CG Lux-70 CG Lux-70 CGLux-70 CG Lux-75 CG Lux-86
4G AIAL 5G 5G AI AL 5GAI TRAL 5G TR 2GAITRAL 3GAITR
AL
Dimensionsinmm
Length 710 710 710 710 710 750 860
Width 510 510 510 510 510 450 450
Height 115 115 115 115 115 115 115
Glass thickness 8 8 8 8 8 8 8
Dimensions of the spacein the unit mm
Length 690 690 690 690 690 670 815
Width 492 492 492 492 492 350 405
Depth 70 70 70 70 70 70 70
Powerper burnerandhotplate
Triple crowngas
burner 3.5kW. 1 1 2 2
Rapid gas
burner 3kW. 1 2 2 1 1
Semi-rapidgas
burner 1.75 kW. 2 2 2 2 2 1
Auxiliary gas
burner 1kW. 1 1 1 1 1
Rapidelectric hotplate
ø145mm, 1000 W.
Rapidelectric hotplate
ø145mm, 1,500 W.
Electrichotplate
ø180 mm, 1500W.
Electrics
Nominalpower
(W) for 230 V* 0,6 0,6 0,6 0,6 0,6
Supply
voltage V. SEETHEAPPLIANCE’SRATING PLATE
Frequency Hz. 50-60 50-60 50-60 50-60 50-60
Gas
Maximum
power kW. 7,5 10,5 10,5 11 11 7 8,75
*For voltages other than 230 Vplease consult the appliance’s ratingplate

GB
20
Technical data
COMMON FEATURES FOR ALLMODELS
WITH ELECTRIC HOTPLATES AND AUTO-
MATIC IGNITION
The supply voltage and frequency will be
as shownon the rating plate.
If an electric hotplate getscracked,the
hob should be disconnected from the elec-
tricity current.
COMMONFEATURES FOR ALL
MODELS WITH GAS BURNERS
Warnings:
a) Before installation, make sure that the
local supply conditions (the gas type and
pressure) are compatible withthe applian-
ce’ssetup.
b) The setup conditions for this appliance
are written on the label (or the rating
plate).
c) This appliance should not be connected
toadevice forremoving combustion
products. It should be installed and con-
nected in compliance with the current ins-
tallationstandards.Specialattention
should be paid to the regulations applying
to ventilation.
Agas cooking appliance produ-
ces heat and moisture at the site where
it is installed.The kitchen should be
provided with suitable ventilation: natu-
ral ventilation sources should be kept
clear,awindow opened, or an effective
mechanical ventilation system device,
such as ahood,installed.
The intense and prolonged use
of the appliance may callfor comple-
mentary ventilation, such as opening a
window,or more efficient ventilation
such as increasing the power of the
mechanical ventilation if this exists.
Class 3Hob.
You should keeptheGuaran-
tee Certificate or,whererelevant, the
technicaldatasheet,togetherwith
the InstructionManual for thedura-
tionoftheusefullife oftheappliance.
It has important technical information
about the appliance.
Country
France
United Kingdom
Greece
Italy
Category
II2E+3+
II2H3+
I3+
II2H3+
Table 2
CG Lux-60, CGLux-70,
CGC 4G,CG.1 4G,CG.1 3G 1P
Table 3
Semi-rapid
1,75
0,17
0,19
0,13
0,13
0,47
Burner
Nominal Calorific Consumption
Nominal Consumption*
Auxiliar
1
0,10
0,11
0,07
0,07
0,33
Rapid
3
0,29
0,33
0,22
0,21
0,77
Triple
crown
3,5
0,33
0,38
0,25
0,24
--
s
kW
G-20 (Nm3/h)
G-25 (Nm3/h)
G-30 (Kg/h)
G-31 (Kg/h)
mbar
20
25
29
37
*Consumption over Gross Calorific Value (H )
Performance %
CCR CG Lux-75 and CG Lux-86
VR 90 4G,CG Lux-70 5G TR kW
kW
kW 1,55
1,55
>52
0,77
--
>52
0,33
--
--
0,47
0,47
>52
