Teka BEACON STEM MOUNT User manual

THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF TEKA ILLUMINATION AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF TEKA ILLUMINATION IS STRICTLY FORBIDDEN.
Warning Hot Surface
NEEDED
FOR
INSTALLATION:
By Others
Wear Gloves
RELEASE DATE
5-3-18
REFERENCE NUMBER
INS-2588-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.tekaillumination.com • [email protected]
High Voltage
Waterproof Wire Connectors
Phillips Screwdriver
Gloves
Stem
Shade
Cap
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
BEACON STEM MOUNT™ (BSM)
Canopy
Rings
IMPORTANT - WEAR GLOVES TO AVOID GETTING FINGERPRINTS ON THIS PRODUCT. MANY TEKA ILLUMINATION PRODUCTS ARE DESIGNED TO NATURALLY PATINA.
OILS FROM YOUR SKIN WILL ACCELERATE THIS PROCESS WHERE TOUCHED AND ARE NEARLY IMPOSSIBLE TO REMOVE. THIS PROCESS OCCURS OVER TIME AND IS
DETERMINED BY THE INSTALLATION ENVIRONMENT.
· Suitable for wet locations
IMPORTANT LISTINGS AND CERTIFICATIONS
Please refer to the low voltage design guide at www.tekaillumination.com/lvguide before installation for proper wire selection.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local and
Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel with appropriate personal protective
equipment must perform all servicing of this product.
• Before wiring to power supply and during servicing, turn off and
lock out power at fuse or circuit breaker before service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause an
unsafe condition and void product warranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY
AND INSTALLATION INSTRUCTIONS
• Do not block light emanating from product in whole or part, as
this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body.
• Replace LED assembly only with correct wattage and type of
power supply appropriate for LED assembly.
• All gaskets, o-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause an
unsafe condition and void product warranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY TO
PERSONS IMPORTANT SAFETY
INSTRUCTIONS
Lighted fixture is HOT!
WARNING - To reduce the risk of
FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing LED.
Fixture gets HOT quickly! Contact only switch/plug when
turning on. Do not touch hot lens, guard, or enclosure.
Keep fixture away from materials that may burn.
Do not operate the luminaire fitting with a missing or
damaged shield. Do not touch the source at any time. Use
a soft cloth or gloves. Oil from skin may cause damage.
SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
RELEASE DATE
5-3-18
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.tekaillumination.com • [email protected]
REFERENCE NUMBER
INS-2588-00

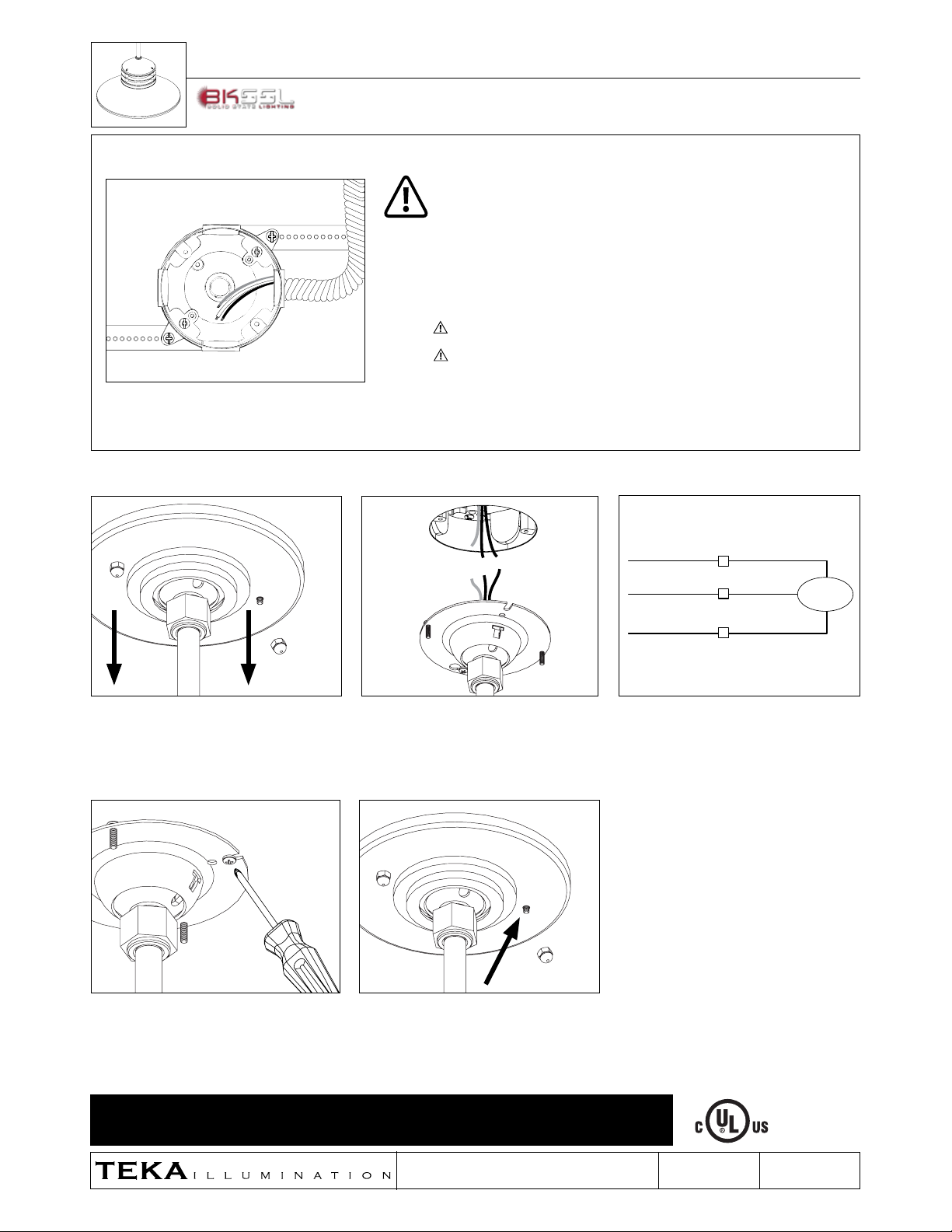

Installation of Fixture
Phase 1 - Rough In
Installation of Back box
1. Install Conduit (By Others) to be used with
this product.
2. Install junction box so that front face is flush
with finished ceiling. Seal building envelope
as per NEC.
3. Connect box to conduit and pull wires for
connections (See wiring diagram).
Additional Info
• Please follow National and Local electrical codes for your area.
• Suitable for through wire.
• Suitable for installation into combustible materials.
• Rated for 90° C.
• Junction box, universal mounting ring screws, box mounting hardware
and gaskets (By Others)
Use heavy-duty pendant adapter if luminaire weight exceeds 50 lbs.
Junction box must be secured to a structural member suitable for
weight of the luminaire and other weight likely to be placed upon it.
WIRING DIAGRAM
3. Secure canopy plate to junction box with
two (2) #6-32 Phillips screws using Phillips
screwdriver. Seal building envelope as per
NEC. Do not overtighten.
4. Slide decorative canopy cover up stem into
place and secure to mounting plate by hand-
tightening provided two (2) decorative cover
nuts.
1. Hand loosen then remove two (2) decorative
cover nuts, then slide decorative canopy down
stem to expose mounting plate.
LINE
FIXTURE
COM
GROUND
LINE
COM
GROUND
2. Make watertight connections from primary
branch circuit wiring to fixture leads using
waterproof wire connectors (By Others).
Connect green fixture wire to green incoming
ground wire. See wiring diagram.
BEACON STEM MOUNT™ (BSM)

LED BOARD / OPTICS
L10-L18
Warning Hot Surface
1. Remove lower assembly of fixture to access
LED board. Loosen set screws with 7/64” Allen
wrench.
3. Loosen LED board from heatsink by using 5/64”
Allen wrench on three (3) #2-56 screws on LED
board.
7. Connect wiring to new LED board by placing
into wire connectors. Wire will ‘push’ into place
inside holder. Black wire inserts on AC Line,
while white wire inserts on Neutral.
2. Gently press on tabs of LED wire holders to
allow wiring to be removed from LED board.
5. Spread new thermal paste in even layer on
heatsink. Feed wiring from quick connect
through new board.
Line up new LED board and place on heatsink.
IMPORTANT - WEAR GLOVES TO AVOID GETTING FINGERPRINTS ON THIS PRODUCT. MANY TEKA ILLUMINATION PRODUCTS ARE DESIGNED TO NATURALLY
PATINA. OILS FROM YOUR SKIN WILL ACCELERATE THIS PROCESS WHERE TOUCHED AND ARE NEARLY IMPOSSIBLE TO REMOVE. THIS PROCESS OCCURS
OVER TIME AND IS DETERMINED BY THE INSTALLATION ENVIRONMENT.
Wear Gloves
High Voltage
8. Reverse install fixture body assembly by
tightening set screws with 7/64” Allen wrench.
IMPORTANT SAFETY
INFORMATION
• Product must be installed by a qualified
person in a manner consistent with its
intended use and in compliance with
the National Electrical Code, Canadian
Electrical Code, and all Local and Provincial
Codes.
• Follow product label information and
instructions.
• Qualified Personnel must perform all
servicing or relamping of this product.
• Before wiring to power supply and
during servicing or relamping, turn off
power at fuse or circuit breaker before
service.
TOOLS
NEEDED:
By Others
7/64” & 5/64” Allen Wrench
Thermal Paste (Supplied)
Gloves
Replacement
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
DATE
7-18-18
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX [phone]
www.tekaillumination.com • [email protected]
REFERENCE NUMBER
INS-2614-00
4. Remove old board by carefully pulling away.
6. Secure new LED board to heatsink with three
(3) #2-56 screws using 5/64” Allen wrench.
