Tekelec EAGLE 5 Owner's manual

Tekelec EAGLE®5
Feature Manual - IDP-Related Features
910-6023-001 Revision A
March 2011
Copyright 2011 Tekelec. All Rights Reserved. Printed in USA.
Legal Information can be accessed from the Main Menu of the optical disc or on the
Tekelec Customer Support web site in the Legal Information folder of the Product Support tab.

Table of Contents
Chapter 1: Introduction.......................................................................8
Introduction...............................................................................................................................9
Scope and Audience.................................................................................................................9
Manual Organization................................................................................................................9
Documentation Admonishments..........................................................................................10
Customer Care Center............................................................................................................10
Emergency Response..............................................................................................................13
Related Publications...............................................................................................................13
Documentation Availability, Packaging, and Updates.....................................................13
Locate Product Documentation on the Customer Support Site.......................................14
Chapter 2: Prepaid IDP Query Relay Feature...............................15
Feature Description.................................................................................................................16
IDP Relay High Level Message Flow.......................................................................17
NPP Processing for IDP Relay...................................................................................30
Post-NPP Processing...................................................................................................46
IDP Relay Configuration Options.........................................................................................46
IDP Relay Additional Subscriber Data Feature .................................................................55
IDP Relay Generic Routing Number Feature ....................................................................55
EAGLE 5 ISS Commands.......................................................................................................56
Hardware Requirements........................................................................................................58
Chapter 3: IDP A-Party Blacklist Feature.......................................59
Feature Description.................................................................................................................60
IDP A-Party Blacklist Query......................................................................................60
IDP A-Party Blacklist Relay.......................................................................................62
IDP A-Party Blacklist Service Action Handlers......................................................62
EAGLE 5 ISS Commands.......................................................................................................64
Chapter 4: IDP A-Party Routing and IDP Service Key
Routing Features.............................................................................65
Feature Description.................................................................................................................66
IDP A-Party Routing and Service Key Routing Interaction.................................68
IDP A-Party Routing Service Action Handlers.......................................................69
ii
910-6023-001 Revision A, March 2011

EAGLE 5 ISS Commands.......................................................................................................71
Chapter 5: IDP Screening for Prepaid Feature..............................72
Feature Description.................................................................................................................73
Call Flow...................................................................................................................................74
EAGLE 5 ISS Commands.......................................................................................................75
Chapter 6: Feature Configuration...................................................77
Introduction.............................................................................................................................78
System Prerequisites...................................................................................................78
Prepaid IDP Query Relay Configuration.............................................................................79
IDP Relay-Related Feature Prerequisite..................................................................80
Configuration Procedure for IDP Relay and Related Features............................80
Provisioning NPP for IDP Relay...............................................................................81
Enabling IDP Relay-Related Features......................................................................82
Turning On IDP Relay-Related Features.................................................................83
Provisioning the IDPR Service Selector...................................................................84
Provisioning the TTR Options for IDP Relay..........................................................89
Provisioning SCCP Options for IDP Relay..............................................................89
Provisioning the Common Screening List for IDP Relay......................................90
TTR Test Tool...............................................................................................................91
Turning Off IDP Relay-Related Features.................................................................93
IDP A-Party Blacklist Configuration....................................................................................94
IDP A-Party Blacklist Feature Prerequisite.............................................................94
IDP A-Party Blacklist Feature Configuration Procedure......................................95
Enable and Turn On the IDP A-Party Blacklist Feature........................................95
Provisioning the TTR Options for IDP A-Party Blacklist......................................97
IDP A-Party Routing and IDP Service Key Routing Configuration................................97
IDP A-Party Routing and IDP Service Key Routing Feature Prerequisite.........98
IDP A-Party Routing and IDP Service Key Routing Features Configuration
Procedure................................................................................................................98
Enable and Turn On the IDP A-Party Routing Feature.........................................99
Enable and Turn On the IDP Service Key Routing Feature................................100
Provisioning the Common Screening List for IDP Service Key Routing..........101
Provisioning the Configuration Options for IDP A-Party Routing and IDP
Service Key Routing............................................................................................102
IDP Screening for Prepaid Configuration.........................................................................103
IDP Screening for Prepaid Feature Prerequisite...................................................103
IDP Screening for Prepaid Feature Configuration Procedure ...........................104
Enable the IDP Screening for Prepaid Feature.....................................................104
iii
910-6023-001 Revision A, March 2011

Provisioning the IDPS Service Selector..................................................................105
Provisioning the Common Screening List for IDP Screening for Prepaid........107
Turn On the IDP Screening for Prepaid Feature..................................................107
Service Portability Feature Configuration Procedures....................................................108
Enabling the Service Portability Feature...............................................................108
Provisioning the TTR SPORTTYPE Option for Service Portability...................109
Turning On the Service Portability Feature..........................................................110
Turning Off the Service Portability Feature..........................................................111
S-Port Subscriber Differentiation Feature Configuration Procedures...........................112
Enabling the S-Port Subscriber Differentiation Feature......................................112
Turning On the S-Port Subscriber Differentiation Feature.................................113
Provisioning the S-Port Subscriber Differentiation SCCPOPTS Option...........114
Adding a Service Module Card..........................................................................................115
The 1100 TPS/DSM for ITU NP Feature...........................................................................122
Enable the 1100 TPS/DSM for ITU NP Feature....................................................124
Turn On the 1100 TPS/DSM for ITU NP Feature................................................125
Turn Off the 1100 TPS/DSM for ITU NP Feature................................................126
Activating the E5-SM4G Throughput Capacity Feature.................................................126
Chapter 7: Measurements................................................................130
Prepaid IDP Query Relay Measurements..........................................................................131
IDP A-Party Blacklist Measurements.................................................................................138
IDP A-Party Routing and IDP Service Key Routing Measurements.............................139
IDP Screening for Prepaid Feature Measurements..........................................................140
Chapter 8: Maintenance...................................................................141
IDP Relay-Related UIMs......................................................................................................142
Maintenance Commands.....................................................................................................142
rept-stat-sccp..............................................................................................................144
rtrv-data-rtdb.............................................................................................................145
Glossary..................................................................................................................146
iv
910-6023-001 Revision A, March 2011

List of Figures

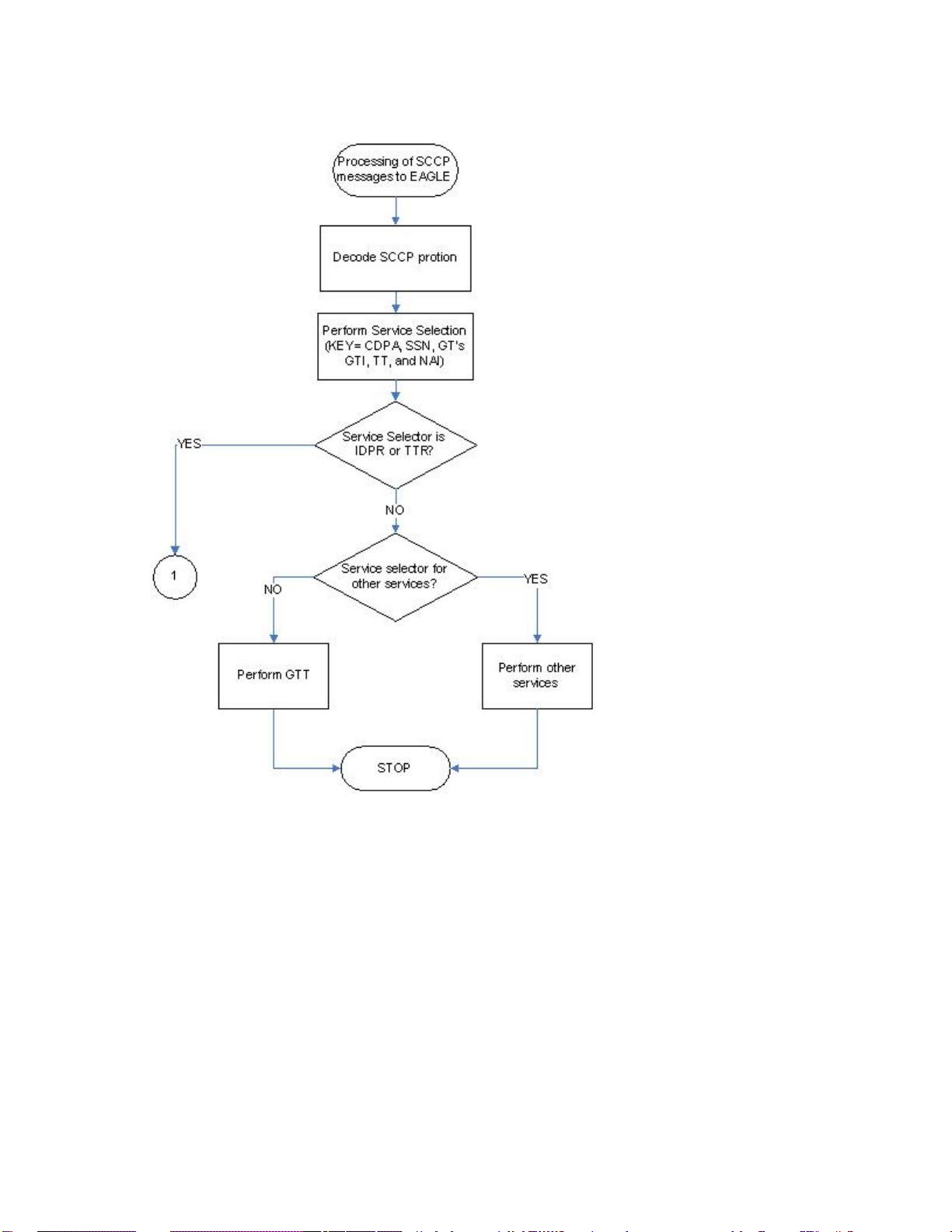

Figure 1: Message Flow for IDP Relay - Sheet 1 of 3......................................................................19
Figure 2: Message Flow for IDP Relay - Sheet 2 of 3......................................................................20
Figure 3: Message Flow for IDP Relay - Sheet 3 of 3......................................................................21
Figure 4: MO Prepaid Call to Ported Out Subscriber....................................................................22
Figure 5: MO Prepaid Call to an Imported or Own-Non-Ported Subscriber.............................24
Figure 6: IDP A-Party Blacklist Query Response - Connect.........................................................61
Figure 7: IDP A-Party Blacklist Query Response - Continue.......................................................61
Figure 8: IDP A-Party Blacklist Relay..............................................................................................62
Figure 9: IDP A-Party Routing Message Flow................................................................................67
Figure 10: IDP Service Key Routing Message Flow.......................................................................68
Figure 11: IDP Message Subject to IDP Screening for Prepaid.....................................................74
Figure 12: IDP A-Party Routing Impact on IDP Relay Measurements.....................................135
Figure 13: IDP Service Key Routing Impact on IDP Relay Measurements..............................136
Figure 14: IDP A-Party Blacklist (Query and Relay) Impact on IDP Relay
Measurements..............................................................................................................................137
v
910-6023-001 Revision A, March 2011

List of Tables
Table 1: Admonishments...................................................................................................................10
Table 2: IDP Relay Number Conditioning .....................................................................................29
Table 3: IDP Relay Conditioning Actions........................................................................................32
Table 4: Service Actions used by the IDP Relay Feature...............................................................33
Table 5: RTDB Lookup Success Criteria and Results.....................................................................36
Table 6: TTROPTS Parameters and Response Type Association for the INPRTG Service
Action..............................................................................................................................................38
Table 7: Interactions and Outcome of NPP Processing for IDP Relay Service Actions............40
Table 8: NPP Processing of the CDPNNP and ASDLKUP Service Actions ..............................41
Table 9: NPP Processing of the CDPNNP, ASDLKUP, and CDIAL Service Actions...............41
Table 10: NPP Processing of the INPRTG and CDPNNP Service Actions.................................42
Table 11: Recommended Provisioning for "Routing Tags"...........................................................44
Table 12: TTROPTS Configuration Options....................................................................................47
Table 13: SCCPOPTS Options for IDP Relay Conditioning Action Execution..........................54
Table 14: SCCPOPTS Option for the S-Port Subscriber Differentiation Feature.......................54
Table 15: Commands used for IDP Relay and Related Features..................................................56
Table 16: Summary of IDP A-Party Blacklist Service Actions......................................................63
Table 17: IDP A-Party Routing and IDP Service Key Routing Feature Interaction...................68
Table 18: Summary of IDP A-Party Routing Service Actions.......................................................70
Table 19: Commands used for IDP Screening for Prepaid............................................................75
Table 20: System Prerequisites..........................................................................................................78
Table 21: IDP Relay-Related Feature Prerequisite..........................................................................80
Table 22: TTR Test Message Parameters..........................................................................................92
Table 23: IDP A-Party Blacklist Feature Prerequisite....................................................................94
Table 24: IDP A-Party Routing and IDP Service Key Routing Feature Prerequisite................98
Table 25: IDP Relay-Related Feature Prerequisite........................................................................103
Table 26: Service Module Card Locations.....................................................................................116
Table 27: System Prerequisites for Adding a Service Module Card..........................................116
Table 28: Prerequisite for Adding an E5-SM4G Service Module Card.....................................117
Table 29: System Prerequisites........................................................................................................122
Table 30: Feature Prerequisites........................................................................................................123
Table 31: Maximum E5-SM4G Card and System TPS Capacity.................................................126
Table 32: System Prerequisites........................................................................................................127
Table 33: E5-SM4G Throughput Capacity Feature Prerequisite................................................128
Table 34: IDPR Measurements Registers.......................................................................................131
Table 35: IDP A-Party Routing and IDP Relay Pegs....................................................................136
Table 36: IDP Service Key Routing and IDP Relay Pegs.............................................................137
vi
910-6023-001 Revision A, March 2011

Table 37: IDP A-Party Blacklist and IDP Relay Pegs...................................................................138
Table 38: IDP Relay-Related UIMs.................................................................................................142
Table 39: Maintenance Commands.................................................................................................142
Table 40: IDP Relay Counters Updated for IDP A-Party Routing and IDP Service Key
Routing..........................................................................................................................................144
Table 41: IDP Relay Counters Updated for IDP A-Party Blacklist............................................145
vii
910-6023-001 Revision A, March 2011

Chapter
1
Introduction
This manual describes IDP-related features that
provide mechanisms to process calls from prepaid
Topics:
•Introduction.....9 subscribers to ensure correct charging and check
•Scope and Audience.....9 credit status, and mechanisms for A-Party blacklist
checking and routing of calls based on the Calling
Party (A-Party).
•Manual Organization.....9
•Documentation Admonishments.....10
•Customer Care Center.....10
•Emergency Response.....13
•Related Publications.....13
•Documentation Availability, Packaging, and
Updates.....13
•Locate Product Documentation on the Customer
Support Site.....14
8
910-6023-001 Revision A, March 2011

Introduction
This manual describes the following features:
•Prepaid IDP Query Relay (IDP Relay) - Provides a mechanism to ensure the correct charging for
calls from prepaid subscribers in a portability environment.
•Service Portability - Allows an own-network subscriber to port to a different network technology
with the same service provider.
•S-Port Subscriber Differentiation - Can be used with the Service Portability feature to allow use
of ASD digits to provide an additional Routing Number per own-network subscriber. (ASD
digits, if provisioned, are used in place of GRN digits).
•IDP Relay-related features: IDPR Additional Subscriber Data (IDPR ASD) and IDPR Generic Routing
Number (GRN) - Provide RTDB lookup to obtain ASD and GRN data for message formatting.
•IDP A-Party Blacklist - Provides subscriber blacklist checking on the Calling Party (A-Party or
CGPN) number in the IDP CAMEL or INAP message, and routing of the call to a predetermined
number when the call is flagged as blacklisted.
•IDP A-Party Routing - Provides routing of the IDP message based on the A-Party (Calling Party)
in the message instead of the SCCP CdPA.
•IDP Service Key Routing - Provides routing of the IDP message based on the Service Key and
EventTypeBCSM parameters in the message instead of the SCCP CdPA.
•IDP Screening for Prepaid - Provides a mechanism to decide, before routing calls to the prepaid
engine, whether checking the credit status of prepaid subscribers is required.
Scope and Audience
This manual is intended for anyone responsible for installing, maintaining, and using Prepaid IDP
Relay Query and IDP-related features in the EAGLE 5 ISS. Users of this manual and the others in the
EAGLE 5 ISS family of documents must have a working knowledge of telecommunications and network
installations.
Manual Organization
This document is organized into the following chapters:
•Introduction contains general information about the documentation for IDP-related features,
organization of this manual, and how to get technical assistance.
•Prepaid IDP Query Relay Feature describes the IDP Relay feature and related features for Additional
Subscriber Data and Generic Routing Number. It describes the functions of IDP Relay, the user
interface for IDP Relay-related features, and the message protocols for IDP Relay-related features.
9
910-6023-001 Revision A, March 2011
IntroductionFeature Manual - IDP-Related Features

•IDP A-Party Blacklist Feature describes the functions, user interface, and message protocols for the
IDP A-Party Blacklist feature.
•IDP A-Party Routing and IDP Service Key Routing Features describes the functions, user interface,
and message protocols for the IDP A-Party Routing feature and the IDP Service Key Routing feature.
•IDP Screening for Prepaid Feature explains how this feature provides a mechanism to decide, prior
to routing the calls to the prepaid engine, whether checking the credit status of prepaid subscribers
is required.
•Feature Configuration provides procedures for configuring the IDP Relay-related features for use
in the EAGLE 5 ISS.
•Measurements describes IDP Relay and IDP Relay-related feature measurements, measurements
reports, and methods of collection.
•Maintenance describes IDP Relay-related UIMs, commands that can be used for maintenance
functions; and status and alarm reporting for the EAGLE 5 ISS, EPAP, Service Module cards, and
services.
Documentation Admonishments
Admonishments are icons and text throughout this manual that alert the reader to assure personal
safety, to minimize possible service interruptions, and to warn of the potential for equipment damage.
Table 1: Admonishments
DANGER:
(This icon and text indicate the possibility of personal injury.)
WARNING:
(This icon and text indicate the possibility of equipment damage.)
CAUTION:
(This icon and text indicate the possibility of service interruption.)
Customer Care Center
The Tekelec Customer Care Center is your initial point of contact for all product support needs. A
representative takes your call or email, creates a Customer Service Request (CSR) and directs your
requests to the Tekelec Technical Assistance Center (TAC). Each CSR includes an individual tracking
number. Together with TAC Engineers, the representative will help you resolve your request.
The Customer Care Center is available 24 hours a day, 7 days a week, 365 days a year, and is linked
to TAC Engineers around the globe.
10
910-6023-001 Revision A, March 2011
IntroductionFeature Manual - IDP-Related Features

Tekelec TAC Engineers are available to provide solutions to your technical questions and issues 7
days a week, 24 hours a day. After a CSR is issued, the TAC Engineer determines the classification of
the trouble. If a critical problem exists, emergency procedures are initiated. If the problem is not critical,
normal support procedures apply. A primary Technical Engineer is assigned to work on the CSR and
provide a solution to the problem. The CSR is closed when the problem is resolved.
Tekelec Technical Assistance Centers are located around the globe in the following locations:
Tekelec - Global
Email (All Regions): [email protected]
•USA and Canada
Phone:
1-888-FOR-TKLC or 1-888-367-8552 (toll-free, within continental USA and Canada)
1-919-460-2150 (outside continental USA and Canada)
TAC Regional Support Office Hours:
8:00 a.m. through 5:00 p.m. (GMT minus 5 hours), Monday through Friday, excluding holidays
•Central and Latin America (CALA)
Phone:
USA access code [phone], then 1-888-FOR-TKLC or 1-888-367-8552 (toll-free)
TAC Regional Support Office Hours (except Brazil):
10:00 a.m. through 7:00 p.m. (GMT minus 6 hours), Monday through Friday, excluding holidays
•Argentina
Phone:
0-800-555-5246 (toll-free)
•Brazil
Phone:
0-800-891-4341 (toll-free)
TAC Regional Support Office Hours:
8:30 a.m. through 6:30 p.m. (GMT minus 3 hours), Monday through Friday, excluding holidays
•Chile
Phone:
1230-020-555-5468
•Colombia
Phone:
01-800-912-0537
•Dominican Republic
Phone:
1-888-367-8552
11
910-6023-001 Revision A, March 2011
IntroductionFeature Manual - IDP-Related Features

•Mexico
Phone:
001-888-367-8552
•Peru
Phone:
0800-53-087
•Puerto Rico
Phone:
1-888-367-8552 (1-888-FOR-TKLC)
•Venezuela
Phone:
0800-176-6497
•Europe, Middle East, and Africa
Regional Office Hours:
8:30 a.m. through 5:00 p.m. (GMT), Monday through Friday, excluding holidays
•Signaling
Phone:
[phone] (within UK)
•Software Solutions
Phone:
[phone]
•Asia
•India
Phone:
[phone] or [phone]
TAC Regional Support Office Hours:
10:00 a.m. through 7:00 p.m. (GMT plus 5 1/2 hours), Monday through Saturday, excluding
holidays
•Singapore
Phone:
[phone]
TAC Regional Support Office Hours:
9:00 a.m. through 6:00 p.m. (GMT plus 8 hours), Monday through Friday, excluding holidays
12
910-6023-001 Revision A, March 2011
IntroductionFeature Manual - IDP-Related Features

Emergency Response
In the event of a critical service situation, emergency response is offered by the Tekelec Customer Care
Center 24 hours a day, 7 days a week. The emergency response provides immediate coverage, automatic
escalation, and other features to ensure that the critical situation is resolved as rapidly as possible.
A critical situation is defined as a problem that severely affects service, traffic, or maintenance
capabilities, and requires immediate corrective action. Critical problems affect service and/or system
operation resulting in:
•A total system failure that results in loss of all transaction processing capability
•Significant reduction in system capacity or traffic handling capability
•Loss of the system’s ability to perform automatic system reconfiguration
•Inability to restart a processor or the system
•Corruption of system databases that requires service affecting corrective actions
•Loss of access for maintenance or recovery operations
•Loss of the system ability to provide any required critical or major trouble notification
Any other problem severely affecting service, capacity/traffic, billing, and maintenance capabilities
may be defined as critical by prior discussion and agreement with the Tekelec Customer Care Center.
Related Publications
For information about additional publications that are related to this document, refer to the Related
Publications document. The Related Publications document is published as a part of the Release
Documentation and is also published as a separate document on the Tekelec Customer Support Site.
Documentation Availability, Packaging, and Updates
Tekelec provides documentation with each system and in accordance with contractual agreements.
For General Availability (GA) releases, Tekelec publishes a complete EAGLE 5 ISS documentation set.
For Limited Availability (LA) releases, Tekelec may publish a documentation subset tailored to specific
feature content or hardware requirements. Documentation Bulletins announce a new or updated
release.
The Tekelec EAGLE 5 ISS documentation set is released on an optical disc. This format allows for easy
searches through all parts of the documentation set.
The electronic file of each manual is also available from the Tekelec Customer Support site. This site
allows for 24-hour access to the most up-to-date documentation, including the latest versions of Feature
Notices.
13
910-6023-001 Revision A, March 2011
IntroductionFeature Manual - IDP-Related Features

Printed documentation is available for GA releases on request only and with a lead time of six weeks.
The printed documentation set includes pocket guides for commands and alarms. Pocket guides may
also be ordered separately. Exceptions to printed documentation are:
•Hardware or Installation manuals are printed without the linked attachments found in the electronic
version of the manuals.
•The Release Notice is available only on the Customer Support site.
Note: Customers may print a reasonable number of each manual for their own use.
Documentation is updated when significant changes are made that affect system operation. Updates
resulting from Severity 1 and 2 Problem Reports (PRs) are made to existing manuals. Other changes
are included in the documentation for the next scheduled release. Updates are made by re-issuing an
electronic file to the customer support site. Customers with printed documentation should contact
their Sales Representative for an addendum. Occasionally, changes are communicated first with a
Documentation Bulletin to provide customers with an advanced notice of the issue until officially
released in the documentation. Documentation Bulletins are posted on the Customer Support site and
can be viewed per product and release.
Locate Product Documentation on the Customer Support Site
Access to Tekelec's Customer Support site is restricted to current Tekelec customers only. This section
describes how to log into the Tekelec Customer Support site and locate a document. Viewing the
document requires Adobe Acrobat Reader, which can be downloaded at www.adobe.com.
1. Log into the Tekelec Customer Support site.
Note: If you have not registered for this new site, click the Register Here link. Have your customer
number available. The response time for registration requests is 24 to 48 hours.
2. Click the Product Support tab.
3. Use the Search field to locate a document by its part number, release number, document name, or
document type. The Search field accepts both full and partial entries.
4. Click a subject folder to browse through a list of related files.
5. To download a file to your location, right-click the file name and select Save Target As.
14
910-6023-001 Revision A, March 2011
IntroductionFeature Manual - IDP-Related Features

Chapter
2
Prepaid IDP Query Relay Feature
The Prepaid IDP Query Relay feature (IDP Relay)
provides a mechanism to ensure the correct charging
Topics:
•Feature Description.....16 for calls from prepaid subscribers in a portability
environment.
•IDP Relay Configuration Options.....46
•IDP Relay Additional Subscriber Data Feature
.....55
•IDP Relay Generic Routing Number Feature ...55
•EAGLE 5 ISS Commands.....56
•Hardware Requirements.....58
15
910-6023-001 Revision A, March 2011

Feature Description
This chapter describes the Prepaid IDP Query Relay (IDP Relay) feature and the following IDP
Relay-related features:
•IDP Relay Additional Subscriber Data Feature
•IDP Relay Generic Routing Number Feature
IDP Relay interactions with the following features are described in this chapter; the features are
described in separate chapters:
•IDP A-Party Blacklist Feature
•IDP A-Party Routing and IDP Service Key Routing Features
The Prepaid IDP Query Relay feature (IDP Relay) provides a mechanism to ensure the correct charging
for calls from prepaid subscribers in a portability environment.
IDP Relay processes GT-routed INAP or CAP messages with ITU MTP/SCCP/TCAP parts and
Opcode=IDP. It does not process MTP-routed messages.
IDP Relay provides functions that handle complex numbering schemes and number conditioning,
such as the following examples:
•The Nature of Address Indicator (NAI) could be used in a non-compliant manner (the NAI is set
to International and the number format is not international).
•The Local Area Code (LAC) 2- byte field of the Local Area Identification (LAI) information element
is used in one of the following ways:
•As the Area Code in cases where the AC is needed but not provided in the CdPN
•To determine how to format the outgoing CdPN in the IDP query
•The collect call Escape Codes 90 and 90909 might need to be stripped and re-inserted after the RN.
•The Carrier Selection Point (CSP) can be removed from the incoming number and sometimes
re-inserted (as when the LAC is not equal to the AC).
•The RN for the CgPN might be needed when the call is identified as a collect call.
•Service Key selection could vary, and could require a change in the number of bytes present the
Service Key.
•Unsegmented XUDT messages might be required.
•Sometimes the RN but not the SP, or the SP but not the RN, or both the RN and SP are required in
the outgoing number format.
When Mobile Switching Centers (MSCs) in the network are configured to send IDP prepaid query
messages through the EAGLE 5 ISS, the EAGLE 5 ISS intercepts the IDP query based on a set of
configurable criteria, performs a number portability (RTDB) lookup on the called number, inserts the
portability information (Routing Number or HLR Address), and forwards the IDP query to a prepaid
SCP for processing. When a respective entry is found in the RTDB, any processing is controlled by
NPP Service Actions and configuration option provisioning in the TTROPTS table. The CdPN can be
modified with the portability information (Routing Number or HLR address) and the CgPN.
In standard IDP Relay processing, regardless of any actions performed on the IDP query by the IDP
Relay feature, the query is always forwarded to the prepaid SCP (PPSCP) for processing.When the
SCP receives the IDP query, all information necessary for call processing and billing is present. The
IDP Relay feature alleviates the need to launch a separate number portability database query.
16
910-6023-001 Revision A, March 2011
Prepaid IDP Query Relay FeatureFeature Manual - IDP-Related Features

IDP Relay also provides the following functions:
•CONNECT, CONTINUE, or RELEASECALL responses - Provisioning can allow CONNECT,
CONTINUE, or RELEASECALL responses to be sent based on the RTDB lookup results. A
configuration option determines whether the CutAndPaste parameter is included in a CONNECT
message that is sent from the Prepaid IDP Query Relay feature.
•Service Key-based GTA Routing (SK GTA Routing) - A provisioned Service Control Point (SCP)
Global Title Address (GTA) value based on the Service Key can be used to replace the SCCP Called
Party Address (CdPA) GTA in a message. This allows the IDP or IDPSMS message to be GTT
routed to the provisioned SCP GTA instead of to the incoming SCCP Called Party Address (CdPA)
GTA.
Number Portability Types
There are three types of Number Portability. IDP Relay supports all three types:
•Provider NP - the subscriber can move to another service provider and keep the same number
•Location NP - the subscriber can move to another location within the same service provider network
and keep the same number
This manual describes Provider NP and Location NP together as "NP".
•Service NP - the subscriber can move to another service technology (GSM or IS41) within the same
service provider network and keep the same number
This manual describes Service NP as "Service Portability" or "S-Port".
IDP Relay High Level Message Flow
IDP Relay processes messages in the following high-level message flow, as shown in Figure 1: Message
Flow for IDP Relay - Sheet 1 of 3 through Figure 3: Message Flow for IDP Relay - Sheet 3 of 3:
•Service Selection
•Component match
•Service Selector IDPR or TTR
•Identify number type and context
•ITU TCAP message with Op Code = IDP
•SCCP CdPA GTA matches an entry in the CSL GT list
•SK+BCSM present and matches a DS entry for the CSL SKBCSM list
•If the TTROPTS CGPACCCK configuration option indicates that an SCCP CgPA Check for a
Country Code match (STPOPTS DEFCC) is to be made, the SCCP GTI must indicate that GT is
present and the SCCP NAI must be International to allow the check to made.
•NPP Pre-processing
•TCAP DN present
•Number conditioning
•NPP Processing
•The IDPRCDPN, IDPRCDPN2, IDPRCDPN3, or IDPRCDPN4 service is called
•Conditioning Actions
17
910-6023-001 Revision A, March 2011
Prepaid IDP Query Relay FeatureFeature Manual - IDP-Related Features

•Service Actions
•Formatting Actions
•CgPN Lookup needed - IDPRCGPN service is called
•Conditioning Actions
•Service Actions
•Formatting Actions
•Post NPP Processing
•Encode outgoing IDP message
•Peg measurements
•Pass message to GTT for routing; send CONNECT, CONTINUE or RELEASECALL response; or
determine if IDP A-Party Routing is applicable.
18
910-6023-001 Revision A, March 2011
Prepaid IDP Query Relay FeatureFeature Manual - IDP-Related Features

Figure 1: Message Flow for IDP Relay - Sheet 1 of 3
19
910-6023-001 Revision A, March 2011
Prepaid IDP Query Relay FeatureFeature Manual - IDP-Related Features

Figure 2: Message Flow for IDP Relay - Sheet 2 of 3
20
910-6023-001 Revision A, March 2011
Prepaid IDP Query Relay FeatureFeature Manual - IDP-Related Features
