Teknatool LITE SUPERNOVA2 User manual

LITE SUPERNOVA2
CHUCK QUICK START
INSTRUCTION MANUAL
Thank you for purchasing the NOVA LITE SUPERNOVA2 Chuck –our new addition to our NOVA
woodturning chuck range with advanced features to enhance your chucking performance. It
provides a versatile and easy method for fast and secure work holding for all face turning –
bowls, egg cup, vases, boxes, goblets, and an endless variety of similar projects.
OPENING AND CLOSING OF JAWS

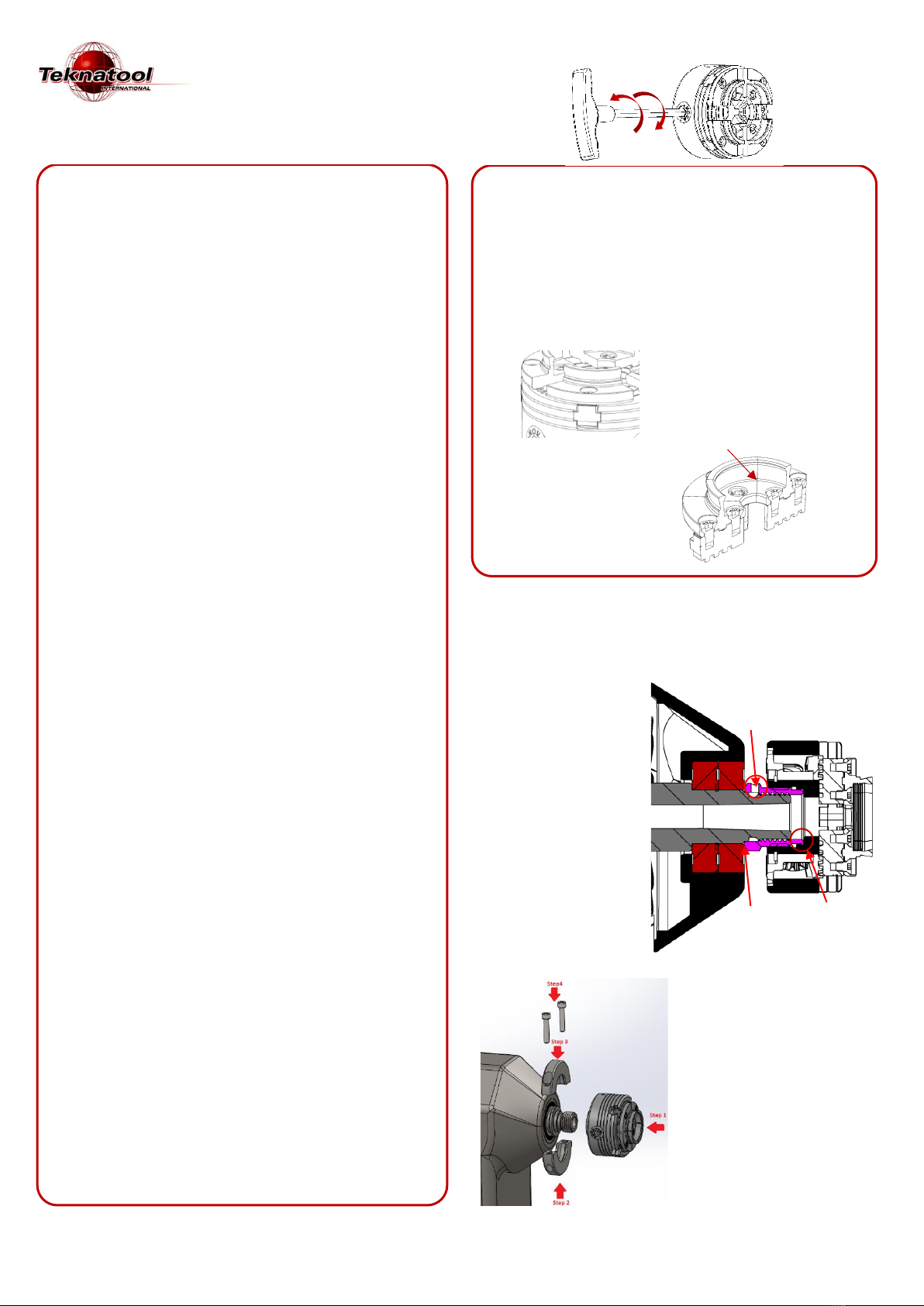

MOUNTING THE LITE SUPERNOVA2 CHUCK
ON THE LATHE
There are two configurations available for the SuperNOVA2 LITE chuck:
•Insert model: Requires an insert for chuck to be mounted on the lathe. See full
manual online for a list of lathe spindle thread insert available.
•Direct Thread model: ASR M33 Eurolock
1. Ensure the insert is fully seated
on the chuck body before
mounting on the lathe.
2. For both Insert & Direct Thread
model: Wind the chuck on the
lathe spindle until the chuck
comes firmly in contact with the
bearing/ spindle shoulder with no
gaps between.
3. Place the red thread protecting
fibre washer into the M6
threaded hole. Then screw the
6mm grub screw in position and
tighten with the provided 3mm
Allen Key to prevent the chuck
from loosening on lathe spindle.
*Using the ASR M33 Thread locking ring
Step 1:
Tighten the ASR M33 chuck to the spindle on
the lathe, make sure the rings on the spindle
and chuck have been clamped.
Step 2:
Put the lower part of locking ring under the
clamped rings.
Step 3:
Put upper part of the locking ring to the
clamped rings as well.
Step 4:
Using the Allen key to tighten up two bolts on
the locking ring.
YOUR SAFETY
Keep these instructions in a safe place for future reference.
WARNING: This chuck is capable of contributing to serious injury (as with any other
power tool accessory) if this manual guidance is not followed or if it is used improperly
on the lathe. Read and understand the lathe owner's manual. If you do not have a
manual, contact the supplier of your lathe to obtain one before using the lathe and
chuck. User must be professionally trained to use this chuck. Vocational school courses
or other expert tuition is recommended.
As with other work holding methods, an extremely cautious and sensible approach is
necessary. With the LITE SUPERNOVA2 Chuck it is not possible to give exact directions
as to the amount of tightening pressure required for adequate work holding or
approved chisel cutting techniques. Follow closely strict guidelines in this manual for
different jaw types on wood blank diameters and length, plus strictly follow
recommended lathe speeds.
Safe Operation:
Eye Protection: Woodturning operations can result in objects being thrown into your
eyes which can result in severe eye damage. Protective eye wear must be used at all
times. Everyday vision wear is not protective eye wear. We recommend a full-face shield.
Always wear eye protection which complies with current ANSI Standard Z87 (USA).
Noise Protection: Use ear plugs or ear defenders. Particularly if the noise exceeds 85dB.
Exposure to high levels of noise can lead to hearing problems.
Dust Protection: Use respiratory protective equipment (dust mask, portable respirator
device). Exposure to high levels of irritating dust when turning or sanding hardwoods,
soft woods and manufactured composite boards (MDF) can result in serious health
problems. In addition, adequate workshop dust extraction must be used.
Chuck is properly secured on lathe spindle: Follow mounting instructions for your lathe
for faceplates and other spindle fixtures. Do not rotate chuck under power unless
workpiece is firmly clamped.
WARNING: LATHE SPEED: Excessive speed is a serious lathe hazard. Always turn at the
slowest speed possible. Ideal speed will vary with wood blank size. The larger the blank
the slower the speed. Consult your lathe manual or lathe information plate for speed
guidelines. Do not attempt to use the chuck unless the recommended lathe speeds to
size of wood blank are known. In addition, you must strictly follow the maximum speed
limits set out in the operating section of this manual. Do not exceed them under any
circumstances.
CHECK WORKPIECE: Examine wood blank carefully before mounting on chuck/lathe.
Only Mount Wood that has no cracks, splits, holes, or any other weaknesses (e.g. rotten
or spongy sections). Do not use poorly jointed or laminated wood. Irregular or out of
balance stock needs to be turned at the slowest possible speed until it is in balance.
Make sure wood is clamped firmly. Follow mounting instructions for different gripping
modes and jaw types. In the expansion mode do not use undue force or jaws may split
the wood.
Do not exceed maximum guidelines in this manual for wood blank diameters/length set
out in this manual for different modes and jaw types.
Check that the wood is securely held in chuck before operation. Check grip by vigorously
wrenching wood blank back and forth. If any loosening occurs, re-examine holding area
for adequate grip (Following mounting guidelines) and any damage to holding area.
Rotate manually to make sure of clearance before switching power on.
DUPLICATOR OR JIGS: Do not use chuck for work holding with a duplicator or jigs.
Safe Practice:
CHISEL USE: Use only handheld woodturning chisels to shape wood being held in chuck.
Use the recommended chisel for the job. Use safe and commonly approved techniques.
WARNING: Never attempt to place hands on a moving chuck on a lathe. Wait for the
chuck to come to a complete stop before hands are anywhere near the chuck. Trying to
grab at a moving chuck could result in SERIOUS INJURY. Jawslides: For safe operation do
not extend the jawslides beyond the chuck body under any circumstances.
Wherever possible stand to one side of the revolving wood.
WEAR SUITABLE CLOTHING: Do not wear any loose clothing, neck ties, gloves, bracelets,
rings or other jewellery that could get caught in moving parts. Wear protective hair
covering to contain long hair.
DRUGS, ALCOHOL, MEDICATION: Do not operate chuck or lathe while under the
influence of drugs, alcohol or any medication.
KEEP CHILDREN AND VISITORS AWAY: All children and visitors should be kept safe
distance from the work area.
Make workshop childproof with padlocks, master switches, or by removing starter
keys.
ATTACHING AND REMOVING JAWS
LITE SUPERNOVA2 CHUCK
The LITE SUPERNOVA2 chuck comes included with a set of 50mm add-on jaws.
The jaws must be properly attached on the chuck to function as intended.
Before installation, ensure the jawslide top surfaces are clear of any dust or debris before
attaching the jaws on the chuck.
Follow the steps shown below to attach the jaws on the chuck:
Firmly tighten the NOVA Hex screws using
the included 4mm Allen Key.
To remove the jaws, loosen and remove the
NOVA hex screws from the chuck.
Tip: After removal, wipe down the jaws and
add rust protection before storing.
Always mount the jaws clockwise, using the
number indented on the underside of the
jaw for correct mounting sequence (1,2,3,4).
Loosely attach the jaw segments on the
jawslide with the NOVA hex head screw
included and firmly close the jaws to make
sure no light is visible between the jaw
segments.
Place the red thread protecting fibre
washer into the M6 threaded hole.
Then screw in the M6 grub screw
and tighten.
Make sure there is
no gap all around
this contact line
between the bearing
Insert fully
seated
Open
Close

SCREW CHUCK - WOODWORM SCREW
The woodworm screw provides a convenient method for holding a bowl blank to cut a recess
to mount on the LITE SUPERNOVA2 50mm (2in) jaws. Jaws must be mounted on the chuck
before the woodworm screw –See diagram. (Some models Woodworm sold separately).
Open the jawslide and insert the
woodworm screw in the centre hole of the
chuck.
Position the woodworm screw as shown
in illustration.
Note: All 4 flat sides of the woodworm
screw should be in contact with the flat
end of the jawslides.
The woodworm screw is used to secure the wood to
cut either a mortise or tenon on the open ‘face’ end.
Pre-drill a hole of size 8mm (5/16in) diameter with
19mm (3/4in) depth to mount the blank using the
woodworm screw. The wood must be seated firmly
and flat against the top surface of the mounted jaws.
For first stage rounding of bowl blanks, extra support
can be used with live centre support from the lathe
tailstock. See full manual online for more details.
DO NOT USE WOOD BLANKS LARGER THAN 250mm
DIAMETER X 100mm DEPTH (10inx4in)
DO NOT EXCEED 600-700RPM for 6” and larger, or
heavy work pieces
TURNING ON A MORTISE OR TENON
Tenon is where the jaw contracts onto the workpiece to grip. This
is mainly for box, goblet and vase turning (End grain items with a
fair degree of overhang).
EXTREME CAUTION WITH THIS OPERATION MUST BE EXERCISED.
DO NOT EXCEED 700 RPM FOR THIS OPERATION.
Tenon Diameter (For 50mm Jaws)
Min Diameter
Max Diameter
Cylinder
45mm (1 3/4in)
65mm (2 9/16in)
Square
40mm (1 9/16in)
50mm (2in)
Mortise is where the jaw expands into a recess of a workpiece to
grip. This operation is mainly for bowl and platter (Items with
parallel wood grain).
MUST NOT BE USED FOR ANY LONG WORK (OVER 100mm or 4
inches). DO NOT EXCEED 700RPM WITH THIS OPERATION. OUT OF
BALANCE STOCK MUST BE TURNED AT THE SLOWEST SPEED
POSSIBLE.
Recess Mortise Diameter (For 50mm Jaws)
Min
Max
50mm (2in)
70mm (2 3/4in)
FORMING A MORTISE OR TENON
Mortise
Tenon
Using a NOVA Dovetail Chisel SKU 6008 (or any
other suitable tool), cut into the wood, rest the
flat side of the chisel on the bottom surface of
the recess to form a dovetail profile of between
75~80deg with 10mm (25/64in) depth.
Using a suitable chisel, turn the outer
diameter of the wood to form the tenon.
The length of the tenon should be 3mm
less than the internal height of the jaws.
CONTACT ● Teknatool International Ltd Phone: [phone] ● Teknatool USA Phone: [phone] CUSTOMER SOLUTIONS For all worldwide Inquiries, Repairs or Services (issues must be in writing) Email: [email protected] Or you can contact the retailer where you purchased your NOVA Chuck, for the contact details please see our website www.teknatool.com
LITE SUPERNOVA2 Designed and manufactured by Teknatool International, Teknatool USA, Inc. & PRC © 2021 Teknatool
LITE SUPERNOVA2
CHUCK
REF#
QTY.
PART#
DESCRIPTION
1
1
23049/1319011
Chuck Body: Insert Type /
ASR M33
2
1
23109 / 23113
Scroll Ring: Insert Type / ASR M33
3
1
23048B /
23114B
Backing Plate: Insert Type /
ASR M33
4
1
EC48 / EC50
Circlip: Insert Type / ASR M33
5
1
1359051 /
1359055
Jaw Slide #1: Insert Type /
ASR M33
6
1
1359052
Jaw Slide #2
7
1
1359053
Jaw Slide #3
8
1
1359054
Jaw Slide #4
9
1
10029
50mm Jaw set
10
8
CM5010181
NOVA Hex Screws C/Sunk
11
1
AK4
Allen Key 4mm
12
2
23110
Pinion
13
1
AK3
Allen Key 3mm
14
1
G0606
6mm Grub Screw
15
2
NS1000
Fibre Washer
16
1
13006
Jaw Scroll Chuck Key
ACCURACY
The LITE SUPERNOVA2 Chucks are sample tested from each
batch and are made to run within the following tolerance
limits on the 50mm (2in) jaws:
-Maximum Face/Axial Runout: 0.08mm (0.0031 in)
-Maximum Radial Runout: 0.15mm (0.0060 in)
However, wood is a flexible material with varying densities
and liable to warp while turning.
Under these circumstances pursuing accuracies as above,
measured on the wood project clamped in the chuck, can be
very difficult to achieve. For most wood turning projects
there is usually little requirement to achieve such tolerances.
See trouble shooting guide for detailed guide on accuracy in
the full manual online at www.teknatool.com
WARRANTY
Your NOVA LITE SUPERNOVA2 Chuck is covered by a 2-year Limited Warranty. Go to www.teknatool.com for a full warranty statement in full version manual
LITE SUPERNOVA2 Chuck. The full online manual also covers trouble shooting, maintenance, list of NOVA lathe spindle thread inserts, jaw, and chuck accessories.
Optional Accessory Jaws
This Chuck is compatible with all NOVA jaws including the jaws shown above. Note: Excluding jaws that are specific for NOVA Titan chucks
Download the App!
Make sure this flat face is
coming in contact with the
tip of the jawslide
Side to cut
Mortise or
Tenon
Chuck Gripping
Direction (Tenon)
Chuck Gripping
Direction (Mortise)
