Dear Costumer,

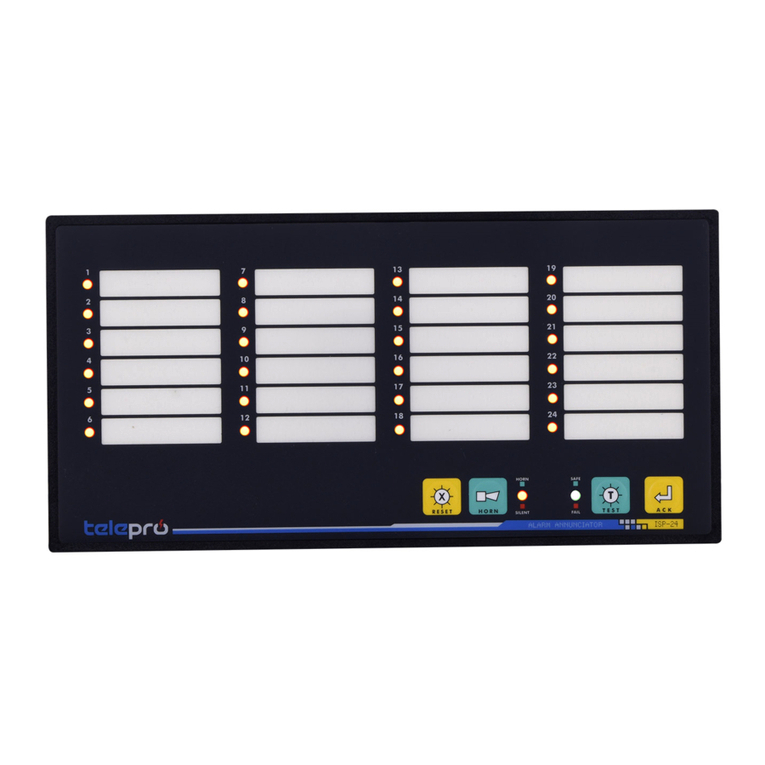

ISP Alarm Annunciator has been manufactured by TELEPRO ENERGY in Turkey.All functional tests of device that you
purchased are verified by our technical department. ISP Alarm Annunciator has 2 years warranty against manufacturing
faults.Before performing any electrical connection ,PLEASE Check the ISP Typical wiring at the back side.
Have a good work.
Your respectfully,
Contens of product package
1 Pc. ISP Alarm Annunciator
1 Pc. Front panel frame
3 Pcs. Connection terminale-10 input
1 Pc. Connection terminale-3 input (just for one having communication option)
4 Pcs. Board connection equipment to be used for two side fixation.
Configuration;
I-UnPlug “A” terminal ( Input 1-8) and “B” terminal (Input 9-16 )
II-Plug in “K” terminal (Supply and relay output)
III-After Pluged “K” ternimal, ISP runs startup self test procedure
IV- Selft test steps are as follows;
IV-a- In the first step, all leds are solid green
IV-b- In the second step, all leds are solid red
IV-c- In the third step, Input channel leds turn off ,
IV-d- Internal buzzer sounds once
V- In order to enter config mode ; Press Test Button and Horn buton together for 3 sec.
VI- After 3 sec.
a- First input channel led blinks in 4Hz
b- Other input channels leds are off
c- “Horn/Silent” led turns off and safe/Fail
led blinks green in 4Hz
VII-Press Horn Button to setup alarm output type (Horn or Bell ) for input channel 1 while this led blinks red in this
step. When pressing Horn Button, colour of channel 1 led changes to blinking green. (Blinking Red means Horn Output /
Blinking green means Bell Output)
VIII-Press Test Button to skip to the next input channel. When pressing test buton, next channel led blinks red.
IX-Press Ack Button to save input ch. settings or Press Reset Button to cancel configuration settings. When pressing
Ack Button, ISP will save your configuration and restart itself.
! If any button is not pressed for 60 sec in config mode, then ISP returns to the latest working Process Mode
Picture1-Gently hold and unlock front
panel frame at one side as shown
Picture2-Remove front panel frame
from the unit
Picture3-Insert tag label into slots
as seen below
