1MPH200 series video encoders user manual
General
MPH series encoders are ONVIF (Open Network Video Interface Forum)
compliant products. This provides wide interoperability with any ONVIF
compliant device or system.
Many similarities exist between the MPH series video encoders; the main
difference being the number of video channels available and the mechan-
ics. MPH series video encoders are high performance video processing
products encoding real time video in mission critical applications for
customers in Transportation, City Center Monitoring, and Corporate
Security. MPH200 series encoders are temperature-hardened compact
size stand-alone video processing products in the MPX platform.
MPH200 series video encoders provides in addition to transparent link
of CVBS or HD-SDI video signal up to 1080p resolution (SMTP292M),
independently congurable general-purpose bi-directional asynchronous
data, bi-directional audio channels and bi-directional contact closure
channels. Additionally a layer 2 manageable Ethernet switch is inte-
grated into the encoder. The Ethernet switch comes with four gigabit
ports and full-feature layer 2 switching functions such as RSTP, IGMP,
QoS and VLAN.
The encoded signal from MPH series encoder can be decoded with MPC/
MPX (except H.264) or VMX series HW and/or SW, as well as with industry
standard SW players such as Quicktime and VLC. The transmission is
accomplished over 10/100/1000BASE-T or 100BASE-FX (SFP) or
1000BASE-X (SFP) network utilizing IP/Ethernet streaming.
MPH series video encoders are equipped with the H.264, MPEG-4,
MJPEG and MPEG-2 video encoding engine. The default encoding
combination is H.264, MPEG-4 and MJPEG. MPEG-2 is an add-on
option, and it should be ordered separately.
The H.264 video encoding engine is compliant with the ISO/IEC 14496-10
(H.264@MP, BP, CBP) standard. The MPEG-4 video encoding engine is
compliant with the ISO/IEC14496-2 (MPEG-4@SP/ASP L5) simple prole
standard. The MJPEG video encoding engine is compliant with the ISO/
IEC 13818-2 (RFC 2435) standard. The MPEG-2 video encoding engine is
compliant with the ISO/IEC13818 (MPEG-2 MP@ML) standard.
General-purpose asynchronous data channels are transferred sepa-
rately from the encoded video signals.
Firmware version
The functionality and operation of the devices described in this manual
applies for rmware version 6.0.x.
Stand-alone video encoder with 1 or 2 video inputs, bi-direc-
tional data, audio & contact closure channels + Ethernet switch
MPH series video encoders introduction
Note! This product is under
development and Teleste
reserves the rights to alter
specications, features,
manufacturing release dates and
even the general availability of
the product at any time.

2MPH200 series video encoders WebUI user manual
MPH series video encoders front and rear panel

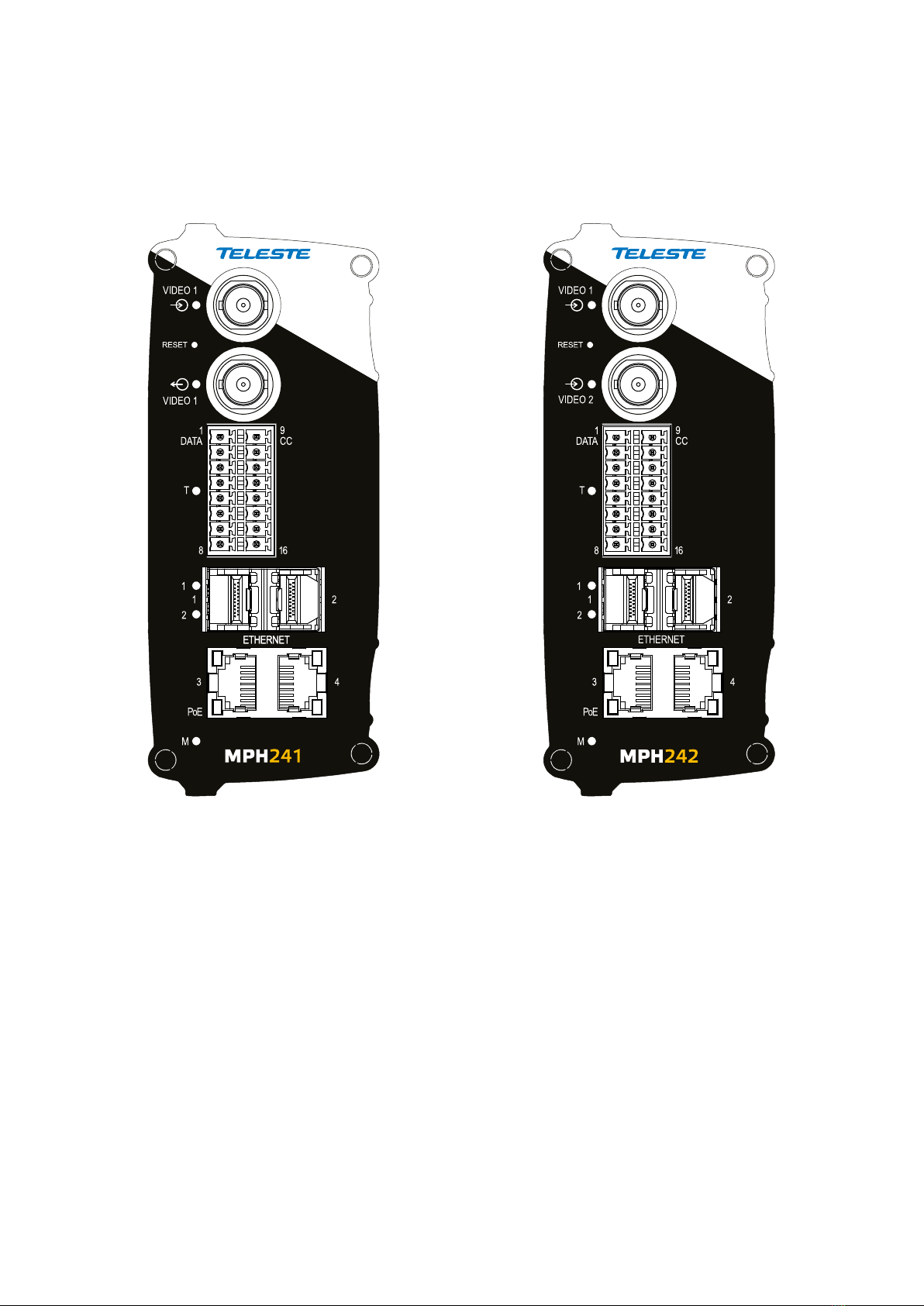

MPH200 stand-alone encoder (example view from MPH241 device)
M - Led. Power and
status indicator led
T - Led. Terminal
server indicator led
Front panel Back panel
1
2
3
4
5
6
7
Ground
Reset button
1
510
6
GND
_
+
12...24 VDC
AUDIO

3MPH200 series video encoders WebUI user manual
MPH200 series video encoders mechanical connections

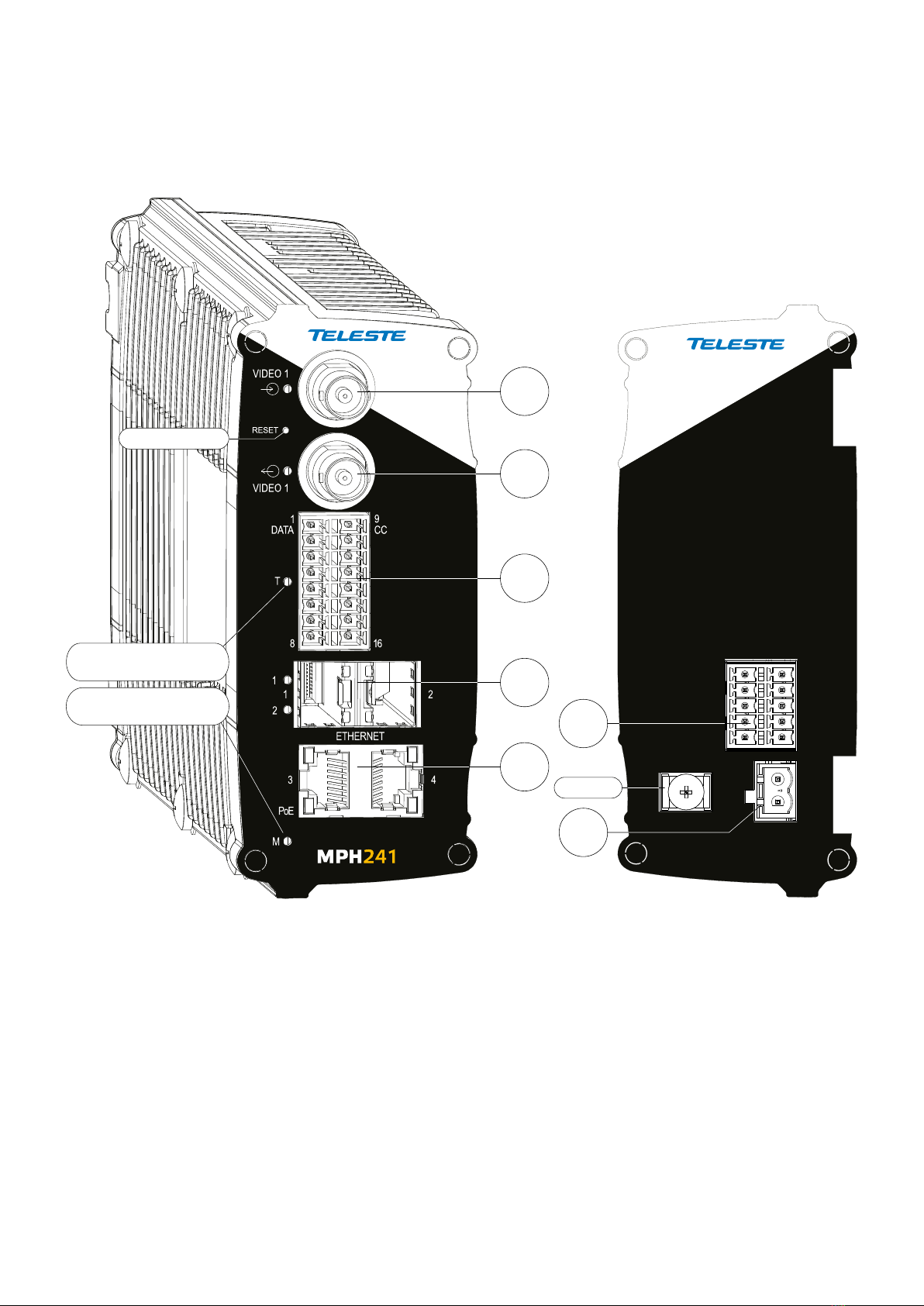

1. CVBS video input 1, or optional HD-SDI video input (BNC female) and
indicator led.
2. CVBS video input 2 (BNC female) for 2-ch versions or
Video loop through port for 1-ch versions and indicator led.
3. 16-pin screw terminal block and T indicator led:
Data interfaces, EIA RS422/485 (data1), EIA RS232 (data 2) /manage-
ment interface (CLI) or general purpose serial port.
Contact closure interfaces (cc input 1, cc input 2, cc output)
4. Ethernet switch up-link interfaces, 2 x socket for SFP module (GE,
see a product catalogue for supported models).
5. Ethernet switch local port interfaces, 2 x 10/100/1000Base-T, RJ-45.
6. Audio interface (10-pin screw terminal block).
7. Power supply connector (2-pin screw terminal block, +12...28 VDC).
Reset button: Device software reboot and hard/soft factory defaults
restoration (see section Factory reset).
Ground: Device ground connection.
M- (module/power led) LED indicator operation. This LED indicates power
status, factory reset, interface activity.
Factory reset
The factory reset can be done via WebUI, CLI, or using the pinhole reset
button on the front panel of device. There are two types of factory resets;
Soft factory and Hard factory reset. The Soft factory reset restores all,
except IP conguration to the default factory settings. The Hard factory
reset restores all settings to default factory settings.
Reset button
The reset pinhole is a button that resets the device to its original default
settings. To use this button, insert a stiff wire (such as a straightened paper
clip) into the pinhole. If you release the button immediately the device will
reboot with current settings. But if you hold the button you can restore the
default settings as following table shows.
Led Colour Mode
M
OFF / Dark Power off
Yellow Device starts up
Red Device self-test failed
Green Power on / Device is functional
Blinking Green
Device is being accessed from any interface.
Whenever device is accesed from WebUI, CLI or ONVIF
interface, led blinks 2s. During software update, LED will
blink throughout the rmware image transfer duration.
Led Colour Mode
M
6 x (short) green blinks at
boot time
Time window to select Soft factory reset.
If reset button is released in this time window, soft factory
reset is selected.
2 x (short) red blinks Soft factory reset shall be applied.
Wait until device has fully started (power led green).
24 x yellow blinks at boot time
(after the 6 green blinks)
Time window to select Hard factory reset.
If reset button is released in this time window, hard
factory reset is selected.
4 x (short) red blinks Hard factory reset shall be applied.
Wait until device has fully started (power led green).
Note! If pinhole button is not
released within time window,
operation will cancelled.

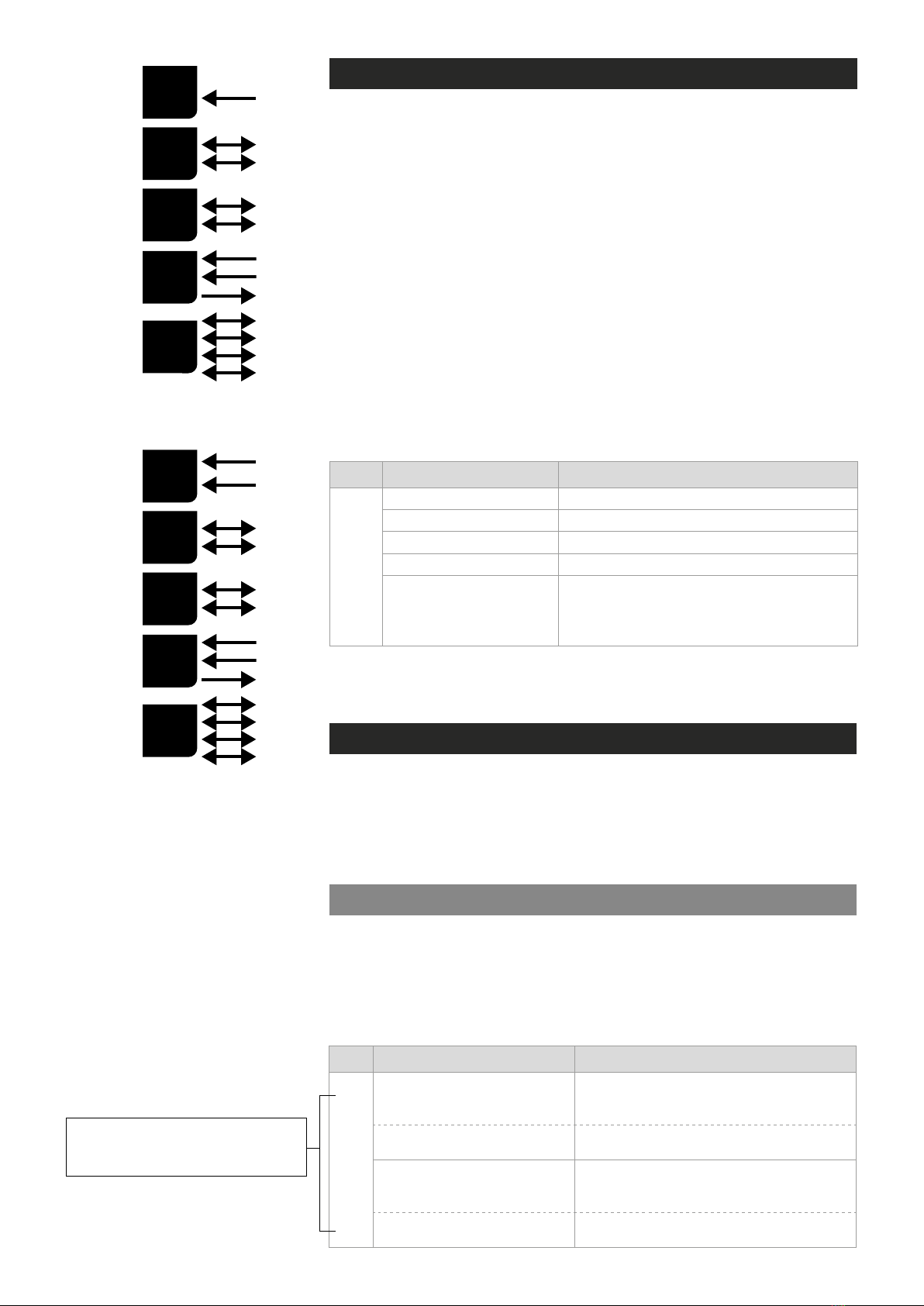

MPH241 signals.
MPH242 signals.
V
x2
CVBS
D
x2
A
x2
CC
x2
E
x4
V
x1
CVBS or
HD-SDI
D
x2
A
x2
CC
x2
E
x4

4MPH200 series video encoders WebUI user manual
Getting started Quick instructions
Install the temperature hardened stand-alone MPH200 series encoder to

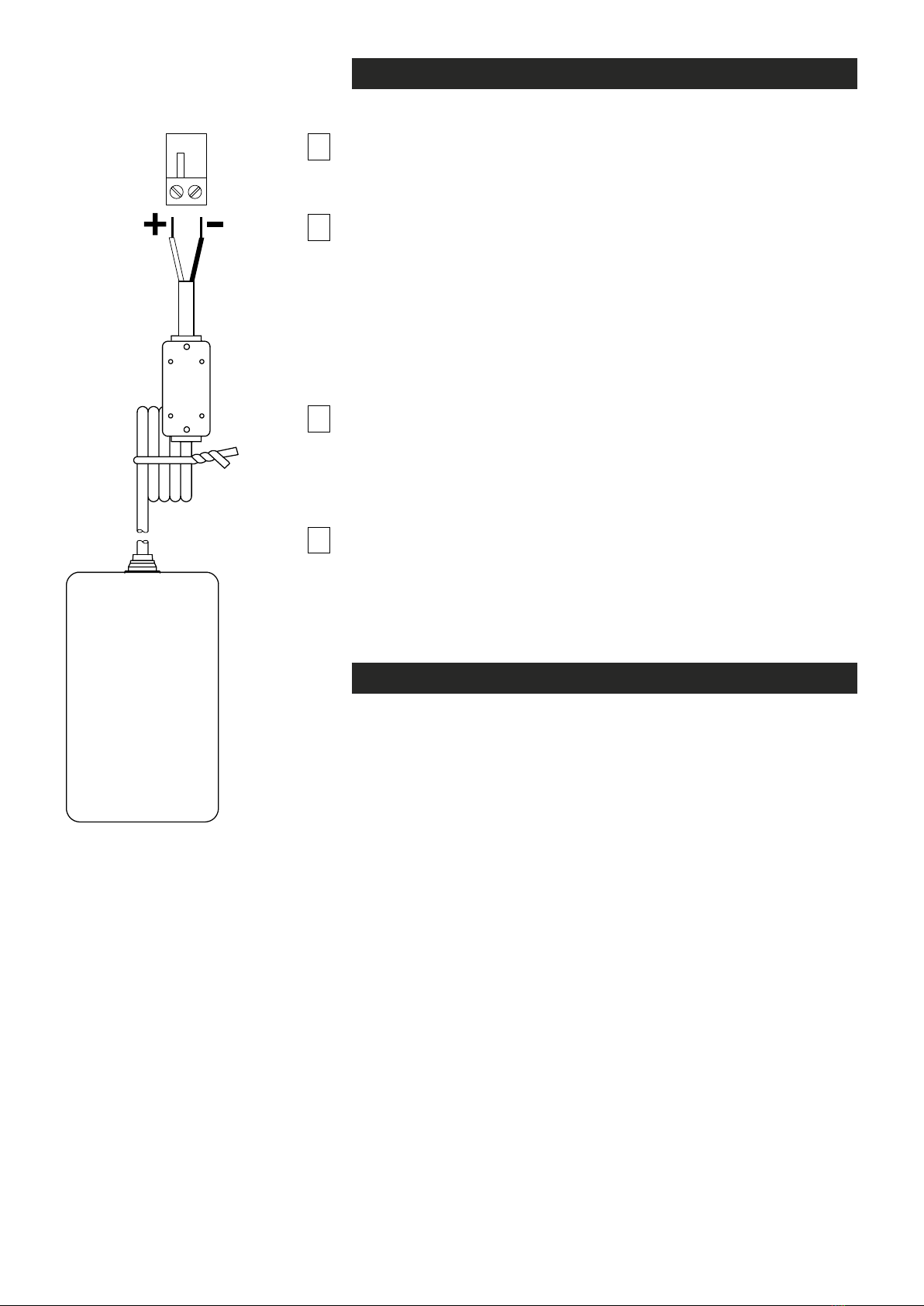

the installation location. A +12 VDC supply voltage is provided by a CPS25x
series power supply (see example picture beside), or alternately through the
LAN cable (CAT5) when using Power over Ethernet (PoE+) technology.
Connect all needed signals to their respective connectors on the
device’s front panel:
• HD-SDI / CVBS video signals to the BNC female connector(s).
• Data and contact closure signals to the screw terminal connector.
• Audio signal(s) to the screw terminal connector.
• Ethernet network to Ethernet connectors.
Switch on the power and wait until the power led “M” lits green (start-up
time approx. 100 secs). This indicates that the device hardware is
operating properly and ready for usage.
Note! If led doesn’t lit green, refer to “M- LED indicator” section to
know the status of the device.
Log on to the device using the IP address assigned by DHCP server,
or locally from a Mgmt port (CLI) and then set all necessary settings in
the device.
Note! Device uses always two IP-addresses, one for encoder and an
another for internal switch management. By default device will
automatically assign IP addresses via DHCP. If network doesn’t
contain DHCP server, then the MPH encoder shall use Zeroconf
(link-local) as DHCP fallback (see section below).
Device’s IP address
There are two ways of assigning IP address to the MPH device. The IP
address can be automatically assigned via DHCP, or you can set it
manually as a static IP address. Factory default IP settings for the
device is DHCP enabled.
By default when you have DHCP server in the network, DHCP server
assigns an IP address automatically to the MPH encoder. The DHCP server
offers an IP address from its address pool when a device is starting up.
If DHCP server is not available device uses zero conguration (link-local
address) as DHCP fallback. With Zeroconf protocol MPH chooses an IP
address randomly in the IP range from 169.254.0.1 to 169.254.255.254.
Alternatively you can manually assign the IP address, subnet mask and
gateway address to the unit.
If there is no DHCP address in the network, the unit chooses randomly
an IP address from the private IP range 169.254.0.1 - 169.254.255.254.
In this case in order to nd the chosen IP address you have two options.
You can use Teleste MPH Discovery Tool to browse all the available
ONVIF compliment devices in the network, note that your PC IP address
should be in the same IP range. Second option is, connecting to the
MPH device locally via the serial port and use the CLI (Command Line
Interface) to see device IP address.
See section Network command to see how to change IP address via CLI.
1
3
4
2
CPS25x series power
supply for MPH200 device.

5MPH200 series video encoders WebUI user manual
One video input (digital HD-SDI or analog CVBS). Two video inputs (analog CVBS).
MPH200 series models
MPH241 encoder supports both
digital HD (HD-SDI) and analog
CVBS video formats.
For HD-SDI operation the MPH241
needs to have the HD encoding
license MLH213 enabled.

6MPH200 series video encoders WebUI user manual
Electrical Ethernet connector (RJ-45).
Led Colour Mode
2
Green Link up
Blinking Green Trafc
OFF / Dark No link
1Orange 1000 Mbps
OFF / Dark 100 Mbps
Led Colour Mode
SFP
Green Link up
Blinking Green Trafc
OFF / Dark No link
RADIATION
INVISIBLE LASER
CLASS 1
Ethernet connections
The unit has a built-in 4-port managed Ethernet switch and supports both
Fast Ethernet and Gigabit Ethernet connection speeds. Ethernet
interface type is either a xed electrical (copper), or has support for a
small form-factor pluggable transceiver (SFP) module. Supported SFP
transceivers are specied by Teleste. Please see the latest list of available
SFP products.
Local ports, electrical interfaces
Device include two (2) xed electrical Ethernet connectors. The electrical
Ethernet connector type is a RJ-45 female. The interfaces are supporting
10/100/1000Base-T operation (Gigabit Ethernet).
Power over Ethernet (PoE+) option
MPH200 series encoders supports PoE standard (PoE+ 802.3at class 4).
This means that the encoders can be powered through the LAN cable
without the need of individual power supplies. PoE is available from port
number three (3).
Requirements for the use of PoE:
• A Power over Ethernet (PoE) compliant switch or hub.
• MLH251 license activation.
Note! MPH200 series device PoE port is only used to powered
device itself, it not provide output power to other devices.
Up-link ports, optical interfaces (SFP)
SFP modules for optical Ethernet operation are available with a variety of
different types (see the latest list of available SFP products), allowing users
to select the suitable module for to provide the required optical reach over
the available optical bre type. The optical connector type is LC/PC (single
or dual). Ethernet interface speed is 1000BASE-X (Gigabit Ethernet).
When installing the bre optic cable, do not exceed the minimum
bending radius when connecting cable to the system.
Optical Ethernet connection meets class 1 laser safety requirements of
IEC 60825-2: 2004 and US department of health services 21 CFR
1040.10 and 1040.11 (1990) when operated within the specied tempera-
ture, power supply and duty cycle ranges.
Ethernet interface

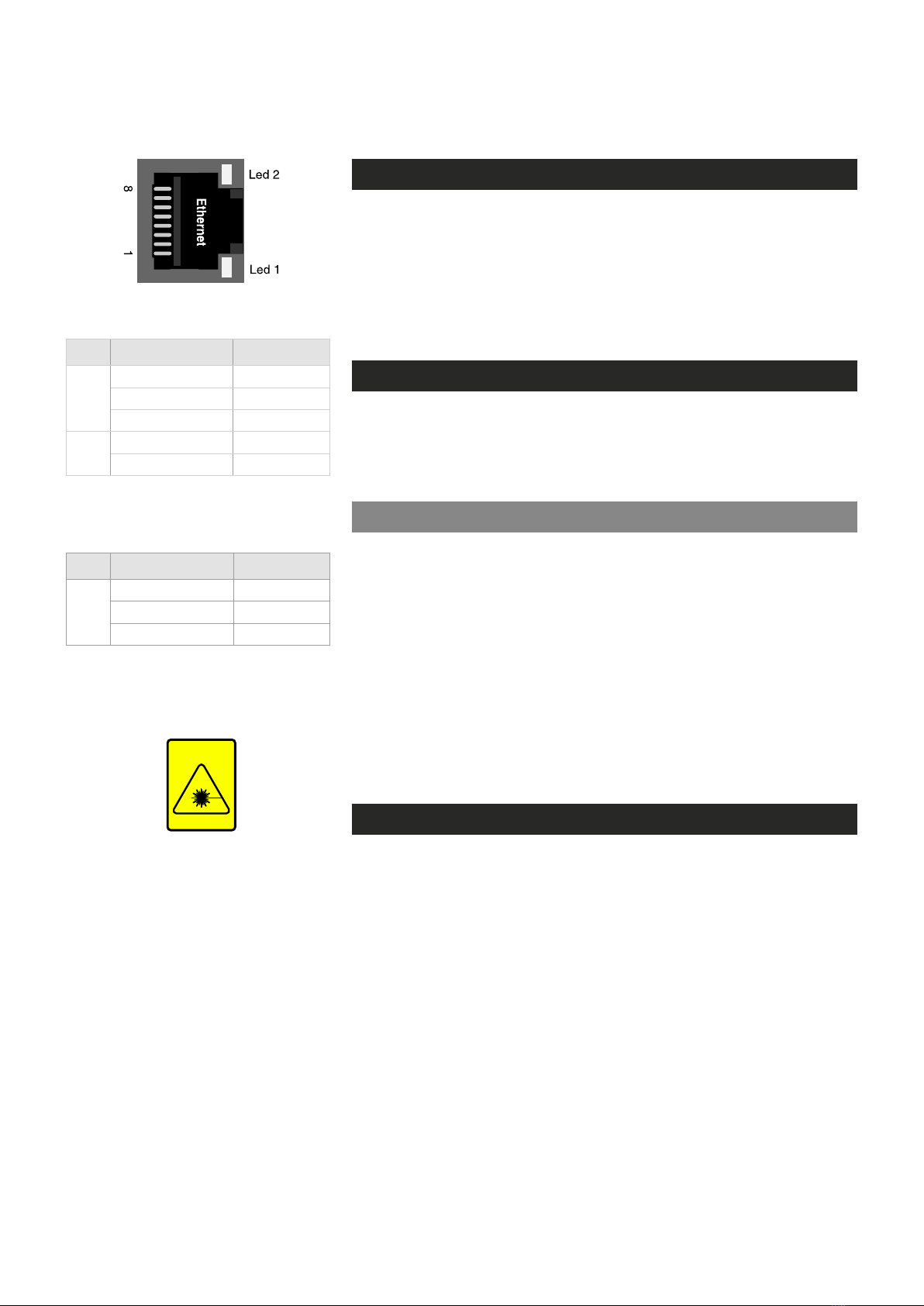

Ethernet port’s led indicator operation
(RJ-45 connector).
Ethernet port’s led indicator operation
(when SFP optical connector).

7MPH200 series video encoders WebUI user manual
How to unplug or plug-in the SFP transceiver module
If your up-link port requirements change, simply unplug the existing SFP
module, and plug-in the new module. The SFP transceiver modules
must be installed before the encoder is powered on. Installing SFP:
1. Switch off the unit supply voltage.
2. Mount the SFP transceiver to the unit (see bottom instructions).
3. Connect the bre optic cable(s).
4. Ensure that the remote end of the bre is already connected to an
active switch.
5. Switch on the unit supply voltage.
The SFP transceiver module has a bale-clasp latch that makes easier to
install or remove the module. Protect the SFP module by inserting a
clean dustplug into the module after you remove the ber cable. Be sure
to clean the optic surfaces of the ber cable before you plug the cable
into another module. When using 2 bre version SFP, select carefully
the correct optical port for TX and RX operation.
To unplug and plug-in the SFP module, follow these steps
1. Open the bale clasp on the SFP module by pressing the clasp
downward until it is in a horizontal position.
2. Use a small at-blade screwdriver or other long, narrow instrument to
push on the hinge pin to unlock the SFP cage latch.
3. Grasp the SFP module by the bale clasp and gently pull it out of the
SFP cage .
To plug-in the module:
1. Orient the transceiver with the bale clasp on the bottom, close the
bale clasp by pushing it up over the transceiver, then gently insert
the transceiver into the port until it clicks into place.
Note! Reboot the device when the SFP is changed.
Some generic notes for successful optical connections:
• Ensure that the ber patch cord is damage-free (ber condition can
be easily checked by a visible laser tester)
• Do not exceed the minimum bending radius of the bre
• Avoid sharp corners on cable shelves and in cable management
in overall
• Make sure that correct optical connectors are used
• Open connectors are always secured by dustcaps during maintenance
• Always before mating clean all connectors (wet cleaning by high
purity alcohol & drying, or dry cleaning with reel-based lint-free wipes,
ber adapters may require special ferrule end-face cleaning tools)
• Before making any visual inspections ensure that system has been
shutdown or no optical power is present
• For fault nding at least a optical power meter is required, a complex
ber cable environment may require use of an OTDR equipment.
latch
bale clasp
SFP module’s locking release points.
2 fibre version 1 fibre version
Tx Rx Tx/Rx
SFP plug-in optical transceiver module.
Optical connector is the type of LC.

8MPH200 series video encoders WebUI user manual
General
MPH encoders support web user interface (WebUI), ONVIF congura-
tion interface and command line user interface (CLI) for various congu-
ration purposes.
WebUI
MPH series video encoders can be fully congured using Web user inter-
face (WebUI). You can access the Web user interface via web browser.
ONVIF
MPH series video encoder support ONVIF (Open Network Video
Interface Forum) global interface (version 1.02, Prole S).
CLI – command line interface
MPH series video encoder include a command line interface (CLI) for
conguration purposes. The CLI is a text-based interface that allows the
user to interact with the operating system by entering commands and
optional arguments. CLI is accessible through any terminal emulator
application (e.g. Hyper Terminal or PuTTY). The command structure is
the same for all session types. A typical CLI usage is to access the
device IP address settings. By default the data channel 2 is set for CLI
usage. The data channel 2 can be set to normal RS232 data mode with
WebUI when needed.
Note! Data 2 channel can be set either general RS232 data
transport mode or CLI mode (not simultaneously). The default
factory setting is CLI mode (Hard and soft factory reset restores
the data channel 2 to the CLI mode).
Local CLI connection
The local CLI session can be establish via data channel 2 by using a
serial data connection (RS232) cable (type Teleste CIC506).
Note! Data 2 port must be set to CLI mode .
Remote CLI connection
Over the IP network you can make Telnet or SSH connection to open the
command line interface remotely. SSH protocol secures your data session.
Note! Remote CLI is always available through network, even
when data 2 is congured for non-CLI usage.
PC/
PSION
D9
female
Screw
terminal
MPH
encoder
Receive
data 2 6 Mgmt output
Transmit
data 3 7 Mgmt input
System
ground 5 8 Ground
Local management connection (CLI)
and management cable (CIC506)
pinout (D9 female/screw terminal).
1 2 34 5 6 7 8
9 10 11 12 13 14 15 16
DATA 2 TX
DATA 2 RX DATA 2 GND
Management interface

9MPH200 series video encoders WebUI user manual
General
The MPH series video encoders can be fully congured using Web
user interface (WebUI). You can access the Web user interface via
your web browser, eg. Mozilla Firefox (recommended), Internet
Explorer, Apple Safari and Google Chrome. The Secure HTTP
(HTTPS, SSL 3.0 or TLS 1.0) feature is supported in MPH encoders.
System requirements for WebUI
• Network connection
• Ethernet cable
• Browser installed (Mozilla Firefox recommended)
Operation
Web user interface consists of several menus and pages. Only one
page can be loaded at the same time. You can open a page by clicking
the related menu (see picture below).
The Web user interface has the following menu structure:
Web user interface (WebUI)
The information on conguration pages is shown in data elds or boxes.
The settings can be changed in the data elds and boxes having white
background. The unavailable or read-only options are grayed out. Place
the cursor in the desired data eld or box and enter a new setting.
Settings are entered by ticking a checkbox or clicking on a radio button,
by selecting from a pull-down list or by scrolling digits with the help of
spin buttons.
Press keyboard’s F5 button to refresh the WebUI page view.
When changing the settings, always click button to
conrm settings.
By clicking this button on a page
you can see more settings.

10 MPH200 series video encoders WebUI user manual
Starting WebUI session
To create a WebUI session, rst enter the device IP address into the
web browser’s address bar (see section Device’s IP address). The
following LOGIN window appears on the screen. Enter the required
username and password (see bottom) in the elds and then click
to continue --> Web user interface’s MAIN
PAGE appears on the screen.
The Web user interface session to MPH series video encoder is
now activated.
Login window with the default username and password (for administrator).
User levels and permissions
The user management supports three different user levels of which each
has specic priviledges as shown below. The individual usernames, pass-
words and approved user level can be changed via the WebUI and CLI.
admin
admin
Page Operation User Operator Administrator
Main
General Access xx
Read and write
access to all
pages and
all settings
SDP download xx
Log download xx
Start/Stop xx
RTSP link copy xx
Video & Audio
Encoder
General Access -x
Save -x
Cancel -x
Maintenance
General Access -x
Backup -x
Restore -x
Reboot device -x
Soft factory reset -x
Hard factory reset --
Software upload --
Software download --
License install --
User
Management
General Access xx
Save xx
Cancel xx
Change password xx
Change user group --
View/Edit other users --
Add User --
Ethernet switch Conguration --

11 MPH200 series video encoders WebUI user manual
MAIN PAGE
The MAIN PAGE is opened after the WebUI session has been estab-
lished to the MPH200 series video encoder.
MPH200 encoder contains maximum six (6) encoding proles, which
can be individually congured. On this page you can see each prole’s
current status and start/stop their video streaming.
PROPERTIES
Device type (conguration map code)
Device serial number
Device hardware version
Device rmware version
Device uptime
Device current time
Device test result
Current ambient temperature
STATUS
Here you can see each prole’s current status.
Stream type (Video)
Encoding format (H.264/MJPEG/MPEG-4,MPEG-2)
Video transmission mode (multicast/unicast)
Multicast: Multicast IP address / multicast group
Unicast: IP address of receiving decoder
UDP port number
Camera status (Ok/No signal)
Video stream status (On/Off)
Link to SDP le (Session Description Protocol). The SDP le contains
stream parameters that are meant for 3rd party applications (e.g. SW
decoders) to open/view the stream. SDP-link requires that video stream-
ing is active.
Debug log le
Debug log le
Type:
Serial Number:
HW Version:
SW Version:
Uptime:
Current time:
Self Test Result:
Current Temperature:
Type:
Encoder:
Multicast /Unicast:
Target Address:
Target Port:
Camera Status:
Stream Status:
SDP:
Download short term logs:
Download long term logs:
Hint! You can open sdp le with the VLC player to
view the stream, but notice the following requirements:
Stream port number should be even number. If you
are using multicast stream, ensure that you have set
valid multicast IP address. Make sure that windows
rewall is congured to allow this connection.
Shows installed and available
licenses for device.

12 MPH200 series video encoders WebUI user manual
Event management system
MPH event management system
MPH encoders internally controls events as specied by ONVIF. Events
are generated from Digital IO inputs, motion detection, tampering
detection and video signal loss and each of those generate event with
different Topic. In addition to event topics, events contain data describ-
ing the event such as the video interface related, amount of motion and
threshold, etc.
The event data is available in the “Message Content lter” box, which is
XPath format for matching XML content. Triggering occurs when dened
“Topic expression” and “message content lter” matches the internal event.
MPH encoder can trigger actions for video, audio (only MPH200 series)
and contact closers (Digital I/O) output. These events are also avail-
able for video management system to trigger congurable alarms. You
can add multiple event at the same time and each one triggers action.
Available events for triggering. First
choose the required event from the list
and then click Add button to select the
event -> The event data appears on
the Message content lter box.
Custom = Modied event for triggering.
The list of available events
for triggering.

13 MPH200 series video encoders WebUI user manual
Event management for video
For video it can trigger actions such as changing video settings, frame
rate, bit rate and video quality for each video prole based on events.
An example when the video bit rate
and frame rate change when an
event triggered.
Event subscription (for triggering) Event subscription (for fallback from
triggered state)
Signal lost for video 1 and 2 Signal restored for video 1 and 2
Camera tempered for video source 1 and 2 Temper removed for video source 1 and 2
Motion detection above the threshold for
video 1 and 2
Motion Detection below the threshold for
video 1 and 2
Event subscription (for triggering) Event subscription (for fallback from
triggered state)
I/O Inputs activation I/O Inputs deactivation
Available events for video.
Event management for contact closure (digital I/O)
For contact closure it can trigger actions such as changing output state
in case of an event.
Available events for contact closure.

14 MPH200 series video encoders WebUI user manual
Step-by-step owchart how to congure
video channel in the MPH encoder.
Conguring video channels
Video connection
MPH encoder is available in one and two video input models. One
channel model has support for CVBS or HD-SDI video signal, two
channel model has support only for CVBS video signal. One channel
(CVBS input) model has equipped with additional loop-though output
connector. The video connector type is a BNC female. The video input
impedance is 75 Ω. The nominal input level is 1 Vpp. Video inputs are
equipped with dual colour VIDEO indicator led’s on the front panel.
Video port settings can be congured from web user interface (WebUI).
Led Colour Video mode
Video 1
Green Video connector is used as video input and is locked
to valid video signal
(Short)
Blinking
Green
The video input is not used in any active media
prole, but is locked to video
Orange Video connector is used as video input, but no valid
video signal is detected
Off / Dark Power is OFF or device is restarting.
Led Colour Video mode
Video 2
Green Video connector is used as video input and is locked
to valid video signal
(Short)
Blinking
Green
The video input is not used in any active media
prole, but is locked to video
Orange Video connector is used as video input, but no valid
video signal is detected
Off / Dark Power is OFF or device is restarting, or congured
for loop-through output (1-ch version only)
Note! MPH encoder has automatic
NTSC/PAL video format detection.
When changing the video format, the
device must reboot.
VIDEO INTERFACES
(Physical video input)
VIDEO SOURCE CONFIGURATIONS
(Video overlay settings)
VIDEO ENCODER CONFIGURATIONS
(6 encoding combinations)
MEDIA PROFILE CONFIGURATIONS
(up to 12 media profiles)
MAIN PAGE
(Start / Stop video streaming)
1
3
4
5
2
Video channel conguration
MPH is an ONVIF compliant encoder and video channel conguration is
designed according to ONVIF standard.
Note! Before modifying the conguration of a video prole, make
sure that video stream is stopped on the MAIN page (changing
only encoding parameters don’t require stopping of the stream).

15 MPH200 series video encoders WebUI user manual
Video streaming methods
Video input is the physical video connector (BCN female) available for
video signal. Naturally each video input can be connected to a camera or
any other standard video source. The default video input mode is set to
PAL/NTSC format (CVBS). MPH241 model has also support fot HD-SDI.
High-denition serial digital interface (HD-SDI)
MPH241 encoder supports HD-SDI digital video interface. HD-SDI inter-
face is dened by SMPTE 292M standard and allows bitrates up to 1.485
Gbit/s. Progressive input signals are recommended to provide the best
picture quality. The HD-SDI support can be enabled with MLH213 license.
When changing the video format from CVBS to HD-SDI, the device must
reboot. The loop-through port is not available in HD-SDI mode.

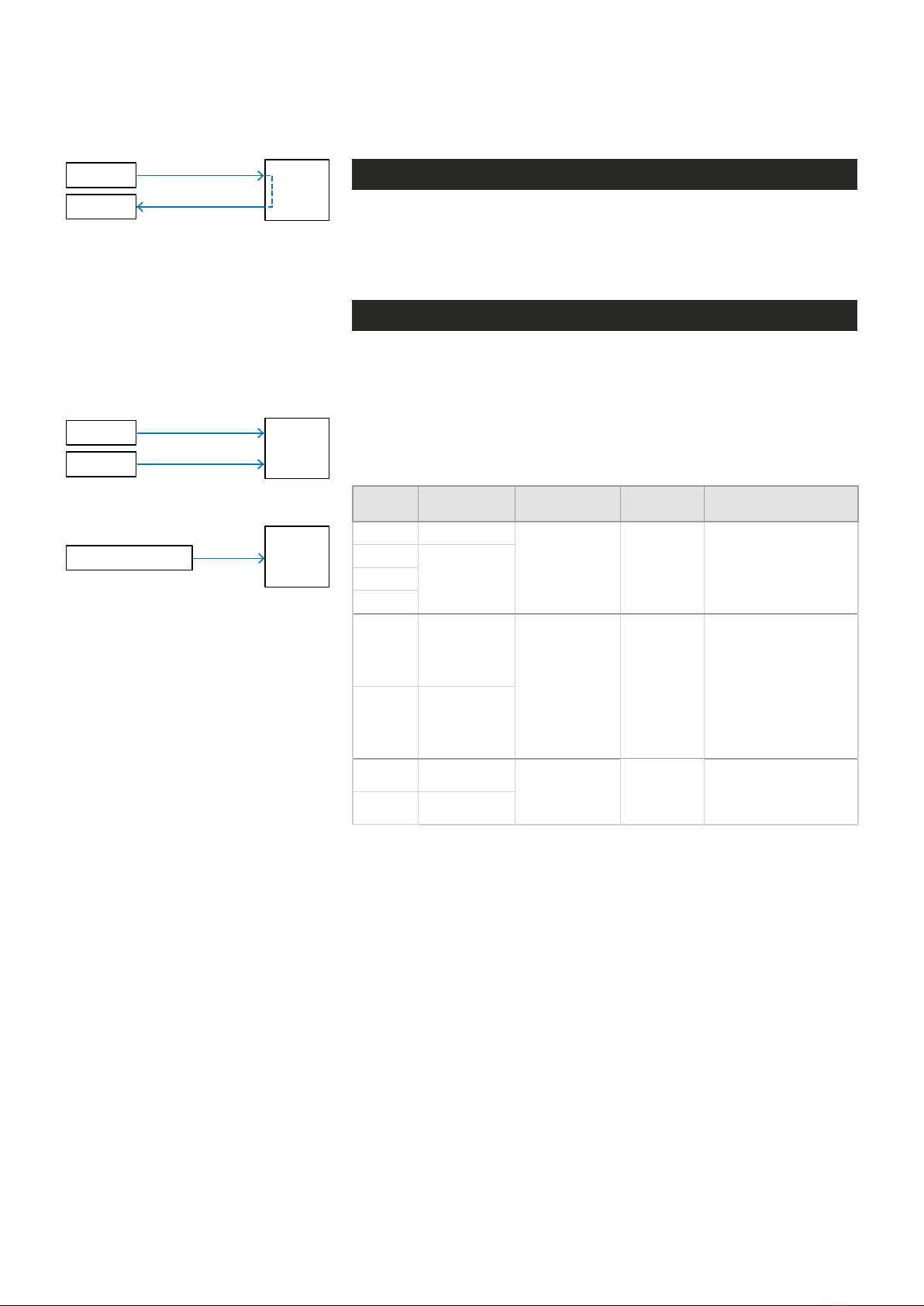

MPH
Camera
Monitor
loop-through
CVBS
MPH
HD video camera
HD-SDI
MPH
Camera 1
Camera 2
CVBS
CVBS
MPH241 contains one video input
(with loop-through).
Note! One channel MPH encoder’s
second video connector is loop-
through port for an analog monitor.
It is designed to transmit the same
analog video signal out that is
received from video input.
MPH241 encoder supports HD-SDI digi-
tal video format up to 1080p resolution
(when license MLH213 enabled) .
Supported HD signal formats and encoding formats.
MPH242 contains two video inputs.
Input
Signal
Output frame/
eld rates Resolutions Coding Notes
720p25 1...25fps
1280x720,
QCIF, CIF, 4CIF Progressive
Input signal is progres-
sive, thus deinterlace is
not needed neither at
encoder or decoder side
720p30
1...30fps720p50
720p60
1080i50 1...25fps
1920x1080),
QCIF, CIF, 4CIF Field coded
Input signal 1080i is
interlaced format
containing 60 elds/s.
Transmitted video
stream is interlaced
(eld-coded), thus
deinterlacing at decoder
side is required when
display is progressive
1080i60 1...30fps
1080p25 1...25fps
1920x1080),
QCIF, CIF, 4CIF Progressive
Input signal is progres-
sive, thus deinterlace is
not needed neither at
encoder or decoder side
1080p30 1...30fps

16 MPH200 series video encoders WebUI user manual
Media prole (video)
MPH series encoders has a total of six (6) media proles. Each media
prole can be set separately for individual resolution, frame rate, GOP
structure and bitrate, within the processing power of the device.
Click “Media Proles” under the Media Conguration menu. Media
Prole Congurations page appears on the screen. On this page you
can associate virtual video sources with physical video inputs and
encoding proles.
By default this page contains six different media proles.
Notes! It is not possible to change encoding format /resolution
and video input settings on this page. Before modifying the proles
the video stream must be stopped on the MAIN page.
Description how the video encoder,
a video source and video input is
assembled to the media prole.
Name:
Video Source Conguration
Assigned conguration:
Video Encoder Conguration
Assigned conguration:
PTZ Conguration
Assigned conguration:
Metadata Conguration
Assigned conguration:
Video Analytics Conguration
Assigned conguration:
MEDIA PROFILE CONFIGURATIONS page.
User dened alias name for media prole (max 63 chars).
_________________________________________________________
Select assigned video source conguration.
_________________________________________________________
Select assigned video encoder conguration.
_________________________________________________________
Select assigned PTZ conguration.
_________________________________________________________
Select assigned metadata conguration.
_________________________________________________________
Select assigned video analytics conguration.
Click this to create
copy from prole.
Click to see
more settings.
VIDEO INTERFACE
Streams output (RTP)
VIDEO SOURCE CONFIGURATION
• Physical video interface selection
• Text overlay
• Destination IP address
- primary stream
• Additional IP address(es)
- stream multiplication
• Dynamic streams (RTSP)
METADATA
•Events
•Analytics (Motion detection,
tampering detection
• Destination IP address
- primary stream
• Additional IP address(es)
- stream multiplication
• Dynamic streams (RTSP)
ENCODER CONFIGURATION
MEDIA PROFILE
• Brightness, contrast & saturation
• Privacy zone masking

17 MPH200 series video encoders WebUI user manual
Video interfaces

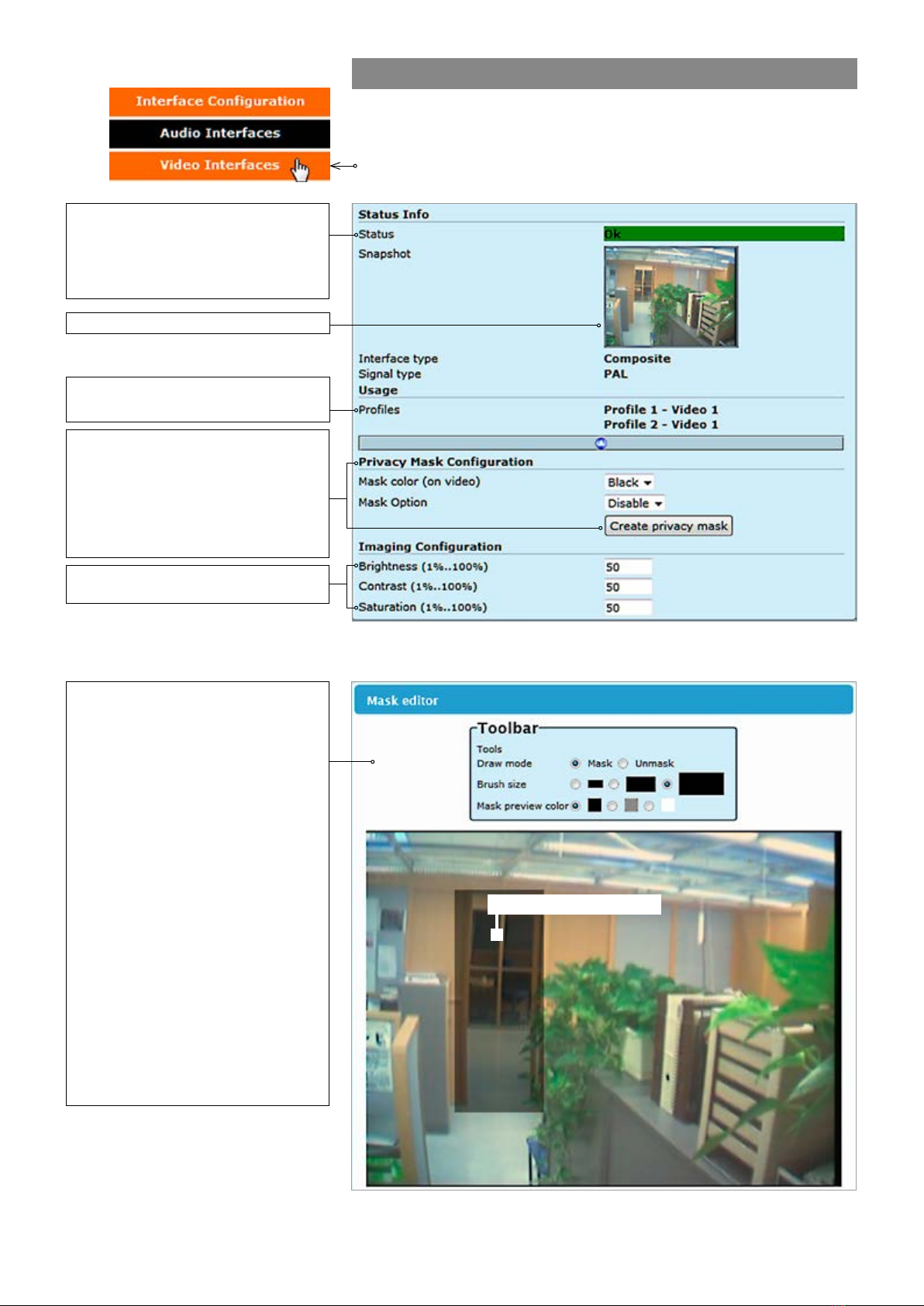

Click “Video Interfaces” under the Interface Conguration menu. Video
Interfaces page appears on the screen. In this page you can see the
number of physical video inputs available and adjust the brightness,
contrast and saturation values for them.
When monitoring an area for security,
there may be certain parts within the
camera’s eld of view that need to be
kept private. Masking is a feature that
enables these areas to be concealed
from view.
Video status. The colour bar reect
the status of the video. Green colour
bar means that there is video signal.
Yellow colour bar with text tells that
there is no video.
Screenshot from the current video.
Indicates what media prole is using
this video interface.
User can congure the encoder to
automatically hide certain areas with
a mask, which can be adjusted in
terms of its colour .
Mask editor shows a screenshot from
camera view and overlays a
translucent mask on the image.
Draw mode: Masked (highlighted)
areas are private areas that are
removed (concealed) from
camera’s view.
Brush size: Select brush size
for masking.
Mask color: Depending on the
brightness of the image snapshot,
appropriate mask preview color can
be chosen. This color affects the
preview on mask editor only and
doesn’t reect on the streaming video.
Brightness, Contrast and Saturation
values for the video channel.
MASK EDITOR page contains settings for hiding certain areas from the
encoded picture.
VIDEO INTERFACES page.
Masked/Highlighted area

18 MPH200 series video encoders WebUI user manual

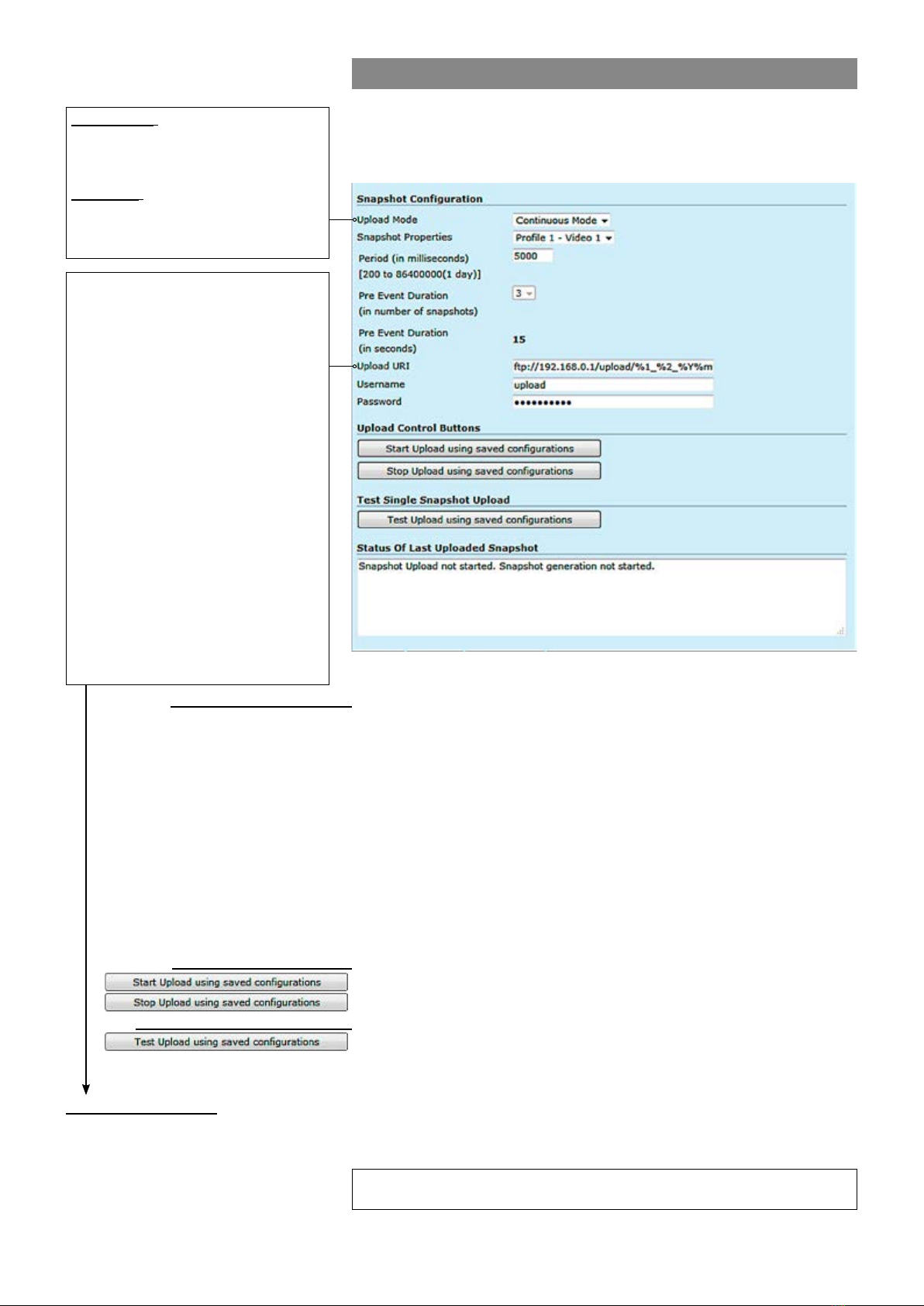

JPEG snapshot conguration
Additionally there is a JPEG image capture feature that allows taking
JPEG snapshots from the video and storing them into a ftp server. It is
also possible view JPEG captures with http.
Continuous:Device generates a
snapsthot at specied interval (period)
and sends the images to congured
FTP server.
Triggered:Snapshots are generated
when internal event triggers it. Trigger-
ing event can be motion detection,
tampering or digital IO event.
%d: The day of the month as a decimal
number (range 01...31).
%H: The hour as a decimal number using a
24-hour clock (range 00...23).
%I: The hour as a decimal number using a
12-hour clock (range 01...12).
%m:The month as a decimal number
(range 01...12).
%M: The minute as a decimal number
(range 00...59).
%S: The second as a decimal number
(range 00...60).
%4: The milliseconds as a decimal number
(range 0000...9999).
%p: Either “AM” or “PM” according to the
given time value, or the corresponding
strings for the current locale. Noon is
treated as “PM” and midnight as “AM”.
%y: The year as a decimal number without
a century (range 00...99).
%Y: The year as a decimal number
including the century.
%1: Device hostname (manually conf. or
received from DHCP-server).
_________________________________________________________
Snapshot generation can operate in two separate modes: Continous
and triggered mode.
Keeps the event state unchanged for the dened period for instance if an
Specied interval when device generates a snapsthot.
After event has occured, device sends rst congured number of images
before the event and then continues sending images until dened timeout
[ms] elapses.
Denes the remote FTP server address. URI can contain arbitrary
directory path and device shall create the directory if it does not yet exist.
Set username for server.
Set password for server.
Note! Hard Factory reset restores admin password to defaults.
_________________________________________________________
Starts uploading using saved congurations.
Stops uploading using saved congurations.
_________________________________________________________
Tests upload using saved congurations.
_________________________________________________________
Shows status of last uploaded snapshots.
Snapshot Conguration:
Upload Mode:
Snapshot Properties:
Period (in milliseconds):
Pre Event Duration:
Upload URI:
Username:
Password:
Upload Control Buttons:
:
Test single Snapshot Upload:
:
Status of last Uploaded Snapshot:
Snapshot URI example:
ftp://192.168.0.247/upload/%1_%Y%m%d/camera1_%H%M%S_%4.jpg expands to:
ftp://192.168.0.247/upload/MPH102-RD00101126_20140424/camera1_183059”)_830.jpg
Trigger Conguration
See section “Event management system” from page 31 for more details.
