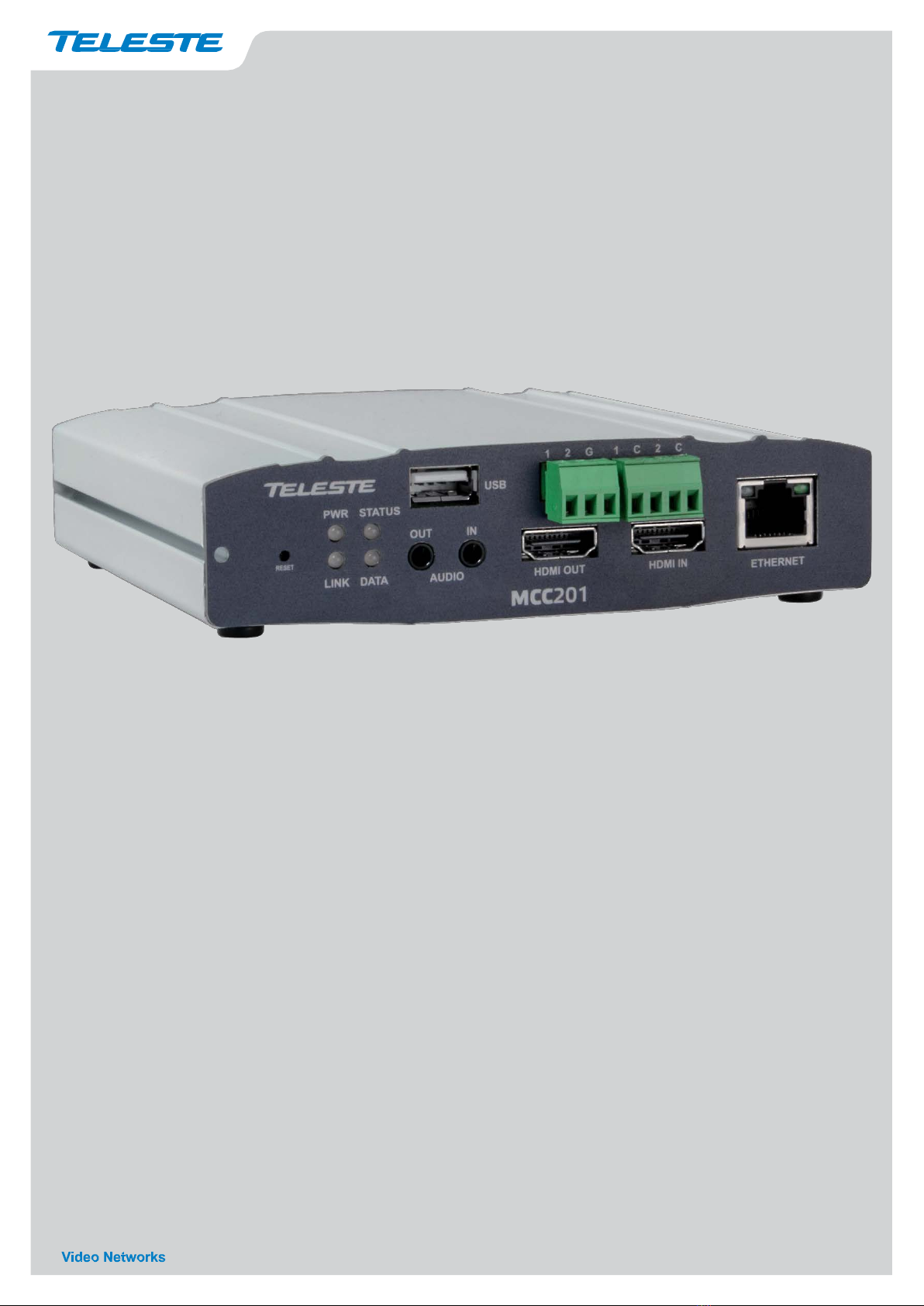

Teleste MCC201 User manual

User manual
MCC201 / MCC201H
H.264 Encoder/decoder
This manual provides information on installation setup and
operation
of the video server, as well as
troubleshooting tips.
MCC201/MCC201H User manual, 59300507, rev002

MCC201/MCC201H User manual
•I
Table of Content
1. Introduction........................................................................................................................... 1
About this manual ............................................................................................................... 1
Features............................................................................................................................. 1
Product and Accessories...................................................................................................... 2

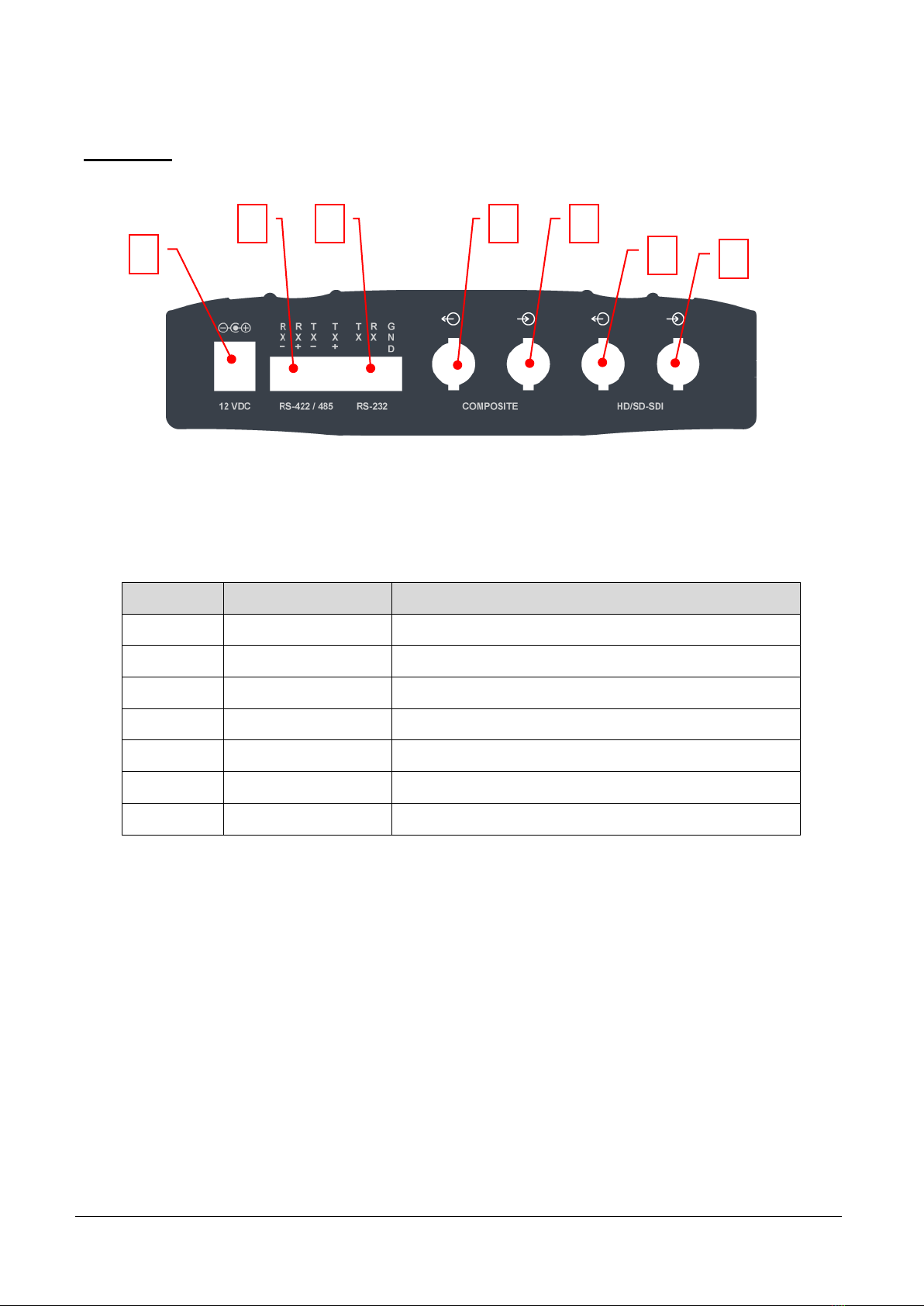

Part Names and Functions.................................................................................................... 3
System Connections ............................................................................................................ 5
2. Installation ............................................................................................................................ 8
3. System Operation................................................................................................................. 11
Remote Video Monitoring ................................................................................................... 11

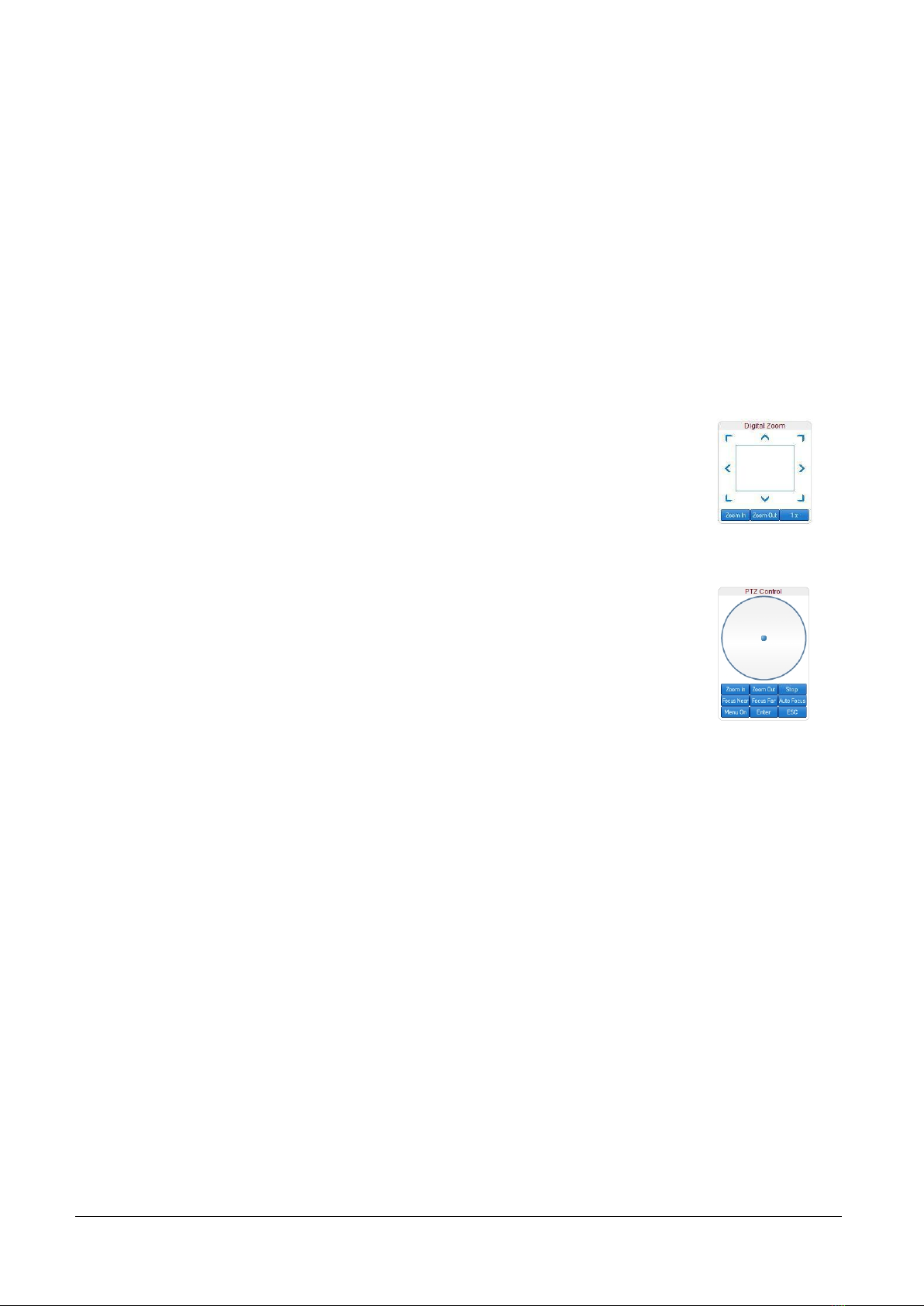

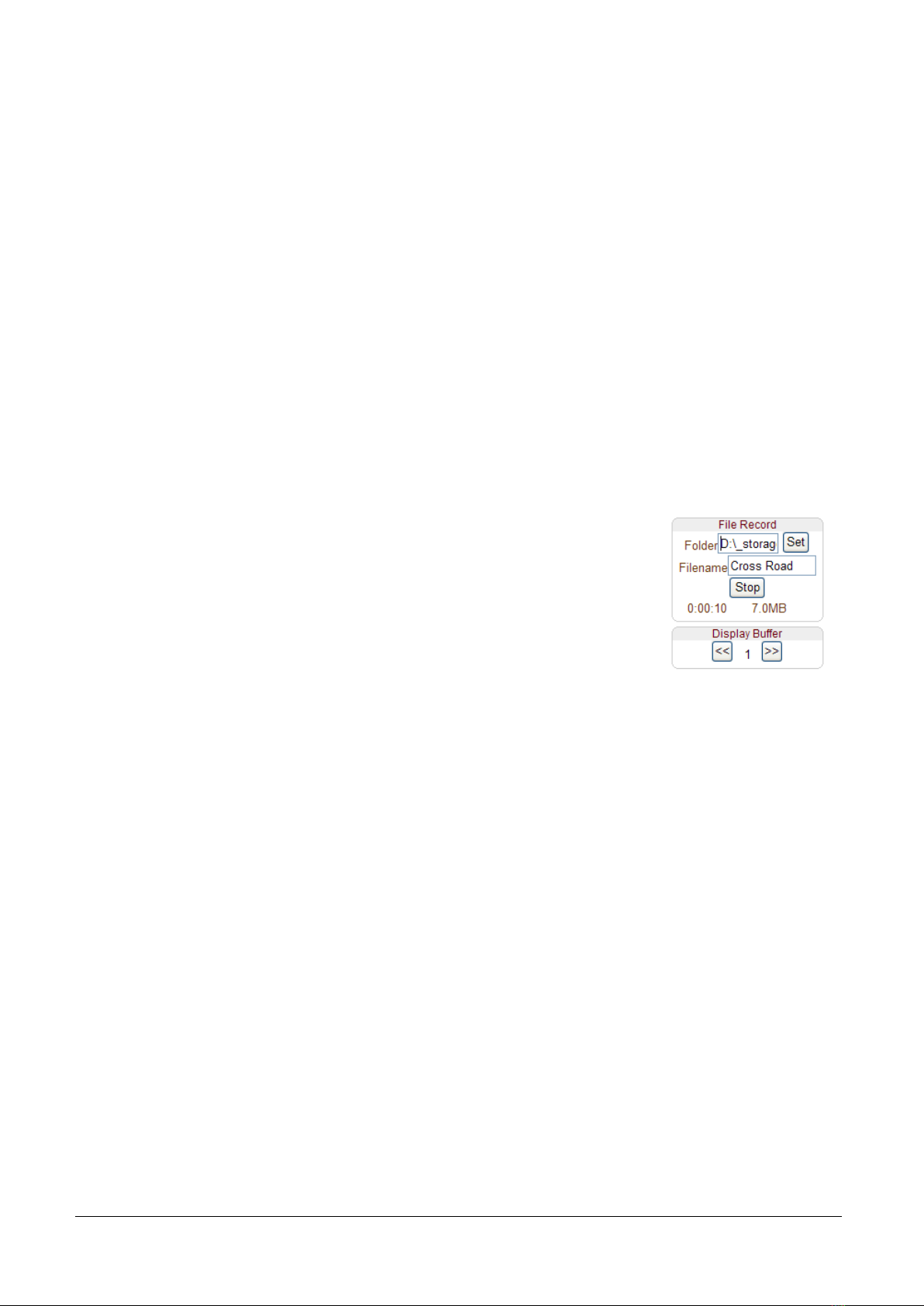

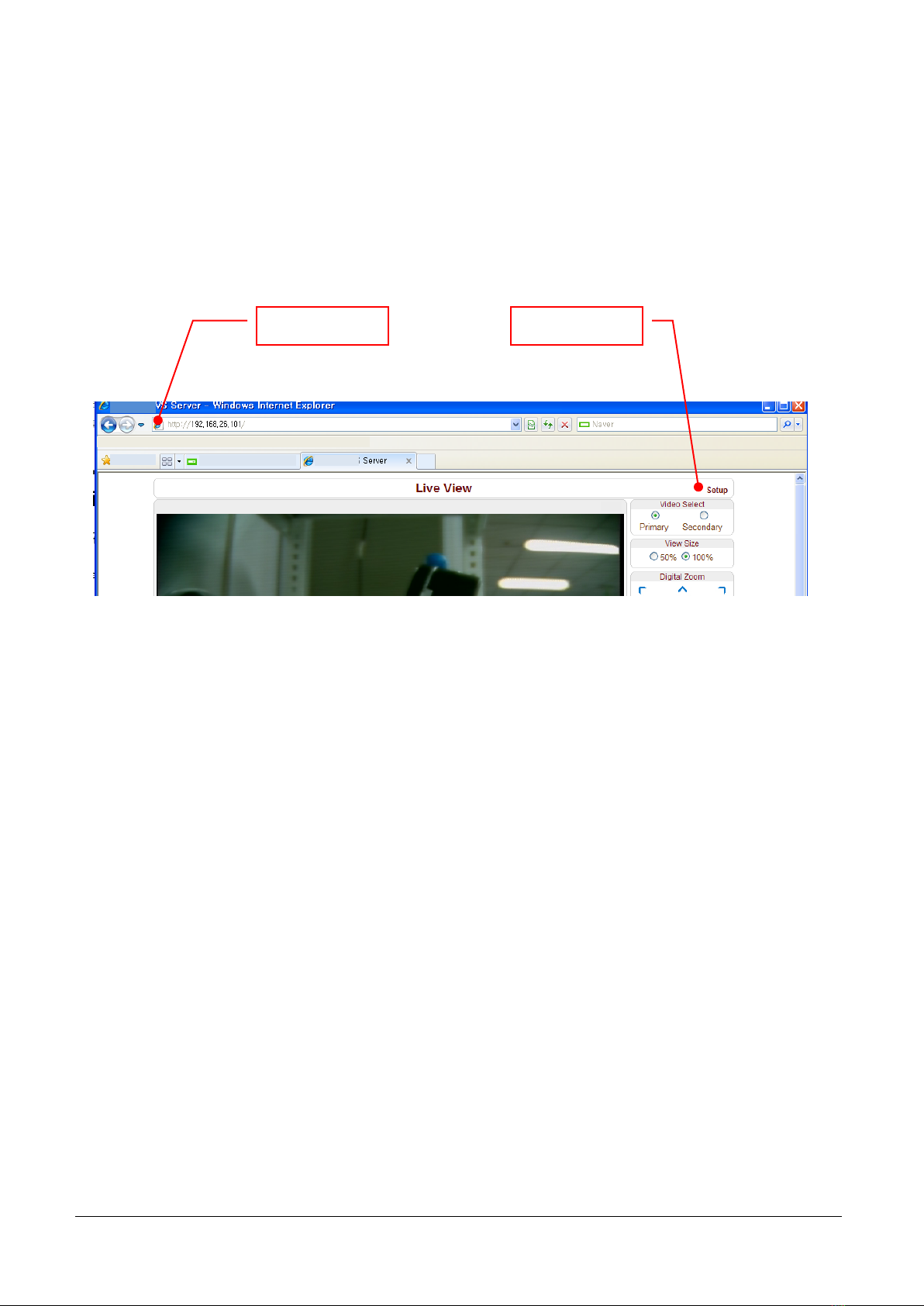

Live View controls ............................................................................................................. 12
Initialization of IP address................................................................................................... 15
4. Remote Configuration ........................................................................................................... 16
System Configuration......................................................................................................... 17
Audio Configuration ........................................................................................................... 26
Network Configuration........................................................................................................ 28
Serial Configuration ........................................................................................................... 34
Event Configuration ........................................................................................................... 37
PTZ Configuration ............................................................................................................. 42
Record Configuration ......................................................................................................... 43
5. Decoder Configuration .......................................................................................................... 51
System Configuration......................................................................................................... 51
Network Configuration........................................................................................................ 53
Event Configuration ........................................................................................................... 55
Display Configuration......................................................................................................... 56
6. Appendix ............................................................................................................................ 57
Legal Declarations ................................................................................................................... 60

MCC201/MCC201H User manual
1. Introduction •1
1. Introduction
About this manual
This User Manual provides information on installation setup and operation of the MCC201 and MCC201H,
as well as troubleshooting tips.
Features
MCC201 is a video and audio transmission system that provides broadcast quality audio and video, based on
IP networking. MCC201 can operate either as an Encoder or as a Decoder, the desired mode is user-
selectable. MCC201H is a model variant which has all other functions available except HD-SDI operation.
Video
Highly efficient compression algorithm, H.264 (Baseline and High profiles) & MJPEG support
Wide range of transmission rates: Primary stream 32 kbps...10 Mbps, secondary stream max. 1 Mbps
Various transmission modes: CBR, VBR
Motion detection
Support for analogue baseband video, HDMI video and HD-SDI video
(Note! HD-SDI video not available on MCC201H)
Audio
Multi-Transmission Mode : Unidirectional Mode (IP-server to Client PC or Decoder / Client PC or
Decoder to IP-server), Bi-directional Mode
Network
Fixed IP & Dynamic IP (DHCP) support
1:1, 1:N support
Multicasting
Automatic transmit rate control according to network conditions
OnVIF, PSIA compliant
Serial Data
RS-232 support
RS-422 (4-w) or RS-485 (2-w) support
Data pass-through mode : Serial data communication between Encoder - Decoder
