Televes H30 CRYSTAL User manual

EN
www.televes.com
DVB Meter / Analyser
with digital processing
Refs. 593601, 593602, 593603, 593604, 593661
593621, 593622, 593624
Instruction Manual
EN

ENGLISH
EN
Index
Safety requirements 4
Symbols and safety labels 4
Overview 5
Introducing the H30Crystal. 5
Key Features 5
General Specications 6
References and options 6
Technical Specications 7
Description of equipment
components 8
Connectors and controls 8
Keyboard 8
Power supply 9
About battery 9
Before starting 11
Product operation 11
1. Optical Attenuation 11
2. Channel Info 12
3. Spectrum 13
4. MPEG 14
5. System Scan 15
6. Dish Alignment 16
7. Satellite Test 17
8.-Learning Plan 17
9. Constellation 18
10. Echoes 19
11. Video Camera (opt. 593236) 20
12. Wi-Fi Scan (opt. 593250) 20
13. IPTV (opt. 593251) 21
14. Setup 24
Firmware Update 25
Web Application 26
1. Measurements 26
2. Plans 27
3. SCR 28
4. Quality Proles 28
5. Multiscreen 29
6. Clone 29
7. Update 29
Mobile Devices App 30
1.- Connection between the
App and the H30Crystal 30
2. Features 31
2.1.- Loggers 31
2.2.-Multiscreen 31
2.3.-Files 32
2.3.1.- Channel Plans 32
2.3.2.- SCR 34
2.3.3.- Quality Prole 34
2.3.4.- IPTV 34
2.4.-Settings 34
2.4.1.- Info 35
2.4.2.- Manual 35
2.4.3.- Register 35
2.4.4.- Clone 36
Error Messages 37

H30 CRYSTAL
4
Safety requirements
Product inspection
- Inspect the equipment for shipping damage.
Should any damage be discovered, immediately
le a claim with the carrier.
Read and Follow All Instructions
- All the safety and operating instructions should
be read prior to and followed while operating
this product.
Do not obstruct the ventilation slots
Cleaning
- Follow the cleaning instructions contained in
the Maintenance section of this manual.
Attachments
- Do not use attachments that are not approved
by the product manufacturer.
Water and Moisture
- This product is splash water resistant but is not
submersible.
- Do not place objects lled with liquids on or
near the meter, such as glasses.
Power Sources
- This product should be operated only from the
type of power source specied (12VDC - 2A).
- Ensure that the voltage applied to the power
connector does not exceed 15V. Higher voltages
could damage the equipment
- Maximum consumed current: 2A
Grounding or Polarization
- Do not bypass or defeat electrical plug
polarization or grounding. Doing so will violate
the warranty and may pose a risk of re or
electrocution.
Wire Protection
- Ensure all connected wiring is routed correctly
to avoid damage including pinching, excessive
bends, or compression.
Electrical Supply, Grounding, and Surge
Protection
- Ensure that all local or national electrical codes
are followed.
Power Lines
- Always use caution and avoid operating this
or any connected equipment near uninsulated
power lines or any other hazards.
Servicing
- There are no user serviceable parts except the
battery. Do not attempt to service this product or
remove covers other than the battery cover. Refer
all servicing to qualied service personnel. Follow
the instructions in this manual when replacing the
battery.
Heat
- The product should be situated away from heat
sources such as radiators, heat registers, stoves, or
other products that produce heat.
- Do not place naked ame sources on the meter,
such as lighted candles.
Maximum current consumed by the meter: 2A
Battery
- Battery must be replaced by qualied
personnel, following the steps mentioned in the
corresponding section.
- If the battery is replaced, the new one must
have the same features, because there is risk of
explotion. Furthermore, the new battery must be
approved by the manufacturer. Otherwise, the
company is not responsible for damages caused
to the meter.
- Battery features:
Li-Ion
2600mAh 7.26V 19 Wh
Symbols and safety labels
Recycle or dispose of used electronic
devices properly.
Remove the battery from the equipment
following the instructions given in this
manual and dispose it properly
Replace the batteries only with the same
type.

EN
5
Overview
Introducing the H30Crystal.
New from Televes, a go-to meter designed with the
needs of a DVB installer in mind.
The H30Crystal is a light weight, rugged unit,
packed with all the features needed to install and
troubleshoot a television system using DVB-S/S2,
DVB-T/T2, DVB-C (Annex A/C) and ISDB-T/Tb digital
modulation as well as analog signals.
Available for the rst time in such a portable and
aordable package, its real time digital processing
engine gives the installers a great precision
measurements needed in today’s fullment
environment.
Key Features
User friendly, handheld DVB meter.
Complete portfolio of Analog/Digital
measurements with easy-to-read pass/fail
indicators.
Quick and easy to use interface with features
such as Channel measurements, System Scans,
Constellation Diagram, Spectrum Analyzer,
Echoes, Datalogger, and more.
Rugged, light weight, fully automatic, fast, and
accurate.
Easy updates.
1 GHz spectrum range with selectable span.
PASS/FAIL Indicators: Icons indicate if a
measurement is good, bad, or in the warning
zone for quick and easy status checks. Reduce
installer entry errors and improve decision
making.
LNB powering, and SCR and DiSEqC parameters
setup
MPEG image visualization

H30 CRYSTAL
6
General Specifications
Display 2.8”TFT 400 x 240 full colour
Weight 510g (12.12lb)
Dimensions 175 x 100 x 52 mm / 6.9 x 3.9 x 2 in (H x W x D)
Power Source Input: 100-240V~ 50-60Hz
Output: 12VDC, 2A
Battery Li-Ion smart battery (7.2VDC, 2300mAh)
Operating Time Up to 4 hours
Operating Temperature 23ºF to 104ºF (-5ºC to 45ºC)
Storage Temperature -4ºF to 158ºF (-20ºC to 70ºC)
Humidity 5% to 95% non-condensing
Ruggedness Survives 1 m (3 ft) drop to concrete on all sides
Communication
Interfaces USB 2.0 to download Datalogs and software updates
Storage 400 MB (internal) for measurements
Power up time < 10 seconds
References and options
Non-Selective Optical Fibre References
593601 H30Crystal OF (S/S2+T)
593602 H30Crystal OF (S/S2+T/T2)
593603 H30Crystal OF (S/S2+C)
593604 H30Crystal OF (S/S2+T/T2+C)
593661 H30Crystal OF (S/S2+ISDB-T/TB)
Selective Optical Fibre References
593621 H30Crystal Selective OF (S/S2+T)
593622 H30Crystal Selective OF (S/S2+T/T2)
593624 H30Crystal Selective OF (S/S2+T/T2+C)
Options
593231 DVB-T OPTION
593232 DVB-T2 OPTION
593233 DVB-C OPTION
593234 dCSS OPTION
593235 EXT. ENT TERREST. 120dBμV OPTION
593250 Wi-Fi ANALYSER OPTION
593236 Video Camera
593251 IPTV Analyser
593252 HEVC Visualization (Up to 1080p)

EN
7
Technical Specifications
Frequency
Range 50 - 880 MHz and 950 - 2400 MHz
Resolution 125 kHz
Tuning Frequency or channel
Input
Impedance 75Ω F-type connector
Spectrum Analyzer
Span 5, 10, 20, 50, 100, 200, 500 and Full span
Scale 5 and 10 dB/div
Hold mode
Auto and manual
reference level
Return Channel
Optical Fiber
(Sel.OF: 593601/02/03/04/61 - Non-SelFO: 593621/22/24)
No Selective -40dBm to +7dBm
Selective -40dBm to +7dBm
RF Overlay -10dBm to +5dBm
Optical Attenuation
Digital Measurements DVB-T (ref. 593601, 593602, 593604, 593621,
593622, 593624 and opt. 593231)
MPEG image
Modulations CFDM (QPSK, 16QAM, 64QAM)
Power 45-110dBuV (25-120dBuV opt.593235)
CBER 9.9E-2 - 1.0E-6
VBER 1.0E-3 - 1.0E-8
MER Up to 35dB
C/N Up to 40dB
Echoes
Constellation
Digital Measurements DVB-T2 (ref. 593602, 593604, 593622 and
opt. 593232)
MPEG image
Modulations COFDM (QPSK, 16QAM, 64QAM and 256QAM)
Power 45-110dBuV (25-120dBuV opt.593235)
LDPCBER 9.9E-2 - 1.0E-6 (Pre LDPCBER)
BCHBER 1.0E-3 - 1.0E-8 (Pre BCHBER or Post LDPCBER)
Link Margin Up to 30dB
MER Up to 35dB
C/N Up to 40dB
Echoes
Constellation
Digital Measurements DVB-C (ref. 593603, 593604, 593624 and opt.
593233)
MPEG image
Modulations 16QAM, 32QAM, 64QAM, 128QAM and 256QAM
Power 45-110dBuV (25-120dBuV opt.593235)
CBER 1.2E-2 - 1.0E-8
MER Up to 38dB
C/N Up to 40dB
Constellation
Digital Measurements DVB-S
MPEG image
Power 45-110dBuV (25-120dBuV opt.593235)
CBER 9.9E-2 - 1.0E-6
VBER 1.0E-4 - 1.0E-8
MER Up to 20dB
C/N Up to 20dB
Constellation
Digital Measurements DVB-S2
MPEG image
Modulations QPSK, 8PSK
Power 45-110dBuV (25-120dBuV opt.593235)
Link Margin Up to 10dB
MER Up to 20dB
LDPCBER 9.9E-2 - 1.0E-6 (Pre LDPCBER)
BCHBER 9.9E-2 - 1.0E-8 (Pre BCHBER or Post
Constellation
Digital Measurements ISDB-T/Tb (ref.593661)
MPEG image
Modulations DQPSK, QPSK, 16QAM and 64QAM)
Power 45-110dBuV (25-120dBuV opt.593235)
Pre-BER (by layer) 9.9 E-2 - 1.0E-6
Post-BER (by layer) 1.0 E-3 - 1.0E-8
MER Up to 35dB
C/N Up to 40dB
Echoes
Constellation
Analog Measurements
Level 25 - 125dBuV
V/A
C/N Up to 45dB
Features
Terrestrial and
Satellite channel
plans Channel plans from dierent world wide regions
User channel plans
Units dBuV, dBmV, dBm
Preamp powering 13, 18, 24Vdc (max. current 475, 370, 140mA)
LNB powering 13, 18Vdc (max. current 475, 370mA)
LNB tone 22KHz
SCR (EN 50494) | dCSS
(EN 50607) | Opt.593234
DiSEqC
Wi-Fi Analyser Opt. 593250
Video Camera Opt. 593236
IPTV Analyser Opt. 593251
HEVC visualization Opt. 593252 (up to 1080p)
Specications are subject to change without notice.

H30 CRYSTAL
8
Description of equipment
components
Connectors and controls
1. External power connector (12VDC).
2. LCD display.
3. Keyboard and LED indicators
4. Ethernet and USB connectors
5. RF F-connector (see options below)
6. Optical ber connector (SC/APC)
Keyboard
1. Device On/O button: To turn the
equipment o, press and hold for
approximately 3 seconds.
2. Back button: Return to the previous
menu or close a parameter entry window.
3. Home button: Return to the main menu.
4. Navigation buttons: Used to scroll through
options.
5. OK Button: To conrm selection.
6. Setup button: Parameter window for the
current function.
7. LED Powering: Indicates if the equipment is
powering an external load.
8. LED Charging Battery: LED ashes while the
battery is charging.
9. LED Power ON: Illuminated when the
equipment is on.
F-connector options
1
23
4
5
1
2
3
4
5
6
9 8 7
4
6

EN
9
Power supply
A DC adapter is provided to power and charge the
meter. Plug the adapter into a properly grounded
electrical supply and the power connector on the
side of the unit.
When external power is supplied, the battery
management system automatically controls the
charging process.
A battery icon indicates the charge status of the
battery.
When the battery is fully charged, the battery icon
is completely lled. As the battery discharges, the
amount the icon is lled decreases in steps.
The icon shows 5 states representing the
approximate battery charge:
    
- Battery charge less than 5%.
    
- Battery charge between 5% and 25%.
    
- Battery charge between 25% and 50%.
    
- Battery charge between 50% and 75%.
    
- Battery charge greater than 75%.
From a fully discharged state, a full charge takes
approximately 8 hours and a 3 hour charge will
provide approximately a 75% charge.
The charge management system will detect
various conditions preventing charging, such as a
battery that is over a safe temperature.
About battery
Important:
If the meter detects a shortcircuit or over
consumption, and it is not connected to the power
supply, it automatically shuts down.
To turn it on again, it is necessary that it is
connected to the power supply.
To maximize battery life:
Avoid fully discharging the battery.
The battery should always be charged with the
battery pack attached to the device and using
the supplied DC adapter or applying a constant
voltage within the specied range (12-15VDC).
For long term storage, keep the unit at room
temperature, or about 25º C. Start with a charged
battery and re-charge the battery every 2 to 3
months.
Battery replacement:
It is recommended that the replacement of the
battery is carried out by qualied personnel
following the following instructions:
Disconnect the meter from the power supply:

H30 CRYSTAL
10
Turn the H30Crystal o
Remove the screws from the backside
Open the back cover
The battery is located at the bottom of the meter.
Carefully remove the connector from the power
board, and then remove the battery

> 3 sec.
OFF:
> 3 sec.
OFF:
> 3 sec.
OFF:
Place the new battery and then connect it to the
power board
Replace the back cover of the meter. Make sure
that the cable is not trapped between the two
covers
Replace the screws of the back cover
> 3 sec.
OFF:
> 3 sec.
OFF:
> 3 sec.
OFF:

EN
11
Before starting
The rst time you turn your H30Crystal on, please
follow the next steps for a proper conguration:
1.- Select the language using and
2.- Select the geographical area, so the proper
channel plans will be enabled:
2.- Register your H30Crystal:
2.1.- Read the QR code using your mobile phone or
tablet. or use the App H30Suites (Available for iOS
and Android):
2.2.- Register your H30Crystal in our web. Once the
process is completed, you will get a PIN code. Enter
the PIN in your H30Crystal:
2.3.- If the PIN is OK, you have nished the registra-
tion process.
NOTE: Options 593234 (dCSS) and 593235
(Extended terrestrial input level range) will
be activated automatically in your H30Crystal
whenever you register it within 30 days after you
turn it on for the rst time.
Product operation
1. Optical Attenuation
Measures the optical attenuation over the three
wavelengths using this feature.
Depending on the type of your H30Crystal
(selective or non-selective optical bre), the
operation of this function will be slightly dierent.
1.1. Main window
Below is a capture of a Optical Attenuation window
with a brief explanation of its features.

H30 CRYSTAL
12
Bar graph of main
measurement.
Color according to
checkmarks
Bar graph of optical
attenuation measures.
Color according to
checkmarks
Optical attenuation
measurements
in each wavelength
1.2. Setup
Press to change the Channel Info options.
- Auto mode (both Selective and Non-
Selective models): On/O. Allows to operate
with the Auto mode of the Televes OPS3L, which
communicates to the H30Crystal the lambda it is
emitting.
- Optical wavelength (only Non-Selective
models): Allows to select the wavelength to be
measured.
- Calibrate: In Non-Selective models, this
function calibrates the selected wavelength.
In Selective models, each wavelength must be
calibrated separately
- Reset calibration (both Selective and Non-
Selective models): Resets the calibration
-Save datalog: Saves the current scan
measurements. You can see the datalogs using the
remote control application.
2. Channel Info
Analog and digital channels are very dierent in
terms of signal content and power distribution
and thus require the advanced SLM techniques
provided in the Televes H30Crystal.
In analog mode, video and audio levels, V/A and
Carrier to Noise (C/N) are measured.
In digital mode measurements depend on the
modulation
2.1. Main window
Below is a capture of a Channel Info window with a
brief explanation of its features.
Channel
plan
Frequency
Channel
Change using
Bar graph of main
measurement.
Color according to
checkmarks
List of measurements
with pass/fail indicators

EN
13
2.2. Setup
Press to change the Channel Info options.
- Band: Terrestrial/Satellite
- Plan: Selects the channel plan
- Powering: Selects the LNB powering
- DiSEqC (only satellite band): Selects DiSEqC
parameter (Sat A, sat B, sat C, sat D)
- SCR (only satellite band): Selects the SCR
parameters (multiswitch, standard and slots)
When a slot is enabled (for example slot 3,
freq. 1210MHz), the meter will tune into the
slot frequency (1210MHz) and will set the slot
with the meter parameters: frequency, band
(powering), and DiSEqC. In addition, a SCR
icon will be shown in the bar at the top (SCR3)
to indicate that the slot is enabled.
While the slot is enabled, all the setting
changes of the meter, will be applied to the
currently slot (SCR3).
- Tuning: Channel, Frequency
- A/D: Auto, Analog, Digital.
- Save datalog: Saves the current scan
measurements. You can see the datalogs
using the remote control application.
3. Spectrum
Real-time processing speeds ensure capture of any
fast, intermittent plant impairments.
Due to the accuracy and level of detail provided by
this spectrum analyzer, the H30Crystal is the ideal
tool for identifying and locating noise, interference,
ingress and other waveforms that may be aecting
cable services quality.
3.1. Main window
Below is a capture of a Spectrum window with a
brief explanation of its features:
3.2. Setup
Press to change Spectrum options.
- Band: Terrestrial/Satellite
- Plan: Selects the channel plan
- Powering: Selects the LNB powering
- DiSEqC (only satellite band): Selects DiSEqC
parameter (Sat A, sat B, sat C, sat D)
- SCR (only satellite band): Selects the SCR
Span
User can change it using
(+) or ( - )
List of
measurements
with pass/fail
indicators
Reference level
Change
Selected channel
Change using

H30 CRYSTAL
14
parameters (multiswitch, standard and slots)
When a slot is enabled (for example slot 3,
freq. 1210MHz), the meter will tune into the
slot frequency (1210MHz) and will set the slot
with the meter parameters: frequency, band
(powering), and DiSEqC. In addition, a SCR
icon will be shown in the bar at the top (SCR3)
to indicate that the slot is enabled.
While the slot is enabled, all the setting
changes of the meter, will be applied to the
currently slot (SCR3).
- Aim antenna: Emits a modular audible
signal with frequency directly proportional
to signal level in the spectrum trace relative
to reference level. It is recommended to set
the reference level manually, as well as to
select the span to include a frequency range
wide enough.
The audible signal becomes continuous when
the signal level is close to the reference level.
Then it is necessary to increase the reference
level to get a more accurate adjustment.
This is a useful feature to point antennas
without having to look at the display
- Span: 5MHz, 10MHz 20MHz, 50MHz, 100MHz,
200MHz, 500MHz, Full.
Set the span of the spectrum. To easily change
the span, use the OK Button to decrease the
span and the Back Button to increase the span.
- Ref. Level: Select the reference level of the
spectrum graph
- dB/div: 5 dB/div, 10 dB/div
- Tuning: Channel, Frequency
- A/D: Auto, Analog, Digital.
- C/N: ON, OFF. Shows/Hides the C/N measure.
- Hold: ON/OFF. Shows/hides the maximum
graph
- Save datalog: Saves the current scan
measurements. You can see the datalogs
using the remote control application.
4. MPEG
The H30Crystal MPEG feature will show the image
of the selected service.

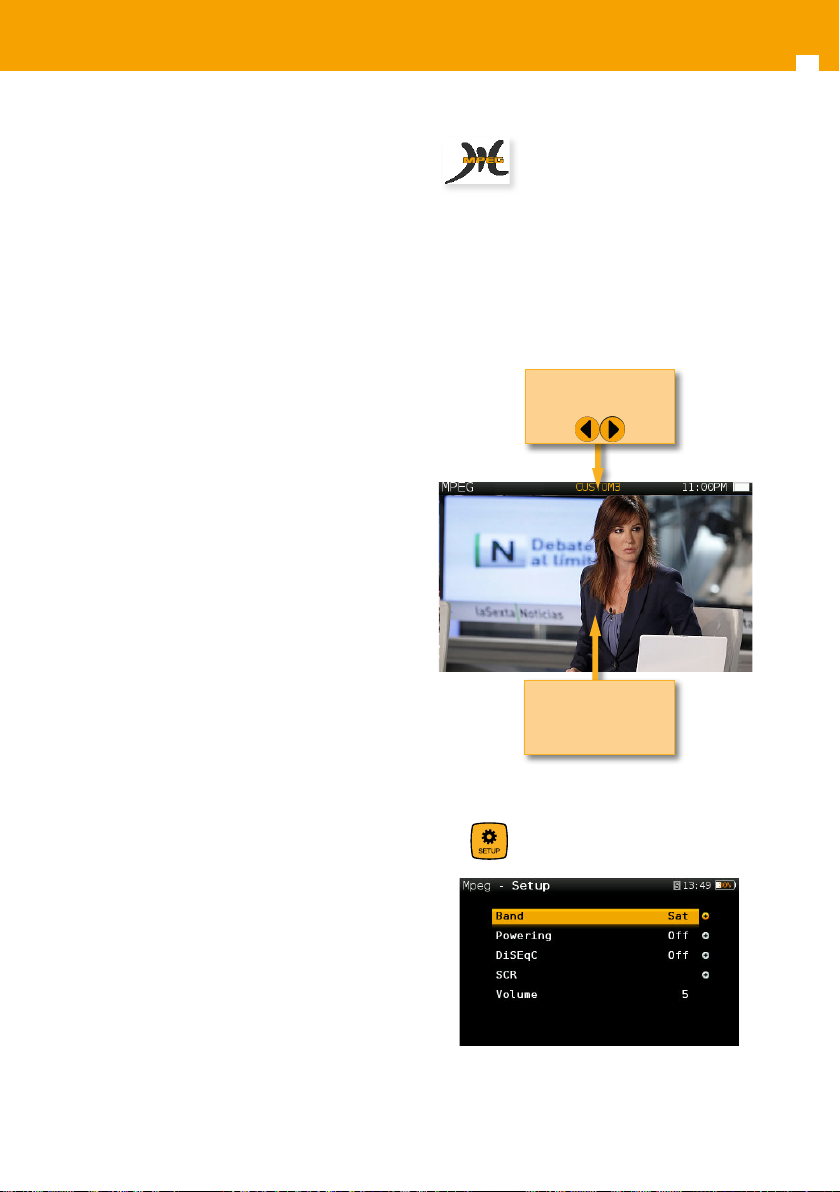

4.1. Main window
Below is a capture of a MPEG Info window with a
brief explanation of its features:
Selected channel
Change using
4.2. Setup
Press to change the Channel Info options.
- Band: Terrestrial/Satellite
- Plan: Selects the channel plan
Press OK button to see
the services list

EN
15
Bar graph representing all the found channels.
Color according to checkmarks
Channel
plan
Measurements
of the selected
channel
with pass/fail
indicators
Channel
Change
using Frequency
5.2. Setup
Press to change the System Scan options.
- Band: Terr, Sat
- Plan: Selects the channel plan
- Powering: Selects the LNB powering
- DiSEqC (only satellite band): Selects DiSEqC
parameter (Sat A, sat B, sat C, sat D)
- SCR (only satellite band): Selects the SCR
parameters (multiswitch, standard and slots)
When a slot is enabled (for example slot 3,
freq. 1210MHz), the meter will tune into the
slot frequency (1210MHz) and will set the slot
with the meter parameters: frequency, band
(powering), and DiSEqC. In addition, a SCR
icon will be shown in the bar at the top (SCR3)
to indicate that the slot is enabled.
- Powering: Selects the LNB powering
- DiSEqC (only satellite band): Selects DiSEqC
parameter (Sat A, sat B, sat C, sat D)
- SCR (only satellite band): Selects the SCR
parameters (multiswitch, standard and slots)
When a slot is enabled (for example slot 3,
freq. 1210MHz), the meter will tune into the
slot frequency (1210MHz) and will set the slot
with the meter parameters: frequency, band
(powering), and DiSEqC. In addition, a SCR
icon will be shown in the bar at the top (SCR3)
to indicate that the slot is enabled.
While the slot is enabled, all the setting
changes of the meter, will be applied to the
currently slot (SCR3).
- Volume
5. System Scan
This function scans the selected channel plan and
detects every existing analog and digital channel
in real time to determine the overall frequency
response of the system.
The scan measurement leverages the location
based thresholds to clearly show whether or
not signal levels comply with the cable system
specications with their green, yellow and red bars.
This gives an easy-to-understand real-time view of
the system, including the BER and MER values of
the selected channel.
5.1. Main window
Below is a capture of a System Scan window with a
brief explanation of its features:

H30 CRYSTAL
16
While the slot is enabled, all the setting
changes of the meter, will be applied to the
currently slot (SCR3).
- Digital tuning: If it is ON, allows to see MER
and CBER measurements when a digital
channel is selected and the user presses Ok
button.
- Span: Select the number of channels
showed in the bar graph
- Ref. Level: Select the reference level of the
bar graph
- Save datalog: Saves the current scan
measurements. You can see the datalogs
using the remote control application
6. Dish Alignment
This feature helps the installer to align the dish.
The performance measurement is the quotient
between the current LKM value and the maximum
one. When the performance indicator is green, the
dish is aligned.
6.1. Main window
Below is a capture of the Dish Alignment window
with a brief explanation of its features.
6.2. Setup
Press to change the Dish Alignment options.
- Sat Plan: Allows the user to select the
satellite plan he wants to align the dish to.
- Beep: ON/OFF. If ON is selected, the
H30Crystal emits a sound whose frequency
increases as the performance measurement
increases.
Bar graph of LKM
measurement
Color according to
checkmarks
Follow the guided
steps to perform the
alignment
Bar graph of power
measurement
Color according to per-
formance
List of measure-
ments
Performance
measure has
pass/fail indicator
Channel
and
Frequency

EN
17
7. Satellite Test
This function checks that the input signal
corresponds to the selected satellite, and at the
same time checks the proper reception of the
selected transponders (from 1 to 4 transponders).
To do that, the meter performs all the
measurements on those transponders.
First of all the user must select the channel plan of
the satellite towards which the antenna is oriented.
Then the user must select the transponders on
which you want to carry out the measurements
(see Setup section of this function).
The information necessary to verify the satellite
is extracted from these channels, and the
measurements of the selected transponders are
displayed.
7.1. Main window
Below is a capture of a Satellite Test window with a
brief explanation of its features:
List of measurements
with pass/fail indicators
Press OK to see all the
measurements
Bar graph representing
the selected channels
Color according to
checkmarks
Selected channel
Change using
7.2. Setup
Press to change the Satellite Test options.
- Powering: Select the powering of the LNB if
needed.
- DiSEqC: Select the SAT of the DiSEqC
command.
- SCR (only satellite band): Selects the SCR
parameters (multiswitch, standard and slots)
When a slot is enabled (for example slot 3,
freq. 1210MHz), the meter will tune into the
slot frequency (1210MHz) and will set the slot
with the meter parameters: frequency, band
(powering), and DiSEqC. In addition, a SCR
icon will be shown in the bar at the top (SCR3)
to indicate that the slot is enabled.
While the slot is enabled, all the setting
changes of the meter, will be applied to the
currently slot (SCR3).
- Ref. Level: Select the reference level of the
bar graph.
- Channels: Select the number of channels as
well as the channels from the channel plan.
8. Learning plan
Analyzes the input signal to the meter and
automatically detects all channels.
This feature automatically identies the channels
as either analog or digital and performs
measurements on each.
A bar graph is displayed with the height
representing the power for digital channels and the
level of the video carrier for the analog channels.
Satellite checked

H30 CRYSTAL
18
Ideally, each of the symbols in a constellation
diagram should display a clean dot indicating a
perfect signal.
The H30Crystal real time constellation, allows the
installer to assess the size and shape of the build
up of dots indicative of problems which contribute
to bit errors leading to service disruption
9.1. Main window
Below is a capture of a Constellation window with
a brief explanation of its features:
Modulation
List of measurements
with pass/fail indicators
Constellation
diagram
Selected channel
Change using
9.2. Setup
Press to change Constellation options.
The measurements made for analog channels are
video carrier level and V/A. For digital channels the
measurements are power and C/N.
The analog channels will have an extra, smaller
white bar indicating the level of the audio carrier.
8.1. Main window
Below is a capture of a Learning Plan window with
a brief explanation of its features:
List of measurements
with pass/fail indicators
Bar graph representing
found channels
Color according to
checkmarks
Indicates that the
scan is nished.
Press to save
the plan
Selected channel
Change using
9. Constellation
Digital video often does not show signal
impairment until it is too late due to the small
margin between acceptable quality and failure.
Constellation diagrams are an indispensable tool
to help detect the presence of noise, phase jitter,
interference, and gain compression, all of which
impact overall signal quality and thus reduce
Modulation Error Ratio (MER).

EN
19
- Band: Terr, Sat
- Plan: Selects the channel plan
- Powering: Select the powering of the LNB if
needed.
- DiSEqC: Select the SAT of the DiSEqC
command.
- SCR (only satellite band): Selects the SCR
parameters (multiswitch, standard and slots)
When a slot is enabled (for example slot 3,
freq. 1210MHz), the meter will tune into the
slot frequency (1210MHz) and will set the slot
with the meter parameters: frequency, band
(powering), and DiSEqC. In addition, a SCR
icon will be shown in the bar at the top (SCR3)
to indicate that the slot is enabled.
While the slot is enabled, all the setting
changes of the meter, will be applied to the
currently slot (SCR3).
- Zoom: OFF, 1st, 2nd, 3rd, 4th.
Select a quadrant of the constellation to be
represented for more detailed view. Select
Zoom OFF for the full constellation.
- Tuning: Channel, Frequency
- Save datalog: Saves the current constellation
measurements. You can see the datalogs
using the remote control application.
10. Echoes
It is important to check that no echoes can cause
problems in the reception of DVB-T and DVB-T2
signals.
This feature allows you to visualize the echoes
of the received signal, helping the installer to
minimize them as much as possible for optimal
signal reception.
In addition to the echoes graph, this function
shows the channel power and MER measurements,
as well as the FFT mode, the guard interval, and the
Cell ID.
10.1. Main window
Below is a capture of a Echoes window with a brief
explanation of its features:
List of measurements with
pass/fail indicators
and number of echoes
Selected channel
Change using
Echoes graph
10.2. Setup
Press to change Echoes options.
- Powering: O, 13V, 18V, 24V.
- Tuning: Channel, Frequency
- Units: us, Km
FFT mode, Guard
Interval, and Cell ID

H30 CRYSTAL
20
11. Video Camera (opt.
593236)
This feature allows the H30Crystal meters to have
an analog video and audio input using an external
USB 2.0 adapter, with capability to digitize the
analog input signals.
It is specically aimed for installation and
maintenance of analog video surveillance systems.
The supported interface is composite RCA (S-VHS).
The input video formats that can be displayed are
the following:
• NTSC: 720x480 @ 30fps
• PAL: 720x576 @ 25fps
To run the feature you just have to connect the
input signal to the adaptor provided with the
H30Crystal, making sure that the adaptor is
connected to the USB input of the meter. If there
is something wrong, the next screen will be shown:
11.1. Main window
Below is a capture of a Camera window:
12. Wi-Fi Scan (opt. 593250)
Analyzes the Wi-Fi band and automatically detects
all the Wi-Fi networks, as well as their names and
the power of the access point signal.
There are two dierent screens to display the
information: List and Map.
12.1. List view
You can go through the list using and select
one of the Wi-Fi networks to display it separately.
If a Wi-Fi network has multiple access points, you
will see several networks with the same name. If
you select one of them, you will separately all the
access points of that network. The rst one in the
list is the one you are connected to, which is the
one that has more signal power at that point.
Power of each Wi-Fi
access point signal.
The list is sorted by
power
Wi-Fi network channel
Wi-Fi network name
The red lock indicates
that the network is
locked
Wi-Fi network MAC
Wi-Fi protect access type
