Teltonika TRB140 User manual

Quick Start Guide v2.4
https://wiki.teltonika-networks.com/

FRONT VIEW
Mobile network type LEDs
BACK VIEW
Power socket
Power LED
Mobile signal strength
indication LEDs
Mobile antenna connectorUSB port
Reset button
Ethernet port

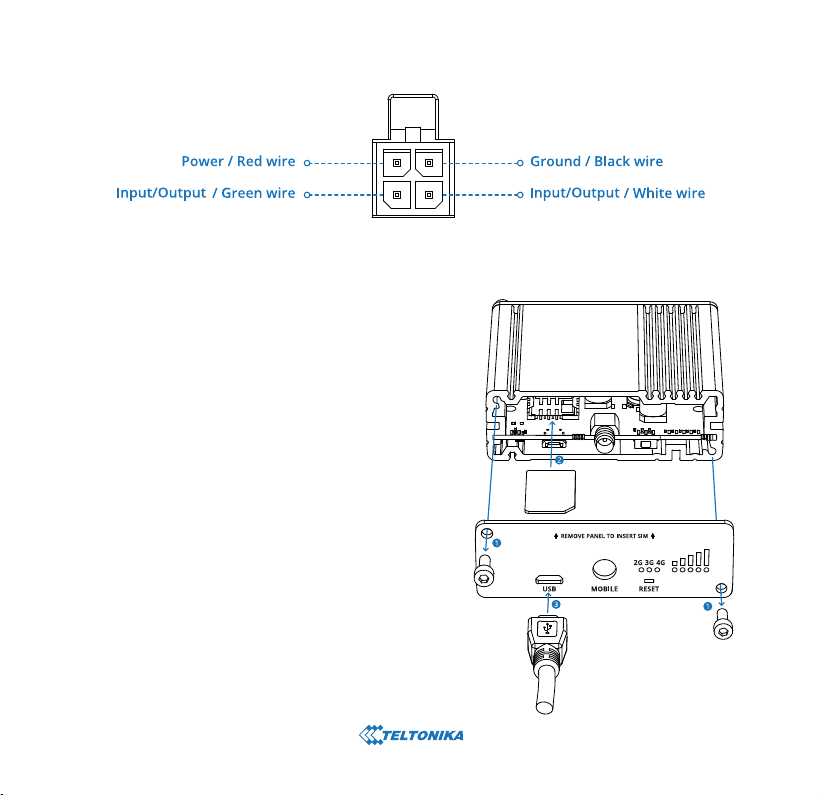

1. Unscrew two back panel hex bolts.
2. Remove the back panel.
3. Insert your SIM card into the SIM socket.
4. Attach the panel and tighten the hex bolts.
5. Attach the mobile antenna (max torque 0.4 N·m / 3.5 lbf·in)
and connect the USB cable.
HARDWARE INSTALLATION
POWER SOCKET PINOUT

Bytes received/sent
SIM card slot in use
Data connection
State
-65 dBm
Connected
Registered (home); OPERATOR; 4G (LTE)
Ready
348.7 KB / 223.5 KB
DEVICE CONFIGURATION
TECHNICAL INFORMATION
1. Power on the device and connect the USB cable to your computer.
2. Allow the gateway to boot up. This might take up to 30 seconds.
3. Your computer's OS should detect the USB device and install the driver.
4. To enter the gateway's Web interface (WebUI), type http://192.168.2.1 into the URL field of your Internet browser.
5. Use login information shown in image A when prompted for authentication.
6. After logging in pay attention to the Signal Strength indication displayed in the Mobile widget (image B). To
maximize the cellular performance try adjusting the antennas or changing the location of your device to achieve the
best signal conditions.
*Order code dependent.
**Higher gain antenna can be connected to compensate for cable attenuation when a cable is used. The user is responsible for the compliance with the legal regulations.
Radio specifications
Bundled accessories specifications*
RF technologies
Max RF power
2G, 3G, 4G
33 dBm@GSM, 24 dBm@WCDMA, 23 dBm@LTE
Power adapter Input: 0.4A@100-240VAC, Output: 9VDC, 0.5A, 4-pin plug
Mobile antenna 698~960/1710~2690 MHz, 50 Ω, VSWR<2, gain** 2 dBi, omnidirectional, SMA male connector
A. B.
admin
admin01

TRB140 gateway must be used in compliance with any and all applicable national and international laws and with any special restrictions regulating the utilization of the
communication module in prescribed applications and environments.
