Teltonika Trb245 User manual

Quick Start Guide v1.2

https://wiki.teltonika-networks.com/

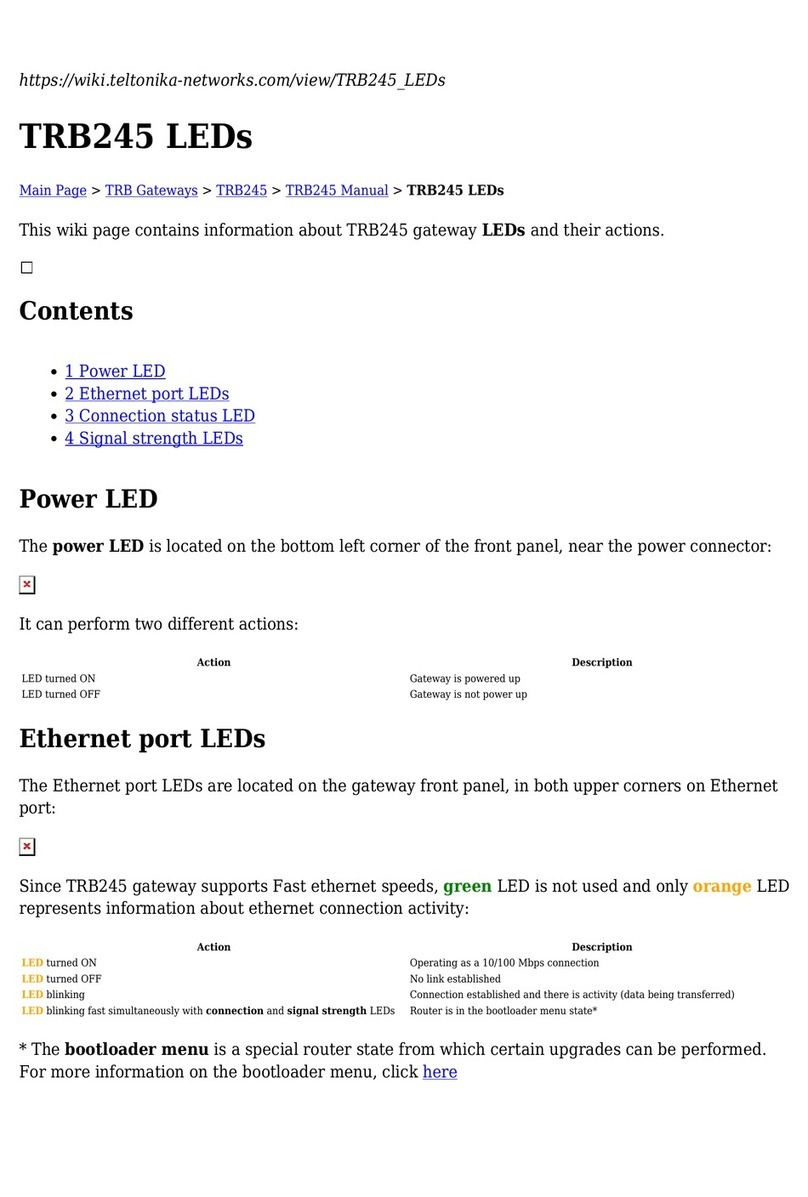

FRONT VIEW

Mobile network type LEDs

BACK VIEW

Power LED

Mobile signal strength

indication LEDs

Reset

button

Input/output connector

GPS antenna connector Mobile antenna connector

Ethernet port

HARDWARE INSTALLATION

16 PIN CONNECTOR PINOUT +- 9-30 VDC positive power pin

D1, D2, D3 - Conﬁgurable digital Input/Output pins. Open

collector output, max output 30 V, 300 mA or Digital input

where 0-6 V detected as logic low and 8-30 V – logic high.

CTS - RS232 clear data to send pin (output).

RTS - RS232 request data to send pin (input).

R+ - RS485 receiver positive signal pin.

D+ - RS485 driver positive signal pin.

- - Negative/ground power pin.

- Ground pins for D1, D2, D3, A, RS232 and RS485.

A - Analog input pin. Analog voltage range 0-30 V.

TX - RS232 transmitted data (input).

RX - RS232 received data (output).

R- - RS485 receiver negative signal.

D- - RS485 driver negative signal.

SIM1

SIM2

1. Unscrew two back panel hex bolts and remove the back panel.

2. Insert your SIM card(s) into the SIM socket(s), which are located on

the bottom side of PCB.

3. Attach the panel and tighten the hex bolts.

4. Attach the mobile antenna (max torque 0.4 N·m / 3.5 lbf·in).

5. Connect the 16 pin terminal block with power adapter to the 16

pin connector on the front panel. Then plug the other end of the

power adapter into a power outlet.

DEVICE CONFIGURATION

TECHNICAL INFORMATION

1. Power on the device and connect the Ethernet cable to your computer.

2. Allow the gateway to boot up. This might take up to 60 seconds.

3. To enter the gateway Web interface (WebUI), type http://192.168.1.1 into the URL ﬁeld of your Internet browser.

4. Use login information shown in image A when prompted for authentication.

5. After you log in, you will be prompted to change your password for security reasons. The new password must contain at least 8 characters,

including at least one uppercase letter, one lowercase letter and one digit. This step is mandatory, and you will not be able to interact with

the gateway WebUI until you change the password.

6. When you change the gateway password, the Conﬁguration Wizard will start. The Conﬁguration Wizard is a tool used to set up some of the

gateway main operating parameters.

7. Go to the Overview page and pay attention to the Signal Strength indication (image B). To maximize the cellular performance try adjusting

the antennas or changing the location of your device to achieve the best signal conditions.

*Order code dependent.

**Higher gain antenna can be connected to compensate for cable attenuation when a cable is used. The user is responsible for the compliance with the legal regulations.

Radio speciﬁcations

Bundled accessories speciﬁcations*

RF technologies

Max RF power

2G, 3G, 4G, GNSS

33 dBm@GSM, 24 dBm@WCDMA, 23 dBm@LTE

Power adapter Input: 0.4 A@100-240 VAC, output: 9 VDC, 1 A, connected to 16 pin terminal block

Mobile antenna 698~960 / 1710~2690 MHz, 50 Ω, VSWR < 3, gain** 3 dBi, omnidirectional, SMA male connector

A. B.

Bytes received/sent

SIM card slot in use

Data connection

State

-65 dBm

Connected

Registered (home); OPERATOR; 4G (LTE)

Ready

348.7 KB / 223.5 KB

admin

admin01

GNSS antenna 1575.42~1602 MHz, 2.2~5 VDC, VSWR < 1.5, gain** 28 dB (typ.), RHCP polarization, SMA male connector

TRB245 gateway must be used in compliance with any and all applicable national and international laws and with any special restrictions regulating the utilization of the

communication module in prescribed applications and environments.

[EN] English Hereby, TELTONIKA declares that this TRB245 is in compliance with the essential requirements and other relevant provisions of

Directive RED.

[BG] Bulgarian С настоящето, TELTONIKA декларира, че TRB245 е в съответствие със съществените изисквания и другитеприложими разпоредби на

Директива RED.

[CZ] Czech TELTONIKA tímto prohlašuje, že TRB245 splňuje základní požadavky a všechna příslušná ustanoveni Směrnice RED.

[DE] German Hiermit erklärt TELTONIKA dass sich das Gerät TRB245 in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen

einschlägigen Bestimmungen der Richtlinie RED beﬁndet.

[DK] Danish Undertegnede TELTONIKA erklærer herved, at følgende udstyr TRB245 overholder de væsentlige krav og øvrige relevante krav i direktiv RED.

[EE] Estonian Käesolevaga kinnitab TELTONIKA seadme TRB245 vastavust direktiivi RED põhinõuetele ja nimetatud direktiivist tulenevatele teistele

asjakohastele sätetele.

[ES] Spanish Por la presente, TELTONIKA declara que este TRB245 cumple con los requisitos esenciales y otras exigencias relevantes de la Directiva RED.

[FI] Finish TELTONIKA vakuuttaa täten että TRB245 tyyppinen laite on direktiivin RED oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen

mukainen.

[FR] French TELTONIKA déclare que cette TRB245 est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive RED.

[GR] Greek ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Ο ΚΑΤΑΣΚΕΥΑΣΤΗΣ TELTONIKA ΔΗΛΩΝΕΙ ΟΤΙ TRB245 ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ

ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ RED.

[HU] Hungarian A TELTONIKA ezzennel kijelenti, hogy a TRB245 típusú berendezés teljesíti az alapvető követelményeket és más RED irányelvben

meghatározott vonatkozó rendelkezéseket.

[IT] Italian Con la presente TELTONIKA dichiara che questo TRB245 è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla

direttiva RED.

[LT] Lithuanian Šiuo dokumentu UAB TELTONIKA deklaruoja, kad šis TRB245 atitinka esminius reikalavimus ir kitas RED Direktyvos nuostatas.

[LV] Latvian Ar šo TELTONIKA deklarē, ka TRB245 atbilst Direktīvas RED būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.

[NL] Dutch Hierbij verklaart TELTONIKA dat het toestel l TRB245 in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van

richtlijn RED.

[NO] Norwegian TELTONIKA Erklærer herved at TRB245 er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv RED.

[PL] Polish Niniejszym TELTONIKA deklaruje że TRB245 jest zgodny z zasadniczymi wymaganiami i innymi właściwymi postanowieniami Dyrektywy RED.

[PT] Portuguese Eu, TELTONIKA declaro que o TRB245 cumpre os requisitos essenciais e outras provisões relevantes da Directiva RED.

[RO] Romanian Prin prezenta, TELTONIKA declară că aparatul TRB245 este în conformitate cu cerinţele esenţiale şi cu alte prevederi pertinente ale Directivei RED.

[SE] Swedish Härmed intygar TELTONIKA att denna TRB245 är i överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser

som framgår av direktiv RED.

[SI] Slovenian TELTONIKA izjavlja, da je ta TRB245 v skladu z bistvenimi zahtevami in drugimi relevantnimi določili direktive RED.

SAFETY INFORMATION

The full text of the EU declaration of conformity is available at the following

Internet address: https://teltonika-networks.com/product/trb245/

[EN] Instruction Manual: Connect the power adapter to turn on the device. Open 192.168.1.1 in your web browser to conﬁgure it. More information on

https://wiki.teltonika-networks.com/

[BG] Инструкция: Свържете адаптера на захранване, за да включите устройството. Отворете 192.168.1.1 в уеб браузър, за да настроите продукта.

Повече информация в https://wiki.teltonika-networks.com/

[CZ] Návod k použití: Připojte napájecí adaptér k zapnutí přístroje. Otevřete 192.168.1.1 ve webovém prohlížeči pro konﬁguraci produktu. Více informací najdete

v https://wiki.teltonika-networks.com/

[DE] Bedienungsanleitung: Verbinden Sie das Netzteil, um das Gerät einzuschalten. Öﬀnen Sie 192.168.1.1 in einem Web Browser, um das Produkt zu

konﬁgurieren. Weitere Informationen im https://wiki.teltonika-networks.com/

[DK] Instruktionsbog: Tilslut strømadapteren for at tænde for enheden. Åbn 192.168.1.1 i en webbrowser til at konﬁgurere produktet. Mere information i

https://wiki.teltonika-networks.com/

[EE] Kasutusjuhend: Ühendage toiteadapter seadme sisselülitamiseks. Avatud 192.168.1.1 in veebilehitseja seadistada toodet. Rohkem teavet

https://wiki.teltonika-networks.com/

[ES] Manual de instrucciones: Conecte el adaptador de alimentación para encender la unidad. Abra 192.168.1.1 en un navegador web para conﬁgurar el

producto. Más información en https://wiki.teltonika-networks.com/

[FI] Käyttöohje: Kytke virtalähde päälle laitteen. Avaa 192.168.1.1 in selaimen määrittää tuotteen. Lisää tietoa https://wiki.teltonika-networks.com/

[FR] Mode d'emploi: Connectez l'adaptateur d'alimentation pour allumer l'appareil. Ouvrez 192.168.1.1 dans un navigateur Web pour conﬁgurer le produit. Plus

d'informations dans https://wiki.teltonika-networks.com/

[GR] εγχειρίδιο οδηγιών: Συνδέστε τον προσαρμογέα τροφοδοσίας για να ενεργοποιήσετε τη μονάδα. Ανοίξτε 192.168.1.1 σε ένα πρόγραμμα περιήγησης στο

Web για να διαμορφώσετε το προϊόν. Περισσότερες πληροφορίες στο https://wiki.teltonika-networks.com/

[HU] Használati utasítás: Csatlakoztassa a hálózati adaptert a készülék bekapcsolásához. Megnyitása 192.168.1.1 egy webböngészőben beállítani a terméket.

Több információ https://wiki.teltonika-networks.com/

[IT] Manuale di istruzioni: Collegare l'adattatore di alimentazione per accendere l'unità. Aprire 192.168.1.1 in un browser Web per conﬁgurare il prodotto.

Maggiori informazioni in https://wiki.teltonika-networks.com/

[LT] Naudojimosi instrukcija: Prijunkite maitinimo adapterį, įjunkite įrenginį. Interneto naršyklėje atidarykite adresą 192.168.1.1 - galite konﬁgūruoti gaminį.

Daugiau informacijos rasite https://wiki.teltonika-networks.com/

[LV] Lietošanas instrukcija: Pievienojiet Strāvas adapteri, lai ieslēgtu ierīci. Atvērt 192.168.1.1 ar interneta pārlūku, lai konﬁgurētu produktu. Plašāka informācija

https://wiki.teltonika-networks.com/

[NL] Handleiding: Sluit voedingsadapter aan op het apparaat in te schakelen. Open 192.168.1.1 in een webbrowser om het product te conﬁgureren. Meer

informatie in https://wiki.teltonika-networks.com/

[NO] Bruksanvisningen: Koble strømadapteren for å slå på enheten. Åpne 192.168.1.1 i en nettleser for å konﬁgurere produktet. Mer informasjon på

https://wiki.teltonika-networks.com/

[PL] Instrukcja obsługi: Podłącz adapter zasilania, aby włączyć urządzenie. Otwórz 192.168.1.1 w przeglądarce internetowej, aby skonﬁgurować urządzenie.

Więcej informacji w https://wiki.teltonika-networks.com/

[PT] Manual de instruções: Conecte o adaptador de alimentação para ligar o aparelho. Abra 192.168.1.1 em um navegador da web para conﬁgurar o produto.

Mais informações em https://wiki.teltonika-networks.com/

[RO] Instrucțiuni de utilizare: Conectați adaptorul de alimentare pentru a porni aparatul. Deschide 192.168.1.1 întrun browser web pentru a conﬁgura produsul.

Mai multe informații în https://wiki.teltonika-networks.com/

[SE] Instruktionsmanual: Anslut nätadap tern för att slå på enheten. Öppna 192.168.1.1 i en webbläsare för att konﬁgurera produkten. Mer information på

https://wiki.teltonika-networks.com/

[SI] Navodila: Priključite napajalnik za vklop naprave. Odprite 192.168.1.1 v spletnem brskalniku nastaviti izdelek. Več informacij v

https://wiki.teltonika-networks.com/

[SK] NávoZd na použitie: Pripojte napájací adaptér k zapnutiu prístroja. Otvorte 192.168.1.1 vo webovom prehliadači pre konﬁguráciu produktu. Viac informácií

nájdete v https://wiki.teltonika-networks.com/

For more information visit www.teltonika-networks.com

www.teltonika-networks.com

This sign means that product meets the requirements of the applicable EU directives.

This sign means that all used electronic and electric equipment should not be mixed with general household waste.
