Tempo Fitness E902 User manual

1
ELLIPTICAL OWNER’S MANUAL
FOR MODEL :
E902
E903

3
Introduction
Important Precautions
Before You Begin
Elliptical Operation
Assembly Instructions
Conditioning Guidelines
Troubleshooting & Maintenance
3
4
5
6
12
23
29
INTRODUCTION
TABLE OF CONTENTS
3
CONGRATULATIONS and THANK YOU for your purchase of this Tempo Fitness Elliptical!
Whether your goal is to win a race or simply enjoy a fuller, healthier lifestyle, a Tempo Fitness Elliptical
can help you attain it with the ergonomics and innovative features you need to get stronger, healthier and
faster. We’re committed to designing fitness equipment from the inside out.
You want exercise equipment that offers the most comfort, the best reliability and the quality in its class.
A Tempo Fitness Elliptical delivers!

45
To reduce the risk of burns, fire, electrical shock or injury to persons:
WARNING
SAVE THESE INSTRUCTIONS
When using an electrical product, basic precautions should always be followed, including the following:
Read all instructions before using this elliptical. It is the responsibility of the owner to ensure that all
users of this elliptical are adequately informed of all warnings and precautions.
• If you experience chest pains, nausea, dizziness, or shortness of breath, stop exercising immediately
and consult your physician before continuing.
• Maintain a comfortable pace. Do not sprint above 80 rpms on this machine.
• To maintain balance, it is recommended to keep a grip on the handlebars while exercising, mounting
or dismounting the machine.
• Do not wear clothes that might catch on any part of the elliptical.
• Do not turn pedal arms by hand.
• Make sure handlebars are secure before each use.
• Do not insert or drop any object into any opening.
• To clean, wipe surfaces down with soap and slightly damp cloth only; never use solvents. (See
MAINTENANCE)
• This elliptical should not be used by persons weighing more than130kg. Failure to comply will void
the warranty.
• Thie Elliptical complies with EN957-1/-9 standard, class HB; brake system is adjustable.
• This elliptical is intended for in-home use only. Do not use this elliptical in any commercial, rental,
school or institutional setting. Failure to comply will void the warranty.
• Do not use elliptical in garages, porches, pool rooms, bathrooms, car ports or outdoors. Failure to
comply may void the warranty.
• Use the elliptical only as described in this manual.
IMPORTANT PRECAUTONS
CONGRATULATIONS! on choosing your elliptical. You’ve taken an important step in developing
and sustaining an exercise program! Your elliptical is a tremendously effective tool for achieving your
personal fitness goals. Regular use of your elliptical can improve the quality of your life in so many
ways.
HERE ARE JUST A FEW OF THE HEALTH BENEFITS OF EXERCISE:
• Weight Loss
• A Healthier Heart
• Improved Muscle Tone
• Increased Daily Energy Levels
The key to reaping these benefits is to develop an exercise habit.
Your new elliptical will help you eliminate obstacles that prevent you
from exercising. Inclement weather and darkness won’t interfere
with your workout when you use your elliptical in the comfort of your
home. This guide provides you with basic information for using and
enjoying your new machine.
LOCATION OF THE ELLIPTICAL
Place the elliptical on a level and stable surface. There should be
183 cm (6 feet) of clearance behind the elliptical, 91cm (3 feet) on
each side and 30 cm (1 foot). See diagram to the right. Do not place
the elliptical in any area that will block any vent or air openings.
The elliptical should not be located in a garage, covered patio, near
water or outdoors.
BEFORE YOU BEGIN
It is essential that your elliptical is used only indoors, in a climate controlled room. If your elliptical has been
exposed to colder temperatures or high moisture climates, it is strongly recommended that the elliptical is
warmed up to room temperature before first time use. Failure to do so may cause premature electromic failure.
At NO time should pets or children under the age of 12 be closer to the elliptical than 3 meters.
At NO time should children under the age of 12 use the elliptical.
Children over the age of 12 should not use the elliptical without adult supervision.
91 cm
30 cm (1 foot )
183 cm (6 feet )
(3 feet )
91 cm
(3 feet )

67

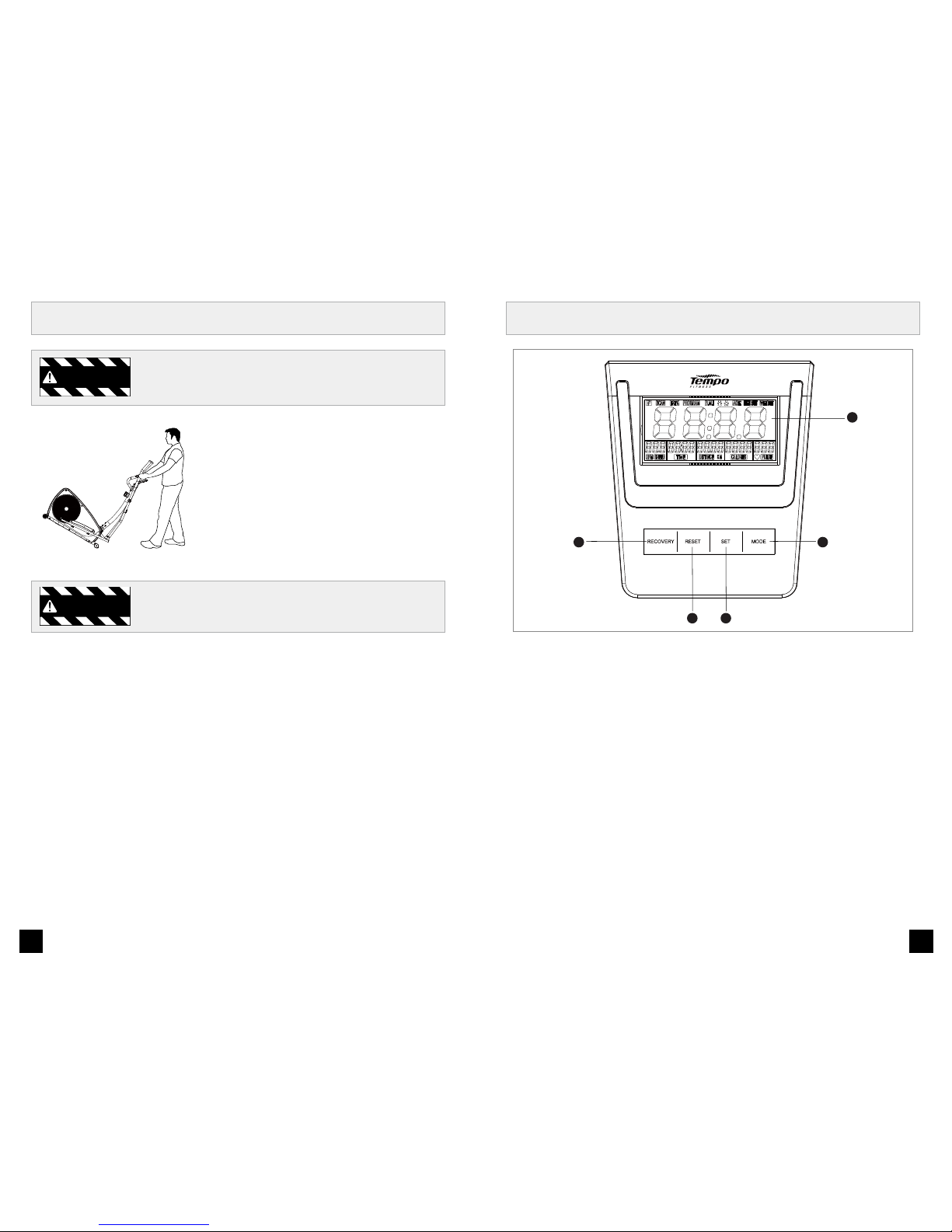

E902 CONSOLE DISPLAY
WARNING
WARNING
MOVING
Your elliptical has a pair of transport wheels built into
the FRONT STABILIZER TUBE. To move, first remove
the power supply and firmly grasp the CONSOLE MAST,
carefully tilt and roll.
ELLIPTICAL OPERATION
If the elliptical appears to not be working properly, do not use the
elliptical
.
Our ellipticals are well built and heavy, weighing up to 48 kg ! Use care and
additional help if necessary when moving.
A
B E
C D
LEVELING THE ELLIPTICAL
Your elliptical should be leveled for optimum use. Once you have placed your elliptical where you intend
to use it, rotate and adjust your levelers located at the end of the front stabilizer.
FOOT POSITIONING
Your elliptical offers a variety of foot positions. Moving your foot to the forward most position of the foot
pad increases your step height, which will create a feel similar to a step machine. Placing your foot
toward the back of the foot pad decreases your step height and creates more of a gliding feel, similar to
a smooth walk or run.
Always make sure your entire foot is secured on the foot pad. Your elliptical also allows you to pedal both
forward and backwards to offer a variation to your workout and to focus on other major leg muscle groups
such as your hamstrings and calves.
HAND POSITIONING
Place your hand on fix handlebar for lower body workout. For a full body workout, push and pull
continuously on the dual action arms
while pedaling.
E902 CONSOLE OPERATION
A) MONITOR DISPLAY: Automatically displays preset Date, Temperature and current Time at stand-by
mode. At the exercise mode the LCD Monitor will display the following SPEED-RPM- TIME-DISTANCE-
CALORIE-PULSE. If the machine is unused the console will enter stand by mode.
B) RECOVERY: If heart rate data is available, you can press RECOVERY key to start the Recovery function.
C) RESET: Press RESET key to default value while setting or hold the RESET key for 3 seconds to reset
all system value at anytime during workout.
D) SET: To set the values of Hour- Minute- Year- Month-Date after install 2 x AAA 1.5V batteries and press
MODE key to confirm the setting.
E) MODE: Pressing the MODE key will start setting values of TIME, DISTANCE, and CALORIES, press
SET key to change target values. During the exercise mode, press the MODE key to change display
between SPEED-RPM- TIME-DISTANCE-CALORIE-PULSE and SCAN function.

89
E903 CONSOLE OPERATION
A) MONITOR DISPLAY: At the exercise mode the LCD Monitor will display the following SPEED-RPM-
TIME-DISTANCE-CALORIE-PULSE.
B) START/STOP: Simply press to begin exercising or starts your workout. Press to pause/end your
workout. Hold for 3 seconds to reset the console.
C) TOTAL RESET: Press to reset all current value while setting or exercising.
D) Recovery: If heart rate data is available, you can press RECOVERY key to start the Recovery function.
(Refer to workout recovery for more information)
E) RESET: Press RESET key to default value while setting or hold the RESET key for 3 seconds to reset
all system value at anytime during workout.
F) UP/DOWN key
1) Rotate to increase and decrease the value when setting, press to confirm value setting.
2) Rotate to browse items/programs when selecting, press to confirm.
3) Rotate to increase and decrease the resistance.
E903 CONSOLE DISPLAY
C
A
E
B
F
D
QUICK START
1) Turn on console by pressing any key
2) Press MODE key to set target values, then start
3) When you exercise without setting any target values, the console display will count up from ZERO.
4) The resistance level can be adjusted during your workout by using the resistance Knob.
Note: 1 to 8 resistance levels available.
WORKOUT RECOVERY
After you have exercised ( more than 30 seconds), press RECOVERY key, place your hands on the heart
rate grips and a fitness recovery value will be calculated (Note: This is guide or formula created from
recovery pulse readings). Time will count down from 60 seconds to zero and give you a recovery status
reading from F1 to F6, with F1 being the best result.
TARGET HEART RATE
Once PULSE has been selected, and the target heart rate value input using the SET key, you can start to
exercise whilst holding onto the heart rate grips. Your pulse rate will be displayed on the LCD screen in
beats per minute. Once your heart rate reading set value ( THR ) is reached, the console will beep until
your heart rate is under the set value.
ENERGY SAVER
The console will display Temperature, Time & Date if machine or console becomes inactive for around
260 seconds. Press any key to return to workout display screen.
FOOTPLATE POSITIONING
Adjust footplate position by loosening both pedal knobs and re-position footplate in one of three location
points. This position will vary angle of footplate rotation and stride pattern angle.

10 11
• P1WEIGHTLOSS: Promotes weight loss
by raising and lowering the resistance level,
while keeping you in your fat burning zone.
• P2INTERVALS:Improves your strength, speed,
and endurance by raising and lowering the
resistance levels throughout your workout to
involve both your heart and muscles.
• P3FATBURN: Challenges with various
combinations of hills and valleys (resistance)
to burn more fat when exercising.
• P4MOUNTAINCLIMB: Improves performance
and stamina by raising the resistance level
to high peaks to simulate the most difficult
outdoor terrains.
• P5ATHLETETRANING: Complete exercise
program to help you enhance body
performance.
• P6PEAKPERFORMANCE: Increasing
resistance for advanced users to tones your
muscles, and challenges yourself.
BASIC OPERATION
1) Make sure the power is on.
2) Scroll the UP/DOWN key to select workout between manual, preset programs, user and T.H.R., press
UP/DOWN key to confirm.
3) To choose preset programs please select program and use UP/DOWN key to select between 12 workouts.
4) After workout selection, you may scroll UP/DOWN key to set the workout targets.
5) Press StART key to start the workout.
QUICK START
1) Turn on Elliptical by pressing any key.
2) Press Start key to enter manual mode and start.
3) Scroll the UP/DOWN key to adjust resistance level during the workout.
TARGET HEAR RATE
1) Select T.H.R.program at main menu and press UP/DOWN key to enter setting.
2) Select among 55%, 75% and 90% target or choose T.H.R. to set your desired number between 30 to 230.
USER PROGRAM
1) Select User program at main menu and use up/down and mode key to set your own workout.
2) Press UP/DOWN key confirming setting and press start to begin.
WORKOUT RECOVERY
After exercising for a period of time(more than 30 seconds), Press RECOVERY key, hold onto the
handgrips to conduct a workout recovery test. TIME will be counting down from 00:60 to 00:00 and then
show your heart rate recovery status from F1,F2….to F6. (F1-F6 stands for your Fitness quotient, as F1
being the best result) User may keep exercising to improve the heart rate recovery status. (Press the
RECOVERY button again to return the main display)
ENERGY SAVER
To minimize energy consumption, your machine will enter energy saver mode automatically when not in
use and could be quickly waken up with a touch of a button.
1) Pressing STOP key will bring the console to stand-by mode and will be shown on the console.
2) Pressing TOTAL RESET will reset the computer toally and enter energy saving mode by shut-down all
display after 5 mins.
• P7AFTER BURNER: Recover your heart and
muscles after intensive workout.
• P8 PLATEAU: Simulates plateau hiking by
increasing and decreasing the resistance
gradually.
• P9FATBURNINTERVAL: Gradually increasing
resistance with hills and valleys allows user to
reach their daily target.
• P10 HILL: Improves performance and stamina
by raising the resistance level to high peaks to
simulate the hill environment.
• P11JOGGING: Improve heart and lung capacity
by simulates daily jogging.
• P12ROLLING: Improves your strength, speed
and endurance by automatically changing the
resistance levels through-out your workout.

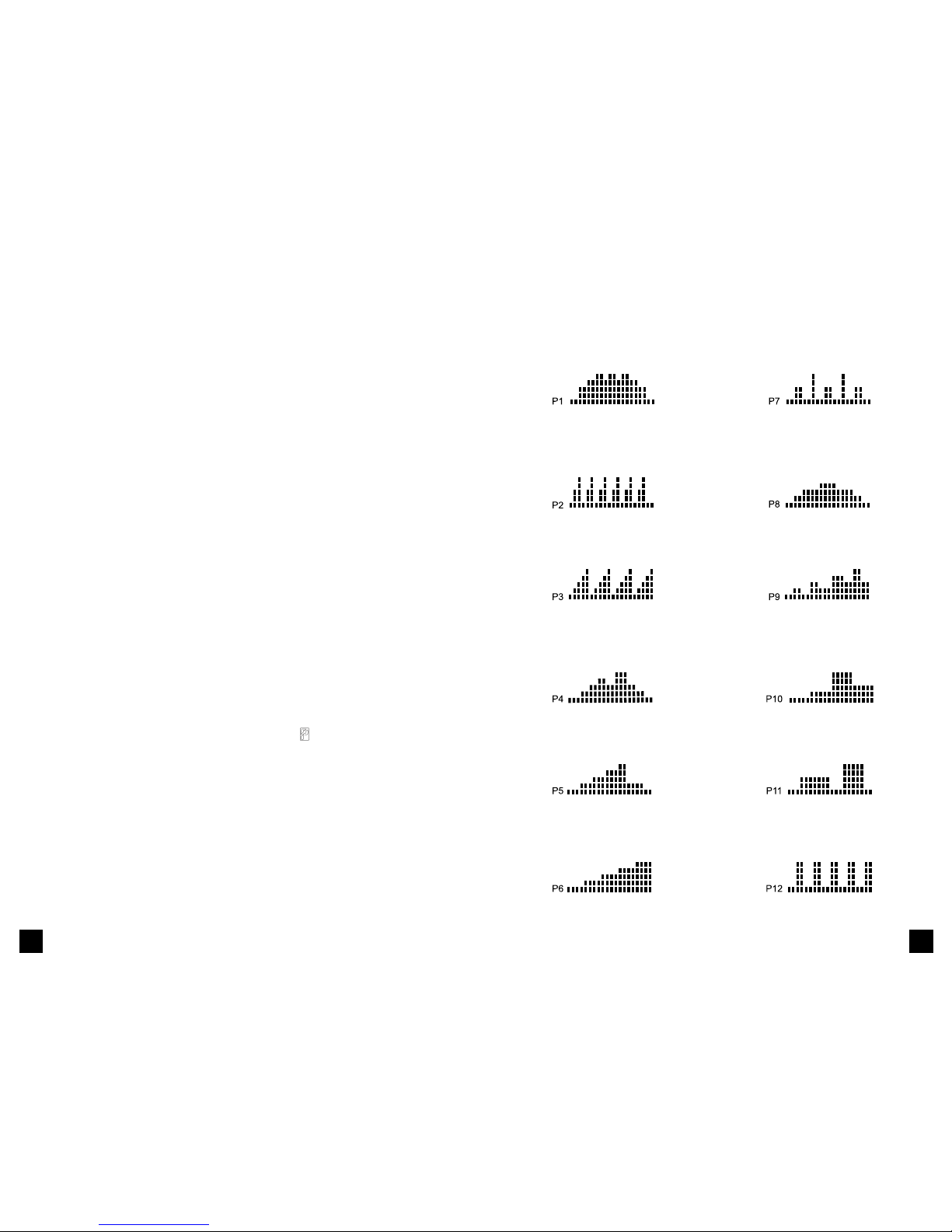

E903 PRESET WORKOUT PROFILES

12 13

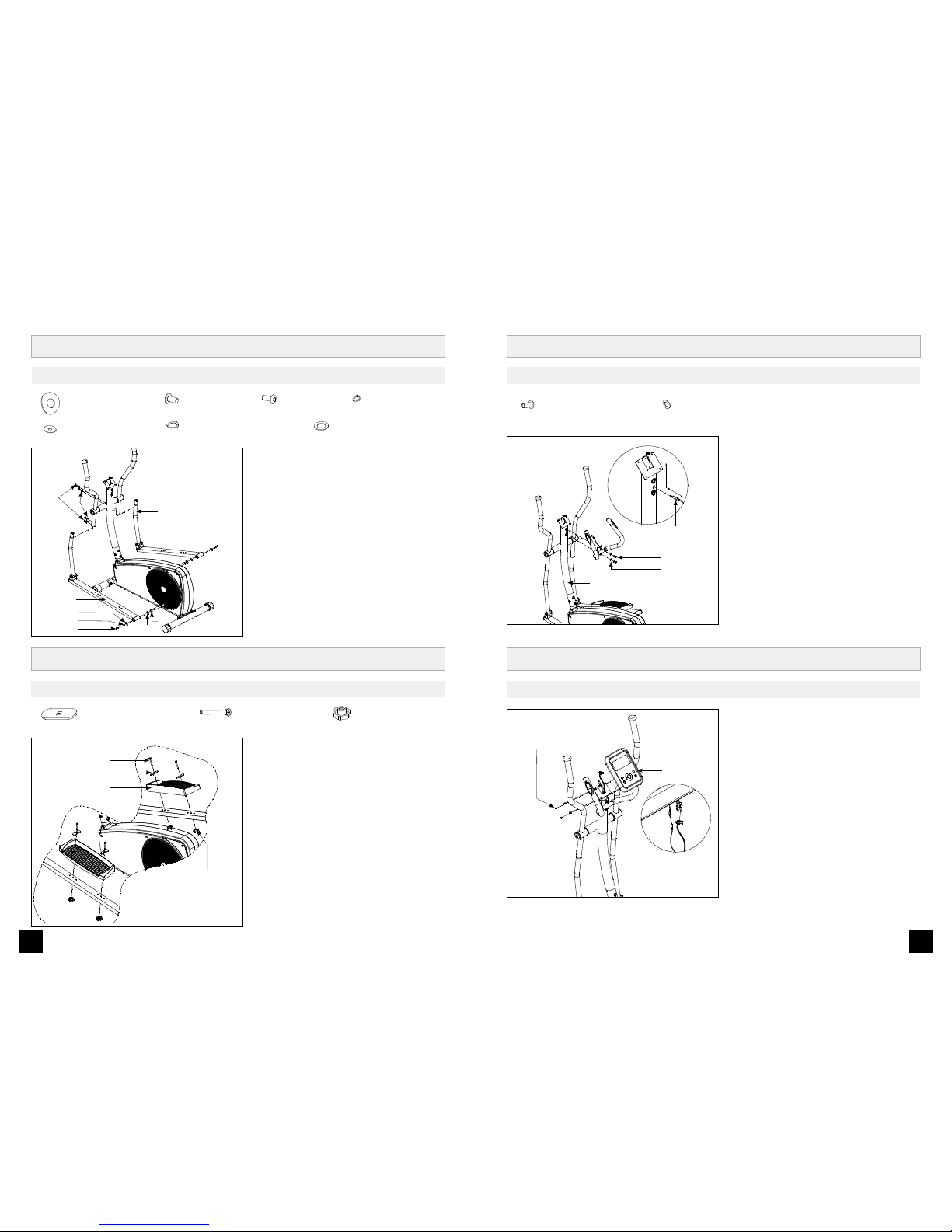

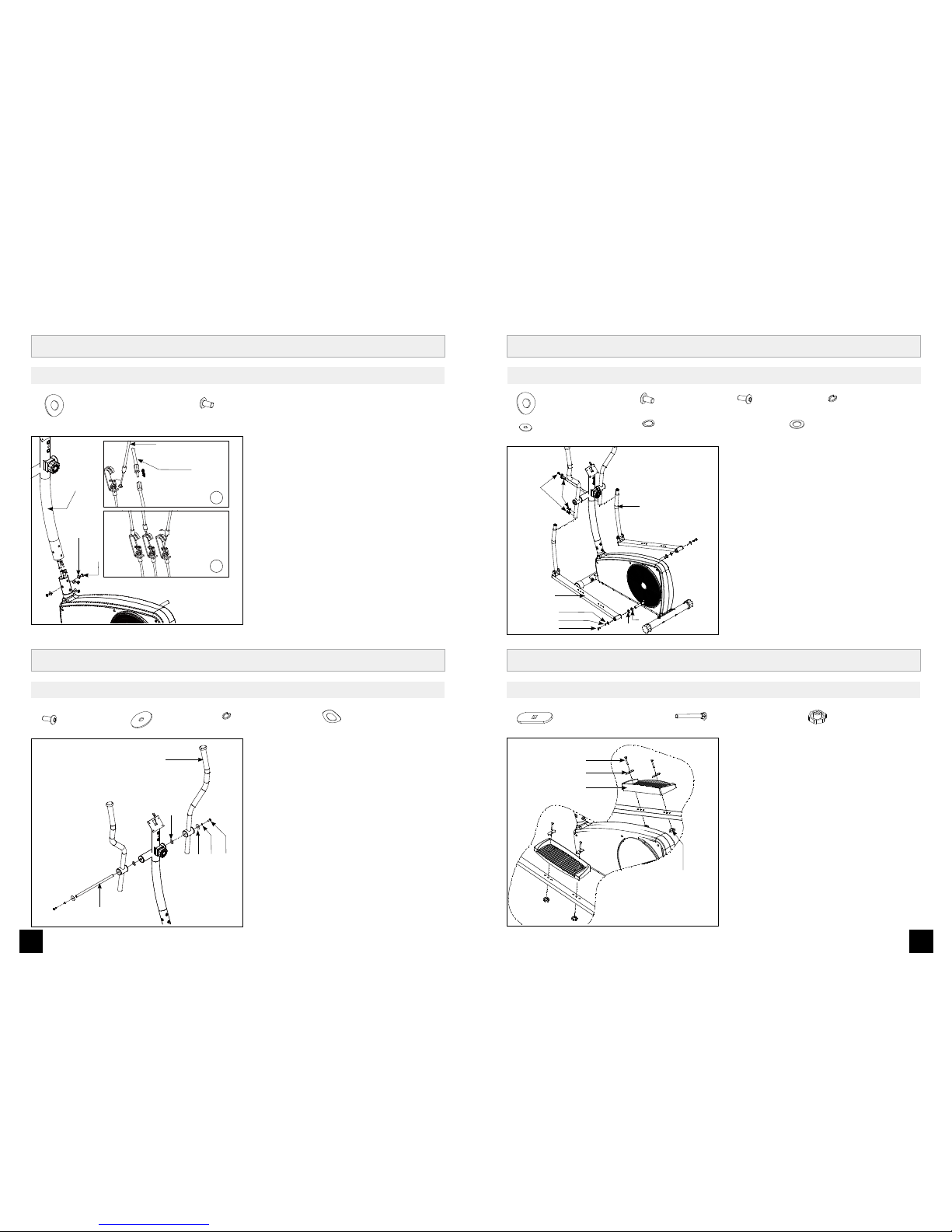

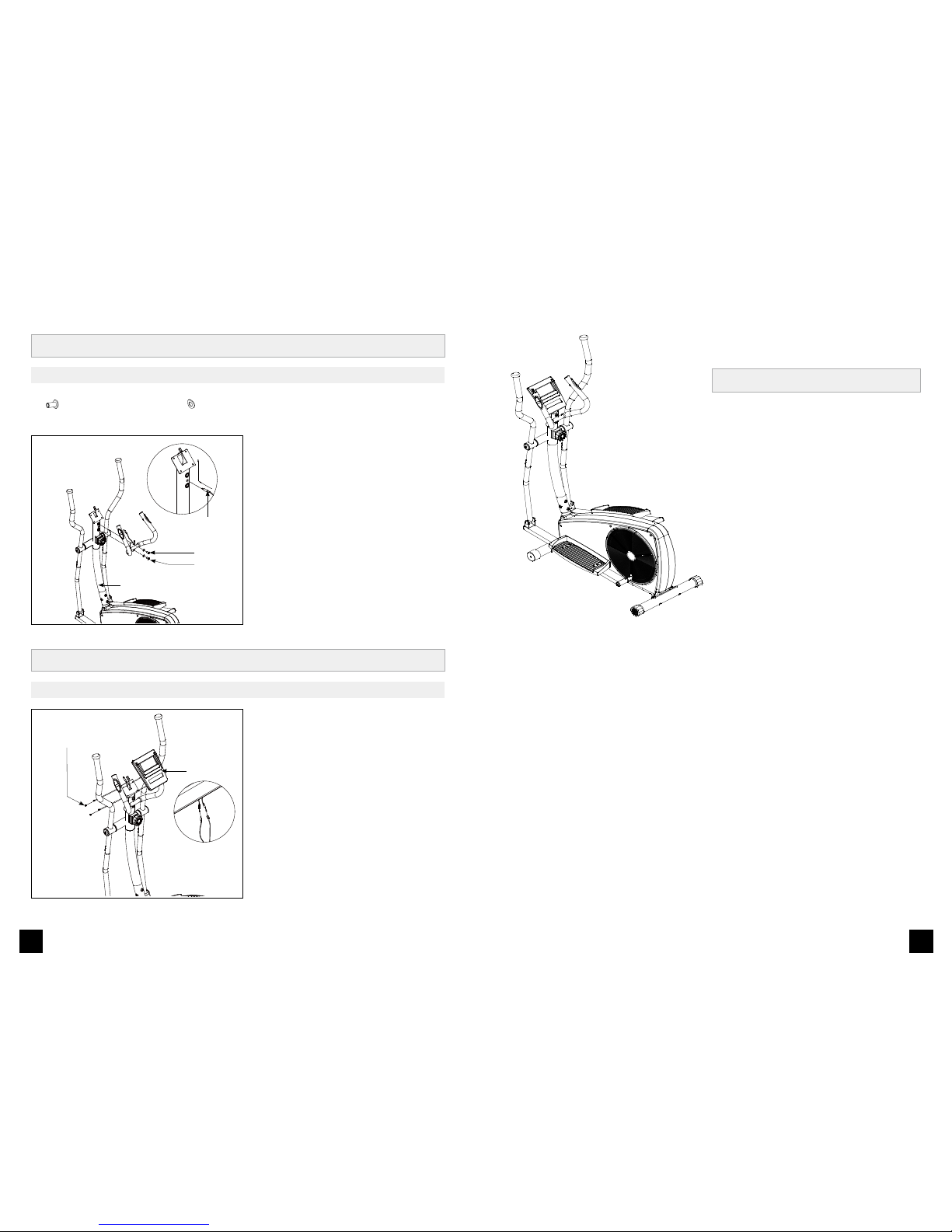

ASSEMBLY INSTRUCTIONS

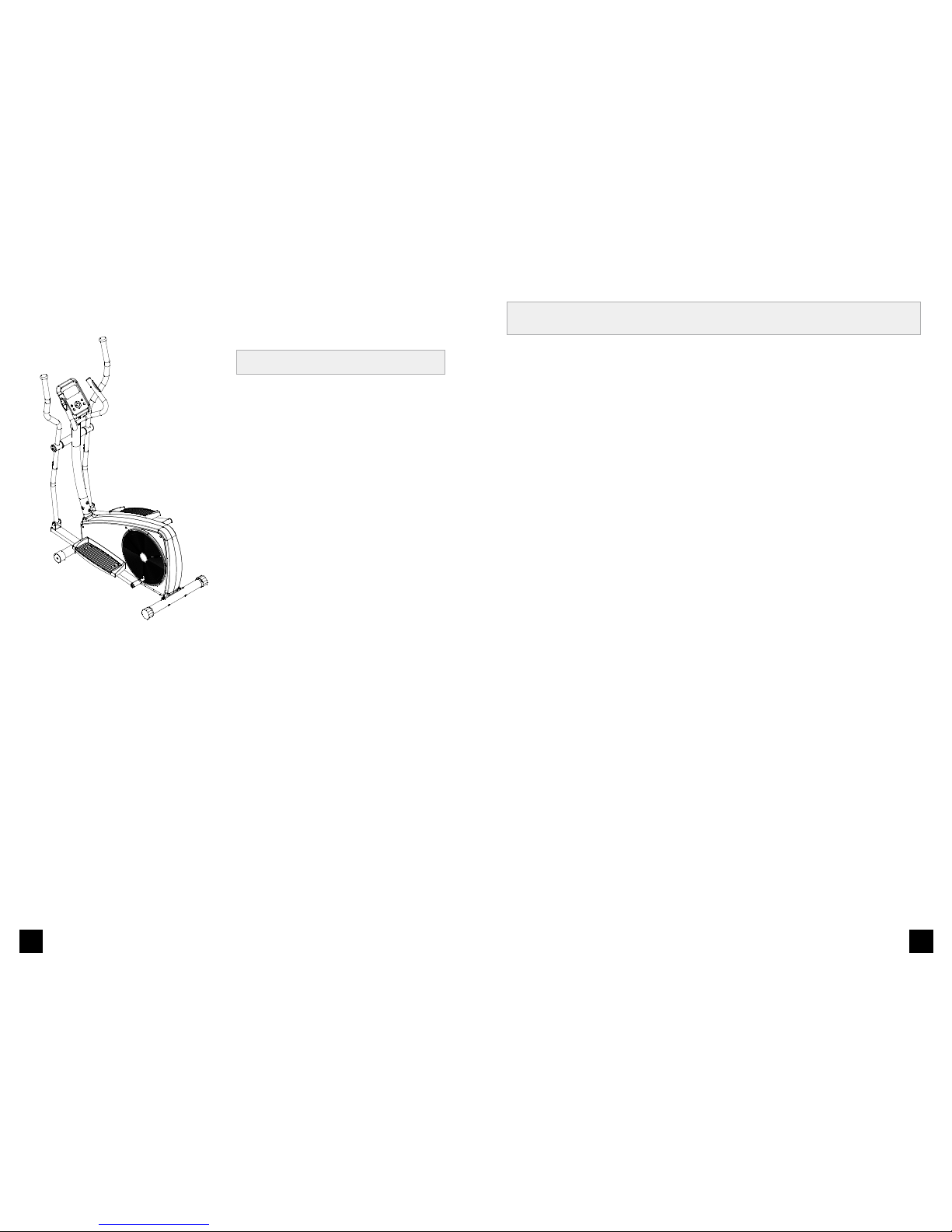

MAIN PARTS:
（E902） （E903）
Long Bolt(A)
M8x70 4 pcs
Nut(B)
M8 4 pcs
Spring Washer(G)
Φ8 4 pcs
Wavy Washer(C)
Φ8.5xΦ22xT1.5 12 pcs
Hex Screw(D)
M8x15 8 pcs
Hex Screw(E)
M8x20, 4 pcs
L Hex Wrench with
Screw Driver M6 1pc
L Hex Wrench
M6 1pc2 Ends Wrench 13/17
Pivot Flat Washer(F)
2 pcs
Pedal Arm Sleeve(K)
2 pcs
Pedal Fixing Plate(L)
4 pcs
Fix Handle Hex Screw(O)
M10x20 2pcsPedal Knob(N) 4 pcs
Pedal Bolt(M)
M6x52 4 pcs
Fix Handle Wavy Washer (P)
Φ10.5 2 pcs
Pivot Wavy Washer(H)
Φ30xΦ13xT0.3 2 pcs
Pedal Flat Washer(I)
2 pcs
Pedal Arm Wavy Washer(J)
Φ30xΦ20xT0.3 2pcs
Screw
M5 x10 4 pcs
PRE-ASSEMBLed PARTS:
STE P 1
STE P 2
HARDWARE CONTENTS:
HARDWARE CONTENTS:
Long Bolt (A)
M8×70 2 pcs
Long Bolt (A)
M8x70 2 pcs
Nut (B)
M8 2 pcs
Nut (B)
M8 2 pcs
Wavy Washer (C)
Φ8.5xΦ22xT1.5 2 pcs
Wavy Washer (C)
Φ8.5xΦ22xT1.5 2 pcs
A. Open hardware for step 1.
B. Attach the FrontStabilizerTube to the Main
Frame using 2 LongBolts(A), 2 Wavy
Washers(C) and 2 Nuts(B).
A. Open hardware for step 2.
B. Attach the RearStabilizerTube to the Main
Frame using 2 LongBolts(A), 2 Wavy
Washers(C) and 2 Nuts(B).
FRONT STABILIZER TUBE MAIN FRAME
MAIN FRAME
REAR STABILIZER
TUBE
A
A
C
C
B
B
E903 ASSEMBLY

14 15
1
2
STE P 3
STE P 4
HARDWARE CONTENTS:
HARDWARE CONTENTS:
Wavy Washer (C)
Φ8.5xΦ22xT1.5 4 pcs
A. Open hardware for step 3.
B. Connect UpperSensorCable to Lower
SensorCable.
C. Then connect UpperResistanceKnob
AdjustmentCable intoLowerAdjustment
Cradle. Position ball end of UpperCable wire
into LowerCradle, pull up extend wire and
locate into top of Cradle.
D. Once all cables are connected, position
ConsoleMast and assemble using 4 Hex
Screws(D)& 4 WaveWashers(C).
A. Open hardware for step 4.
B. Insert Upper HandlebarAxle through Console
Mast pivot point. Then slide onto Handlebar
Axle1 PivotWavyWasher(H).
C. Slide into position left hand side Upper
Handlebar and fix in place using 1 HexScrew
(E), 1 SpringWasher(G) and 1 PivotFlat
Washer(F).
D. Repeat steps B-C on the opposite side.
Hex Screw (E)
M8×20, 2 pcs
Pivot Flat (F)
Washer, 2 pcs
Spring Washer (G)
Φ8, 2 pcs
Pivot Wavy Washer (H)
Φ30xΦ13xT0.3, 2 pcs
Hex Screw (D)
M8x15 4 pcs
CONSOLE
MAST
UPPER HANDLEBAR
HANDLEBAR AXLE
SENSOR
CABLE
RESISTANCE KNOB
ADJUSTMENT CABLE
C
D
H
F G E
Wavy Washer (C)
Φ8.5xΦ22xT1.5, 4 pcs
STE P 5
STE P 6
HARDWARE CONTENTS:
HARDWARE CONTENTS:
Hex Screw (E)
M8×20, 2 pcs
Pedal Fixing Plate (L)
4 pcs
Pedal Bolt (M)
M6x52, 4 pcs
Pedal Knob (N)
4 pcs
Spring Washer (G)
Φ8, 2 pcs
Pedal Flat Washer (I)
2 pcs
Pedal Arm Wavy Washer (J)
Φ30xΦ20xT0.3, 2 pcs
Pedal Arm Sleeve (K)
2 pcs
Hex Screw (D)
M8x15, 4 pcs
A. Open hardware for step 5.
B. Connect Upper & LowerHandlebar left hand
side handlebars and fix in place using 2 Hex
Screws(D) and 2 WavyWashers(C).
C. Once Handlebar assembly is secure, slide
1 PedalArmSleeve(K) & 1 PedalArm
WavyWasher(J) onto pedal arm axle, and
then slide on PedalArm, fix this in place
with 1 HexScrew(E), 1 SpringWasher(G) &
1 PedalFlatWasher(I).
D. Repeat steps B-C on the opposite side.
A. Open hardware for step 6.
B. Fixing FootPlate, position FootPlate in one
of three locations fixing in place with 1 Pedal
Bolt(M), PedalFixingPlate(L) and 1 Pedal
Knob(N).
C. Repeat step B on the opposite side.
LOWER HANDLEBAR
FOOT PLATE
EJ
K
G
I
PEDAL ARM
M
L
N
D
C

16 17
STE P 7
STE P 8
HARDWARE CONTENTS:
HARDWARE CONTENTS:
A. Open hardware for step 7.
B. Carefully thread heart rate cable through
ConsoleMast opening and pull through top
of ConsoleMast. Fix handlebar to the Console
Mast using 2 FixHandleHexScrews(O) and 2
FixHandleWavyWashers(P).
A.
Remove Pre-assembledScrews from Console.
B. Connect UpperSensorCable to Lower
SensorCable in rear of Console, connect
heart rate cable to console cable in rear of
Console.
C. Carefully tuck away all Cables in Console
Mast and fix Console in place with 4 Pre-
assembledScrews.
NOTE:All hardware are pre-assembled.
Fix Handle Wavy Washer (P)
Φ10.5, 2 pcs
Fix Handle Hex Screw (O)
M10x20, 2 pcs
CONSOLE MAST
CONSOLE
PRE-ASSEMBLED SCREW
O
P
HAND PULSE
GRIP
E902
Max. User Weight: 130 kg / 286 lbs
Product Weight: 48 kg / 106 lbs
Overall Dimension: 125 x 60 x 158 cm / 49” x 24” x 62”
(E902)
ASSEMBLY COMPLETE!

18 19
E903 ASSEMBLY
STE P 1 STE P 3
STE P 2 STE P 4
HARDWARE CONTENTS: HARDWARE CONTENTS:
HARDWARE CONTENTS: HARDWARE CONTENTS:
Long Bolt (A)
M8×70 2 pcs
Long Bolt (A)
M8×70 2 pcs
Nut (B)
M8 2 pcs
Nut (B)
M8 2 pcs
Wavy Washer (C)
Φ8.5XΦ22XT1.5 2 pcs
Wavy Washer (C)
Φ8.5XΦ22XT1.5 4 pcs
Wavy Washer (C)
Φ8.5XΦ22XT1.5 2 pcs
A. Open hardware for step 1.
B. Attach the FrontStabilizerTube to the Main
Frame using 2 LongBolts(A), 2 Wavy
Washers(C) and 2 Nuts(B).
A. Open hardware for step 3.
B. Carefully connect lower and upper console
cable.
C. Once all cables are connected, position
ConsoleMast and assemble using 4 Hex
Screws(D) & 4 WaveWashers(C).
A. Open hardware for step 2.
B. Attach the RearStabilizerTube to the Main
Frame using 2 LongBolts(A), 2 Wavy
Washers(C) and 2 Nuts(B).
A. Open hardware for step 4.
B. Insert Upper HandlebarAxle through Console
Mast pivot point. Then slide onto Handlebar
Axle1 PivotWavyWasher(H).
C. Slide into position left hand side Upper
Handlebar and fix in place using 1 HexScrew
(E), 1 SpringWasher(G) and 1 PivotFlat
Washer(F).
D. Repeat steps B-C on the opposite side.
Hex Screw (E)
M8×20, 2 pcs
Pivot Flat (F)
Washer, 2 pcs
Spring Washer (G)
Φ8, 2 pcs
Pivot Wavy Washer (H)
Φ30xΦ13xT0.3, 2 pcs
Hex Screw (D)
M8x15 4 pcs
FRONT STABILIZER TUBE MAIN FRAME
MAIN FRAME
REAR STABILIZER
TUBE
A
A
C
C
B
B
CONSOLE
MAST
UPPER HANDLEBAR
HANDLEBAR AXLE
CONSOLE
CABLE
C
D
H
F G E

20 21
Wavy Washer (C)
Φ8.5XΦ22XT1.5, 4 pcs
STE P 5
STE P 6
HARDWARE CONTENTS:
HARDWARE CONTENTS:
Hex Screw (E)
M8×20, 2 pcs
Pedal Fixing Plate (L)
4 pcs
Pedal Bolt (M)
M6x52, 4 pcs
Pedal Knob (N)
4 pcs
Spring Washer (G)
Φ8, 2 pcs
Pedal Flat Washer (I)
2 pcs
Pedal Arm Wavy Washer (J)
Φ30xΦ20xT0.3, 2 pcs
Pedal Arm Sleeve (K)
2 pcs
Hex Screw (D)
M8x15, 4 pcs
A. Open hardware for step 5.
B. Connect Upper & LowerHandlebar left hand
side handlebars and fix in place using 2 Hex
Screws(D) and 2 WavyWashers(C).
C. Once Handlebar assembly is secure, slide
1 PedalArmSleeve(K) & 1 PedalArm
WavyWasher(J) onto pedal arm axle, and
then slide on PedalArm, fix this in place
with 1 HexScrew(E), 1 SpringWasher(G) &
1 PedalFlatWasher(I).
D. Repeat steps B-C on the opposite side.
A. Open hardware for step 6.
B. Fixing FootPlate, position FootPlate in one
of three locations fixing in place with 1 Pedal
Bolt(M), PedalFixingPlate(L) and 1 Pedal
Knob(N).
C. Repeat step B on the opposite side.
LOWER HANDLEBAR
FOOT PLATE
E J
K
G
I
PEDAL ARM
M
L
N
DC
STE P 7
STE P 8
HARDWARE CONTENTS:
HARDWARE CONTENTS:
A. Open hardware for step 7.
B. Carefully thread lower heart rate cable through
ConsoleMast opening and pull through top
of ConsoleMast. Fix handlebar to the Console
Mast using 2 FixHandleHexScrews(O) and
2 FixHandleWavyWashers(P).
A. Remove Pre-assembledScrews from Console.
B. Connect UpperSensorCable to Lower
SensorCable, then connect heart rate
Cable to the ConsoleCable.
C. Carefully tuck away all Cables in ConsoleMast
and fix Console in place with 4 Pre-assembled
Screws.
NOTE: All hardware are pre-assembled.
Fix Handle Wavy Washer (P)
Φ10.5, 2 pcs
Fix Handle Hex Screw (O)
M10 x 20, 2 pcs
CONSOLE MAST
CONSOLE
PRE-ASSEMBLED SCREW
O
P
HAND PULSE
GRIP

22 23
(E903)
B903
Max. User Weight: 130 kg / 286 lbs
Product Weight: 48 kg / 106 lbs
Overall Dimension: 125 x 60 x 158 cm / 49” x 24” x 62”
ASSEMBLY COMPLETE!
CONDITIONING GUIDELINES
ALWAYS CONSULT YOUR PHYSICIAN BEFORE BEGINNING AN EXERCISE PROGRAM.
HOW OFTEN? (Frequency of Workouts)
The American Heart Association recommends that you exercise at least 3 to 4 days per week to maintain
cardiovascular fitness. If you have other goals such as weight or fat loss, you will achieve your goal faster
with more frequent exercise. Whether it’s 3 days or 6 days, remember that your ultimate goal should be to
make exercise a lifetime habit. Many people are successful staying with a fitness program if they set aside
a specific time of day to exercise. It doesn’t matter whether it’s in the morning before breakfast, during
lunch hour or while watching the evening news. What’s more important is that it’s a time that allows you to
keep a schedule, and a time when you won’t be interrupted. To be successful with your fitness program,
you have to make it a priority in your life. So decide on a time, pull out your day planner and pencil in your
exercise times for the next month!
HOW LONG? (Duration of Workouts)
For aerobic exercise benefits, it’s recommended that you exercise from between 24 and 60 minutes per
session. But start slowly and gradually increase your exercise times. If you’ve been sedentary during the
past year, it may be a good idea to keep your exercise times to as little as five minutes initially. Your body
will need time to adjust to the new activity. If your goal is weight loss, a longer exercise session at lower
intensities has been found to be most effective. A workout time of 48 minutes or more is recommended
for best weight loss results.
HOW HARD? (Intensity of Workouts)
How hard you workout is also determined by your goals. If you use your machine to prepare for a 5K
workout, you will probably work out at a higher intensity than if your goal is general fitness. Regardless
of your long term goals, always begin an exercise program at low intensity. Aerobic exercise does not
have to be painful to be beneficial! There are two ways to measure your exercise intensity. The first is
by monitoring your heart rate(using the grip pulse handlebars), and the second is by evaluating your
perceived exertion level(this is simpler than it sounds!).
PERCEIVED EXERTION LEVEL
A simple way to gauge your exercise intensity is to evaluate your perceived exertion level. While
exercising, if you are too winded to maintain a conversation without gasping, you are working out too
hard. A good rule of thumb is to work to the point of exhilaration, not exhaustion. If you cannot catch your
breath, it’s time to slow down. Always be aware of these warning signs of overexertion.

24 25

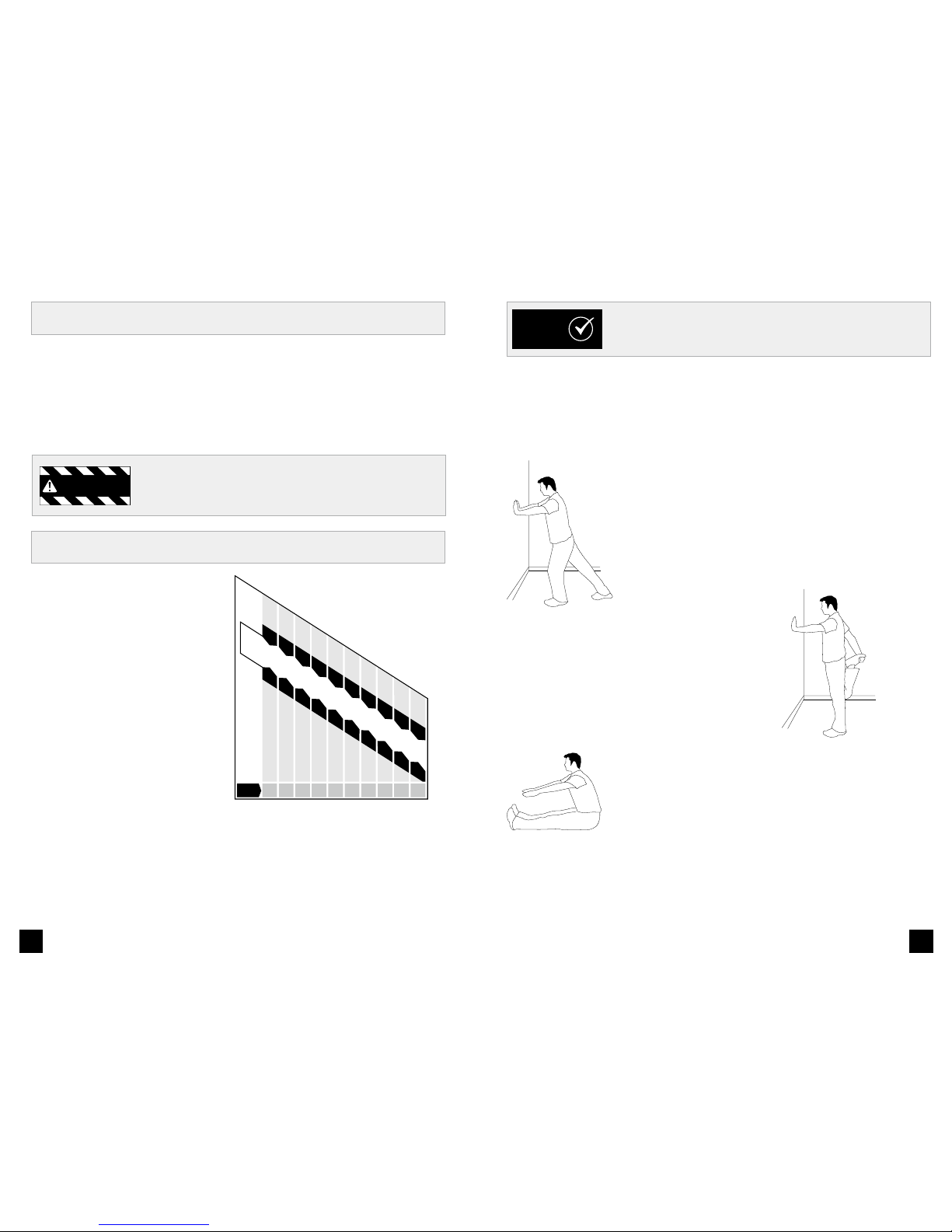

HEART RATE
TARGET HEART RATE ZONE CHART
HANDLEBARS
Place the palm of your hands directly on the grip pulse handlebars. Both hands must grip the bars for your
heart rate to register. It takes 5 consecutive heart beats (15-20 seconds) for your heart rate to register. When
gripping the pulse handlebars, do not grip tightly. You may experience an erratic readout if consistently
holding the grip pulse handlebars. Make sure to clean the pulse sensors to ensure proper contact can be
maintained.
WARNING: Do not press excessively hard on the sensor as this may cause damage.
What is Target Heart Rate Zone?
Target Heart Rate Zone tells you the number
of times per minute your heart needs to beat to
achieve a desired workout effect. It is represented
as a percentage of the maximum number of times
your heart can beat per minute. Target Zone will vary
for each individual, depending on age, current level
of conditioning, and personal fitness goals. The
American Heart Association recommends working-
out at a Target Heart Rate Zone of between 60%
and 75% of your maximum heart rate. A beginner
will want to workout in the 60% range while a more
experienced exerciser will want to workout in the
70-75% range. See chart for reference.
EXAMPLE:
For a 42-year-old user: Find age along the bottom of the chart (round to 40), follow age column up to the
target zone bar. Results: 60% of maximum Hear Rate = 108 Beats Per Minute, 75% of maximum Heart Rate
= 135 Beat Per Minute.
ALWAYS CONSULT YOUR PHYSICIAN BEFORE BEGINNING AN EXERCISE PROGRAM.
%001
%57
%06
ETUNIM REP STAEB
20 25 30 35 40 45 50 55 60 65
AGE
ENOZ TEGRAT
21 0 11 7 11 4 11 1 01 8 01 5 01 2 99 79 39
51 0 41 6 41 3 31 9 31 5 31 1 21 8 21 4 21 0 11 6
WARNING
The heart rate reading is intended only as an exercise aid and not for medical
purpose. Your heart rate monitoring systems may be inaccurate. Various
factors may affect the accuracy of your heart rate reading. Over exercise may
result in serious injury or death. If you feel faint stop exercise immediately.
STRETCH FIRST
Before using your product, it is best to take a few minutes to do a few gentle stretching exercises.
Stretching prior to exercise will improve flexibility and reduce chances of exercise related injury. Ease
into each of these stretches with a slow gentle motion. Do not stretch to the point of pain. Make sure
not to bounce while doing these stretches.
1. STANDING CALF MUSCLE STRETCH
Stand near a wall with the toes of your left foot about 18" from the wall,
and the right foot about 12" behind the other foot. Lean forward, pushing
against the wall with your palms. Keep your heels flat and hold this position
for a count of 15 seconds. Make sure that you do not bounce while
stretching. Repeat on the other side.
2. STANDING QUADRICEP STRETCH
Using a wall to provide balance, grasp your left ankle
with your left hand and hold your foot against the back
of your thigh for 15 seconds. Repeat with your right
ankle and hand.
3. SITTING HAMSTRING & LOWER BACK MUSCLE STRETCH
Sit on the floor with your legs together and straight out in front of you. Do
not lock your knees. Extend your fingers towards your toes and hold for a
count of 15 seconds. Make sure that you do not bounce while stretching.
Sit upright again. Repeat one time.
STRETCHING
TIPS

26 27
WARM UP
The first 2 to 5 minutes of a workout should be devoted to warming up. The warm-up will limber your
muscles and prepare them for more strenuous exercise. Make sure that you warm-up on your product
at a slow pace. The warm up should gradually bring your heart rate into your Target Heart Rate Zone.
COOL DOWN
Never stop exercising suddenly! A cool-down period of 3-5 minutes allows your heart to readjust to the
decreased demand. Make sure that your cool down period consists of a very slow pace to allow your
heart rate to lower. After the cool-down, repeat the stretching exercises listed previously to loosen and
relax your muscles.
An important step in developing a long term fitness program is to determine your goals. Is your
primary goal for exercising to lose weight? Improve muscle? Reduce stress? Prepare for the spring
racing schedule? Knowing what your goals are will help you develop a more successful exercise
program. Below are some common exercise goals:
• Weight Loss - lower intensity, longer duration workouts
• Improve Body Shape and Tone - interval workouts, alternate between high and low intensities
• Increased Energy Level - more frequent daily workouts
• Improved Sports Performance - high intensity workouts
• Improved Cardiovascular Endurance - moderate intensity, longer duration workouts
If possible try to define your personal goals in precise, measurable terms, and then put your goals
in writing. The more specific you can be, the easier it will be to track your progress. If your goals are
long term, divide them up into monthly and weekly segments. Longer term goals can lose some of the
immediate motivation benefits. Short term goals are easier to achieve. Your console provides you with
several readouts that can be used to record your progress. You can track Distance, Calories or Time.
KEEPING AN EXERCISE DIARY
To make your personal exercise log book, photocopy the weekly and monthly log sheets, which are
located on the following pages.
As your fitness improves, you can look back and see how far you’ve come!
ACHIEVING YOUR FITNESS GOALS
THE IMPORTANCE OF A WARM-UP & COOL DOWN
TIPS
TIPS
WEEKLY LOG SHEETS
WEEK # WEEKLY GOAL
WEEKLY TOTALS :
D AY
SUNDAY
MONDAY
TUESDAY
WEDNESDAY
THURSDAY
FRIDAY
SATURDAY
DATE DISTANCE CALORIES TIME COMMENTS
WEEK # WEEKLY GOAL
WEEKLY TOTALS :
D AY
SUNDAY
MONDAY
TUESDAY
WEDNESDAY
THURSDAY
FRIDAY
SATURDAY
DATE DISTANCE CALORIES TIME COMMENTS
WEEK # WEEKLY GOAL
WEEKLY TOTALS :
D AY
SUNDAY
MONDAY
TUESDAY
WEDNESDAY
THURSDAY
FRIDAY
SATURDAY
DATE DISTANCE CALORIES TIME COMMENTS

28 29
MONTHLY LOG SHEETS TROUBLESHOOTING
Tempo Fitness elliptical is designed to be reliable and maintenance-free. However, if you do
experience problems with your elliptical, please refer to the troubleshooting guide listed below.
PROBLEM: The console does not light up.
SOLUTION: Verify the following:
• Check the batteries.
• Is the outlet of the machine fuctional? Double check that the breaker has not tripped.
• The correct adapter is being used. Only use the adapter provided or authorized by Tempo Fitness.
• The adapter is not pinched or damaged and is properly plugged into the outlet AND the machine.
• The power switch is turned to the ON position (may not apply to all models).
• Turn off the machine and unplug power cord. Remove the console and check that all connections
to the console are secure and not damaged or pinched
PROBLEM: The console lights up but the Time/RPM’s do not count.
SOLUTION: Verify the following:
• Turn off machine and unplug power cord. Remove the console and check that all connections to the
console are secure and not damaged or pinched.
• If doing the above does not fix the problem, the speed senor and/or magnet may have become
dislodged or damaged.
PROBLEM: The resistance levels seem to be incorrect, seeming too hard or too easy.
SOLUTION: Verify the following:
• The correct adapter is being used. Only use the adapter provided or authorized by Tempo Fitness.
• Reset the console and allow the resistance to reset to the default position. Restart and retry the
resistance levels.
PROBLEM: The elliptical makes a squeaking or chirping noise.
SOLUTION: Verify the following:
• The elliptical is on a level surface.
• Loosen all bolts attached during the assembly process, grease the threads, and tighten again.

30 31
PROBLEM: There is no heart rate reading.
SOLUTION: Remove the console and verify that the heart rate cables are attached properly, making
sure that the cables are securely inserted into the console.
Check your exercise environment for sources of interference such as high power lines, large motors, etc.
YOU MAY EXPERIENCE AN ERRATIC READOUT UNDER THE FOLLOWING CONDITIONS:
• Gripping the heart rate handlebars too tight. Try to maintain moderate pressure while holding
onto the heart rate handlebars.
• Constant movement and vibration due to constantly holding the heart rate grips while exercising.
• When you are breathing heavily during a workout.
• When your hands are constricted by wearing a ring.
• When your hands are dry or cold. Try moistening your palms or rubbing them together to warm.
• Anyone with heavy arrhythmia.
• Anyone with arteriosclerosis or peripheral circulation disorder.
• Anyone whose skin on the measuring palms is especially thick.
NOTE: Outside interference sources such as computers and fluorescent lights may cause the heart rate
reading to be erratic.
If the above troubleshooting section does not remedy the problem, discontinue use.
The following information may be asked of you when you call. Please have these items readily available:
• Model Name
• Serial Number
• Date of Purchase (receipt or credit card statement)
In order for your local dealer to service your elliptical, they may need to ask detailed questions about the
symptoms that are occurring. Some troubleshooting questions that may be asked are:
• How long has this problem been occurring?
• Does this problem occur with every use? With every user?
• If you are hearing a noise, does it come from the front, back or inside? What kind of noise is it
(thumping, grinding, squeaking, chirping etc.)?
• If you are having a resistance problem what is occurring? Is the resistance always too hard or too easy?
Does the resistance respond when pushing the buttons on the console? Does the resistance constantly
cycle through the levels during the workout?
• Has the machine been maintained per the maintenance schedule?
• Does the problem occur when using the handlebars? Without using the handlebars?
Answering these and other questions will give the technicians the ability to send proper replacement parts
and the service necessary to get you and your Tempo Fitness elliptical running again!
HEART RATE TROUBLESHOOTING
PLEASE CALL YOUR LOCAL DEALER FOR SUPPORT.
ARE THE SOUNDS MY ELLIPTICAL MAKES NORMAL?
WHY IS THE ELLIPTICAL I HAD DELIVERED LOUDER THAN THE ONE AT THE STORE?
HOW LONG WILL THE DRIVE BELT LAST?
CAN I MOVE THE TRAINER EASILY ONCE IT IS ASSEMBLED?
Our ellipitcals are some of the quietest available because they use belt drives and friction free
magnetic resistance. We use the highest grade bearings and belts to minimize noise. However,
because the resistance system itself is so quiet, you will occasionally hear other slight mechanical
noises. These mechanical noises, which may or may not be intermittent, are normal and are caused
by the transfer of
significant amounts of energy to a rapidly spinning flywheel. All bearings, belts and
other rotating parts will generate some noise which will transmit through the casing and frame. It is
also normal for these sounds to change slightly during a workout and over time because of thermal
expansion of the parts.
All fitness products seem quieter in a large store showroom because there is generally more
background noise than in your home. Also, there will be less reverberation on a carpeted concrete
floor than on a wood overlay floor. Sometimes a heavy rubber mat will help reduce reverberation
through the floor. If a fitness product is placed close to a wall, there will be more reflected noise.
The computer modeling we have done indicated virtually thousands of maintenance free hours. Belts
are now commonly used in far more demanding applications such as motorcycle drives.
Your elliptical has a pair of transport wheels built into the front legs. It is easy to move your elliptical
by rolling it on the front transport wheels. It is important that you place your elliptical in a comfortable
and inviting room. Your elliptical is designed to use minimal floor space. Many people will place
their ellipticals facing the TV or a picture window. If at all possible, avoid putting your elliptical in a
unfinished basement. To make exercise a desirable daily activity for you, the elliptical should be in a
comfortable setting.
COMMON PRODUCT QUESTIONS

32
WHAT KIND OF ROUTINE MAINTENANCE IS REQUIRED?
HOW DO I CLEAN MY ELLIPTICAL?
We use sealed bearings throughout our ellipticals so lubrication is not needed. The most important
maintenance step is to simply wipe your perspiration off the trainer after each use.
Clean with soap and water cleaners only. Never use solvents on plastic parts.
Cleanliness of your elliptical and its operating environment will keep maintenance problems and
service calls to a minimum. For this reason, Tempo Fitness recommends that the following preventive
maintenance schedule be followed.
AFTER EACH USE (DAILY)
Turn off the elliptical by unplugging the power cord from the wall outlet
• Wipe down the elliptical with a damp cloth. Never use solvents, as they can cause damage to the
elliptical.
• Inspect the power cord. If the power cord is damaged, contact your local dealer.
• Make sure the power cord is not underneath the elliptical or in any other area where it can become
pinched or cut.
WEEKLY
Clean underneath the elliptical, following these steps:
• Turn off the elliptical.
• Move the elliptical to a remote location.
• Wipe or vacuum any dust particles or other objects that may have accumulated underneath the
elliptical.
• Return the elliptical to its previous position.
EVERY MONTH
• Inspect all assembly bolts and pedals on the machine for proper tightness.
• Clean any debris off of the pedal arm wheels and guide rails.
MAINTENANCE
To remove power from the elliptical, the power cord must be disconnected from
the wall outlet.
WARNING

E902 E903 102711’ © 2011 Tempo Fitness Products | Made in China
