Tennant 7300 User manual

*330610*
Rider Scrubbe
r
Parts Manua
l
33061
0
Rev. 18 (7-2013
)
The Safe Scrubbing AlternativeR
ESRExtended Scrub System
TennantTrueRParts
IRISta Tennant Technology
730
0
(Battery
)
North America / International
To view, print or download
the latest manual, visit:
www.tennantco.com/manuals
R

When ordering replacement parts, use the illustrated
parts list section in this manual. Before ordering parts or
supplies, be sure to have your machine model number
and serial number available. Only use TENNANT Compa-
ny supplied or equivalent parts. Parts and supplies may be
ordered online, by phone, or mail from any authorized
parts and service center, distributor or from any of the
manufacturer’s subsidiaries.
This machine will provide excellent service. However, the
best results will be obtained at minimum costs if:
The machine is operated with reasonable care.
The machine is maintained regularly - per the ma-
chine maintenance instructions provided.
The machine is maintained with manufacturer sup-
plied or equivalent parts.
MACHINE DATA
Please fill out at time of installation for future reference.
ModelNo.-
Serial No.-
Machine Options −
Sales Rep. −
Sales Rep. phone no. −
Customer Number −
Installation Date −
Machine Data Plate
Tennant Company
PO Box 1452
Minneapolis, MN 55440
Phone: (800) 553−8033 or (763) 513−2850
www.tennantco.com
Thermo−Sentry, SmartRelease, SuperScrub, and MaxPro are US registered and unregistered trademarks of Tennant Company.
Specifications and parts are subject to change without notice.
Copyright 2000 − 2002, 2004 − 2013 TENNANT Company, Printed in U.S.A.

HOW TO USE THIS MANUAL
1‐1
7300330610 (7−00)
HOW TO USE THIS MANUAL
This section on HOW TO USE THIS MANUAL will
tell you how to:
− Find important machine information for
ordering correct repair parts.
− Find TENNANT part numbers.
− Order TENNANT parts and supplies.
IMPORTANT INFORMATION
When placing an order for parts, the machine
model and machine serial number are important.
Refer to the MACHINE DATA box which is filled
out during the installation of your machine. The
MACHINE DATA box is located on the inside of
the front cover of this manual.
The model number of your machine is on the side
of the machine.
The serial number of your machine is printed on
the machine data plate located as shown.

HOW TO USE THIS MANUAL
7300330610 (6−00)
1‐2
FINDING A TENNANT PART NUMBER
This manual contains the following sections:
− HOW TO USE THIS MANUAL
− STANDARD PARTS
− OPTIONS
− BREAKDOWNS
− CROSS REFERENCE
The STANDARD PARTS section lists repair parts
for standard machines. They are grouped in this
general order:
− General wear parts.
− Machine frame and related parts.
− Machine propelling system.
− Scrubbing components.
− Electrical parts.
The OPTION section lists repair parts of options.
The BREAKDOWN section lists available repair
parts of major components.
All sections in this manual consist of parts
illustrations and corresponding parts lists.
The parts illustrations are numbered with Ref
numbers which refer to corresponding parts lists.
The parts lists include a number of columns of
information:
−Ref − column refers to the reference number
on the parts illustration.
o− indicates the part is an assembly.
− indicates the part is included in the
assembly listed just before it.
−TENNANT Part No. − column lists the
TENNANT part number for the part.
−Serial Number − column indicates the set of
machines the part number is applicable to.
Serial numbers change when the machine
design has been modified. The most current
design of the machine is shown in the main
illustration, older designs are boxed in a
corner of the illustration.
−Description − column is a brief description
of the part.
−Qty. − column lists the quantity of that part
used in that area of the machine.

HOW TO USE THIS MANUAL
1‐3
7300330610 (6−00)
NOTE: If a service kit is installed on your
machine, be sure to keep the INSTRUCTION
BULLETIN which came with the kit. It contains
repair parts numbers needed for ordering future
parts.
NOTE: Fasteners used in this machine may be
metric or non-metric. Take care when replacing
hardware to replace with same thread size.
PLACING AN ORDER
Orders may be placed by phone, fax, or by mail.
Phone orders may need written confirmation.
Follow the steps below to insure prompt delivery:
1. Identify the model number of your machine.
2. Identify the serial number of your machine.
3. Find the part number of the part you need.
Do not order by page number or reference
number. If you are not able to find the part
number, call your TENNANT representative
for help or send the old part as a sample.
4. Determine the quantity of the part you need.
5. Provide the following company information:
− Company name
− Customer ID Number
− Shipping address
− Billing address
− First and last name of person ordering
parts
− Telephone number
− Purchase order number
6. Provide definitive shipping instructions.

HOW TO USE THIS MANUAL
7300330610 (6−00)
1‐4
Any claim for loss or damage to a shipment in
transit should be filed promptly with the
transportation company making the delivery.
Shipments will be complete unless the packing list
or order acknowledgement indicates items back
ordered.
If parts received are suspected to be incorrect or
defective, please contact the TENNANT
representative from whom you ordered the part.
They will give authorization for return and/or
handle replacement shipments when required.

STANDARD PARTS
2‐1
7300330610 (7−2013)
SECTION 2
Contents Page
Fig. 1 − General Recomended
Maintenance Items 2-2.............
Fig. 2 − Brushes, Replacement for
MaxPro 1000 2-4..................
Fig. 3 − Brushes, Replacement for
MaxPro 1200 2-6..................

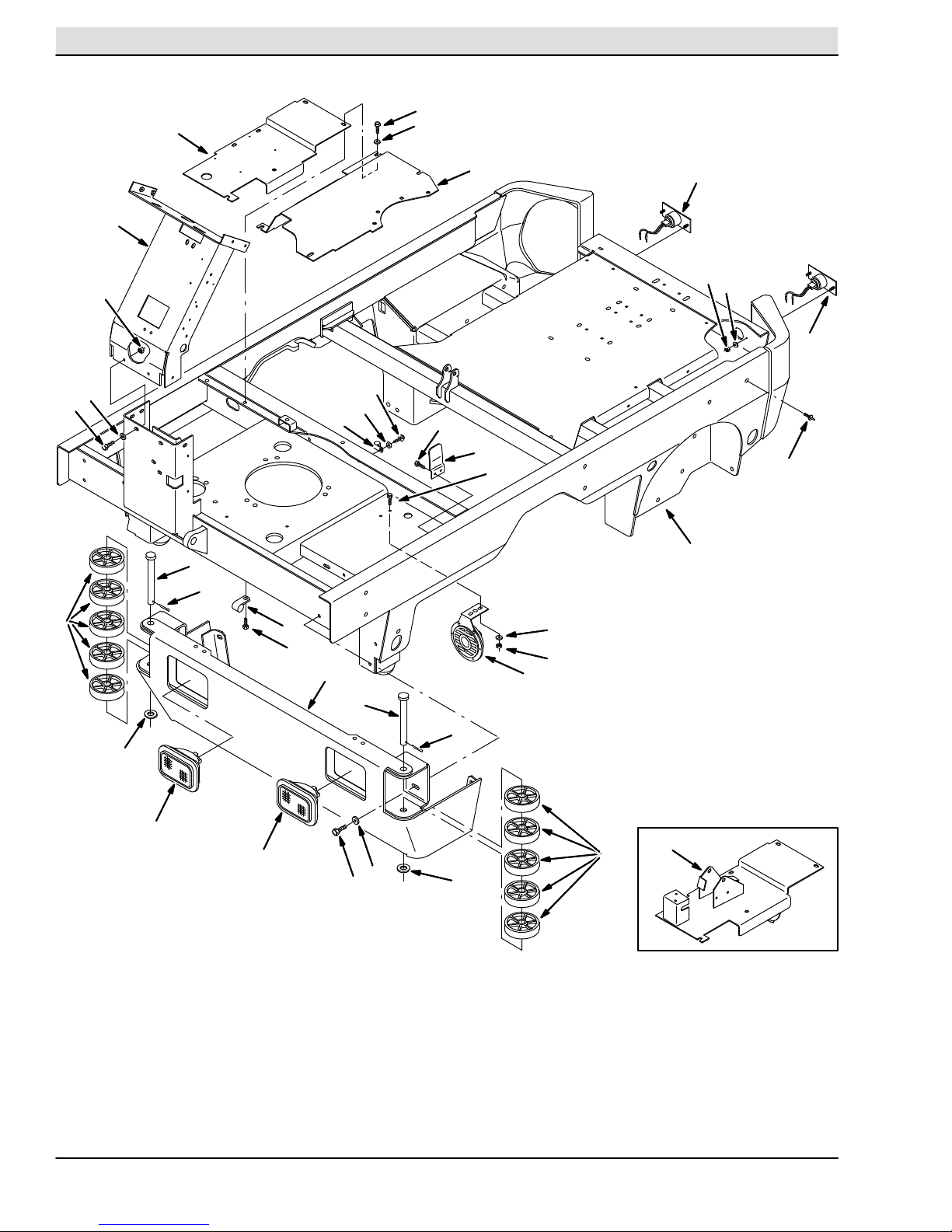

Fig. 4 − Main Frame Group 2-8..............
Fig. 5 − Covers Group, Front 2-10...........
Fig. 6 − Covers Group, Rear 2-12............
Fig. 7 − Electrical Instrument Panel Group 2-14
Fig. 8 − Steering Group 2-16................
Fig. 9 − Seat Group 2-18...................
Fig. 10 − Directional Control Group 2-20.......
Fig. 11 − Wheel Group, Front Drive 2-22.......
Fig. 12 − Brake Pedal Group 2-24.............
Fig. 13 − Wheel And Brake Group, Rear 2-26...
Fig. 14 − Solution Tank Group 2-28............
Fig. 15 − FaST Solution Pump Group
(000000−003746) 2-30.............
Fig. 16 − FaST Air Pump and Detergent
Group (000000−003746) 2-32.......
Fig. 17 − FaST Foam Filter Group
(000000−003746) 2-34.............
Fig. 18 − FaST Pumps and Detergent
Group (003747− ) 2-36........
Fig. 19 − Solution Control Group 2-38.........
Fig. 20 − Recovery Tank Group 2-40..........
Fig. 21 − Recovery Tank Drain Assembly 2-42..
Fig. 22 − Vacuum Fan Group 2-44............
Fig. 23 − Scrub Head Lift Group 2-46..........
Fig. 24 − Max Pro 1000 (Disc−Brush)
Scrub Head Frame Group 2-48......
Fig. 25 − Max Pro 1000 (Disc−Brush)
Scrub Head Linkage Group 2-50.....
Fig. 26 − Max Pro 1000 (Disc−Brush)
Solution Valve Group 2-52..........
Fig. 27 − Max Pro 1000 (Disc−Brush)
Solution Valve Group
(FaST/ec−H2O) 2-54...............
Fig. 28 − Max Pro 1000 (Disc−Brush)
Edge Scrub Group 2-56.............
Fig. 29 − Max Pro 1000 (Disc−Brush)
Right Side Squeegee Group 2-58....
Fig. 30 − Max Pro 1000 (Disc−Brush)
Left Side Squeegee Group 2-60......
Fig. 31 − Squegee Linkage Group, Rear 2-62...
Fig. 32 − Squeegee Lift Group, Rear 2-64......
Contents Page
Fig. 33 − Max Pro 1000 Rear Squeegee
Group (000000−004999) 2-66.......
Fig. 34 − Max Pro 1000 Rear Squeegee
Group (005000− ) 2-68........
Fig. 35 − Electrical Control Box
Circuit Breaker Group 2-70..........
Fig. 36 − Electrical Control Box Contactor
Group (000000− 001705) 2-72.......
Fig. 37 − Electrical Control Box Contactor
Group (001706− ) 2-74........
Fig. 38 − Electrical Control Box Wires
Group (000000− 001705) 2-76.......
Fig. 39 − Electrical Control Box Wires
Group (001706− ) 2-78........
Fig. 40 − Electrical Circuit Board Group 2-80...
Fig. 41 − Electrical Group, FaST
(000000−003746) 2-82.............
Fig. 42 − Electrical Group, FaST
(003747− ) 2-83..............
Fig. 43 − Electrical Schematic
(000000−003746) 2-84.............
Fig. 44 − Electrical Schematic
(003747− ) 2-88..............
Fig. 45 − Electrical Wire Harness
Group, Main 2-93..................
Fig. 46 − Electrical Wire Harness Group,
FaST (000000−003746) 2-103.......
Fig. 47 − Electrical Wire Harness Group,
FaST (003747− ) 2-104........
Fig. 48 − Label Group 2-105..................

STANDARD PARTS
7300330610 (7−2013)
2‐2
Fig. 1 − General Recomended Maintenance Items
Ref. Part No. Serial Number Description Qty.
387660 (000000− ) Tire Assy, Solid, 16.2x6.0 5.7bc/5bolt 1
387014 (000000− ) Tire Assy, 16 X 5 X 12.12 2
66213 (000000− ) Kit, Brake 2
66211 (000000− ) Brake Shoes 2
1037822 (000000− ) Filter, Panl, Dust, 2.0 X 06.1 X 07.6 1
387023 (000000− ) Hose, Vacuum 1
386267 (000000− ) Hose, Vacuum, 91.0l 1
20833 (000000− ) Wheel, 3.0d 1.38w 0.50b 2
223044 (000000− ) Headlight, 36vdc, 15cp 0.7a [#0534242] 2
386053 (000000− ) Belt, Drive (Cylindrical Brush) 1
71101 (000000− ) Cable, .12d, 13.3l, .2clevis/.2clevis 1
o386020 (000000− ) Kit, Maint, 800hr, [7300−Mp1000−Disk] 1
386284 (000000− ) Blade, Sqge, Rear 1
386283 (000000− ) Blade, Sqge, Front 1
386387 (000000− ) Skirt, Front, Scrub Head, 2−Brush, Ele 1
386388 (000000− ) Skirt, Rear, Scrub Head, 2−Brush, Ele 1
387294 (000000− ) Skirt, Side, Scrbr Head, Ele 1
386260 (000000− ) Squeegee, Side 1
20833 (000000− ) Wheel, 3.0d 1.38w 0.50b 1
71101 (000000− ) Cable, .12d, 13.3l, .2clevis/.2clevis 1
387023 (000000− ) Hose, Vacuum 1
386267 (000000− ) Hose, Vacuum, 91.0l 1
1037822 (000000− ) Filter, Panl, Dust, 2.0 X 06.1 X 07.6 1
66213 (000000− ) Kit, Brake 1
386223 (000000− ) Gasket, Tank, Recovery 1
79320 (000000− ) Gasket, Cap, Drain 1
223264 (000000− ) Seal, Rbr, Clsd, 0.25th, 5.8d 03.3h 1
386323 (000000− ) Gasket, Mtg, Fan 1
o386021 (000000− ) Kit, Maint, 800hr, [7300−Mp1200−Disk] 1
386834 (000000− ) Blade, Sqge, Rear 48.0l 1
386833 (000000− ) Blade, Sqge, Front 48.0l 1
386825 (000000− ) Skirt, Front, Scrub Head, 3−Brush, Ele 1
386826 (000000− ) Skirt, Rear, Scrub Head, 3−Brush, Ele 1
386260 (000000− ) Squeegee, Side 1
20833 (000000− ) Wheel, 3.0d 1.38w 0.50b 1
71101 (000000− ) Cable, .12d, 13.3l, .2clevis/.2clevis 1
387023 (000000− ) Hose, Vacuum 1
386267 (000000− ) Hose, Vacuum, 91.0l 1
1037822 (000000− ) Filter, Panl, Dust, 2.0 X 06.1 X 07.6 1
66213 (000000− ) Kit, Brake 1
386223 (000000− ) Gasket, Tank, Recovery 1
79320 (000000− ) Gasket, Cap, Drain 1
223264 (000000− ) Seal, Rbr, Clsd, 0.25th, 5.8d 03.3h 1
386323 (000000− ) Gasket, Mtg, Fan 1
16411 (000000− ) Paint, Airdry, Off−White, 12oz 1
16412 (000000− ) Paint, Airdry, Teal, 12oz, Solid 1
377540 (000000− ) Paint, Airdry, Blk, 12oz 1
377538 (000000− ) Paint, Airdry, Gray, 12oz [Enamel] 1
377537 (000000− ) Paint, Airdry, Iron Gray,12oz[Pwdr Coat] 1
1057707 (000000− ) Oil, Hyd [El, Iso 32, 01gal] 1
1057708 (000000− ) Oil, Hyd [El, Iso 32, 05gal] 1

STANDARD PARTS
2‐3
7300330610 (2−2004)
Fig. 1 − General Recomended Maintenance Items
Ref. Part No. Serial Number Description Qty.
o386022 (000000− ) Kit, Maint, 800hr, [7300−Mp1000−Cyl] 1
386284 (000000− ) Blade, Sqge, Rear 1
386283 (000000− ) Blade, Sqge, Front 1
20833 (000000− ) Wheel, 3.0d 1.38w 0.50b 1
71101 (000000− ) Cable, .12d, 13.3l, .2clevis/.2clevis 1
387023 (000000− ) Hose, Vacuum 1
386267 (000000− ) Hose, Vacuum, 91.0l 1
386053 (000000− ) Belt, Drive 1
1037822 (000000− ) Filter, Panl, Dust, 2.0 X 06.1 X 07.6 1
66213 (000000− ) Kit, Brake 1
386223 (000000− ) Gasket, Tank, Recovery 1
79320 (000000− ) Gasket, Cap, Drain 1
223264 (000000− ) Seal, Rbr, Clsd, 0.25th, 5.8d 03.3h 1
386323 (000000− ) Gasket, Mtg, Fan 1
o386023 (000000− ) Kit, Maint, 800hr, [7300−Mp1200−Cyl] 1
386834 (000000− ) Blade, Sqge, Rear 48.0l 1
386833 (000000− ) Blade, Sqge, Front 48.0l 1
20833 (000000− ) Wheel, 3.0d 1.38w 0.50b 1
71101 (000000− ) Cable, .12d, 13.3l, .2clevis/.2clevis 1
387023 (000000− ) Hose, Vacuum 1
386267 (000000− ) Hose, Vacuum, 91.0l 1
386053 (000000− ) Belt, Drive 1
1037822 (000000− ) Filter, Panl, Dust, 2.0 X 06.1 X 07.6 1
66213 (000000− ) Kit, Brake 1
386223 (000000− ) Gasket, Tank, Recovery 1
79320 (000000− ) Gasket, Cap, Drain 1
223264 (000000− ) Seal, Rbr, Clsd, 0.25th, 5.8d 03.3h 1
386323 (000000− ) Gasket, Mtg, Fan 1
o387506 (000000− ) Kit, Maint, 800hr [7300−Mp1200−Disk−Vac] 1
386284 (000000− ) Blade, Sqge, Rear 1
386283 (000000− ) Blade, Sqge, Front 1
386285 (000000− ) Clamp Wldt, Front 1
386286 (000000− ) Clamp Wldt, Rear 1
386260 (000000− ) Squeegee, Side 1
20833 (000000− ) Wheel, 3.0d 1.38w 0.50b 1
71101 (000000− ) Cable, .12d, 13.3l, .2clevis/.2clevis 1
387023 (000000− ) Hose, Vacuum 1
386514 (000000− ) Hose, Vacuum, 58.5l 1
1005026 (001703− ) Kit, Modif, Ftg Location, [Discvac] 1
11399 (000000− ) Clamp, Hose, Wormdrive, 0.81−1.50d 1
387545 (000000− ) Blade Assy, Sqge, Side 1
387546 (000000− ) Blade, Squeegee 1
386326 (000000− ) Filter, Fan 1
66213 (000000− ) Kit, Brake 1
386223 (000000− ) Gasket, Tank, Recovery 1
79320 (000000− ) Gasket, Cap, Drain 2
223264 (000000− ) Seal, Rbr, Clsd, 0.25th, 5.8d 03.3h 1
386323 (000000− ) Gasket, Mtg, Fan 1
387256 (000000−001702 ) Hose, Vacuum, 35.0l 1
387517 (000000−001702 ) Hose Assy, W/2 Cuff, 1.0d 41.0l 1

STANDARD PARTS
7300330610 (7−2013)
2‐4
Fig. 2 − Brushes, Replacement for MaxPro 1000
2
3
456
7
8
9
10
1
11
12
13
14
15
16
17
18
2
9
17 7
19
14

STANDARD PARTS
2‐5
7300330610 (7−2012)
353296 − 7300
Fig. 2 − Brushes, Replacement for MaxPro 1000
Ref. Part No. Serial Number Description Qty.
1 386230 (000000− ) Brush, Scrub, 39l, 20sr, Pyp, Spl 2
1 386240 (000000− ) Brush, Scrub, 39l, 20sr, Super Abr, Spl 2
1 386250 (000000− ) Brush, Scrub, 39l, 20sr, Nyl, Spl 2
o2 14967 (000000− ) Brush Assy, Disk, Scrub, 20.0 D, Nyl 2
3 15539 (000000− ) Adaptor, Brush 1
4 14838 (000000− ) Spring, Wir, 0.16d, Brush Retaining 1
5 24299 (000000− ) Bracket, Retainer, Spring 1
6 01684 (000000− ) Washer, Flt, .25 Ss 1
7 32746 (000000− ) Screw, Pan, M06 X 1.0 X 35, Ss 3
o2 14953 (000000− ) Brush Assy, Disk, Scrub, 20.0 D, Pyp 2
3 15539 (000000− ) Adaptor, Brush 1
4 14838 (000000− ) Spring, Wir, 0.16d, Brush Retaining 1
5 24299 (000000− ) Bracket, Retainer, Spring 1
6 01684 (000000− ) Washer, Flt, .25 Ss 1
7 32746 (000000− ) Screw, Pan, M06 X 1.0 X 35, Ss 3
o2 378951 (000000− ) Brush Assy, Disk, Scrub, 20.0 D, Super Abr 2
3 15539 (000000− ) Adaptor, Brush 1
4 14838 (000000− ) Spring, Wir, 0.16d, Brush Retaining 1
5 24299 (000000− ) Bracket, Retainer, Spring 1
6 01684 (000000− ) Washer, Flt, .25 Ss 1
7 32746 (000000− ) Screw, Pan, M06 X 1.0 X 35, Ss 3
8 17260 (000000− ) Pad, Polish, 20.0d, White 2
8 17261 (000000− ) Pad, Buff, 20.0d, Red 2
8 17262 (000000− ) Pad, Scrub, 20.0d, Blue 2
8 17263 (000000− ) Pad, Strip, 20.0d, Brown 2
8 370094 (000000− ) Pad, Stripping, 20.0D[Hi Prod,Black 2
8 1051030 (000000− ) Pad, Surf Prep, 20.0D [Mar, 1Pick=1Pad] 2
o9 397920 (000000− ) Driver Assy, Pad, 20.0D 2
10 370080 (000000− ) Disk, Pad Drive, W/ Face, 20d 1
11 15539 (000000− ) Adaptor, Brush 1
12 14838 (000000− ) Spring, Wir, 0.16d, Brush Retaining 1
13 24299 (000000− ) Bracket, Retainer, Spring 1
14 370090 (000000− ) Device, Centering 1
15 09198 (000000− ) Screw, Pan, M04 X 0.7 X 35, Ss 3
16 41579 (000000− ) Washer, Flt, #08 Ss 3
17 32746 (000000− ) Screw, Pan, M06 X 1.0 X 35, Ss 3
18 01684 (000000− ) Washer, Flt, .25 Ss 1
19 87419 (000000− ) Brush, Disk, Sweep, 19.0D, Pyp (Option) 1

STANDARD PARTS
7300330610 (7−2013)
2‐6
Fig. 3 − Brushes, Replacement for MaxPro 1200
2
3
456
7
8
9
10
1
11
12
13
14
15
16
17
18
2
9
17 7
19
14

STANDARD PARTS
2‐7
7300330610 (7−2012)
353296 − 7300
Fig. 3 − Brushes, Replacement for MaxPro 1200
Ref. Part No. Serial Number Description Qty.
1 386231 (000000− ) Brush, Scrub, 47l, 20sr, Pyp, Spl 2
1 386241 (000000− ) Brush, Scrub, 47l, 20sr, Super Abr, Spl 2
1 386251 (000000− ) Brush, Scrub, 47l, 20sr, Nyl, Spl 2
o2 1042504 (000000− ) Brush Assy, Disk, Scrub, 16.0D, Super Abrasive 3
3 1017368 (000000− ) Hub, Drive, Brush, Disk, 3 Hole 5.8Bc 1
4 14838 (000000− ) Spring, Wir, 0.16d, Brush Retaining 1
5 24299 (000000− ) Bracket, Retainer, Spring 1
6 01684 (000000− ) Washer, Flt, .25 Ss 1
7 32746 (000000− ) Screw, Pan, M06 X 1.0 X 35, Ss 3
o2 1042499 (000000− ) Brush Assy, Disk, Scrub, 16.0D, Nylon 3
3 1017368 (000000− ) Hub, Drive, Brush, Disk, 3 Hole 5.8Bc 1
4 14838 (000000− ) Spring, Wir, 0.16d, Brush Retaining 1
5 24299 (000000− ) Bracket, Retainer, Spring 1
6 01684 (000000− ) Washer, Flt, .25 Ss 1
7 32746 (000000− ) Screw, Pan, M06 X 1.0 X 35, Ss 3
o2 30241 (000000− ) Brush Assy, Disk, Scrub, 16.0 D, Pyp 3
3 1017368 (000000− ) Hub, Drive, Brush, Disk, 3 Hole 5.8Bc 1
4 14838 (000000− ) Spring, Wir, 0.16d, Brush Retaining 1
5 24299 (000000− ) Bracket, Retainer, Spring 1
6 01684 (000000− ) Washer, Flt, .25 Ss 1
7 32746 (000000− ) Screw, Pan, M06 X 1.0 X 35, Ss 3
8 63248−1 (000000− ) Pad, Strip, 16.0d, Brown 3
8 63248−2 (000000− ) Pad, Scrub, 16.0d, Blue 3
8 63248−3 (000000− ) Pad, Buff, 16.0d, Red 3
8 63248−4 (000000− ) Pad, Polish, 16.0d, White 3
8 370092 (000000− ) Pad, Stripping, 16.0d[Hi Prod,Black 3
8 1051027 (000000− ) Pad, Surf Prep, 16.0d [Mar, 1pick=1pad] 3
o9 397916 (000000− ) Driver Assy, Pad, 16D 3
10 397976 (000000− ) Disk, Pad Driver, W/Face, 16D 1
11 15539 (000000− ) Adaptor, Brush 1
12 14838 (000000− ) Spring, Wir, 0.16d, Brush Retaining 1
13 24299 (000000− ) Bracket, Retainer, Spring 1
14 370095 (000000− ) Device, Centering 1
15 09198 (000000− ) Screw, Pan, M04 X 0.7 X 35, Ss 3
16 41579 (000000− ) Washer, Flt, #08 Ss 3
17 32746 (000000− ) Screw, Pan, M06 X 1.0 X 35, Ss 3
18 01684 (000000− ) Washer, Flt, .25 Ss 1
19 87419 (000000− ) Brush, Disk, Sweep, 19.0D, Pyp (Option) 1

STANDARD PARTS
7300330610 (2−2004)
2‐8
Fig. 4 − Main Frame Group
23
4
5
6
7
8
9
10
1
11
12
13
14
15
16
17
30 19
20
21
22
23
11
10
9
8
5
4
17
19
17
24
25
27
26
28
29
18

STANDARD PARTS
2‐9
7300330610 (10−2009)
353297 − 7300
Fig. 4 − Main Frame Group
Ref. Part No. Serial Number Description Qty.
1 386200 (000000−004999 ) Frame 1
1 1056383 (005000− ) Frame Wldt, Main, Iron Gray [7300/8300] 1
2 386923 (000000−004999 ) Plate, Cover 1
2 1056496 (005000− ) Plate, Cover, Iron Gray 1
3 365252 (000000− ) Rivet, Plstc, .25 D X 0.75 24
o4 223044 (000000− ) Headlight, 36vdc, 15cp, 0.7a 2
360518 (000000− ) Lamp, 36vdc, 32cp, .72a 1
o5 87346 (000000− ) Taillight, 12vdc, 3.6 X 1.9, Rework 87277 2
87948 (000000− ) Lamp 1
87949 (000000− ) Lampholder 1
6 06943 (000000− ) Screw, Hex, M06 X 1.0 X 20, 8.8 2
7 386480 (000000−004999 ) Bumper Wldt 1
7 1056786 (005000− ) Bumper Wldt, Iron Gray 1
8 364085 (000000− ) Wheel, 4.0d 0.98w 0.78b 10
9 51414 (000000− ) Pin, Clevis, 0.75 D X 6.50l 2
10 39350 (000000− ) Washer, Flt, .75 Sae 2
11 08236 (000000− ) Pin, Cotter, .156 X 1.25 2
12 01685 (000000− ) Washer, Flt, .31 Ss 8
13 09740 (000000− ) Screw, Hex, M08 X 1.25 X 20, Ss 8
14 386450 (000000−004999 ) Channel Wldt, Steering 1
14 1056387 (005000− ) Channel Wldt, Steering, Iron Gray 1
15 16931 (000000− ) Screw, Hex, M08 X 1.25 X 20, 8.8 5
16 08709 (000000− ) Nut, Hex, Lock, M08 X 1.25,Nl 5
17 32491 (000000− ) Washer, Flt, .31 Std 12
18 386157 (000000−001946 ) Plate Wldt, Floor 1
19 16735 (000000− ) Screw, Hex, M08 X 1.25 X 16, 8.8 12
20 386159 (000000−004999 ) Plate, Floor, Upper 1
20 1056465 (005000− ) Plate, Floor, Upper, Iron Gray 1
21 67767 (000000− ) Clamp, Cable, Stl, 0.69d X 0.62w, 1h 1
22 07791 (000000− ) Nut, Hex, Flng, M08 X 1.25 2
23 369702 (000000− ) Horn, 36vdc, Dba 1
24 12459 (000000− ) Screw, Hex, M06 X 1.0 X 20, Fmg 1
25 01684 (000000− ) Washer, Flt, .25 Ss 1
26 01713 (000000− ) Nut, Hex, Lock, M05 X 0.8, Ni 4
27 32980 (000000− ) Washer, Lock, Int, #10 4
28 67767 (000000− ) Clamp, Cable, Stl, 0.69d X 0.62w, 1h 2
29 361339 (000000− ) Screw, Hex, M06 X 1.0 X 16, Fmg 2
30 387654 (001947−004999 ) Plate, Floor 1
30 1056809 (005000− ) Plate, Floor, Iron Gray 1

STANDARD PARTS
7300330610 (3−2012)
2‐10
Fig. 5 − Covers Group, Front
2
3
4
5
6
7
8
9
1
10
3
6
8
7
12
11
317
14
3
13
15
1615

STANDARD PARTS
2‐11
7300330610 (10−2009)
353298 − 7300
Fig. 5 − Covers Group, Front
Ref. Part No. Serial Number Description Qty.
1 386120 (000000−004999 ) Cover, Front 1
1 1056432 (005000− ) Cover, Front, Teal 1
2 386124 (000000− ) Hinge, .38pin .11 3.5w 04.0l 4/0.38slot 2
3 32491 (000000− ) Washer, Flt, .31 Std 12
4 49826 (000000− ) Screw, Hex, M08 X 1.25 X 16, Ss, Nl 8
5 387021 (000000− ) Cable Assy 1
6 06943 (000000− ) Screw, Hex, M06 X 1.0 X 20, 8.8 2
7 32483 (000000− ) Washer, Flt, .25 Sae 2
8 08708 (000000− ) Nut, Hex, Lock, M06 X 1.0, Nl 2
9 387033 (000000− ) Seal, Bulb, [Sd−504], 48.70l 1
10 64533 (000000− ) Latch, Trigger 1
11 387460 (000000−001154 ) Kit, Replmt, Bracket, F/386211 1
12 387450 (001155−004999 ) Bracket, Latch, Cover 1
12 1056483 (005000− ) Bracket, Latch, Cover, Iron Gray 1
13 387451 (001155−004999 ) Bracket, Latch, Cover 1
13 1056484 (005000− ) Bracket, Latch, Cover, Iron Gray 1
14 16931 (001155− ) Screw, Hex, M08 X 1.25 X 20, 8.8 2
15 08709 (001155− ) Nut, Hex, Lock, M08 X 1.25,Nl 2
16 387634 (001706−004999 ) Bracket, Mtg, Circuitbreaker, [Hi−Mag] 1
16 1056487 (005000− ) Bracket, Mtg, Circuitbreaker [Hi−Mag] 1
17 76570 (001706− ) Screw, Hex, M 8 X 1.25 X 30, 8.8 2

STANDARD PARTS
7300330610 (6−2000)
2‐12
Fig. 6 − Covers Group, Rear
2
3
4
5
6
7
8
9
10
1
11 12
13
14
15
16
17
18
19
20
2122
23
24
6
6
6
6
6
6
6
10
7
7
77
7
7
7
6
8
9
7

STANDARD PARTS
2‐13
7300330610 (10−2009)
353300 − NA
Fig. 6 − Covers Group, Rear
Ref. Part No. Serial Number Description Qty.
1 386201 (000000−004999 ) Cover, Tank, Top 1
1 1056433 (005000− ) Cover, Tank, Top, Teal 1
2 386202 (000000−004999 ) Cover, Rear 1
2 1056434 (005000− ) Cover, Rear, Teal 1
3 386993 (000000−004999 ) Plate, Hinge 2
3 1056479 (005000− ) Plate, Hinge, Iron Gray 2
4 386995 (000000−004999 ) Hinge Wldt, W/ Pin 2
4 1056388 (005000− ) Hinge Wldt, W/ Pin, Iron Gray 2
5 386437 (000000−004999 ) Hinge Assy 2
5 1056475 (005000− ) Hinge Assy, Iron Gray 2
6 01685 (000000− ) Washer, Flt, .31 Ss 24
7 09740 (000000− ) Screw, Hex, M08 X 1.25 X 20, Ss 23
8 49800 (000000− ) Latch 1
9 02850 (000000− ) Nut, Hex, Lock, M04 X 0.7, Nl 4
10 49697 (000000− ) Screw, Pan, M04 X 0.7 X 10, Ss 4
11 360801 (000000− ) Sleeve 1
12 386461 (000000− ) Rod 1
13 386413 (000000−004999 ) Plate 1
13 1056472 (005000− ) Plate, Iron Gray 1
14 09010 (000000− ) Screw, Hex, M08 X 1.25 X 25, Ss 3
15 386433 (000000−004999 ) Cover Wldt 1
15 1056386 (005000− ) Cover Wldt, Iron Gray 1
16 387348 (000000− ) Panel Wldt, Front W/ Label 1
17 386761 (000000− ) Rod, Rear Door 1
18 54743 (000000− ) Spring, Cmpr, 0.36od .04wir 2.5l 1
19 01684 (000000− ) Washer, Flt, .25 Ss 2
20 08178 (000000− ) Pin, Cotter, .062 X 0.75 1
21 386634 (000000− ) Bracket 1
22 01684 (000000− ) Washer, Flt, .25 Ss 2
23 386973 (000000− ) Cap, Vyl, .234id .750l .04 1
24 82829 (000000− ) Clamp, Cable, Stl, 0.63d X 0.75w, 1h 2

STANDARD PARTS
7300330610 (7−2012)
2‐14
Fig. 7 − Electrical Instrument Panel Group
23
4
5
6
7
8
9
10
1
11
12
13
14
15
16
17
18
19
20
21
14
16
22
23
24
25
