Tennant T1 User manual

T1
*9006285*
www.tennantco.com
Parts Manual
9006285
Rev. 02 (03-2012)
North America / Japan
Floor Scrubber
Models
9004191-120V
(S/N 10000000--20000000)
Find...
Go To..

Ref Part No. Serial Number Description Qty.
1 82681 (000000--- ) Bracket Wldt, Lpg Mount 1
o2 63810 (000000--- ) Latch Assy, Lpg Tank Mtg, W/Nut 4
Y3 51839 (000000--- ) Nut Adjustable, Lpg Tank Mtg 2
4 49263 (000000--- ) Tie, Cable 3
5 82556 (000000---001039 ) Bracket, Vaporizer 1
6 54930 (000000--- ) Vaporizer, LPG 1
B
A
C
D

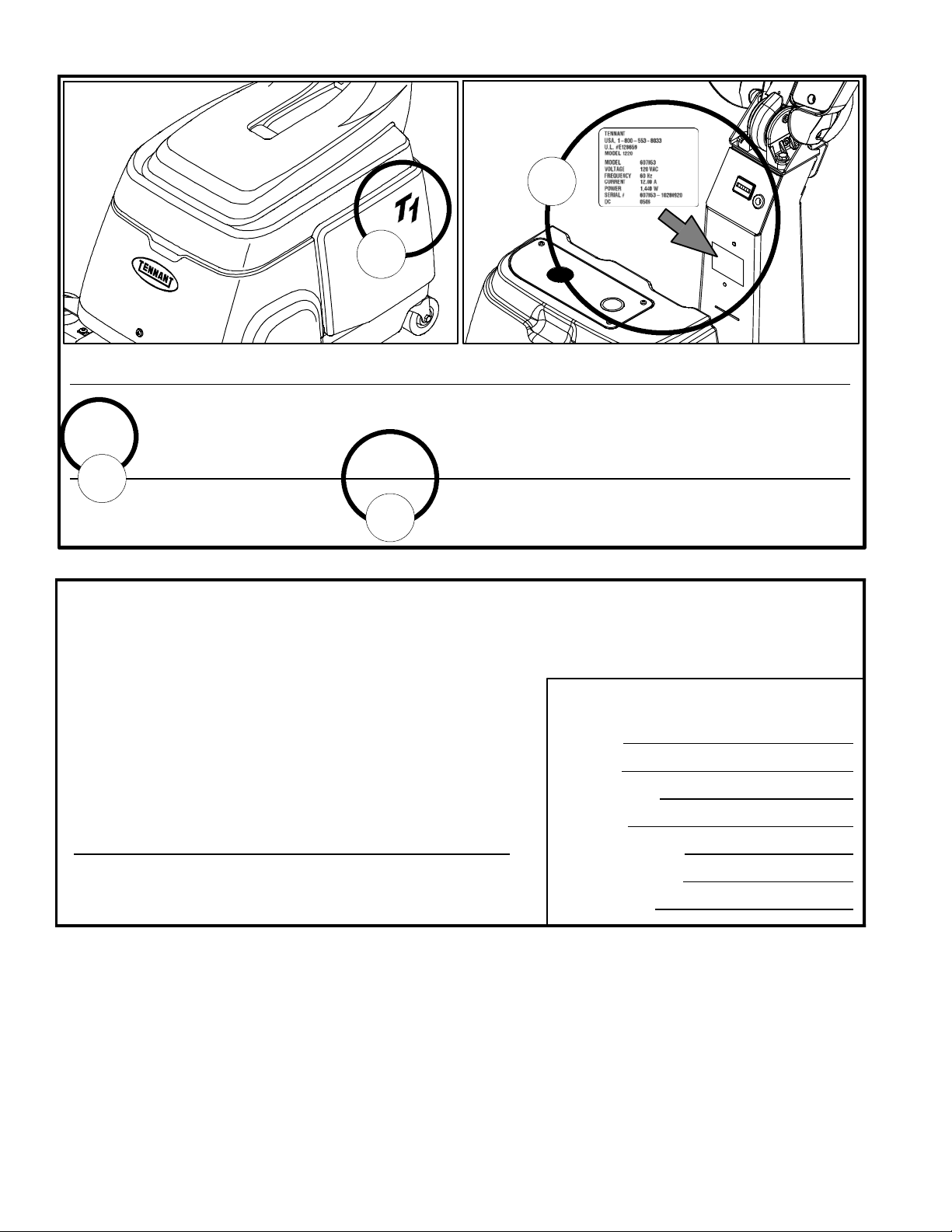

HOW TO ORDER PARTS -- See diagram above
Only use TENNANT Company supplied or equivalent parts. Parts and supplies may be ordered online,
by phone, by fax or by mail.
Follow the steps below to ensure prompt delivery.
1. (A) Identify the machine model.
2. (B) Identify the machine serial number from the data label.
3. (C) Ensure the proper serial number is used from
the parts list.
4. Identify the part number and quantity.
Do not order by page or reference numbers.
5. Provide your name, company name, customer ID number,
billing and shipping address, phone number and
purchase order number.
6. Provide detail shipping instructions.
(D) -- identifies an assembly
Y-- identifies parts included in assembly
Please fill out at time of installation for
future reference.
Model No. --
Serial No. --
Machine Options --
Sales Rep. --
Sales Rep. phone no. --
Customer ID Number --
Installation Date --
Tennant Company
PO Box 1452
Minneapolis, MN 55440
Phone: [phone] or (763) 513--2850
www.tennantco.com
Specifications and parts are subject to change without notice.
Copyright E2009--2012 TENNANT Company, Printed in U.S.A.
Find...
Go To..

STANDARD PARTS
Tennant T1 (03--2012) 3
TABLE OF CONTENTS
RECOMMENDED MAINTENANCE ITEMS 4.....
HANDLE GROUP, 120V 6......................
HANDLE GROUP, 230V 8......................
FRAME GROUP, 120V 10.......................
FRAME GROUP, 230V 12.......................
TANKS AND SHROUD GROUP 14...............
TANK COVER GROUP 16......................
VACUUM FAN GROUP 18......................
SOLUTION GROUP 20.........................
SCRUB HEAD GROUP, 120V
(S/N 10507590-- ) 22...................
SCRUB HEAD GROUP, 120V
(S/N 10000000--10507589) 24.................
SCRUB HEAD GROUP, 230V
(S/N 10507590-- ) 26...................
SCRUB HEAD GROUP, 230V
(S/N 10000000--10507589) 28.................
SCRUB HEAD LIFT GROUP 30.................
SQUEEGEE GROUP, FRONT AND REAR 32.....
ELECTRICAL DIAGRAM, 120V 34...............
ELECTRICAL DIAGRAM, 230V 35...............
Find...
Go To..

RECOMMENDED MAINTENANCE ITEMS
Tennant T1 Battery (03--2012)
4
RECOMMENDED MAINTENANCE ITEMS
Ref. Part No. Serial Number Description Qty.
1014918 (10000000--20000000 )Wheel, 03.0d 0.88w 0.31b, W/ Bshg, Rbr 3
601443 (10000000--20000000 )Caster, Swivel, 3.0d 1.3w, .50--13 Stem 2
9004283 (10000000--20000000 )Belt Kit, W/ Installation Tool 1
1037197 (10000000--20000000 )Brush, Scrub, 89mm Od X 386mm, Nylon (Standard) 1
1037277 (10000000--20000000 )Brush, Scrub, 89mm Od X 386mm, Poly (Optional) 1
1037278 (10000000--20000000 )Brush, Scrub, 89mm Od X 386mm, Grit (Optional) 1
9008581 (10000000--20000000 )Wheel Kit, Sqge, W/ Hdwr 1
1057241 (10000000--20000000 )Blade Assy, Sqge, Inner, Ure 2
1050943 (10000000--20000000 )Blade Assy, Sqge, Outer, Ure 2
1052876 (10000000--20000000 )Gasket, Tank 2
Find...
Go To..

RECOMMENDED MAINTENANCE ITEMS
Tennant T1 Battery (05--2011) 5
Find...
Go To..

STANDARD PARTS
Tennant T1 (03--2009)
6

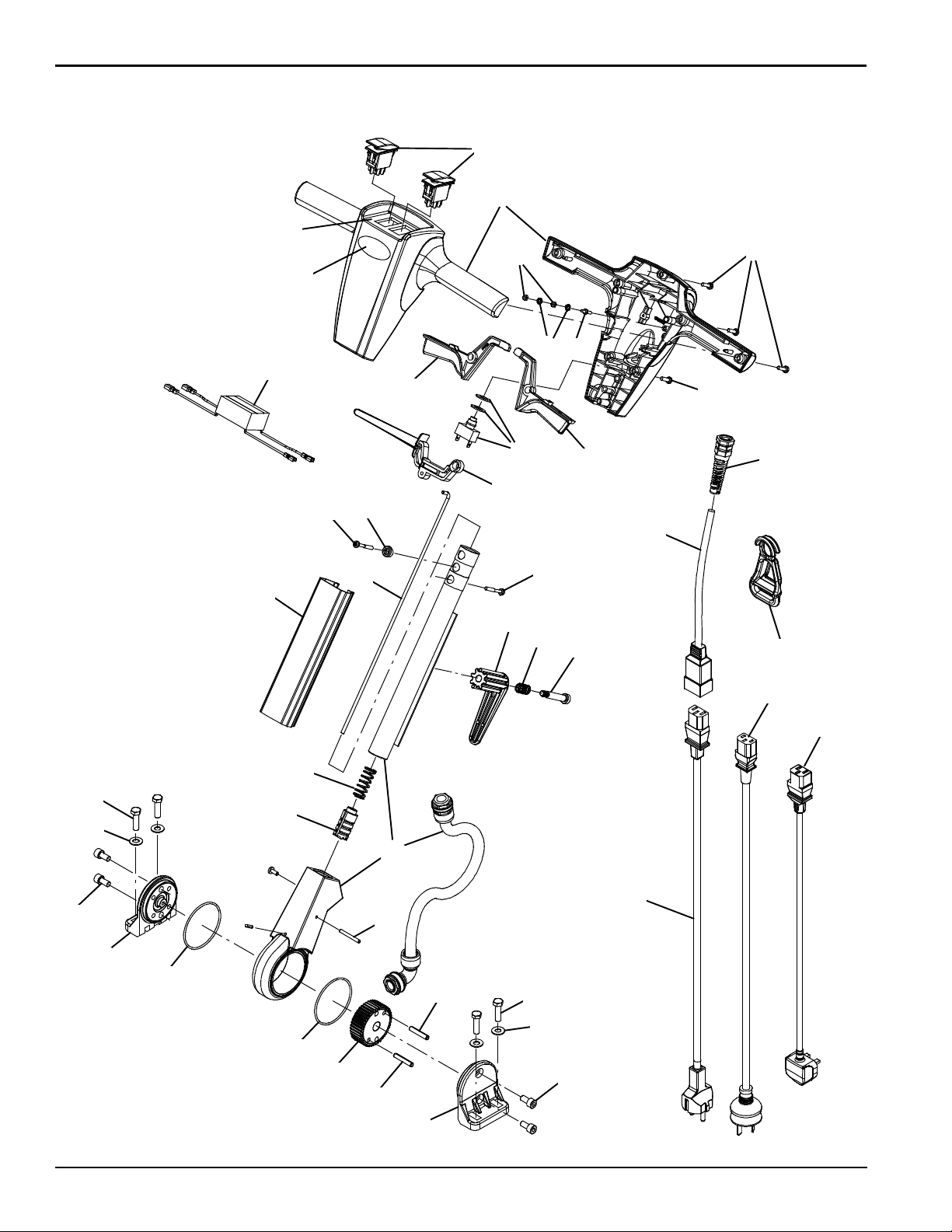

HANDLE GROUP, 120V
355051
1
4
5
67
8
9
10
11
12
13
14
12
15
16 17
18
22
19
20 21
23
24
25
26
27
28
29
30
31
32
32
29
28
27
26
30
16
8
2
3
33
Find...
Go To..

STANDARD PARTS
Tennant T1 (03--2012) 7
HANDLE GROUP, 120V
Ref. Part No. Serial Number Description Qty.
9005505 (10000000--20000000 )Handle, Tennant T1[120 Volt] 1
Y19004320 (10000000--20000000 )Cover, Handle Front/Rear Tennant T1 Kit 1
YY 21042589 (10000000--20000000 )Label, Logo, 02.50l, White [Tennant] 1
YY 31037324 (10000000--20000000 )Label, Opertnl, Instrmt Panl, Scrubber 1
Y4602919 (10000000--20000000 )Switch, Rocker, Dpdt, On / On 2
Y542368 (10000000--20000000 )Nut, Hex, Std, M4 X 0.70, 8 2
Y6140061 (10000000--20000000 )Washer, Lock, Ext, 08, Pl 2
Y71034952 (10000000--20000000 )Screw, Hex, M4 X 0.7 X 12, Dbl Thrd 1
Y81043573 (10000000--20000000 )Screw, #10--14 X 0.675, Spl[Shcs,Selftap] 7
Y9130166 (10000000--20000000 )Grip, Cord, Strainrelief Pg--11 W/Nut Bk 1
Y10 1042410 (10000000--20000000 )Cord, 14ga /3, 16.0l, W/ Receptacle, Yel 1
Y11 1037147 (10000000--20000000 )Clip, Cord, Strainrelief, Black 1
Y12 1033893 (10000000--20000000 )Lever, Cntrl, Switch [Trex] 2
Y13 9008568 (10000000--20000000 )Switch Kit, W/ Washers, Fr/ F/1063165 1
Y14 1034945 (10000000--20000000 )Lever, Adjmt, Handle 1
Y15 1034181 (10000000--20000000 )Cover, Handle, Tennant [Trex] 1
Y16 1043572 (10000000--20000000 )Screw, #10--14 X 01.5, Spl[Shcs Selftap] 2
Y17 1034176 (10000000--20000000 )Bushing, Flng, 5mmb 12mmd 8mml, Pa6 1
Y18 1034180 (10000000--20000000 )Rod, Release [Trex] 1
Y19 603104 (10000000--20000000 )Hook, Cord, Blk [Quick--Release] 1
Y20 603108 (10000000--20000000 )Spring, Cmpr, Switch 1
Y21 140239 (10000000--20000000 )Bolt, Shld, .38d X 1.75, .31--18 1
Y22 1045239 (10000000--20000000 )Tube, Assy, Handle 1
Y23 1013295 (10000000--20000000 )Spring, Cmpr [2100 Series] 1
Y24 9006059 (10000000--20000000 )Plunger Kit, Handle 1
Y25 1034924 (10000000--20000000 )Pin, Roll, 04mmd X 40mml 1
Y26 1016399 (10000000--20000000 )Screw, Hex, M8 X 1.25 X 30, Nl, Ss 4
Y27 140027 (10000000--20000000 )Washer, Flat, 0.35b 0.75d .04, Ss 4
Y28 49609 (10000000--20000000 )Screw, Soc, M8 X 1.25 X 16, 12.9 4
Y29 1000307 (10000000--20000000 )Handle, Pivot, Half 2
Y30 1034155 (10000000--20000000 )Pin, Roll, 06mmd X 36mml 2
Y31 1034872 (10000000--20000000 )Gear, Lock, Handle 1
Y32 612422 (10000000--20000000 )Seal, Org, Gear Seat 2
33 1042403 (10000000--20000000 )Cord, Power, 1.5mm /3 Yel[2x15m 50ft Us] 1
ASSEMBLY
YINCLUDED IN ASSEMBLY
Find...
Go To..

STANDARD PARTS
Tennant T1 (03--2009)
8
HANDLE GROUP, 230V
355053
1
4
5
67
8
9
10
11
12
13
14
12
15
16
17 18
19
20
21 22
23
24
25
26
27
28
29
30
31
32
33
33
30
29
28
27
31
17
8
2
3
34
35
36
Find...
Go To..

STANDARD PARTS
Tennant T1 (03--2012) 9
HANDLE GROUP, 230V
Ref. Part No. Serial Number Description Qty.
9005508 (10000000--20000000 )Handle, Tennant T1[230 Volt] 1
Y19004320 (10000000--20000000 )Cover, Handle Front/Rear Tennant T1 Kit 1
YY 21042589 (10000000--20000000 )Label, Logo, 02.50l, White [Tennant] 1
YY 31037324 (10000000--20000000 )Label, Opertnl, Instrmt Panl, Scrubber 1
Y4602919 (10000000--20000000 )Switch, Rocker, Dpdt, On / On 2
Y542368 (10000000--20000000 )Nut, Hex, Std, M4 X 0.70, 8 2
Y6140061 (10000000--20000000 )Washer, Lock, Ext, 08, Pl 2
Y71034952 (10000000--20000000 )Screw, Hex, M4 X 0.7 X 12, Dbl Thrd 1
Y81043573 (10000000--20000000 )Screw, #10--14 X 0.675, Spl[Shcs,Selftap] 7
Y9130166 (10000000--20000000 )Grip, Cord, Strainrelief Pg--11 W/Nut Bk 1
Y10 1040343 (10000000--20000000 )Cord, 14ga /3, 16.0l, W/ Receptacle, Blk 1
Y11 1037147 (10000000--20000000 )Clip, Cord, Strainrelief, Black 1
Y12 1033893 (10000000--20000000 )Lever, Cntrl, Switch [Trex] 2
Y13 9008568 (10000000--20000000 )Switch Kit, W/ Washers, Fr/ F/1063165 1
Y14 1034945 (10000000--20000000 )Lever, Adjmt, Handle 1
Y15 1054252 (10000000--20000000 )Filter, Handle, 250 Vac, 50/60hz, 8 Amp 1
Y16 1034181 (10000000--20000000 )Cover, Handle, Tennant [Trex] 1
Y17 1043572 (10000000--20000000 )Screw, #10--14 X 01.5, Spl[Shcs Selftap] 2
Y18 1034176 (10000000--20000000 )Bushing, Flng, 5mmb 12mmd 8mml, Pa6 1
Y19 1034180 (10000000--20000000 )Rod, Release [Trex] 1
Y20 603104 (10000000--20000000 )Hook, Cord, Blk [Quick--Release] 1
Y21 603108 (10000000--20000000 )Spring, Cmpr, Switch 1
Y22 140239 (10000000--20000000 )Bolt, Shld, .38d X 1.75, .31--18 1
Y23 1045239 (10000000--20000000 )Tube, Assy, Handle 1
Y24 1013295 (10000000--20000000 )Spring, Cmpr [2100 Series] 1
Y25 9006059 (10000000--20000000 )Plunger Kit, Handle 1
Y26 1034924 (10000000--20000000 )Pin, Roll, 04mmd X 40mml 1
Y27 1016399 (10000000--20000000 )Screw, Hex, M8 X 1.25 X 30, Nl, Ss 4
Y28 140027 (10000000--20000000 )Washer, Flat, 0.35b 0.75d .04, Ss 4
Y29 49609 (10000000--20000000 )Screw, Soc, M8 X 1.25 X 16, 12.9 4
Y30 1000307 (10000000--20000000 )Handle, Pivot, Half 2
Y31 1034155 (10000000--20000000 )Pin, Roll, 06mmd X 36mml 2
Y32 1034872 (10000000--20000000 )Gear, Lock, Handle 1
Y33 612422 (10000000--20000000 )Seal, Org, Gear Seat 2
34 1035571 (10000000--20000000 )Cord, Extn, 1.5mm /3 [2x20m, Ce] 1
35 1036912 (10000000--20000000 )Cord, Power, 1.5mm /3 Blk [2x15m, Aus] 1
36 1036891 (10000000--20000000 )Cord, Power, 1.5mm /3 Blk [2x20m,Uk] 1
ASSEMBLY
YINCLUDED IN ASSEMBLY
Find...
Go To..

STANDARD PARTS
Tennant T1 (03--2012)
10

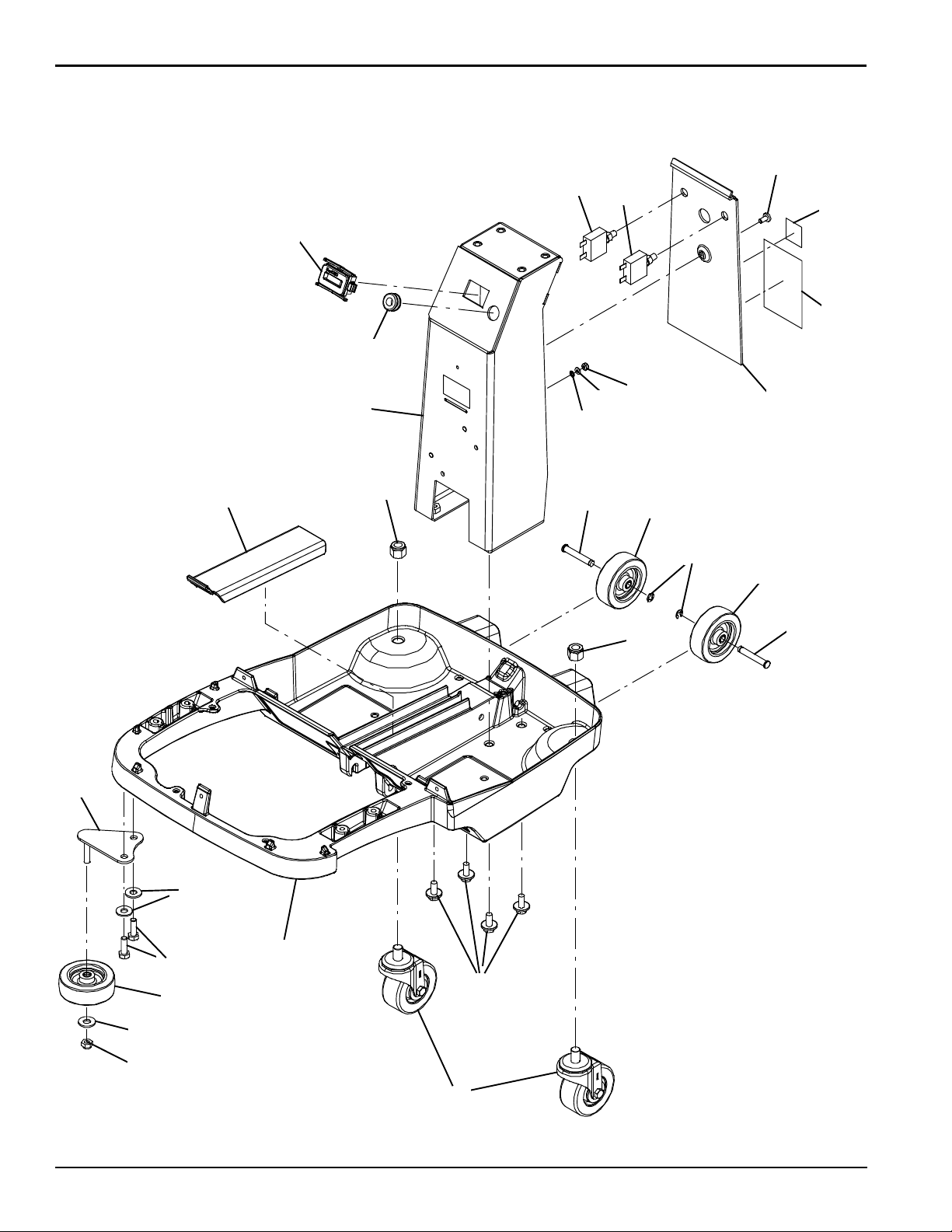

FRAME GROUP, 120V
355056
1
2
34
5
7
6
8
9
10
11
12
13 14
14
15 16
17
16
15
18
19
20
21
22
23
24
22
25
Find...
Go To..

STANDARD PARTS
Tennant T1 (03--2012) 11
FRAME GROUP, 120V
Ref. Part No. Serial Number Description Qty.
11064038 (10000000--20000000 )Gauge, Hourmeter, 05--277 Volt, Ac / Dc 1
286726 (10000000--20000000 )Grommet, Rbr, 0.44id, F/0.5h, .19 Matl 1
3383720 (10000000--20000000 )Circuitbreaker, 05.0a, Resetable 1
4383722 (10000000--20000000 )Circuitbreaker, 15.0a, Resetable 1
574027 (10000000--20000000 )Screw, Pan, Phl, M6 X 1.00 X 12, Nl, Pl 1
69004277 (10000000--20000000 )Cover Kit, Column, W/ Label [3gal 120v] 1
Y71039105 (10000000--20000000 )Label,Warning,Ac Scrb/Extr [En/Fr/Es/Jp] 1
Y8NA (10000000--20000000 )Label, Safety, 120vac [Etl] 1
91044427 (10000000--20000000 )Nut, Hex, Lock, #8--32, Nl, Ss 1
10 41578 (10000000--20000000 )Washer, Flat, 06, Ss 1
11 02938 (10000000--20000000 )Washer, Lock, Int, 08, Ss 1
12 9004276 (10000000--20000000 )Column Kit, Sppt, W/ Label [3 Gal] 1
13 1030718 (10000000--20000000 )Cover, Frame, Rear [Trex] 1
14 02931 (10000000--20000000 )Nut, Hex, Lock, .50--13, Nl, Ss 2
15 1035137 (10000000--20000000 )Pin, Clevis, Grvd 0.31d X 2.00l, Ss 2
16 1014918 (10000000--20000000 )Wheel, 03.0d 0.88w 0.31b, W/ Bshg, Rbr 2
17 1035139 (10000000--20000000 )Ring, Retaining, Ext, 0.31d, E--Type 2
18 1020341 (10000000--20000000 )Screw, Hex, M8 X 1.25 X 20, Ss, Sems 4
19 601443 (10000000--20000000 )Caster, Swivel, 3.0d 1.3w, .50--13 Stem 2
20 1034013 (10000000--20000000 )Frame (Machined) 1
21 08713 (10000000--20000000 )Nut, Hex, Lock, M8 X 1.25, Nl, Ss 1
22 140027 (10000000--20000000 )Washer, Flat, 0.35b 0.75d .04, Ss 3
23 1014918 (10000000--20000000 )Wheel, 03.0d 0.88w 0.31b, W/ Bshg, Rbr 1
24 49826 (10000000--20000000 )Screw, Hex, M8 X 1.25 X 16, Nl, Ss 2
25 1034805 (10000000--20000000 )Bracket, Bumper Wheel 1
N/S 1033825 (10000000--20000000 ) Harness, Chassis, Ele, Scrbr, [T--Rex] 1
ASSEMBLY
YINCLUDED IN ASSEMBLY
N/S = NOT SHOWN
Find...
Go To..

STANDARD PARTS
Tennant T1 (03--2012)
12
FRAME GROUP, 230V
355057
1
2
34
5
6
10
9
8
7
11
12
13
14
15 16
16
17 18
18
19
17
20
21
22
23
24
25
26
24
27
20
Find...
Go To..

STANDARD PARTS
Tennant T1 (03--2012) 13
FRAME GROUP, 230V
Ref. Part No. Serial Number Description Qty.
11064038 (10000000--20000000 )Gauge, Hourmeter, 05--277 Volt, Ac / Dc 1
286726 (10000000--20000000 )Grommet, Rbr, 0.44id, F/0.5h, .19 Matl 1
31037100 (10000000--20000000 )Circuitbreaker, 2.5 Amp, 230 Volt 1
41037086 (10000000--20000000 )Circuitbreaker, 7.5 Amp, 230 Volt 1
574027 (10000000--20000000 )Screw, Pan, Phl, M6 X 1.00 X 12, Nl, Pl 1
69004295 (10000000--20000000 )Column, Cover W/ Labels 3 Gal 230v Kit 1
Y7NA (10000000--20000000 )Label, Safety, 230Vac [Ce, C--Tic] 1
Y81030494 (10000000--20000000 )Label, Hzrd, Flammable Matl, Ce 1
Y91028077 (10000000--20000000 )Label [Read Manual, Iso] 1
Y10 993852 (10000000--20000000 )Label, Warning [Electrical Hazard] 1
11 1044427 (10000000--20000000 )Nut, Hex, Lock, #8--32, Nl, Ss 1
12 41578 (10000000--20000000 )Washer, Flat, 06, Ss 1
13 02938 (10000000--20000000 )Washer, Lock, Int, 08, Ss 1
14 9004276 (10000000--20000000 )Column Kit, Sppt, W/ Label [3 Gal] 1
15 1030718 (10000000--20000000 )Cover, Frame, Rear [Trex] 1
16 02931 (10000000--20000000 )Nut, Hex, Lock, .50--13, Nl, Ss 2
17 1035137 (10000000--20000000 )Pin, Clevis, Grvd 0.31d X 2.00l, Ss 2
18 1014918 (10000000--20000000 )Wheel, 03.0d 0.88w 0.31b, W/ Bshg, Rbr 2
19 1035139 (10000000--20000000 )Ring, Retaining, Ext, 0.31d, E--Type 2
20 1020341 (10000000--20000000 )Screw, Hex, M8 X 1.25 X 20, Ss, Sems 4
21 601443 (10000000--20000000 )Caster, Swivel, 3.0d 1.3w, .50--13 Stem 2
22 1034013 (10000000--20000000 )Frame (Machined) 1
23 08713 (10000000--20000000 )Nut, Hex, Lock, M8 X 1.25, Nl, Ss 1
24 140027 (10000000--20000000 )Washer, Flat, 0.35b 0.75d .04, Ss 3
25 1014918 (10000000--20000000 )Wheel, 03.0d 0.88w 0.31b, W/ Bshg, Rbr 1
26 49826 (10000000--20000000 )Screw, Hex, M8 X 1.25 X 16, Nl, Ss 2
27 1034805 (10000000--20000000 )Bracket, Bumper Wheel 1
N/S 1033825 (10000000--20000000 ) Harness, Chassis, Ele, Scrbr, [T--Rex] 1
ASSEMBLY
YINCLUDED IN ASSEMBLY
N/S = NOT SHOWN
Find...
Go To..

STANDARD PARTS
Tennant T1 (05--2011)
14
TANKS AND SHROUD GROUP
355062
3
10
4
11
1
2
5
7
8
9
12
13
14
14
12
15
6
12
Find...
Go To..

STANDARD PARTS
Tennant T1 (05--2011) 15
TANKS AND SHROUD GROUP
Ref. Part No. Serial Number Description Qty.
19004312 (10000000--20000000 )Tank, Rec W/ Labels Tennant 3 Gal Kit 1
Y21039085 (10000000--20000000 )Label, Side [T1 Scrubber] 1
Y39004285 (10000000--20000000 )Handle, Tank Kit 1
YY 424265 (10000000--20000000 )Screw, Pan, Phl, M4 X 0.70 X 16, Ss 2
59004314 (10000000--20000000 )Tank, Sol W/ Labels Tennant 3 Gal Kit 1
Y61044865 (10000000--20000000 )Label, Solution, Tank, Max. Fill, 3 Gal. 1
Y71039138 (10000000--20000000 )Label, Tank, Soltn, 3.0gal 1
Y81040112 (10000000--20000000 )Label, Oper, Instr [Scrubber] 1
Y91039085 (10000000--20000000 )Label, Side [T1 Scrubber] 1
Y10 9004285 (10000000--20000000 )Handle, Tank Kit 1
YY 11 24265 (10000000--20000000 )Screw, Pan, Phl, M4 X 0.70 X 16, Ss 2
12 1019349 (10000000--20000000 )Screw, Trs, M6 X 1.00 X 16, Ss, Sems 3
13 9004301 (10000000--20000000 )Shroud, W/ Labels Tennant 3 Gal Kit 1
Y14 578769 (10000000--20000000 )Decal, Moving Parts Textless 2
Y15 1039084 (10000000--20000000 )Label, Logo, White, Tennant, 5.5”Lg 1
ASSEMBLY
YINCLUDED IN ASSEMBLY
Find...
Go To..

STANDARD PARTS
Tennant T1 (05--2011)
16
TANK COVER GROUP
355055
1
2
3
2
3
4
5
6
4
5
7
8
8
9
10
11
8
8
12 13
14
15
8
16
17
18
8
19
20
21
16
22
11
Find...
Go To..

STANDARD PARTS
Tennant T1 (03--2012) 17
TANK COVER GROUP
Ref. Part No. Serial Number Description Qty.
11031638 (10000000--20000000 )Cover , Tank, Upper, Tennant [Trex] 1
2 1035358 (10000000--20000000 ) Pin, Grvd, 0.375d, 1.25l 2
3 24555 (10000000--20000000 ) Ring, Retaining, Ext, 0.38d, [E--Ring] 2
4 1016399 (10000000--20000000 ) Screw, Hex, M8 X 1.25 X 30, Nl, Ss 4
5 140027 (10000000--20000000 ) Washer, Flat, 0.35b 0.75d .04, Ss 4
61034346 (10000000--20000000 ) Bracket, Pivot, Cover, Mtg 1
71036078 (10000000--20000000 )Hose, Soltn, .25 Id, .453 Od, 41.25 L 1
8140340 (10000000--20000000 )Screw, Pan, Phl, 10--24 X 0.62, Ss[Typ25] 13
91042715 (10000000--20000000 )Fitting, Brs, Str, Bm04/Pm02 1
10 1032556 (10000000--20000000 )Filter, Soltn Tube, 80 Mesh 1
11 140011 (10000000--20000000 )Washer, Flat, 0.21b 0.45d .03, Ss 2
12 1051274 (10000000--20000000 )Gasket, Shield, Float 1
13 1042277 (10000000--20000000 )Shield, Float 1
14 1044370 (10000000--20000000 )Ball, Float, W/O Cage 1
15 9005924 (10000000--20000000 )Cover, Tank, Inner W/ Seals, Kit 1
Y16 1036090 (10000000--20000000 )Seal, Vacuum [Trex] 2
Y17 1052876 (10000000--20000000 )Gasket, Tank 2
Y18 602849 (10000000--20000000 )Strainrelief, Cord, Ele, Pm08, Blk Nyl 1
19 1035866 (10000000--20000000 )Hose, Recvy, Formed [Trex] 1
20 1037756 (10000000--20000000 )Hose, Vacuum, 1.5od, 18.0l [Wire--Reinf] 1
21 140308 (10000000--20000000 )Clamp, Hose, Wormdrive, 1.31--2.25d, .50w 4
22 1054345 (10000000--20000000 )Clip, Retaining, Seal 2
ASSEMBLY
YINCLUDED IN ASSEMBLY
Find...
Go To..

STANDARD PARTS
Tennant T1 (03--2009)
18

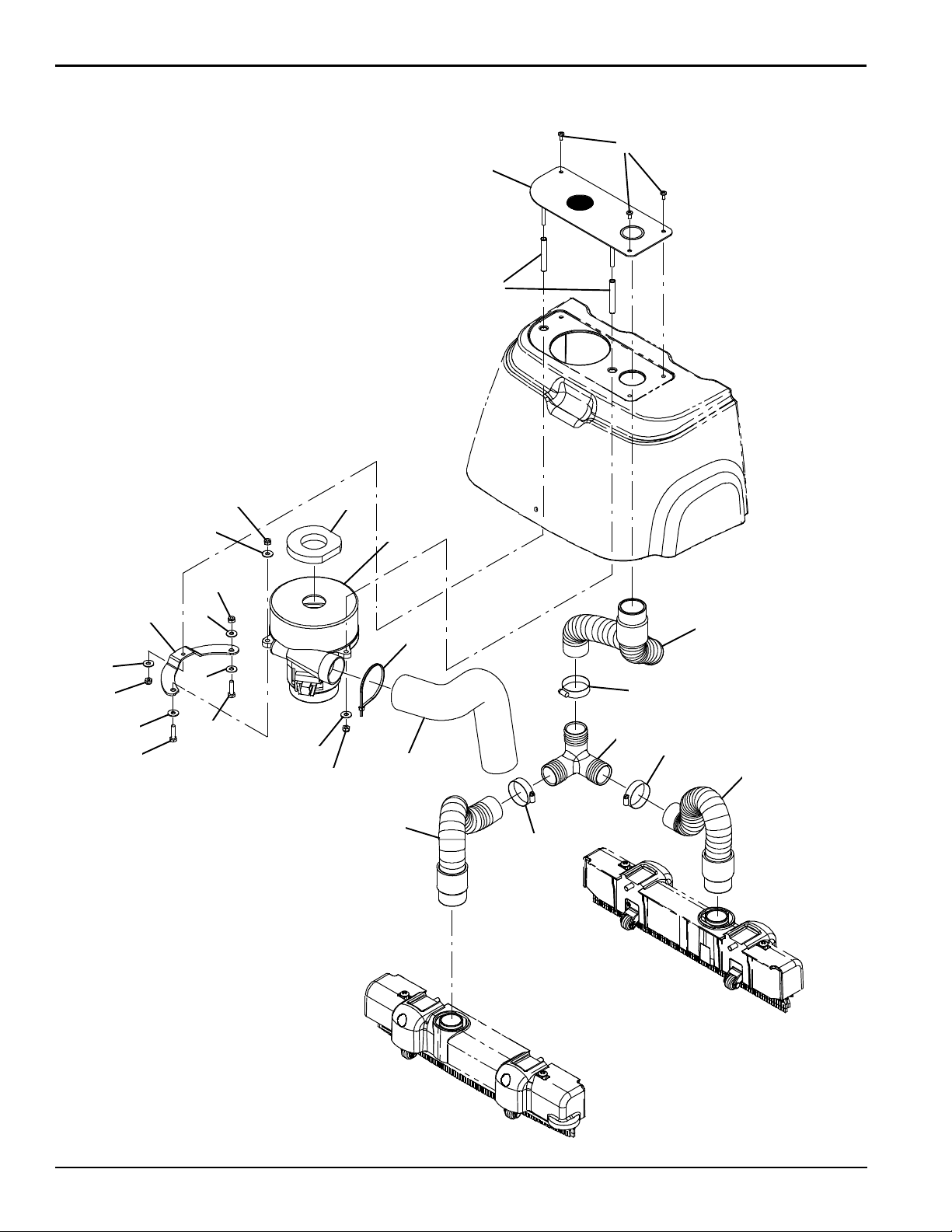

VACUUM FAN GROUP
355061
1
2
3
4
5
65
7
7
5
8
9
10
12
11
13
12
11
12
11
11
14
14
11
12
11
15
Find...
Go To..

STANDARD PARTS
Tennant T1 (03--2009) 19
VACUUM FAN GROUP
Ref. Part No. Serial Number Description Qty.
11031960 (10000000--20000000 )Plate, Mtg, Vacuum 1
2 1026454 (10000000--20000000 ) Screw, Pan, Phl, M5 X 0.80 X 10, Ss 3
3 610144 (10000000--20000000 ) Spacer, Fan 2
4 1038394 (10000000--20000000 ) Hose, Vacuum, 38.0id X 380.0l, 1cuff 1
5 79381 (10000000--20000000 ) Clamp, Hose, Wormdrive, 1.25--2.00d, .50w 3
61031965 (10000000--20000000 )Fitting, Brb, Pvc, 1.5in 3 Way X 90 1
7 1038391 (10000000--20000000 ) Hose, Vacuum, 38.0id X 330.0l, 1cuff 2
8 390677 (10000000--20000000 ) Muffler, Exhaust, Vacfan, Long 1
9 130773 (10000000--20000000 ) Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. D 1
10 1037541 (10000000--20000000 ) Fan, Vacuum, 5.7d, 120 Vac, 2 Stage 1
10 1038018 (10000000--20000000 )Fan, Vacuum, 5.7d, 240 Vac, 2 Stage 1
11 01684 (10000000--20000000 ) Washer, Flat, 0.27b 0.69d .05, Ss 6
12 08708 (10000000--20000000 ) Nut, Hex, Lock, M6 X 1.00, Nl 4
13 630010 (10000000--20000000 ) Gasket, 12.7mm Th, 43mmid 73mmod 1
14 09007 (10000000--20000000 ) Screw, Hex, M6 X 1.00 X 25, Ss 2
15 1034069 (10000000--20000000 )Plate, Vac Mounting 1
Find...
Go To..

STANDARD PARTS
Tennant T1 (03--2009)
20
SOLUTION GROUP
355060
1
2
3
4
2
3
5
5
6
57
8
9
10
11
10
12
13
14
15
16
17
14
13
12
3
3
Find...
Go To..
