Tennant ec- H2O 5680 User manual

5680/5700/5700XP
KIT NO. 9006309--5680, 9006310--5700/5700XP Page1of7
t
ec- H2O Kit
9005074 Rev. 01 (07--09) Tennant Company Customer Service: (800) 553--8033 or (763) 513--2850
This kit includes the necessary parts to convert a standard model into an ec- H2Otmodel.
INSTALLATION INSTRUCTIONS:
Installation Time: 5 Hours
Special Tools Required: Fish--Tape to route ec- H2O
harness.
PREPARE MACHINE FOR KIT INSTALL:
1. Drain the solution tank and recovery tank.
2. Park the machine on a level surface. Lower the
scrub head and remove the key.
FOR SAFETY: Before installing kit, disconnect
battery cables.
3. Remove the front shroud.
4. Disconnect the actuator at the scrub head.
5. Remove the actuator roller guide brackets and
discard (Figure 1).
Remove the
two Actuator
Roller Guide
Brackets
Fig. 1
6. Install the ec--H2O module bracket, pump bracket
and clamps as shown (Figure 2).
ec--H2O
Pump
Bracket
[1002603]
M8x1.25x20
Screw (4) [12273]
M8x1.25x16
Screw [15675]
Clamp (2) [53466]
Clamp [69234]
Flat
W
asher
(
5
)
[
01685
]
ec--H2O Module
Bracket [1044803]
NOTE: Do not tighten the top screws w/ clamps at
this time. You will need to open the clamps later to
route ec--H2O wire harness through clamps.
Fig. 2
INSTALL ec- H2O WIRE HARNESS:
1. Using a Fish--Tape, route the ec--H2O wire
harness through the harness channel along side
the machine’s main wire harness (Figure 3). Pull
the harness from the front of the machine to the
back (Figure 3).
p/n 1044831 -- 5680 ec--H2O Wire Harness
p/n 1044833 or 1055478 -- 5700 ec--H2O Wire
Harness
Harness
Channel
NOTE: If installing
the 5700 ec--H2O kit,
cut off the fuse
connector to allow
clearance to route
harness. After
completing step 3
(Fig 5a), reconnect
wire with an
insulated16G
butt--splice
connector.
(5680
harness
shown)
Fuse
Connector
Cut Here
Fish--Tape
Insert
harness
end here
Route this
end of
harness
(5700 harness)
Fig. 3
2. Open the control console to access the internal
wiring (Figure 4). Two screws secure console.
Fig. 4

5680/5700/5700XP ec- H2O Kit
INSTALLATION INSTRUCTIONS -- Continued
Page2of7
KIT NO. 9006309--5680, 9006310--5700/5700XP
9005074 Rev. 01 (05--09) Tennant Company Customer Service: (800) 553--8033 or (763) 513--2850
3. Continue routing the ec--H2O harness up into the
control console (Figure 5a). If installing the 5680
ec--H2O kit, route the battery ground wire into the
battery compartment (Figure 5b).
5680 Model
Connect ground
wire to negative
battery post
Route
harness
through
grommet
Fig. 5a Fig. 5b
5680 MODEL -- INSTALL THE ec- H2O
CONTROL CONSOLE COMPONENTS:
1. Remove and discard the left side cover plate and
install the ec--H2O control console components as
shown (Figure 6). Reinstall hour and battery meters.
Circuit Breaker
[383721]
ec--H2O Switch
[397889] ec--H2O LED
[1041822]
ec--H2O
Switch Label
[1050012]
ec--H2O
Cover Plate
[1041757]
ec--H2O Circuit
Breaker Label
[1050015]
Fig. 6
2. Connect the routed ec--H2O harness wires to the
control console components as shown. Locate the
factory installed wires (Gray 8, Green 25) and
connect to ec--H2O switch (Figure 7).
Green 95
Black 13V
Gray 88
Green 25
(factory installed)
Gray 8
(factory installed)
Blue 46
Gray 48
Brown 2C
ec--H2O
Switch
ec--H2O Circuit Breaker
ec--H2O LED
Fig. 7
3. Connect the remaining ec--H2O harness wires to
the contactor terminals as shown (Figure 8). After
connecting harness, close the control console.
Brown 2C
Purple 7H
Brush
Contactor
Main
Contactor
Fig. 8
5700/5700XP MODEL -- INSTALL THE ec-
H2O CONTROL CONSOLE COMPONENTS:
1. Install the ec--H2O control console components
as shown (Figure 9). Use the ec--H2O switch label
as a template and drill a 5/16” hole into the control
console for the ec--H2O LED light.
ec--H2O Switch
[p/n 363607]
ec--H2O LED
[p/n 1041822]
ec--H2O
Switch Label
[p/n 1050016]
Drill 5/16” hole
for ec--H2O LED
Fig. 9
2. Connect the routed ec--H2O harness wires to the
ec--H20 LED as shown. Locate the factory
installed wires (Purple 27, Org 24, Grn 48) and
connect to ec--H2O switch as shown (Figure 10).
ec--H2O LED
Green 95
Black 13V
Gray 88
Green 48
(factory installed)
Orange 24
(factory installed)
Purple 27
(factory installed)
ec--H2O
Switch
Fig. 10

Page3of7
KIT NO. 9006309--5680, 9006310--5700/5700XP
5680/5700/5700XP ec- H2O Kit
INSTALLATION INSTRUCTIONS -- Continued
9005074 Rev. 01 (05--09) Tennant Company Customer Service: (800) 553--8033 or (763) 513--2850
3. Connect the remaining ec--H2O harness wires to
the contactor terminals as shown (Figure 11). After
connecting harness, close the control console.
Orange 3B
Purple 47D Brush
Contactor
Main
Contactor
Fig. 11
INSTALL THE ec- H2O SOLUTION SYSTEM:
1. Install the in--line filter to the bottom of the solution
tank as shown (Figure 12). Use a thread sealer
tape on all fittings.
Remove plug
and discard
Fitting [1005218]
Solution tank
In--line Filter
[1005388]
Fitting
[79273]
Fig. 12
2. Assemble the pump fittings as shown and connect
the pump to the pump bracket (Figure 13). Use a
thread sealer tape on all fittings.
Fitting
[150418]
Fitting
[150709]
Fitting
[150006]
Pump
[1042495]
Fitting
[1005630]
Clamp [43844]
Fitting
[150515]
Clamp
[43555]
Fasten pump
to bracket
using clamp
Connect
hose to
in--line filter
(Figure 12)
Hose (2ft)
[376720]
Pump
bracket
Clamp
[43844]
Fig. 13

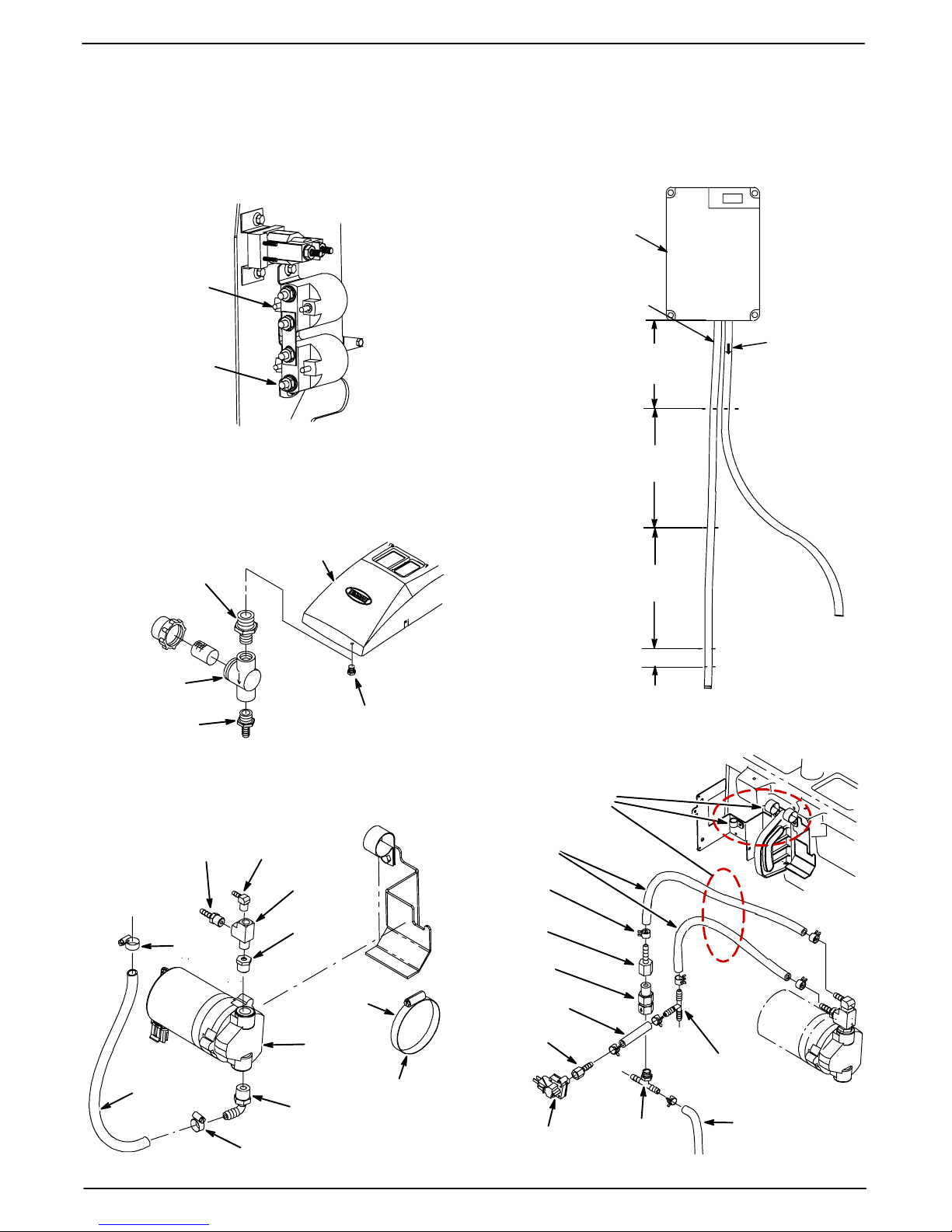

3. Cut the two ec--H2O module hoses as specified
(Figure 14).
ec--H2O Module
14 in
(61cm)
20 in
(51cm)
2.25 in (5.7cm)
Outlet
Hose has
an Arrow
Intake
Hose
[p/n 1053250
or1048395]
Cut both hoses
20 in
(51cm)
Cut both hoses
Cut
Cut
Cut
Cut specified
hose lengths
and save for
next step
Fig. 14
4. Assemble the ec--H2O solution hose system as
shown (Figure 15). Use a thread sealer tape.
Hose (Fig. 14)
(20”/51cm)
Route hoses through
the3clamps
Clamp (7)
[603654]
Fitting
[150510]
Valv e
[1044790]
Fitting
[150520]
Hose (Fig. 14)
(2.25”/5.7cm)
Pressure Switch
[1044415]
Fitting
[607306]
Fitting
[150713]
Hose [578227000 -- 3ft]
(cut to 27”/68.5cm)
Fig. 15

5680/5700/5700XP ec- H2O Kit
INSTALLATION INSTRUCTIONS -- Continued
Page4of7
KIT NO. 9006309--5680, 9006310--5700/5700XP
9005074 Rev. 01 (05--09) Tennant Company Customer Service: (800) 553--8033 or (763) 513--2850

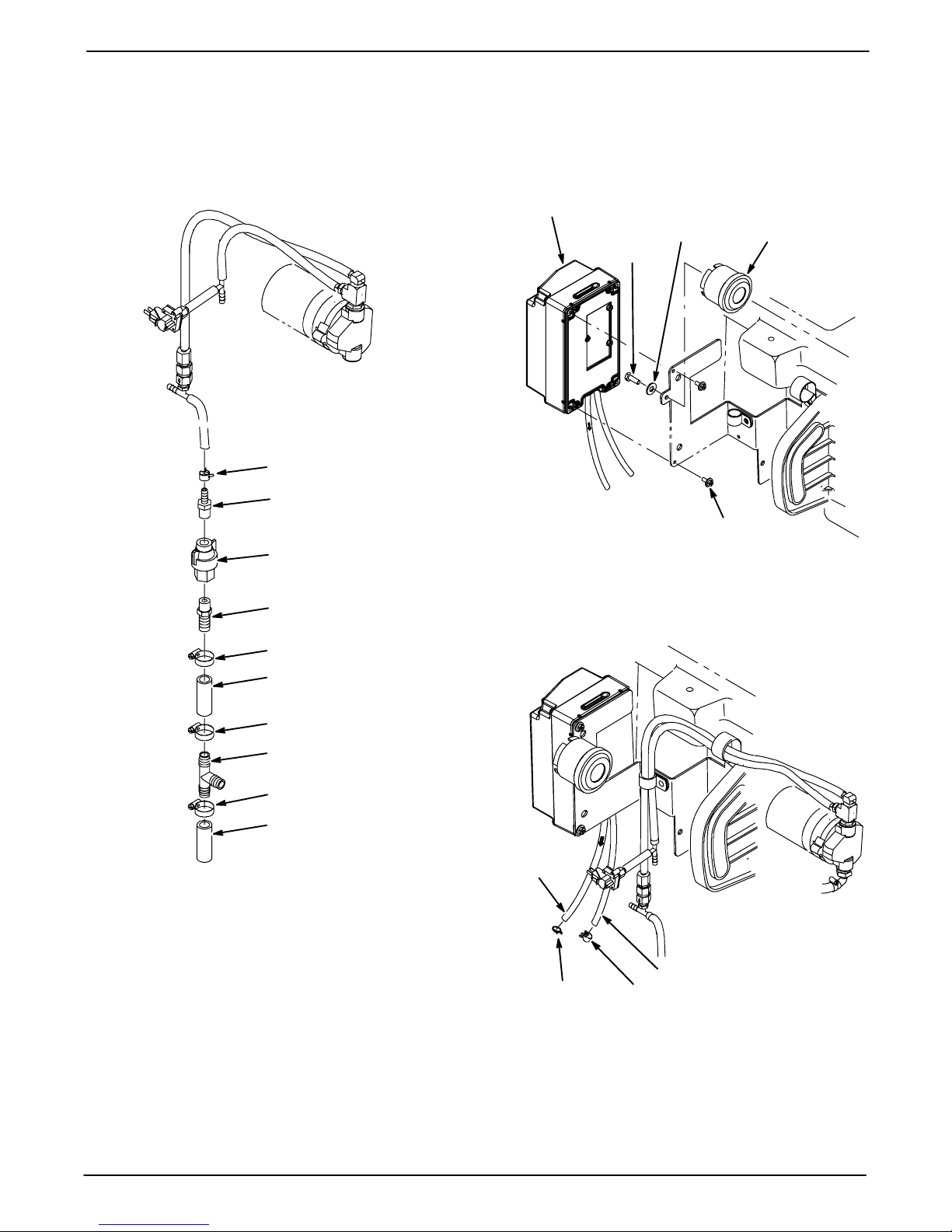

5. Continue to assemble the ec--H2O solution hose
system as shown (Figure 16). Use thread sealer
tape on all fittings.
Clamp [603654]
Fitting [50901]
Fitting, Quick Disconnect
[1043866]
Fitting [1010775]
Clamp [54333]
Hose [C410165 -- 1 ft]
(cut to 2.25”/5.7cm)
Clamp [54333]
Fitting, Tee
[63245--1]
Hose [C410165 -- 1 ft]
(Disk -- cut to 2.25”/5.7cm)
(Cyl -- cut to 4”/10cm)
Clamp [54333]
Fig. 16
6. Mount the ec--H2O module and the horn to the
module bracket as shown (Figure 17).
ec--H2O Module
[1053250/1048395]
ec--H2O Horn
[392937]
Washer
[01685]
Screw
supplied
with Horn
Screw (2)
[1034731]
HINT: Before mounting the
module and horn, connect
the ec--H2O harness to
module and horn
(see Fig. 20 / 22)
Fig. 17
7. Connect the ec--H2O module hoses to the
ec--H2O solution system as shown (Figure 18).
Outlet
Hose w/
arrow
Intake Hose
A
A
B
B
Clamp
[613735] Clamp
[603654]
Fig. 18

Page5of7
KIT NO. 9006309--5680, 9006310--5700/5700XP
5680/5700/5700XP ec- H2O Kit
INSTALLATION INSTRUCTIONS -- Continued
9005074 Rev. 01 (05--09) Tennant Company Customer Service: (800) 553--8033 or (763) 513--2850
9. Set the module dip switches accordingly and
install grommet (Figure 19).
DIP
Switches
DIP Switch Setting
28”/700mm &
32”/800mm Disk Model
123456
Grommet
[1050431]
28”/700mm &
32”/800mm Cyl Model
123456
36”/900mm Disk Model
123456
36”/900mm Cyl Model
123456
Fig. 19
5680 MODEL -- CONNECT THE ec- H2O
WIRE HARNESS TO KIT COMPONENTS:
1. Connect the routed ec--H2O wire harness to the
ec--H2O components as indicated (Figure 20).
Route the pump wire connector through the two
hose clamps as indicated.
2. Connect the capacitor plug [p/n 1040868] to the
e--H2O wire harness as shown (Figure 20).
To Pressure Switch
To Module
To P u m p
Capacitor
Plug
1040868]
Pressure
Switch
Red
Blk
To H o r n
Route
Harness
through
clamps
Fig. 20
3. Secure the ec--H2O wire harness to the machine
using the two wire--ties provided [p/n 130773].
5700/5700XP MODEL -- CONNECT THE ec-
H2O WIRE HARNESS TO KIT COMPONENTS:
1. Locate the open plug connector on the main wire
harness near the scrub head (Figure 21).
Open plug connector
13A Black/27 Purple
from Main Wire
Harness
Fig. 21
2. Connect the routed ec--H2O wire harness to the
ec--H2O components as indicated (Figure 22).
Route the pump wire connector through the two
hose clamps as indicated.
3. Connect the capacitor plug [p/n 1040868] to the
e--H2O wire harness as shown (Figure 22).
To Module
To P u m p
Pressure
Switch
Red
Blk
To H o r n
Capacitor
Plug
[1040868]
To Pressure Switch
To Main Harness
Route Harness
through clamps
Fig. 22
4. Secure the ec--H2O wire harness to the machine
using the two wire--ties provided [p/n 130773].

5680/5700/5700XP ec- H2O Kit
INSTALLATION INSTRUCTIONS -- Continued
Page6of7
KIT NO. 9006309--5680, 9006310--5700/5700XP
9005074 Rev. 01 (07--09) Tennant Company Customer Service: (800) 553--8033 or (763) 513--2850
SCRUB HEAD ASSEMBLY:
Disk Model:
1. Reconnect the actuator to the scrub head.
2. Connect solution hoses to the scrub head as
shown (Figure 23).
Solution feed hose
from solution tank
ec--H2O
Solution Hose Clamp
[54333]
Fig. 23
3. Replace the front machine shroud and reconnect
the battery cable.
Cylindrical Brush Model:
Spray Bar Kit required:
9006743 --For 700mm Cyl Brush Model
9006744 --For 800mm Cyl Brush Model
9006745 --For 900mm Cyl Brush Model
1. Remove the hose guide bracket and the T--fitting
from the scrub head and discard (Figure 24).
Remove
T--Fitting
Remove
Hose Guide
Bracket NOTE: Install a
.50 Flat Washer
[32486] in its place
(not included with kit)
Fig. 24
2. Reconnect the actuator to the scrub head.
3. Install spray bar kit and connect solution hoses as
shown (Figure 25).
Fig. 25
4. Replace the front machine shroud and reconnect
the battery cable.
Screw (4) [76099]
Washer (4)
[01685]
Solution feed hose
from solution tank
ec--H2O
Solution Hose
Screw (3)
[11635]
Washer (3)
[01684]
Bracket
[1014673]
Spray Bar
[1046049--700mm Model]
[1025276--800 & 900mm Models]
Screw (2) [12273]
Washer (2) [01685]
Spray bar cap (2) [1025580]
Angle Bracket
[1046020--700mm Model]
[1026023--800mm Model]
[1027642--900mm Model]
Spray Bar Bracket
[1014993--700mm Model]
[1014957--800 & 900mm Models]
Fitting
[64743]
Clamp [54333]

Page7of7
KIT NO. 9006309--5680, 9006310--5700/5700XP
5680/5700/5700XP ec- H2O Kit
INSTALLATION INSTRUCTIONS -- Continued
9005074 Rev. 01 (07--09) Tennant Company Customer Service: (800) 553--8033 or (763) 513--2850
APPLY THE ec- H2O LABELS:
Remove the existing labels and apply the new
ec--H2O labels on the machine as described below
(Figure 26).
Label, 5680 ec--H2O, Sid
e
[p/n 1050013 Qty 2]
Kit 9006309
Label, NFSI
[p/n 1015012]
Label, Attention Fill,
ec--H2O [p/n 1050003]
Label, 5700 ec--H2O, Sid
e
[p/n 1050017 Qty 2]
Kit 9006310
Label, 5700XP ec--H2O, Sid
e
[p/n 1050018 Qty 2]
Kit 9006310
Label, ec--H2O, Front
[p/n 1050014]
Align label w/ tick
marks in plastic
Tick Marks
Label
5”
12.7cm
Fig. 26
OPERATE THE ec- H2O SYSTEM:
To ensure the ec--H2O system is operating properly,
perform the following:
1. Fill solution tank with cool clean water (less than
70°F/21°C). Do not add any conventional floor
cleaning detergents, system failure may result.
2. Turn the key to the on ( I ) position.
3. Press the ec--H2O system button to the on ( I )
position.
4. The ec--H2O system indicator light will not turn
on until you begin scrubbing with the machine
(Figure 27).
Solid Green Light =
Normal operation
Solid Red Light =
System fault
ec--H2O System
Indicator Light
Fig. 27
4. Check all hose connections for water leaks.
If storing the machine in freezing temperatures, make
sure all water is removed from the machine, including
the the ec--H2O module.
