GAS GRILL OUTDOOR KITCHEN "PETERSBURG"
Version 2021,
Item No. 3193UK
*Kitchen faucet is not included in the delivery scope
P21068_TEPRO_3193UK_Petersburg_210721.indd 1 22/7/2021 5:09 PM

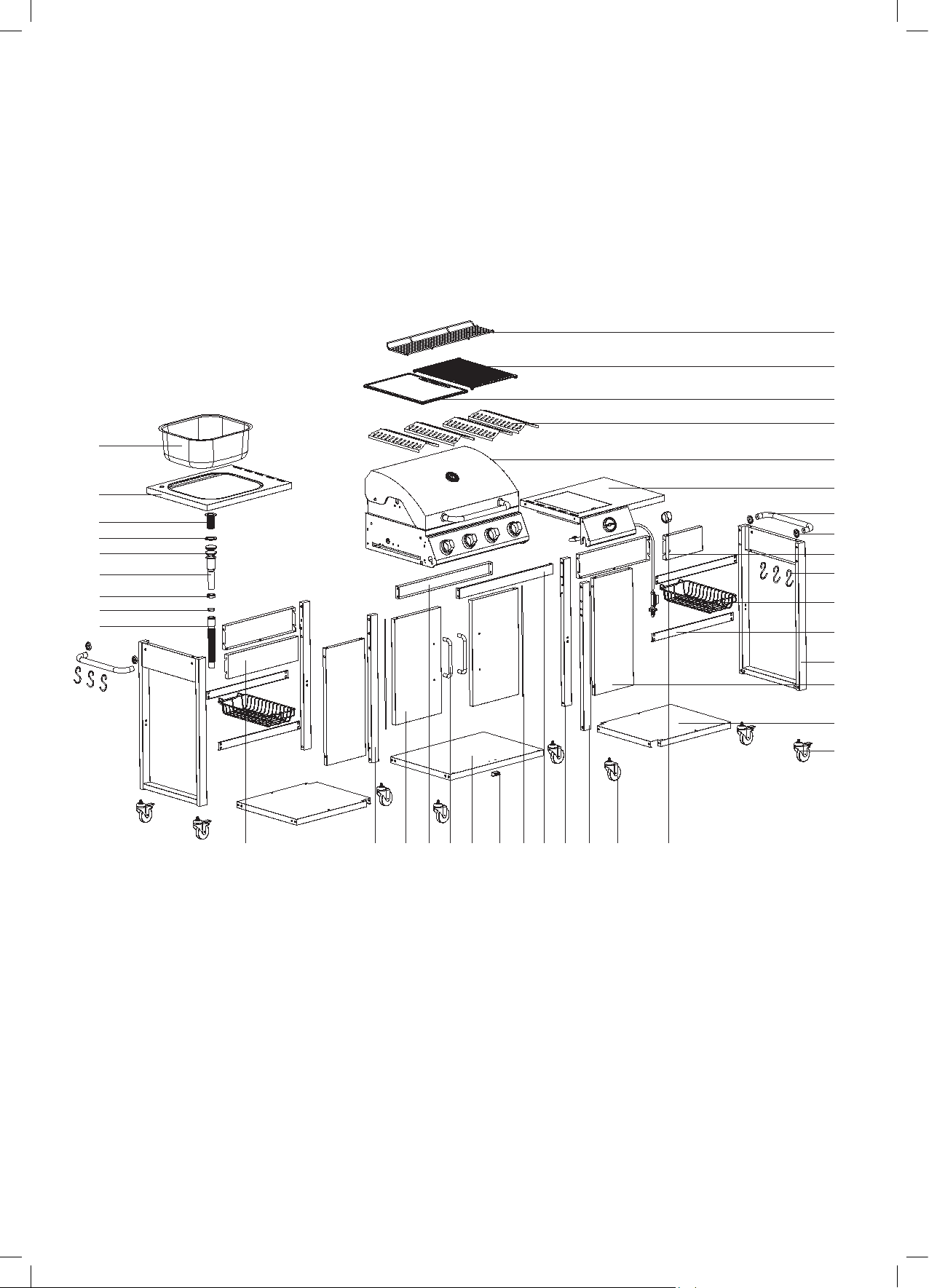

38
37
36
35
34
33
32
31
30
29
27 26 25 24 23 22 21 20 19 18 17 28
16
15
14
13
12
11
10
09
08
07
06
05
04
03
02
01
P21068_TEPRO_3193UK_Petersburg_210721.indd 2 22/7/2021 5:09 PM

3
t
Contents
Before using the device.................................................................................................. 4
Scope of delivery............................................................................................................. 4
Intended use .................................................................................................................... 4
For your safety.............................................................................................................. 4-5
Signal symbols............................................................................................................. 4
General safety instructions .......................................................................................... 4
Safety instructions ................................................................................................... 4- 5
Assembly..................................................................................................................... 5 - 9
Preparation .................................................................................................................. 5
Required tools ............................................................................................................. 6
Assembling the BBQ............................................................................................... 6 - 8
Connecting the Gas Bottle ............................................................................................. 8
Regulator and Hose..................................................................................................... 8
Storing the BBQ........................................................................................................... 8
The Gas Bottle............................................................................................................. 8
Connection to the BBQ ................................................................................................ 8
Checking for Gas Leaks .............................................................................................. 8
Setting up the BBQ.......................................................................................................... 9
Before grilling .................................................................................................................. 9
Operation................................................................................................................... 9 - 10
Maintenance and Cleaning ........................................................................................... 11
Troubleshooting ............................................................................................................ 12
Disposal.......................................................................................................................... 12
Declaration of conformity............................................................................................. 12
Technical details............................................................................................................ 12
Service ........................................................................................................................... 12
Distributor ...................................................................................................................... 12
P21068_TEPRO_3193UK_Petersburg_210721.indd 3 22/7/2021 5:09 PM

4
t
Before using the device
After unpacking and before every use, check whether the item
shows any signs of damage.
Should this be the case, do not use the item, but notify your
retailer.
The operating manual is based on the norms and regulations
that are applicable in the European Union. In non-EU countries,
observe country-specific directives and laws!
Before start-up, first read through the safety information
and the operating manual carefully. Only by doing so
will you be able to use all of the functions safely and
reliably.
Keep the operating manual and pass it on to any third party that
might own the BBQ after you.

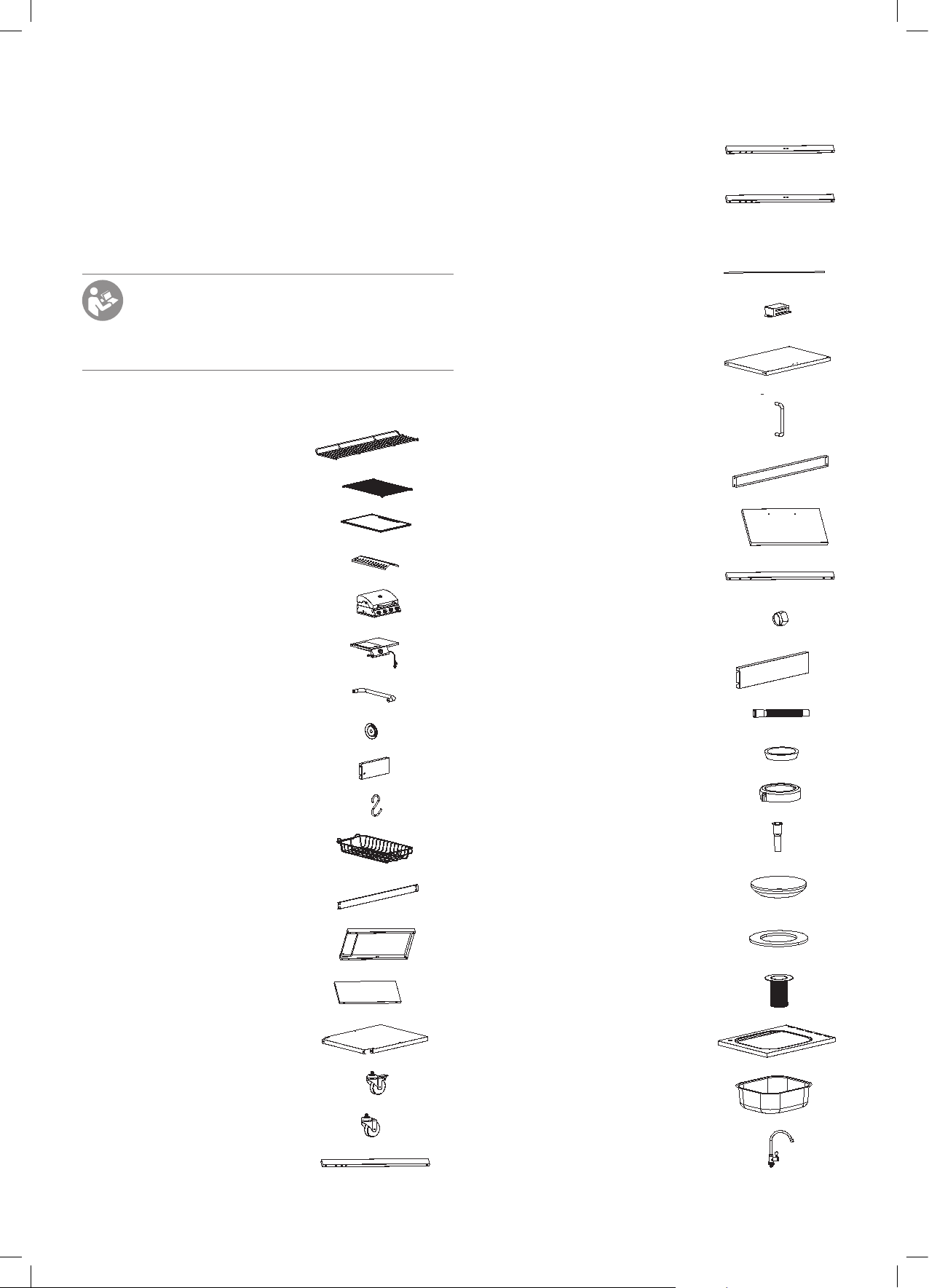

Scope of delivery
1 Warming rack 1
2 BBQ grate 1
3 Grill tray 1
4 Flame tamer 4
5 Firebox 1
6 Side burner table 1
7 Handle 2
8 Handle base 4
9 Short support 1
10 Hook 6
11 Basket 2
12 Basket support 4
13 Leg assembly 2
14 Side front panel 2
15 Side bottom shelve 2
16 Lock caster 4
17 Caster 4
18 Left front leg 1
19 Rear leg 2
20 Door bracket 1
21 Door axle 2
22 Magnet 1
23 Bottom shelve 1
24 Door Handle 2
25 Rear support 1
26 Door 2
27 Right front leg 1
28 Knob 1
29 Long support 3
30 Flexible drain pipe A 1
31 Wedge seal ring 1 1
32 Seal ring 1 1
33 Drain pipe B 1
34 Wedge seal ring 2 2
35 Seal ring 3 2
36 Drain plug 2 1
37 Sink table 1
38 Sink 1
not included
P21068_TEPRO_3193UK_Petersburg_210721.indd 4 22/7/2021 5:09 PM

5
t
A M6x10 srew 78
B M6x60 srew 12
C M4 wing nut 4
D M3x10 screw 2
E M3 nut 2
Please check that the delivery is complete and undamaged.
Should a part be missing or defective, please contact your dealer.
Claims relating to damages or missing parts made after assembly
has taken place or commenced will not be recognised.
Intended use
Use this BBQ to heat, cook and grill food. It is suitable exclusively
for outdoor use and in a domestic setting.
Only use the item as described in this operating manual. All other
uses are considered improper and can lead to material damage
or even to personal injuries.
The manufacturer accepts no liability for damages caused by
improper use.
For your safety
Signal symbols
Danger High risk!
Failure to observe the warning can lead to potentially
fatal injuries.
Attention Moderate risk!
Disregarding this warning can lead to property
damage.
Caution Low risk!
Facts that should be respected when handling the
device.
GENERAL SAFETY INSTRUCTIONS
- to be observed in each use
–Use outdoors only!
–Read the instruction manual before starting up the
barbecue.
–WARNING! Accessible parts can be very hot. Keep
children away.
–Do not move the device during use.
–Close the gas intake on the gas bottle after use.
SAFETY INSTRUCTIONS
Danger Fire hazard!
Parts of the BBQ become very hot during operation
and can cause fires.
– It is essential that you have a fire extinguisher and first-aid kit
ready and be prepared for an accident or fire.
– Place the BBQ on an even, horizontal, secure, heat-resistant
and clean surface.
– Set up the BBQ with at least 1 m clearance from highly
flammable materials such as awnings, wooden patios or
furniture.
– Do not move the BBQ during use.
– Some foods produce flammable fats and juices. Clean the
BBQ regularly, preferably after each use.
– Never leave the BBQ unattended during use.
Danger Fire hazard!
Never turn on/fire up the BBQ with the lid closed.
Operate the gas BBQ with a small flame when the lid is closed.
Danger Risk of burning and accidents!
This device is not intended for use by persons (incl.
children) with limited physical, sensory, or mental
capacities or lacking experience and/or lacking
knowledge.
– Such persons must be informed about the dangers of the
device and supervised by a person responsible for their safety.
– All modifications to the product present a great safety risk and
are prohibited. Do not tamper with the device yourself. In case
of damages, repairs or other problems with the grill, contact
our service point or a professional in your area.
– Keep children and pets away from the product.
The BBQ, the gas flame and the food on the BBQ can become
very hot during operation, such that any contact with these can
cause very severe burns.
– Keep sufficient distance from the hot parts, since any contact
can lead to severe burns.
– Always wear oven or BBQ gloves when grilling. (Glove
Category II with regard to heat protection, e.g. DIN-EN 407)
– Use only long-handled utensils with heat-resistant grips.
– Do not wear any clothing with wide sleeves.
– Let the BBQ cool down completely before cleaning and/or
storage.
Danger Risk of deflagration!
Flammable liquids that are poured onto the flames
can form flashes or deflagrations.
Danger Risk of poisoning!
Gas is odourless and can be lethal in closed spaces!
– Use the grill outdoors only.
Danger Health risk!
Do not use any decolorants or thinners to remove
stains. These are harmful to health and must not
come into contact with food.
P21068_TEPRO_3193UK_Petersburg_210721.indd 5 22/7/2021 5:09 PM

6
t
Danger Risks to children!
While playing, children can become caught in the
packaging film and choke.
– Do not let children play with the packaging films.
– Make sure that children do not put any small assembly parts
into their mouths. They could swallow the parts and choke on
them.
Danger Risk of injury!
Both the BBQ and individual parts have some sharp
edges.
– Be careful with individual parts to prevent accidents and/or
injury during assembly and use. Wear protective gloves if
necessary.
– Do not set up the BBQ near entryways or high-traffic zones.
– Always exercise extreme caution while grilling. If distracted,
you can lose control of the device.
– Always be attentive to and aware of what you are doing. Do
not use this product if you are unfocussed or tired, or if you are
under the influence of drugs, alcohol, or medications. Just one
moment of carelessness during use of the product can lead to
serious injuries.
Attention Risk of damage!
During use, the screws can loosen slowly and impair
the BBQ's stability.
– Check the stability of the screws prior to each use. If necessary,
tighten all of the screws again to ensure the BBQ is standing
securely.
Attention Risk of damage!
Do not use any strong or grinding solvents or
abrasive pads, since these can attack the surfaces
and leave behind scrape marks.
Danger Risk of burning and accidents!
Caution! If you detect the smell of gas:
– Immediately close the gas intake of the gas bottle.
– Extinguish all open flames.
– Do not operate any electrical devices.
– Ventilate the surrounding area.
– Carry out a leakage point test, as described in this operating
manual.
– If, after testing and once the leakages have been remedied,
you continue to detect the smell of gas, do not continue to
use the BBQ. Immediately contact the dealer from whom the
device was purchased.
Danger Risk of burning and accidents!
Do not store the gas BBQ in immediate proximity
to combustibles (e.g. petrol) or other flammable
liquids or gases.
– The gas bottle must be separated from the gas BBQ during
storage.
– Do not store the gas bottle in immediate proximity to the gas
BBQ.
– Do not place the gas bottle directly under the grill.
Assembly
Preparation
Danger Risk of injury!
Failure to follow these instructions can lead to
problems and risks while using the BBQ.
– Follow all of the assembly instructions listed here.
1. First read through the assembly instructions completely.
2. Two people are required for assembly.
3. Allow yourself enough time for assembly and find an even
working space of two to three square meters.
4. Place the necessary tools within reach.
5. Small parts such as handles might be preassembled.
Required tools
1 x Phillips screwdriver
1 x adjustable spanner
P21068_TEPRO_3193UK_Petersburg_210721.indd 6 22/7/2021 5:09 PM

7
t

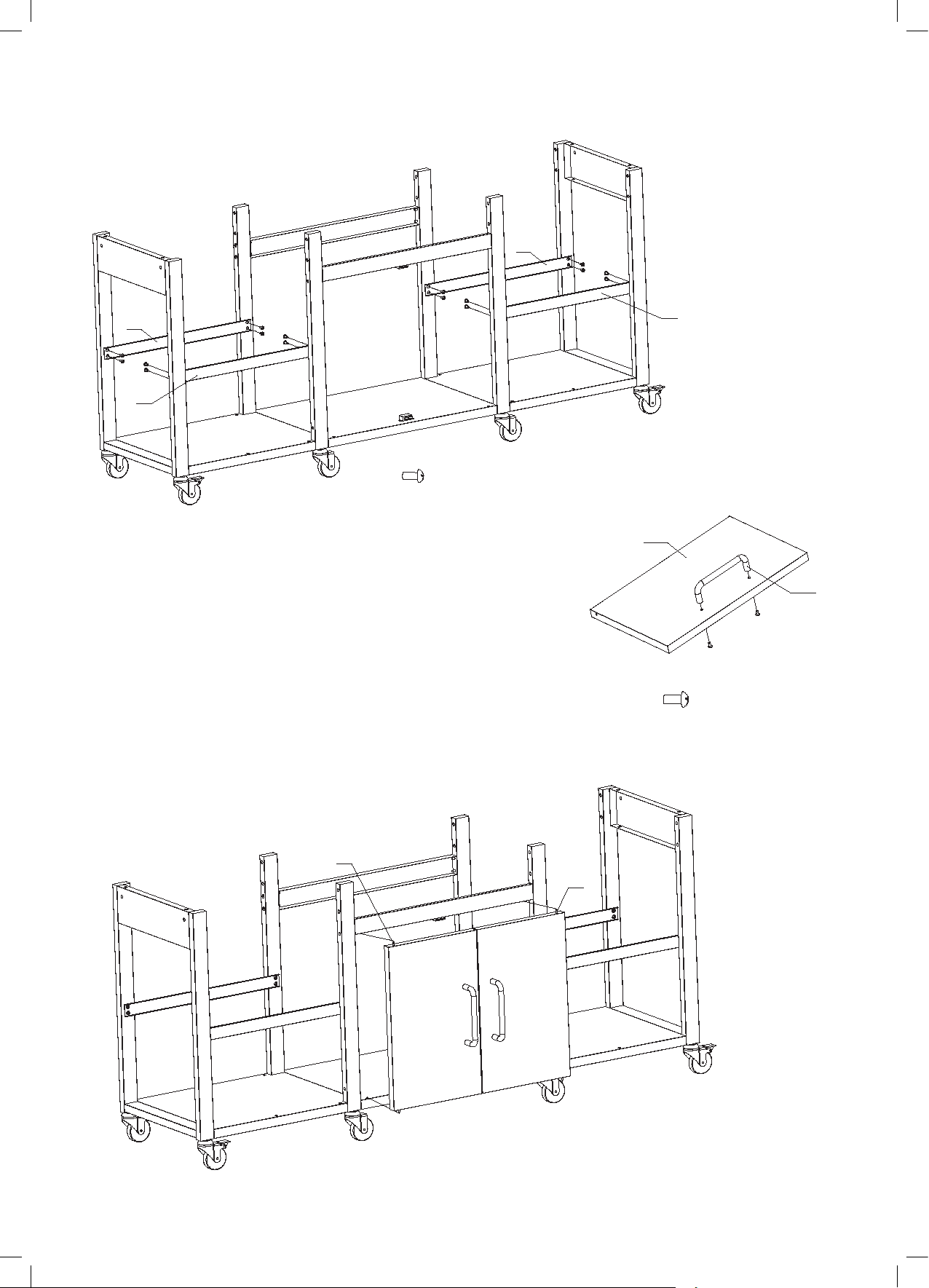

Assemble gas grill kitchen
Step 1
18
27
20 A
A
M6X10 4Pcs
A
19
19
25 B
B
M6X60 4Pcs
B
18
27
20 A
A
M6X10 4Pcs
A
19
19
25 B
B
M6X60 4Pcs
B
Step 2
Step 3
23
A
A
A
A
AM6X10 4Pcs
22
23
E
D
E
M3 Nut 2Pcs
DM3X10 2Pcs
Step 4
23
A
A
A
A
AM6X10 4Pcs
22
23
E
D
E
M3 Nut 2Pcs
DM3X10 2Pcs
M6x10 4 pcs.
M6x60 4 pcs.
M3x10 2 pcs.
M3 nut 2 pcs.
M6x10 4 pcs.
P21068_TEPRO_3193UK_Petersburg_210721.indd 7 22/7/2021 5:09 PM

8
t
Step 5
AM6X10 16Pcs
A
A
A
A
A
A
A
A
A
A
A
A
15
15
13
13
Step 6
16
16
16
16
17
17
17
17
M6x10 16 pcs.
P21068_TEPRO_3193UK_Petersburg_210721.indd 8 22/7/2021 5:09 PM

9
t
Step 7
12
12
12
12
A
A
A
A
A
A
A
A
AM6X10 16Pcs
Step 8
A
A
24X2
26X2
M6X10 4Pcs
A
Step 9
21
21
M6x10 16 pcs.
M6x10 4 pcs.
P21068_TEPRO_3193UK_Petersburg_210721.indd 9 22/7/2021 5:09 PM

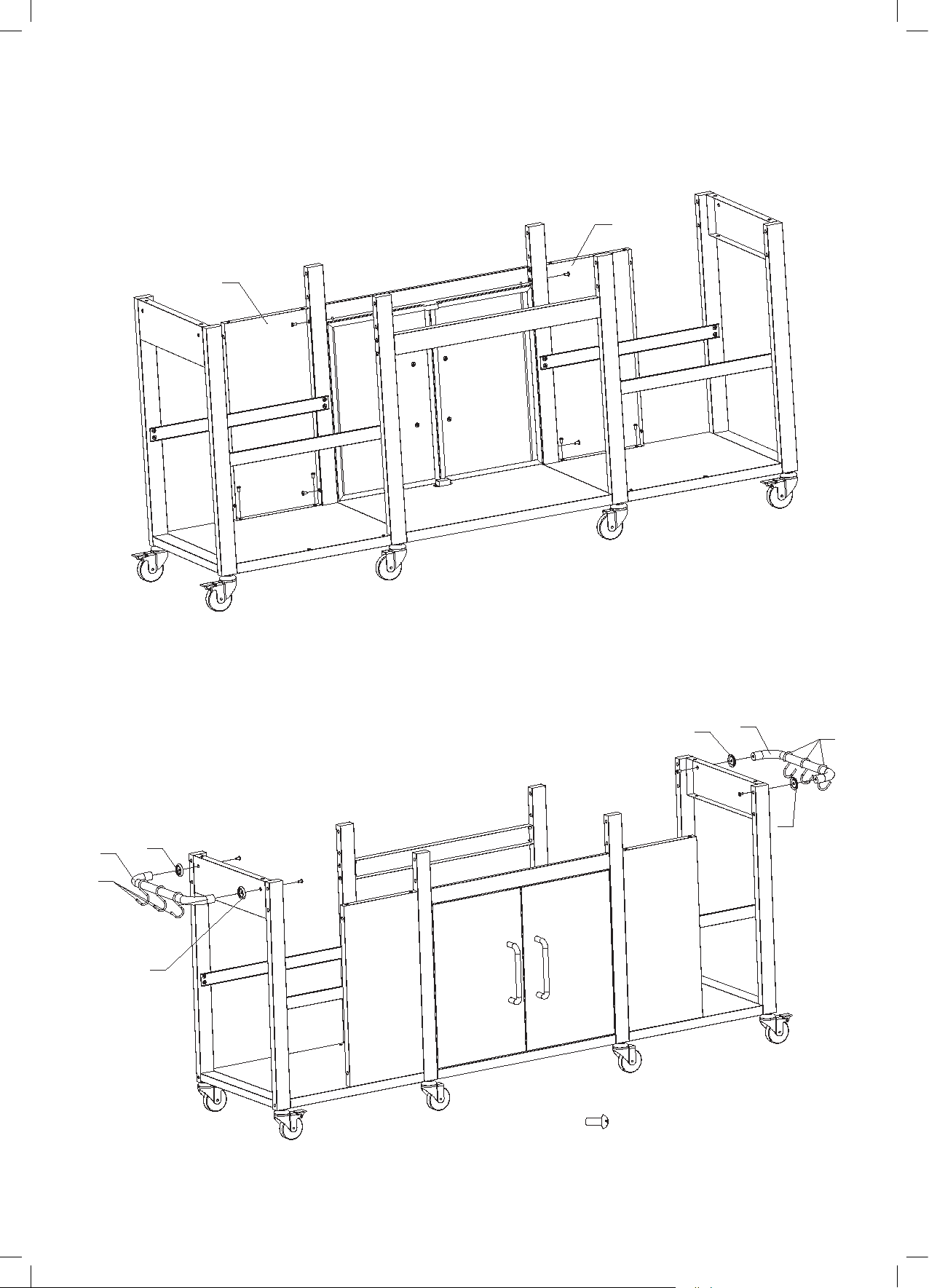

10
t
10
07
08
08
10
07
08
08
A
A
A
A
M6X10 4Pcs
A
Step 10
14
14
A
A
A
A
A
AA
A
Step 11
M6x10 4 pcs.
P21068_TEPRO_3193UK_Petersburg_210721.indd 10 22/7/2021 5:09 PM
